Sound Sation Mood 107 Wash User manual

4IN1 7X10W LED MINI WASH MOVING HEAD
Please read this manual carefully and proper take care of this manual.
USER MANUAL

2
ENGLISH
Dear customer,
First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument, professional audio and lighting users offering
a wide range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible im-
provements to introduce in the next future. Go to our website www.soundsationmusic.
com and send an e-mail with your opinion, this will help us to build instruments ever
closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team

3
ENGLISH
TABLE OF CONTENTS
1. INTRODUCTION.........................................................................................................6
1.1. UNPACKING .............................................................................................................................................................6
1.2. Accessories...............................................................................................................................................................7
2. OVERVIEW..................................................................................................................7
3. MAIN FEATURES........................................................................................................7
4. MAINS CONNECTIONS .............................................................................................7
5. DMX CONNECTION...................................................................................................8
5.1. DMX Terminator .....................................................................................................................................................8
5.2. 3-Pin vs 5-Pin DMX cables .................................................................................................................................9
6. FRONT & REAR PANELS ...........................................................................................9
7. DISPLAY OPERATION ..............................................................................................10
8. DMX CHANNEL MODES..........................................................................................10
8.1. 9-CH Mode.............................................................................................................................................................10
8.2. 14-CH Mode ..........................................................................................................................................................11
9. TECHNICAL SPECIFICATIONS .................................................................................12
10. WARRANTY AND SERVICE .....................................................................................13
11. WARNING.................................................................................................................14

4
ENGLISH
MOOD 107 Wash User manual

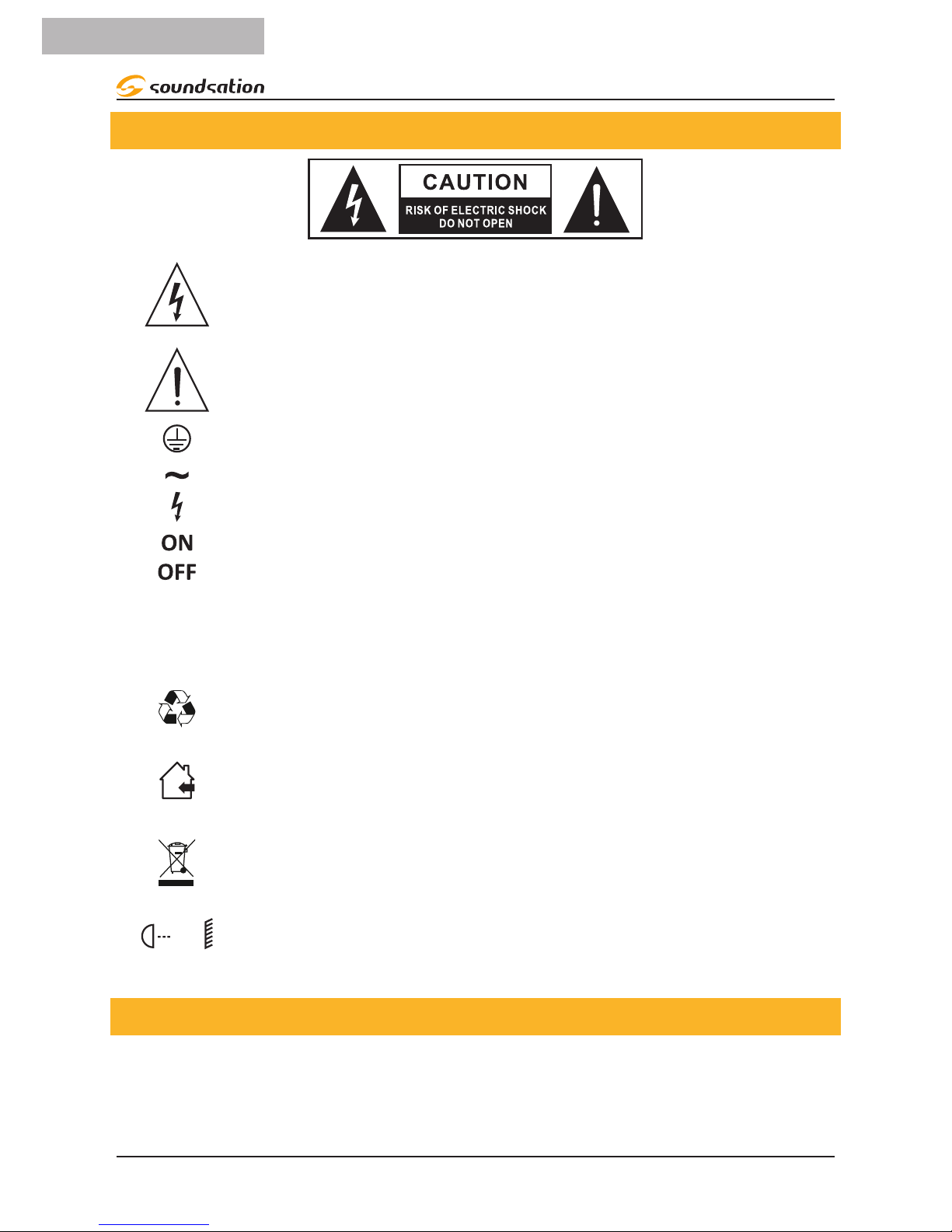

IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sufcient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
To protect the environment, please try to recycle the packing material
as much as possible
The projector is for indoor use only, IP20. Use only in dry locations.
Keep this device away from rain and moisture, excessive heat, humid-
ity and dust. Do not allow contact with water or any other uids, or
metallic objects.
Don’t throw this product away just as general trash, please deal with
the product follow the abandon electronic product regulation in your
country.
0.5m
Locate the xture in a well ventilated spot, away from any ammable
materials and/or liquids. The xture must be xed at least 50cm from
surrounding walls
TAKING CARE OF YOUR PRODUCT
fRead these instructions
fKeep these instructions
fHeed all warning

5
ENGLISH
Mood 107 wash User manual
fFollow all instructions
Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
Condensation
To avoid condensation to be formed inside, allow this unit to adapt to the surrounding
temperatures when bringing it into a warm room after transport. Condense sometimes
prevents the unit from working at full performance or may even cause damages.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat. Don not use it when maximum ambient tempera-
ture is higher than 40°C.
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug has two poles; a
grounding-type plug has two poles and a third grounding terminal. The third prong is
provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement. Unplug the unit when it is not used for a longer time.
Power Supply
In case of external power supply, the apparatus should be connected to the power sup-
ply only of the type as marked on the apparatus or described in the manual. Failure to
do could result in damage to the product and possibly the user. Unplug this apparatus
during lightning storms or when unused for long periods of time.
Electrical Connection
Always disconnect from the power source before servicing or replacing fuse and be
sure to replace with same fuse size and type. Cut off power before moving, repairing
and cleaning the unit. Improper electrical wiring may invalidate the product warranty.

6
ENGLISH
MOOD 107 Wash User manual
To avoid electric shock, all xtures must be connected to circuits with a suitable ground.
Do not power on and power off the xture in a short time.
DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source).
Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
1. INTRODUCTION
Thank you for purchasing our MOOD 107 WASH moving head. Enjoy your new equip-
ment and make sure to read this manual carefully before operation!
This user manual is made to provide both an overview of controls, as well as informa-
tion on how to use them. In order to help you to understand the connections between
the various controls, we have gathered in groups according to their functions.
1.1. UNPACKING
Your MOOD 107 WASH was carefully packed to ensure safe transport. Despite this, we
recommend you to carefully examine the package and its contents for any signs of
physical damage, which can occur during transport. It is composed by following parts:
fMoving Head
fPower Cord
fClamp
fUser manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
If anything damaged during transport, notify the shipper immediately and keep the
packing material for inspection. Again, please save the carton and all packing materi-
als. If the xture must be returned to manufacturer, it is important that the xture be
returned in the original manufacturer box and packing. Please do not take any action
without rst contacting us.

7
ENGLISH
Mood 107 wash User manual
1.2. Accessories
SOUNDSATION can supply a wide range of quality accessories that you can use with
your MOOD 107 WASH moving head, like Cables, Splitters, DMX controllers, and a wide
range of other xtures.
All products in our catalogue has been long tested with this device, so we recommend
you to use Genuine SOUNDSATION Accessories and Parts.
Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com
for any accessories you could need to ensure best performance of the product.
2. OVERVIEW
MOOD 107 WASH moving head is part of a wider range of SOUNDSATION DMX intel-
ligent LED Moving Head Lights. This lighting is compact and light weight and very easy
to use. It is ideal for any rental job or installation. The unit can be controlled by any
DMX controller or in standalone mode.
3. MAIN FEATURES
f7 pieces of 10W RGBW 4in1 high brightness LEDs
fLED lifetime between 80,000 and 100,000 hours
f4 operation mode: DMX control, Master/slave, Auto run, Sound
fDMX Mode: 9CH and 13CH
fLED display, easy to control
4. MAINS CONNECTIONS
Connect the device to the mains with the supplied power cable. Please note that power
voltage and frequency are the same as the marked voltage and frequency of device
when connecting power.
Wire correspondence is as follow:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking
into operation for the rst time, the installation has to be approved by an
expert.

8
ENGLISH
MOOD 107 Wash User manual
5. DMX CONNECTION
DMX xtures are designed to receive data through a serial Daisy Chain. A Daisy Chain
connection is where the DATA OUT of one xture connects to the DATA IN of the next
xture. The order in which the xtures are connected is not important and has no effect
on how a controller communicates to each xture. Use an order that provides for the
easiest and most direct cabling.
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect xtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to
female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and
pin 3 is Data positive (S+).
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
CAUTION: Wires must not come into contact with each other; otherwise the
xtures will not work at all, or will not work properly.
5.1. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control
signals, a good habit is to connect DMX output of last xture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.

9
ENGLISH
Mood 107 wash User manual
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.

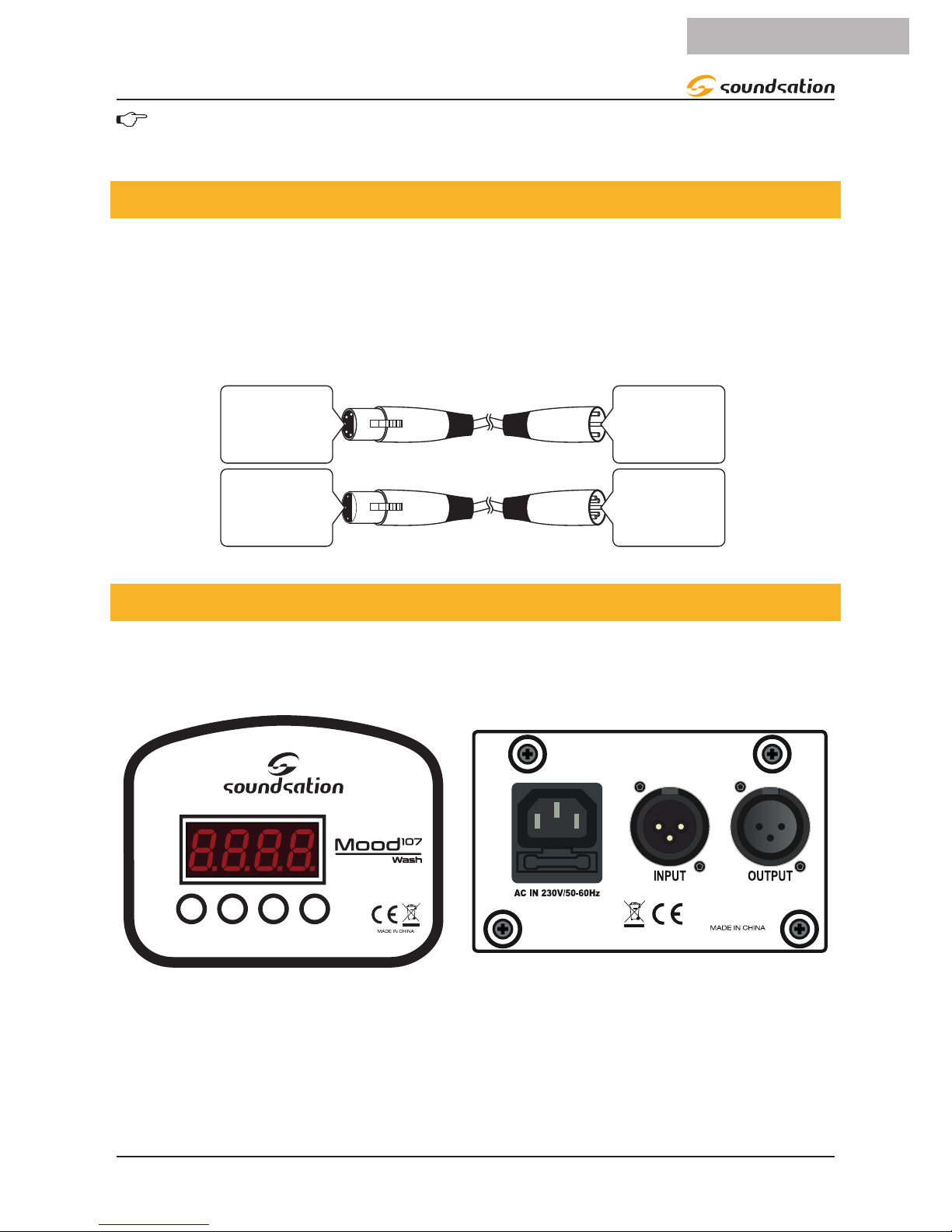

5.2. 3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and xtures manufacturers are not stan-
dardized around the world. However, two are the most common standards: 5-Pin XLR
and 3-Pin XLR system. If you wish to connect MOOD 107 WASH to a 5-Pin XLR input
xture, you need to use an adapter-cable or make it by yourself.
Following the wiring correspondence between 3-Pin and 5-Pin plug and socket stan-
dards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
6. FRONT & REAR PANELS
Front panel is composed by a 4-digit LED display and four buttons (MODE/ESC, UP,
DOWN, ENTER), which help the user to adjust all functions described in the following
paragraphs. The xture is really easy to be controlled.
MODE/ESC UP DOWN ENTER
Rear panel has following connections (starting from left side):
fAC MAINS Input connector with Fuse (2A - 250V)
fDMX IN & OUT: 3-poles XLR Male/Female connectors for DMX512 protocol com-
munication

10
ENGLISH
MOOD 107 Wash User manual
7. DISPLAY OPERATION
No Menu Display Function
1pa54
pa18 Pan motor rotates 540 degrees
pa36 Pan motor rotates 360 degrees
pa54 Pan motor rotates 180 degrees
2t ,9 t ,9 Tilt motor rotates 90°
t,18 Tilt motor rotates 180°
3pan pan Pan motor rotates clockwise
rPa n Pan motor rotates anticlockwise
4til t,l Tilt motor rotates clockwise
rt,l Tilt motor rotates anticlockwise
5dis d,s Forward display
rd,s Reverse display
6NAFA or NASL FAST Auto Run Fast Mode
SlOU Master slow auto
7NSTS SrUn Sound Control Mode Active
8slau Son Slave Mode Active
9rest rEst Reset
10 Lo ad Lo ad Restore Factory Defaults
11 D001 D001 - D512 DMX512 Address Setting
12 14CH or 9CH 14CH 14 channels mode
9CH 9 channels mode
8. DMX CHANNEL MODES
8.1. 9-CH Mode
DMX Ch. Function Data Function Descrip-
tion
CH1 Pan 0 - 255 Pan
CH2 Tilt 0 - 255 Tilt
CH3 Dimmer and Strobe
0 - 007 No function
8 - 134 Dimmer
135 - 239 Strobe 0Hz to 40Hz
240 - 255 Dimmer
CH4 Red 0 - 255 Red

11
ENGLISH
Mood 107 wash User manual
CH5 Green 0 - 255 Green
CH6 Blue 0 - 255 Blue
CH7 White 0 - 255 White
CH8 Motor speed 0 - 255 Pan/Tilt speed
CH9 Reset
0 - 149 No function
150 - 200 Renew factory state
201 - 255 No function
8.2. 14-CH Mode
DMX Ch. Function Data Function Descrip-
tion
CH1 Pan 0 - 255 Pan
CH2 Pan Fine 0 - 255 Pan ne
CH3 Tilt 0 - 255 Tilt
CH4 Tilt Fine 0 - 255 Tilt ne
CH5 Pan / Tilt Speed 0--255 Pan / Tilt speed
CH6 Dimmer and Strobe
0 - 007 No function
8 - 134 Dimmer
135 - 239 Strobe 0Hz to 40Hz
240 - 255 Open
CH7 Red 0 - 255 Red
CH8 Green 0 - 255 Green
CH9 Blue 0 - 255 Blue
CH10 White 0 - 255 White
CH11 COLOR mixed and
changed
0 - 223 Color Mixed
224 - 240 Color gradient from
slow to fast
241 - 255 Color jump from
slow to fast
CH12 Color speed 0 - 255 Color speed
CH13 Movement (auto &
sound effect)
0 - 3 DMX control
4 - 102 Auto 1
103 - 152 Auto 2
153 - 203 Auto 3
204 - 255 Sound
CH14 Reset 255 Factory Reset

12
ENGLISH
MOOD 107 Wash User manual
9. TECHNICAL SPECIFICATIONS
Light Source 7 pieces of 10W RGBW 4in1 high brightness LEDs
LED lifetime Between 80,000 and 100,000 hours
Beam Angle 25°
PAN 540°, 16bit ne
TILT 270°, 16 bit ne
Operation mode DMX control, Master/slave, Auto run, Sound
DMX Mode 9CH and 14CH
Dimmer Electronic Linear Dimming 0-100%
Voltage AC 100-240V / 50~60Hz
Power consumption 75W
Fuse T2A/250V (5x20mm)
Fixture Size (LxHxD) 175 x 240 x 175 mm
Fixture Weight 2.9 Kg
Packing Size (LxHxD) 280 x 250 x 230 mm
Packing Weight 3.4 Kg
Our products are subject to a process of continual further development. Therefore modications to
the technical features remain subject to change without further notice.

13
ENGLISH
Mood 107 wash User manual
10. WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year warranty
is specic to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
• Any accessories supplied with the product
• Improper use
• Fault due to wear and tear
• Any modication of the product effected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or
manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by
exchanging individual parts or the entire appliance. Any defective parts removed from
a product during the course of a warranty claim shall become the property of SOUND-
SATION.
While under warranty period, defective products may be returned to your local
SOUNDSATION dealer together with original proof of purchase. To avoid any damag-
es in transit, please use the original packaging if available. Alternatively you can send
the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto
Recanati - Italy . In order to send a product to service center you need an RMA number.
Shipping charges have to be covered by the owner of the product.
For further information please visit www.soundsationmusic.com

14
ENGLISH
MOOD 107 Wash User manual
11. WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household
waste, according to the WEEE Directive (2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an
authorized one-for-one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the
environment and human health due to potentially hazardous substances that are gen-
erally associated with EEE. At the same time, your cooperation in the correct disposal of
this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recy-
cling, please contact your local city ofce, waste authority, approved WEEE scheme or
your household waste disposal service.

15
ENGLISH
Mood 107 wash User manual
This product is imported in EU by
Questo prodotto viene importato nella UE da
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy
www.soundsationmusic.com
Soundsation® is a registered trademark of FRENEXPORT SPA - Italy
Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy

www.soundsationmusic.com
Ver 1.0 - Nov. 2017
