Sound Tube RSi Series Configuration guide

Box contents
1 Surface-mount bracket
1 Safety cable
Install Instructions For:
1.435.647.9555 |800.647.TUBE | www.soundtube.com
Wall-plate hole pattern
RS600i, RS800i, RS1001i-II, HP690i, HP890i
40.9 mm
(1.61 in)
ø7.1 mm
(.28 in)
40.9 mm
(1.61 in)
41.4 mm
(1.63 in)
82.6 mm
(3.25 in)
102.9 mm
(4.05 in)
RSi &HP Series
38.1 mm
(1.50 in)
86.4 mm
(3.40 in)
119.4 mm
(4.70 in)
38.1 mm
(1.50 in)
124.5 mm
(4.90 in)
Wall-plate hole pattern
HP129i, HP1290i
Transformer Taps Settings
Treaded insert
Insert cover
Terminal weather boot
Mounting bolt and washer
Signal wire
Safety cable nut, washer & bolt
Safety cable
Surface-mount bracket
Nylock nut
Wall-plate
Wall-plate
stud
70.7 Volt Transformer Taps (dB) 100 Volt Transformer Taps (dB) 25 Volt Transformer Taps (dB)
Voice Coil
© 2008 SoundTube Entertainment, Inc. All rights reserved. PN INS-RS Rev 05.12.08
RS600i
RS800i
RS1001i-II Warning
150W=112.5, 75W=109.5, 38W=106.5 19W=103.5
66W=110.5, 35W=108, 19W=105.5, 10W=102.5, 5W=99.5
150W=112.5, 75W=109.5, 38W=106.5
66W=110.5, 35W=108, 19W=105.5, 10W=102.5 9W=102, 4.5W=99, 2.3W=96, 1.1W=93
19W=10 3 . 5 , 9.5W=100.5, 4.8W=97.5, 2.4W=94.5
8 Ohm=112 dB
4 Ohm=112.5 dB
33W=105.5, 17W=103, 9W=100, 6W=98.5, 3W=95.5 33W=105.5, 17W=103, 9W=100, 6W=98.5 5W=97.5, 2.5W=94.5, 1.3W=91.5, .63W=88.5 8 Ohm=111 dB
HP890i
HP129i
HP1290i
8 Ohm=119 dB
8 Ohm=120 dB
8 Ohm=111 dB
150W=120, 75W=117, 38W=114 19W=111 150W=120, 75W=117, 38W=114 19W=11 1 , 9.5W=108, 4.8W=105, 2.4W=102
150W=119, 75W=116, 38W=113 19W=110 150W=119, 75W=116, 38W=113 19W=11 0 , 9.5W=107, 4.8W=104, 2.4W=101
120W=115, 64W=112, 32W=109 16W=106 120W=115, 64W=112, 32W=109 16W=106 16W=10 6 , 8W=103, 3.8W=100, 1.9W=97
66W=111, 35W=108.5, 19W=106 10W=103, 5W=100 66W=111, 35W=108.5, 19W=106 10W=103 9W=10 0 , 2.5W=97, 1.25W=94, .75W=92

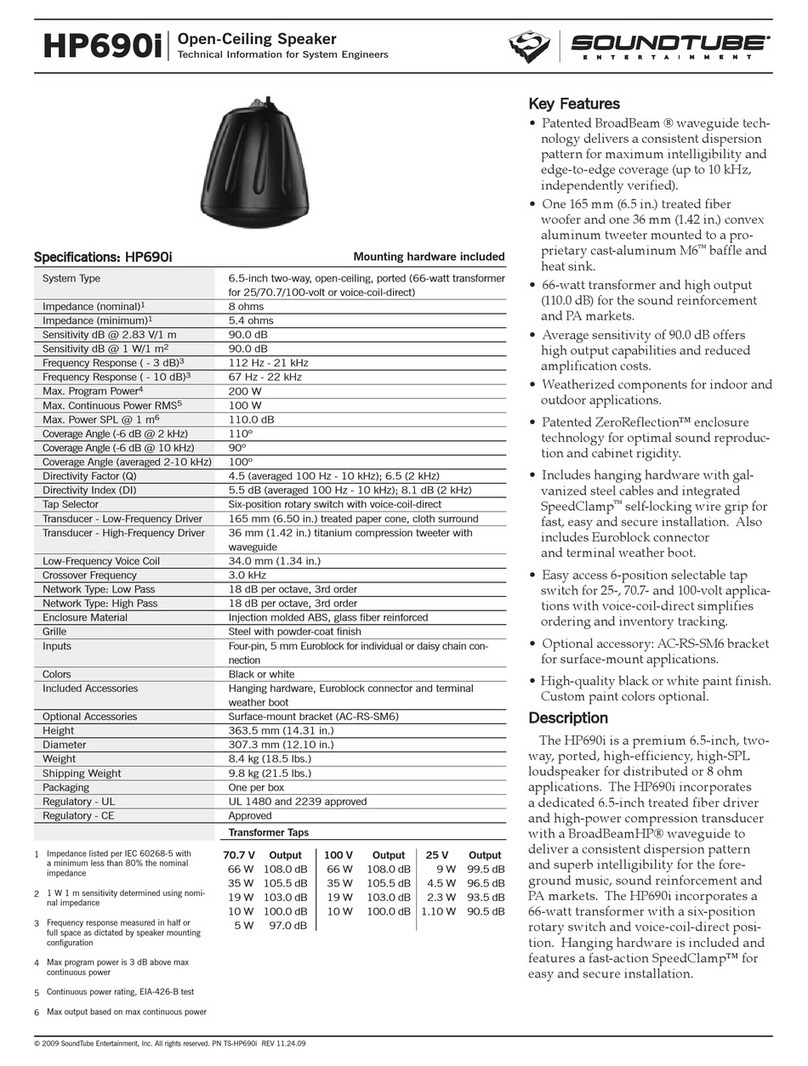

HP690i 8 Ohm=117 dB
RS600i, RS800i, RS1001i-II, HP690i, HP890i, HP129i, HP1290i speakers

5. Mount speaker and
bracket assembley to wall-
plate. Use nylock nuts and
washers to secure. Do not
fully tighten fastening
hardware.
6. Slip terminal weather
boot over signal wire. For
environmental applications,
put RTV silicone around
nipple and base when
installation is complete.
1. Unpack speaker and
surface-mount bracket.
2. Remove covers from
threaded insert on each
side of speaker.
3. Attach surface-mount
bracket to speaker.
4. Mount wall-plate to
secure surface with approp-
riate hardware (not included).
Mount with wall-plate-stud
pointing up.
7. Connect signal wire to
4-pin Euroblock plug.
Tighten unused terminal
screws. Use inside positive
and negative inputs for either
voice coil or distributed
systems. For daisy chaining,
use outside positive and
negative terminals.
8. Select the tap position by
removing the rubber plug on
grille to access rotary switch.
Switch is preset to maximum
tap setting in 70.7 V mode.
Select desired setting and
reinsert rubber plug. Note: The
grille-mounted tap switch
cover is keyed; be sure flat
edge of plug lines up with flat
edge of hole in grille.
UP
10. Insert 4-pin Euroblock
plug into Euroblock jack on
rear of speaker. Connectors
are keyed for polarity.
11. Aim speaker and tighten
fasteners.
9. Attach the safety cable to
one of the secondary holes in
the hanging bracket using the
supplied hex wrench, nut,
washer & bolt. Attach other
end to secure surface.
VC= 8 Ohm
Install Instructions For:
1.435.647.9555 |800.647.TUBE | www.soundtube.com
RSi &HP Series
RS600i, RS800i, RS1001i-II, HP690i, HP890i, HP129i, HP1290i speakers
