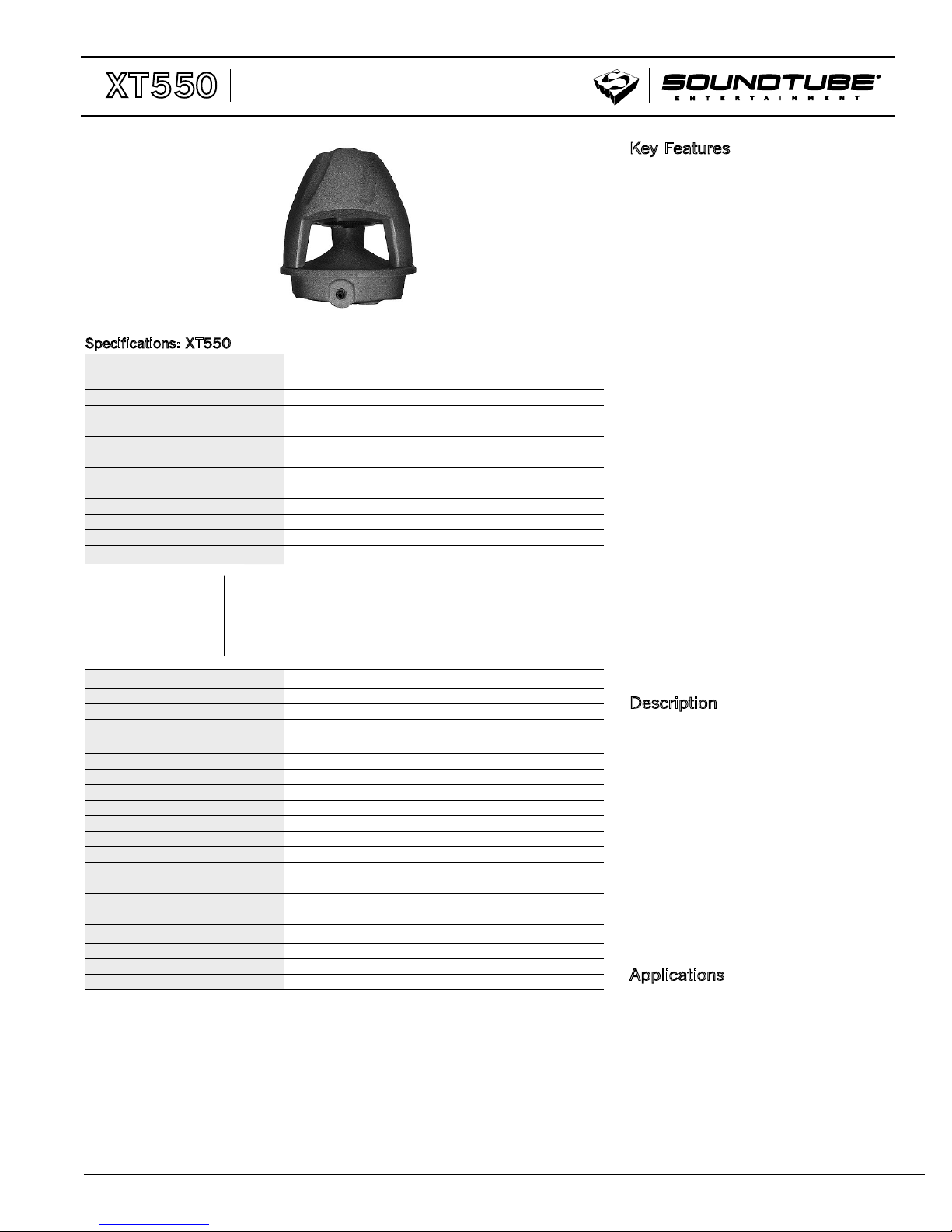

Sound Tube Outdoor/In-Ground Speaker XT550 User manual

XT550 Outdoor/In-Ground Speaker
Technical Information for System Engineers
Key Features
• UV-, scratch- and weather-resistant
with professional-grade components
for long-lasting performance and
durability.
• Patented BroadBeam® waveguide tech-
nology provides smooth 360º horizontal
off-axis coverage and reduces overall
system costs.
• One 133 mm (5.25 in) weatherproof
polypropylene woofer with butyl rub-
ber surround and one 25 mm (1.0 in)
aluminum dome tweeter with inte-
grated horn & mounting bracket.
• Weather-proof 5-position tap switch for
25/70.7/100 Volt applications with voice
coil direct (4 Ohm) position. 32 Watt
transformer included
• Patented, durable and sealed Zero
Reflection™ enclosure with optional
port vent for added frequency response.
• Liquid-tight compression fittings for
water-tight protection.
• Multiple wire inlet locations for fast
and easy daisy chaining.
• Stainless steel fasteners, stainless steel
& powder-coated grille.
• Color options: granite green or sand stone.
Description
The SoundTube XT550 is a premium
2-way outdoor loudspeaker solution for
installations requiring high-performance
sound in a durable speaker design. The
XT550 is designed for full-range back-
ground/foreground music and paging.
The sealed, in-ground enclosure design
delivers true low end response (62 Hz, - 10
dB) and optimal off axis performance. The
XT550 includes theft-resistant mounting
hardware and a weather-proof 5-position
tap switch for 25/70.7/100 Volt applica-
tions with voice coil direct (4 Ohm) posi-
tion.
Applications
The ultra-wide 360˚ horizontal disper-
sion pattern makes the XT550 an ideal
choice for theme parks, promenades,
playgrounds, shopping malls, restau-
rants, resorts, gardens and other outdoor
applications. XT550 speakers come with
in-ground anti-theft brackets and stain-
less-steel square-tip screws for increased
outdoor security.
Specifications: XT550
System Type
Frequency Response (- 3 dB)1
Low Frequency (-10 dB)1
Max. Program Power
Max. Continuous Power RMS2
Max. SPL dB @ 1 M
Sensitivity dB @ 1W/1M3
Impedance (nominal)
Coverage Angle (-6 dB @ 2 kHz)
Coverage Angle (-6 dB @ 10 kHz)
Tap Selector
Transformer Taps
Transducers
Low-Frequency Driver
High-Frequency Driver
Low-Frequency Voice Coil
Network Type
Low Pass
High Pass
Crossover Frequency
Enclosure Material
Grille
Inputs
Color Options
Diameter
Total Height
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
5.25” Coax outdoor (32 Watt transformer for 25/70.7/100 Volt
or voice coil/8 Ohm direct)
75 Hz - 12 kHz port open (101 Hz - 12 kHz port closed)
62 Hz - 22 kHz port open (62 Hz - 22 kHz port closed)
120 Watts
60 Watts
107.5 dB
88.5 dB
4 Ohms (nominal)
360º Horizontal - 40º Vertical
360º Horizontal - 40º Vertical
5-Position rotary switch with voice coil direct (4 Ohm)
1 x 133 mm (5.25 in) Polypropylene cone, butyl rubber surround
1 x 25 mm (1.0 in) Aluminum dome
25 mm (1.0 in)
6 dB per octave, 1st order
6 db per octave, 1st order
3.0 kHz
Roto-molded polyethylene plastic
Stainless-steel with powder-coat finish
18-Gauge wire lead
Granite green or sandstone
358 mm / 14.1 in
394 mm / 15.51 in
5.9 kG / 13.0 lbs
8.6 kG / 19.0 lbs
Anti-theft brackets, water-tight strain relief
N/A
1 Per box
70.7 V Output 100 V Output 25 V Output
32 W 103.5 dB 32 W 103.5 dB 4 W 94.5 dB
16 W 100.5 dB 16 W 100.5 dB 2 W 91.5 dB
8 W 97.5 dB 8 W 97.5 dB 1 W 88.5 dB
4 W 94.5 dB 0.5 W 85.5 dB
© 2006 SoundTube Entertainment, Inc. All rights reserved. PN TS-XT550 REV 3.03.06
1
Frequency response is measured in half space.
2
Continuous power rating, EIA-426-B test.
3
2.83 Volts at a distance of 1 meter.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube’s drive for constant improvement.

Technical data, EASE™ plots, SoundTubeSPEC™ software & product downloads available at www.soundtube.com
Reduce Overall System Costs
SoundTube’s BroadBeam® dispersion tech-
nology utilizes an advanced diffuser/tweeter
system to provide maximum dispersion of the
higher frequencies throughout the XT550’s 360º
horizontal by 40º vertical coverage pattern.
Designed specifically for outdoor music &
paging, the XT550 projects even coverage and
smooth response over a larger area than typical
outdoor speakers, with fewer units per install
– saving time and money on speakers, installa-
tion and amplifier power.
Enclosure Technology
XT enclosures are engineered for maxi-
mum durability and performance. Unlike
other outdoor speakers, SoundTube incorpo-
rates patented ZeroReflection™ internal shap-
ing to create the most effective environment
for sound reproduction. The result is accurate
sound and tight bass in an indestructible
enclosure.
Patented SoundTube
Technologies
SoundTube Entertainment is constantly devel-
oping new technologies that enhance audio
product performance. SoundTube Entertain-
ment innovations are protected by multiple
U.S. & international patents, which explicitly
cover SoundTube dispersion, enclosure &
dome technologies. SoundTube Entertainment
actively defends its patents in order to protect
SoundTube resellers and end users.
Technical Data and
Specification Tools
Technical Data
SoundTube Entertainment strives to provide
complete and effective technical informa-
tion and data to dealers, engineers and
designers. All data are available from
SoundTube Entertainment or at
www.soundtube.com
Data Acquisition
All performance data acquired at
SoundTube’s Technical Measurement Center
(TMC) are analyzed using a variety of stan-
dard measurement techniques, including
Measured Length Sequence (MLS) and Time
Delay Spectrometry (TDS). Performance,
development and data acquisition tools
include: Gold Line TEF 20, CLIO, LMS, LEAP,
and proprietary modeling software. EASE™
data are acquired through an automated TEF20/
Outline/EASE™ interface.
XT550 Outdoor/In-Ground Speaker
Preliminary Technical Information for System Engineers







     







�
�
�







     









Phase/Impedance Reponse (open port)
Frequency Response (open/closed port)







     









Phase/Impedance Reponse (closed port)

Architectural Specifications
The loudspeaker shall be an in-ground design
consisting of one 133 mm (5.25 in) low-frequency
transducer and one 25 mm (1.0 in) aluminum
dome high-frequency transducer with a fre-
quency-dividing network installed in an option-
ally sealed enclosure. The low-frequency voice
coil diameter shall be 25 mm (1.0 in).
Performance specifications of a typical pro-
duction unit shall be as follows: Usable frequency
response shall extend from 62 Hz – 22 kHz
(-10 dB). Measured sensitivity (2.83 Volt input,
1 meter) shall be at least 88.5 dB. The maximum
continuous output at 1 meter shall be 107.5 dB.
Rated power capacity of the components and
network shall be at least 60 Watts continuous
RMS power. The loudspeaker shall have a nomi-
nal impedance of 4 Ohms and be available for
25/70.7/100 Volt modes with voice coil/4 Ohm
direct. The frequency-dividing network shall
have a crossover frequency of 3.0 kHz.
The enclosure shall be constructed of a roto-
molded polyethylene plastic and have a remov-
able port plug constructed of buna-N rubber.
The grille shall be constructed of powder-coated
stainless-steel. Color options shall be granite
green or sandstone. All transducers and network
circuitry are weather resistant and ship in a
sealed enclosure.
Installation shall be by in-ground mount. The
external wiring input connector shall be hard-
wire leads. The overall cabinet dimensions shall
be no more than 358 mm (14.1 in) in diameter by
394 mm (15.51 in) in height and shall weigh no
more than 5.9 kG (13.0 lbs).
The low-frequency transducer shall have a
weatherproof butyl rubber surround to resist
weather, elements and insects. The high-fre-
quency transducer shall be a horn-loaded dome
and constructed of aluminum.
For theft deterrence, all XT550 speakers come
with anti-theft brackets and square-tip screws.
The system shall be the XT550 for both low
and high impedance applications.
SoundTube Entertainment
6430 North Business Park Loop
Park City, Utah 84098
Phone [phone]
Fax [phone]
Toll Free 800.647.TUBE
www.soundtube.com
All SoundTube products come
with a 5-year limited warranty.
358 mm (14.1 in)
394 mm
(15.51 in)
Technical data, EASE™ plots, SoundTubeSPEC™ software & product downloads available at www.soundtube.com
XT550 Outdoor/In-Ground Speaker
Preliminary Technical Information for System Engineers
Mechanical Drawings
Included Accessory
Anti-theft hardware
311 mm
(12.24 in)
83 mm
(3.27 in)
260 mm
(10.24 in)
