SOUNDMASTER Highline iP1055 User manual
iP1055
DEUTSCH NEDERLANDS
ENGLISH ESPAÑOL
FRANÇAIS PORTUGUÊS
Abgebildetes iPhone nicht inkl.
iPhone not included.
ENVIRONMENTAL PROTECTION
Please contact your local authorities for details about collection points.
The materials are reusable according to their markings. By reusing, recycling or
other forms of utilization of old devices you make an important contribution to
the protection of our environment.
Do not dispose of this product with the normal household waste at the end
of its life cycle. Return it to a collection point for the recycling of electrical
and electronic devices. This is indicated by the symbol on the product,
user manual or packaging.

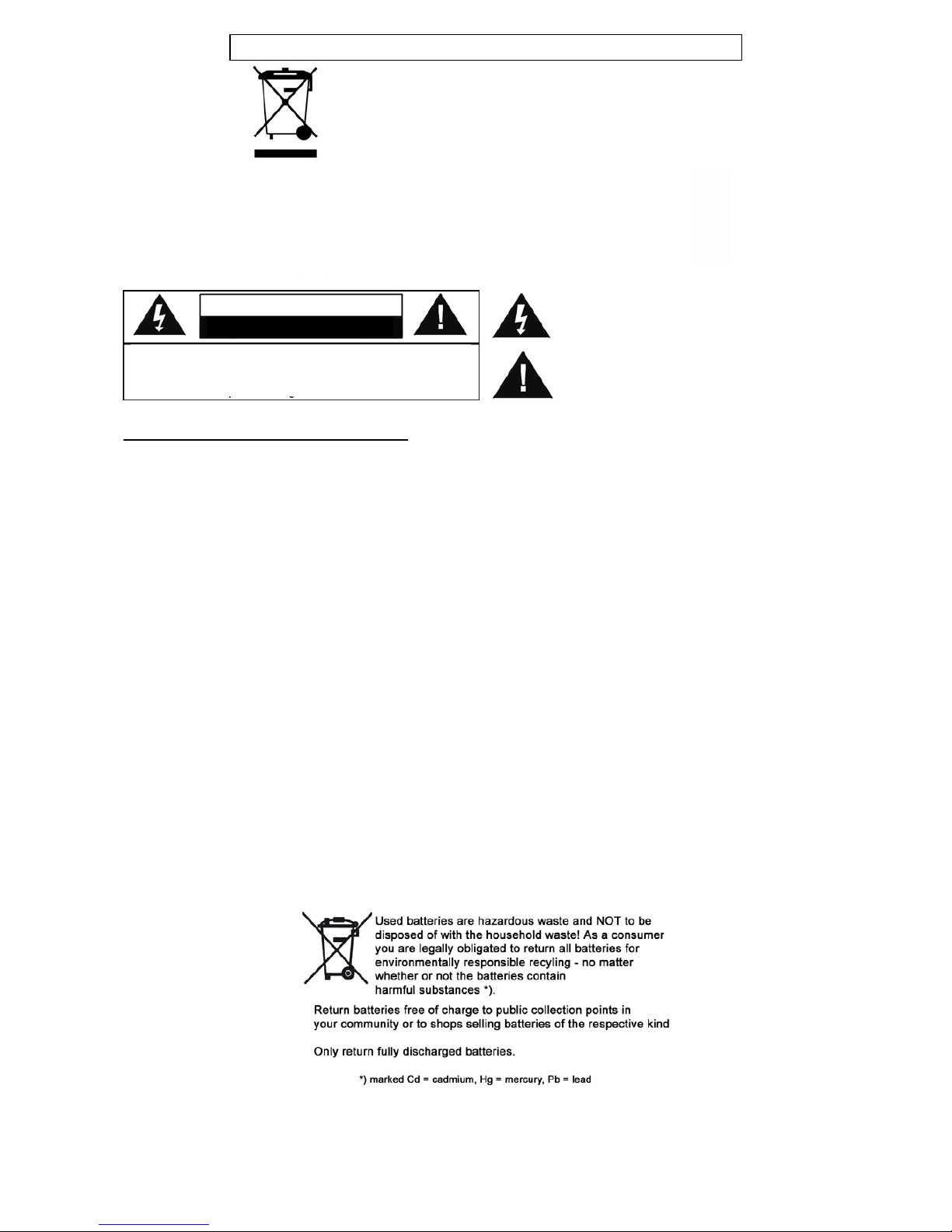

This symbol indicates the presence of dangerous
voltage inside the enclosure, sufficient enough to
cause electric shock.
WARNING
Risk of electric shock
Do not o
p
en!
Caution: To reduce the risk of electric shock, do not remove the
cover (or back). There are no user serviceable parts inside. Refer
servicing to qualified service personnel.
This symbol indicates the presence of important
operating and maintenance instructions for the
device.
Safety, Environmental and Setup Instructions
•Use the device in dry indoor environments only.
•Protect the device from humidity.
•Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
•Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with
the specifications on the rating plate.
•Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
•A damaged mains cable or plug must immediately be replaced by an authorized service center.
•In case of lightning, immediately disconnect the device from the mains supply.
•Children should be supervised by parents when using the device.
•Clean the device with a dry cloth only.
Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
•Do not expose the device to direct sunlight or other heat sources.
•Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
•Do not cover the ventilation openings!
•Install the device at a safe and vibration-free location.
•Install the device as far away as possible from computers and microwave units; otherwise radio reception may be
disturbed.
•Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized
service/ customer center.
•Only use mercury and cadmium-free batteries.
•Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
Return the batteries to your dealer or to collection points in your community.
•Keep batteries away from children. Children might swallow batteries.
Contact a physician immediately if a battery was swallowed.
•Check your batteries regularly to avoid battery leakage.
•Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
•CAUTION: Danger of explosion if battery is incorrectly replaced
Replace only with the same or equivalent type
iP1055 / English manual
ENG 1

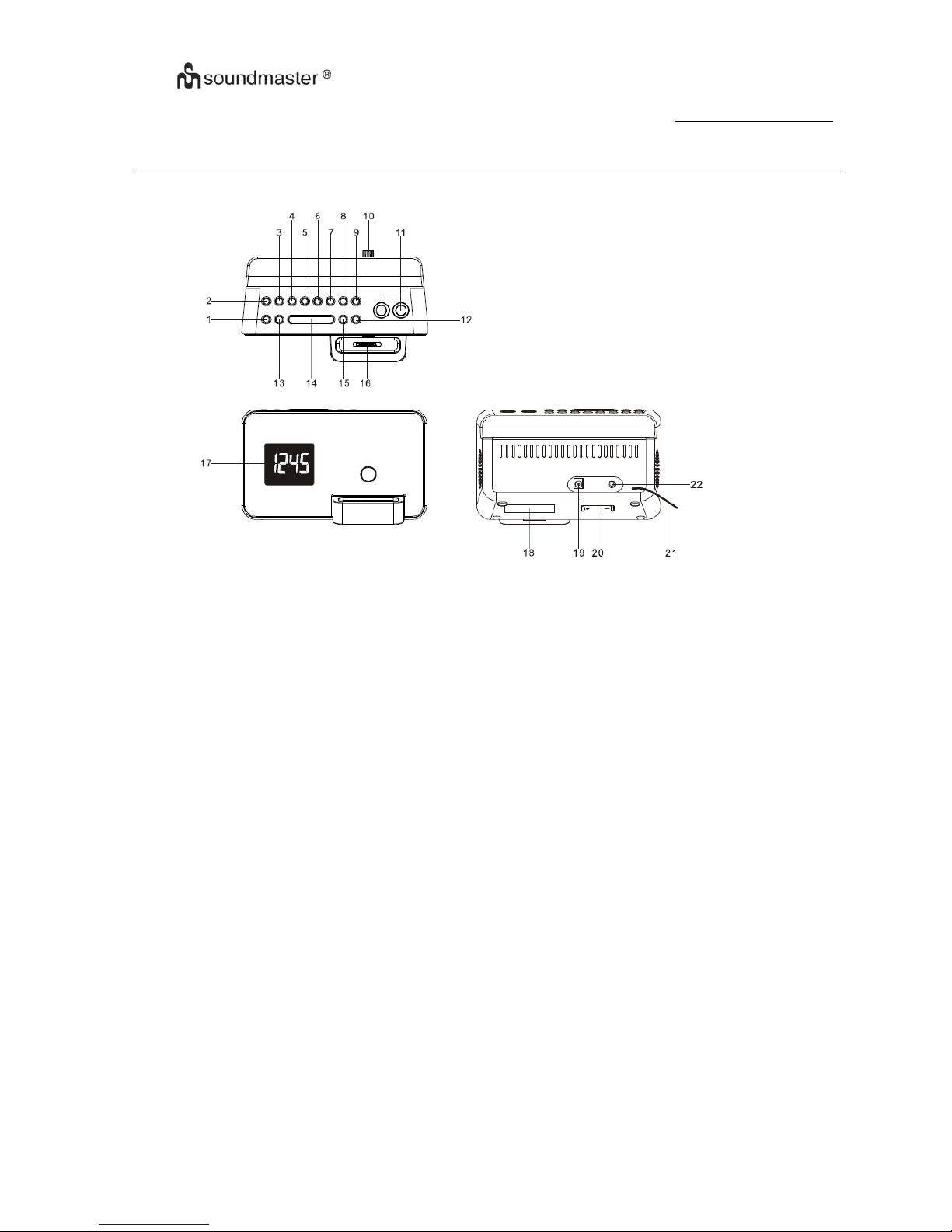

LOCATION OF CONTROLS
1. On/off Button
2. Volume UP Button
3. Volume DOWN Button
4. SKIP BACK/TUNING DOWN
Button
5. Memory up/play/pause
Button
6. SKIP FORWARD/TUNING
UP Button
7. Alarm 1 Button
8. Alarm 2 Button
9. Snooze Sensor on/off Button
10.Adjuster (Adjust the
mechanism to fit different
iPod/iPhone)
11.Snooze Infrared Sensor
12.Sleep Button
13.Function Button
14.Snooze / Dimmer Button
15.Clock set/memory Button
16.iPhone/iPod compartment
17.Display
18.Rating label (bottom of unit)
19.DC IN JACK (rear of unit)
20.Battery compartment
(bottom of unit)
21.FM antenna (rear of unit)
22.AUX IN JACK (rear of unit)
iP1055 / English manual
ENG 2
PREPARATION FOR USE
This unit is designed specifically to work with your docking iPhone/iPod.
Please read this instruction book carefully before operating the unit.
AC-DC adaptor connection:
The clock radio unit can be powered by an external AC-DC adaptor,
required the output DC 5V 2A(included)
POWER CONNECTION
Plug the AC/DCAdaptor to a household outlet AC source.
Connect the adaptor’s DC output plug to the DC-in jack of the clock unit This
unit is equipped with a battery back up system, it requires a 3V CR2032 flat
lithium battery (not included). Insert the battery in the battery compartment,
making certain that the positive and negative (+ and -) battery terminals are
attached to the corresponding terminals on the plate in the
battery compartment. If anAC power failure occurs, the clock automatically
switches to the battery power supply, the clock and timer memory continue
running. When the AC power resumes, the clock switched back to AC again.
Load the iPod/iPhone
1. Place the iPod/iPhone in the dock
2. Turn the adjuster to fit the iPod/iPhone
iP1055 / English manual
ENG 3
OPERATION INSTRUCTIONS
Setting time using iPhone / iPod time Sync
The clock radio time sync feature allows you to sync the time setting on
the clock radio to the time from your iPhone or recent model iPod(iPod touch,
iPod nano and iPod classic; older iPod models such as iPod mini do not
support this feature).
1. Plug the AC adaptor cable into the AC Adapter jack located at the back of
the unit, time sync flashes on the lower part of the display.
2. Once sync is completed, time updated will appear on the display.
3. If sync was not successful, sync failed will appear on the display. If this
happens, please try again, with a different iPhone / iPod if needed. If sync
still fails, please set time manually.
iPhone time is automatically updated to the correct time via cell phone towers,
the time on your iPod is accurate only to the time on the computer the last time
the iPod was synced to it. It’s possible to have up to 59 seconds difference
between the clock radio and synced iPod / iPhone.
Setting clock Time (manually)
With the power off, press and hold the clock set/memory button ; “12Hr” will
blink. Press the Tune UP or Tune DOWN button to set the unit to the 24 hour
(24 Hr) mode or 12 Hour (12Hr) mode. Press the clock set/memory button
and the hours will blink. Press the Tune UP or DOWN to set the current hour,
then press the clock set/memory button again; the minute digits will blink.
Press the Tune UP or Tune DOWN to set the current minutes.
When done and you press clock set/memory button once again and the
display time will blink 4 times to indicate the current time is set.
Setting Alarm Time
To preview the alarm time. Press the ALARM button once.
While the display is showing the alarm time and you hold the ALARM button
for 3 seconds and the hours will blink.
Press the Tune UP or Tune DOWN to set the alarm hour.
Press the ALARM button again; the minute digits will blink. Press the Tune UP
or Tune DOWN to set the alarm minutes.
Press the ALARM button and you can change the sound mode (Buzzer, Radio,
iPhone / iPod) for the alarm.
Press Tune UP or Tune DOWN to choose different sound mode. The alarm
volume will gradually increase. Then press theALARM button when done.
To delay the alarm, press SNOOZE. It will come on again in approx. 9 minutes.
You may repeat this cycle several times during the alarm cycle.
iP1055 / English manual
ENG 4
To stop the alarm, press ALARM button .
To stop the alarm from coming on the following day, hold the ALARM button to
turn it off. The alarm icon or will disappear to indicate the alarm is
disarmed.
Note: To wake to iPhone / iPod, your iPhone / iPod must be properly
docked and off or no alarm will sound.
Note: If you select wake to iPhone / iPod but no iPhone / iPod is present, the
alarm will automatically switch to buzzer alarm.
Listening to your iPhone / iPod
When the iPhone/ iPod is docked and in standby mode, press the iPhone /
iPod button on the Remote control to play it. The iPhone / iPodicon will
appear on the display.
Charging your iPhone / iPod
When you docked your iPhone / iPod and it recharges (until fully charged).
Note : iPod Shuffles will NOT charge.
Listening to Radio
Press the On/off button to turn the unit on.
Press the FUNCTION button to select the Radio Mode.
Use the Tune UP or Tune DOWN button to select the desired FM station.
If you press and hold the Tune UP or Tune DOWN button for one second, then
release, the unit will automatically scan to the next broadcasting station.
Press the On/Off button to turn the radio off.
To Set/Recall the radio presets
Press the On/off button to turn the unit on.
Press the FUNCTION button to select the Radio Mode.
Use the Tune UP or Tune DOWN button to select the desired FM station.
Press the clock set/memory button; “P01”will blink in the display.
Press the clock set/memory button again to set the preset.
Repeat steps 2 through 4 to set more presets.
The unit can preset 20 stations totally FM.
When “P01-P20” is blinking, press Tune UP or Tune DOWN to select the
Preset number.
When recalling preset stations, press Mem – up to select the Preset number.
iP1055 / English manual
ENG 5
Sleep Operation
When listening to radio or iPhone / iPod , press sleep button to enter sleep
mode. You can just adjust the sleep timer from 90 mins to 10 mins by pressing
the sleep button. The unit will automatically turn off after the selected time.
Press On/Off button to cancel sleep function.
AUX in
The AUX in jack can be used to playback alternate audio signal sources on
the unit speakers.
This AUX in jack requires a 3.5mm audio cable for input signal.
Note : This unit does not provide a recording signal from AUX in to the iPhone
/ iPod .It’s purpose is to allow other types of audio devices to playback
on the unit speaker.
Note : The 3.5mm audio cable is not included.

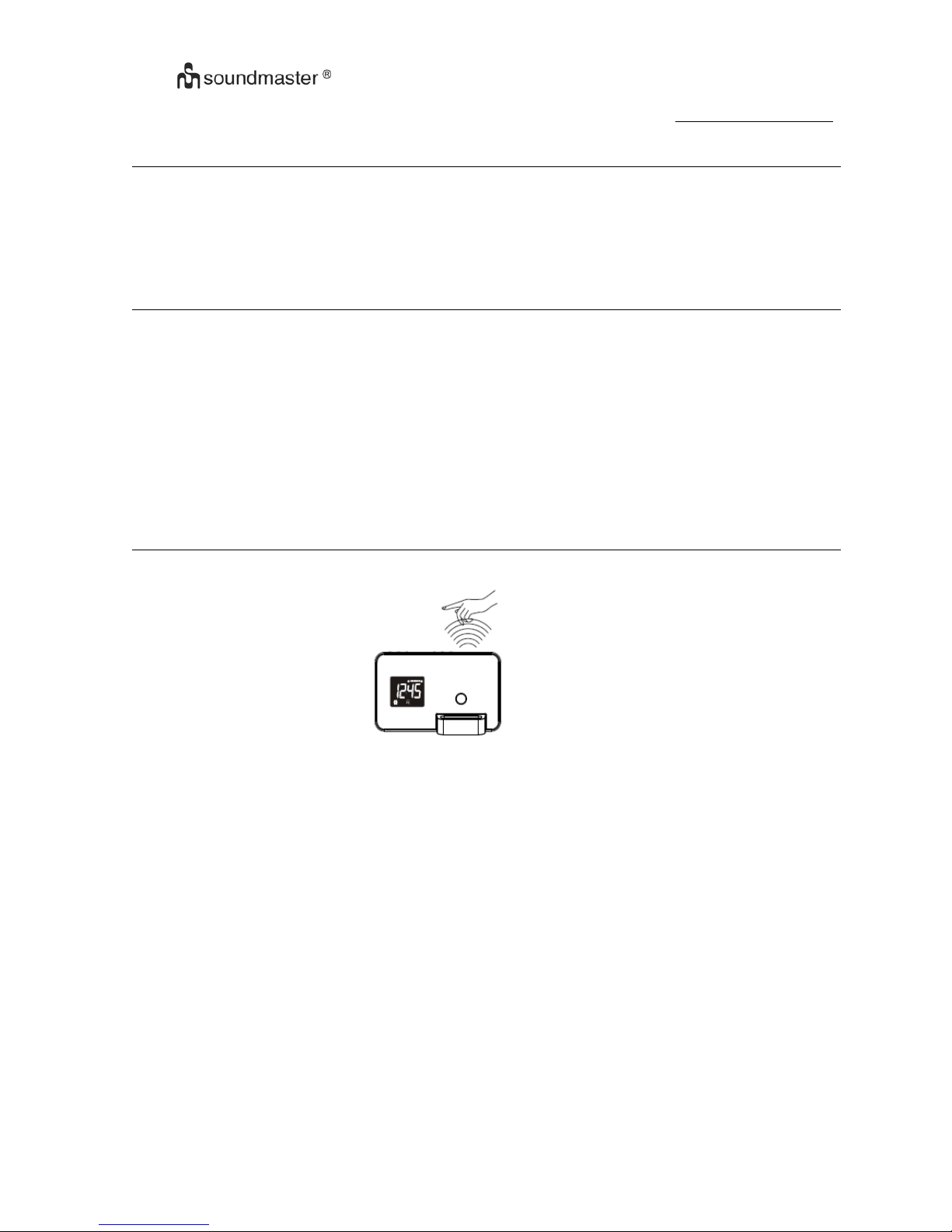

SNOOZE INFRARED SENSOR FUNCTION
In alarm On mode, use the infrared sensor to turn snooze function On
Hand on top of sensor within 1 second snooze off for 9 minutes.
