SOUNDMASTER VRCPAA-7DR User manual

2 DIN 7" Monitor
Touch screen
DVD/CD/MP3/MP4/
USB/SD
AM/FM Radio
Support Apple CarPlay
Support Android Auto
Support Bluetooth
VRCPAA-7DR
AV Center
2-DIN DVD Head Unit
TM
TM

2
1. Appearance
2. Accessories and Installation
3. Wiring Connection
4. Front panel Description
5. Remote Control
6. Main Menu
7. Settings
8. Apple CarPlay & Android auto
9. Radio
10. USB
11. Disc
12. BT Audio
13. BT Phone
14. Specification
15. AV IN
16. Camera
FCC Notes
---------------------------------------------
3
3
5
7
8
9
9
12
13
14
15
16
17
19
20
20
21
---------------------------------
Content
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------
---------------------------------

Main Menu
Carplay Menu
Android Auto Menu
Appearance Accessories & Installation
(2) Screw 8
(1) Mounting bracket
2
Package contains the following accessories for
installation and operation of the unit.
(3) Remote 1
/
#
1 2 3
4 5 6
7 8 9
/0
EJECT EQ
DISC BT USB
CP/AA
SXM Radio
(4) Trim Ring 1
(5) User Manual 1
(6) Warranty Card 1
(8) Harness cable 1
(7) ISO Cable 2
3
1. Appearance 2. Accessories & Installation
2 DIN 7" Mo nitor
Touch s creen
DVD/C D/MP3/ MP4/
USB/S D
AM/FM R adio
Suppo rt Appl e CarPl ay
Suppo rt Andr oid Aut o
Suppo rt Blue tooth
VRCP AA-7D R
AV Cen ter
2-DI N DVD Hea d Unit

Installation
1.Put the 2 brackets to the left and right
side of the headunit.
2.Use screws to fix the brackets to the
unit.
3.Install the body chassis into the
dashboard via the 2 brackets.
4.Install the trim ring to the body
chassis.
Note:
1. Make sure the ignition is turned off,
and disconnect the cable from the
vehicle batteryʼs negative (-)
terminal.
You never want electricity running
when you install this 2-DIN car
receiver.
2. Before installation, disconnect the
wire harness and the antenna.
3. Attach the brackets on the both
sides of the car receiver with
screws as shown as the installation
drawing. Please buy from your
dealer according to the drilling of
holes size.
4. Consult with your nearest dealer if
installation requires the drilling of
holes or other modification of the
vehicle.
5. Install the car receiver in the dashboard.
6. Connect the wire harness & antenna
to the car receiver being carefully not
to pinch any wires or cables.
7. Install the plastic outer trim ring onto
the car receiver.
8. Reconnect the battery and run through
all of the options on this car recei ar
you intend to install it in. Please
choose the correct installation method
according to the actual situation of
your car. Always contact the car dealer
or manufacturer if you have any
questions.
Installation
4
2. Accessories & Installation
Dashboard
Bracket
Bracket
Note: To watch video the parking wire
should be connected to brake signal.
Note: The parking wire is connected with
brake signal; for safety, the programs can
be seen on the monitor after braking the
car..
Parking wire
Connecting the reversing line to taillight on
the car
After connecting, when you start up the
reverse gear, the unit will receive the
picture from car rear view camera.
2A
Parking brake lead
Brown wire
Brake light
12V
battery
Car frame
+
-
12V
Car frame
Battery
Reverse driving light
Car frame
Pink wire
Rear view video camera lead
P
R
N
D
L
2
Gearbox

Connect the speakers according the
f o l l o w i n g d i a g r a m , i n c o r r e c t
connections will damage the unit or
your loudspeakers.
Speaker Connection
White
Green
Grey
Purple
5
3. Wiring

MIC
Video Input
Red
White
Yellow
Yellow
Yellow
white
Green Subwoofer Out
Red
White
Brown Front camera input
Line Out (FL)
Line Out (RL)
Line Out (FR)
Line Out (RR)
Audio In (R)
Audio In (L)
Video Output2
Back camera input
Extraposition MIC jack
Video Output1
Red
Yellow
Radio antenna
ISO A ISO B
ISO A
8 Pin
connector
Portion Colour Connection
ISO B
Yellow
Orange
Blue
Black
Red
Purple
Purple / Black
Grey
Grey / Black
White
White / Black
Green
Green / Black
Blue / White
Brown
Pink
Pink / Black
Black
Green
Grey
Battery B+
ILL B+
Antenna
Ground
ACC B+
Rear right speaker(+)
Rear right speaker(-)
Front right speaker(+)
Front right speaker(-)
Front left speaker(+)
Front left speaker(-)
Rear left speaker(+)
Rear left speaker(-)
Amplifier control(B+)
Brake detect (Ground)
Back car control(Back camera B+)
Front camera(B+)
Ground
Steering Wheel 2
Steering Wheel 1
6
3. Wiring
A3
A5
A6
A7
A8
B2
B1
B4
B3
B6
B5
B8
B7
C
C1
C3
C4
C5
C6
C7
C8

4.Front panel Description
1
Front panel
7 inch TFT LCD
Mic
Build in Microphone.
3
2
1
IR Sensor of Remote
IR remote control signal receiving
window.
9HOME button
Press to back to Main menu.
5
Rotary Control
On/Off button
Short press to switch On the
source unit.
Long press to switch Off the
source unit.
In operation, rotate to adjust the
sound output level.
Siri button
When Apple CarPlay or Android
Auto available, press Siri button
to start the voice control function.
7button
8
/
[Disc/USB/SD Music] Press repeatedly to
shift track previous or next for playback.
Press and hold to active various fast rewind
or fast forward speeds for playback.
[Bluetooth Music] Press repeatedly to
shift track previous or next for playback.
6
Press to eject the disc.
Eject Button
12
Insert an extrenal device to this port
in order to have sound output of
that external device through the unit.
AUX in jack
4
Insert micro SD for playback.
Micro SD slot
11
Press to default factory settings.
Reset button
10
Connect USB for digital playback.
Connect your iPhone for Apple
CarPlay.
Connect your Android Phone for
Android Auto.
USB port
7
2 3 4
5
6
7
8
9
10
11
12
Press and hold to seek downward
or upward.
[Radio] Press to select previous/
next preset radio station for
broadcasting.

5.REMOTE CONTROL
NO. SYMBOL OPERATION & CONTROL MODES 1.
Press and hold to power it on or off.
Short press this button mute the
volume output when unit turn on.
Long press is Power OFF function
when unit turn on.
Press it to increase or decrease the
volume level.
2
1
4
5
7
10
17
14 16
15
12
13
11
9
8
6
3
/
#
1 2 3
4 5 6
7 8 9
/0
EJECT EQ
ENTER
DISC BT USB
CP/AA
SXM Radio
2. [Bluetooth ]: Press it to make a call
after inputted a phone number or
answer an incoming call.
3. [Bluetooth ]: Press it to reject a coming
call or hangup while calling
4. Press it to switch to CarPlay or Android
Auto mode; Head Unit will show string
"invalid operation" when CP/AA is not
pluged in Head Unit.
CP/AA
5. Press it to switch to SXM mode.
SXM
6. Press it to switch to RADIO mode.
Radio
7. Press it to switch to DVD mode.
DISC
8. Press it to switch to Bluetooth mode.
BT
9. Press it to switch to USB mode.
USB
10.
VOL+/-
8
Note: 1. SXM just for include SiriusXM
function models.
2. * # these functions
for Bluetooth.
Press it to eject the disc.
14.
EJECT
15.
/
[DVD/USB/SD]: short press it to
switch play or pause.
16.
EQ Press it to Equalizer functions .
17.
0-9 [Radio ]: Select 1-6 desired preset
station.
[DVD/SUB/SD ]:Input 0-9 for
selecting track number.
#
[BT Phone ]:Input 0-9/*/# for
desired phone number.
Press it to confirm selection.
It is UP /Down/Left/Right Arrow, use
this button to select the menu item,
the title track or to show next frame.
[DVD/USB/SD]: short press it to
skip to the next track or previous
functions.
Long press to activate fast forward
or fast review in a track .
11.
12.
ENTER
13.
[Bluetooth Music]: short press it to
skip to the next track or previous
functions.
[Radio] Press to seek upward/
downward.
[Radio] Press to select next/
previous preset radio station for
broadcasting.

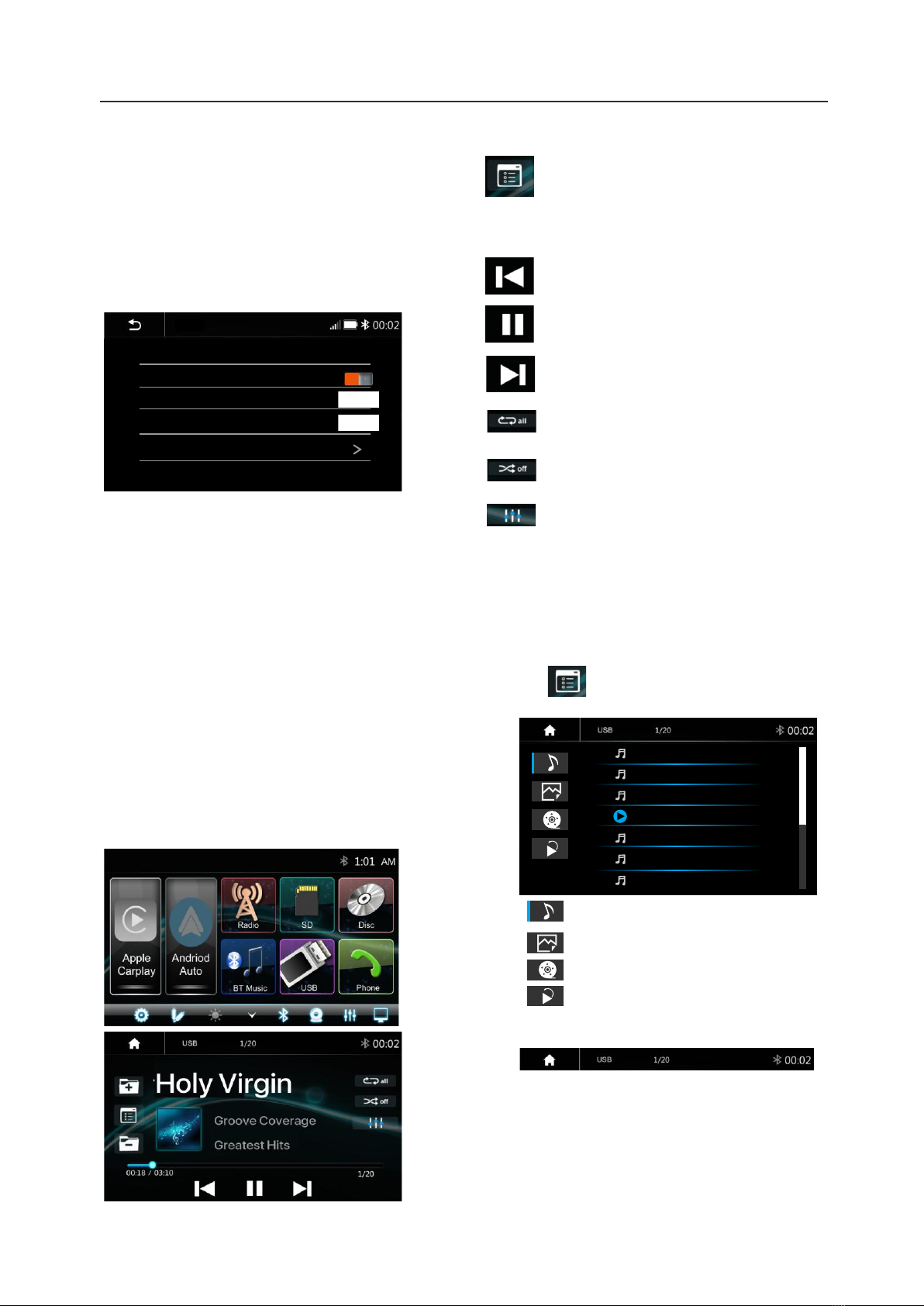

6.MAIN MENU
VRCPAA-7DR is a 2-DIN car audio with
following functions:
Apple CarPlay, Google Android Auto,
Radio, Disc, Bluetooth, USB, SD.
The Mode icon in gray means the corre-
sponding function is not ready or proper
device have not been connected.
Touch the corresponding Mode icon to
enter playing mode.
Turn off TFT display.
TFT enter black mode touch any
zone return to TFT on.
7.Settings
Touch the icon to enter the Setup menu.
The Setup menu is included System Settings,
Display Settings, Audio & EQ Settings, Disc &
DVD Settings, Bluetooth Settings and Rear
Camera Settings
System Settings
The System Settings allow the user to set up
the Language, Date & Time, Key Beep,
SWC, Factory Reset and About
Audio Settings
Below shown is the Audio Setting Menu.
EQ Settings
Balance/Fader:
Touch the “+” or “-” of Balance /Fader to tune
for the driver and passenger preference.
The value of Balance (Left15-Right 15) and
Fader ( Front 15- Rear 15).
Touch Reset to set both Balance and Fader
to 0.
9
Hidden soft button bar
A hidden pop up soft button bar is located
at the bottom. Touch the icon to shown
the soft button bar. Touch the to hidden.
Pop up the soft button bar.
Hidden the pop up soft button bar.
Setup, to enter the Settings Menu.
AUX IN, to enter the AUX and A/V IN
interface
Dimming, to change Daylight or
Night (If lighting detect is OFF in
Display Setting)
Bluetooth pairing.
Language
Date & Time:
To setting Time display format (12H or 24H),
setting the date and time
Time Format
Settings 2:05 AM
12H
1 1 2022 1 : 06 AM
Beep Tone: On/Off
To set the touch button beep tune On or Off
Front Camera, to enter the front
camera.
EQ, to enter the Equalizer setting
mode.

7.Settings
About
Display Settings :
10
Factory Reset
To reset the default factory setting.
To display the Unit Hardware and Firmware version.
Below is the Display setting menu, user can
select Lighting Detect, Daylight Dimming
Level, Night Dimming Level, Illumination
and Wallpaper.
Lighting Detect: On/Off
Daylight Dimming Level: 8 – 15
Night Dimming Level: 0 – 8
Illumination
SWC:
To set the Steering Wheel Control
Click SWC Default Switch to be "on"
status.
Click Custom SWC to SWC study
mode.
Touch Save to confirm the setting
Touch Reset to erase and reset
the setting
Reset Factory Data
Cancel OK
MCU:
SOC:
Hardware:
Update
Led Auto OFF
Led Color - +
Red
Led Auto: On/Off .
ON: The Led color will change automatically.
OFF: You press the button or
to select desired color.
Color: White / Red / Yellow /Blue / Green /
Purple / Light Green
-
+
ON
Short time press the key of the car
radio SWC screen first and then long
time press corresponding button of
car steering wheel for learning and
setting .
Note: Press the “Reset” before you
start the setting.
1
1
