SoundMax SM-CCR4705 User manual

SM-CCR4705
Мультимедийный ресивер 2 DIN с 7” сенсорным TFT-дисплеем
Руководство по эксплуатации
2 DIN Multimedia receiver with 7” TFT touch screen display
Instruction manual
TF USB
BAND
MODE

2
Dear customer!
Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully
before connecting, operating and/or adjusting the product and keep the manual for reference in the future.
Important safeguards ............................................................................................................................................. 3
Accessories ............................................................................................................................................................. 4
Installation/Connections ........................................................................................................................................ 5
Panel controls ....................................................................................................................................................... 10
General operations ............................................................................................................................................... 13
Radio operations ................................................................................................................................................... 14
Bluetooth operations ........................................................................................................................................... 15
USB/SD operations ............................................................................................................................................... 17
Steering wheel control (SWC).............................................................................................................................. 21
Troubleshooting guide ......................................................................................................................................... 22
Specifications ........................................................................................................................................................ 23

3
Important safeguards
• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not
read through this manual to use this unit.
• Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke,
and overheating could result from contact with liquids or dust. Protect this unit from moisture.
• Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such
as electrical shock or laser beam exposure.
• The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to
heat up the passenger compartment during 20 seconds or to the operation temperature.
• Using the unit with the temperature that goes beyond the operation temperature greatly decreases the operation
resource of the screen and other components of the unit and can result in an outage.
• Disconnect the vehicle’s negative battery terminal while mounting and connecting the unit.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it
before installation.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage
rating may cause serious damage to the unit.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or
burn out the power amplifier.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a
thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual
sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the
system.
• Always keep the volume low enough so that you can hear sounds from outside the vehicle.
• Should this product fail to operate properly, contact your dealer or nearest service center.

4
Accessories
1 pc
1 pc
2 pcs
2 pcs
8 pcs
1 pc
1. Media player
2. Remote controller
3. ISO connector
4. Decorative plastic
frame
5. Mounting parts:
Mounting bracket
Screw
6. Instruction manual
1 pc

5
Installation/Connections
Choose the mounting location where the unit will not interfere with the normal driving function of the
driver.
Before finally installing the unit, connect the wiring and make sure that the unit works properly.
Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the
vehicle.
Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a
sudden stop, like an emergency stop.
If installation angle exceeds 30° from horizontal, the unit may not perform properly.
Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or
from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

6
Mounting
• Connect the cable set and the antenna to the vehicle’s electronics corresponding to the connection table
(see further).
• Attach the mounting brackets to the sides of the unit, and fix them with supplied screws.
• Insert the unit into the slot until the stop. The unit then audibly snaps.
• Fasten the screws to fix the unit.
• The device is distinguished by a high degree of output. During operation, this results in a strong heat
generation. Therefore no cables or other parts may adjoin the device. If their insulation melts, there is the
risk of a short circuit or fire.
• Removing: Turn off the device. Clamp off the negative pole of the vehicle battery for the duration of the
disassembly. Unscrew the four screws. Remove carefully the unit from the slot and disconnect all wires. Make
sure that no vehicle cable can cause a short circuit after the device has been unplugged.

Connection diagram
7
1
2
15
16
A
3
4
5
6
7
8
9
10
11
12
13
14
12 3 4 5 B
12 3 4 5
A--Power
B
1--RCA
2-- /
3--4P USB
4--6P USB
5--BRAKE/F-CAM
B
GND Black Ground wire
BATT+ Yellow Battery wire
ACC Red lgnition wire
ILLUMI Orange Lamp control wire
BACK Pink Reverse wire
KEY-1 Orange/Black Steering wheel control wire 1
ANT.POW
Blue Automatic antenna
FR- Gray/Black Front right speaker -
FR+ Gray Front right speaker +
RL- Green/Black Rear left spearker -
RL+ Green Rear left spearker +
FL- White/Black Front left spearker -
FL+ White Front left spearker +
RR- Purple/Black Rear right speaker -
RR+ Purple Rear right speaker +
KEY-2 Steering wheel control wire 2 Brown
A: Power B:5
CAMERA Yelloww Reverse camera input
Yelloww Front camera input F-CAM
BRAKE Yellow Brake control
F-CAM+12V Bluee Front camera power +12V
AUX VIDEO Yellow Video input
B:1
VIDEO OUT00 Yellow Video output0
VIDEO OUT11 Yellow Video output1
AUX AL White Left audio input
RL White Rear left audio output
FL White Front left audio output
AUX AR Red Right audio input
RR Red Rear right audio output
FR Red Front right audio output
SUB Green Sub woofer output
MIC Black Microphone
PCON Pinkk External power amplifier

8
Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors
as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection may cause serious damage to
this unit.
Cut the connector, connect the colored leads of the power cord to the car battery as
shown in the colour code table below for speaker and power cable connections.
Location FUNCTION
Connector B Connector A
1 Rear right speaker (+)/Violet Parking sensor control wires / Pink
2 Rear right speaker (-)/Violet-Black Brake line / Brown
3 Front right speaker (+)/Gray Steering wheel control / Orange-Black
4 Front right speaker (-)/Gray-Black Battery 12V (+)/Yellow
5 Front left speaker (+)/White Power antenna/Amplifier / Blue
6 Front left speaker (-)/White-Black Panel light / Orange
7 Rear left speaker (+)/Green ACC+/Red
8 Rear left speaker (-)/Green-Black Ground/Black
Power antenna wire is intended for power supply of the antenna and for remote control of an additional
amplifier.

9
Parking wire connection
If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving
status, system setup and input video sources. When the car is moving ahead, if the video is played, the screen
shows a warning message. The warning screen will prevent the driver from watching images.
Reverse driving cable connection
If the rear view video camera is connected, the unit automatically switches to camera picture during reverse driving. The
unit returns to the original work mode after the reverse driving is done.
Car frame
Brake light lamp
Battery
Parking brake line
Car frame
Car frame
Battery
Reverse driving light
Pink wire
Gearbox

10
Panel controls
1. Display
2. Microphone
3. IR sensor
4. POWER button/
MUTE button
5. MODE button
6. BAND button
7. Volume/Select
knob
8. Reset button (hole)
9. AUX input
10. TF card slot
11. USB port
TF USB
BAND
MODE
1
4
5
6
7
8
9
10
11
23

11
Remote control
Play/Pause
Power switch
1-6 number buttons
Automatic search
and storage of
radio stations
Equalizer
Mute
Mode switch
Return
Volume regulation
Fast forward/backward
Band switch in radio mode
aps band
eq
12 3
456

12
Changing the battery
1. Press the catch and at the same time pull out the battery tray (pic. 1).
2. Insert the 1 lithium battery, type CR2025 (3V) battery with the stamped
(+) mark facing upward. Insert the battery tray into the remote controller
(pic.2).
Warning:
Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a
doctor immediately.
Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the
battery to give off heat, crack or start a fire.
When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give
off heat, crack or start a fire.
Please direct the Remote controller to the IR sensor of the front panel.
Pic. 1 Pic. 2

13
General operations
Touch screen
Due to the touch screen, you can fulfill most functions not only by pressing buttons but also by touching the
options you need.
Turning the unit on/off
Press the POWER button to turn the unit on. Press and hold the POWER button again to turn the unit off.
Reset the unit
Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press reset
button on the unit with a pointed object (such as a ballpoint pen) to set the unit to initial state.
When some errors occur on the display, you can also press reset button to resume to normal, and it will
erase the clock setting and some memorized functions.
Main Menu
Press the icon in the top left corner of the screen to go to the main menu. From here you can
access various functions such as Radio, USB/SD, Bluetooth, etc.

14
Volume adjustment and mute function
Rotate the volume knob on the panel or press VOL+ / VOL- buttons on the RC to adjust the volume level.
Press the MUTE button on the panel or the RC to turn off the sound. Press the button again or adjust
volume to resume the sound output.
Radio operations

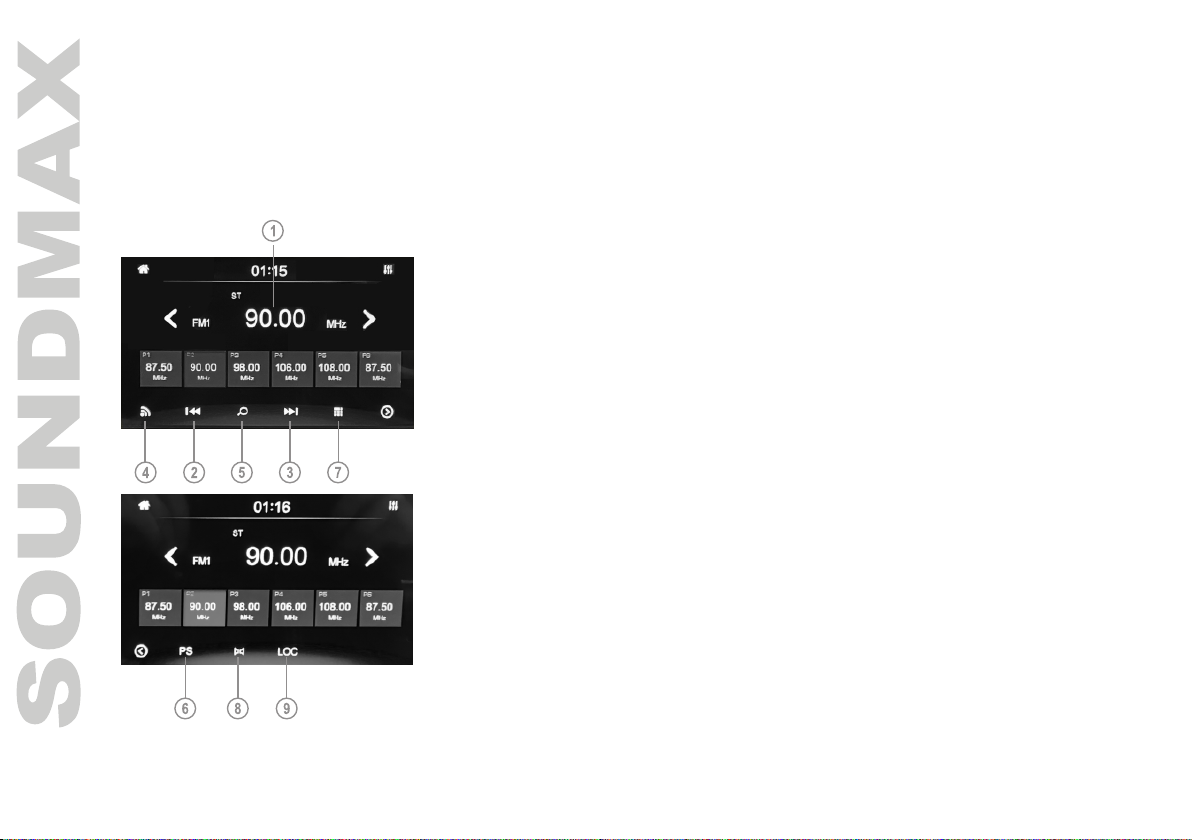

Press the Radio icon in the main menu or press
MODE on the panel to go to the Radio menu. The
interface elements are as follows:
1. Current frequency.
2. Short press to automatically scan down the
frequency range; long press to manually
fine-tune low-end frequencies.
3. Short press to automatically scan up the
frequency range; long press to manually
fine-tune high-end frequencies.
4. Switch radio bands.
5. Automatic radio station scanning.
6. Browse radio stations.
7. Save the current station as memory preset.
8. Mono/stereo switch.
9. LOC/DX switch.

15
1. Dial
2. Phone records
3. Phone book
4. Calling key
5. Switch voice between
vehicle loudspeaker and
the phone
6. Hang up key
7. Previous
8. Play/pause
9. Next
Bluetooth music
Press the BT icon in the main menu or MODE key on the
panel and RC to go to the Bluetooth menu. Here you can
enable/disable and setup your Bluetooth connection. Pair the
device to your smartphone, the default name is SM-
CCR4705. The default PIN code is 0000.
Warning! Due to variety of Bluetooth modules installed in
mobile devices and software, the connection of the car radio
to all mobile devices and the full and correct operation of all
Bluetooth functions are not guaranteed. Your mobile device
must support Bluetooth A2DP to play music.
Bluetooth operations
Bluetooth phone

16
Making calls
Enter the phone number using the keypad in the BT interface or on the remote control. Press to
clear error inputs one by one. After inputting the phone number, press the Call key. Click the
End key to end the call. While calling, press the Switch key to switch voice between vehicle
loudspeaker and the phone.
Answering calls
When a call is received, the system will automatically switch to the BT and handsfree mode interface.
If the Auto Answer Mode is enabled, the system will answer a call automatically. If the Manual
Answer Mode is on, press to answer a call, to end a call. Press to switch audio between
vehicle loudspeaker and the phone.
Playing music
Use the playback control keys in the BT interface to play the music from a paired phone. Your phone
must support A2DP to play music.

17
USB/microSD operations
USB/microSD/TF notes
Supported USB format: 2.0. Capacity: up to 1 TB.
For correct and satisfactory operation, licensed microSD memory cards of well-known brands should be used
with this unit. Avoid using memory cards of unknown brands. Capacity: up to 32 GB.
According to the USB 1.1/2.0 Standard, usage of a USB device with power current consumption exceeding
500 mA is not recommended without supplementary power supply. Failure to use supplementary power for
connected USB drives with power consumption exceeding this value as well as defective USB drives may
cause mechanical or thermal changes of elements of this unit as well as failure of internal elements of the
USB port. Such damages are not warrantee cases.
Warning: usage of external USB drives containing BIN files in the root directory may cause malfunction of
the unit or damage to the software.
Inserting a microSD card/USB device
Insert a microSD memory card into the card slot. Insert a USB storage device into the port. Playback
should start automatically. Press MODE to manually switch to the USB/SD mode.
The interface elements are as follows:
1. Previous
2. Play/pause
3. Next
4. Repeat/Random/Int play

18
5. Audio track switch
6. Subtitle language switch
7. Repeat/Random/Int play
8. Repeat A-B
9. Adjust the brightness, contrast,
saturation, hue.
10. Rotate
11. Beautify
12. Zoom in

19
Click the SETUP icon to enter system menu setting interface, including languages, sound,
multimedia, etc. Set modes according to your own preference.
Language
Choose the language of the on-screen menu.
System settings
Radio Area
Choose the radio reception region.
Time
Set the time and date.

20
Other
Setup various other settings.
Version
Version information display.
