ELECTRICAL CONNECTIONS:
See diagram below for required electrical
connections. Connect the RED wire to
+10-50Vdc through a customer supplied
5A fuse and switch. Connect the BLACK
wire to a reliable ground.

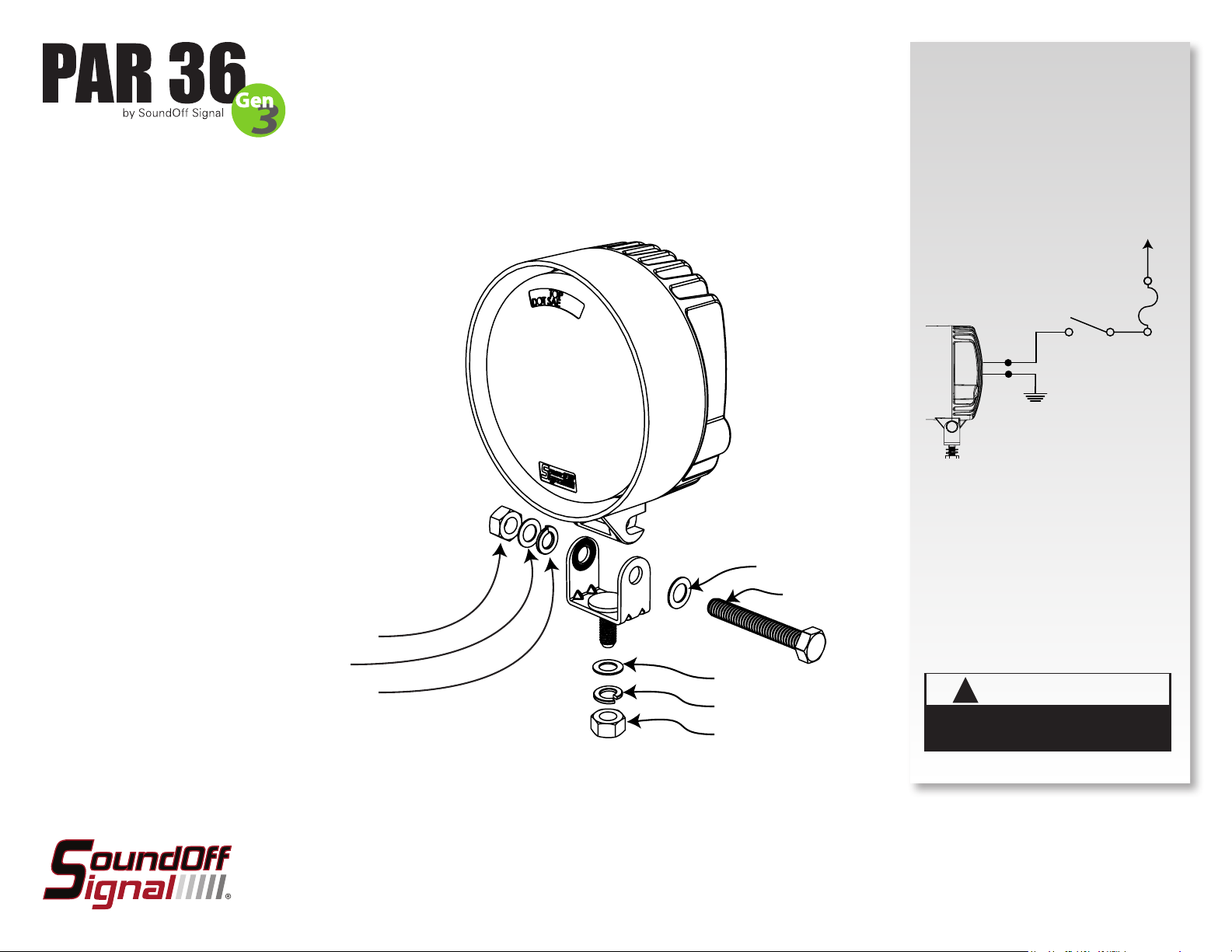

MECHANICAL ATTACHMENT:
Assemble Mounting bracket as shown in
the diagram to the left. All bolts should be
torqued to a maximum of 25 in-lbs.
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
EWLA(xxxx)DBD(x)ØW 03.12
5/16” FLAT WASHER
5/16”-18x2” BOLT
5/16” FLAT WASHER
5/16” SPLIT LOCK WASHER
5/16”-18 NYLON LOCK NUT
5/16”-18 NYLON LOCK NUT
5/16” FLAT WASHER
5/16” SPLIT LOCK WASHER
(-) GROUND
(5A) FUSE
+Vdc
BLACK
RED
PAR 36, 1000 Lumen (10-50 Vdc)
Flood Pattern #EWLA1ØØØDBDFØW
Spot Pattern #EWLA1ØØØDBDSØW
Trapezoid Pattern #EWLA1ØØØDBDTØW
PAR 36, 500 Lumen (10-50 Vdc)
Flood Pattern #EWLAØ5ØØDBDFØW
Spot Pattern #EWLAØ5ØØDBDSØW
Trapezoid Pattern #EWLAØ5ØØDBDTØW

To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the “Warranty & Returns” link along the left
column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to skip the automated message.
Questions or comments that do not require immediate attention may be emailed to [email protected].
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the “Warranty & Returns” link along the left
column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to skip the automated message.
Questions or comments that do not require immediate attention may be emailed to [email protected].
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!
Tech
Specs
PAR 36
500 Lumen
PAR 36
1000 Lumen
Illumination
Patterns:
Flood (40˚ Horiz. x 25˚ Vert.), Spot (10˚)
or Trapezoid (40˚ Horiz. x 15˚ Vert.)
Color Temp.: 5700k
Technology: 6 Gen3 LEDs
Mounting: Surface Mount with provided U-bracket
Input Voltage: 10 - 50 Vdc for worldwide use
Current Draw:
1.3 amps @ 12.8 Vdc
0.6 amps @ 25.6 Vdc
0.3 amps @ 51.2 Vdc
2 amps @ 12.8 Vdc
1.1 amps @ 25.6 Vdc
0.6 amps @ 51.2 Vdc
Dimensions:
Diameter x Height x Depth
4.5” (10 cm) Diam. x 2.8” (64 mm) D
Overall Height: 5.7” (14 cm) incl. bracket
Operating Temp.: -40° to +65° C / -104° to +149° F
Weight: 1.0 lb. / 0.45 kg
Reverse Polarity: Protected
Load Dump: Protected
Spot
Trapezoid
Flood
Work Light
Output Patterns
EWLA(xxxx)DBD(x)ØW 03.12
PAR 36, 1000 Lumen (10-50 Vdc)
Flood Pattern #EWLA1ØØØDBDFØW
Spot Pattern #EWLA1ØØØDBDSØW
Trapezoid Pattern #EWLA1ØØØDBDTØW
PAR 36, 500 Lumen (10-50 Vdc)
Flood Pattern #EWLAØ5ØØDBDFØW
Spot Pattern #EWLAØ5ØØDBDSØW
Trapezoid Pattern #EWLAØ5ØØDBDTØW
