Soundstream VR-622HB User manual

SeUNDSTREAM
VR-622HB
BEFORE OPERATING THE UNIT.PLEASE READ THIS MANUAL
THROUGHLYAND RETAIN IT FOR FUTURE REFERENCE
= 0 RES
'•RQ
ml
MIC
-
~
/
.....
CE::3)
~
--=-
[j
~~
~;;..
-......____
MOD
-
(Q)
AVIN
[!]
v
SeUNDSTREAr\11
VR-622HB~
Double Din Touch Screen TFT Monitor DVD Player
-

Contents
NOTES ON INSTALLATION
PRECAUTIONS
PANEL
REMOTE
CONTROL
REMOVE BATTERY
WIRING DIAGRAM
MAIN MENU
• RADIO
•
MOBILE
LINK
• BLUETOOTH
• DISC
• USB
•
AVIN
• SETTING

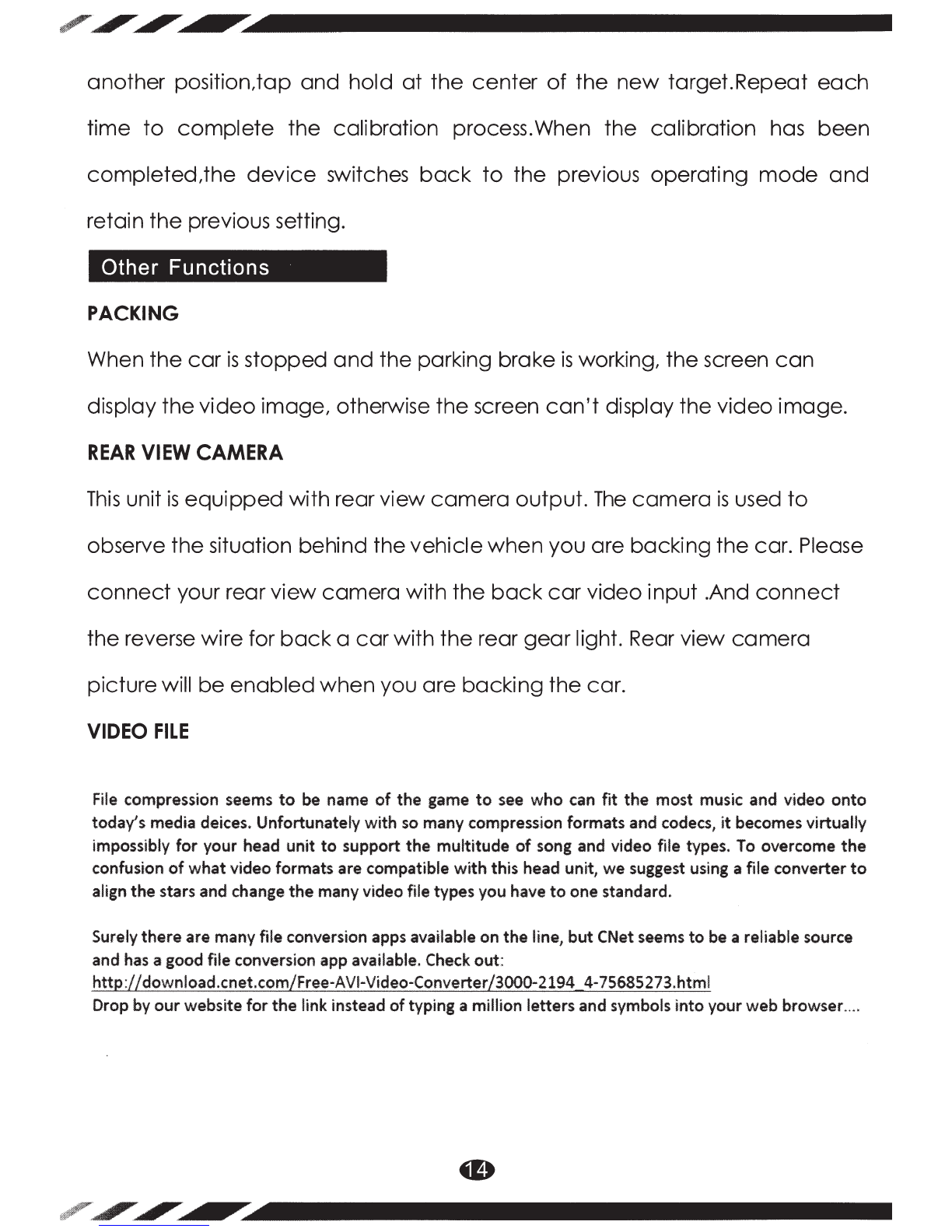

OTHER
FUNCTIONS

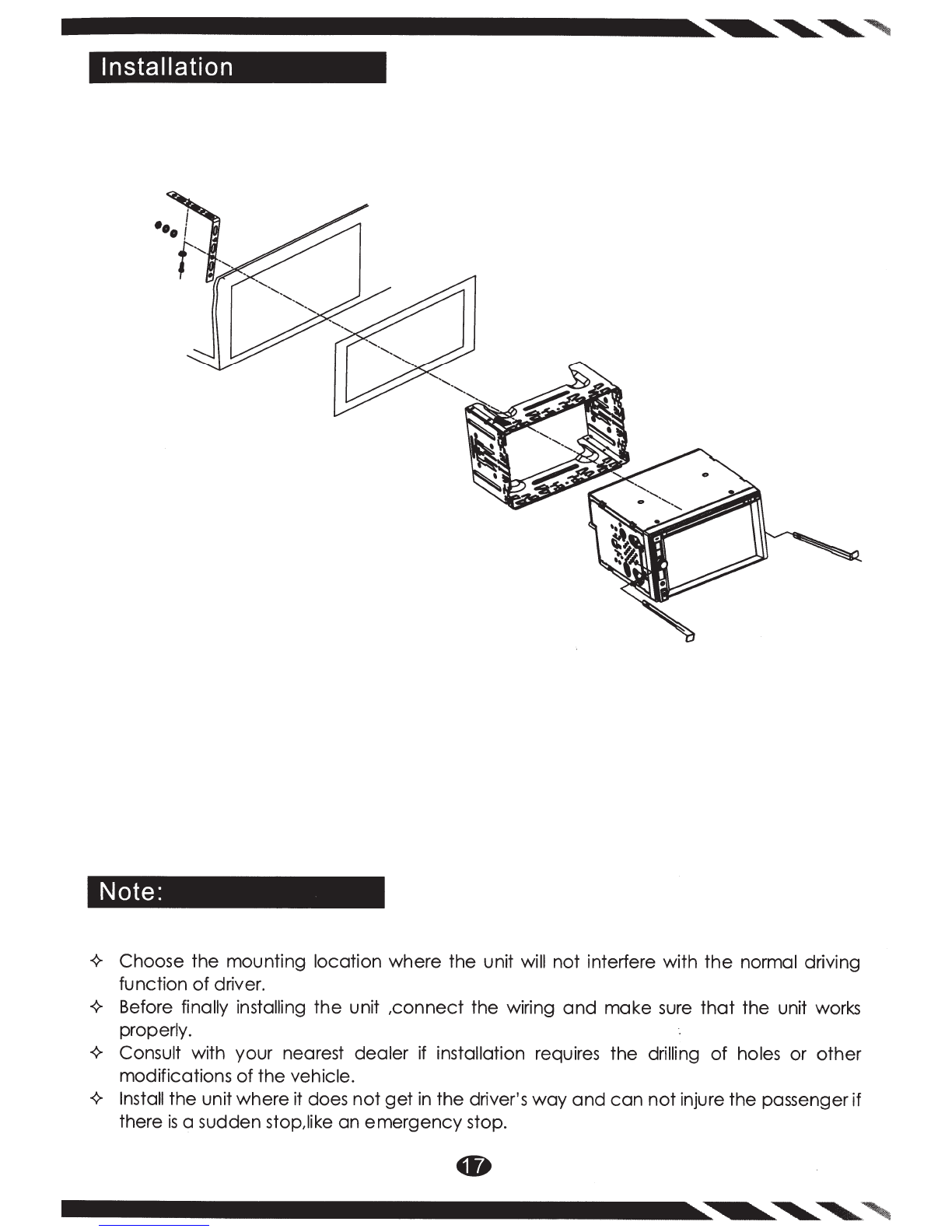

INSTALLATION

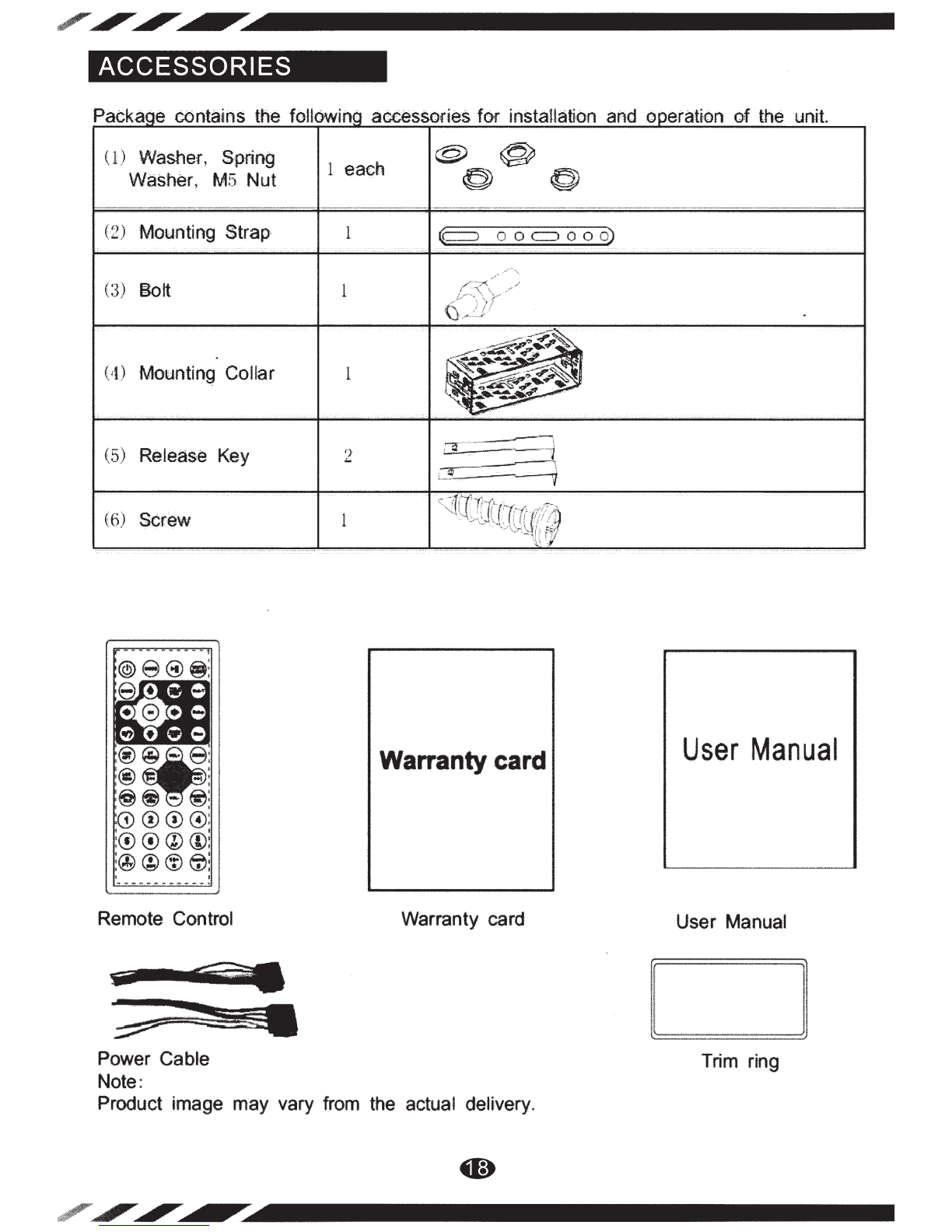

ACCESSORIES

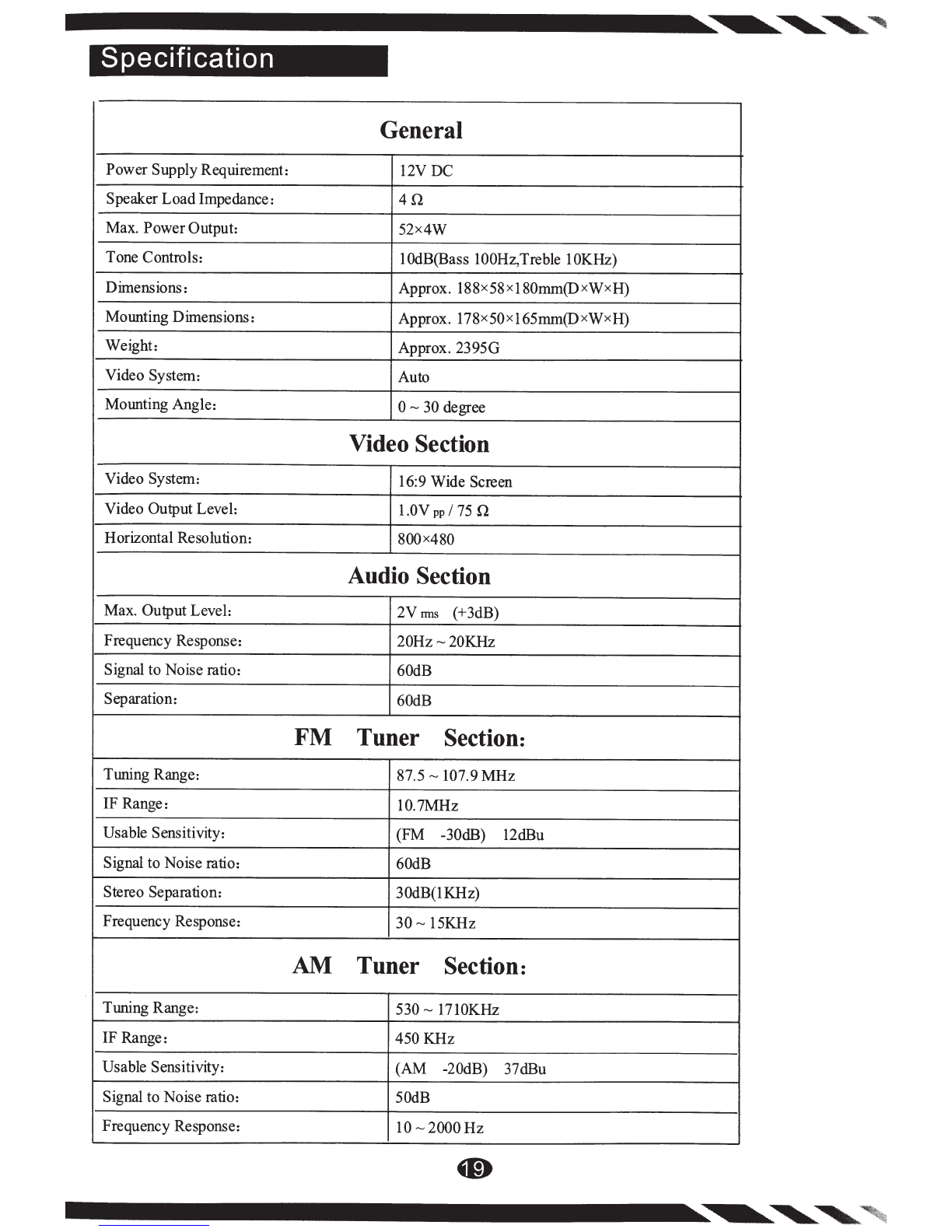

SPECIFICATION
Notes
on
installation
The unit is designed for 12V DC, negative ground operation
system only. Before installing the unit, make sure your vehicle is
connected to 12V DC negative grounded electrical system.
The negative battery terminal must be disconnected before
making connections, which can reduce damaging to the unit due to
short circuit.
Be sure to connect the speaker (-) leads to the speaker (
-)
terminal. Never connect the left and right channel speaker cables
each other or to the vehicle body. Do not block vents or radiator
panels. Blocking the will cause heat to build up inside and may
result in fire.
After the completion
of
the installation and begin to operate the
unit (including replacing the battery), please press the reset button
on the front panel with pointed objects (such as ball pen) to set the
unit to initial status. •

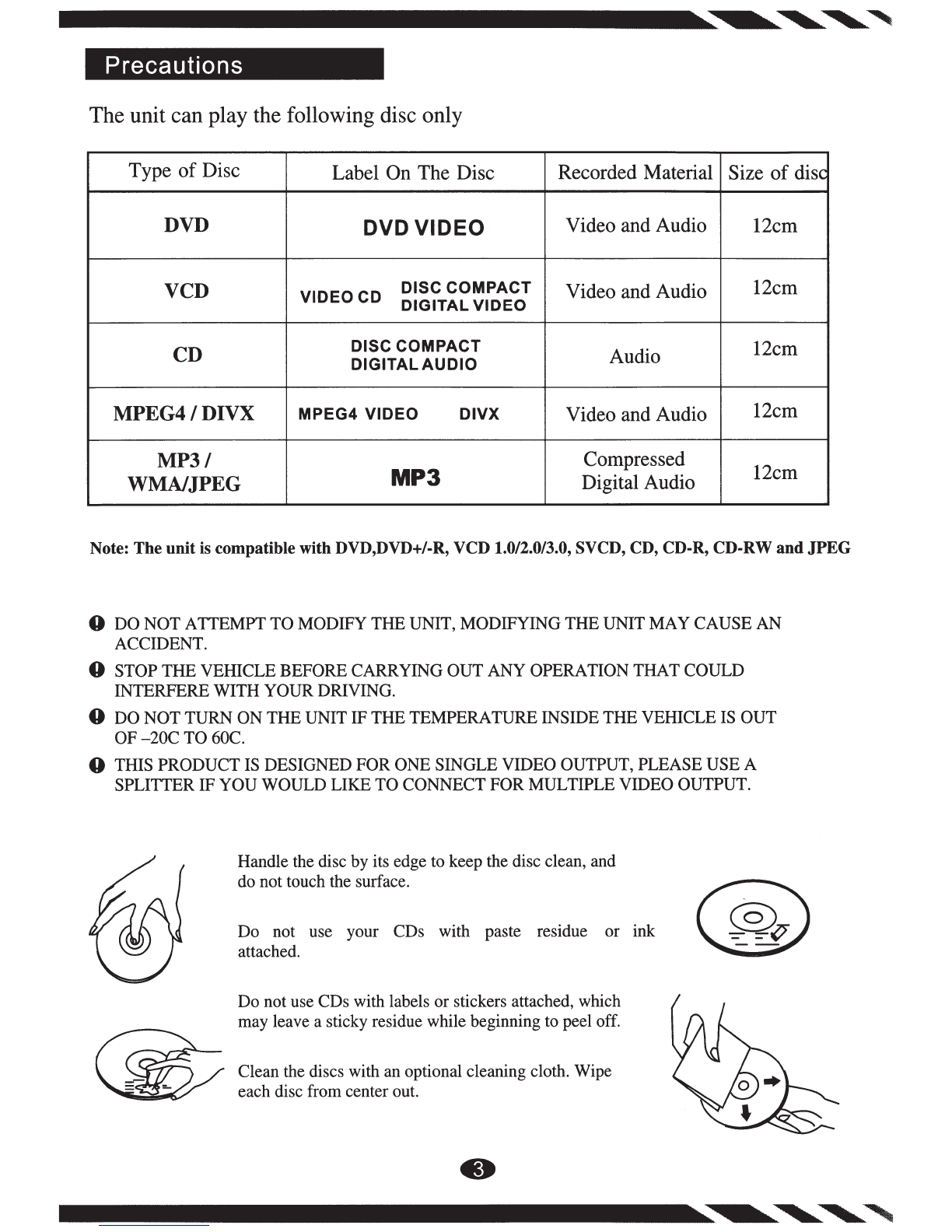

Precautions
The unit can play the following disc only
Type of Disc Label On The Disc Recorded Material Size
of disc
DVD
DVDVIDEO
Video and Audio 12cm
VCD VIDEO
CD
DISC COMPACT Video and Audio 12cm
DIGITAL VIDEO
CD DISC COMPACT Audio 12cm
DIGITALAUDIO
MPEG4/DIVX
MPEG4 VIDEO DIVX Video and Audio 12cm
MP3/
Compressed 12cm
WMA/JPEG
MP3
Digital Audio
Note: The unit is compatible with DVD,DVD+/-R, v·cD 1.0/2.0/3.0, SVCD, CD, CD-R, CD-RW and JPEG
0 DO NOT ATTEMPT TO MODIFY THE UNIT, MODIFYING THE UNIT MAY CAUSE AN
ACCIDENT.
0 STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD
INTERFERE WITH YOUR DRIVING.
0 DO NOT TURN ON THE UNIT IF THE TEMPERATURE INSIDE THE VEHICLE IS OUT
OF -20C TO 60C.
0 THIS PRODUCT IS DESIGNED FOR ONE SINGLE VIDEO OUTPUT, PLEASE USE A
SPLITTER IF YOU WOULD LIKE TO CONNECT
FOR MULTIPLE VIDEO OUTPUT.
Handle the disc by its edge to keep the disc clean, and
do not touch the surface.
Do not use your CDs with paste residue or ink
attached.
Do not use CDs with labels or stickers attached, which
may leave a sticky residue while beginning to peel off.
Clean the discs with an optional cleaning cloth. Wipe
each disc from center out. •

Panel
12
11
10
0
REar----------"--------;
IR
_....,_....,......._
......
8
7~~~----------~
LJ
.-------
seuNDSTREAtv1
VR-622HB
1.MIC
2.
Fast
Forward
Button/Next
Track
3.Fast
Reverse
Button/Previous
Track
4.Power/Volume
Button
5.Mode
Button
6.AV
IN
?.USB
Jack
8.TFT-LCD
Display
9.Eject
Button
1O.IR
Sensor
11.DiscSiot
12.
Release
Button
•

Remote Control
l.Power
Button(TFr
ON/OFF)
2.MODE Button
3
.
...
11
Button
4.MUTE /EJECT Button
S.BAND Button
6. +Button
7.TITLE(in DVD playing)
1
2
5
6
9
10
13
14
17
18
21
22
25
26
29
30
PBC(in VCD playing) Button
8.Sub-T Button
9.• Button
10.0K
Button
11.
..
Button
12.Setup Button
13. •n Button
14.•Button
15
.Angle (long press)/EQ (short press)
16.0pen Button
17
.AMS (in radio &
TV
searching)
RPT (in DVD/CD!MP3 repeated) Button
18.ST (in radio)/PROG (in DVD/CD/MP3) Button
4
3
8
7
12
11
16
15
20
19
24
23
28
27
32
31
19.VOL+Button
20.ZOOM Button
2l.LOC
(a remote in radio)/RDM
(a random broadcast in DVD/CD/MP3)Button
22.SEEK
/I••
Button
23.SEL I LOUD Button
24.SEEK I
.,.,1
Button
25.CLK (for time switching) """ (for answering in BT) Button
26. OSD (in DVD) I..:.. (for cutting
off
in BT) Button
27.VOL- Button
28.AUDIO (for channel switching in DVD/CD/
Mp3)/DEL(in BT) Button
29.1-9 Number Button
30.0 /SWT Number Button
31.10+(the selection key for DVD)/* (in BT) Button
32.GOTO
(the selection
key
for
DVD)/#(in
BT)
Button

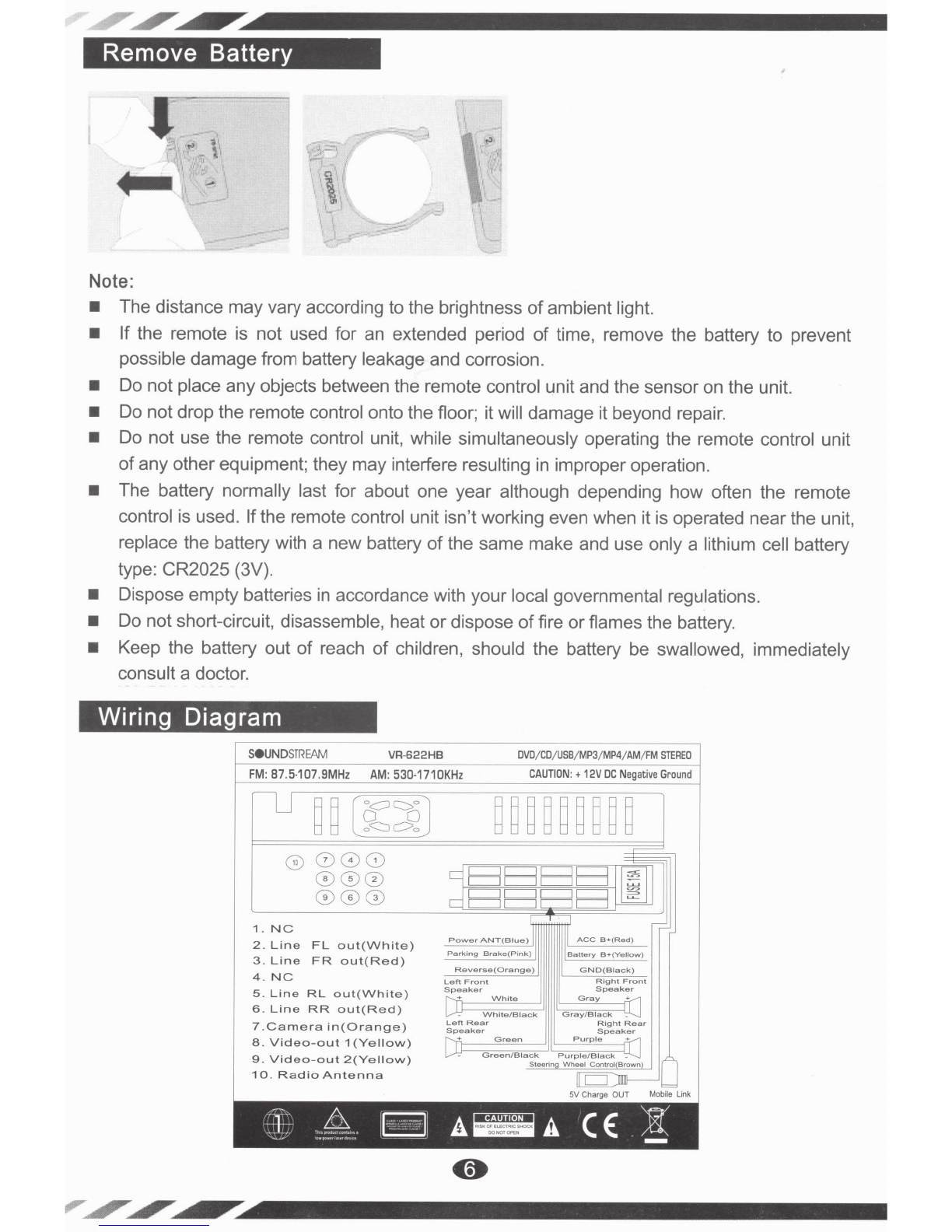

Remove Battery
Note:
• The distance may vary according to the brightness
of
ambient light.
• If the remote is not used for an extended period
of
time, remove the battery to prevent
possible damage from battery leakage and corrosion.
• Do not place any objects between the remote control unit and the sensor on the unit.
• Do not drop the remote control onto the floor; it will damage it beyond repair.
• Do not use the remote control unit, while simultaneously operating the remote control unit
of
any other equipment; they may interfere resulting in improper operation.
• The battery normally last for about one year although depending how often the remote
control
is
used. Ifthe remote control unit isn't working even when it is operated nearthe unit,
replace the battery with a new battery
of
the same make and use only a lithium cell battery
type: CR2025 (3V).
• Dispose empty batteries
in
accordance with your local governmental regulations.
• Do not short-circuit, disassemble, heat
or
dispose
of
fire
or
flames the battery.
• Keep the battery out
of
reach
of
children, should the battery be swallowed, immediately
consult a doctor.
Wiring Diagram
SeUND
STRE.AM
VR-622HB
DVD
/
CD
/
USB
/
MP3
/
MP4
/
AM
/
FM
STEREO
FM:
87
.5-107.9MHz AM:
530
-1710KHz
CAUTION
: +
12V
DC
Negative
Ground
lJ
~
~
[~~]
~~~~~~~~~
0
008
ElElElB
m
000
000
dBE
lElB
1 .
NC
Powe'
ANT(Biue)
TI
rr
ACC
B+(Red)
--=
2.
Line
FL
out(White)
Parking
B r
ake(Pink)
Battery
B+(Yellow)
3 .
Line
FR
out(Red)
Reverse(Orange)
GND(B
i
ack)
4 .
NC
Left
Front
Right
Front
5 .
Line
RL
out
(
White)
Speake
r
Speaker
Wh
i
te
Gray
+
6 .
Lin
e
RR
o
ut(R
e
d)
White/Black
Gray/B
l
ack
? .
Camera
in(Orange)
Left
Rear
Righ
t
Rear
Speaker
Speaker
8 .
Video
-
out
1
(Y
e
llow)
Green
Purple
I I
9 .
Video
-
out
2(Yellow)
G '
een/B
i
ack
P u
,ple/B
i
ack
-
f~
10
.
Radio
Antenna
Stee•lng
Whi~~o
l
~
'==='
5V Charge
OUT
Mobile Link
=
+-
~
E2l
A~
A
CE
)t
~
-

Main Menu
The best way to discover the program is to explore each screen in detail, and to find out how to
move from one to anothe
r. Read this chapter for a guided tour.
Unit starts by displaying the Main menu.
This is the root
of the screen hierarchy, and you can simply access all features by tapping on
the touch screen buttons.
Tap the icons to enter a desired mode.
Radio
To start Radia l tap RADIO button on ma in menu screen_
Mute the sound
Touch
ST to select Stereo
ExchangeAM/FM
Touch
this button can scan the stations from 1-6
Auto store each station

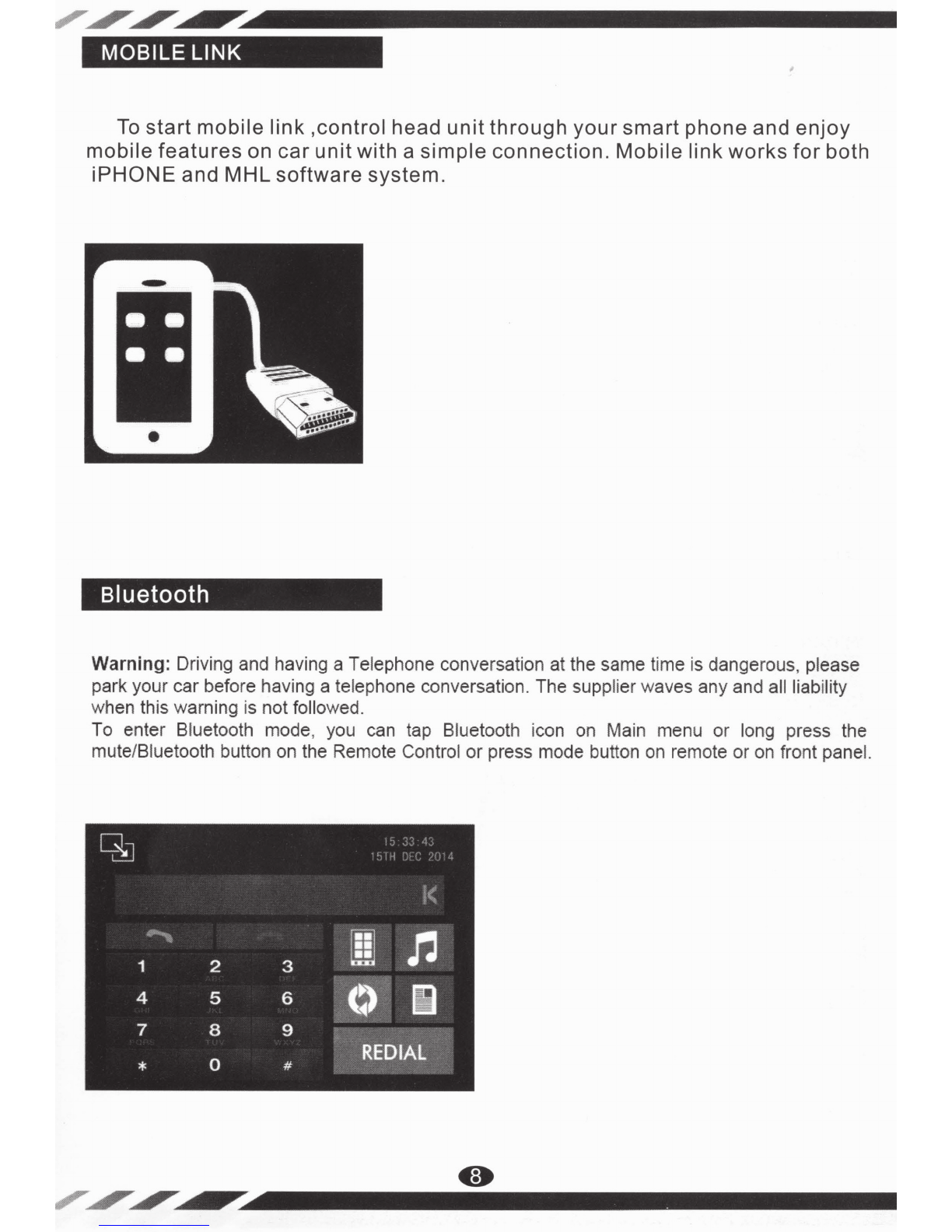

MOBILE LINK
To start mobile link ,control head unit through your smart phone and enjoy
mobile features on car unitwith a simple connection. Mobile link works for both
iPHONE and
MHL software system.
-
•
Bluetooth
Warning: Driving and having a Telephone conversation at the same ti me is dangerous, please
park your car before having a telephone conversation. The supplier waves any and all liability
when this warning is not followed.
To enter Bluetooth mode, you can tap Bluetooth icon on Main menu or long press the
mute/Biuetooth button on the Remote Control or press mode button
on remote or on front pane l.

................................ ~~~~
Pairing Mode
At the 1st time when using BLUETOOTH, you need to pair the mobile phone first.
When a phone have not been paired with the unit, the BT icon and Pairing mark will blink
continually on the panel.
When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if
available) will
be display on the panel.
According to mobile pairing device manual, after searchi
ng new device, select it, input
password "0000" and confirm ok, device paring is finished.
The text 'Enter Number' will shows
on the panel after the pairing is completed. It means device
is connected and ready for BLUETOOTH communication.
Auto-connect- Disconnect
When power
on the unit, the last paired phone will be connected to the device via Bluetooth
automatically, after searching about one minute, ifthe device cannot fi
nd the pa ired phone, it
will stop searching. When in standby mode (unconnected), long press Bluetooth button on
remote control to active auto-connect function and the device will search the last paired phone.
Ifyou want to disconnect the Bluetooth connection, turn offthe Bluetooth on the phone.
• Tap on this button to enter call mode
In Call mode,the
unit can be used as your phone.Making and receiving calls
are possible with BLUETOOTH.Simply tap phone number and tap• button
to make a call,and
tap. button to hang up.Tap button shorly to delete a
wrong digit,or press
it for 3-4 seconds to delete all the numbers at once.During
a call,you can change a ell from Bluetooth mode to phone by tapping l:
fil
button. To have a call in Bluetooth mode again, tap IQI button.
B Tap on this button to listen music in Bluetooth mode.
In this main menu,you can selectthe function with the key
for previous,
plsay/pause and next.
DJ Tap on this button to see the history mode.

The
unit
can downloading the data from phone
automatically
when the pairing
between a phone and the unit be completed.
liJ
Tap on
this
button to see history mode.
The unitcan download
automatically
all the data from the mobile phone.
Missed/Received/
Dialed calls are saved in
history
mode.
Disc
Tap on Disc button from main menu screen to
start
DVD/VCD play.
When a file
disc
is played,the screen will
show
following interface:

Note:
Disc
will
automatically
start
playing when you
insert
any
DVD/VCD disc.
Warning
displays
if
the
vehicle
is moving
for
driver's
safety.Disc will
not
play
video,but
also
and music files as well.
There are all
the
functions in 3 pages.
This
is
the
first
/second
I
third
page
.
...
Mute
the
sound
.
...
lo.=.oio..........;.ij
Touch
it
to
play
I pause
.
...
Touch
it
to
stop.
tJ
~
--·
Touch it
to
selectStereo I
Mono
LI
Mono
RI Mix
Mono
.
...
...
.
._
_Touch it
to
REPEAT
A-B
.
...
~IIIII!.
Touch it
to
se
l
ect
fi
le Number
.
...
Touch it
to
se
l
ect
PBC
ON/
OFF.
tJ
Touch it
to
select INVALID
KEY
.
...
Touch it
to
change
to
16:9
.
...
Touch it
to
change
the
ZOOM.
...
When a
file
USB is played,the screen will
show
following interface:
•

~ ~~ ~~ .............. ..

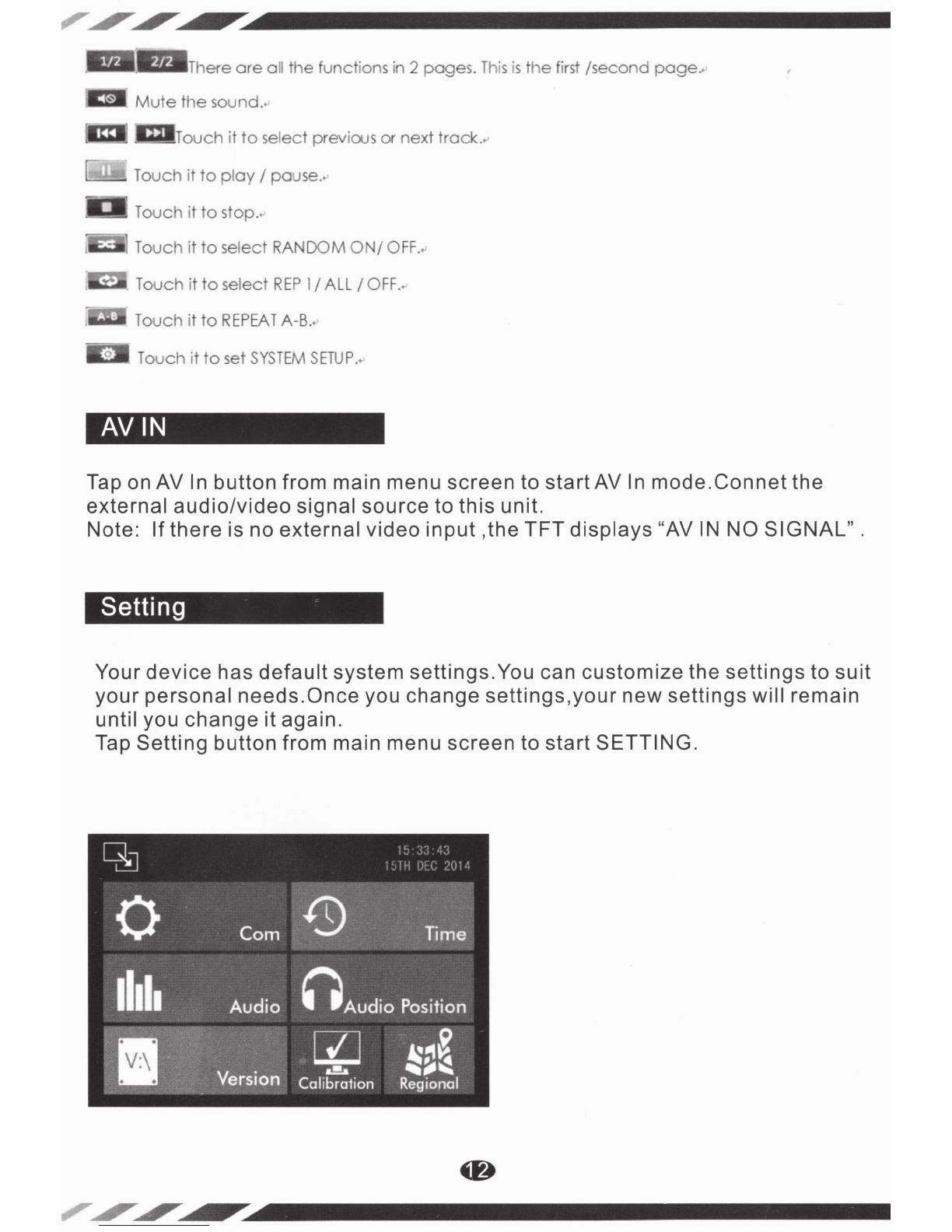

are all the functions in 2 pages . This is the first /second page. ~·
~ Mute the sound. +~
Touch it to select prev ious or next track . +~
Touch it to play I pause ...
Touch it to stop."
Touch
it to select RANDOM ON/ OFF . ..,
. Touch it to se l ect REP 1/ ALL I OFF. ,.,
Touch it to REPEAT A-B. ~
Touch it to set SYSTEM SETUP. "
AVIN
Tap on AV In button from main menu screen to startAV In mode.Connet the
external audio/video signal source to this unit.
Note:
If there is no external video input ,the TFT displays "AV IN NO SIGNAL".
Setting
Your device has default system settings.You can customize the settings to suit
your personal needs.Once you change settings, your new settings will remain
until you
change it again.
Tap Setting button from main menu screen to
start SETTING.

m
This
item
is
for selecting
Com
.
Screen brightness:
1-
2
Deep:ON/OFF
Brighty
off
time:ON/
30s/ 1
min/
5min/
15min/
OFF
m
This
item
is
for selecting Audio.
Treble:-7I 7
BASS:
-7
I
7
EQ:
User/ Jazz/ Rock/ Classic/ Pop/ Flat
LOUD:
OFF/
ON
El
\ System information.
This
item
is
for setting time.
You
can
adjust
each
it
em
by
pr
essing
the
i
con
a
or
Dl
on
t
he
screen. MODE item isfor time
Requied for
12
I 24 hours.
~This
i
tem
is
for setting Audio Position.
You
can
ad
just
each
it
em
by
pressing the i
con
a
or
Dl
on
t
he
screen.
Occur
with
the
t
ouch
screen
and
it
needs adjustment.
Ca
li
brat
ion
procedure
of t
he
touch
screen
is
described
as
be
l
ow
:When the target moves
to
.....
~
~
~
'""'
Ia
:--J.-:
~
1014
vtAR
~
12
MONiti
~
15
IJA'
·7
...
Tr01bl<t
_,
...
BA.SS
...
~
Off
...
lOUD
...
~
15
...
HOUR
...
~
33
...
MIN
...
...
24
...
MO[)t
+

another position,tap and hold at the center of the new target.Repeat each
time to complete the calibration process.When the calibration has been
completed,the device switches back to the previous operating mode and
retain the previous setting.
Other Functions
PACKING
When the car is stopped and the parking brake is working, the screen can
display the video image, otherwise the screen can't display the video image.
REAR VIEW CAMERA
This unit is equipped with rear view camera output. The camera is used to
observe the situation behind the vehicle when you are backing the car. Please
connect your rear view camera with the back car video input .And connect
the reverse wire for back a car with the rear gear light. Rear view camera
picturewill be enabled when you are backing the car.
VIDEO FILE
File compression seems to be name o·f the game to see who can fit the most music and video onto
today's media deices. Unfortunately with so
ma.ny compression formats and codecs, it becomes virtually
impossibly for your head unit
to support the multitude of song and video file types. To overcome the
confusion .of what video fo·rm.ats are compatible with this head unit, we suggest using a file converter to
align the stars and change the many video file types you have to one standard.
Surely
there are many file conversion apps available on the line, but CNet seems to be a reliable source
and has a good file conversion app available. Check out:
http:f/download.cnet.com/Free-AVI-Video-Converter/3000-2194 4-75685273.html
Drop
by ourwebsite for the link instead oftyping a million letters and symbols into your web browser ....

After
the
app
downloads
and
installs, it's
pretty
simple
to
convertyour files. Sel
ect
the
Add
File
button
and
browse your
computer
to
find
the
alien file
type
you
need
to
convert. The
fi
le info should
appear
at
the
top
:
F•ee
Al/1
Vdeo Converte·
v.
5.0.31
build
1125
There
are
some
optional choices
after
the
file
is
selected, like changing
the
name
to
protect
the
innocent,
or
change
the
location
the
converted file is saved.
If
you feeling frisky go for it:
want
to
convert your movie
to
. May we recommend
the
A
VI..
....:
-e>

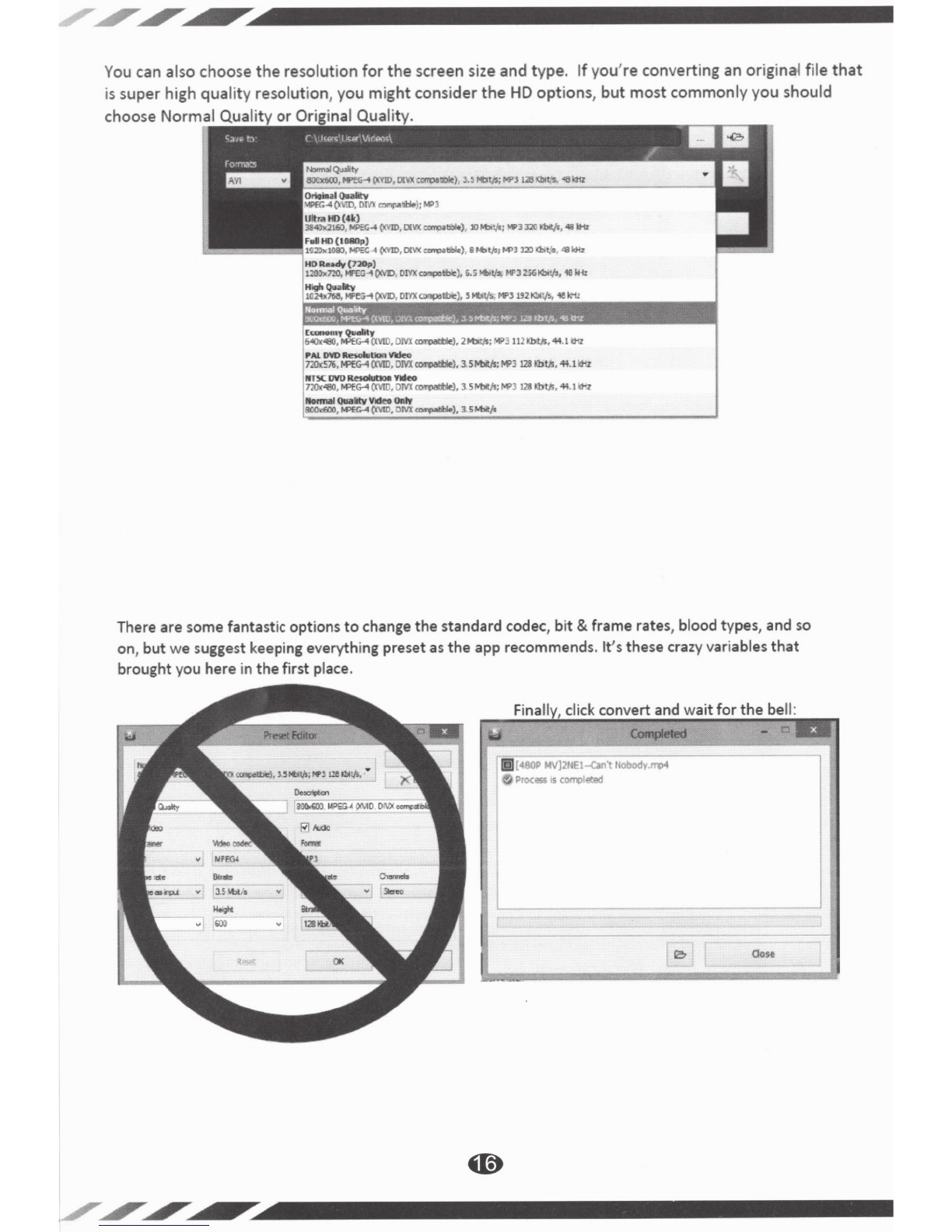

You can also choose
the
resolution
for
the
screen size and type.
If
you're
converting an original
file
that
is
super high
quality
resolution,
you
might
consider
the
HD
options,
but
most
commonly
you
should
choose
Normal
Qual
or
0 I Qu
There are some fantastic options
to
change
the standard codec,
bit
& frame rates, blood types, and
so
on, but we suggest keeping everything preset
as
the
app recommends. It's these crazy variables
that
brought you here in the first place.
click convert
and
wait
for
the bell:
...
c

Installation
Note:
-¢-
Choose the mounting location where the unit will not interfere with
the
normal driving
function
of
driver.
-¢-
Before finally installing
the
unit
,connect
the wiring
and
make
sure
that
the unit
works
properly.
-¢-
Consult with your nearest dealer
if
installation requires the drilling
of
holes or other
modifications
of
the vehicle.
-¢-
Install the unit where it does
not
get
in
the driver's way
and
can
not
injure the passengerif
there
is
a sudden stop,like an emergency stop.
•

ACCESSORIES
Packa ·•·· e contains the foUow'in accessories for instaUabon and o ration of the unit
(1) Washer, Spring
Washer~ M5 Nut
(:3) Batt
(A) Mounting Collar
(5) Releas-e Key
(6) Screw
'
,.. -·#( -- *" -- .... -"" .,.,.. ;oo;, . ..., .;w. :0:00;,.
Remote Control
tii G5?55.
;; ±±:~!:::II
Power Cable
Note:
1 each
1
1
1
Warranty card
Warranty card
Product image may vary from the actual delivery.
User Manual
User Manual
Trim ring

Specification
General
Power Supply Requirement:
12VDC
Speaker Load Impedance:
4Q
Max. PowerOutput: 52x4W
Tone Controls: 10dB(Bass 100Hz,Treble 10KHz)
Dimensions: Approx. 188x58x180mm(DxWxH)
Mounting Dimensions: Approx. 178x50x165mm(DxWxH)
Weight: Approx.
23950
Video System: Auto
Mounting Angle:
0,...,
30 degree
Video Section
Video System: 16:9 Wide Screen
Video Output Level: 1.0V
pp/
75
Q
Horizontal Resolution: 800x480
Audio Section
Max. Output Level: 2V rms (+3dB)
Frequency Response: 20Hz
,...,20KHz
Signal to Noise ratio: 60dB
Separation: 60dB
FM
Tuner Section:
Tuning Range: 87.5
~
107.9
MHz
IF Range: 10.7MHz
Usable Sensitivity: (FM -30dB) 12dBu
Signal to Noise ratio: 60dB
Stereo Separation: 30dB(1KHz)
Frequency Response:
30,...,
15KHz
AM Tuner Section:
Tuning Range: 530
~1710KHz
IF Range:
450KHz
Usable Sensitivity:
(AM
-20dB) 37dBu
Signal to Noise ratio: 50dB
Frequency Response:
10,...,
2000Hz
