Soundstream VR-722HB User manual

SeUNDSTREAM
VR-722HB
BEFORE OPERATING THE UNIT.PLEASE READ THIS MANUAL
THROUGHLYAND RETAIN IT FOR FUTURE REFERENCE
SeUNDSTREAM
H RPT ROM INT ,- -
..-"-:1 1=----------=-=2:....:.,1 .=1 3=----------=:4=.1 lr=--::s--.::....,e I
IRO
MICO 0
AVIN
Single Din Touch Screen TFT MonitorDVD Player
•

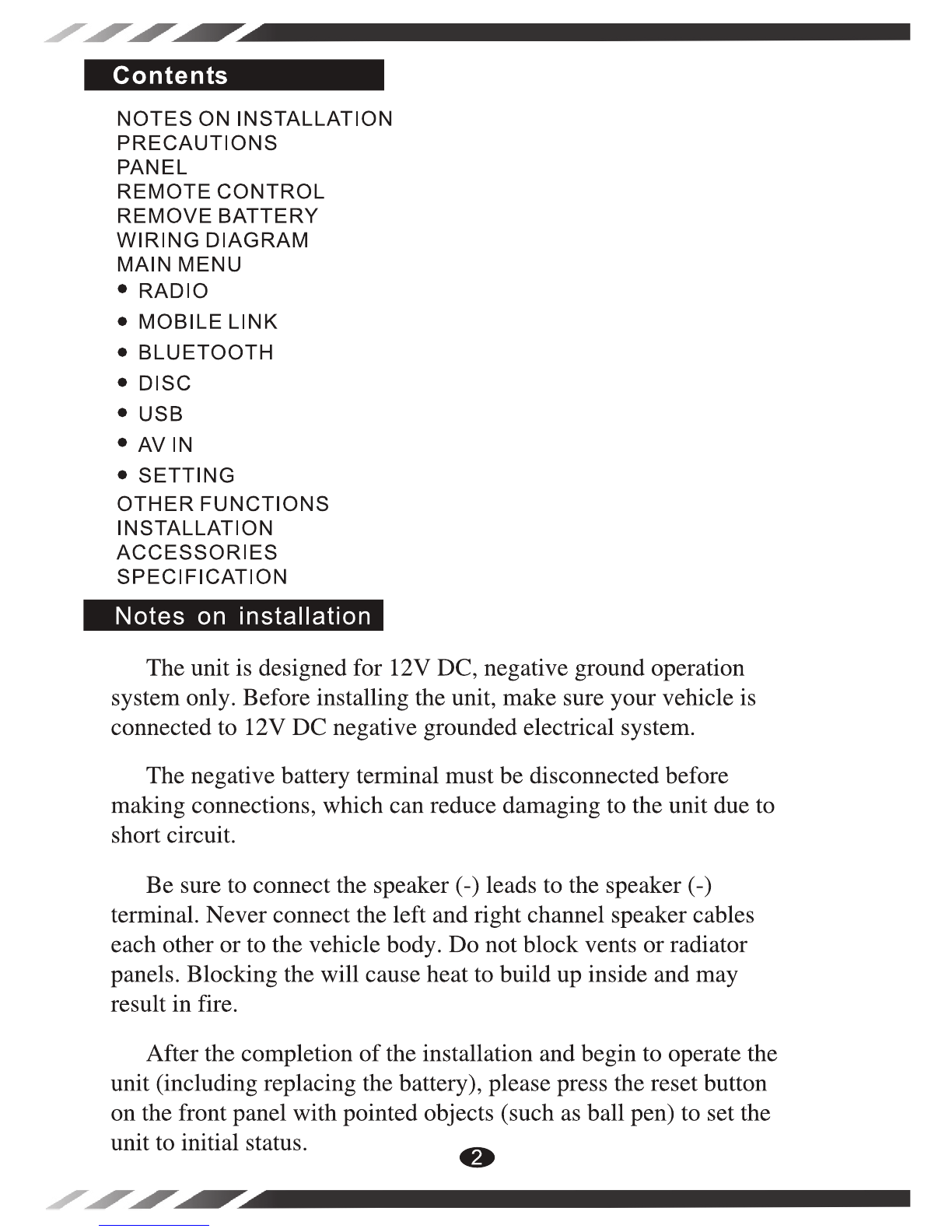

Contents
NOTES ON INSTALLATION
PRECAUTIONS
PANEL
REMOTE
CONTROL
REMOVE BATTERY
WIRING DIAGRAM
MAIN MENU
• RADIO
• MOBILE
LINK
• BLUETOOTH
• DISC
• USB
•
AVIN
• SETTING
OTHER FUNCTIONS
INSTALLATION
ACCESSORIES
SPECIFICATION
Notes on installation
Theunitis designed for 12V DC, negative ground operation
system only. Before installing the unit, make sure your vehicle is
connected to 12V
DC negative grounded electrical system.
The negative battery terminal must be disconnected before
making connections, which can reduce damaging to the unit due to
short circuit.
Be sure to connect the speaker (-) leads to the speaker (-)
terminal. Never connect the left and right channel speaker cables
each other
or to the vehicle body. Do not block vents or radiator
panels. Blocking the will cause heat to build up inside and may
result inftre.
Afterthe completion
of the installation and begin to operate the
unit (including replacing the battery), please press the reset button
onthe front panel with pointed objects (such as ball pen) to set the
unit to initial status.

Precautions

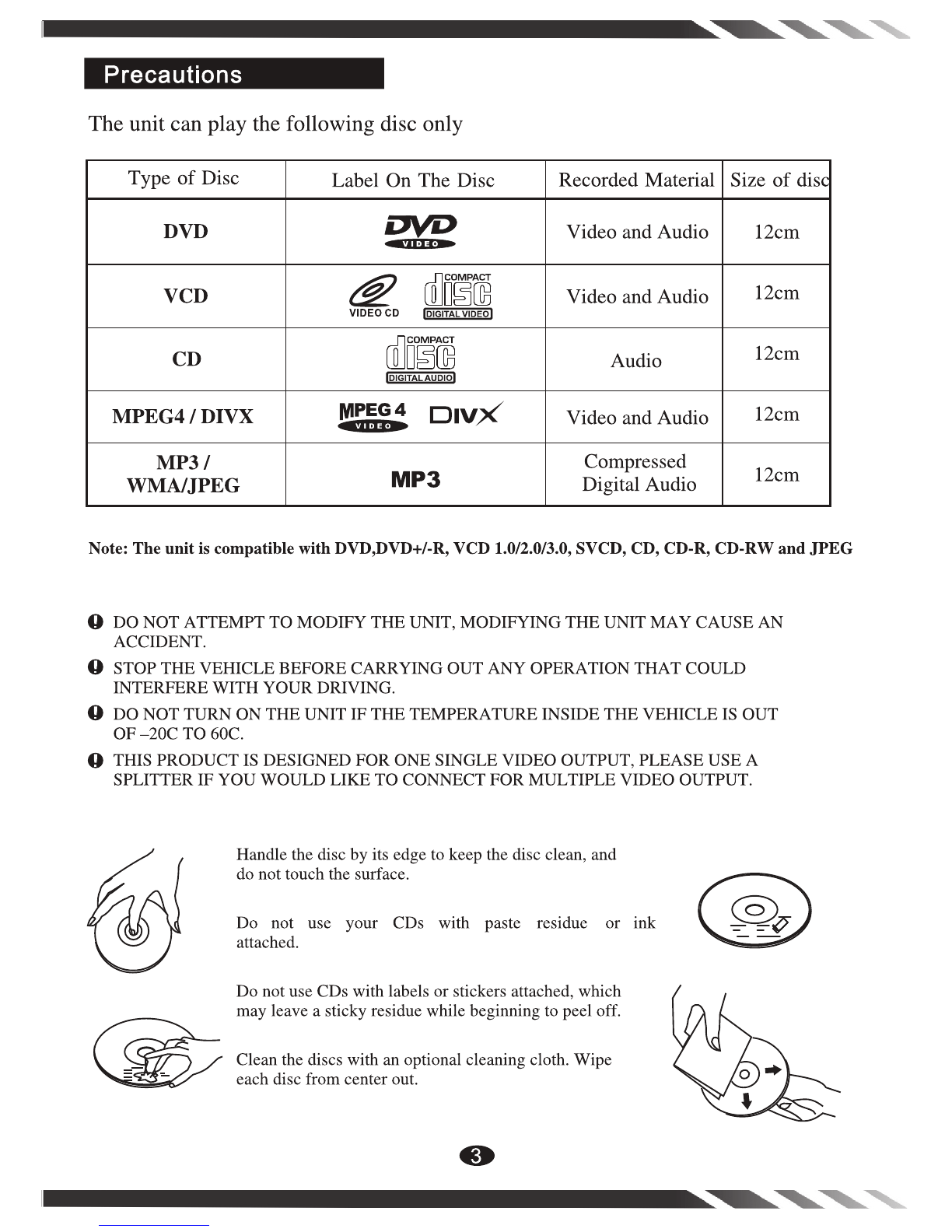

The unitcanplay the following disc only
Type of Disc Label On The Disc Recorded Material Size
of disc
DVD
DVD
.. 'ii·IJ·_.
Video and Audio 12cm
VCD
~
ill][§~
Video and Audio 12cm
VIDEO CD
lr~~IIII&~Ii!lial
CD
ruo~rn
Audio 12cm
lliliSillt~ 6YIZIZI
MPEG4/DIVX
1W1PEG4
:::11·11·~
DIVX'
Video and Audio 12cm
MP3/
Compressed 12cm
WMA/JPEG
MP3
Digital Audio
Note: The unitis compatiblewith DVD,DVD+/-R, VCD 1.0/2.013.0, SVCD, CD, CD-R, CD-RW and JPEG
0 DO NOT ATTEMPT TO MODIFY THE UNIT, MODIFYING THE UNIT MAY CAUSE AN
ACCIDENT.
0 STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD
INTERFERE WITH YOUR DRIVING.
0 DO NOT TURN ON THE UNIT IF THE TEMPERATURE INSIDE THE VEIDCLE IS OUT
OF -20C TO 60C.
0 TillS PRODUCT IS DESIGNED FOR ONE SINGLE VIDEO OUTPUT, PLEASE USE A
SPLITTER IF YOU WOULD LIKE TO CONNECT FOR MULTIPLE VIDEO OUTPUT.
Handle
the disc by its edge to keep the disc clean, and
do not touch the surface.
Do not use your CDs with paste residue or ink
attached.
Do not use CDs with labels or stickers attached, which
may leave a sticky residue while beginning to peeloff.
Clean
the discs with an optional cleaning cloth. Wipe
each disc from center out.

Panel
1.TFT-LCD Display
2.Disc
Slot
3.Eject Button
4.Release Button
5.Mute Button
6.Mode Button
7.Fast Forward Button/PreviousTrack
8.Fast Reverse Button/NextTrack
9.1/Pause Button
10.2/RPT Button
11.3/RDM Button
12.4/INTButton
13.5
Answer Button
14.6 Hang up Button
15.MIC
16.1R
Sensor
17.Power Button
18.0pen Button
19.AV
IN
20.USB Jack

Remote Control
l.Power Button(TFf ON/OFF)
2.MODE Button
3.~11Button
4.MUTE/EJECT Button
5.BANDButton
6.+Button
7.TITLE(in DVD playing)
1
2
5
6
9
10
13
14
17
18
21
22
25
26
29
30
PBC(in VCD playing) Button
S.Sub-T Button
9
.• Button
10.0K Button
11. • Button
12.Setup Button
13.
•t') Button
14."t'Button
15.Angle (long press)/EQ (short press)
16.0pen Button
17.AMS (in radio & TV searching)
RPT (inDVD/CDIMP3 repeated) Button
18.ST (inradio)/PROG (in DVD/CDIMP3) Button
4
3
8
7
12
11
16
15
20
19
24
23
28
27
32
31
19.VOL+Button
20.ZOOMButton
21.LOC
(a remote in radio)IRDM
(a randombroadcast
in DVD/CDIMP3)Button
22.SEEK /I.,. Button
23.SEL I LOUD Button
24.SEEK/ .. I Button
25.CLK (for time switching)
,.,.... (for answering inBT)Button
26. OSD (in DVD)
I~ (forcutting off inBT) Button
27.VOL- Button
28.AUDIO (forchannel switching
in DVD/CD/
Mp3)/DEL(in BT) Button
29.1-9 NumberButton
30.0
/SWf Number Button
31.10+(the selection key for DVD)/* (in BT) Button
32.GOTO (the selection key for DVD)/#(in BT) Button
.................................. ~ ~ ~ ~

Remove Battery
Note:
• The distance may va ry according to the brigh tn ess of amb ie nt light
• If the
re mote is not used for an ex te nded period of tim e, remove th e ba ttery to prevent
possible damage from
ba ttery leakage and corrosion.
•
Do not place any objects between the remote control un it and the sensor on t he un it
• Do not drop the remote control onto the fl oor; it will damage it beyond repair
•
Do not use the remote control u ni t, while simultaneously ope ra ti ng th e remote con trol unit
of any other
eq uipmen t; they may inte rfe re re sulting in im proper operation.
• The
ba ttery normally last for about one year although d ep end in g h ow oft en the remote
control is used. If the remote control
un it isn't working even when it is operated near the unit,
replace the battery with a n
ew battery of the same make and use only a lithium cell battery
type: CR20
25 (3V)
• Dispose empty batte
rie s in acc ordance with your l oca l governmental regula ti ons
•
Do not short-circuit, disassemble, heat or dispose of fi re or fl ames the battery
• Keep t
he battery out of re ach of child re n, should the battery be swallo we d, immediately
consult a doctor
Wiring Diagram

Main Menu
Ti le best way to discover the program is to ex pl ore each screen in deta il , and to fi nd out how to
move from one to another. Read this chapter for a gu
id ed tour.
Un it starts by displaying the Main menu.
This is the
ro ot of t he screen t1iem rc hy, an d you can simply access all f ea tu re s by tapping on
the touch screen buttons.
T
ap the ic on s to enter a desir ed mode.
Radio
To start R ad io,t np RA DIO b utto non mnin1 11 en us creen .
• Mutethe sound
Touch STto selectStereo
• ExchangeAM/FM
• Touch this button can scan the stationsfrom 1-6
• Auto store each station

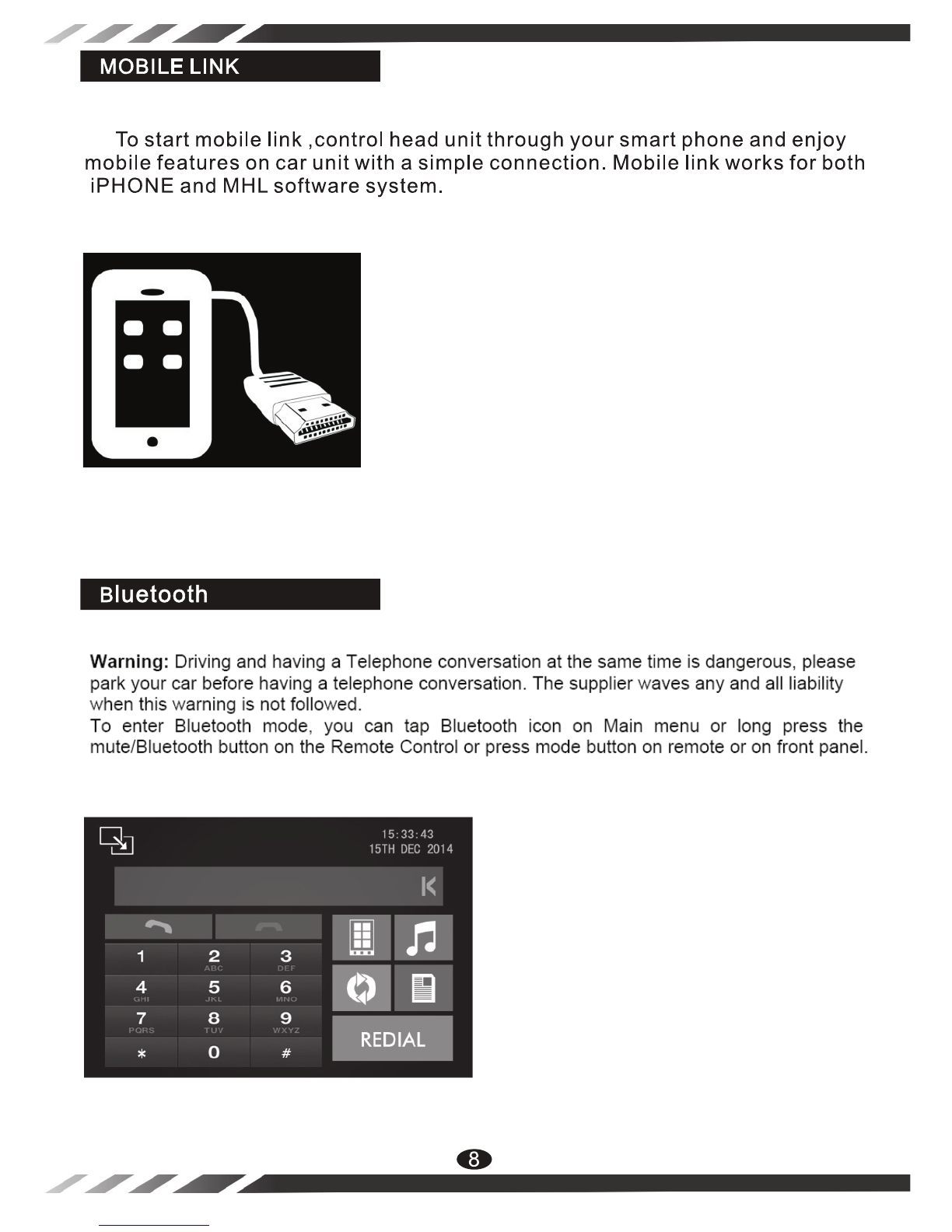

MOBILE LINK
To startmobile link ,control head unitthrough your smartphone and enjoy
mobilefeatureson
car unit with a simple connection. Mobile linkworks for both
iPHONE and MHLsoftware system.
-
•
Bluetooth
W arning : Driving and having a Telephone conversation at the same time is dangerous, please
park your car before having a telephone conversation. The supplier waves any and all liability
when
th is warning is notfollow ed .
To enter Bluetooth mode, you can tap Bluetooth ic
on on Main menu or long press the
mute/
Bi uetooth button on the Re mote Control or press mode button on remote or on front panel.

Pairing Mode
At the 1st time when using BLUETOO TH , you need to pair the mobile ph one first.
When a phone have not been
pa ired with the unit, the BT icon and Pa iri ng mark will blink
continually on the panel.
When the
un it have connect wi th phone, the BT icon will turn on and the Mobile phone name (if
available) wi
ll be display on the pane l.
According to mobile pairi ng device manua l, after searching new device, select it, input
password "0000" and confirm ok, device paring is finished.
The text 'Enter Number' w
ill shows on the panel after the pairi ng is completed. It means device
is connected an d ready for BLUET OO TH communication.
Auto-connect - Disconnect
When power on the unit, the last paired phone wi
ll be connected to th e device via Bluetooth
automatically, after searching about one minute, if the device cannot find the paired phone, it
will stop searching. When
in standby mode ( un connected), long press Bluetooth button on
remote control to active auto-connect function and the device wi
ll search the last paired phone.
Ifyou want to disconnect the Bluetooth connection, turn offthe
Bl uetooth on the phone.

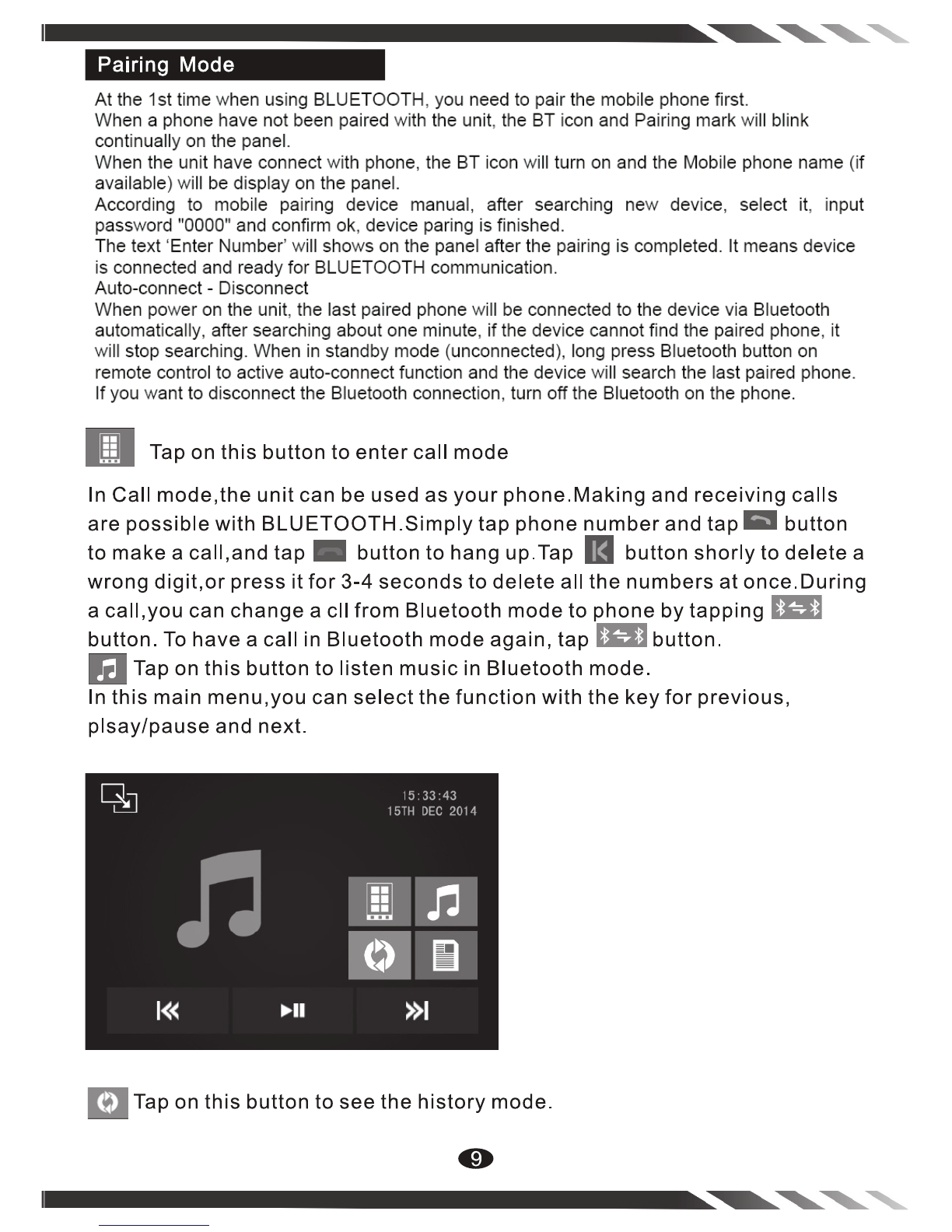

liJ Tap on this button to entercall mode
In Call mode,the
unit can be used as yourphone.Making and receiving calls
are possiblewith BLUETOOTH.Simplytap phonenumberand tap• button
to makea call,and tap • button to hang up.Tap II button shorlyto delete a
wrong
digit,or press it for 3-4 secondsto deleteall the numbers at once.During
a call,you can change a ell from Bluetooth mode
to phone by tapping IDJ
button. To have a call in Bluetooth mode again, tap IDJbutton.
riJ Tap on this button to listen musicin Bluetooth mode.
In this main menu,you can selectthefunction with the key
for previous,
plsay/pause and next.
DJ Tap on this button to see the historymode.

The unitcan downloading the datafrom phone automaticallywhen the pairing
between a phone and the
unit be completed.
B Tap on this button to see historymode.
The unitcan download automaticallyall thedatafrom the mobile phone.
Missed/Received/Dialed callsare saved in historymode.
Disc
Tap on Discbutton from main menu screen tostartDVD/VCD play.
When a file
disc is played,thescreen will showfollowing interface:

Note:
Discwill automaticallystartplaying when you insertanyDVD/VCD disc.
Warning displays
if the vehicle ismoving fordriver'ssafety.Discwill not play
video,butalso picture and musicfilesaswell.
third page . +~
lEI~ , Mute the sound. +~
l lm Touch it to select previous or next track. +~
~Touch it to play I pause. +~
Touch it to stop . +~
..... Touch it to select Stereo I Mono LI Mono RI Mix Mono. +~
-.....-]Touch it to select RANDOM ON/ OFF . +~
..,. .. . Touch it to se l ect REP lI ALL I OFF. +~
... :. _ Touch it to REPEAT A - B . +~
, ... ~ ~ Touch it to select file Number. +~
1
1
iN Touch it to select PBC ON/ OFF. +~
Touch it to se l ect INVALID KEY. +~
Touch it to change the ZOOM. +~
Touch it to set SYSTEM SETUP. +~
When afile USB isplayed,the screen will showfollowing interface:

J1iWT h ere are a ll the functionsin 2 pages. This isthe first /second page . .,
EaJ Mute the sound. .,
IteM] '"* Touch it to se l ect previous or next track. .,
~ Touch it to play I pause. .,
Touch it to stop. .,
Touch it to se l ect RANDOM ON/ OFf . .,
I
. Touch it to se l ec t REP 1I ALL I OF f. .,
' . Touch it to REPE AT A-B. .,
Touch it to set SYST EM SETUP . .,
AVIN
Tap onAV In button from main menu screen tostartAV In mode.Connetthe
external audio/video signal source tothis unit.
Note:
If there isnoexternal video input,theTFTdisplays
11
AV IN NO SIGNAL".
Setting
Yourdevicehas defaultsystem settings.You can customize thesettingsto suit
yourpersonal needs.Onceyou changesettings,yournewsettingswill remain
until you change
it again.
Tap Setting button from main menu screen to startSETTING.

I] This item is for selecting Com.
Screen brightness: 1-2
Deep :ON/OFF
Brighty off time: ON/ 30s/ 1 min/ 5min/15min/ OFF
liD This item is for selecting Audio.
Treble:
-7 I 7
BASS: -7 I 7
EQ: User/ Jaz:z/ Rock/ Classic/ Pop/ Flat
LOUD: OFF/ ON
a
\ System information.
a;) This item is for setting time .
You can adjust each item by pressing the icon
r:J or a on the screen. MODE item is for time
Requied for 12 I 24 hours.
['i] This item is for setting Audio Position.
You can adjust each item by pressing the icon
1::1 or a on the screen.
!! This item is useful when some malfunction
Occur with the touch screen and it needs adjustment.
Calibration procedure of the touch screen is
described as below:When the target moves to

another position,tap and hold at the center of the new target.Repeat each
time to complete the calibration process.When the calibration has been
completed,the device switches
back to the previous operating mode and
retain theprevious setting.

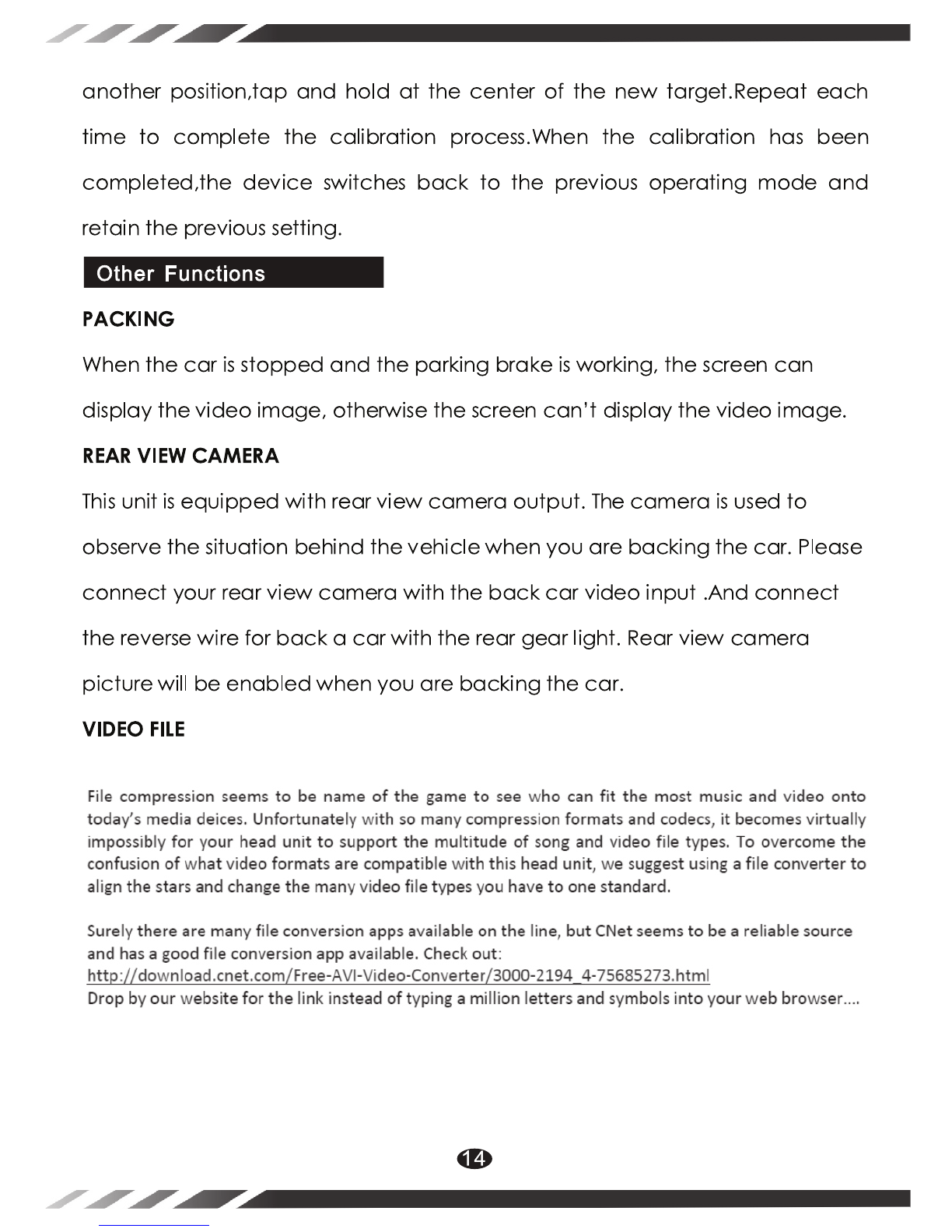

Other Functions
PACKING
When the car is stopped and the parking brake is working, thescreen can
displaythevideoimage, otherwise thescreen can't displaythevideo image.
REAR VIEW CAMERA
This unit is equippedwith rearviewcamera output. The camera is used to
observe thesituation behind thevehiclewhen you are backingthecar. Please
connectyourrearviewcamera with the
back car videoinput .And connect
thereverse wire for
back a corwith therear gear light. Rear view camera
picturewill
be enabledwhen you are backingthe car.
VIDEO FILE
Fi le compress i on seems to be name of the game to see w ho can fit the most music and vi deo onto
toda y's med ia deices. Unfortunate ly wi th so man y compress i on formats and codecs, it becomes vi rtua lly
i
mposs ib ly for y our head unit to support the mu lti tude of song and video fi le types. To ov ercome the
confusion of w hat vi deo formats are compat ible with th is head unit, we suggest using a fi le conv erter to
al ign the stars and change the man y vi deo fi le ty pes y ou have to one standard.
Sure ly there are man y fi le conv ers i on apps available on the li ne, but CNet seems to be a re li ab le source
and has a good fi le conv ers ion app ava il ab le. Check out :
h
ttp : // do wn lo ad.cn et .co m/ Fr ee- AVI - Vi de o-Conv erte r /3 000-2 194 4-7568 52 73.h tm l
Drop by
our w ebs i te for the link instead of typing a m ill ion letters and sy mbo ls into y our w eb bro w ser ....

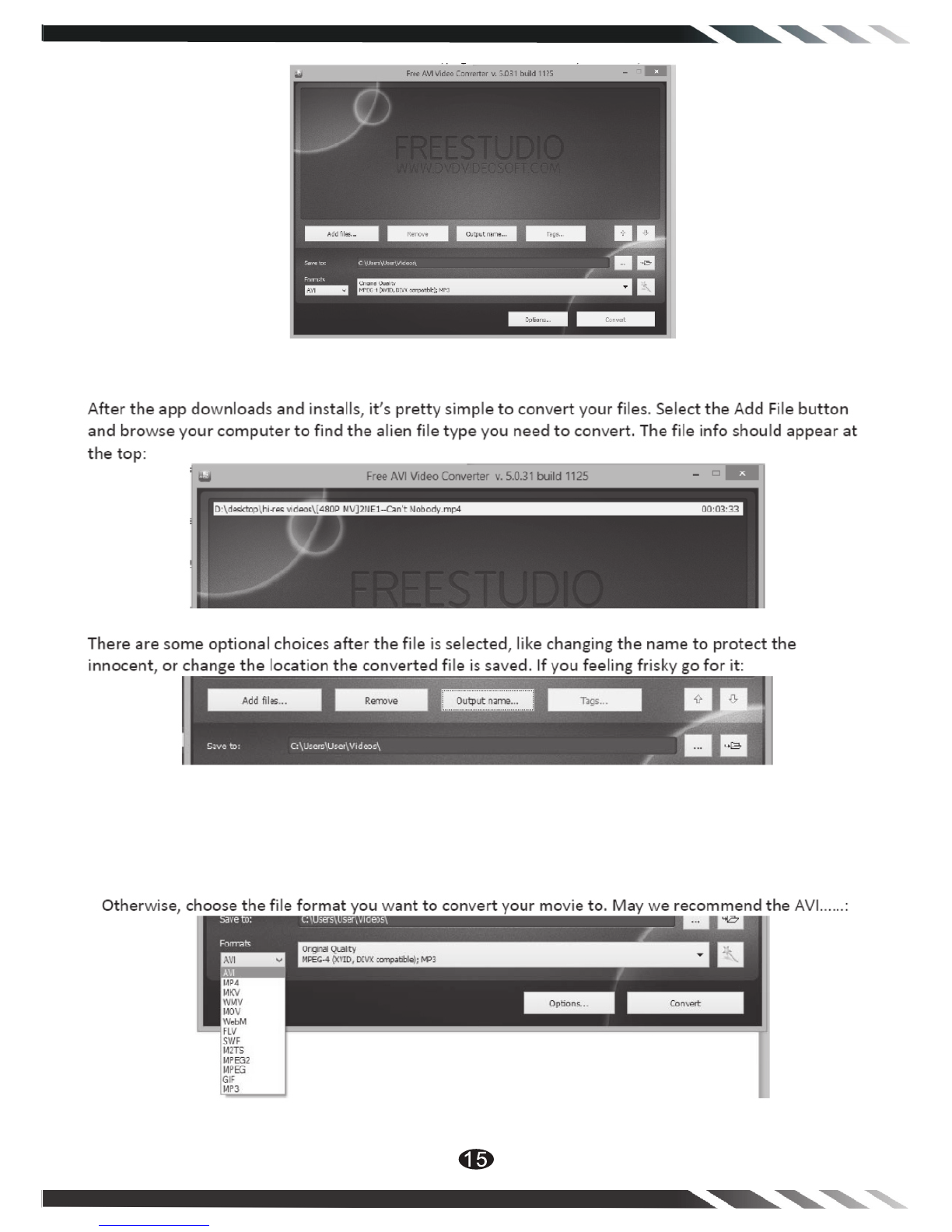

After the app do wnloads and installs/ it
1s
prett y simple to conv ert y our fi l es . Se l ect the Add Fi le button
and bro w se y our computer to find the alien file type you need to convert. The file info should appear at
the top :
Free AVI Video Converte" v. 5.0.31 build 1125
There are some optiona l choices after the file is selected/ like changing the name to protect the
innocent/ or change the l ocation the conv erted file is saved. If y ou fee ling fr isky go for it:
Other wise/ choose the file format you w ant to conv ert y our mov ie to . Ma y we recommend the AVI... ... :
"10

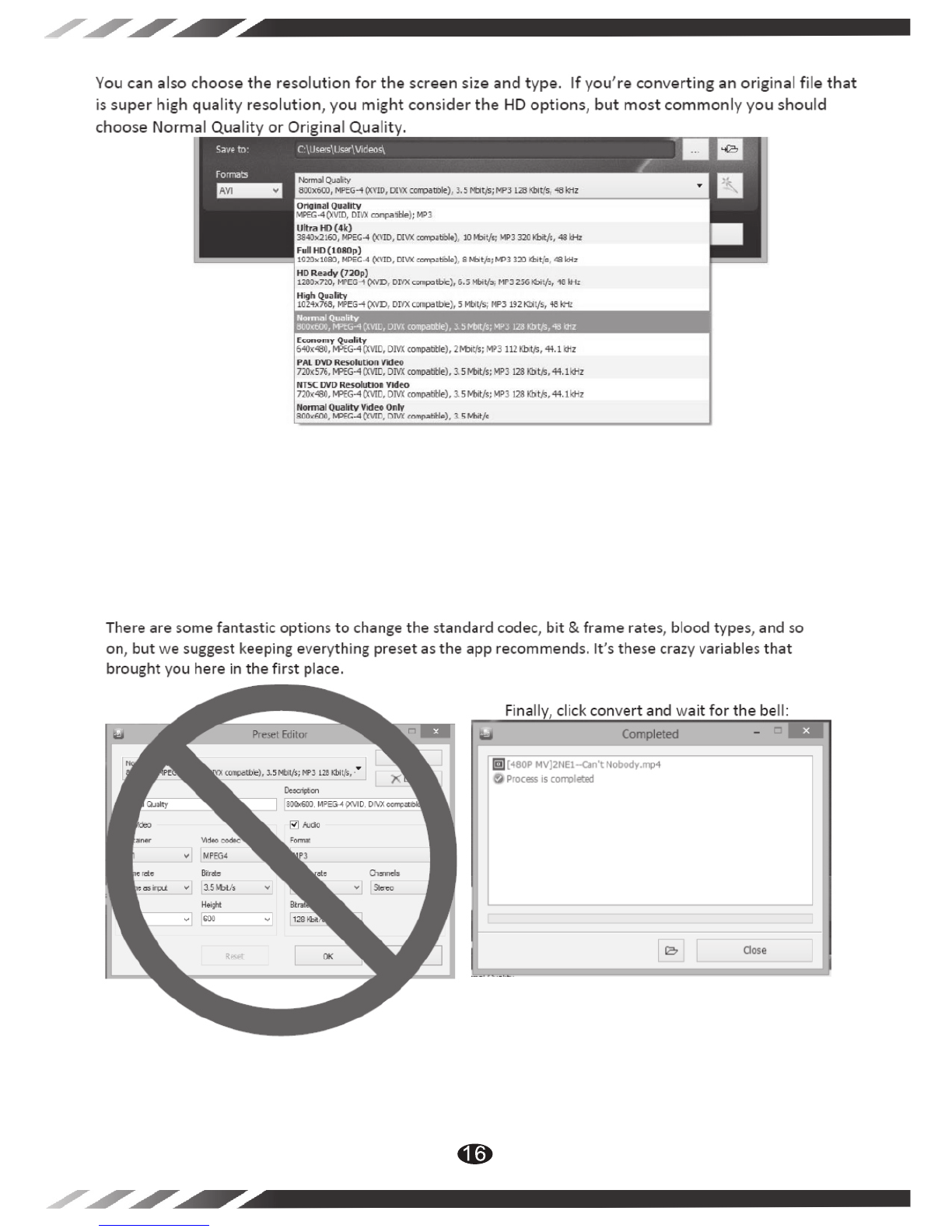

Y ou can also choose the resol ut i on for the screen size and type. If y ou ' re con v erting an or iginal f il e that
is super high qua l it y resol ut i on , y ou mi ght consi der the HD options , but most commonl y y ou shou ld
choose Norma l Qual· · inal Qua li
There are somefantastic
opt ions to change the standard codec, bit & frame rates, blood types, and so
on , but we suggest keeping every th ing pres et as the app recommend s. It's the se cr az y variables that
brought you here in the f ir st place.
Finally click conve
rt and wait for the bell·
....
Completed - L1I..J
I§] (480P MV]2NE1..Qn't Nobody .fi"Cl4
~ Process IS COrfl) !!ted
e.
Oose
--

Installation
Note:
-¢- Choose the mounting location where the unit will not interfere with the normal driving
function
of driver.
-¢- Before finally installing the unit ,connect the wiring and make sure that the unit works
properly.
-¢- Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
-¢- Install the unit where it does not get in the driver's way and can not injurethe passenger if
there is a sudden stop,like an emergency stop.

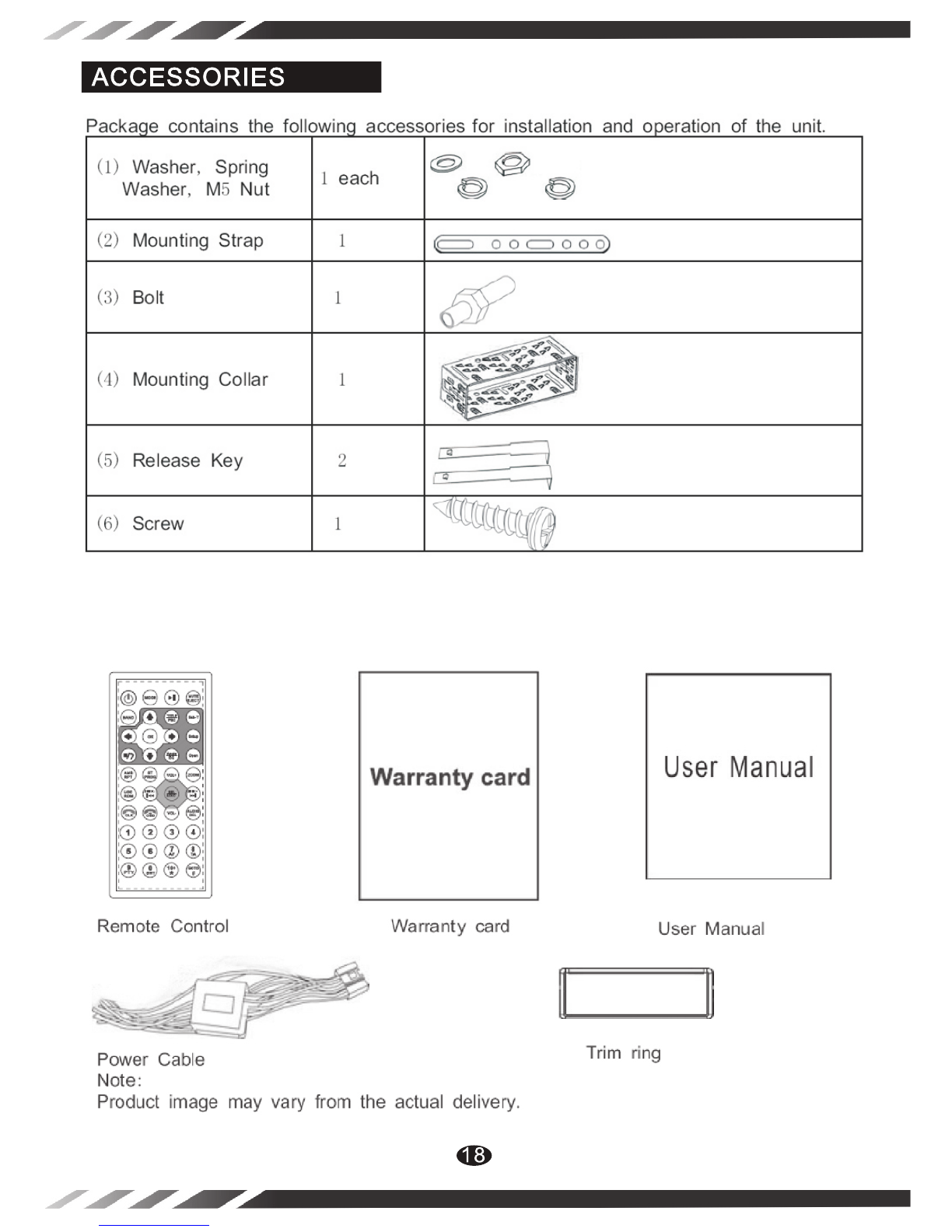

ACCESSORIES
p k t . th f II f . t II .
ac aqe con ams e o owmq accessones or 1 ns a at1on and f th ropera 10n o 't e un1.
(1) Washer, Spring 1 each @ @
Washer, M5 Nut
~
©)
(2.)
Mounting Strap 1
(c=:::> o o e=> o o o)
(3) Bolt 1
&')
-" '
(· 1) Mounting Collar 1
~
"'
....
(5)
Release Key 2
~
~
(6) Screw 1
~rxtrur~~
Warranty card
Use r Manual
Remote Control Warranty card User Manual
If ·~
Power Cable Tri m ri ng
Note:
Product image may vary from the act
ual delivery.

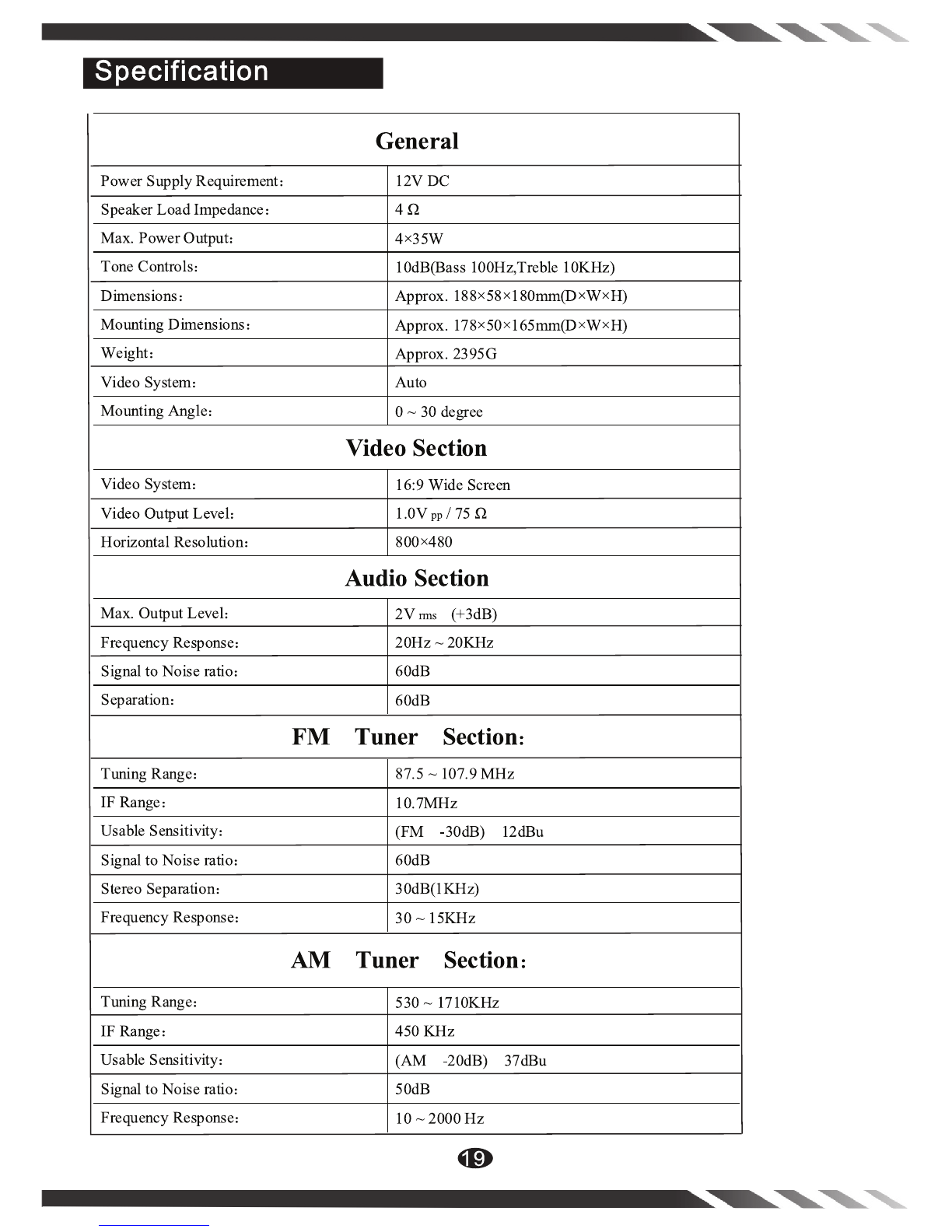

Specification
General
Power SupplyRequirement: 12VDC
Speaker LoadImpedance: 4n
Max. PowerOutput:
4x35W
Tone Controls: lOdB(Bass lOOHz,Treble 10KHz)
Dimensions:
~pprox. 188x58x180nnnQDxWxH)
Mounting Dimensions: Approx. 178x5Qx165nnnQDxWxH)
Weight: Approx. 2395G
Video System: Auto
Mounting Angle:
0-30 degree
Video Section
Video System: 16:9 Wide Screen
Video Ou1put Level:
1.0Vpp/75 n
Horizontal Resolution: 8()()x480
Audio Section
Max. Ou1put Level: 2Vnns (+3dB)
Frequency Response:
20Hz-20KHz
Signal to Noise ratio: 60dB
Separation: 60dB
FM Tuner Section:
Tuning Range:
87.5- 107.9 MHz
IF Range: 10.7MHz
Usable Sensitivity: (FM -30dB)
12d.Bu
Signal to Noise ratio: 60dB
Stereo Separation: 30dB(1KHz)
Frequency Response:
30-15KHz
AM Tuner Section:
Tuning Range:
530- 1710KHz
IF Range:
450KHz
Usable Sensitivity: (AM -20dB) 37d.Bu
Signal
to Noise ratio: 50dB
Frequency Response:
10-2000Hz
................................ ~ ~ ~ ~ ~
