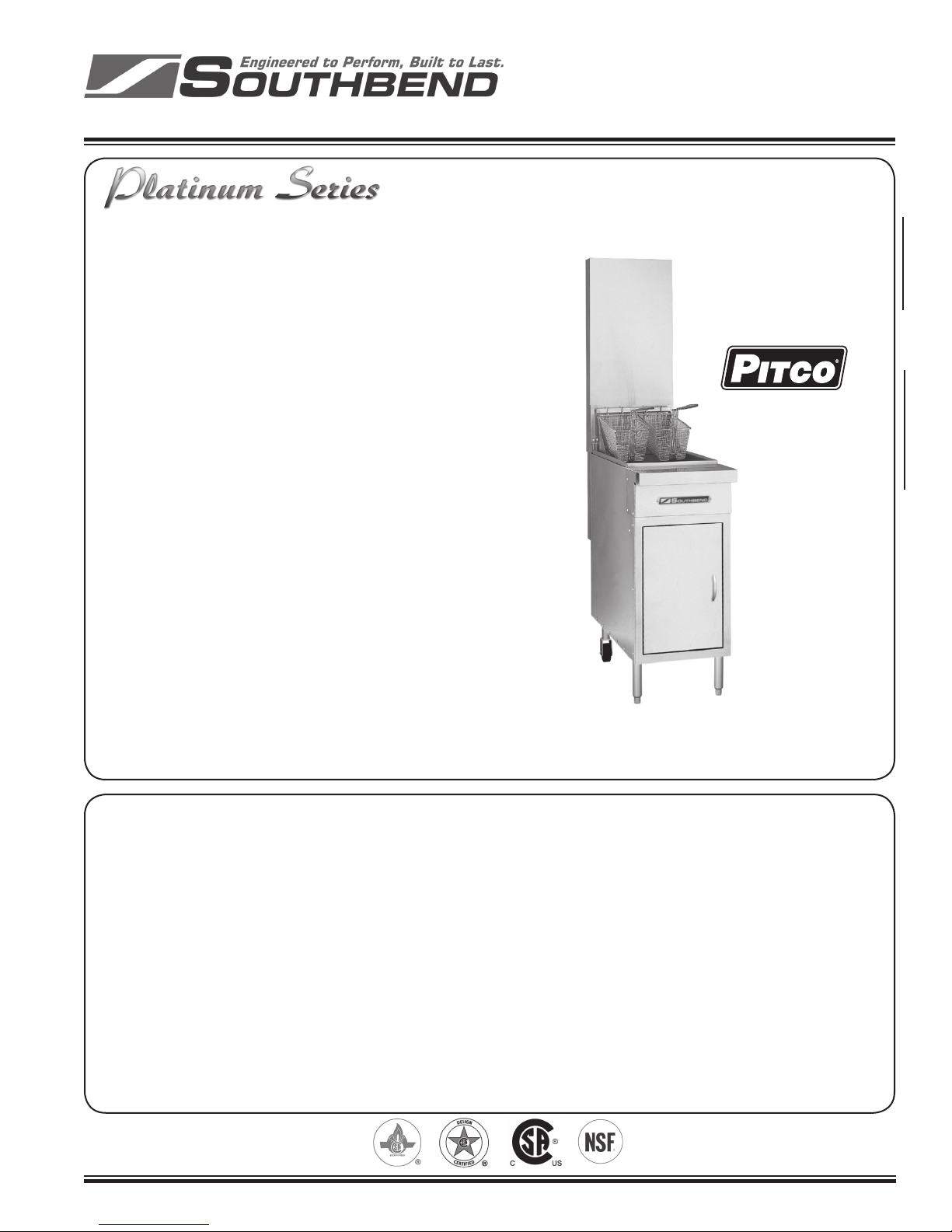

Southbend P16-PF45 User manual

Job Item#
www.yatesgd.com www.yatesgraphicdesign.com
Se c t i o n a l De e p Fr y e r
16” 45lb and 20” 65lb Sectional Fryer
Standard Features
- Available in 45lb and 65lb capacity
- 9” front rail to match Sectional Range
- Stainless steel tank and cabinet
- Two twin plated, mesh fry basket with plastic coated,
heat resistant handles
- Quick recovery is provided to eliminate waiting between
loads
- Wide spacing tube frypot -allows more heat to be
transferred to oil and easy cleaning
- 1-1/4” full port drain valve helps eliminate clogging
- Largecoldzonecapturesfoodparticles,reducesavor
transfer and extends oil life
- Single unit combination gas shut-off, pressure regulator
and pilot ignition system
- 6”adjustablelegsfront,6”xedcastersrear
- 1-1/4” front manifold with optional 1” rear gas connection
- 100% safety shut off
- Warranty: One year parts and labor
- Adjustable legs in front and rigid caster in rear
NewPitcoSolsticeburner/bafedesign:
- Increases cooking production.
 -Lowersuetemperature.
- Improves working environment.
- Generates more production per BTU.
Printed in USA
45 lb Sectional Fryer
P16-PF45
65 lb Sectional Fryer
P20-PF65
Exterior Finish: Stainless steel front.
Frypot: 16-gauge, type 430 #3 Welded tank
withanextrasmoothpeenednishensureseasy
cleaning. Long-lasting, high-temperature alloy
stainless steel
heatbafesaremountedintheheatexchanger
tubes to provide maximum heating and combustion
efciency.Frontaccess,quickopening1-1/4”drain
valve.
Gas Control System: Includes manual shut-off,
100%safetyshut-offpilotgaslter,pilotadjustment
and 200° to 400° adjustable thermostat. High limit
control automatically shuts down main burner and
pilotifoiltemperatureexceeds475°F.
Optional Oil Filtration: Simple two-step operation:
1.Bluehandlevalveisopenedtodrainoilintolterpan.
2.Redhandlevalveisopenedtoreturnoilfromltertofryer.
-Self-aligninglterpipingmakesiteasytoassembleand
disassemble.
- Larger 3” (7.6 cm) drain line allows for faster draining
without clogging.
-Light-weight,removablelterpickupassembly,withbuilt-in
handle, for fast media cleaning under busy conditions.
-Highowpumpandlargereturnlinesproducefasteroil
relltimes.
-Largeltermediacollectsmoredebris,whichextendstime
between changes.
FormPSFRev1(06/07)
STANDARD CONSTRUCTION SPECIFICATIONS
by
(shown with optional ue)

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
[phone] www.southbendnc.com
Models:
www.yatesgd.com www.yatesgraphicdesign.com
6" (152)
30"
(762)
ModelP16-PF45 ModelP20-PF65
60"
(1524)
72"
(1829)
24"FlueRiser
36"FlueRiser
36"
(914) 33-34"
(859)
4-1/2" (114)
37-3/4" (960)
34" (864)
40" (1017)
43-3/4" (1112)
Flueriserforìdeepîdepth-option
extends rearward 6" (frypot size
is the same as for standard depth).
FrontGas
Manifold
ModelP16-PF45 ModelP20-PF65
16"
(406)
20"
(508)
33-3/4"
(858)
9"
9"
(178)
2-3/4"
(70)
(178) 5-1/2"
(140)
2-3/4"
(70)
Optional rear gas connection,
for non-battery installations
 P16-PF45  P20-PF65
INTENDED FOR COMMERCIAL USE ONLY.
NOT FOR HOUSEHOLD USE.
OPTIONS AND ACCESSORIES
GAS: Each unit has a 1-1/4” front gas manifold that couples to the
adjacent sectional unit(s), and a 1” rear gas connection with a male
NPT connector. Minimum supply pressure is 7” W.C. for natural gas
and 11” W.C. for propane. All sectional units require a regulated
gas supply; pressure regulator to be ordered separately. If using a
exiblehosegasconnection,theI.D.ofthehosemustnotbesmaller
than the connector on the unit and must comply with ANSI Z21.69,
providinganadequatemeansofrestrainttopreventunduestrainon
the gas connection
MISCELLANEOUS
UTILITY INFORMATION
-If castersareusedwithexhose,arestrainingdevice
shouldbeusedtoeliminateunduestainontheexhose.
- Minimum clearance from noncombustible construction
is zero. Minimum clearance from combustible construc-
tion is 10” on sides and 6” on rear.
- Install under vented hood.
-Checklocalcodesforreandsanitaryregulations.
NOTICE:
Southbend has a policy of continuous product research
and improvement. We reserve the right to change
specicationsandproductdesignwithoutnotice.Such
revisions do not entitle the buyer to corresponding
changes, improvements, additions or replacements for
previouslypurchasedequipment.
FormPSFRev1(06/07)
 Fryerltersystem
 Stainless steel frypot cover
 Extra single basket (full size) for 14” pot
 FlueRisers:24”,36”
 Heat lamp over drain cabinet
 Cable restraint kit
 Extra twin size basket for 14” pot
 Stainless steel sides
 Stainless steel divider
SHIPPING CRATE DIMENSIONS & WEIGHT
(Door-entry clearance when uncrated is 16.5” for
Model P16-PF45 and 20.5” for Model P20-PF65)
Model Width Height Depth Volume Weight
P16-PF45 20.0
(508)
45.0
(1143)
42.5
(1080)
22.1 cu ft
(0.63 cu m)
210 lbs
(95 kg)
P20-PF65 23.0
(584)
41.0
(1041)
43.0
(1092)
23.5 cu ft
(0.66 cu m)
265 lbs
(120 kg)
GAS
Model Natural/Propane
BTU/Hour
P16-PF45 110,000
P20-PF65 150,000
