SOYO SY-P4VDA User manual

SY-P4VDA
Motherboard
Quick Start Guide
Hardware
Installation
Quick BIOS
Setup
Introduction
The SOYO CD
Realtek LAN
Driver
Installation

SOYO™
2
SY-P4VDA Motherboard
mPGA Socket 478 processors
VIA P4X266AAGP/PCI Motherboard
400 MHz Front Side Bus supported
ATX Form Factor
Copyright © 2002 by SOYO Computer Inc.
Trademarks:
SOYO is the registered trademark of SOYO Computer Inc. All trademarks are the properties of their
owners.
Product Rights:
All names of the product and corporate mentioned in this publication are used for identification purposes only.
The registered trademarks and copyrights belong to their respective companies.
Copyright Notice:
All rights reserved. This manual has been copyrighted by SOYO Computer Inc. No part of this manual may
be reproduced, transmitted, transcribed, translated into any other language, or stored in a retrieval system, in
any form or by any means, such as by electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without permission in writing from SOYO Computer Inc.
Disclaimer:
SOYO Computer Inc. makes no representations or warranties regarding the contents of this manual. We
reserve the right to amend the manual or revise the specifications of the product described in it from time to
time without obligation to notify any person of such revision or amend. The information contained in this
manual is provided to our customers for general use. Customers should be aware that the personal computer
field is subject to many patents. All of our customers should ensure that their use of our products does not
infringe upon any patents. It is the policy of SOYO Computer Inc. to respect the valid patent rights of third
parties and not to infringe upon or to cause others to infringe upon such rights.
Restricted Rights Legend:
Use, duplication, or disclosure by the Government is subject to restrictions set forth in subparagraph (c)(1)(ii)
of the Rights in Technical Data and Computer Software clause at 252.277-7013.
About This Guide:
This Quick Start Guide can help system manufacturers and end users in setting up and installing the
Motherboard. Information in this guide has been carefully checked for reliability; however, to the correctness
of the contents there is no guarantee given. The information in this document is subject to amend without
notice.
For further information, please visit our Web Site on the Internet. The address is
"http://www.soyo.com.tw".
P4VDA Serial - Version 1.0 - Edition: February 2002
* These specifications are subject to amend without notice

SY-P4VDA Quick Start Guide
3
Introduction
1 1
Introduction
Congratulations on your purchase of the SY-P4VDA Motherboard. This Quick Start Guide illustrates the
steps for installing and setting up your new Motherboard.
This guide provides all users with the basic steps of Motherboard setting and operation. For further
information, please refer to the SY-P4VDAMotherboard User's Manual that came with your
Motherboard.
Unpacking

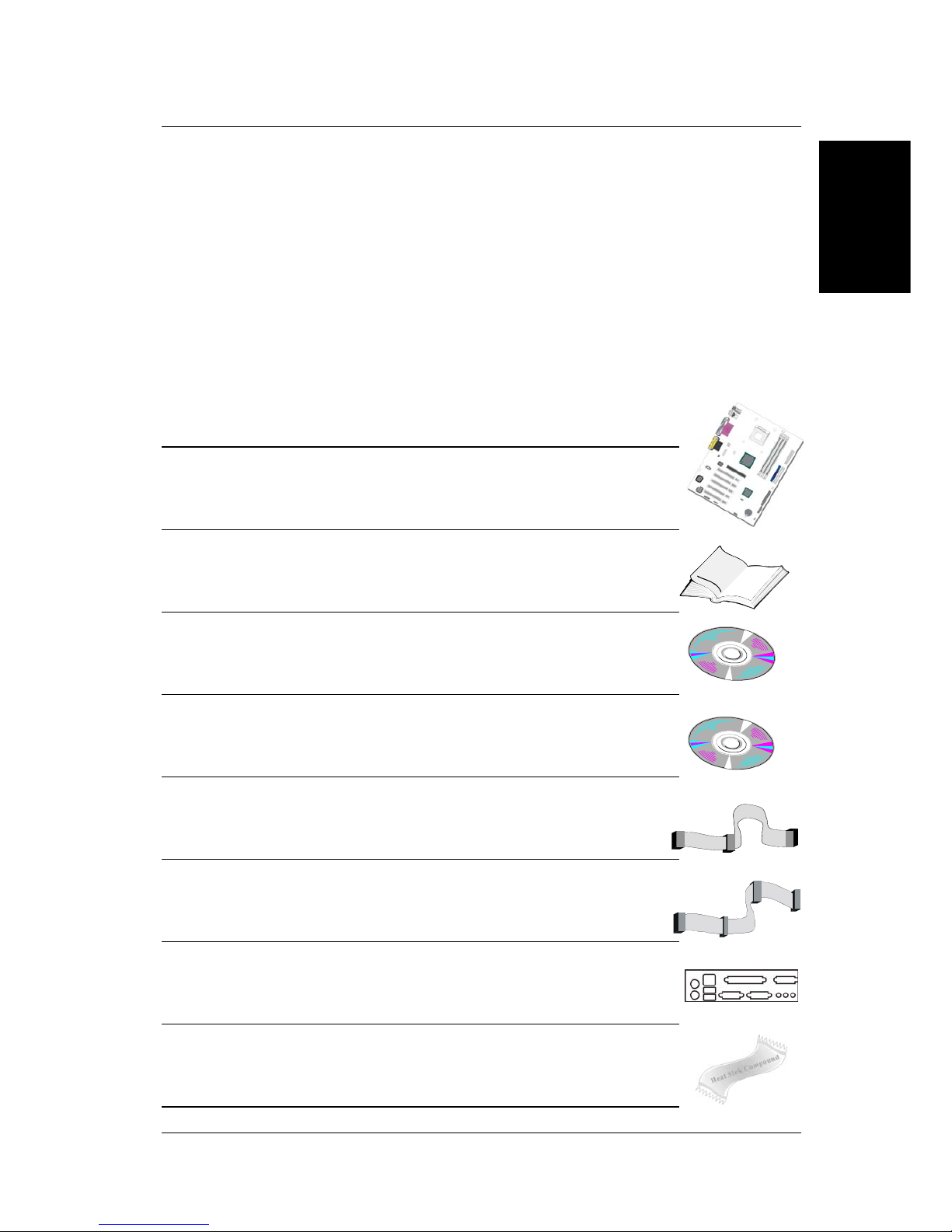

When unpacking the Motherboard, check for the following items:

The SY-P4VDA VIA P4X266AAGP/PCI Motherboard

This Quick Start Guide

The Installation CD-ROM

SOYO Bonus Pack CD-ROM
 One IDE DeviceATA 100 Flat Cable

One Floppy Disk Drive Flat Cable
 Bracket

One Heat Sink Compound

SY-P4VDA Quick Start Guide
4
Introduction
SY-P4VDA Motherboard Layout
(Optional)
PS/2 KB
Connector
PS/2 Mouse
Connector
3V
Lithium
Battery
IDE 2IDE 1
ATX Po wer
PCI#5
PCI#4
PCI#3
PCI#1
PCI#2
PRT
COM A
COM B
ITE
IT8705F
DIMM1 DIMM2 DIMM3
2
1
SMCARDCN
14
13
SIRCON USB3_4
1
6
10
5
FDC
WOL
Header
JP10
CMOS Clear
Jumper
1
1
111
51
JP5
JP11
CDIN2
14
AOUT
AIN
AMIC
AGAME
LAN
CHIP
Power
LED
Speaker
HDD
LED
PWRBT
Reset
J25
P1
P2
J30
AGP Slot
USB 1_2

SY-P4VDA Quick Start Guide
5
Introduction
Key Features

Supports Intel
®
mPGASocket 478
processors
- Pentium
®
4
 Supports 400 MHz Front Side Bus Frequency
 Support PC1600 and PC2100 DDR module

PC99, ACPI

Ultra 33/66/100/133 (ATA33/66/100/133)
 Supports Wake-On-LAN (WOL)
 SupportsACPI Suspend Indicator
 Power-on by modem, alarm and PS/2
Keyboard

Power failure resume
 Supports Suspend to RAM
 Supports onboard hardware monitoring and
includes Hardware Doctor™ utility

SupportsAC97 Codec
 Easy CPU settings in BIOS with the “SOYO
COMBO Setup”
- CPU voltage adjust
- CPU ratio adjust
- CPU FSB adjust
 Supports multiple-boot function

AGP 2.0 Compliant;
AGP Connector supports:
- 1X/2X/4X data transfer

Smart Card Reader
- Compliant with Personal Computer Smart
Card (PC/SC) Working Group standard
- Compliant with smart card (ISO 7816)
protocols
- Supports card present detect
- Supports Smart Card insertion power-on
feature

3 x DIMM slots for DDR SDRAM memory
 1 x 32-bitAGP slot
 4 x 32-bit bus master PCI slots (slot2~slot5)
 1 x 32-bit bus slave PCI slot (slot1)

4 x USB ports onboard

1 x IrDAport

ATX 12V power connector

SY-P4VDA Quick Start Guide
6
Hardware
Installation
2 2
Installation
To avoid damage to your Motherboard, please follow these simple rules while handling
this equipment:
 Before handling the Motherboard, ground yourself by touching on to an unpainted portion of the
system's metal chassis.
 Remove the Motherboard from its anti-static packaging. Hold the motherboard by the edges
and avoid touching its components.
 Check the Motherboard for damage. If any chip appears to be loose, press carefully to seat it
firmly in its socket.
Follow the directions in this section which is designed to guide you through a quick and correct method
to install your new
SY-P4VDA Motherboard. For detailed information, please refer to the SY-P4VDA
Motherboard User's Manual and Technical Reference online manual on the CD-ROM that came with
your Motherboard.
Gather and prepare all necessary components to complete the installation successfully:

Socket mPGA478 processor with built-in CPU cooling fan (boxed type)
 DDR SDRAM module (s)
 Computer case with adequate power supply unit

Monitor

PS/2 Keyboard
 Pointing Device (PS/2 Mouse)
 Speaker(s) (optional)

Disk Drives: HDD, CD-ROM, Floppy drive…

External Peripherals: Printer, Plotter, and Modem (optional)
 Internal Peripherals: Modem and LAN cards (optional)
 VGACard (AGP, PCI)

SY-P4VDA Quick Start Guide
7
Hardware
Installation
Install the Motherboard
Follow the steps below in order to perform the installation of your new SY-P4VDA Motherboard.
Step 1. Install the CPU
Mark your CPU Frequency:
Record the working frequency of your mPGACPU that
should be clearly marked on the CPU cover.
FSB 400MHz
1.5GHz(100x15.0) 1.6GHz(100x16.0) 1.7GHz(100x17.0) 1.8GHz(100x18.0)
1.9GHz(100x19.0) 2.0GHz(100x20.0) 2.2GHz(100x22.0)

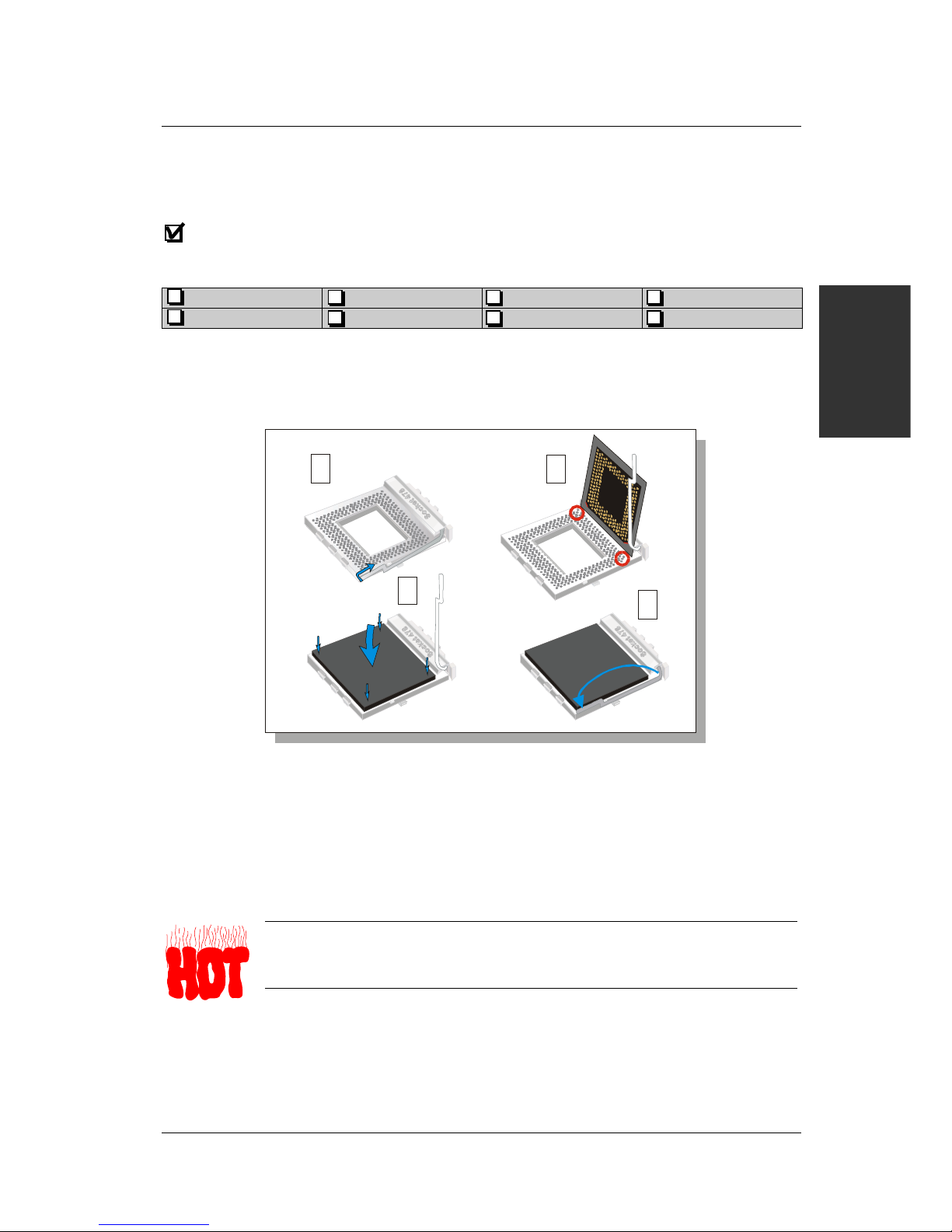

CPU Mount Procedure: To mount the Pentium
®
4 Socket mPGA478 processor that you
have purchased separately, follow these instructions.
1. Lift the socket handle up to a vertical position.
2. Align the blunt edge of the CPU with the matching pinhole edge on the socket.
3. Seat the processor in the socket completely and without forcing.
4. Then close the socket handle to secure the CPU in place.
Remember to connect the CPU Cooling Fan to the appropriate power connector on
the Motherboard. The fan is a key component that stabilizes the system. It prevents the
equipment from overheating and prolongs the life of your CPU.
1 1
3
4
2

SY-P4VDA Quick Start Guide
8
Hardware
Installation
CPU Fan Installation
Your Socket 478 processor kit comes with a cooling fan. Mount the fan on the processor according to the
instructions provided by the manufacturer. The fan is a key component that will ensure system stability. The
fan prevents overheating, therefore prolonging the life of your CPU.
Note: Remember to connect the fan to the appropriate power source.
Step 2. Install Memory Module
Your board comes with three DIMM sockets, Directly supports one DDR SDRAM channel, 64b wide,
providing support max of 3 Double-Sided DIMMs with unbuffered (non-registered) and Non-ECC DDR
266.
The largest memory capacity possible is 3GB. On this motherboard, DRAM speed can be set
independent from the CPU front side bus speed. Depending on the DRAM clock speed setting in the
BIOS setup.
Memory Configuration Table
Number of Memory Modules DIMM 1 DIMM 2 DIMM 3
RAM Type DDR SDRAM
Memory Module Size (MB) 64 /128 /256 /512 MB /1 GB
Step 3. Install Expansion Card
The motherboard has 1AGP slot and 5 PCI slot.
1. Read the related expansion card’s instruction document before inserting the expansion card into
the computer.
2. Press the expansion card firmly into expansion slot in motherboard.
3. Be sure the metal contacts on the card are indeed seated in the slot.
4. Replace the screw to secure the slot bracket of the expansion card.
5. Install related driver from the operating system.

SY-P4VDA Quick Start Guide
9
Hardware
Installation
Step 4. Connect cables, case wires, and power supply
This section tells how to connect internal peripherals and the power supply to the Motherboard.
The internal peripherals consist of IDE devices (HDD, CD-ROM), Floppy Disk Drive, Chassis Fan, Front
Panel Devices (Internal Speaker, Reset Button, and IDE LED Switch.), Wake-On-LAN card, VGAcard,
Sound Card, and other devices.
For more details on connecting internal and external peripherals to your new SY-P4VDA Motherboard,
please refer to SY-P4VDAMotherboard User's Manual and Technical Reference online manual on the
CD-ROM.
A. Connectors and Plug-ins
CPU Cooling Fan: CPUFAN Chassis Fan: CHAFAN1 Chassis Fan: CHAFAN2
Pin1 Pin2 Pin3 Pin1 Pin2 Pin3 Pin1 Pin2 Pin3
GND 12V SENSOR GND 12V SENSOR GND 12V None
MIC & LED Connector (J30)
Pin1 Pin2 Pin3 Pin4 Pin5 Pin6
AUDIO_L AUDIO_R MIC_OUT GND LAN_Active_LED_Cathode LAN_Active_LED_Anode
Standard IrDA (Infrared Device Header): SIRCON Wake-On-LAN Header: JP10
Pin1 Pin2 Pin3 Pin4 Pin5 Pin1 Pin2 Pin3
VCC NC IRRX GND IRTX 5VSB GND MP-Wakeup
USB 3 USB 4
Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Pin9 Pin10
5VSB Data(-) Data(+) GND NC 5VSB Data(-) Data(+) GND GND
SMCARDCN
Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Pin9 Pin10 Pin11 Pin12 Pin13 Pin14
VCC NC NC NC Scrfet RST CLK NC NC Scrio GND Scrpres NC NC
CD -IN: CDIN2 Pin1 Pin2 Pin3 Pin4
Connect the CD Line-in cord from the CR-ROM device to the
matching connector CDIN2.
L G G R
Power LED
Pin1 Pin2 Pin3
VCC NC GND
Speaker
Pin1 Pin2 Pin3 Pin4
VCC NC NC Speaker out
HDD LED PWRBT RESET
Pin1 Pin2 Pin1 Pin2 Pin1 Pin2
LEDAnode LED Cathode Power On/Off GND Power Good GND
Power On/Off: PWRBT
Connect your power switch to this header (momentary switch type).
To turn off the system, press this switch and hold down for longer than 4 seconds.
Power LED Key Lock Speaker
Reset PWRBT
A
CPI LED HDD LED
++
+
+
_
_
_
_
11

SY-P4VDA Quick Start Guide
10
Hardware
Installation

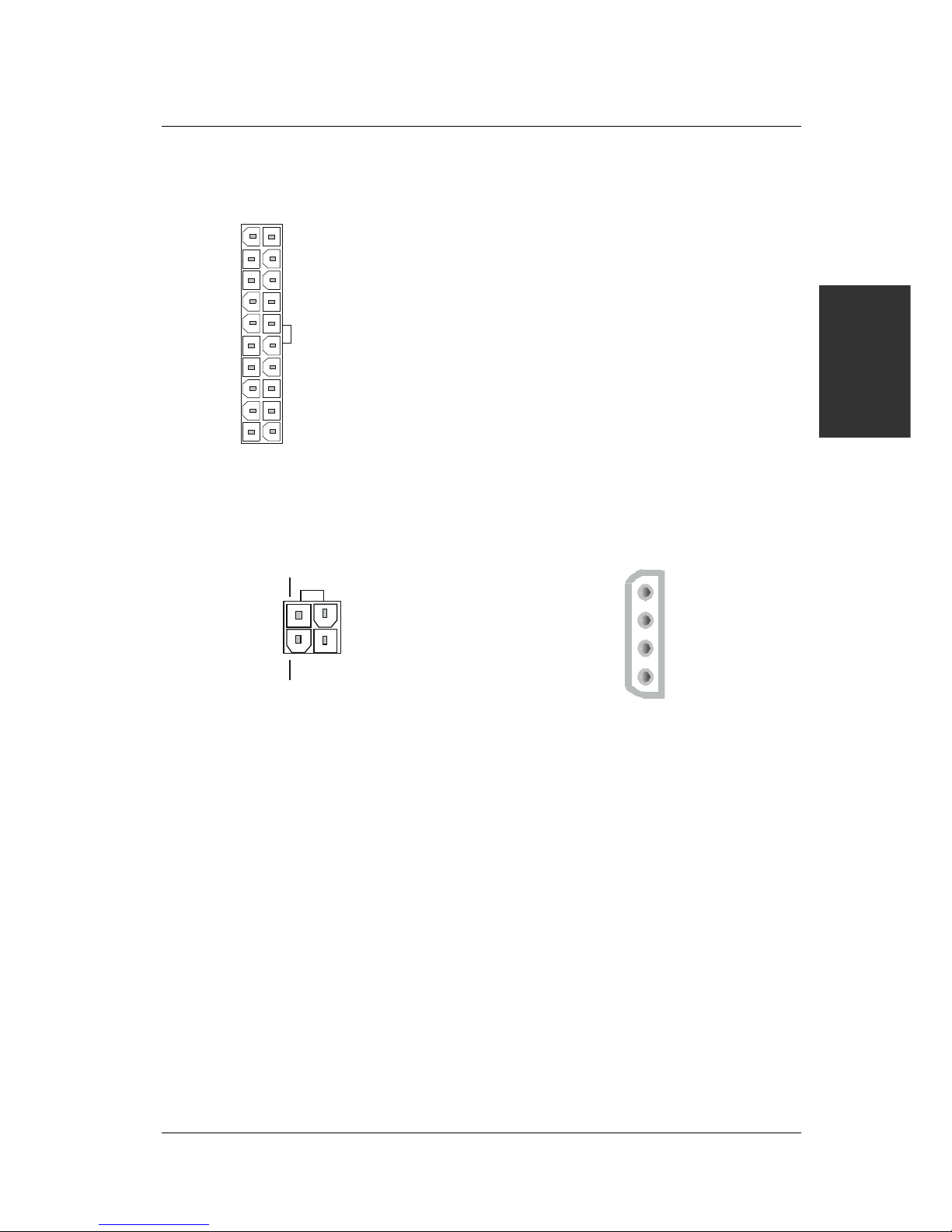

B. ATX Power Supply
This M/B can support ATX Power supply version 2.03 (with 12V power connector) and olderATX power
supply.
The ATX12V power supply includes a 20-pin ATX connector that complies with the ATX specification,
Version 2.03 for M/B specification, a new 4-pin receptacle/header combination--the +12V power
connector--has been defined. The presence of the +12V power connector indicates that a power supply is
ATX12V; the absence of the +12V power connector indicates that a supply is ATX. To allow for greater than
+3.3V current, the Aux power connector is recommended for ATX and ATX12V power supplies with
+3.3V current >18A.
If the user uses an old ATX power supply, please connect the main power connector and the peripherals
connector to the M/B.
If the user uses an ATX power supply version 2.03, please connect the main power connector and
12Vconnector to the M/B.
Warning: Follow these precautions to preserve your Motherboard from any remnant currents
when connecting toATX power supply:
Turn off the power supply and unplug the power cord of the ATX power supply before
connecting to ATX PW connector.
The Motherboard requires a power supply with at least 250 Watts and a "power good" signal. Make sure the
ATX power supply can take at 1.5Amax current * load on the 5V Standby lead (5VSB) to meet the
standardATX specification.
Note:
 ATX 12V power supply is different from the normal ATX power supply.
 If you use the Wake-On-LAN (WOL) function, make sure theATX power supply can support at
least 720 mAon the 5V Standby lead (5VSB).
Standard
ATX Power Supply
P2
ATX 12V Power Supply
P1

SY-P4VDA Quick Start Guide
11
Hardware
Installation
3.3V
-12V
GND
PS-ON
GND
GND
GND
-5V
5V
5V
3.3V
3.3V
GND
5V
GND
5V
GND
PW-OK
5VSB
12V
ATX Power
Please install theATX power according to the following pin assignment:
 Pay special care to the directionality.
+12V
GND
GND
NC
Pin1
Pin4
P
2
+12VDC +12VDC
Pin3
Pin1
P1
com com
12V power connector Peripherals power connector

SY-P4VDA Quick Start Guide
12
Hardware
Installation
C. CMOS Clear (JP5)
In some cases the CMOS memory may contain wrong data, follow the steps below to clear the CMOS
memory.
1. Clear the CMOS memory by momentarily shorting pin 2-3 on jumper JP5. This jumper can be
easily identified by its white colored cap.
2. Then put the jumper back to 1-2 to allow writing of new data into the CMOS memory.

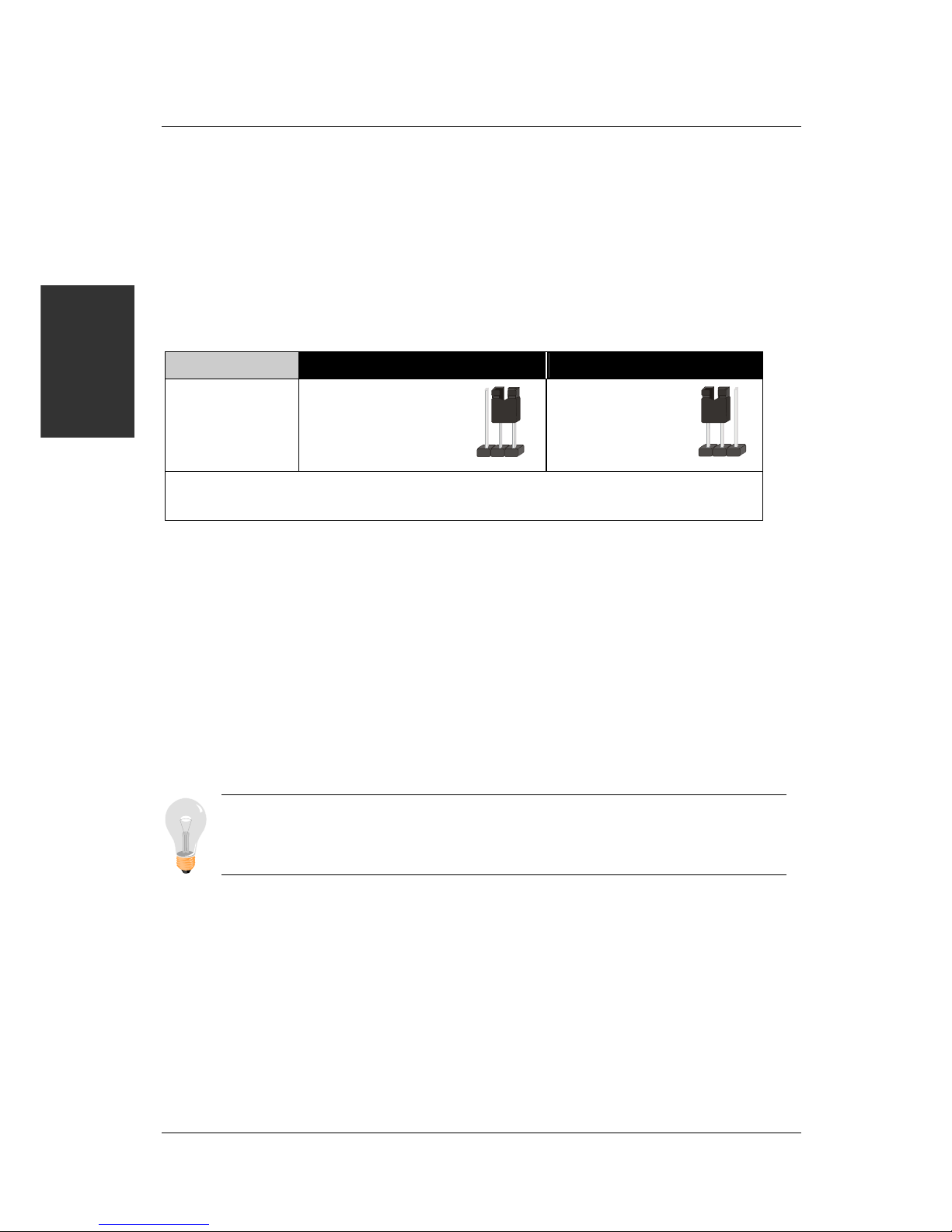

CMOS Clearing Clear CMOS Data Retain CMOS Data
JP5 Setting
Short pin 2-3 for
at least 5 seconds to clear
the CMOS
Short pin 1-2 to retain
new settings
Note: You must unplug the ATX 12V power cable from the ATX 12V power connector when
performing the CMOS Clear operation.
Step 5. Power On
You have now completed the hardware installation of your Motherboard successfully.
1. Turn the power on
2. To enter the BIOS Setup Utility, press the <DEL> key while the system is performing the diagnostic
checks.
Note: If you have failed to enter the BIOS, wait until the boot up sequence is completed. Then
push the RESET button and press <DEL> key again at the beginning of boot-up, during
diagnostic checks.
12 3
12 3

SY-P4VDA Quick Start Guide
13
Quick BIOS
Setup
3 3
Quick BIOS Setup
This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings
are software configurable with the BIOS
[SOYO COMBO FEATURE]. The [SOYO COMBO
FEATURE] combines the main parameters that you need to configure, all in one menu, for a quick
setup in BIOS.
After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the
system diagnostic checks to enter theAward BIOS Setup program. The CMOS SETUP UTILITY will be
shown on the screen. Then, follow these steps to configure the CPU settings.
Step 1. Select [STANDARD CMOS FEATURE]
Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to “Auto”.
Step 2. Select [LOAD OPTIMIZED DEFAULTS]
Select the “LOAD OPTIMIZED DEFAULTS” menu and type “Y” at the prompt to load the BIOS optimal
setup.
Step 3. Select [SOYO COMBO FEATURE]
Move the cursor to the [CPU Frequency Select], [CPU Ratio] field to set CPU Clock/Ratio.
Note: Set the [CPU Frequency Select] field to “Manual”, to be able to change the CPU frequency 1
MHz stepping.
Step 4. Select [SAVE & EXIT SETUP]
Press <Enter> to save the new configuration to the CMOS memory, and continue the boot sequence.

SY-P4VDA Quick Start Guide
14
The SOYO CD
4 4
The SOYO CD
The SOYO-CD will NOT autorun if you use it on an Operating System other than
Windows 95/98/98SE/ME.
Your SY-P4VDA Motherboard comes with a CD-ROM labeled "SOYO CD." The SOYO CD
contains (1) the user's manual file for your new Motherboard, (2) the drivers software available for
installation, and (3) a database in HTML format with information on SOYO Motherboards and other
products.
Step 1. Insert the SOYO CD into the CD-ROM drive
If you use Windows 2000, NT or XP, the SOYO-CD will not detect your motherboard type. In that case
the following dialog will pop up, please choose your motherboard and press OK. Now the SOYO-CD
Start Up Menu will be shown.
(SOYO CD Start Up Program Menu)
If you use Windows 95/98/98SE/ME, the SOYO CD Start Up Program automatically detects which
SOYO Motherboard you own and displays the corresponding model name.

SY-P4VDA Quick Start Guide
15
The SOYO CD
The user's manual files included on the SOYO CD are in PDF (Postscript Document) format. In order
to read a PDF file, the appropriateAcrobat Reader software must be installed in your system.
Note: The Start Up program automatically detects if theAcrobat Reader utility is already present in
your system, and otherwise prompts you on whether or not you want to install it. You must install the
Acrobat Reader utility to b e able to read the user's manual file. Follow the instructions on your screen
during installation, then once the installation is completed, restart your system and re-run the SOYO
CD.
Step 2. Install Drivers and Utilities
Drivers that are needed to install for the system to operate properly
1. VIA 4 in 1 Driver Package for Win 9x/ME/NT/2k/XP
2. Realtek LAN driver , see chapter 5 for installation procedure.
3. Avance Onboard Audio Driver and Applications for Win 9x/ME/2000/NT
The rest of the driver is optional
Click the
Install Drivers button to display the list of drivers software that can be installed with your
Motherboard. The Start Up program displays the drivers available for the particular model of
Motherboard you own. We recommend that you only install those drivers.

SY-P4VDA Quick Start Guide
16
The SOYO CD
(Driver Installation Menu)
A short description of all available drivers follows:
 VIA 4 in 1 Driver Package for Win 9x/ME/NT/2k/XP
VIA4 In 1 driver includes four system drivers to improve the performance and maintain the stability of
systems using VIAchipsets. These four drivers are:
VIARegistry (INF) Driver, VIAAGP VxD driver, VIAATAPI Vendor Support Driver and VIAPCI IRQ
Miniport Driver. For Windows NT users, the VIAIDE Bus Mastering driver is the only driver to be
installed in your system.
Adescription of 4 drivers followa:
 Bus Master PCI IDE Driver
TheATAPI IDE driver enables the performance enhancing bus mastering functions on
ATA-capable Hard Disk Drives and ensures IDE device compatibility.

AGP VxD Driver
VIAAGP VxD Driver is to be installed if you are using anAGP VGAdevice. VIAGART.VXD
will provide service routines to your VGAdriver and interface directly to hardware, providing
fast graphical access.
 VIA Chipset Functions Registry
VIARegistry (INF) Driver is to be installed under Windows. The driver will enable the VIA
Power Management function.

IRQ remapping utility (This driver is installed automatically)
VIAPCI IRQ Miniport Driver is to be installed under Windows 98 only, it sets the system's PCI
IRQ routing sequence.
 Avance Onboard Audio Driver and Applications for Win 9x/ME/2000/ NT/XP
This sound driver with applications is for windows 98, 98SE, ME, NT4.0, 2000 and XP. The
application support file formats including .MP3, .CDA, .MIDI, .WAV & .WMA.
driver revision:
VIA 4 in 1 Driver Package for Win 9x/ME/NT/2k
VIA hardware monitor for Win 9x/ME
Cancel OK
driver revision:
VIA 4 in 1 Driver Package for Win 9x/ME/NT/2k/XP
Avance Onboard Audio Driver and A
pp
lications for Win 9x/ME/2000/NT/XP
P4VDA ITE hardware doctor for Win 9x/ME/2000/NT/XP
P4VDA ITE SIM card reader driver for Win 9x/ME/2000/NT/XP(english)
P4VDA ITE SIM card reader driver for Win 9x/ME/2000/NT/XP(chinese)
Realtek 8100b Lan Driver (click here for installation procedure)
Cancel OK

SY-P4VDA Quick Start Guide
17
The SOYO CD
 P4VDA ITE hardware doctor for Win 9x/ME/2000/NT/XP
Your motherboard comes with a hardware monitoring IC. By installing this utility Temperature, Fan
speed and Voltages can be monitored. It is also possible to set alarms when current system values
exceed or fall below pre-set values.
 P4VDA ITE SIM card reader driver for Win 9x/ME/2000/NT/XP
If you have reader card, it must be installed.
Select which driver you want to install and click
OK, or click Cancel to abort the driver installation and
return to the main menu.
Note: Once you have selected a driver, the system will automatically exit the SOYO CD to begin the
driver installation program. When the installation is complete, most drivers require to restart your
system before they can become active.
Step 3. Check the Latest Releases
Click the 'Check the latest Releases' button to go the SOYO Website to automatically find the latest
BIOS, manual and driver releases for your motherboard. This button will only work if your computer is
connected to the internet through a network or modem connection. Make sure to get your modem
connection up before clicking this button.

SY-P4VDA Quick Start Guide
18
Realtek LAN
Driver
Installation
5 5
Realtek LAN Driver Installation
Install the Realtek LAN Drivers under windows 98
1. Move the mouse cursor to my computer icon, then press mouse right button press properties.
2. Open Device Manager.
3. Under NetworkAdapters there will be a yellow marker the first time the operating system is installed.
4. Select the “Driver” tab.
5. Click on update Driver.
6. The LAN Driver path is in SOYO CD “d:\driv-all\Realtek8100b\Win98”. (where D :is your CDROM drive)
7. You will need windows 98 to complete the installation.
8. After informing windows of the directory the driver will be installed. Restart your system after installation.
Install the Realtek LAN Drivers under windows NT4.0
1. Double click the Network icon in the control panel. The Network properties windows will appear. Click on the
Devices tab and press theAdd button.
2. Select “Unlisted or Updated Drivers” from the list of drivers in the Add window by placing the mouse pointer over it
and clicking the left mouse button. Press the OK button.
3. The Install Driver dialog box will appear and request the path of the location of the drivers to be installed. Enter
“D:\driv-all\Realtek8100b\WinNT4”. (where D :is your CDROM drive)
4. After installation, Windows NT will display a dialog box asking you to restart your system.
Install the Realtek LAN Drivers under windows ME
(Because windows ME can detect LAN driver automatic, so this installation is for update
driver)
1. Move the mouse cursor to my computer icon, then press mouse right button press properties.
2. Open Device Manager.
3. Under NetworkAdapters there will be a LAN driver which Me detect is installed.
4. Select the “Driver” tab.
5. Click on update Driver.
6. The LAN driver path is in SOYO CD “d:\driv-all\Realtek8100b\WinME”. (where D :is your CDROM drive)
Install the Realtek LAN Drivers under windows XP
(Because windows XP can detect LAN driver automatic, so this installation is for update
driver)

SY-P4VDA Quick Start Guide
19
Realtek LAN
Driver
Installation
1. Move the mouse cursor to my computer icon, then press mouse right button press properties.
2. Click hardware, then click Device manager.
3. Under NetworkAdapters there will be a LAN driver which XP detect is installed, click it.
4. Select Driver, then click update driver.
5. Select install from a list or specific location, then click next.
6. The LAN driver path is in SOYO CD ”d:\driv-all\Realtek8100b\WinXP”. (where D :is your CDROM drive)
7. After installation. Restart your system.
Install the Realtek LAN Drivers under windows 2000
(Because windows 2000 can detect LAN driver automatic, so this installation is for update
Driver)
1. Press mouse right button then press properties.
2. Select hardware, then click Device manager.
3. Under NetworkAdapters there will be a LAN driver which 2000 detect is installed, Double click it.
4. Select driver then click update driver.
5. Click next then select search for a suitable driver for my device.
6. Click next.
7. The LAN driver path is in SOYO CD “d:\driv-all\Realtek8100b\Win2000”. (where D :is your CDROM drive)
8. Restart.

SY-P4VDA Quick Start Guide
20
Quick Trouble shoot tips
Boot-up Issues
The system do not power-up, no beeping sound heard and the CPU fan does not turn
on.
1. Check if the power cord is plug to the power source.
2. Check if the power is connected to the M/B.
3. Check if the cable of the case power button is connected to the M/B power button
connector (see connectors and plug-ins in the manual for more info).
4. Make sure the power supply is not defective. Change the power supply. The minimum
should be 250 watts.
5. Remove the M/B from the case and test the system. The M/B might be shorted to the
case.
The system power-up, no video, no beeping sound heard, but the CPU fan is turning.
1. Clear CMOS battery. (JP5 connector, see Quick start guide for more info on how to
clear the CMOS).
2. Check all the jumper settings on the M/B. (if the M/B have any).
3. Check if the CPU is ok by using another CPU (check the Quick start guide for CPU
supported on this M/B).
4. Check if the power supply is ok. The minimum should be 250 watts.
5. Make sure the CPU fan is connected to CPUFAN1 connector.
6. Remove the M/B from the case and test the system. The M/B might be shorted to the
case.
The system power-up, no video, beeping heard.
1. Clear CMOS battery. (JP5 connector, see Quick start guide for more info on how to
clear the CMOS).
2. Check all the jumper settings on the M/B. (if the M/B have any).
3. Check the memory module and the VGA card if inserted properly on the M/B.
4. If yes, change the memory module, it might be defective. Make sure the memory
specification is supported by the M/B. (for more info on this, check our FAQ website).
