SP PARTNERS Rainbow Attic Stair Star S2236 User manual

www.RainbowAtticStair.com
By SP Partners, LLC
INSTALLATION GUIDE
Star

INSTALLATION GUIDE
Star
www.RainbowAtticStair.com
By SP Partners, LLC
IMPORTANT - READ THIS FIRST
●Inspect stair for any damage prior to installation.
●Stair is NOT to be installed while home is under construction and
used as a construction stair.
●Correct number of treads for floor-to-ceiling height MUST be
attached. See TABLE A.
●Adjustment Screw on stabilizer arm MUST be set before climbing
stair. This adjustment provides structural support necessary for
use. See page 7.
Failure to follow any or all of these
guidelines can result in damage to
the stair and will void the warranty.
If you have any problems or concerns with stair,
call SP Partners LLC immediately at 877-369-6996
Page 1 February 2011

Drill, tape measure, 1/4” wood drill bit, hammer, crescent wrench, wood shims, ladder, lumber
with same dimensions as joists, keyhole saw or utility knife to cut ceiling material.
Page 2 February 2011

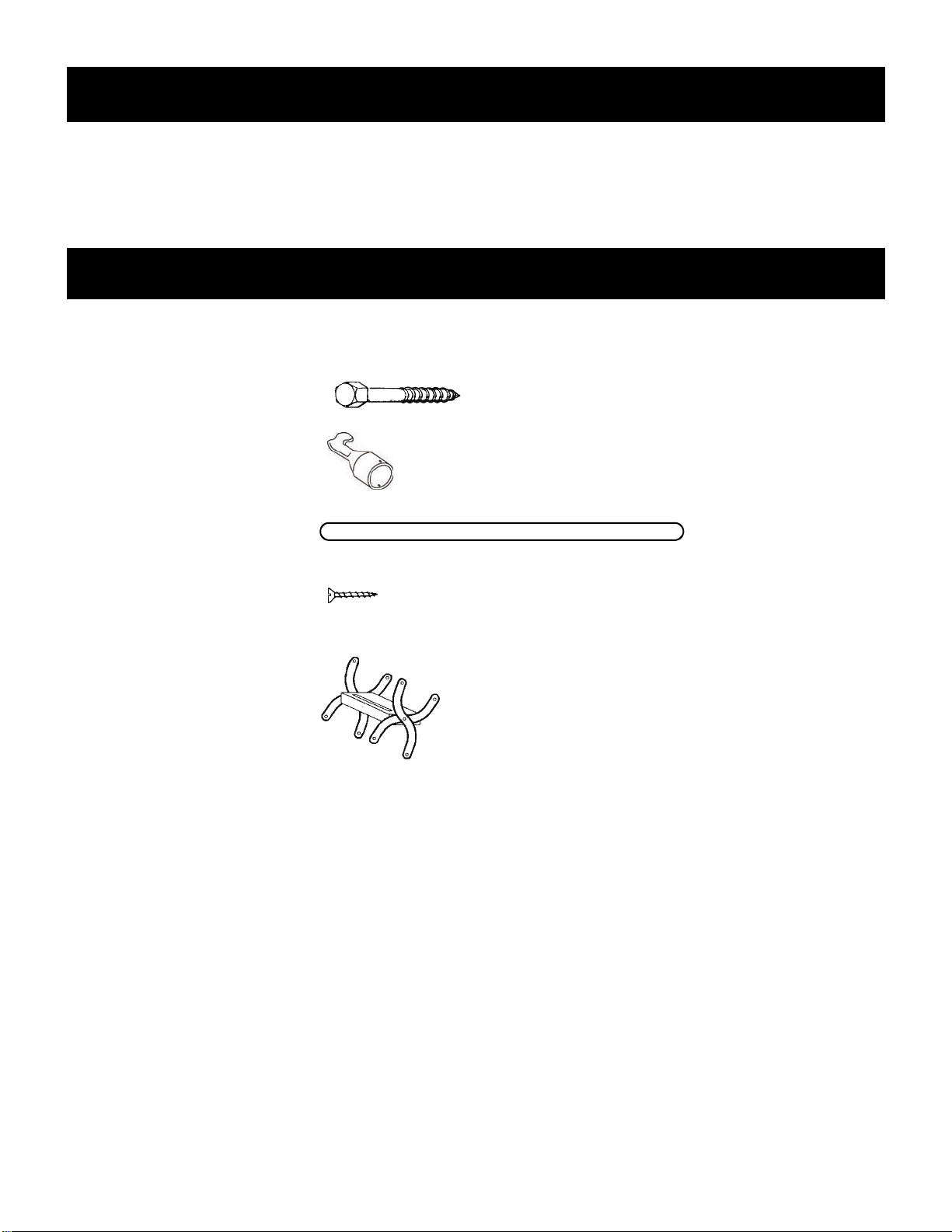

Parts Included
Tools / Materials Required
(10) 3” Lag Screw
(1) Door Hook
(1) Wood Pole
(2) Extra Steps
(2) 1/2” Wood Screws For attaching hook to pole

This stairway is for residential use only.
Maximum capacity is 350 lbs.
Installer should be experienced in the construction or modification of structural framing
supports. Improper installation can result in stair collapse and bodily injury.
Determine location of electrical lines or plumbing before cutting ceiling.
WARNING
Read instructions carefully and completely before beginning installation.
Table A
Page 3 February 2011
Stairs must have the correct number of treads for ceiling heights
shown for each model above.
Stair angle is fixed. Do not add or remove treads solely for changing the
angle of the stair. This will cause an unsafe condition and damage stair.
MODEL # COLOR ROUGH
OPENING SIZE FRAME DIMENSIONS TREAD WIDTH FLOOR TO CEILING HEIGHT RANGE NUMBER OF STEPS PROJECTION LANDING SPACE
S2236 - as assembled GRAY 22 1/2” x 36” 22” X 35 1/2” 12” 7’-4” to 8’ - 2” 9 27” 42”
- Add one step Over 8’ - 2” to 9’ - 0” 10 31” 44”
- Add two steps Over 9’ - 0” to 10’ 11 35” 48”
S2254 - as assembled GRAY 22 1/2” x 54” 22” x 53 1/2” 12” 7’-4” to 8’ - 4” 9 9” 42”
- Add one step Over 8’ - 4” to 9’ - 2” 10 13” 44”
- Add two steps Over 9’ - 2” to 10’ 11 17” 48”
S2554 - as assembled GRAY 25 1/2” x 54” 25” x 53 1/2” 14” 7’-4” to 8’ - 4” 9 9” 42”
- Add one step Over 8’ - 4” to 9’ - 2” 10 13” 44”
- Add two steps Over 9’ - 2” to 10’ 11 17” 48”
S3060 - as assembled GRAY 30” x 60” 29 1/2” x 59 1/2” 16” 7’-4” to 8’ - 4” 9 3” 42”
- Add one step Over 8’ - 4” to 9’ - 2” 10 7” 44”
- Add two steps Over 9’ - 2” to 10’ 11 11” 48”

Mark out the rough opening size for your unit according to TABLE A. Cut the rough opening through the
ceiling material.
Determine whether the chosen location allows sufficient “projection” and “landing space” for your unit.
See Figure 1 and TABLE A.
Figure 1
Locating the Stair
Preparing the Opening
Page 4 February 2011
Framing the Opening
Most attic stairs will be installed parallel to the ceiling joists (Figure 2). In cases where they are installed
perpendicular to joists (Figure 3), some joists will need to be cut and tied-in to other joists with 2” x 6” or 2”
x 8” “headers”. These headers will form the box frame into which the stair will be secured.
Before cutting any joists, watch out for electrical wiring.
If your attic is constructed using trusses, DO NOT CUT CEILING JOISTS WITH-
OUT CONSULTING AN ENGINEER AND OBTAINING APPROVAL.
WARNING

Figure 2 Figure 3
HEADERS
JOIST BRACE
HEADERS
JOIST BRACE
Page 5 February 2011
Be sure that there is adequate light in the attic since the stair will block
any light from the room below when raised into place.
Make sure door is closed and latch is engaged
WARNING
1. Have two additional helpers below lift the stair straight up into the framed opening and set stair off to
the side.
2. Nail 3 boards to bottom of opening as temporary supports for the stair. Figure 4
3. Lower stair onto temporary supports and square stair to frame, maintaining an even gap all around
between stair and headers.
4. Shim and anchor stair to frame using lag screws. Pre-drill holes first. Figure 5
5. DOOR CAN NOW BE OPENED BUT DO NOT STAND ON STAIR YET.
Figure 5
PRE-DRILL
LAG SCREW
POSITIONS
Figure 4
SUPPORT BOARDS
Installing the Stair

Page 6 February 2011
Before the stair can be climbed on, two critical adjustments must be made as shown
in the following steps. Failure to follow these guidelines will result in damage to the
stair and void the manufacturer’s warranty.
WARNING
1. Insert hook provided into receptacle on
door and pull door down until fully open.
2. Grab yellow pull bar with hook.
3. Pull slowly to extend stair 4. When stair is within reach, continue pulling slowly by hand to unfold.
Final Adjustments

Figure 8 Figure 9
Determine the correct number of steps required for your floor-to-ceiling height (See Table A on page 3).
If no additional steps are needed, skip this section.
1. With stair fully extended to floor, detach bottom step by removing the four bolts, washers and sleeves.
Figure 8. This tread will be added back at the end.
2. Attach step(s) by reinserting sleeves, washers and bolts. Figure 9. (Additional hardware is provided)
3. Add back bottom step. Wheels should be in the back. These wheels do not touch floor when stair is
fully extended. They are only to protect door when the stair is folded.
Page 7 February 2011
Adding Additional Step(s)
Final Adjustments - continued
Adjusting Set Screw
With stair fully extended to floor,
raise or lower the set screws on the
stabilizer arm until the screw head
makes contact with the bottom of the
stabilizer arm. Tighten lock nut to
keep it secure.
Note: Screws set too high will
prevent stair from making contact
with floor and create leverage that
can pull stabilizer arm bracket
from door.
Set Screw Stabilizer Arm
Stabilizer Arm
Bracket
Remove bottom tread Add extra tread(s)
Lock Nut

Page 8 February 2011
Congratulations!
You are now ready to begin using your Rainbow Attic Stair. As with any product, be sure to
follow instructions for safe, efficient and trouble-free operation for years to come.
*** Children should never be allowed to operate or climb any attic stair. ***
Operating the Stair
Refer to pictorial label on inside of door.

LIMITED WARANTY
SP Partners, LLC warrants that the unit will be free from any defects in material and workmanship for two
years from purchase date provided that the stair is installed in compliance with the preceding instructions and
operated and maintained in accordance with these instructions and applicable warnings.
This warranty specifically excludes any and all non-defect damage, any and all damage, injuries and losses
arising from improper installation of this product, unreasonable use to include exceeding the specified weight
limitations, and any and all labor charges incurred for removing or reinstalling a repaired stair unit or any of its
components.
During the warranty period stated, should the stair unit or any of its components exhibit a manufacturing de-
fect please first call SP Partners, LLC at 877-369-6996 before dismantling the product in order to determine
the extent of the defect and what course of action needs to be taken to correct the problem. A proof of pur-
chase will be required in all cases.
ADDITIONAL EXCLUSIONS
SP Partners, LLC’s above-stated express limited warranty is being made in lieu of all implied warranties of
any kind, including those as provided by the Uniform Commercial Code for merchantability of the product and
for fitness of the product for a particular purpose. All such implied warranties, including those of merchantabil-
ity and/or fitness for a particular purpose, are excluded and disclaimed. Furthermore, all claims for conse-
quential damages and for incidental damages that may arise from a breach of the above-mentioned express
warranty are also excluded. In no event shall SP Partners, LLC be liable for any breach of warranty and/or
for any negligence and/or for any strict liability which would exceed in damage amount the cost of the stair
unit.
No representative or person is authorized to assume for SP Partners, LLC, any responsibility which would be
either an alternative to or in addition to the express product warranty as stated above. This warranty gives
you certain specific legal rights as were set forth above and any other rights that may vary from state to state.
If any portion of this express warranty is deemed to be unenforceable at any time hereafter, any such provi-
sion shall be severed from this agreement, but all other terms, conditions and provisions shall remain in full
force and effect.
Tel: [phone]
Website: www.RainbowAtticStair.com Email: [email protected]
SP Partners, LLC
Page 9 February 2011
