Spa Electrics WN950 Operating instructions

INSTALLATION &
OWNER’S MANUAL
6” LED NICHE LIGHT

1
CONTENTS
5
11
11
INSTALLATION INSTRUCTIONS (STEPS 1 - 11)
READ THIS FIRST 2
3
3
4
TOOLS REQUIRED
PRODUCT SUPPORT AND INFORMATION
INCLUDED PARTS
AVAILABLE COLOUR MODES
WIRING DIAGRAM
KEY DIMENSIONS
ELECTRICAL GROUNDING & FCC STATEMENT
14
15
16
17
MULTI-PLUS SETUP
MULTI PLUS - MANUAL OPERATION
FRESH WATER USE ONLY
HORIZONTAL MOUNT ONLY
NOT INTENDED FOR OPERATION OUT OF WATER
NOTICE
FOR SUPPLY CONNECTION, USE ONLY AN ISOLATING LOW VOLTAGE POWER
SUPPLY WITH UNGROUNDED OUTPUT, EVALUATED FOR SWIMMING POOL USE

2
READ THIS FIRST
BEFORE YOU START:
• ParaGlo cables can be shortened to suit individual installation requirements. Spa Electrics
recommends all cabling is protected by conduit and that a junction box (or similar) is
incorporated into pool cabling design to avoid siphoning.
• Ensure that the lighting system is installed by a qualified person (e.g. Registered pool builder
and/or licenced electrician), in accordance with the most current edition and/or amendment of
the NEC wiring code.
• For safe and proper installation, ensure that only those parts supplied with the system are used.
• Maximum installation depth for the ParaGlo 6” Light (WN950) is 1M (40”) below nominal water
level (to top of light)
• The ParaGlo 6“ Light (WN950) Must be correctly installed in or on the wall of the pool with the top
of the lens no less than 4” below the nominal water level.
• All lights should be mounted in a location that is easily accessible without the need for entering
or lowering the pool water.
• At least 2.5ft of cable must remain stored within the Niche to ensure the light can be accessed
above the waterline. (Maximum cable within niche :18AWG /16AWG = 8ft).
CLEANING
• Only use warm water and a soft brush or cloth to clean ParaGlo series lights. DO NOT use
detergents or spirits as this can damage the light and void your warranty.
USE
• Do not operate light unless completely submerged in water.
• Operating the light for at least 15 minutes every week is advised (all year round).
• ParaGlo lights are suited for both domestic and commercial installations and can be operated
continuously (24/7) if required.
•Temperature range for installation, operation and servicing: +32oF ~ +104oF (0oC ~ +40oC)
The ParaGlo 6” Light must only be used with a UL listed 12V AC Class 2 power supply or a
power source intended for swimming pool use (not included).
Minimum power source wattage requirement - 15 Watts per light.
• DO NOT use electronic or switch-mode power supplies with WN950-series lights. These power
supplies will damage the light and void your product warranty.
• Pool chemicals & PH levels: Due to the corrosive nature of unbalanced pool chemicals, Spa
Electrics strongly recommend that your pool water is balanced prior to installing your pool lights or
any plastic or stainless steel components, and tested weekly to maintain these levels. pH levels
should be maintained between 7.2 – 7.6 at all times to ensure the longevity of these components.
> Failure to do so can result in chemical damage to the light housing and pool fittings,
including stainless steel components.
> Please note: Lights or components found to have excessive chemical damage will not
be covered under our manufacturer’s warranty policy
• This light contains no user-serviceable parts; opening the light will void the product warranty.
WARNING
Congratulations on your purchase of a ParaGlo underwater lighting system.
All ParaGlo lights are manufactured by Spa Electrics in Australia from only the highest quality
materials and exclusively distributed through Paramount Pool & Spa Systems, USA.

3
TOOLS REQUIRED
PRODUCT SUPPORT & INFORMATION
•The use of power tools during installation is not recommended as
these devices can cause damage to the light and components.
•All installation steps should be carried out with manual tools only.
•The enclosed images are for illustrative purposes only. Appearances
of parts and assemblies may vary from the enclosed illustrations.
•Please contact your reseller if you have any questions regarding the
correct installation of this product.
• No. 2 Phillips screwdriver
IMPORTANT NOTE
Lights MUST be removed from pool wall and cable disconnected via
plug connection & stored in a safe place.
Red plug cover must be fitted to plug top prior to reinstalling into niche for
winter.
Unless niche/conduit connection is adequately sealed; pool water level
must be drained down 12” below the lowest light(s) position in pool wall.
If possible, all conduits should be checked for accumulated water and
drained if required.
Consult your local pool professional for complete pool winterization
process.
WINTERIZATION
•
•
•
•
•
Phone: TOLL FREE 1800 621 5886
Email: [e-mail]
Web: www.1paramount.com

4
(TOP CABLE EXIT - NO GLAND)

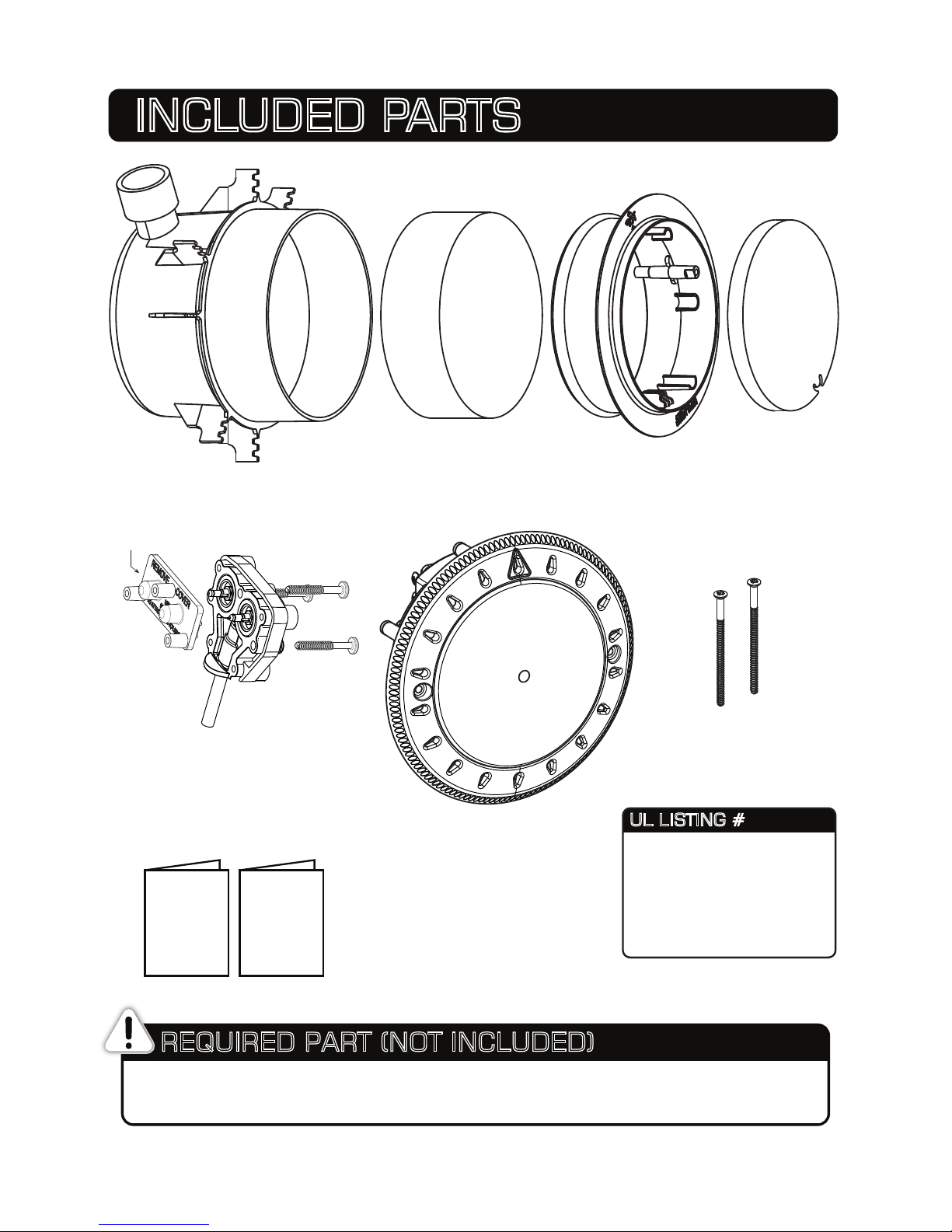

INCLUDED PARTS
UL LISTING #
NICHE # WN9081 US
LIGHT (Blue) # WN9 CBL US
LIGHT (White) # WN9 CW4 US
LIGHT (Multi) # WN9 CMC US
LIGHT (P / Z*) # WN9 CMC P US
PLUG & CABLE (80ft) # WNP 18AWG 80 US
PLUG & CABLE (100ft) # WNP 18 AWG 100 US
PLUG & CABLE (150ft) # WNP 16AWG 150 US
REQUIRED PART (NOT INCLUDED)
UL LISTED 12V AC CLASS 2 POWER SUPPLY OR POWER SOURCE INTENDED FOR SWIMMING POOL USE.
Minimum power source wattage requirement - 15 Watts per light
Spa Electrics recommends “INTERMATIC PX” safety transformers for use with Quantum & Atom Lights
+ 1 SPARE *
* 1 SPARE TERMINAL COVER PROVIDED FOR
WINTERIZATION (SEE PAGE 3)
1x
NICHE
1x
LIGHT
1x
FOAM
INSERT
1x
FOAM
INSERT
2x
MOUNTING
SCREWS
1x
MOUNTING RING
1x
PLUG +
CABLE
1x
WARRANTY
1x
INSTALLATION
MANUAL

5
1” or
Reinforcement Bars
INSTALLATION
1
ATTACH NICHE TO REINFORCEMENT BARS
2
INSERT AND GLUE 3/4” CONDUIT INTO NICHE
(Before spraying concrete)
Attach the niche to either horizontal or vertical steel mounting bars using wire ties or
similar. Ensure conduit entry is at the top of the niche. (Fig. 1)
Glue length of 1” (bellmouth) or 3/4” conduit into top of niche using PVC solvent cement
(suitable for ABS plastics). Conduit should extend above the water level of the pool.
CAUTION: Ensure that sufficient area behind the niche is dug out to allow for 2-3” of
concrete coverage around the entire niche.
1” (BELLMOUTH) OR ¾” CONDUIT
INSTALLED HERE
WIRE TIES
NICHE
REINFORCEMENT BARS
CAUTION:
The ParaGlo 6” light must be correctly installed in the wall of the pool with the top
of the lens no less than 4” below the nominal waterline of the pool.

6
Depending on your installation requirements, conduits may run to a common
junction box or return directly to the power supply. In either case, it is imperative that
the conduit extends above the water level of the pool at some point in order to
prevent syphoning.
NOTE: Conduit should contain a draw wire to allow for easy installation of power
cable.
RE-BAR
40” (MAX)
2.0“ (MAX)
1.25“ (MIN)
CONCRETE
THICKNESS
POOL FINISH
1” (MAX)
½” (MIN)
2”
MINIMUM
CONCRETE
COVERAGE
SEALING
COMPOUND
WATER
LINE
COPING
5.5” (STANDARD)
4.75” (MINIMUM)
NICHE DEPTH
2ft (MIN) CONDUIT
ELEVATION ABOVE
WATER / GROUND
POWER SUPPLY
(TRANSFORMER)
4” (MIN)
48” (1.22m) MINIMUM
JUNCTION BOX
INSTALL SECONDARY CONDUIT
The ParaGlo 6” (WN950) luminaire
with its plastic housing design and
plastic niche does not require
grounding / bonding when operated
within a Class 2 circuit supply.
SEE PAGE 15 FOR MORE INFORMATION
ELECTRICAL GROUNDING

7
REINFORCEMENT BARS
4
CONCRETE SPRAYING
5
FOAM REMOVAL

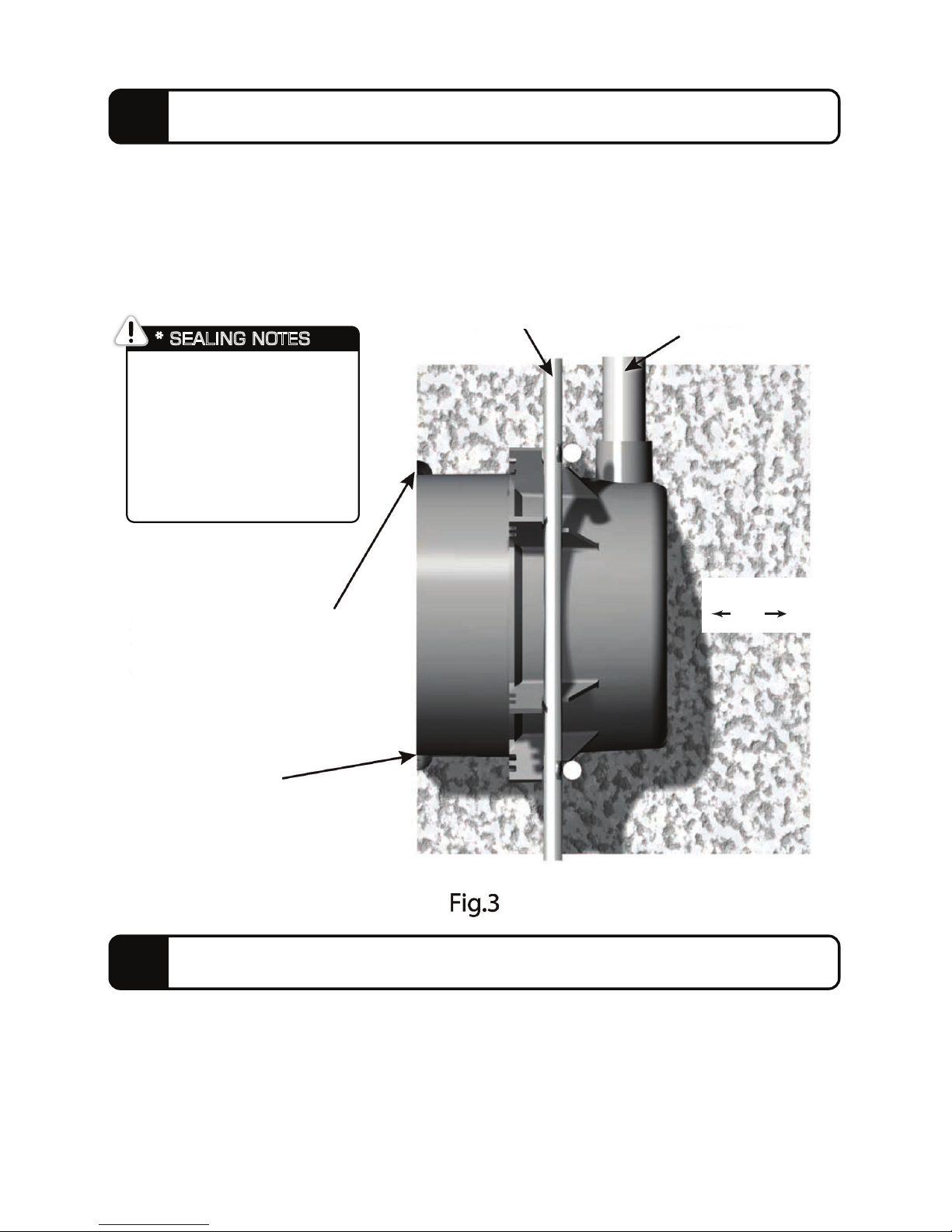

Spray concrete, paying particular attention to covering the entire niche. Using fingers,
scoop out the concrete around the front edge of the niche. (Fig 3)
WARNING: Ensure that the concrete is well compacted around the rear and base of the
niche, otherwise the pool may leak.
CAUTION: The front of the niche should not be recessed into the concrete.
(After concrete is sprayed and dry)
Remove foam from niche and if necessary, trim niche back to wall surface. Apply a
waterproof sealant in the recess between the niche and the concrete wall. (Fig 3)
CAUTION: Do not trim more than ¾” from the front of the niche or there may not be
sufficient depth remaining for inserting the light.
* SEALING NOTES
SEALING COMPOUND OR HYDRAULIC
CEMENT REQUIRED TO PREVENT
WATER EGRESS THROUGH POOL WALL.
ENSURE NICHE RIM IS CLEAN, DRY
AND FREE OF DEBRIS PRIOR TO
APPLICATION OF SEALING COMPOUND.
ENSURE SEALING COMPOUND IS
SUITABLE FOR USE WITH ABS
PLASTIC
CONDUIT
CONCRETE
2”
TRIM NICHE BACK TO
WALL SURFACE.
SCOOP OUT CONCRETE AROUND
FRONT EDGE OF NICHE AND
APPLY WATERPROOF SEALANT
IN RECESS

8
6
MOUNTING RING PREPARATION
7
ASSEMBLE MOUNTING RING INTO NICHE
Apply PVC solvent cement to bubble at rear of the mounting ring, and also to the inside of
the niche where the mounting ring is likely to finish. (Approximately 1 ½” inside niche) (Fig.
4)
WARNING: Ensure PVC solvent cement is suitable for ABS plastics.
Slide mounting ring into niche, with ‘TOP’ arrow up; insert until flush against pool wall.
CAUTION: Ensure that the mounting ring is parallel with pool wall as the interior pool
surface must be level with this ring.
TOP MARKER APPLY PVC SOLVENT CEMENT APPLY SEALANT
BUBBLEMOUNTING RING

9
8
APPLY POOL FINISH
9
INSERT CABLING
Using the draw wire, feed the cable from the pool interior, through the niche and conduit
to transformer. Ensure that approximately 2.5ft (min) of cable extends from the niche to
the light, in order to allow the light to be lifted from the water to the pool surround for
servicing.
CAUTION: Do not install the light until after the pool has been acid washed. (Fig. 5)
Plaster or tile interior pool surface, level with raised edge of mounting ring.
CAUTION: Interior surface should not finish more than ½” higher than raised edge of
mounting ring, or the light may not be able to be mounted.
MOUNTING RING RAISED EDGE
CABLE
PLUG TOP WITH TERMINAL COVER

10
10
10
CABLE ATTACHMENT
11

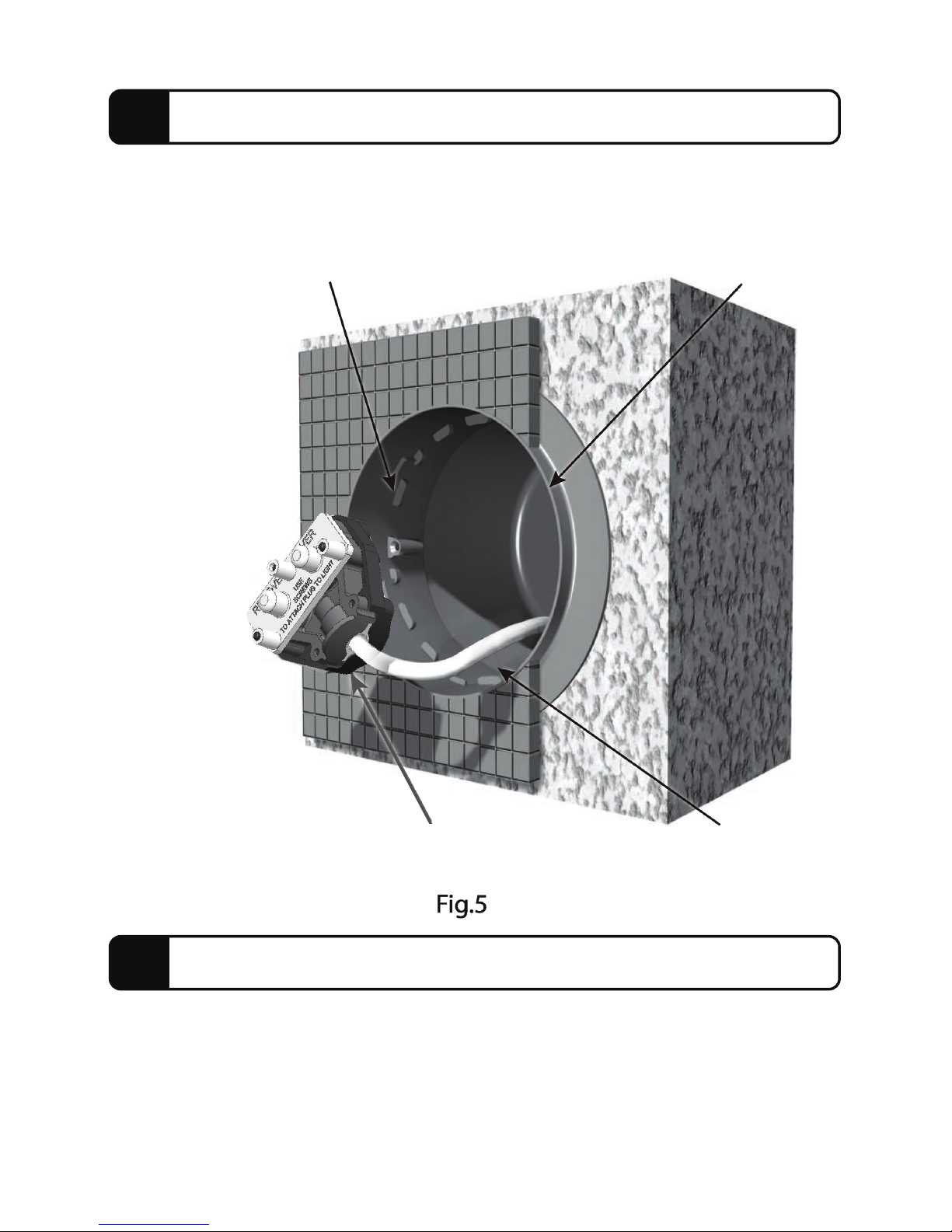

ASSEMBLE LIGHT INTO NICHE
Coil the remaining cable into the niche (not around the light body) in a clockwise rotation.
Continue turning in a clockwise direction until all cable is inside the niche and the plug
top on the light is at the 12 o’clock position. Gently push the light back into the niche.
Insert the two fixing screws provided and lightly tighten.
WARNING: Ensure that the light is not operated until it is fully submerged in water.
Remove the terminal covers from both the light housing and the plugtop. Ensure both plug
top seals are present and located within their grooves. Attach plug top to light housing
using the three fixing screws provided and tighten firmly by hand, using phillips-head
screwdriver. (Fig. 6)
WINTERIZATION
RETAIN PLUG TERMINAL
COVER FOR WINTERIZATION.
SEE PG 3 FOR DETAILS
> DO NOT OVERTIGHTEN SCREWS
> DO NOT USE POWER-TOOLS
> DO NOT ADD SEALANTS OR GREASES
> ENSURE ALL SURFACES ARE CLEAN AND DRY
> DO NOT ASSEMBLE UNDERWATER
IMPORTANT NOTES
PLUGTOP FIXING SCREWS

11
READ THIS FIRST
STEP 1 - POOL CONTROLLER SETUP
The MULTI-PLUS light has 7 inbuilt modes of operation for use on a variety of different control systems
or installation types.
When you first install your MULTI-PLUS light it will operate in the default, ‘Manual’ mode for use with
a wall switch. In order to connect the light to a 3rd party pool controller OR change to a different
operating mode please follow the below steps.
If connecting to a pool controller, please ensure the system is fully installed and you have completed
all the relevant steps in the controller setup menu to operate the lights correctly.
During pool controller setup you will be prompted to select which light model is installed. Please
use the below table to select the appropriate light for your pool controller type.
(For more information on this please refer to the pool controller installation manual).
MULTI PLUS SETUP
NOTE: Some older pool controllers may not support these models. Please contact the controller
manufacturer for upgrade assistance.
POOL CONTROLLER
Astral Connect 10 (2016 to current)
(F/W Rev. ‘R’- Current)
SLX Light
Jandy Aqualink RS Intellibrite
Zodiac Aqualink TRI Intellibrite
Pentair EasyTouch Intellibrite
Pentair IntelliTouch Intellibrite
Hayward Omnilogic Universal Colorlogic
SELECT LIGHT MODEL
MANUAL MODE USER INSTRUCTIONS
OPERATING INSTRUCTIONS
SYNCHRONIZED INSTALLATION
1. To change the color of the light, simply turn your light OFF for 2 seconds and then turn it
back ON. This will signal the light to proceed to the next colour in the sequence.
2.
3.
Your lights will automatically save your selected colour once the power has been turned
OFF for more than 1 minute. So the next time the lights are used, they will illuminate on
the last operated colour.
To reset or ‘synchronize’ your lights; with the power turned ON, turn the power OFF/ON
once rapidly. This will RESET your lights to WHITE
When installing multiple lights; to ensure synchronization and ease of operation, ALL Lights
must operate from a single switch.
Refer to pg. 14 for available colours.
*Hayward ProLogic Controllers:
Hayward Prologic controllers do not support MULTI
PLUS integration. If you are using a Hayward
ProLogic Controller, please leave MULTI PLUS
lights programmed to (1. Manual Mode) for best
operating experience.

12

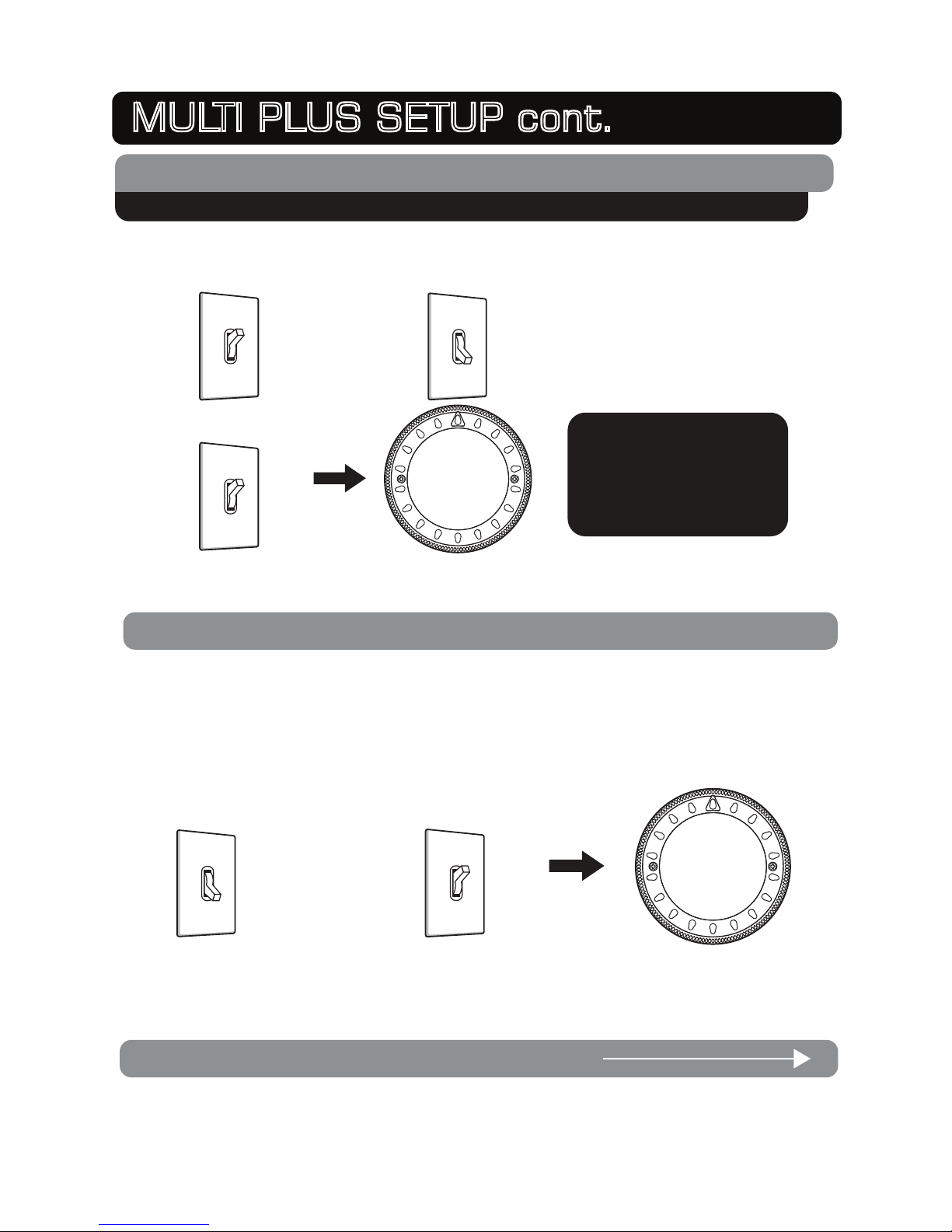

STEP 2 - LIGHT SETUP
TURN LIGHTS ON
ALL LIGHTS
NOW FLASHING
RED
TURN LIGHTS OFF
WAIT 10 SECONDS
REPEAT
x 3
WAIT 1 SECOND
TURN LIGHTS ON
NOTE: This step can either be performed via a wall switch OR via the controller panel/Mobile App.
Ensure Lights have been off for 30 seconds prior to performing this step.
[
[
1.
2. If ALL Lights connected to
circuit are NOT continuously
flashing RED, please turn
Lights OFF & wait 30 seconds
before repeating STEP 2
NOTE:
Continue to next page for available modes
IMPORTANT:
(min 10s - max 15s)
ON
OFF
ON
OFF
ON
OFF
MULTI PLUS SETUP cont.
STEP 3 - SELECTING OPERATING MODE
FLASHING NEXT
COLOUR IN
SEQUENCE
After accessing SETUP MODE (STEP 2) the lights will FLASH RED continuously. This is MODE 1
(Manual mode)
Use the below process to change the operating mode to correspond to the required controller or
operating type below.
TURN LIGHTS OFF TURN LIGHTS ON
WAIT 1 SECOND
Once desired mode is reached (i.e. “Flashing Green - iRIS Mode) leave power turned
ON and continue to STEP 4
IMPORTANT:
ON
OFF
ON
OFF

13
MULTI PLUS SETUP cont.
STEP 3 (continued) - SELECTING OPERATING MODE
CONTROLLER / OPERATING TYPE
Astral Connect 10 (2016 to current)
(F/W Rev. ‘R’-Current)
SLX Light
Spa Electrics iRIS Controller 2. GREEN
3. MAGENTA
4. WHITE
-
Manual Mode (wall switch) 1. RED -
RGB MULTI Mode* (Legacy) 5. BLUE
Hayward Omnilogic6. YELLOW
P-TYPE Mode* (Legacy)7. PINK
-
Jandy Aqualink RS Intellibrite Light
Zodiac Aqualink TRI Intellibrite Light
Pentair EasyTouch Intellibrite Light
Pentair IntelliTouch Intellibrite Light
Universal Colorlogic
Intellibrite Light
LIGHT MODEL SELECTED*‘FLASHING’ COLOUR
STEP 4 - SAVING OPERATING MODE
STEP 5 - CONFIRM OPERATION
Your setup should now be complete. To confirm the system is working correctly, select a
colour via the controller or wall switch (depending on operating mode selected) and
check to ensure all lights are synchronised and the correct colour is displayed.
TURN SYSTEM ONTURN SYSTEM OFF
WAIT 30 SECONDS
Once the desired operating mode is selected follow these steps to save the selection.
Important
You must wait at least 30 Seconds
prior to turning the system back ON
or selection process will fail and
setup will need to be restarted.
Refer to pg. 14-15 for available colours.
ON
OFF
ON
OFF
*RGB MULTI Mode:
This mode allows the MULTI PLUS light to operate in the standard RGB MULTI-Colour mode. This mode should
only be used when operating a MULTI PLUS light from a wall switch in conjunction with a standard
ParaGlo MULTI-Colour light. For more information please contact Paramount Pool Systems.
*P-TYPE Mode:
This mode allows the MULTI PLUS light to operate in the RGB P-Type Colour mode. This mode should
only be used when operating a MULTI PLUS light in conjunction with a ParaGlo P-Type light.
For more information please contact Paramount Pool Systems.
*Light Model Selected:
This indicates the model of light to be selected in the Pool Controller setup menu.
Refer to STEP 1 of this manual for more information or please contact Paramount Pool Systems.

14
OPERATING MODE COLOURS
MANUAL MODE CONNECT 10 MODE
1
2
3
4
5
6
7
8
9
10
11
WHITE 4000K
AQUA
BLUE
MAGENTA
RED
LIME
GREEN WHITE
CUSTOMISED COLOUR
RAINBOW PATTERN
OCEAN PATTERN
DISCO PATTERN
AQUA
BLUE
MAGENTA
RED
ORANGE
GREEN
OCEANIC VIEWS
TRANSCENDENCE
OUTBACK AUSTRALIA
SPRING EQUINOX
iRIS MODE
1
2
3
4
5
6
7
8
9
10
11
WHITE 4000K
AQUA
BLUE
MAGENTA
RED
LIME
GREEN
OCEANIC VIEWS
TRANSCENDENCE
OUTBACK AUSTRALIA
SPRING EQUINOX
1
2
3
4
5
6
7
8
9
10
11
INTELLIBRITE MODE
RGB MULTI* MODE
WHITE 1
WHITE 2
SLOW COLOUR BLEND
FAST COLOUR CHANGE
AQUA
BLUE
MAGENTA
RED
LIME
GREEN
1 SAM
PARTY
ROMANCE
CARIBBEAN
AMERICAN
CALIFORNIA SUNSET
ROYAL
BLUE
GREEN
RED
WHITE
MAGENTA
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
UNIVERSAL COLORLOGIC MODE
CLOUD WHITE
WARM RED
FLAMINGO
VIVID VIOLET
EMERALD
VOODOO LOUNGE
DEEP BLUE SEA
ROYAL BLUE
AFTERNOON SKIES
AQUA GREEN
1
2
3
4
5
6
7
COOL CABARET
MARDI GRAS
SANGRIA
TWILIGHT
TRANQUILITY
GEMSTONE
USA
11
12
13
14
15
16
17
8
9
10
11
12
P-TYPE MODE
1 SAM
PARTY
ROMANCE
CARIBBEAN
AMERICAN
CALIFORNIA SUNSET
ROYAL
BLUE
GREEN
RED
RGB WHITE
MAGENTA
2
3
4
5
6
7
8
9
10
11
12

15

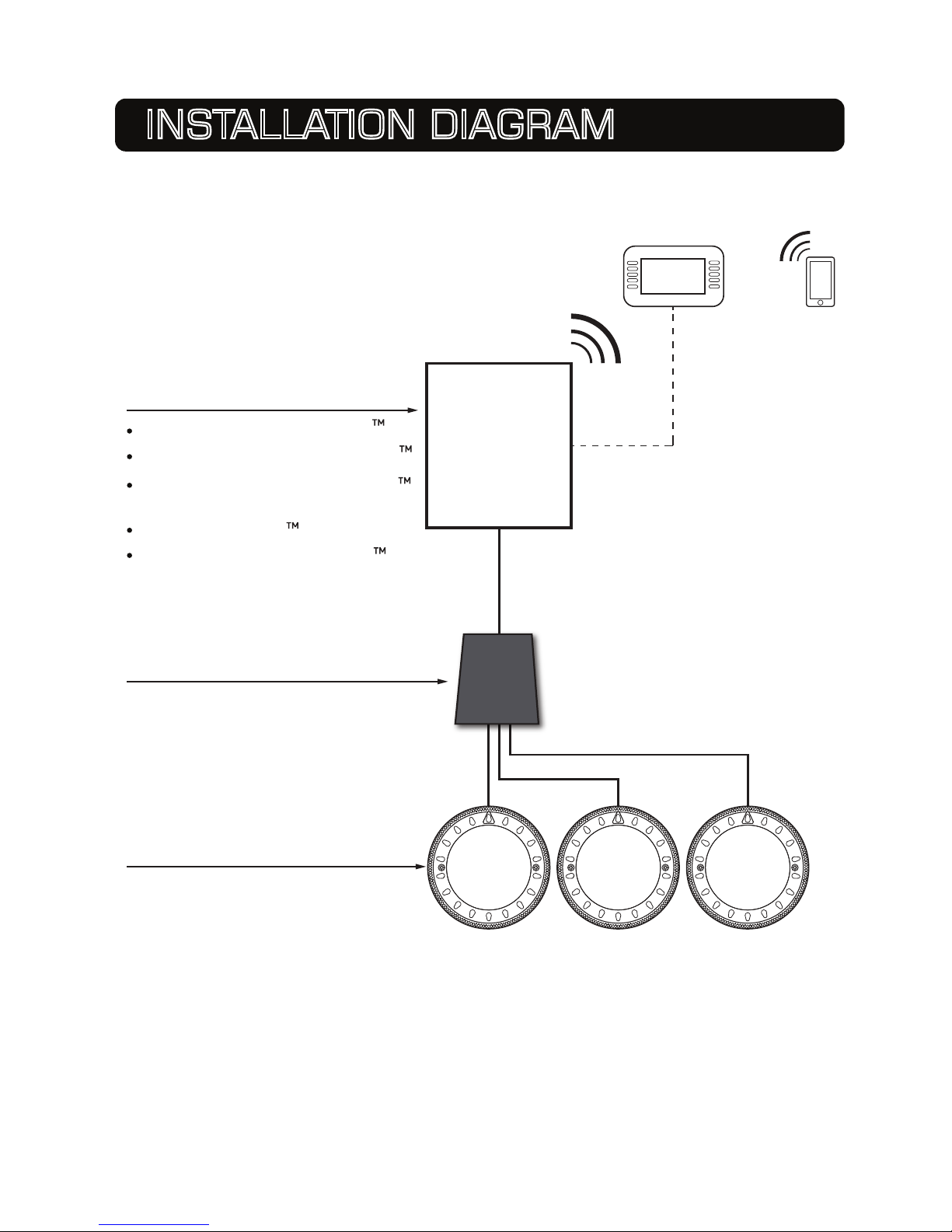

INSTALLATION DIAGRAM
TRANSFORMER
CONTROLLER
PENTAIR INTELLITOUCH
PENTAIR EASYTOUCH
AQUALINK® RS ONETOUCH
(REV R - CURRENT)
AQUALINK®Z4
HAYWARD ®OMNILOGIC
PARAGLO 6” LIGHTS
Paramount Pool systems
recommends the use of the
“INTERMATIC PX” safety
transformers with the
ParaGlo 3” & 6” lights
IMPORTANT:
ParaGlo Lights are not designed to be operated in conjunction with other manufacturers
lighting products as the colors and shows may not be identical.

16
KEY DIMENSIONS
188mm / 7.4”
165mm / 6.5”
17mm / 0.66”
17mm / 0.66” 142mm / 5.6”
RIGHT SIDE VIEW
FRONT VIEW

17
Per the NEC, NFPA 70, Article 680.23 (B)(5), states that bonding shall not be required
for luminaires that are listed for the application and have no non-current carrying
metal parts. In addition, per Article 680.26 (B)(4), exception states that Listed low-volt-
age lighting systems with non-metallic forming shells shall not require bonding.
Therefore, luminaires that are located in the Class 2 circuit with polymeric/non-current
carrying metal parts are not required to be grounded / bonded.
Underwriters Laboratories (UL) Statement
FCC COMPLIANCE STATEMENT
ELECTRICAL GROUNDING
This device complies with part 15 of the FCC rules. Operation is subject to the following two (2) conditions:
(1) This device may not cause harmful interference, and
(2) This device may not accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
of part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help
Do not make any changes or modifications to the equipment unless otherwise specified in the manual
Connect 10® is a registered trademark of AstralPool Australia and/or its affiliated companies in the United states or other countries. IntelliBrite® is a
registered trademark of Pentair Water Pool and Spa, Inc and/or its affiliated companies in the United states or other countries. Colorlogic® is a
registered trademark of Hayward Industries Inc. and/or its affiliated companies in the United states or other countries. Spa Electrics Export Pty Ltd
Australia and it’s brands are not affiliated or endorsed by these companies and/or their brands.
Manufacturers Statement
The ParaGlo 3” & 6” (WN950 & EM) luminaires with their plastic housing designs and
plastic niches do not require grounding / bonding when operated within a Class 2 circuit
supply.
The ParaGlo 3” & 6” (WN950 & EM) lights have also been determined to comply with the
applicable requirements for wet-niche, LED type Swimming Pool and Spa
Luminaires.

18

REV(20170531)
NOTE
PLEASE STORE THIS
MANUAL IN A SAFE PLACE
FOR FUTURE REFERENCE
Proudly manufactured by
www.spaelectrics.com.au
COPYRIGHT 2017 SPA ELECTRICS PTY. LTD.
ALL RIGHTS RESERVED
Spa Electrics
004-027-8706-00
