involight MINIBEAM30 User manual

Mini 30W White LED Beam Moving Head Light
User Manual
Please keep the manual carefully for future reference.

1
Thank you for your patronage. We are confident that our excellent products and service can satisfy
you. For your own safety, please read this user manual carefully before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the
installation and operation should be done by the verified technician and follow the instruction strictly.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
Introduction
Thank you for having chosen this professional moving head. You will see you have acquired a
powerful and versatile device.
Unpack the device. Inside the box you should find:
1. One XLR connection cable
2. Two quick-lock fasteners
3. One safety rope
4. One use manual
5. One power cable
Please check carefully that there is no damage caused by transportation. Should there be any, consult
your local dealer
Symbol Instruction On The Device
……………………………………………………………
CE Certificate
………
……………………………………………………………
……………………………………………………
…
……………………………
Suitable directly installed on the common combustible materials devices
Only indoor use
Environmental protection
The minimum distance from lighted objects(meter)
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!

2
1. Description of the Device
●1*30W high power white LED;
●Power supply: 100~240VAC 50~60Hz
●Rated power: 37W
●Average of 50,000 hours of super-long LED life, low energy consumption, energy conservation
and environmental protection LED;
●Quickly scan speed, Pan scanning 630 degree only 1.2 seconds, and Tilt scanning 235 degree
take 0.8 seconds;
●High-speed electronic adjusting strobe and can reach 1 ~ 25 times/SEC or random strobe;
●Fixture installed a power factor correction APFC switching power supply, PF > 0.99, the efficiency
is as high as 90%, the real green environmental protection;
●Light spot angle: 3º, strong beam effect, it’s 3 times as high as other manufacturers;
●Total 10 inner program can selectable, can play by Auto or DMX controller;
●Perfect blue LCD display, touch press buttons;
●N.W: 2Kg
●Packing Size: 18.5*24*27 cm
1. LED Display board
2. Menu
3. Up
4. Down
5. Enter

3
2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
►If the device has been exposed to temperature changes due to environmental changes, do not
switch it on immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperature.
►Please make sure that the device be earthed.
►Please replace housing if it is broken. This fixture can be using after finished installed.
►The electric connection must carry out by qualified person.
►Make sure that the available voltage is not higher than stated at the end of this manual.
►Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
►If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by
the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
►Please cut off the power if don't use the fixture or want to clean, maintenance.
Please be aware that damages caused by manual modifications to the device are not subject to
warranty. Keep away from non-professionals.
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a
dangerous electric shock when touching wires!
Warning!
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.

4
General Guidelines
►This device is a lighting effect for professional use on stages, in discotheques, theaters, etc., the
device was designed for indoor use only.
►This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in the last page of this manual.
►The device can do continuous work for eight hours. Lighting effects are not designed for
permanent operation. Consistent operation breaks may ensure that the device will serve you for a long
time without defects.
►Handle with care, do not make the device by strong shocks.
While choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. Please don't project the beam onto combustible substances.The minimum distance
between light-output from the projector and the illuminated surface must be more than 1 meter.
►Please do not in damp, overheat or dusty environment install and use the device. Do not use light
on fuel. The distance between the device and the projectile to keep at least 1 meter.
►If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners
turned in the quick lock holes correctly.
►Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation.
►Please use the original packaging if the device is to be transported.
►For safety reasons, please be aware that all modifications on the device are forbidden.
►If this device will be operated in any way different to the one described in this manual, the product
may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to
short-circuit, burns, electric shock, lamp explosion, crash, etc.
3. Installation Instruction
►The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting under
or above the temperature.
►The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
CAUTION!
Please consider the GB7000.15/EN60598-2-17 and the other respective national norms during
The installation. The installation must only be carried out by a qualified person.

5
►The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.Never stand directly below the device when mounting, removing or servicing the fixture.
►The operator has to make sure the safety relating and machine technical installations are approved
by an expert before taking the device into operation for the first time.
►These installations have to be approved by a skilled person once a year.
►Overhead mounting requires extensive experience, including amougst others calculating working
load limits, installation material being used, and periodic safety inspection of all installation material
and the device. If you lack these qualifications, do not attempt the installation yourself. Improper
installation can result in bodily injury.
Ringing
Insert the quick-lock fasteners of the first holder into the respective holes on the bottom of the
device.Tighten the quick-lock fasteners fully clockwise.
Make the finished installed mounting bracket tighten on the fixed bracket.
Pull the safety rope through the holes on the bottom of the base and over the trussing system or
other safe fixation spot.
Note:This step is quite important to ensure that fixture will not drop out by the damage of clamp.
4.DMX-512 control connection
Connect the provided XLR cable to the male 3-pin XLR output of your controller and the other side to
the female 3-pin XLR input of the light.You can chain multiple lights together through serial linking
The cable needed should be two core, screened cable with XLR input and output connectors. Please
refer to the diagram below.
Safety-rope
Quick-lock fasteners
Quick-lock fasteners

6
DMX-512 connection with DMX terminator
For installations where has it has too much lines or lights environment it is recommended to use a
DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The
DMX terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is
then plugged into the output XLR socket of the last fixture in the chain.
5. DMX address setting
Each fixture must set a specific starting address. When receiving signal transmission, fixture will
receive channel control signals which from the starting address.
According to different requirements or easy to use, the user can set many value fixtures to the same
address, also can set up a separate address for every device.
If you set the same address,all the devices will receive from DMX channels signal. All connecting
fixtures are jointly controlled, controller can't separate control a device.
If you set a different address, each device will be separate from its particular set the starting address
and begin accepting DMX512 control signal, so that more convenient separate control one device.
Using this method must be based on channel quantity of device to determine a starting address.
This led moving head light has 9 channels.you should set the starting address of the first unit to 1, the
second unit to 10(9 + 1), the third unit to 19 (10+ 9), and so on.
XLR Mounting socket
XLR Mounting plug
Welding a 120 ohm resistor between 2 and
3 pins male XLR , and insert it into the
signal output of the last device

7
6. Menu map and operation
Display Data
AddreSet 1-512
MotorSet
PanRev
TiltRev
PanAdj
Encoder
PanMode
AutoProg Master/Slave
MIC Cont Master/Slave
MIC Sensy 0-100%
ChanTest Set DMX channel and testing channel
NoSigSet Close/Scene/Auto/Music
Mode Set Standard/Basic/User Mode
UserMode Set DMX channel function under User mode
ResetDef ResetDef
Versions Ver:1.0
Details operation instruction please following function menu.
There are total four operating buttons on the control panel, you can simply set the starting address,
run the pre-programmed program or make a reset.
<Mode/Esc>
Used to scroll through the current operating mode, as well as back out of the current menu option.
<Up>
Used to select increasing advancement in the value.
<Down>
Used to select decreasing advancement in the value.
<Enter>
Used to select a value and store it to memory.
The control panel shows the current state of the unit. It is used to select the operating mode, as well as
the sub-features. For a detailed lay out of the control panel functions, please see the following page.

8
Channel Instruction
8 channels (Standard)
Channel Value Function Display
1 000-255 Pan Pan:
2 000-255 Pan fine Pan1:
3 000-255 Tilt Tilt:
4 000-255 Tilt fine Tilt1:
5 000-255 Pan/Tilt movement speed(from
fast to slow;226-235 off; more than 225, the quickest speed)
Spee:
6 000-255 White W:
7 000-255
Strobe
0-16 Close
16-95 Strobe from slow to fast
96-175 1Hz Strobe, open and close can adjustable(10-90%)
176-255 Random strobe from slow to fast
Stro:
8 000-255 Auto
The data more than 75, every 15 data is inner program
Auto
6channels(Basic)
Channel Value Function Display
1 000-255 Pan Pan:
2 000-255 Tilt Tilt:
3 000-255 Pan/Tilt movement speed(from
fast to slow;226-235 off; more than 225, the quickest speed)
Spee:
4 000-255 White W:
5 000-255
Strobe
0-16 Close
16-95 Strobe from slow to fast
96-175 1Hz Strobe, open and close can adjustable(10-90%)
176-255 Random strobe from slow to fast
Stro:
6 000-255
Auto
71-75 restoration
The data more than 75, every 15 data is inner program
Auto

9

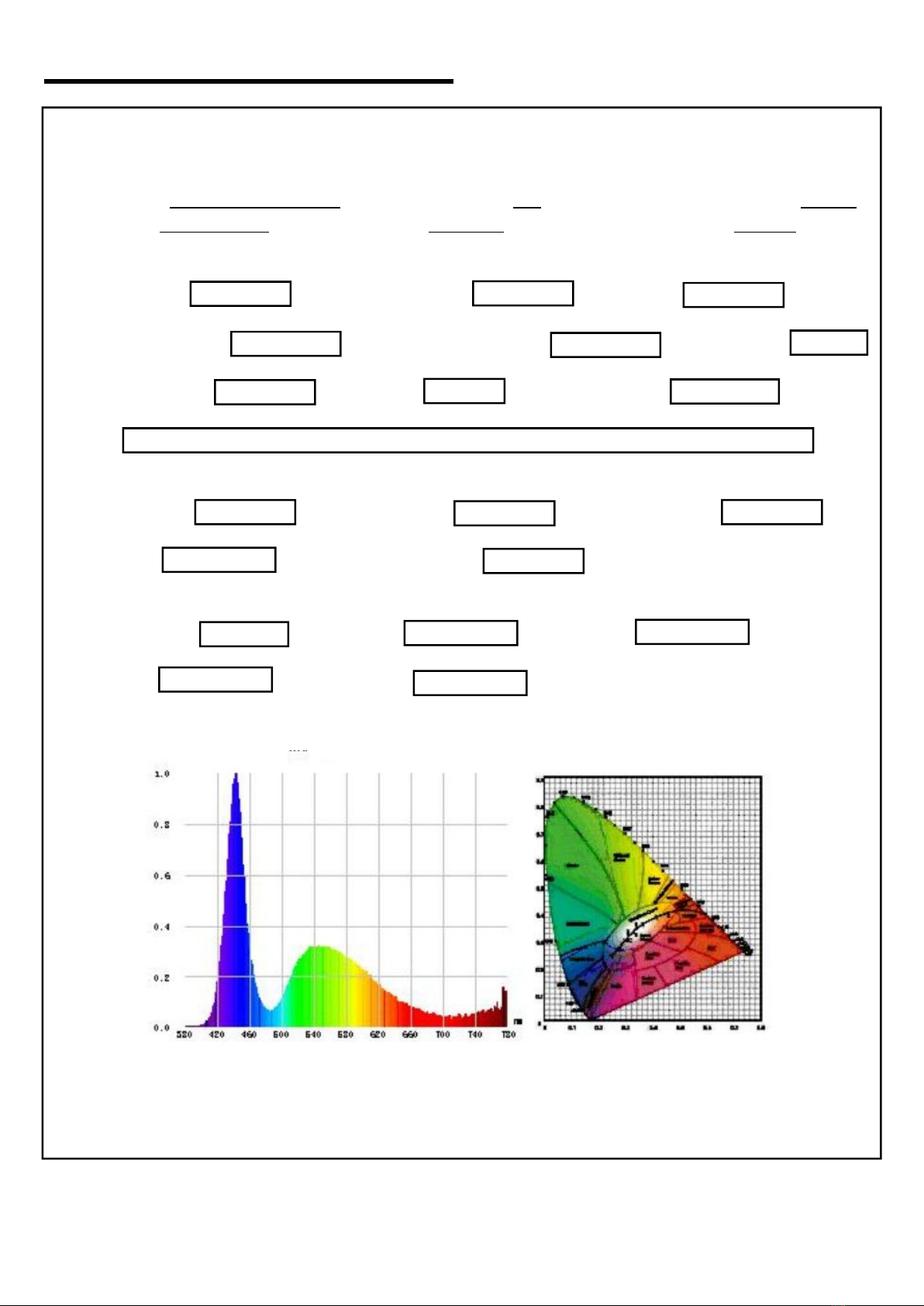

Spectral wavelength analysis system
Spectral wavelength analysis system
Sample Item: MINIBEAM30 Sample Number: 1Environment Temperature: 25.0 ºC
Testing Date: Dec.19,2013 Testing Time: 08:40:27 Environment Humidity: 15.0%
Color Technical Parameter
Main Wavelength: 470.5 nm Peak Wavelength: 442.0 nm Peak Wide: 25.4 nm
Color Coordinate XY: (.2792,.2632) Color Coordinate U’V’: (.1994,.4230) Color Purity: 0.257
Color Temperature: 12370K CRI Ra: 71.05 Color Tolerance: 24.93 SDCM
CRI Rx: 1.2 70.5 56.5 75.0 80.0 59.8 71.8 73.7 19.5 21.7 82.4 45.2 75.3 75.
Light Technical Parameter
Light Brightness: 0.00 cd/m2 Light Strength: 0.00 mcd Luminous Flux: 395.12 lm
Light Power: 1591.10 mW Luminous Efficacy: 0.00 lm/W
Electricity Technical Parameter
Forward Current: --- AC Voltage: 220.50V AC Power: 34.500W
AC Current: 0.265A Power Factor: 0.591
Spectral Curve CIE1931
Testing Machine Item: SSP3112 Visible Light LED Spectral Analysis Testing System

10
Cleaning and maintenance
The operator has to make sure that safety-relating and machine-technical installations are inspected
by an expert after every four years in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are inspected
by a skilled person once a year.
The following points have to be considered during the inspection:
1). All screws used for installing the devices or parts of the device have to be tightly connected and
must not be corroded.
2).There must not be any deformations on housings, fixations and installation spots(ceiling,
suspension,trussing).
3).Mechanically moved parts like axles,eyes and others must not show any traces of wearing(eg:
material abrading or damages)and must not rotate with unbalances.
4).The electric power supply cables must not show any damages,material fatigue(eg: porous cables)
or sediments. Further instructions depending on the installation spot and usage have to be adhered by
a skilled installer and any safety problems have to be removed.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use
alcohol or solvents!
The cooling-fan should be cleaned monthly.
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.
There are no serviceable parts inside the device. Maintenance and service operations are only to be
carried out by authorized dealers.
Warranty Card
We will provide 1 year warranty under the condition that user has operated the light
normally and lifetime service. We won't provide warranty if the damage is caused by
artificial or force majeasure event. Please cut this warranty card and shipped it along
with the product to our factory when applying for warranty.
Product：
Purchasing date：
Code of invoice：
Warranty date: From To
User’s name：Add：
Company：Tel：
WWW.ART-COMPLEX.RU
