Spark Fabrica MOTO SPARK M3 User manual

CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
MOTO SPARK USER MANUAL M3
MOTO SPARK
M3
USER MANUAL

CONTENTS
1PRODUCT INTRODUCTION
1.1 PRODUCT OVERVIEW
1.2 PRODUCT ACCESSORIES
1.3 SPARK FABRICA GRANULE
2TECHNICAL PARAMETER
3 SCREEN OPERATION GUIDE
3.1 BACK PANEL INTRODUCTION
3.2 MENU SETTING
3.3 STATUS ICONS
3.4 RDM
3.5 DMX PARAMETER LIST
4 OPERATION NOTES
4.1 WORKING CONDITION REQUIRED
4.2 SAFETY TIPS
5 Battery
5.1 Type of battery
5.2 Installatin of battery
5.3 Maximum charging current
5.4 How to charge battery
5.5 Maintenance of battery
5.6 Auto-switch between battery and AC
6 MACHINE OPERATION
6.1 PREPARATION

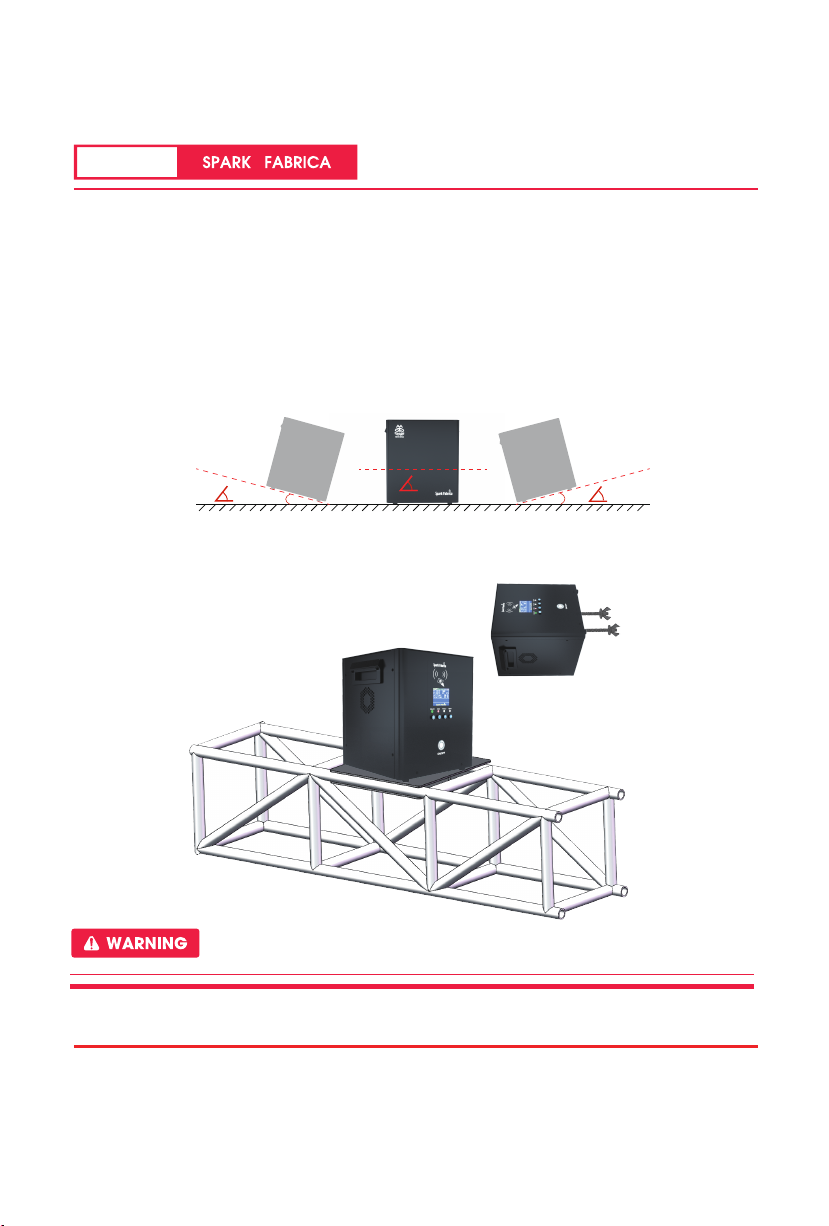

6.1.1 INSTALL MACHINE

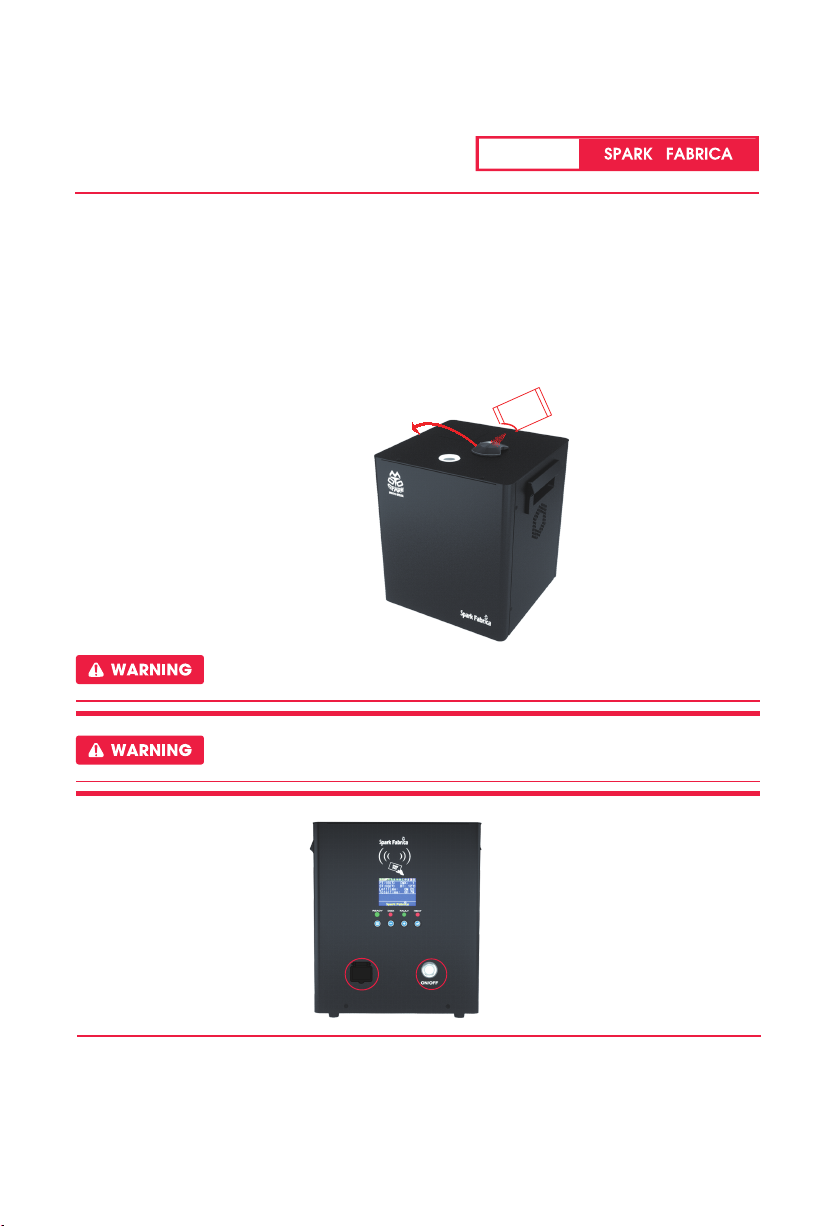

6.1.2 FILL IN SPARK FABRICA GRANULE
6.2 CONNECT MACHINE
6.3 INITIAL SETTING
6.3.1 SET CHANNEL MODE
6.3.2 SET DMX ADDRESS
6.4 SWIPE RFID TIME CARD
6.5 START TO SPARK
6.5.1 TURN ON CONSOLE’S POWER
6.5.2 TURN ON HEATING FUNCTION
6.5.3 ADJUST SPARKING HEIGHT
6.5.4 ADJUST SPARKING DENSITY

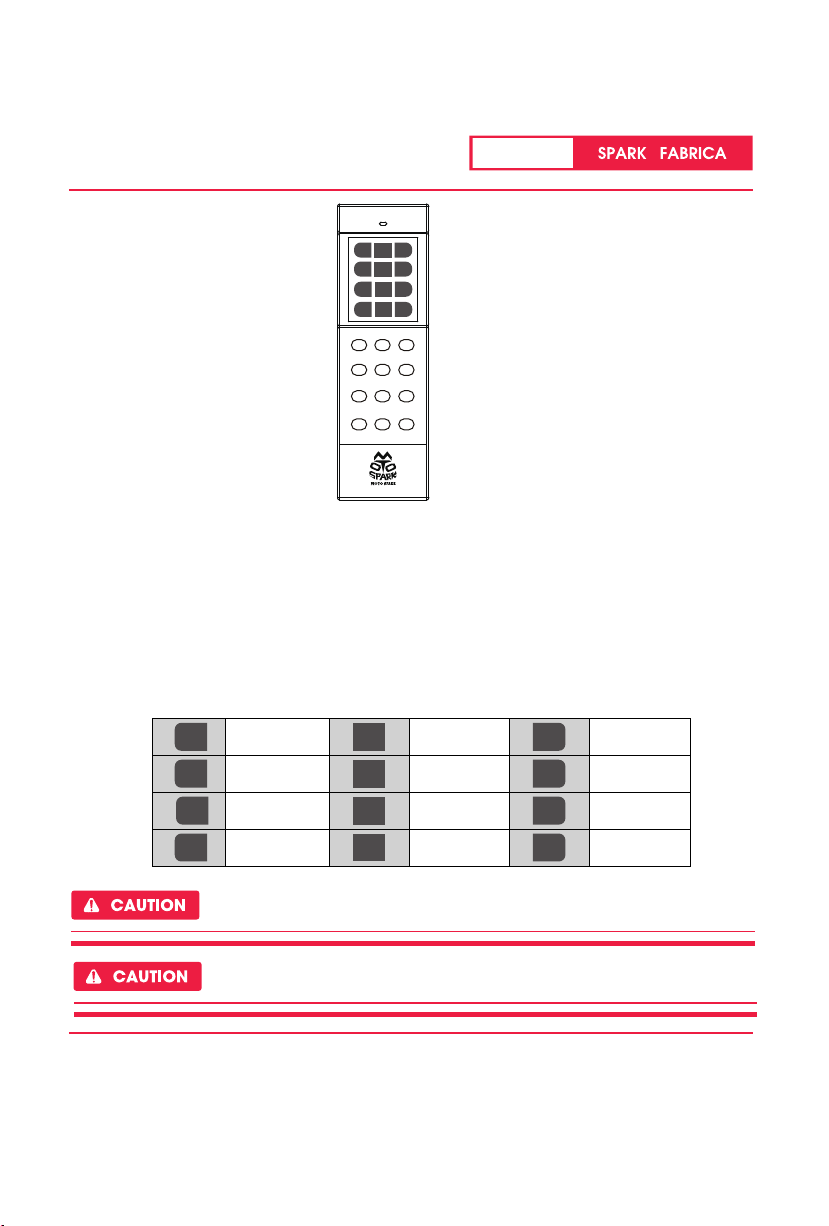

6.5.5 HOW TO SET THE REMOTE CHANNEL OF REMOTE CONTROLLER
6.5.6 HOW TO USE REMOTE CONTROLLER TO CONTROL THE MOTO SPARK
6.6 CLEAR MATERIAL
6.7 CLEAN MACHINE
7 MACHINE MAINTENANCE
8 FAILURE HANDLING
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪A2
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪A2
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪A3
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪A3
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪A9
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪A10
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A4
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A10
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A5
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A8
▪▪▪▪▪▪ ▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A13
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A13
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A5
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A6
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A10
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A10
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A11
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A7
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A8
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A11
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A9
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A9
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A9
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A12
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A13
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A13
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A14
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A14
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A13
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A13
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A15
▪▪▪▪▪▪▪▪▪▪▪ A16
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A16
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A16
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A16
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A17
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A9
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A9
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A7
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A9
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪ A7

DISCLAIMER
This product is a professional machine, we do not assume any responsibility for accidents or losses caused by the
use or maintenance of this product by personnel without professional training and permission.
If the information contained in the manual or the product specications are changed, Spark Fabrica will not inform
you further and responsible for any errors or omissions.
Our company reserves the right to modify the user manual at any time.
Please read the manual carefully before installing and using this product. Failure to read or comply with this
manual may result in injury to products and personnel, and Spark Fabrica shall not be responsible for this.
PREFACE
This manual includes warning, caution and notice concerning the safe operation of equipment. These warning-
caution and notice come with the following icons. Please read them carefully!
This warning indicates a dangerous situation that may result in death or serious injury if not
avoided.
This alert indicates a dangerous situation that may result in mild or moderate injury if not
avoided.
CAUTION
This means that you need to be careful.
NOTICE
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A1

1.1 PRODUCT OVERVIEW
1. PRODUCT INTRODUCTION
This product belongs to special eects equipment, only for professional use.
This product belongs to the cold reworks simulation special eects equipment, using CST technology, heating
special metal powder, and sparking silver spark fountain which is safer than the traditional cold reworks.It has
three controllable variables: height, density and duration.
This product is widely used in weddings, concerts, sports events, event meetings and so on.Stimulate your interest
and light up your activity.
MOTO SPARK USER MANUAL M3 | A2
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com

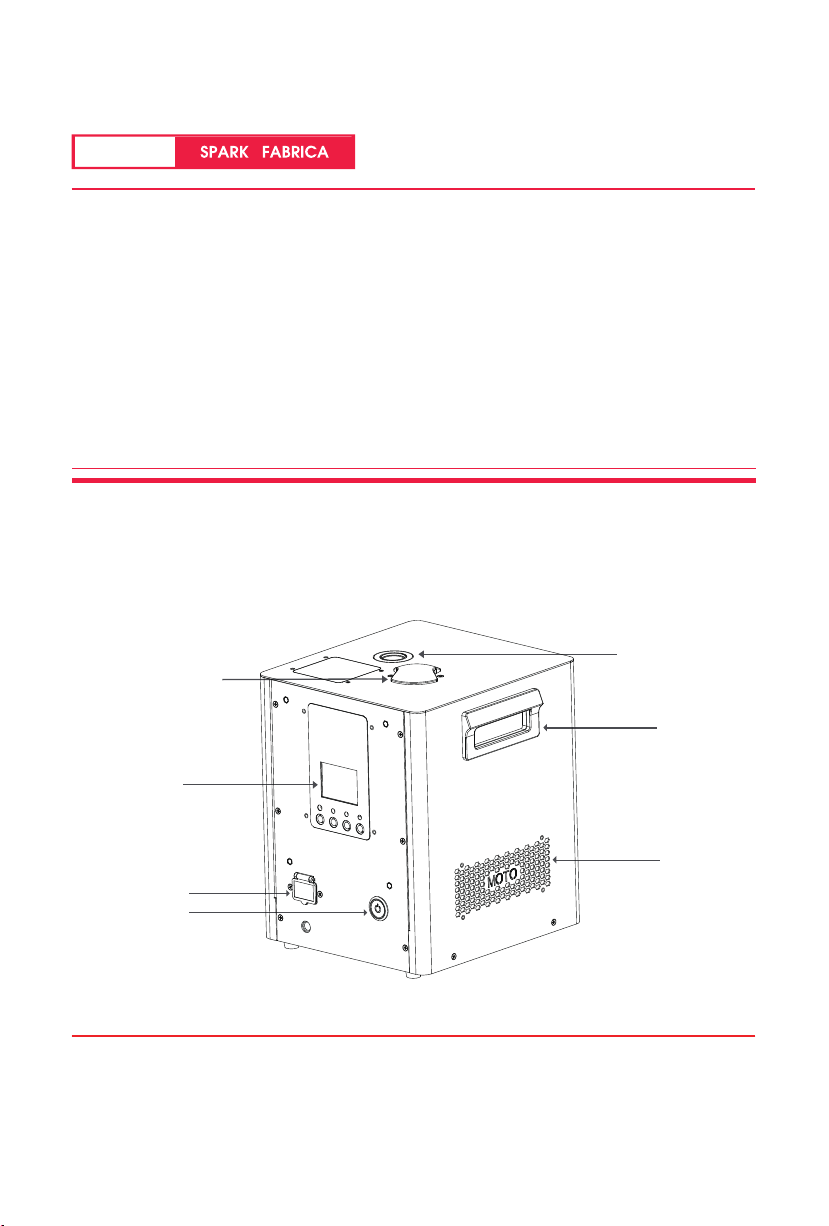

LCD SCREEN
GRANULE FILLING PORT
HANDLE
AIR INLET
BAT
POWER SWITCH
OUTPUT NOZZLE

CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A3
Open the package carefully and check to make sure the goods are in good condition.
NOTICE
Only the consumables provided by Spark Fabrica are allowed to be used. Spark Fabrica
shall not be liable for any damage to machines, personnel and property caused by the
use of consumables not provided by the company.
A special metal powder has the characteristics of high content, little residue, belonging to a special consumables
with no smoke, odor and other harmful gas when sparking.
1.3 SPARK FABRICA GRANULE
1.2 PRODUCT ACCESSORIES
1 Adapater
User Manual
Safefy ring

MOTO SPARK USER MANUAL M3 | A4
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
Manufacturer SPARK FABRICA
MOTO SPARK
M3
100-120V，50 / 60HZ
200-240V，50 / 60HZ
6.3A,100-120V / 6.3A,200-240V
5.5A,100-120V / 2.7A,200-240V
500W
Name
Model
Current Limiter Specifications
Constant�Current
Nominal Total Power Consumption
150g
Heat Up Time <10miutes under battery mode
Powder Tank Capacity
N/A
Lineary Adjustable Density 30-100%
Adjustable Height 2-5m
Height Level 1-10 Level
Powder Consumption (100% Output) 20-25g/Minute
Maximum Single Continuous Duration 30s
Control�Protocol DMX-512
RFID Proximity Card √
√RDM
Power Adapter
Safety Ring √
CE √
ROHS √
FC √
Net Weight 10Kg
Gross Weight 11kg
Machine Dimensions - L*W*H 250X240X280mm
Packing Dimensions - L*W*H 290X290X380mm
Granule Spark Fabrica granule
Input Voltage & Frequency
Identification
AC Power
Heating
Hopper
Technical Parameters
Control
Accessory
Certification
Weight
Dimensions
Granule
Removable Hopper
2 TECHNICAL PARAMETER

3.1 BACK PANEL INTRODUCTION
3 SCREEN OPERATION GUIDE
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A5
INCREASE
Decrease
ENTER
MENU
HEAT
Movement heating status indicator,
long light that is heating.
Error message indication: when
the device runs wrong, the
indicator light will turn on and the
LCD will display error message.
FAULT
DMX
DMX input mode indicates that the
DMX signal has been received,
and the indicator light will keep
flashing in wireless host mode.
READY
When the equipment is ready,
flashing light means that the heating
temperature has not reached the
set holding temperature, and long
light means that the temperature of
the movement has reached the
spray requirements.
LCD SCREEN
POWER SWITCH
BAT

3.2 MENU SETTING
Press <OK> to enter the menu setting. The screen will automatically return to the main state
interface with no modication.
NOTICE
Press ▲key or ▼key to modify parameters. The parameters will be ash aer the modica-
tion, and please press < 0K > key to save the change.
NOTICE
Press ◀ key will returntopreviouspage.
NOTICE
MOTO SPARK USER MANUAL M3 | A6
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
Temperature
DMX Address
DMX Channel
ClrError Address
FM-A:XXXX
Ta:xxxx
M3 Ver:2201
CN:XXXXXXXX
RF VER:2202
Setting
Advanced
Machine Status
Information
Set Temperature
ST：680℃
DMX Chnnel
2
Set DMXAddr
1
RF Channel
1
Set SafetyAddr
OFF
Set ClrErrorAddr
OFF
Charge Batty
RFID
Auto Heat
Restore Defaults
PT:30℃
SOC:47%
DMX:1
ST:680℃
LeTime:xx H xx S
TotaTime:xx H xx M
PW:24.7V
BY SPARK FABRICA
SPARK FABRICA
Machine Ready
Tilt Sensor
OFF
TFT BackLight
OFF
Restore Defaults
OFF
Battery Charge
OFF
RFID
OFF
Auto Heat
OFF
DMX0:xxx
DMX1:xxx
P1-V:xxxx DMX2:xxx
B1-V:xxxx DMX3:xxx

CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A7
4 OPERATION NOTES
3.4 RDM
RDM allows the console with RDM function to set the DMX address and starting temperature of Spark Jet Pro.
3.5 DMX PARAMETERLIST
3.3 STATUS ICONS
When the icons are green means the machine is working normally, and yellow means
abnormal.
NOTICE
The DMX address of safety channel must above 200
NOTICE
Temp Over Heat
Tip Over
PCB Too Hot
2-8 Channel mode
AC mode
Blower Motor
Sub PCB Connected
Battery mode
Sha Motor
Wireless Connection
Hopper Motor
Lack Of Time
Temp Sensor Unconnected
0~10
11~255
0~200
11~39
56~200
240~255
0~200
Pre-heat O
Emergency Stop
Clear Material
Stop
Fountain Height
Pre-heat On
Control on
201~255 Control o
0~200 Control on
201~255 Control o
First Channel Function
Function
Function
Function
Second Channel
Safety Channel
Error Clear Channel
Please read the following Operation Notes carefully before working with the machine.
2/8
2/8

4.2 SAFETYTIPS
Always connect the ground wire to avoid electric shock.The machine cannot be
submerged in water while operating it.
Do Not touch the sparks.During heating up and operation, do not touch the housing.
Ensure nothing drop(s) into the nozzle of Spark Jet Pro unit. Do Not cover output nozzle port.
MOTO SPARK USER MANUAL M3 | A8
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
4.1 WORKING CONDITION REQUIRED
Do not mount the product on a ammable surface (linoleum, carpet, wood, paper, carton,
plastic, etc). Make sure there are no inammable or combustible materials in the using
environment.
Do not use in a conned space. Always install the product in a location with adequate
ventilation, at least 20 in (50 cm) from adjacent surfaces.
This product has no lightning arrester, please do not use this product in thunderstorm
weather.
Keep people or ammable materials at least 10 feet (3 meters) away from the machine,
and make sure that debris does not fall on ammable objects.
Do not use the machine at temperature above 122 'F (50℃).
Ground water entering or covering the bottom of the machine will cause machine failure
or electrical leakage risk. Make sure the bottom of the machine is at a safe distance from
the surface water in rainy weather to avoid surface the machine from the bottom.

The product is very hot during operation and it remains hot for a long time aer operation
has stopped. Do not touch or put nger in the output nozzle.
Make sure that children, unauthorized people and animals do not obtain access to the
machine.
The noise level generated from the spark machine unit is estimated at 80dB depending on
the point nearest to the machine(s) during operational discharge mode.
Wear eye protection to avoid eye injury while lling granules and testing spark machine(s).
The proper reghting extinguishers are recommended as follows:Any type of sand or
substance that can suocate the active metals.Class “D" Fire Extinguishers for Metal
Substance Fires.
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A9
5 Battery
5.1 Type of battery
This machine can take 21 pieces of 21700 Li-on cell battery. Which can support 2 hours ring time.
Please follow the instruction on the battery panel to install the battery.
Do not install battery upside down .
This machine must install 21 pieces of battery. Less battery will lead to malfunction of machine or result in battery
explosion due to overloaded charging current.
Connect the power plug to AC, turn on the machine, go to screen to choose BATTERY CHARGING MODE from the
menu. Then it will start charging the battery.
Connect the power plug to AC, turn on the machine, go to screen to choose BATTERY CHARGING MODE from the
menu. Then it will start charging the battery.
5.2 Installatin of battery
5.3 Maximum charging current
5.4 How to charge battery
5.5 Maintenance of battery

Keep people or ammable materials at least 10 feet (3 meters) away from the machine, and
make sure that debris does not fall on ammable objects.
6 MACHINE OPERATION
6.1 PERPARATION
Install the machine on a rm and level ground, and the maximum tilt angle shall not exceed 15 degrees.
≤ 15° ≤ 15°
= 0°
6.1.1 INSTALL MACHINE
Install the product on truss by using the attached accessories.
*Specic installation notes please refer to “4 OPERATION NOTES”.
MOTO SPARK USER MANUAL M3 | A10
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
When you plug o the power cable, machine will automatically switch to battery mode.
When you plug in the power cable, machine will automatically switch to AC mode.
5.6 Auto-switch between battery and AC

CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A11
Make sure to ll the Spark Fabrica Granule through the feed port on the top of the xture
when power supply is o.
Wear eye protection to avoid eye injury while lling granules and testing spark machine(s).
6.1.2 FILL IN SPARK FABRICA GRANULE
Spark Fabrica Granule is the consumable specially designed for spark machine, to simulate cold fountain re-
works eect for stage.
*Tear the vacuum package of granule, and ll in the Spark Fabrica Granule through the granule lling port on the
top of the machine.
*Fill the consumable into the feed port，NOT into the output nozzle.
*Close the lid securely aer lling.
*The capacity of storage bin is 150g.
SPARK
PACK
Open the lid

MOTO SPARK USER MANUAL M3 | A12
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
Do not use damaged power plug and power cable.One power plug is recommended to
connect 4 units in series at most for this product.
Please attach the congured 120 ohm terminal resistor to the outlet of the last machine to
enhance the anti-interference of the machine.
Please calculate all products’ total current required according to the power supply and
fuse parameters of the products.
The standard length of the power connection line and the signal connection line is 3
meters, and a longer length can be reached by connecting in series.
*The sparking temperature of the machine is the factory default temperature. The product will heat up automatically
when disconnected with DMX signal.Automatic heating function can be set to on or o, and the concrete operation
please refer to “3.2 MENU SETTING”.
*When spark machines connect DMX signal, the heating function can be started only on the Sim Pyro Console.
When the icon shows yellow, it indicates that the machine is abnormal. Please use it aer
asking the professional to check and repair the machine.
6.3 INITIAL SETTING
2/8
30~100
ON/OFF
680-700
1~512
ON/OFF
2
100
ON
680
1
ON
Set Temperature
DMX Address
DMX Channel Mode
Density
Tilt Sensor
TFT BackLight
Auto Heating ON/OFF OFF
Restore Defaults YES/NO NO
Safety Addresss 0~512 OFF(0)
Setting Range Default
*Turn on power
*Check the machine status icon(refer to icon introductions of 3.3)

CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A13
6.5.2 TURN ON HEATING FUNCTION
The heating function of the second channel DMX value is 240~255, and it takes about 5
minutes to preheat aer turning on.
When heating is turned on, the <HEAT> indicator light on the machine will turn to red, and the
<READY> indicator light ashes green to indicate that the machine is heating.
Heating will complete aer the <READY> indicator light turns green for a long time, and the
spark machine will enter sparking status.
6.5.1 TURN ON THE CONSOLE’ POWER
6.5 START TO SPARK
If the customer breaks the card swiping function or cancels the card swiping function at the
customer's request, no quality guarantee and aer-sales service will be provided by Spark
Fabrica. Spark Fabrica shall not be liable for any accidents and losses about this.
Each swipe of the card can be recharged for 12 minutes, and each machine can swipe up to
2 time cards for 24 minutes at most.The card can only be swiped again when the remaining
time is less than 20 minutes.
6.4 SWIPE RFID TIME CARD
In order to avoid machine failure or other safety accidents caused by bad-qualied consumables, this
product can only be used with special RFID time card.
6.3.2 SET DMX ADDRESS
Please do not set address code repeatedly.
Please set DMX address according to channel mode:
*In the 2 channel mode, please set spark machines’ DMX address to 1.3.5.7......
6.3.1 SET CHANNEL MODE
This machine has 2 channel mode and multiple channel mode, the specic setting please
refer to “3.2 MENU SETTING”.
The machine can be controlled by Pyro Sim Controller console or DMX512 console.

MOTO SPARK USER MANUAL M3 | A14
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
When using the Pyro Sim Controller controller,the screen will display the real-time temperature
of each machine. When the temperature value of the control board turns green, it means that
the heating is completed and the machine enters the status of sparking.
6.5.3 ADJUST SPARKING HEIGHT
Adjust sparking height through the rst channel, and the height adjustment values is DMX parameter
values 11-255.
During heating up and operation, do not touch the housing.
Keep a minimum distance of 10  (3 m) from the machine to the nearest human or amma-
ble material. And make sure no falling residue y to ammable material.
The maximum height of indoor and outdoor granule is dierent. The maximum height of
indoor granule is 3.5 meters, while outdoor granule is 5 meters.
Do Not touch the sparks or put nger in the output nozzle.
The third channel is density adjustment channel, and the density is 30-100%. The default
sparking density is 100%, and the density adjustment parameter values are 0-255. 0 means
100% density, and bigger DMX number means lower density.
If spark machines are aected by wind, sparking height will be reduced, sparking direction
will also be aected by the wind and inclined.
The proper reghting extinguishers are recommended as follows:Any type of sand or
substance that can suocate the active metals.Class “D" Fire Extinguishers for Metal
Substance Fires.
6.5.4 ADJUST SPARKING DENSITY
This product has independent sparking density adjustment function. Machine’s sparking density can
be controlled during sparking, which can oer you more special eects choices for show.

CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A15
6.5.5 HOW TO SET THE REMOTE CHANNEL OF REMOTE CONTROLLER
The remote controller can be used aer coding when DMX signal is disconnected,or the
function will be broken.
Sparking stops automatically aer 30 seconds,and clearing material stops aer 5 seconds.
The remote controller provides 12 remote channel options. Turn on the power of remote controller,
Hold button 8 for 5 seconds until the led light ash, then please choose the 1-12 button on the remote
controller, hold the selected button for 8 seconds.
6.5.6 How to use remote controller to control the moto spark
If the remote controller set the remote channel between 1-12, lets make 2 for example. Then we
choose the RF channel on the machine screen to 2, then the remote controller can control the
machine.
5S 15S 30S
LOW MIDDLE HIGH
STANDYBY CODE CLEAN
HEAT ON HEAT OFF OFF
1 2 3
4 5 6
7 8 9
10 11 12
1
1
5S
LOW MIDDLE HIGH
STANDYBY CODE CLEAN
HEAT ON
www.sparkfabrica.com
HEAT OFF OFF
15S 30S
2 3
4 5 6
7 8 9
10 11 12
2 3
4 5 6
7 8 9
10 11 12

MOTO SPARK USER MANUAL M3 | A16
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
www.sparkfabrica.com
*Turn o the machine’s power.
*Remove power connection and DMX signal cable.
Use the cleaning function of the second channel for cleaning, DMX value is 56-200.
This function must be performed at the end of each show.
6.6 CLEAR MATERIAL
6.7 CLEAN MACHINE
Aer clearing meterial, please clean the machine to extend the service life of the machine.
This product has the function of cleaning material, which can clean up the heated but not sparked consumables, so
as to avoid nodulation in the heating chamber and causing stuck machine.
*Unused Spark Fabrica Granule should be stored in a cool, dry place, vacuum packed insealed foil bags, and prote-
cted from moisture, heat, hot surface, open re and other ignition sources.
*Use a damp cloth to remove dust and debris from the surface of the machine.
The product is very hot during operation and it remains hot for a long time aer operation
has stopped.
To eliminate unnecessary machine wear and improve its lifespan,unplug the power of the
machine during the period of not-in-use.Never power o the product by pulling or tugging
on the power cord.
7 MACHINE MAINTENANCE
Some steps are needed in order to clean and maintain the product for maximum usage.
The recommended procedure is as follows:
Aer a period of using, check if there is any consumable accretion inside the nozzle. Do necessary cleaning up if
there has some, or it may aect spark performance, even damage the machine.
The remote controller has 4 height levels.

CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD www.sparkfabrica.com
MOTO SPARK USER MANUAL M3 | A17
8 FAILURE HANDLING
Battery voltage
UN-normal
Blower motor protection/
disconnected
Description
Sha motor protection/
disconnected
Hopper motor protection/
disconnectd
Temperature sensor
disconnected
Main board too hot
Insucient time
Heating protection due
to over-temperature.
Heating process fail
Tip over alert
Sub-PCB disconnected
Machine locked because
of using illegal or copy
RFID card.
Error Code
Bat Voltage LOW
E0
Motor Protect
E1 M1
Motor Protect
E1 M2
Motor Protect
E1 M3
Temp Sensor
E2 Unconnected
PCB Too Hot E3
Time Remain E4
Temp Over Heat E5
Heat Fail E6
Tip Over E7
Sub PCB Unconnected
E8
Illegal Card
Machine Locked
Solution
Replace main board
1.Restart machine to clear alerts,stop operating for 15 minutes
until temperature return to normal.
2.Check wire connection of motor
3.Replace motor
4.Replace main board
3.Replace motor
4.Replace main board
1.Sha motor clog (perform clean material function manually)
2.Check wire connection of motor
1.Check wire connection of temperature sensor
2.Replace Temperation sensor
3.Repalce Main board
Stop operating machine until main board temperature return
to normal
1.Hopper motor clog ( perform clean material function manually)
2.Check wire connection of motor
3.Replace motor
4.Replace main board
1.Inspect Wire connection of heating board.
2.Replace heating coil
3.Replace heating board
Please scan new RFID card
Stop operating machine until temperature return to normal.
Alert will clear o automatically.
Machine will activate tip over protection if the angle is more
than 45 degrees. The alert will clear o automatically aer
put the machine back to normal position.
1.Check wire connection of Sub-PCB
2.Replace Sub-PCB
3.Replace Main Board
Use illegal or copy RFID card will lock the machine. If so ,seller
will stop providing warranty and aer sale service. To unlock
the machine,please contact seller.

www.sparkfabrica.com
[email protected] [phone]
