Spark Fabrica SPARK RAIN PRO User manual
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
SPARK RAIN PRO USER MANUAL 9,
SPARK RAIN PRO
SF-01
USER MANUAL
CONTENTS
1PRODUCT INTRODUCTION
1.1PRODUCT OVERVIEW
1.2PRODUCT ACCESSORIES
1.3SPARK FABRICA GRANULE
2TECHNICAL PARAMETER
3 SCREEN OPERATION GUIDE
3.1 BACK PANEL INTRODUCTION
3.2 MENU SETTING
3.3 STATUS ICONS
3.4 RDM
3.5 DMX PARAMETER LIST
4 OPERATION NOTES
4.1 WORKING CONDITION REQUIRED
4.2 SAFETY TIPS
5 MACHINE OPERATION
5.1 PREPARATION
5.1.1 INSTALL MACHINE
5.1.2 FILL IN SPARK FABRICA GRANULE
5.2 CONNECT MACHINE
5.3 INITIAL SETTING
5.3.1 SET CHANNEL MODE
5.3.2 SET DMX ADDRESS
5.4 SWIPE RFID TIME CARD
5.5 START TO SPARK
5.5.1 TURN ON CONSOLE’S POWER
5.5.2 TURN ON HEATING FUNCTION
5.5.3 ADJUST SPARKING HEIGHT
5.5.4 ADJUST SPARKING DENSITY
5.5.5 SPARK THROUGH REMOTE CONTROLLER
5.6 CLEAR MATERIAL
5.7 CLEAN MACHINE
6 MACHINE MAINTENANCE
7 FAILURE HANDLING
A2
A2
A3
A3
A4
A10
A5
A8
A13
A13
A5
A6
A10
A10
A11
A7
A8
A11
A13
A14
A14
A14
A15
A13
A14
A15
A16
A16
A16
A17
A9
A7
A7
DISCLAIMER
This product is a professional machine, we do not assume any responsibility for accidents or losses caused by the
use or maintenance of this product by personnel without professional training and permission.
If the information contained in the manual or the product specications are changed, Spark Fabrica will not inform
you further and responsible for any errors or omissions.
Our company reserves the right to modify the user manual at any time.
Please read the manual carefully before installing and using this product. Failure to read or comply with this
manual may result in injury to products and personnel, and Spark Fabrica shall not be responsible for this.
PREFACE
This manual includes warning, caution and notice concerning the safe operation of equipment. These warning-
caution and notice come with the following icons. Please read them carefully!
This warning indicates a dangerous situation that may result in death or serious injury if not
avoided.
This alert indicates a dangerous situation that may result in mild or moderate injury if not
avoided.
CAUTION
This means that you need to be careful.
NOTICE
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
SPARK RAIN PRO USER MANUAL SF-01 b'
1.1 PRODUCT OVERVIEW
1. PRODUCT INTRODUCTION
This product belongs to special eects equipment, only for professional use.
This product belongs to the cold reworks simulation special eects equipment, using CST technology, heating
special metal powder, and sparking silver spark fountain which is safer than the traditional cold reworks.It has
three controllable variables: height, density and duration.
This product is widely used in weddings, concerts, sports events, event meetings and so on.Stimulate your interest
and light up your activity.
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
AIR OUTLET
QUICK RELEASE HOOK
LCD SCREEN
DMX/CAN OUT
DMX/CAN IN
POWER SWITCH
POWER OUT
POWER IN
FUSE
INCREASE
ENTER/MENU
N/A
GRANULE FILLING PORT
HANDLE
AIR INLET
GO BACK
DECREASE
RING
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
Open the package carefully and check to make sure the goods are in good condition.
NOTICE
Only the consumables provided by Spark Fabrica are allowed to be used. Spark Fabrica
shall not be liable for any damage to machines, personnel and property caused by the
use of consumables not provided by the company.
A special metal powder has the characteristics of high content, little residue, belonging to a special consumables
with no smoke, odor and other harmful gas when sparking.
1.3 SPARK FABRICA GRANULE
2 TECHNICAL PARAMETER
1.2 PRODUCT ACCESSORIES
1.6 Meter Power Plug
3 Meters Power Pair Cable
User Manual
3 Meters DMX Pair Cable
Upload Box (Optional)
Safety Rope
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
Manufacturer SPARK FABRICA
SPARK RAIN PRO
SF-01
100-120V50 / 60HZ
200-240V50 / 60HZ
6.3A,100-120V / 6.3A,200-240V
5.5A,100-120V / 2.7A,200-240V
600W
Name
Model
Current Limiter Specifications
&RQVWDQW&XUUHQW
Nominal Total Power Consumption
Power Input Connector SEETRONIC
SEETRONIC
Power Output Connector
'0;6LJQDO,QWHUIDFH5PIN
<5 Minutes
150g
Heat Up Time
Powder Tank Capacity
N/A
Lineary Adjustable Density 30-100%
Adjustable Height 3-8m
Height Level 1-10 Level
Powder Consumption (100% Output) 20-25g/Minute
Maximum Single Continuous Duration 30s
&RQWURO3URWRFRO DMX-512
RFID Proximity Card ɰ
ɰ
ɰ
RDM
CAN
SMPTE Touch Screen Console Support
Power Plug SEETRONIC 1.6Meter)
Remote Controller Optional
DMX Cable ɰ3Meter
ɰ3MeterPower Cable
Safety Ring ɰ
ɰ
Safety Rope
Bottom Mounting Screw
Software Upgrade Box Optional
120ohms Terminal Resistance Optional
CE ɰ
ROHS ɰ
Net Weight 8kg
Gross Weight 10kg
Machine Dimensions - L*W*H 215mm*213mm*257mm
Packing Dimensions - L*W*H 270mm*250mm*330mm
Granule Spark Fabrica Granule
Input Voltage & Frequency
Identification
AC Power
Heating
Hopper
Technical Parameters
Control
Accessory
Certification
Weight
Dimensions
Granule
Removable Hopper

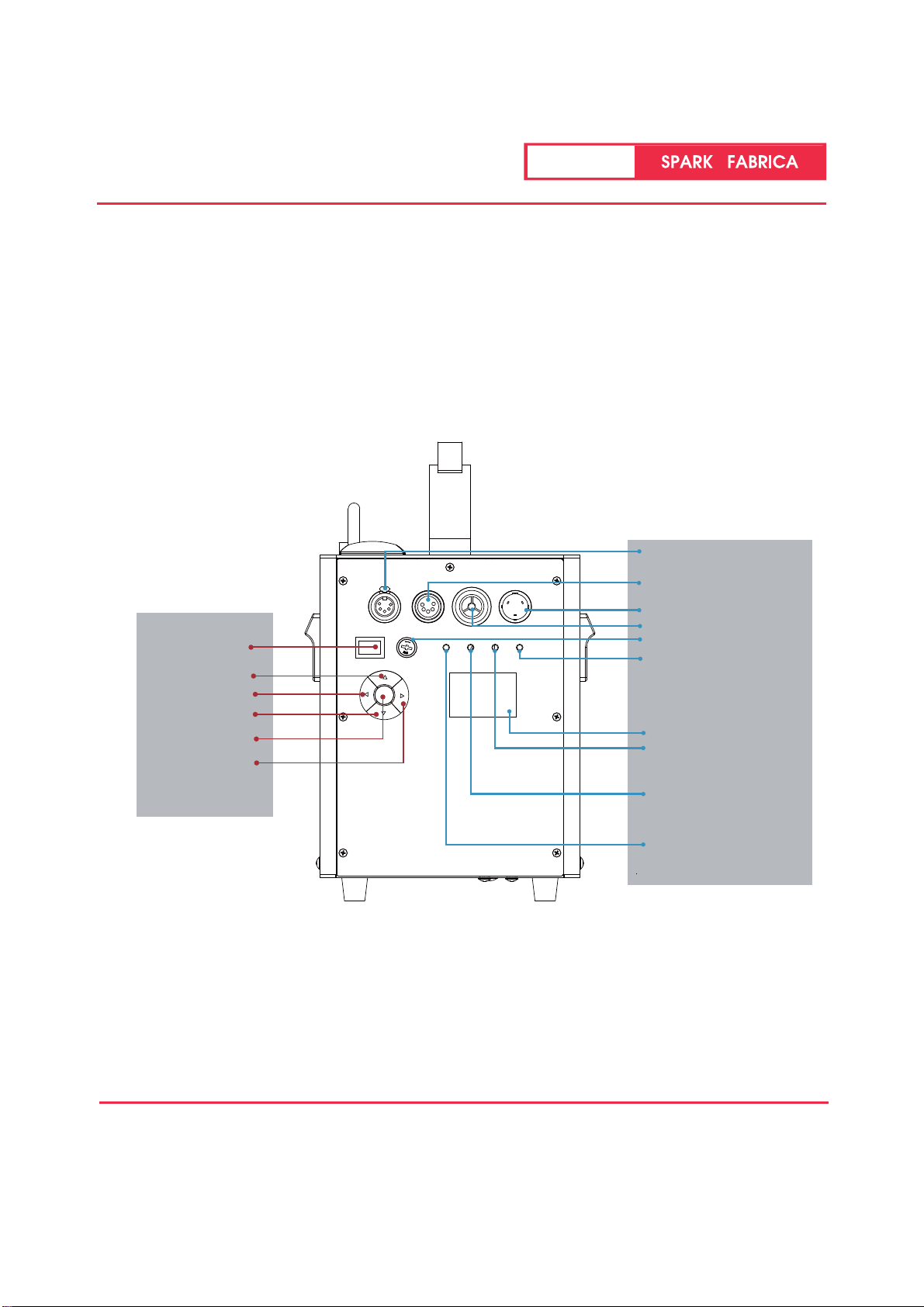

3.1 BACK PANEL INTRODUCTION
3 SCREEN OPERATION GUIDE
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
INCREASE
GO BACK
ENTER/MENU
N/A
DECREASE
POWER SWITCH FUSE
Movement heating status indicator,long
light that is heating.
Error message indication: when the device
runs wrong, the indicator light will turn on
and the LCD will display error message.
DMX input mode indicates that the DMX
signal has been received, and the indicator
light will keep flashing in wireless host mode.
When the equipment is ready, flashing light
means that the heating temperature has not
reached the set holding temperature, and
long light means that the temperature of the
movement has reached the spray
requirements.
LCD SCREEN
65=+85;:
65=+8/4
6/4*3>)'45;:
6/4*3>)'4/4
HEAT
FAULT
DMX
READY
3.2 MENU SETTING
Press <OK> to enter the menu setting. The screen will automatically return to the main state
interface with no modication.
NOTICE
Press ▲key or ▼key to modify parameters. The parameters will be ash aer the modica-
tion, and please press < 0K > key to save the change.
NOTICE
Press !ຝ key will returntopreviouspage.
NOTICE
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
Temperature
DMX Address
DMX Channel Mode
Density
Safety Address
DMC:
SMS:
SF-01 Ver:XXXX
EU:XXXXXXXX
SUB VER:XXXXXXXX
Setting
Advanced
Machine Status
Information
Set Temperature
ST560ȭ
Set DMX Address
1-512
DMX ChanneL Mode
3/2
Set Density
30-100
Set Safety Address
OFF
Auto Heat
Tilt Sensor
TFT Screen setting
Restore Defaults
Restore Defaults
NO
Auto Heat
ON
Tilt Sensor
ON
Backlight
ON
XMS:
SH:
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
3.4 RDM
RDM allows the console with RDM function to set the DMX address and starting temperature of Spark Jet Pro.
3.5 DMX PARAMETERLIST

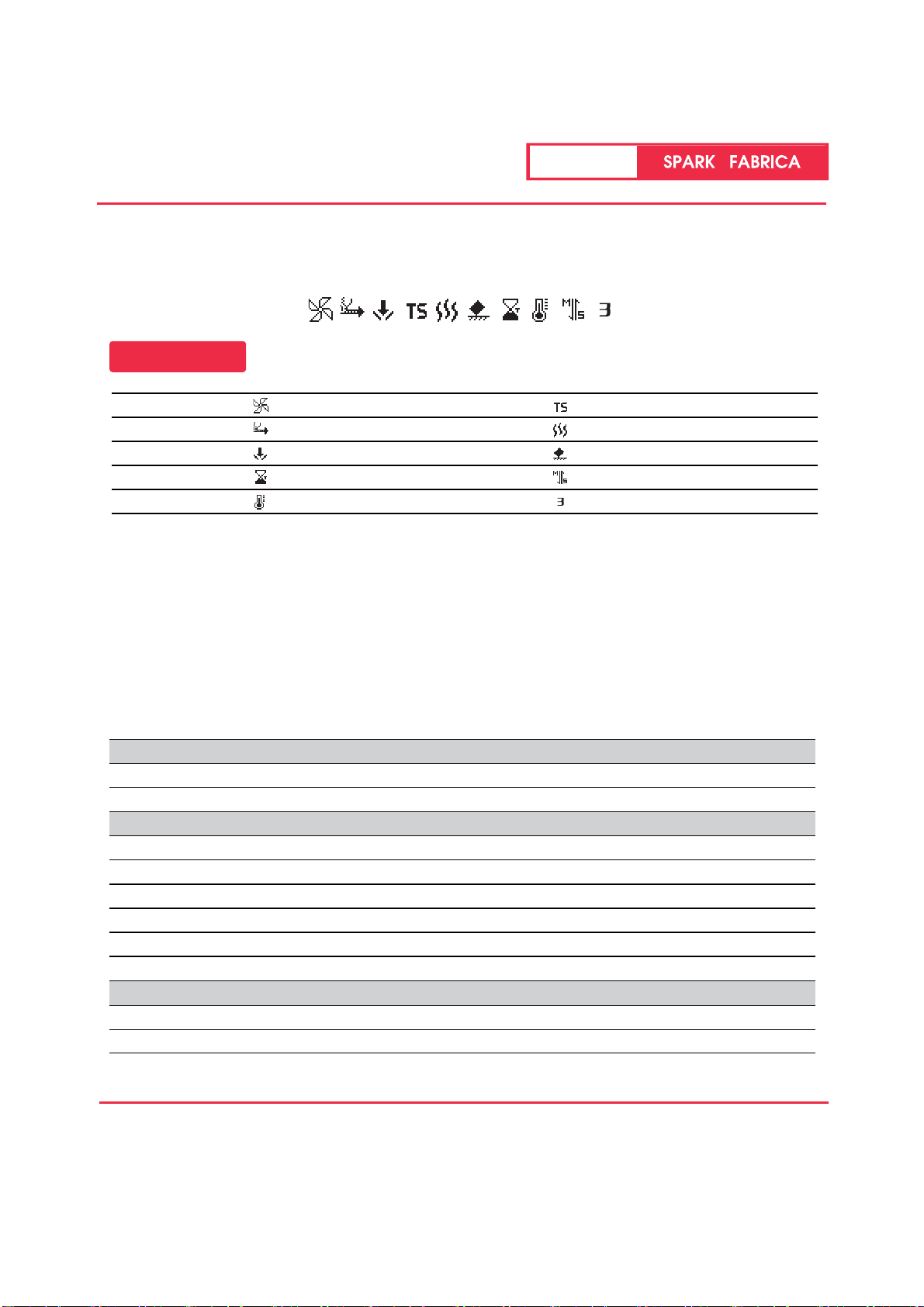

3.3 STATUS ICONS
When the icons are green means the machine is working normally, and yellow means
abnormal.
NOTICE
Temp Over Heat
Tip Over
PCB Too Hot
Blower Motor
Sub PCB Connected
2/3 Channel Mode Optional
Sha Motor
Hopper Motor
Lack Of Time
Temp Sensor Unconnected
0~10
11~255
0~200
11~39
56~200
240~255
0~255
Pre-heat O
Emergency Stop
Clear Material
Stop
Fountain Height 1~25
Pre-heat On
Density Adjustment (0 is Maximum Density)
0~200
201~255
Control O
Control On
First Channel Function
Function
Function
Function
Second Channel
Third Channel
Say Channel
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
4 OPERATION NOTES
4.1 WORKING CONDITION REQUIRED
Do not mount the product on a ammable surface (linoleum, carpet, wood, paper, carton,
plastic, etc). Make sure there are no inammable or combustible materials in the using
environment.
Do not use in a conned space. Always install the product in a location with adequate
ventilation, at least 20 in (50 cm) from adjacent surfaces.
This product has no lightning arrester, please do not use this product in thunderstorm
weather.
Keep people or ammable materials at least 10 feet (3 meters) away from the machine,
and make sure that debris does not fall on ammable objects.
Do not use the machine at temperature above 122 'F (50℃).
Please read the following Operation Notes carefully before working with the machine.
4.2 SAFETYTIPS
Always connect the ground wire to avoid electric shock.The machine cannot be
submerged in water while operating it.
Do Not touch the sparks.During heating up and operation, do not touch the housing.
Ensure nothing drop(s) into the nozzle of Spark Rain Pro unit. Do Not cover output nozzle port.
The product is very hot during operation and it remains hot for a long time aer operation
has stopped. Do not touch or put nger in the output nozzle.
Make sure that children, unauthorized people and animals do not obtain access to the
machine.
The noise level generated from the spark machine unit is estimated at 80dB depending on
the point nearest to the machine(s) during operational discharge mode.
Wear eye protection to avoid eye injury while lling granules and testing spark machine(s).
The proper reghting extinguishers are recommended as follows:Any type of sand or
substance that can suocate the active metals.Class “D" Fire Extinguishers for Metal
Substance Fires.
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
Keep people or ammable materials at least 10 feet (3 meters) away from the machine, and
make sure that debris does not fall on ammable objects.
5 MACHINE OPERATION
5.1 PERPARATION

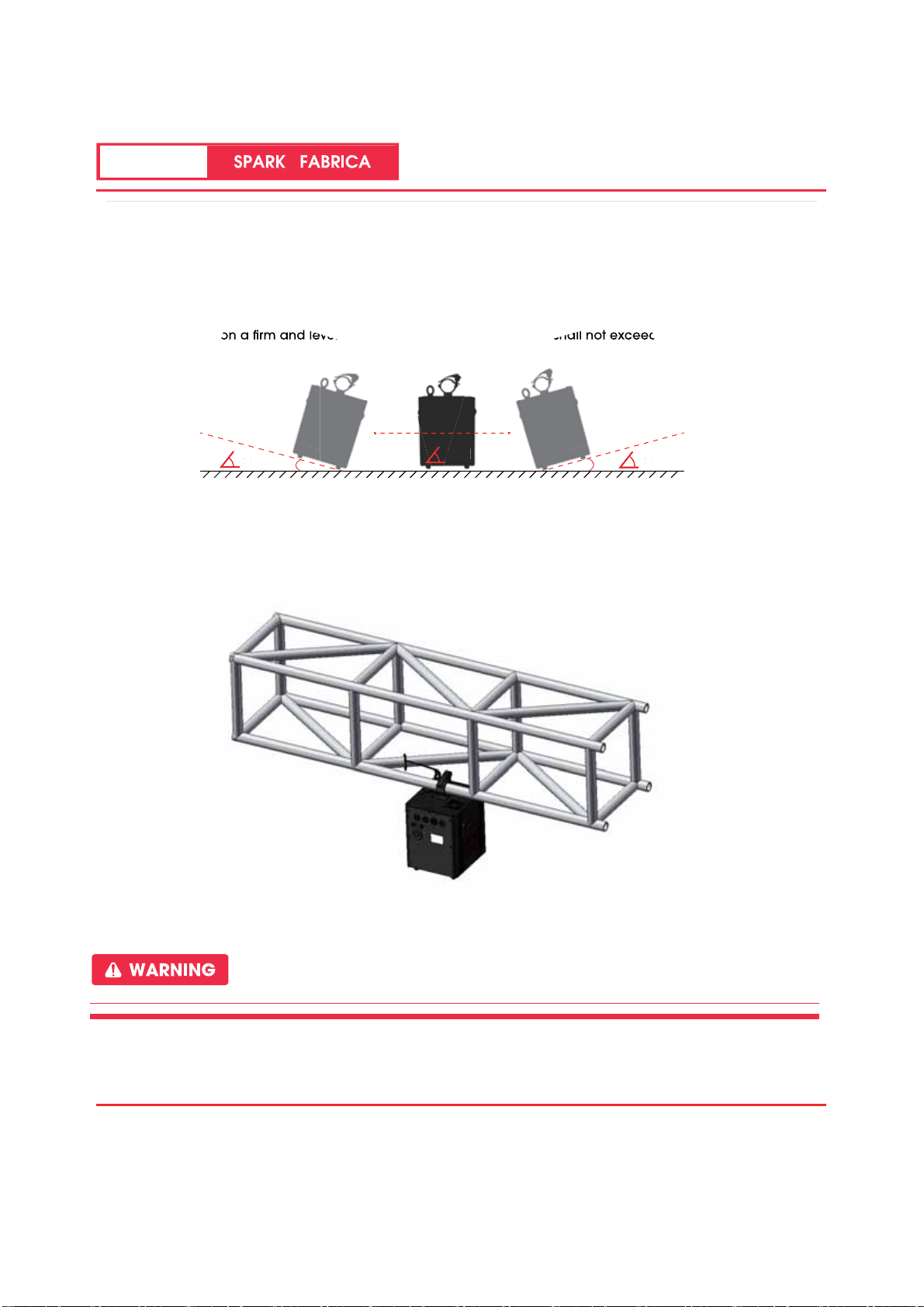

Install the machine on a rm and level truss, and the maximum tilt angle shall not exceed 15 degrees.
5.1.1 INSTALL MACHINE
Install the product on truss by using the attached accessories.
*Specic installation notes please refer to “4 OPERATION NOTES”.
≤ 15° ≤ 15°
= 0°
≤
1
5°
= 0°
≤
1
5°
=
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com

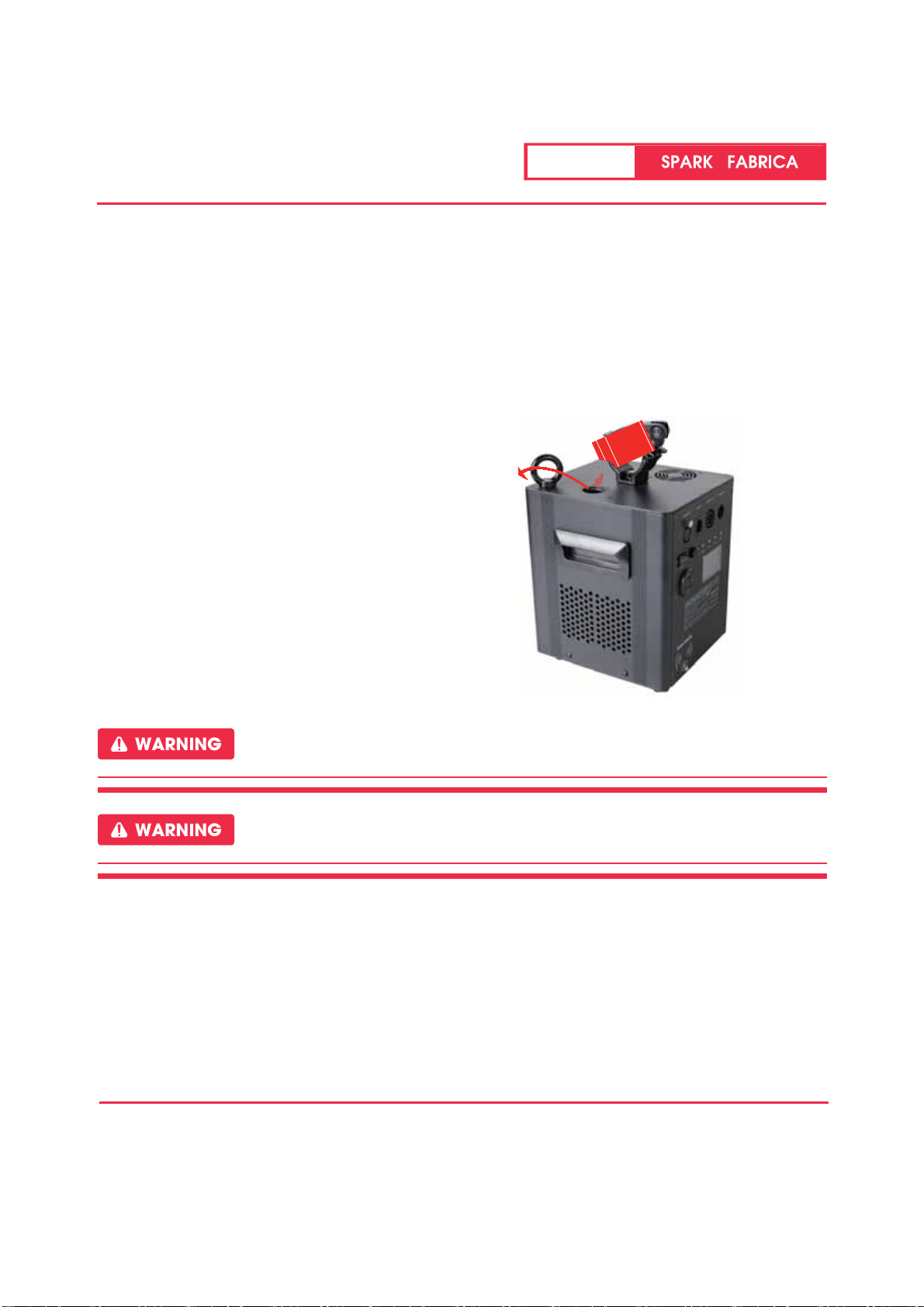

Make sure to ll the Spark Fabrica Granule through the feed port on the top of the xture
when power supply is o.
Wear eye protection to avoid eye injury while lling granules and testing spark machine(s).
5.1.2 FILL IN SPARK FABRICA GRANULE
Spark Fabrica Granule is the consumable specially designed for spark machine, to simulate cold fountain re-
works eect for stage.
*Tear the vacuum package of granule, and ll in the Spark Fabrica Granule through the granule lling port on the
top of the machine.
*Fill the consumable into the feed port，NOT into the output nozzle.
*Close the lid securely aer lling.
*The capacity of storage bin is 150g.
5.2 CONNECT THE MACHINE
Connect power and DMX signal line.
*Connect the rst machine’s power plug.
*Connect the other machines in series with the power cable.
*Connect the other machines in series with DMX connection line.
*Connect PYRO SIM CONTROLLER or DMX512 controller.
Open the lid
41"3,
1"$,
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
Do not use damaged power plug and power cable.One power plug is recommended to
connect 4 units in series at most for this product.
Please attach the congured 120 ohm terminal resistor to the outlet of the last machine to
enhance the anti-interference of the machine.
Please calculate all products’ total current required according to the power supply and
fuse parameters of the products.
The standard length of the power connection line and the signal connection line is 3
meters, and a longer length can be reached by connecting in series.
6/4*3> 6/4*3>
DMX/CAN IN DMX/CAN IN
DMX/CAN OUT DMX/CAN OUT
DMX
65=+8 65=+8
POWER IN POWER IN
POWER OUT POWER OUT
POWER
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
Each swipe of the card can be recharged for 12 minutes, and each machine can swipe up to
2 time cards for 24 minutes at most.The card can only be swiped again when the remaining
time is less than 20 minutes.
5.4 SWIPE RFID TIME CARD
In order to avoid machine failure or other safety accidents caused by bad-qualied consumables, this
product can only be used with special RFID time card.
5.3.2 SET DMX ADDRESS
Please do not set address code repeatedly.
Please set DMX address according to channel mode:
*In the 2 channel mode, please set spark machines’ DMX address to 1.3.5.7......
*In the 3 channel mode, please set spark machines’ DMX address to 1.4.7.10......
5.3 INITIAL SETTING
*The sparking temperature of the machine is the factory default temperature. The product will heat up automatically
when disconnected with DMX signal.Automatic heating function can be set to on or o, and the concrete operation
please refer to “3.2 MENU SETTING”.
*When spark machines connect DMX signal, the heating function can be started only on the Sim Pyro Console.
5.3.1 SET CHANNEL MODE
When the icon shows yellow, it indicates that the machine is abnormal. Please use it aer
asking the professional to check and repair the machine.
This machine has 2 channel mode and 3 channel mode, the specic setting please refer to
“3.2 MENU SETTING”.
3/2
30~100
ON/OFF
400-620
1~512
ON/OFF
3
100
ON
560
1
ON
Set Temperature
DMX Address
DMX Channel Mode
Density
Tilt Sensor
TFT BackLight
Auto Heating ON/OFF ON
Restore Defaults YES/NO NO
Safety Addresss 0~512 OFF(0)
Setting Range Default
*Turn on power
*Check the machine status icon(refer to icon introductions of 3.3)
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
During heating up and operation, do not touch the housing.
Keep a minimum distance of 10 (3 m) from the machine to the nearest human or amma-
ble material. And make sure no falling residue y to ammable material.
The maximum height of indoor and outdoor granule is dierent. The maximum height of
indoor granule is 3.5 meters, while outdoor granule is 5 meters.
When using the Pyro Sim Controller controller,the screen will display the real-time temperature
of each machine. When the temperature value of the control board turns green, it means that
the heating is completed and the machine enters the status of sparking.
5.5.3 ADJUST SPARKING HEIGHT
Adjust sparking height through the rst channel, and the height adjustment values is DMX parameter
values 11-255.
Do Not touch the sparks or put nger in the output nozzle.
5.5.2 TURN ON HEATING FUNCTION
The heating function of the second channel DMX value is 240~255, and it takes about 5
minutes to preheat aer turning on.
When heating is turned on, the <HEAT> indicator light on the machine will turn to red, and the
<READY> indicator light ashes green to indicate that the machine is heating.
Heating will complete aer the <READY> indicator light turns green for a long time, and the
spark machine will enter sparking status.
5.5.1 TURN ON THE CONSOLE’ POWER
5.5 START TO SPARK
If the customer breaks the card swiping function or cancels the card swiping function at the
customer's request, no quality guarantee and aer-sales service will be provided by Spark
Fabrica. Spark Fabrica shall not be liable for any accidents and losses about this.
The machine can be controlled by Pyro Sim Controller console or DMX512 console.
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
The third channel is density adjustment channel, and the density is 30-100%. The default
sparking density is 100%, and the density adjustment parameter values are 0-255. 0 means
100% density, and bigger DMX number means lower density.
If spark machines are aected by wind, sparking height will be reduced, sparking direction
will also be aected by the wind and inclined.
The proper reghting extinguishers are recommended as follows:Any type of sand or
substance that can suocate the active metals.Class “D" Fire Extinguishers for Metal
Substance Fires.
5.5.4 ADJUST SPARKING DENSITY

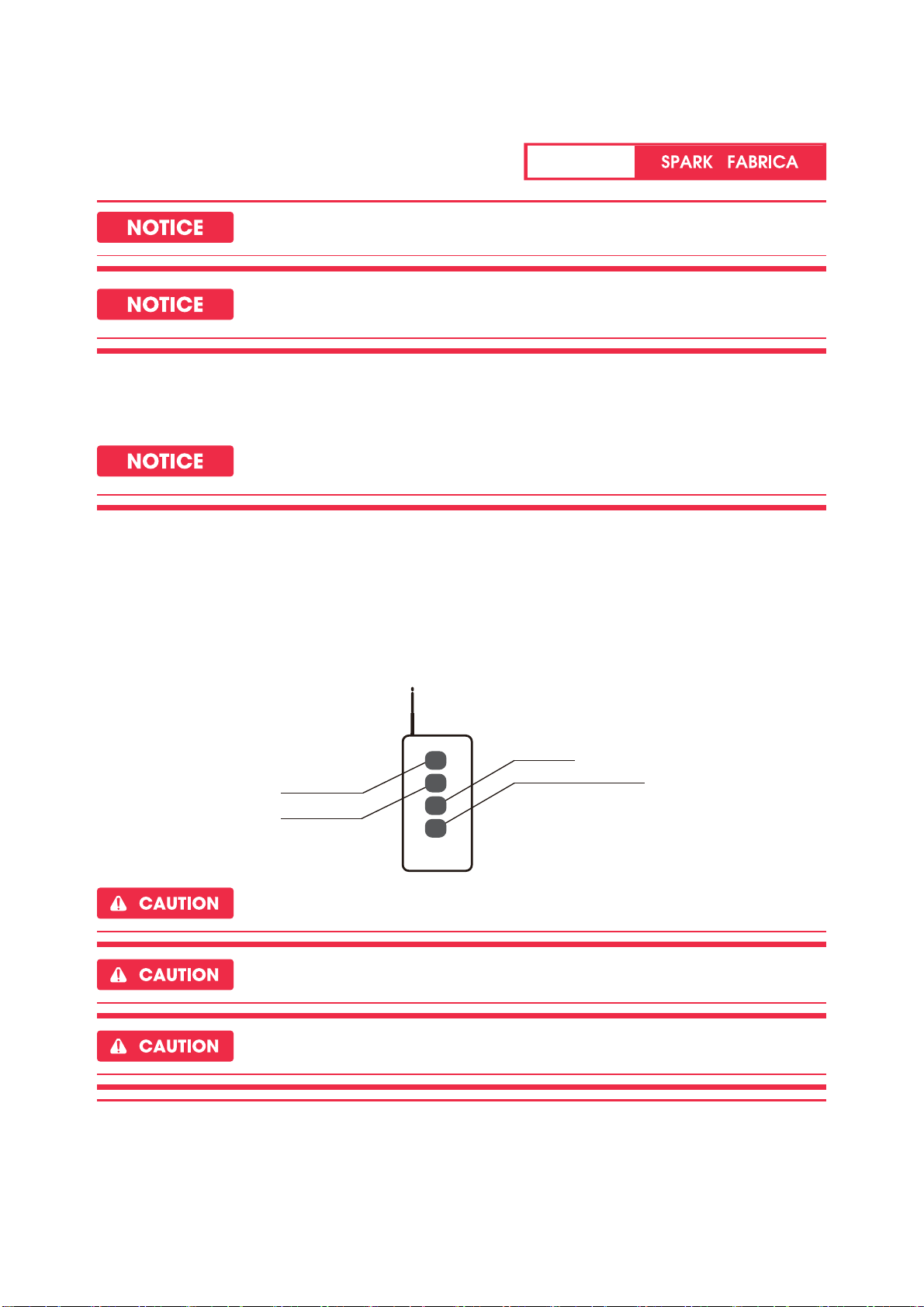

96'81:.85;-.8+35:+)54:8522+8
Turn on the power,and leave DMX signal disconnected.
Hold“▲”for 2 seconds in the rst interface until the screen shows“Control Pair Remoter 315M“.
Press<B>on remote controller until the screen shows”Code Success”,it means the coding is successful.
One remote controller is recommended to control 4 units at most.
The remote controller can be used aer coding when DMX signal is disconnected,or the
function will be broken.
Sparking stops automatically aer 30 seconds,and clearing material stops aer 5 seconds.
The remote controller has 4 height levels.
0/
)&*()5
$-&"3."5&3*"-
0''$0%&
"
DIGITAL REMOTE
CONTROLLER
#
$
%
This product has independent sparking density adjustment function. Machine’s sparking density can
be controlled during sparking, which can oer you more special eects choices for show.
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:*
www.sparkfabrica.com
*Turn o the machine’s power.
*Remove power connection and DMX signal cable.
Use the cleaning function of the second channel for cleaning, DMX value is 56-200.
This function must be performed at the end of each show.
5.6 CLEAR MATERIAL
5.7 CLEAN MACHINE
Aer clearing meterial, please clean the machine to extend the service life of the machine.
This product has the function of cleaning material, which can clean up the heated but not sparked consumables, so
as to avoid nodulation in the heating chamber and causing stuck machine.
*Unused Spark Fabrica Granule should be stored in a cool, dry place, vacuum packed insealed foil bags, and prote-
cted from moisture, heat, hot surface, open re and other ignition sources.
*Use a damp cloth to remove dust and debris from the surface of the machine.
The product is very hot during operation and it remains hot for a long time aer operation
has stopped.
To eliminate unnecessary machine wear and improve its lifespan,unplug the power of the
machine during the period of not-in-use.Never power o the product by pulling or tugging
on the power cord.
6 MACHINE MAINTENANCE
Some steps are needed in order to clean and maintain the product for maximum usage.
The recommended procedure is as follows:
Aer a period of using, check if there is any consumable accretion inside the nozzle. Do necessary cleaning up if
there has some, or it may aect spark performance, even damage the machine.
SPARK RAIN PRO USER MANUAL SF-01 b'
).'4-9.'96'81:+).4525-?+2+):854/)9)52:* www.sparkfabrica.com
7 FAILURE HANDLING
System Error: Storage
Fail
Blower motor protection/
disconnected
Description
Sha motor protection/
disconnected
Hopper motor protection/
disconnectd
Temperature sensor
disconnected
Main board too hot
Insucient time
Heating protection due
to over-temperature.
Heating process fail
Tip over alert
Sub-PCB disconnected
Machine locked because
of using illegal or copy
RFID card.
Error Code
SystemError
E0Storage Fail
Motor Protect
E1 M1
Motor Protect
E1 M2
Motor Protect
E1 M3
Temp Sensor
E2 Unconnected
PCB Too Hot E3
Time Remain E4
Temp Over Heat E5
Heat Fail E6
Tip Over E7
Sub PCB Unconnected
E8
Illegal Card
Machine Locked
Solution
Replace main board
1.Restart machine to clear alerts,stop operating for 15 minutes
until temperature return to normal.
2.Check wire connection of motor
3.Replace motor
4.Replace main board
3.Replace motor
4.Replace main board
1.Sha motor clog (perform clean material function manually)
2.Check wire connection of motor
1.Check wire connection of temperature sensor
2.Replace Temperation sensor
3.Repalce Main board
Stop operating machine until main board temperature return
to normal
1.Hopper motor clog ( perform clean material function manually)
2.Check wire connection of motor
3.Replace motor
4.Replace main board
1.Inspect Wire connection of heating board.
2.Replace heating coil
3.Replace heating board
Please scan new RFID card
Stop operating machine until temperature return to normal.
Alert will clear o automatically.
Machine will activate tip over protection if the angle is more
than 45 degrees. The alert will clear o automatically aer
put the machine back to normal position.
1.Check wire connection of Sub-PCB
2.Replace Sub-PCB
3.Replace Main Board
Use illegal or copy RFID card will lock the machine. If so ,seller
will stop providing warranty and aer sale service. To unlock
the machine,please contact seller.
This manual suits for next models
1
Table of contents
Other Spark Fabrica Dj Equipment manuals
