Speakman SE-4300 GRAVITYFLO User manual

INSTRUCTIONS FOR MODELS
92-SE-4300-R4
NEED HELP?
TOOLS AND SUPPLIES IMPORTANT
REQUIRED
HELPFUL
SAFETY TIPS
MAINTENANCE
Be sure to wear proper eye protection.
WARRANTY
3 year limited warranty
Additional warranty information can be found at:
www.speakmancompany.com
For additional assistance or service please contact:
SPEAKMAN®Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
[email protected]
www.speakmancompany.com
Using a screwdriver, remove the lower
portion of the Wall Bracket from the
recess on the Tank. Remove the Tank from
the Wall Bracket completely.
Select a suitable location for the
SE-4300. The location should protect the
unit from freezing and potential scalding
conditions. After confirming the Spray
Head height, refer to the rough-in
diagram for Wall Bracket height
measurements to determine mounting
hole locations for the bracket. Making
sure the bracket is level, mark and drill
holes in the mounting structure.
Portable Eyewash
SE-4300
GRAVITYFLO®
Note: Mounting
hardware not
included. Ensure the
mounting surface
(wall, etc.) and
mounting hardware
can safely hold a
minimum vertical load
of 300 lbs.
Ocassional cleaning and disinfection is reccomended.
To clean the inside of the unit, add 1/2 cup (4 fluid
oz.) of Clorox (liquid bleach) to a full tank of potable
water. Allow the mixture to penetrate for 15 minutes.
Drain tank, and rinse thoroughly several times with
potable water. For further information about Clorox,
call toll-free at 1-800-292-2200. Follow refilling
instructions in this manual and place the tank back in
service. Should any repair part be required, use only
genuine SPEAKMAN parts for repair or replacement.
See available replacement parts on Page 3, to order
parts call 1-800-537-2107.
ANSI Z358.1 requires that all self-contained
eyewash shall be visually inspected weekly, unless
the product is placed in environments with extreme
conditions that may affect the form, fit, or function of
the unit (temperature, dirt, etc.). If this is the case,
then the inspection should be conducted more often
as the end user deems necessary. Speakman
Company furnishes a testing record tag (91-0635)
with each unit. On this tag, the date of inspection
and the inspectors’ initials should be noted. ANSI
Z358.1 specifies that the height of the spray heads is
to be between 33” - 45” from the floor. The SE-4300
unit weighs approximately 185 lbs filled. Ensure the
mounting surface (wall, etc.) and mounting hardware
can safely hold a minimum vertical load of 300 lbs.
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. The unit should
be full at all times, to achieve the minimum 15 minute
run time as stated by ANSI, in case of an emergency.
Refill the tank to a full level after each activation.
Before refilling tank dry and clean outside of spray
heads, and inside of pull strap to remove debris, and
to assure proper sealing.
Level DrillPencil
Flat Tip
Screwdriver
Adjustable
Wrench
Slip Joint
Wrench
Socket
Wrench
Measuring
Tape
Safety
Glasses

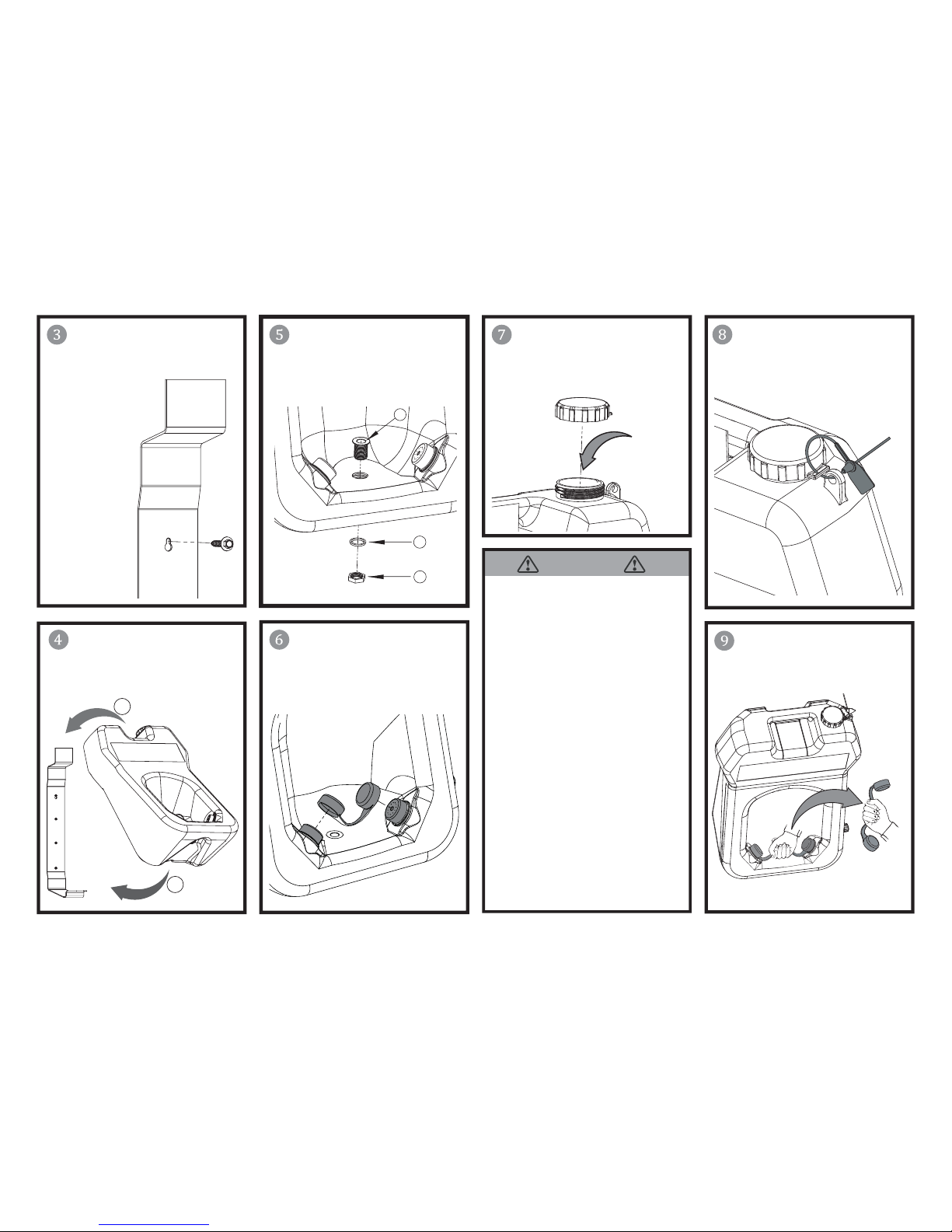

Install empty Tank to Wall Bracket by first
inserting “hook” on the topof the bracket
into the handle of the Tank (1). Lower the
Tank until the Wall Bracket snaps into the
recess at the bottom of the Tank (2).
Mount the Wall Bracket using
appropriate hardware, making
sure to torque to manufacturer’s
specifications, if applicable.
Retrieve drain parts from accessory bag.
Insert Drain Fitting (1) through openings
in the Tank and Wall Bracket. Drain
Washer (2) can now be positioned over
the threading, followed by wrench
tightening Drain Nut (3). Be sure not to
over tighten Drain Nut.
Retrieve the Pull Strap from the
accessory bag. Slide the cups over the
Spray Heads individually, pressing
firmly until they are fully seated. Make
sure handle portion of the Pull Strap is
oriented so the word “PULL” is easily
seen in an upright position.
Note: Mounting
hardware not
included. Ensure the
mounting surface
(wall, etc.) and
mounting hardware
can safely hold a
minimum vertical load
of 300 lbs.
1
2
1
3
2
Remove Fill Cap and fill the Tank with
potable water (approximately 20
gallons). Failure to use potable water
can result in emergency units producing
impure or contaminated water, possibly
causing further injury.
Reinstall Fill Cap and secure it with the
tamper-evident Seal Tie. Secure the
Maintenance Tag to the Tank in a
location where it can be easily checked.
To activate the flow of water, pull
upwards on the Pull Strap, fully removing
both covers from the Spray Heads.
Self-contained eyewash equipment shall be
visually checked frequently to determine if
flushing fluid needs to be changed or supple-
mented. Frequency of these inspections is
dependent on environment conditions, but at a
minimum weekly. Failure to conduct visual
checks could lead to further injury.
Customer shall take precautions to help prevent
the growth of potentially harmful bacteria in
eyewash tanks. Either of the following
procedures is recommended.
Procedure 1: Use suitable Bacteriostatic
preservative to help prevent growth of bacteria
in eyewash tank. Eyewash tank should be
drained, flushed and refilled with clean potable
water and Bacteriostatic preservative added as
directed by the preservative’s manufacturer.
Procedure 2: Drain, flush and refill units with
clean potable water at least once every week
unless site conditions require more frequent
changing . Thoroughly cleanse tank at least
once every month. See “Maintenance” Section
for further information of cleaning unit.
IMPORTANT

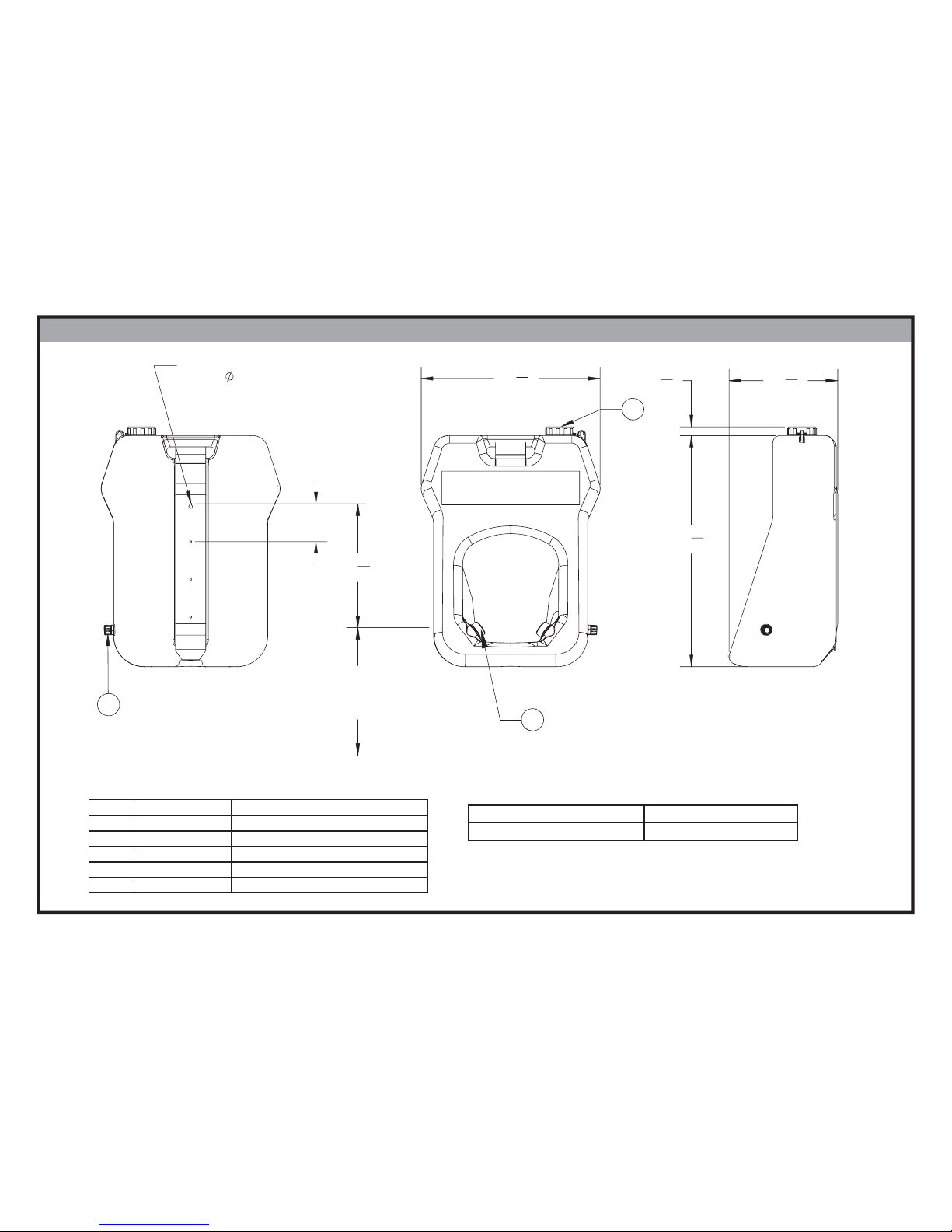

ROUGH IN DIMENSIONS / REPAIR PART GROUPS
16 3
8
"
33" - 45"
(833mm - 1143mm)
TO FLOOR
23 5
8
"
1 1
8
"
30 5
8
"
14 3
8
"
5"
TYP.
WALL BRACKET MOUNTING
HOLES
1/4" THRU HOLE
(TYP. 4 PLACES)
32
1
REPAIR PARTS
RPG07-0021 FILL CAP
RPG38-0433 (2) SPRAY HEAD ASSEMBLIES
RPG07-0022 SIDE OUTLET CAP
RPG56-0039 PULL STRAP ACTIVATOR
RPG05-0935 (3) 12” TAMPER-EVIDENT SEAL TIE
PART NUMBER
ITEM DESCRIPTION
1
2
3
N/S
N/S
RUN TIME (FULL TANK) 15 MINUTES (minimum)
FLOW RATE IN gpm (L/min) .4 (1.5) MINIMUM
FLOW DATA
