User’s Guide
Multi-Positioning Seat
LARGE

For Customer Service Support:
Contact your dealer directly.
Or...
Special Tomato® Customer Service
Phone: [phone]
Fax: [phone]
Email: [email protected]
Website: www.specialtomato.com
Before Contacting Customer Service Support:
Please ll in the following. We will be able to help you more quickly if you have the
exact information indicated.
Serial number1: _________________________________________
Model: ________________________________________________
Date of Purchase: __________________________________________
Notice:
The information contained in this document is subject to change without notice.
No part of this document may be photocopied, reproduced, transmitted, transcribed, stored
in a retrieval system or translated to another language or computer language, in any form
or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise
without the prior written consent of Bergeron Health Care.
Use only Special Tomato accessories and parts on Special Tomato products. Special
Tomato parts are not interchangeable with other manufacturers’ products. Replace any
worn parts immediately for safety.
1. Located on back of seat shell.
Copyright Bergeron Health Care. All rights reserved.
2 Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide

Table of Contents
…………………………………………………………………………………………
What is a
Special Tomato™ Story behind the brand…........ 4
…………………………………………………………………………………………
Setting Up Your MPS* Unpack..………………......... 5
Assembly……………......... 5
Footrest Assembly….............. 6
Adjustments…………..............… 7
………………………………………………………………………………..............
MPS Optional Accessories Mobile Floor Base..................… 9
Extended Seat Cushion........ 9
Tray................................... 11
Push Chair Base...........… 11
……………………………………………………………………….......……………
Car Seat Installation** Safety Information................... 12
General Information............... 15
Lap/Shoulder Belt..................... 17
Lap Belt..................................... 19
5-Point Harness...................... 21
Securing Your Child................. 22
...........................................................................................................................
Consumer Information Maintenance....………….............. 23
Warranty………………........… 23
………………………………………………..........................................................
Please Note:
Special Tomato™
products are latex-free.
*MPS = Multi-Positioning Seat
**All users MUST read and
understand this instruction manual
before using this product. Store
instruction manual in pocket on
back of MPS so that it can be
consulted at any point to ensure
proper use!
Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide 3

The Story Behind the Brand...
y dad and mom had four children. The rst three
children were healthy and regular people. Then I came
along, a baby with a difference, Down Syndrome. I had
a hole in my heart, a rip in my heart valve, jaundice, a big tongue and a
wobbly head. As I got older I also realized that I am a slow learner.
One day it was bothering me that I was having a hard time doing my
school work. I told my dad about this problem and he shared a story about
when he was out in his garden picking tomatoes the year I was born. Every
year my dad grows a garden and loves to plant tomatoes. At harvest time
there were Beefsteak tomatoes on a bush. When he saw a differently shaped
tomato it got his attention. It had a large, smooth, bright red enlarged side
that made my dad want to pick it up and study the bump because it was
so unique and looked appetizing. At supper, that tomato was just as
juicy as the others.
Even though I’m different like the tomato as a person with Down
Syndrome, my family and friends love me even more and want to
help me when I need it. My dad tells me that even though I have
more difculty learning than my brother and sisters, my lovable
and outgoing personality and strong character make me just
as special as they are. I guess I am the special “tomato”
on our family’s bush!
The Special “Tomato” on the Bergeron Bush
Carrie Bergeron, copyright 2001
www.carriebergeron.org Illustrateur : Michael Johnson
www.psln.com/sharingds/Michael/
Special Tomato™ is Tim Bergeron’s latest product line. He has over 25 years of experience designing, building,
and selling adaptive positioning equipment, including founding the Tumble Forms® product line as its original
designer. Tim has coupled his design experience with a new manufacturing process
that provides soft durable, impermeable cushions for positioning children with
special needs. The rst Special Tomato™ Brand Product is the Multi-Positioning
Seat.
Now you may be asking, “What’s so Special about Tomatoes”? Tim is
pictured here with his youngest daughter, Carrie, a young adult with
Down syndrome. Carrie’s story, “The Special Tomato”, summarizes what
Tim believes that most parents feel about their child with special needs.
“Every child is special in their own unique way. It’s a parent’s job to nd ways
to facilitate their child’s growth in a way that includes them equally within the
family and community.” For children with physical disabilities, adaptive equipment
can play an important role in helping them reach their highest functioning level.
4 Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide
M

Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide 5
Setting Up Your MPS
Unpack
Check to see that the following items are included
with your Multi-Positioning Seat (MPS):
· Seat Shell
· Head Cushion installed
· Back Cushion installed
· Seat Cushion (Regular or Extended size) installed
· Two Safety Attachment Straps installed
· Five Point Harness System installed
· Left and Right Leg Rest Extensions
· 2 Leg Rest GROOVED Knobs (1 3/16”)
· 2 Footrest BALL Knobs (1 1/2”)
· Footrest with 2 Foot Straps
· Headrest Tether Strap
First attach the MPS to the appropriate base of choice
with the Attachment Straps:
Assembly
Figure 1. Figure 2a. Figure 3.Figure 2b.
Mobile Floor Base
- Secure tightly the Rear Strap
under lip of Mobile Floor Base
- Secure tightly the Bottom Strap
under Mobile Floor Base
between both sets of wheels
Figure 1.
Standard Chair
- Secure tightly the Rear Strap around
back of chair (spiral method below or
straight method in Figure 1.)
- Secure tightly the Bottom Strap un-
der seat of chair Figure 3.
- Note: Make sure the chair is stable!
Push Chair Base
- Secure tightly the Rear
Strap around back of Push
Chair Base, between the fab-
ric and the cross bars
Figure 2a.
- Secure tightly the Strap
under Push Chair Base un-
der the seat making sure to
thread between the seat back
frame and the front leg frame
Figure 2b.

Setting Up Your MPS
Footrest Assembly
Your Special Tomato™ Multi-Positioning Seat (MPS) comes partially assembled for your
convenience.
1. Insert both ends of the Leg Rest Extensions into the corresponding holes in the front
of the seat shell.
2. Make sure to insert the leg rests far enough so that the Leg Rest GROOVED Knobs
(1 3/16”) go through one of the three corresponding holes in the leg rests, giving the
appropriate depth for your child. Figure 4.
3. Tighten the 2 Leg Rest GROOVED Knobs (1 3/16”). Overtightening is not
necessary! Turn it until you feel resistance. There is a block to prevent tightening it too
much.
4. Place the footrest at the appropriate height, depth, and angle for your child. Figure 5.
5. Insert the 2 Footrest BALL Knobs (1 1/2”) into one of the three appropriate holes on
the side of the footrest. These Footrest BALL Knobs (1 1/2”) should be tight!
6 Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide
Figure 4. Figure 5.
Please Note: It is NOT necessary to overtighten any of the knobs. They are designed to hold
with a SNUG t!

Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide 7
Setting Up Your MPS
The Special Tomato™ Multi-Positioning
Seat provides a comfortable and
adjustable seating surface for your child.
The durability of this unique product along
with built-in adjustability allow for years of
use as it grows with your child.
Adjustability is accomplished as follows:
Adjustments
Foot Rest:
Provides maximum
adjustment allowing for height,
depth, and angle adjustability.
hook and loop straps secure your
child’s feet to the footrest for
proper positioning. Figure 8a.
Adjust the depth of the footstraps
as needed. Figure 8b.
Figure 8a.
75°
Seat Cushion:
Uses hook and loop strips plus
our track system for easy adjustment. Under
the Seat Cushion are three guide lines. Figure
7a. The middle line positions the hips at 90°.
The top line provides 15° of Hip Extension. The
bottom line provides 15° of Hip Flexion. Our
Hip Flex™ Adjustment provides 15° of Hip
Flexion or 15° of Hip Extension without recline.
Figure 7b.
Head Cushion & Back Cushion:
Adjust up and down easily. Hook
and loop strips and our track reference
mark system allow you to
quickly reposition the modular
cushions to t your child. Figure 6.
Figure 6.
Figure 7a.
90°
105°
75°
Small
Figure 7b.
15° of Hip Extension
Neutral Hip neutre
15° of Hip Flexion
Figure 8b.

8 Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide
Adjustments
Setting Up Your MPS
Five-Point Harness: Provides comfort and adjustment
needed to properly support and position your child. A
soft built in chest pad promotes comfort and provides
support by simply tightening the over the shoulder straps

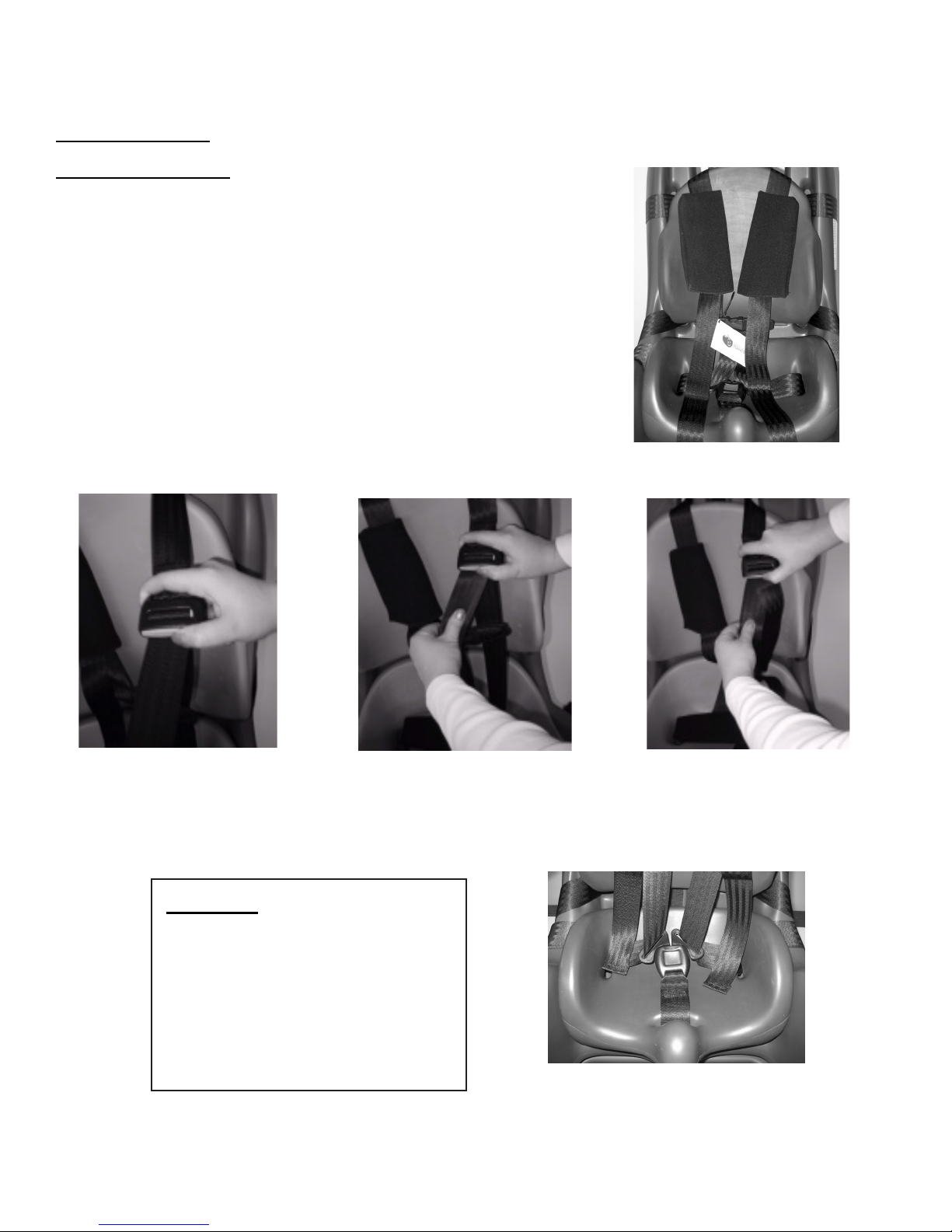

as needed. Figure 9a. To adjust the Five-Point Harness,
remove the black covers from the shoulder straps. Press
in the gray button. Figure 9b. Pull the top strap to
tighten. Figure 9c. Pull the bottom strap to loosen.
Figure 9d.
Figure 9a.
Figure 9b.
Lap Strap: Press the center red
button to release both sides of the
lap strap. Re-insert each
metal buckle into the corresponding
socket to secure the lap strap por-
tion of the 5-point harness.
Figure 10.
Figure 10.
Figure 9c. Figure 9d.

Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide 9
MPS Optional Accessories
Mobile Floor Base

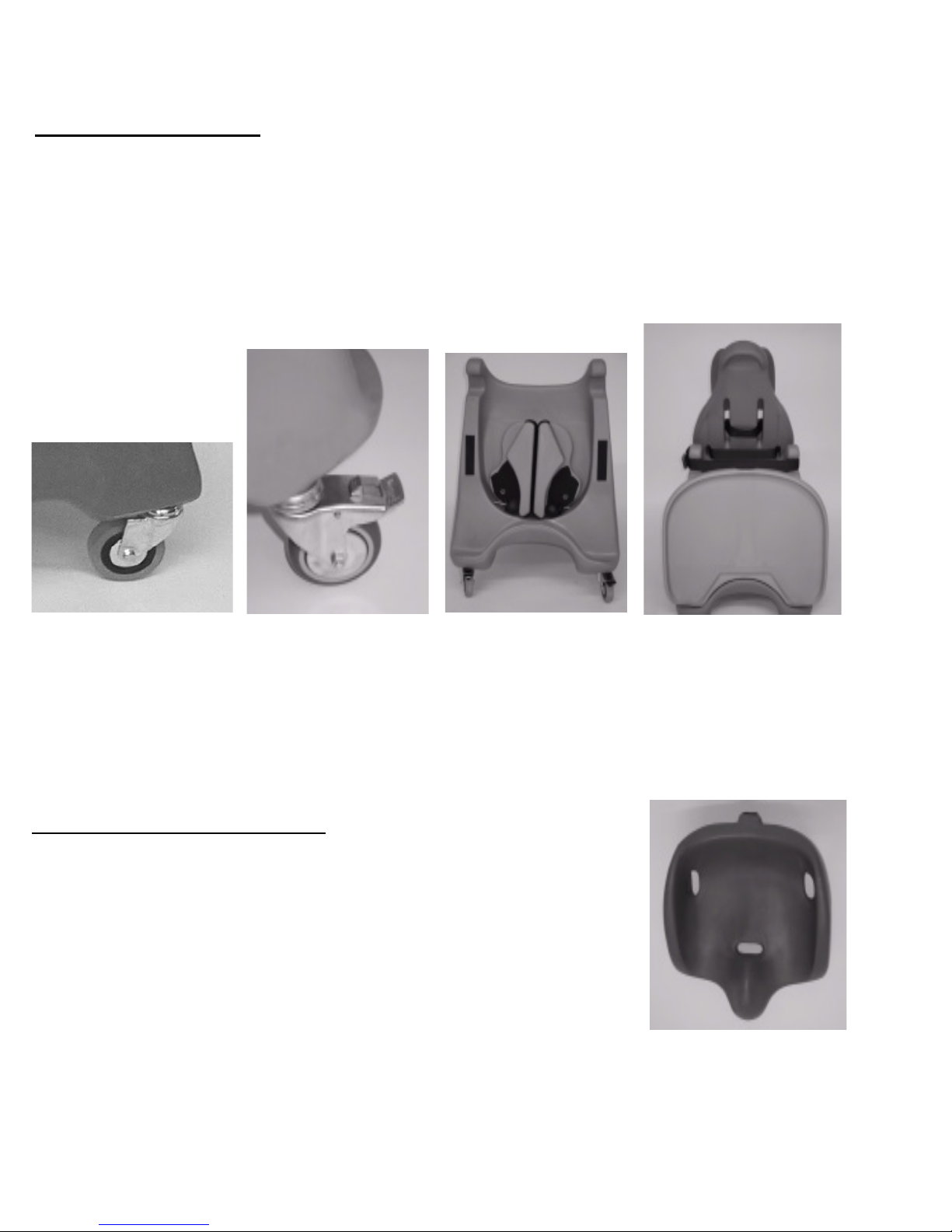

1. Complete with four swivel casters. Figure 11.
2. Rear casters have foot-operated locks. Figure 12.
3. Tray Riser Storage in rear of Mobile Floor Base. Figure 13.
4. Tray Storage in rear of Mobile Floor Base. Stay secure with hook and loop
attachments. Figure 14.
Figure 15a.
Extended Seat Cushion
1. Can be purchased as the standard seat cushion with your
MPS depending on your child’s dimensions. Figure 15a.
2. Can be purchased at a later date as an optional accessory
if your child needed the Regular Seat Cushion at the time of
your original purchase. This way you can extend the “life” of
the MPS without having to buy a completely new seating
system.
Figure 13. Figure 14.
Figure 12.
Figure 11.

10 Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide
Extended Seat Cushion Continued
MPS Optional Accessories
Figure 15b. Figure 15c.
Figure 15e.
Push Chair Base If you have purchased the MPS Push Chair Base, you will
receive a separate manual with your MPS Push Chair Base.
Switching Seat Cushions:

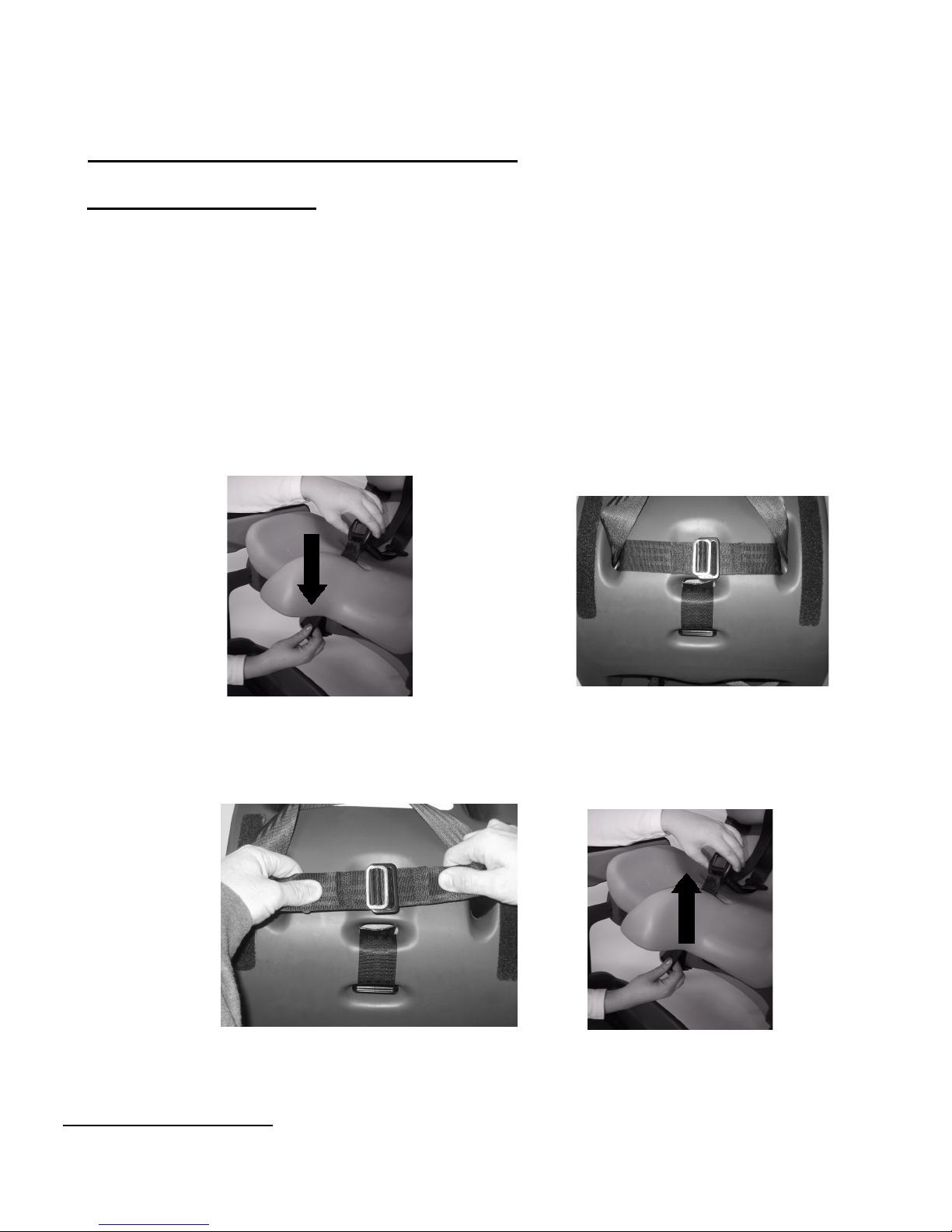

1. Unclip crotch strap and pull down through hole in seat cushion. Figure 15b.
2. Remove seat cushion.
3. Verify that the 5-Point Harness Clip is securely fastened. Push small metal clip through slot
of large metal clip to secure the 5-Point Harness. Figure 15c.
4. Test it by pulling on both straps to make sure that they stay connected. Figure 15d.
5. Place new cushion in seat shell.
6. Pull crotch strap back up through seat cushion. Figure 15e.
Figure 15d.

Special Tomato™ Multi-Positioning Seat - LARGE: User’s Guide 11
MPS Optional Accessories
Figure 16. Figure 17. Figure 18. Figure 19a.
Figure 20.
Push Chair Base If you have purchased the MPS Push Chair Base, you will
receive a separate manual with your MPS Push Chair Base.
(Figures 22 - 29 have been removed for this reason)
Figure 21.
Figure 19b.
Tray
Tray items include:
• Tray • 2 Tray Risers • 2 Tray Riser BALL Knobs (1 1/2”) • 2 Washers
1. Secure both Tray Risers to the Seat Shell at desired angle (0º - 30º) with the attached
hook and loop strips. Figure 16.
2. Place Washers on BALL Knobs (1 1/2”) and insert them into the corresponding slot and
hole. Tighten both BALL Knobs (1 1/2”). Figure 17. (Not necessary to over tighten.)
3. Place the Tray on the Tray Risers with the attached hook and loop strips on the bottom
of the Tray surface considering the appropriate amount of depth for your child. Use the
hook and loop ap to secure the Tray to the Tray Risers. Figure 18.
4. To remove the tray, rst pull up on the hook and loop ap. Figure 19a. Second, pull the
tray off by holding onto the curved sides and rotating one side towards you. Figure 19b.
5. The Tray Risers can remain on the Seat Shell (Figure 20) or stored in the back of the
Mobile Floor Base. Figure 21.

!
Car Seat Installation
Safety Information
The Special TomatoTM Multi-Positioning Seat is designed to provide proper positioning in sitting
for children and young adults with special needs. This child restraint system conforms to all ap-
plicable Federal motor vehicle safety standards (FMVSS). However, the FMVSS #213 addresses
child restraints for children up to 65 pounds (29 kilograms). For children and young adults over 65
pounds, the vehicle belt is typically sufficient for restraint. For those children and young adults over
65 pounds that need positioning support to maintain a sitting position in a vehicle, the Small and
Large Special TomatoTM Multi-Positioning Seats full weight range limits were designed and tested
in the spirit and intent of FMVSS #213. With proper installation and use, the Small & Large Special
TomatoTM Multi-Positioning Seats provide a safe positioning system for your child or young adult.
The SMALL Special TomatoTM Multi-Positioning Seat is designed for use only by children who
weigh between 20 and 80 pounds (9 and 36 kilograms) and whose height is between 32.5 and
50 inches (82.5 and 127 centimeters) for Type I & Type II belts. The LATCH Belt is designed for
children who weight between 20 and 50 pounds (9 and 22 kilograms).
The LARGE Special TomatoTM Multi-Positioning Seat is designed for use only by children who
weigh between 80 and 150 pounds (36 and 68 kilograms) and whose height is between 50 and
63 inches (127 and 160 centimeters).
Child restraints could be recalled for safety reasons. You must register this restraint to be reached
in a recall. Send your name, address and the restraint’s model number and manufacturing date to:
Bergeron Health Care, 15 Second St, Dolgeville, NY 13329 or call 1-866-529-8407 (315-429-
8407). For recall information, call the U.S. Government’s Auto Safety Hotline at 1-800-424-9393
(202-366-0123 in DC area).
Note: The cushion covers, tray & footrest are not part of the Special TomatoTM Multi-Positioning
Seat child restraint system as tested to Federal Motor Vehicle Safety Standard No. 213. Those ac-
cessories are designed for use while not in the vehicle.
WARNING! Failure to follow each of the following instructions can result in your child striking
the vehicle’s interior during a sudden stop or crash. Secure this child restraint with a vehicle
belt as specified in this instruction booklet and printed on the seat back.
Snugly adjust the belts provided with this child restraint around your child.
Secure the top anchorage strap provided with this child restraint as specified in this instruction
book-let.
WARNING
Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide 12

!
Car Seat Installation
Safety Information
1) Verify that the restraint is secure to your vehicle before placing your child in the MPS each
time you use it.
2) The 5-Point Harness will need to be adjusted to accommodate different clothing (i.e. - winter
vs. summer clothing).
3) Refrain from leaving the child restraint in direct sunlight for long periods of time. The metal
buckles can become hot enough to burn.
4) When not in use, store in a safe place. Do not place heavy objects on the child restraint for
storage.
5) Due avoid injury due to hidden damage or deterioration, no longer use the system after six
years or if it has been in a crash.
6) According to the National Highway Traffic Safety Administration, the safest place to put your
child in a restraint system in your vehicle is in the rear seat. DO NOT place a child in the front seat
of the vehicle that has an airbag unless the airbag has been turned off. The impact of an airbag on
a child can cause SERIOUS INJURY, and even DEATH.
7) Make sure all users of this restraint understand all information in this booklet.
8) Install this child restraint in a FORWARD FACING vehicle seat ONLY! Never install in a
vehicle seat that faces sideways or backwards!
9) Secure this child restraint with the vehicle belts even when there is not a child in the re-
straint. In the event of a crash, an unsecured child restraint could injure vehicle occupants if it
moves.
WARNING
13 Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide

!
Car Seat Installation
Safety Information
10) The Headrest Tether MUST remain secure when using the MPS as a child restraint.
11) Children should not be left in a vehicle alone for any length of time.
12) Do not disassemble or change this child restraint in any manner, except those steps described
in this booklet.
13) If your vehicle seats fold forward, make sure they are latched before installing this child re-
straint.
14) Do not let children play with this child restraint.
15) Do not place anything between the vehicle seat and the child restraint to raise the height of
the child restraint. In the event of an accident, the object could slip and disrupt the stability of the
child restraint.
16) Primary protection for occupants of a vehicle comes from the vehicle itself in the event of an
accident. Child restraints will not completely protect a child in the event of a serious impact. The
roll of the child restraint, when properly installed, is to significantly improve the chance for survival
in most crashes.
17) Unless specified by your vehicle’s manufacturer, assume that the vehicle LATCH anchor limit
is 50 pounds (22 kilograms).
18) Carry your child restraint by the hard seat shell. Do NOT carry it by the 5-Point Harness
to prevent damage.
19) The child restraint Top Tether Strap MUST be used at all times in a vehicle.
WARNING
Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide 14

Head Cushion
Back Cushion
Seat Cushion
Crotch Strap
Figure 30.
Shoulder Strap Covers
5-Point Harness
Tether Strap
Tether
5-Point Harness Strap
Instruction
Booklet/Holder
Car Seat Installation
Front View Back View
Figure 31.
The Special TomatoTM Multi-Positioning Seat Car Seat comes with several stan-
dard safety features. See
Figures 30 & 31
Please ll out the registration card and mail it in today!
Child restraints could be recalled for safety reasons at any time. In case of a
recall, we can reach you only if we have your name and address, so please send
in the registration card today to be on our recall list.
This restraint is Certified for use in aircraft.
Use the following chart to decide which installation method is required for your child.
15 Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide
Installation Method SMALL MPS LARGE MPS
LATCH Belt & Tether 20 - 50 lbs. (9 - 22
kg) Not Applicable
Lap/Shoulder Belt & Tether 20 - 80 lbs. (9 - 36
kg)* 80 - 150 lbs. (36 - 68 kg)
Lap Belt & Tether 20 - 80 lbs. (9 - 36
kg)* 80 - 150 lbs. (36 - 68 kg)
* Use these methods for children between 20 - 48 lbs. if your vehicle is not equipped with the LATCH mecha-
nism.

Figure 32. Figure 33.
Car Seat Installation
Belt & Tether Installation
PLEASE NOTE: The Tether Strap MUST be used with ALL Belt Configurations to secure
your Special Tomato™ Multi-Positioning Seat Car Seat to your vehicle:
1) Lap/ Shoulder Belt & Tether-
2) Lap Belt & Tether-
PLEASE NOTE: The SMALL Special Tomato™ Multi-Positioning Seat Car Seat O N LY
comes with a LATCH strap. DO NOT USE the LATCH Strap with the LARGE Special
Tomato™ Multi-Positioning Seat Car Seat.
Figure 32.
Figure 33.
Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide 16

1) Identify your vehicle’s Lap/Shoulder Belt. Figure 34a.
2) Verify that your vehicle is equipped with a Tether anchor. Refer to Steps 1 -5 on Page 18.
3) Verify that the 5-Point Harness is secured. See Page 21 for details.
4) Install the MPS with the Lap/Shoulder Belt & top Tether Strap. Figure 34b.
5) Thread the Lap/Shoulder Belt from the front to the back through the slot in the seat shell located
between the seat and back cushions. Figure 35.
6) Thread the Lap/Shoulder Belt across the back of the seat shell.
7) Thread the Lap/Shoulder Belt from the back to the front through the opposite slot in the seat shell
located between the seat and back cushions. Figure 36.
8) Buckle the Lap/Shoulder Belt,
making sure you hear an audible
“Click”. Figure 37.
9) Place your knee in the MPS,
bearing weight on the seat, to
make it t snuggly to your
vehicle. Pull tightly until slack is removed from Lap/Shoulder Belt. Figure 38.
Car Seat Installation
Lap/Shoulder Belt & Tether Installation
***SEE NEXT PAGE TO COMPLETE INSTALLATION PROCESS!***
Figure 34a.
Figure 36.
Figure 34b.
Figure 37.
17 Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide
Figure 35.
Figure 38.
Installation Method SMALL MPS LARGE MPS
LATCH Belt & Tether 20 - 50 lbs.* Not Applicable
Lap/Shoulder Belt &
Tether 20 - 80 lbs.* 80 - 150 lbs. (36 - 68 kg)
Lap Belt & Tether 20 - 80 lbs.* 80 - 150 lbs. (36 - 68 kg)
* Use these methods for children between 20 - 48 lbs. if your vehicle is not equipped with the LATCH
mechanism

Car Seat Installation
Lap/Shoulder Belt & Tether Installation - Continued
1) Verify that your MPS has the Tether Strap attached correctly. If not, follow steps 2 - 5 below before
continuing with the installation.
2) Face MPS Seat Back to you. Thread loop end of Tether Strap through rst Tether Strap slot.
3) Thread loop end of Tether Strap through second Tether Strap slot.
4) Thread Tether hook through loop end of Tether Strap.
5) Pull hook end of Tether Strap taut.
Figure 42.
Figure 41.
Figure 40.
Figure 39
6) Now that the Tether Strap is attached correctly, verify that the Lap/Shoulder belt is secured and tight.
7) Hook the Tether hook to the vehicle anchor.
Figure 43.
8) If your vehicle does NOT have a Tether anchor, install the Tether Anchor with the hardware
provided in this order:
e)
Figure 44. - a)
Lock Washer, and
f)
3/8” bolt, b) Small Washer,
c)
Tether Anchor, d) Large Washer,
Nut. Please Note: The vehicle body goes between the Tether Anchor and the
Large Washer with the Large Washer directly underneath the vehicle body. Please Note:
Please contact your vehicle manufacturer to determine the best place to install the Tether Anchor in
your vehicle.
Figure 39.
Figure 42.
Figure 40.
Figure 43.
Figure 41.
a b c d e f
Figure 44.
Lap/Shoulder Belt & Tether Removal
To remove the restraint, depress the red release button on the Lap/Shoulder buckle. Release the top Tether
anchor to completely detach the restraint from the vehicle.
Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide 18

Car Seat Installation
Lap Belt & Tether Installation

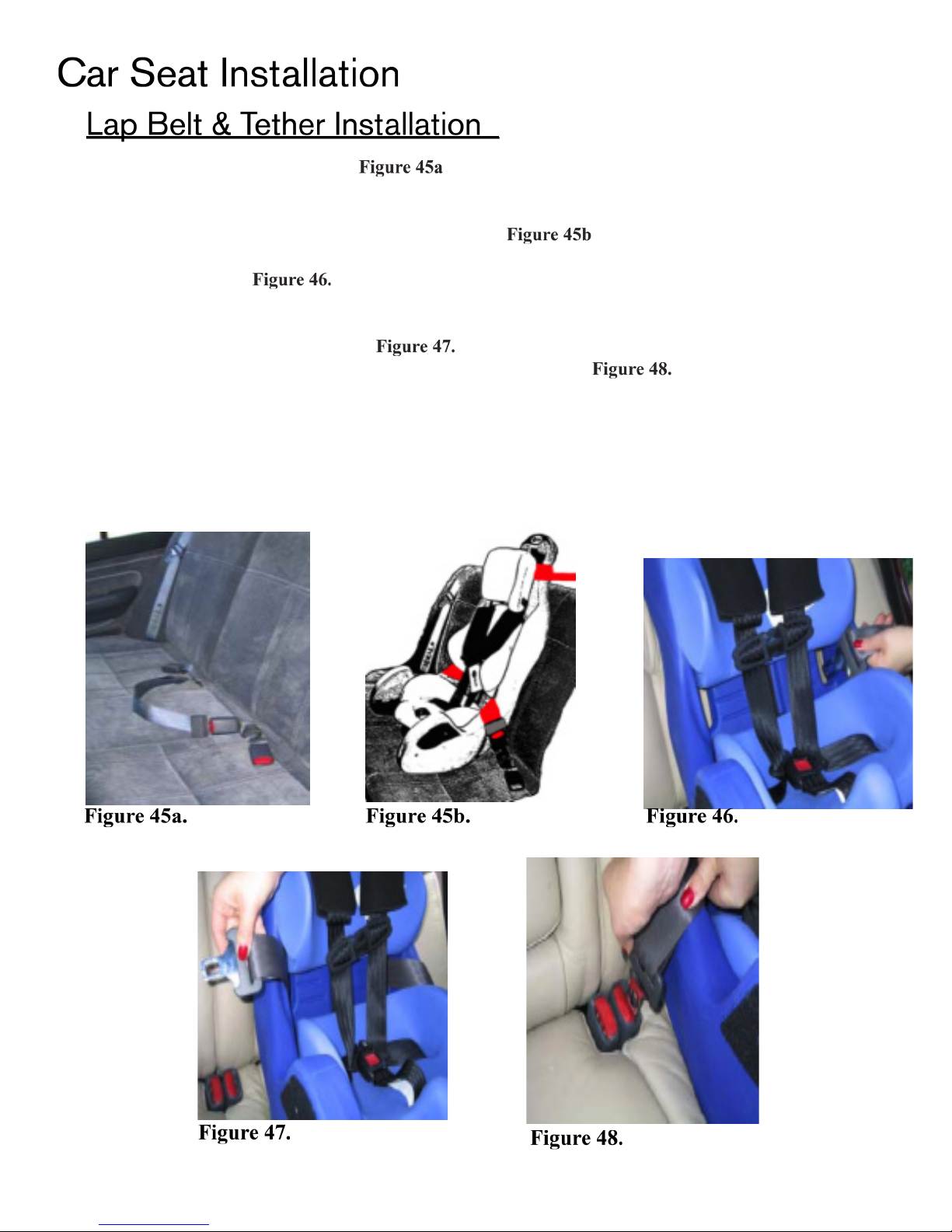

1) Identify your vehicle’s Lap Belt. Figure 45a .
2) Verify that your vehicle is equipped with a Tether anchor. Refer to Steps 1 -5 on Page 20.
3) Verify that the 5-Point Harness is secured. See Page 21 for details.
4) Install the MPS with the Lap Belt & top Tether Strap.
Figure 45b
5) Thread the Lap Belt from the front to the back through the slot in the seat shell located between the seat
and back cushions. Figure 46.
6) Thread the Lap Belt across the back of the seat shell.
7) Thread the Lap Belt from the back to the front through the opposite slot in the seat shell located
between the seat and back cushions. Figure 47.
8) Buckle the Lap Belt, making sure you hear an audible “Click”. Figure 48.
9) Place your knee in the MPS, bearing weight on the seat, to make it t snuggly to your vehicle. Pull
tightly until slack is removed from Lap Belt.
***SEE NEXT PAGE TO COMPLETE INSTALLATION PROCESS!***
Figure 45a. Figure 45b. Figure 46.
Figure 47. Figure 48.
19 Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide

Car Seat Installation

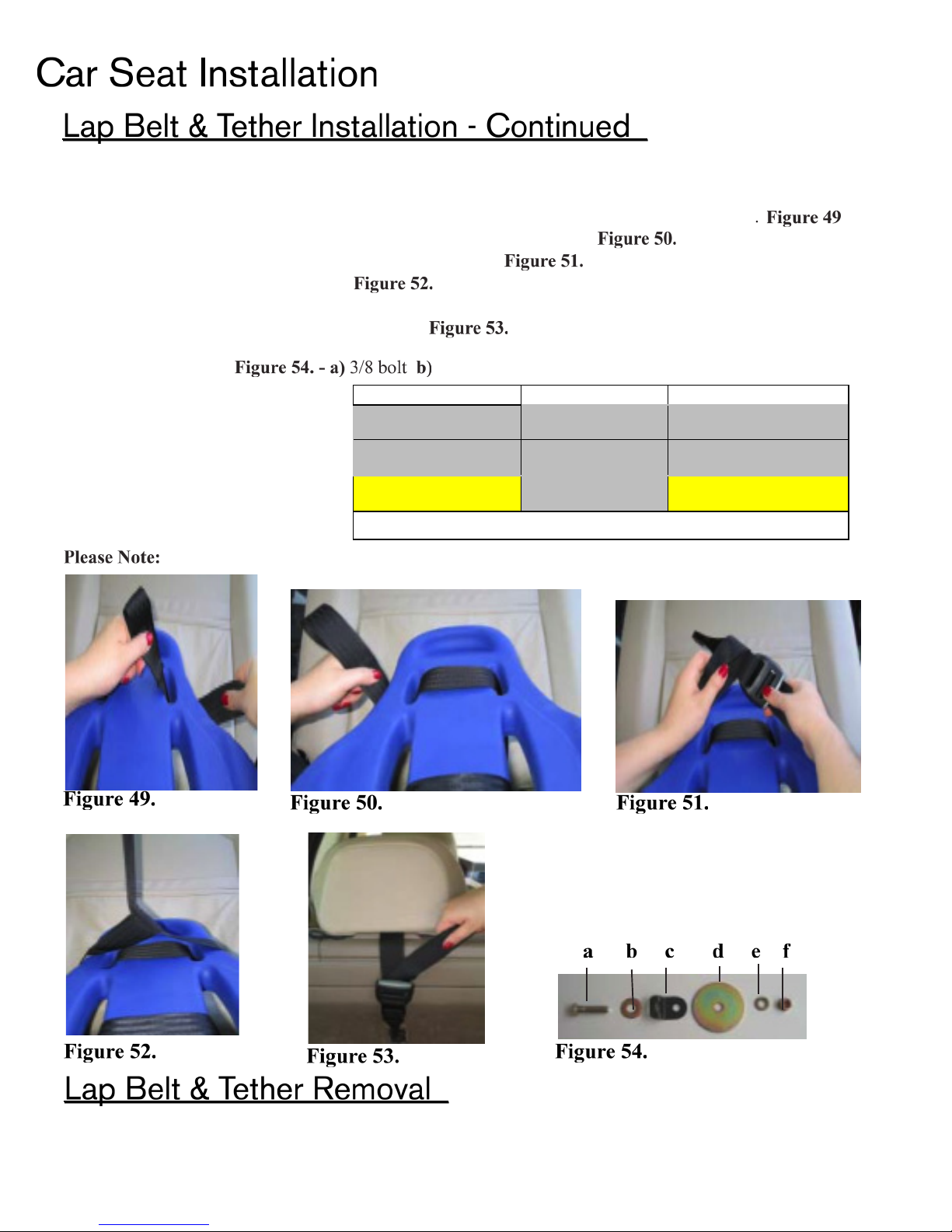

Lap Belt & Tether Installation - Continued
1) Verify that your MPS has the Tether Strap attached correctly. If not, follow steps 2 - 5 below before
continuing with the installation.
2) Face MPS Seat Back to you. Thread loop end of Tether Strap through rst Tether Strap slot.
3) Thread loop end of Tether Strap through second Tether Strap slot.
4) Thread Tether hook through loop end of Tether Strap.
5) Pull hook end of Tether Strap taut. Figure 52.
Figure 51.
Figure 50.
Figure 49
6) Now that the Tether Strap is attached correctly, verify that the Lap belt is secured and tight.
7) Hook the Tether hook to the vehicle anchor. Figure 53.
8) If your vehicle does NOT have a Tether anchor, install the Tether Anchor with the hardware
provided in this order:
Lock Washer, and f) Nut.
Figure 54. - a) 3/8 bolt b)
NOTE: The vehicle body goes
between the Tether Anchor and the
Large Washer with the Large
Washer directly underneath the
vehicle body.
Please Note:
Figure 49.
Figure 52.
Small Washer, c) Tether Anchor, d) Large Washer, e)
Contact your vehicle manufacturer to determine the best place to install the Tether Anchor in your vehicle.
Figure 50.
Figure 53.
Lap Belt & Tether Removal
Figure 51.
a b c d e f
Figure 54.
To remove the restraint, depress the red release button on the Lap Strap buckle. Release the top Tether
anchor to completely detach the restraint from the vehicle.
Special TomatoTM Multi-Positioning Seat - LARGE: User’s Guide 20
Installation Method SMALL MPS LARGE MPS
LATCH Belt & Tether 20 - 50 lbs. (9 - 22
kg) Not Applicable
Lap/Shoulder Belt &
Tether
20 - 80 lbs. (9 - 36
kg)* 80 - 150 lbs. (36 - 68 kg)
Lap Belt & Tether 20 - 80 lbs. (9 - 36
kg)* 80 - 150 lbs. (36 - 68 kg)
* Use these methods for children between 20 - 48 lbs. if your vehicle is not equipped with the LATCH
mechanism
