IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION, OPERATING AND SERVICE MANUAL
READ AND FOLLOW ALL INSTRUCTIONS
This is the II
All parts are manufactured of corrosion-resistant material and combined in one single
housing (or two single housings for two jet systems) which can be installed in pools of
any size and shape.

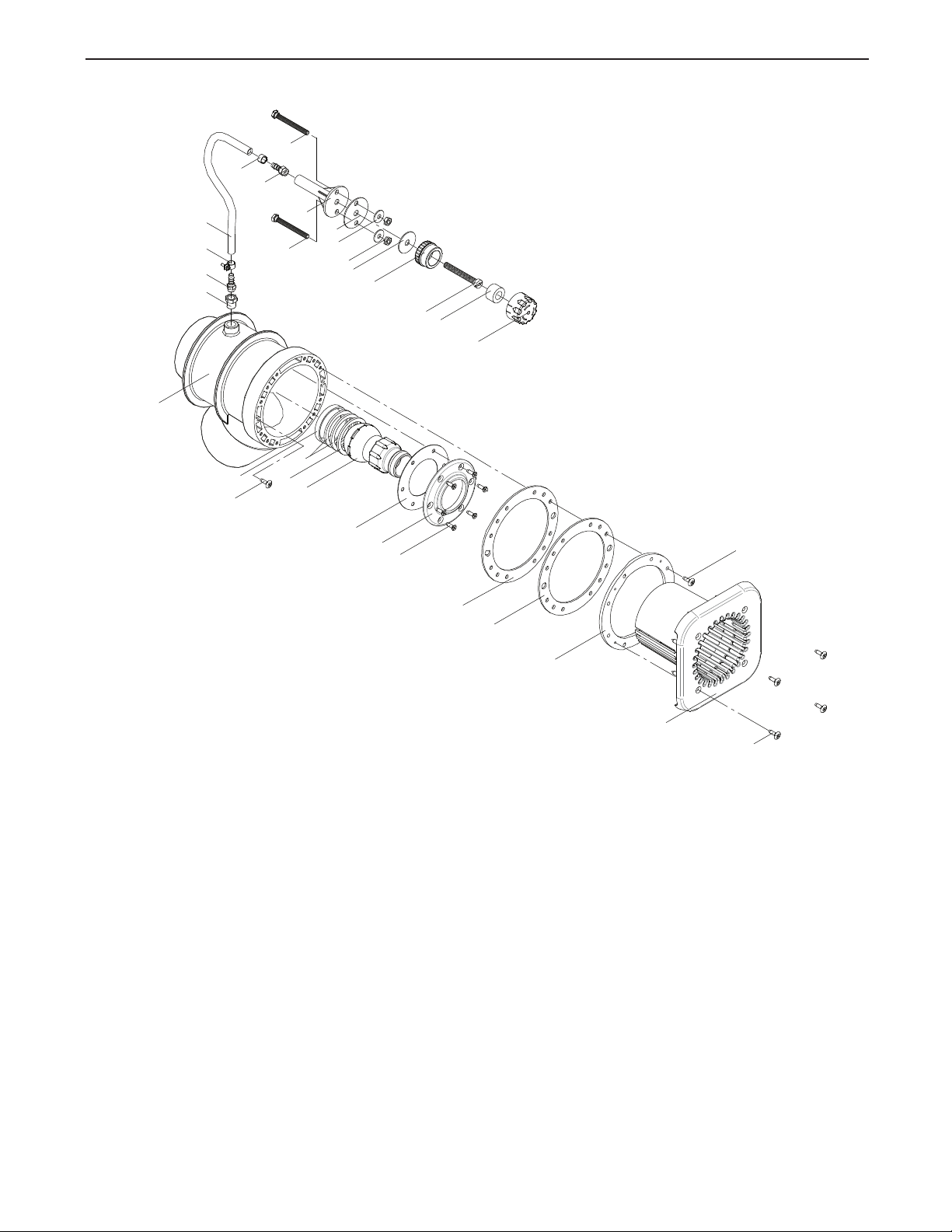

Key to illustration:
A. Flush mounted Jet Housing.
B. Square, Anti-Entrapment Cover (8 1/4" x 8 1/4")
undetectable pump suction. (Optional Round)
C. Adjustable Water Flow Jet Nozzle.
D. Air Regulator adjusts amount of air bubbles in
water flow.
E. Control Box with GFCI with pneumatic button
and tubing.
G. Optional Massage Hose with pulsator may be
attached to jet nozzle.
Counterstream Swimming Unit
U.S. Patent No. 3.977.027
OWNER'S MANUAL
The Speck II
Complies with UL 1563
Swimming Pool Equipment
Listing #E212148
F. Speck 4 HP or 3.5 HP self-priming, plastic
pump, single phase with thermal overload (no
motor starter required). Optional three phase
motor and control available (Normal priming
pump available for installation below water level).
II
®
®
®
D
B
C
A
G
F
E

TABLE OF CONTENTS
IMPORTANT INSTALLATION TIPS IN BOLD PRINT
2
1. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . Page 3
2. Introduction and Planning . . . . . . . . . . . . . . . . . . .. . . . . .Page 3
3. Plumbing for Badu
®
Stream II . . . . . . . . . . . . . . . . . . . . . . Page 4
4. Concrete or Gunite Installation . . . . . . . . . . . . . . . . . . Page 5
5. Liner and/or Fiberglass Pool Installation . . . . . . . . . . . . Page 6
5a. Removal of Liner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
6. Plumbing Suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8-9
7. Installation of the Pump and the Control Box . . . . . . . . . Page 9
8. Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
9. Winterizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
10. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . Page 10
11. Parts List for Badu
®
Stream II . . . . . . . . . . . . . . . . . . . Page 11
12. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12

1. Important Safety Instructions
A. READ AND FOLLOW ALL INSTRUCTIONS.
WARNING
!
2. Introduction and Planning
!WARNING
!WARNING
!WARNING
!WARNING
3
Wheninstallingandusingthiselectricalequipment,
basic safety precautions should always be
followed, including the following:
B. : To reduce the risk of injury, do not
permit children to use this equipment unless they
are closely supervised at all times. Failure to
adhere to this and all other warnings could result in
serious injury or death.
C. A licensed electrician is required for all wiring
connections.
D. TO REDUCE RISK OF ELECTRICAL
SHOCK, connect all ground wires to grounding
terminal located in the control box. Use no smaller
than a No. 12 AWG (3.3 mm
2
) wire.
E. TO REDUCE RISK OF ELECTRICAL
SHOCK, a bonding connector is provided on the
motor for bonding of local ground points such as
water pipes, metal ladders/handrails, or other
metal within 5 feet of the pool. All local ground
points should be bonded with a No. 8 AWG (8.4
mm2) wire. Never use gas piping as an electrical
ground.
F. All electrical equipment should be installed in
accordance with local codes.
The BADUSTREAM II has no protruding parts,
ensuring the pool user's safety. It is very compact
and installs at minimal cost.
The BADUSTREAM II is normally incorporated
into the original pool design. However, it can be
added to any pool at a later date.
The BADUSTREAM II can be installed in any
size pool. We suggest a minimum pool size of
7 ft. wide, 14 ft. long and 3 1/2 ft. deep in
order to swim. Most prefer 16 ft. in length or
longer. The extra length allows the swimmer to
comfortably drift back and swim up stream. The
BADUSTREAM II is complete with jet housing,
4 HP or 3.5 HP pump, control box, and
optional massage hose. The only additional
requirement is the plumbing. (4" pipe for 4 HP
and 3" pipe for 3 HP units.)
G. DO NOT store or use gasoline or other
flammable vapors or liquids in the vicinity of this
equipment. DO NOT store pool chemicals near the
equipment.
H. DO NOT remove any safety alert labels such
as DANGER, WARNING, or CAUTION. Keep
safety alert labels in good condition and replace
missing or damaged labels.
I. Keep and read all equipment manuals. Adhere
to all of their instructions.
J. : Stay alert, watch what you are doing
and use common sense. DO NOT use unit if you
are tired and/or exhausted. DO NOT use unit while
under the influence of drugs, alcohol, or any
medications.
exercising with the BADUSTREAM II or using the
massage hose.
K. : Consult your physician before
BADUSTREAM II if the square, anti-entrapment
cover is missing, broken or loose.
L. : DO NOT use or operate the
M. SAVE THESE INSTRUCTIONS! Refer to them
frequently and use them to instruct third party
users.
Consult local codes for minimum distance between
pump and pool. Locate pump as close to the
BADUSTREAM II as practical.
Use at least 4" pipe when distance between jet
housing and pump is 30 ft. or less and 6" pipe
for runs longer than 30 ft.
The 4 HP, self-priming, plastic pump has a
single phase motor with thermal overload (no
motor starter required). The 4 HP single phase
motor draws a maximum of 19.4 amps @ 230 V.
The unit requires a minimum circuit of 30 amps.
Install a 40 amp breaker to avoid nuisance
tripping when the pump is turned on and off
frequently. The starting current of the 4 HP
motor can reach up to 6 times the running
currents.(Three phase motordraws a maximum
of 12.8 amps @ 230 V and 6.4 amps @ 460 V.)
The 3.5 HP single phase motor draws 13.6
amps @ 230 V.

3. Plumbing for II
!CAUTION
!CAUTION
!CAUTION
!CAUTION
CAUTION
CAUTION
PLUMBING REQUIREMENTS
Pump Distance Pipe Size Approx. flow Pressure
Three Units (2) 4 HP 10 to 30 ft. 4” 700 GPM 16 PSI
up to 50 ft.* 6” 700 GPM 16 PSI
Two Units 4 HP 10 to 30 ft. 4" 380 GPM 14 PSI
up to 50 ft.* 6" 400 GPM 14 PSI
One Unit 4 HP 10 to 30 ft. 4" 270 GPM 18 PSI
up to 50 ft.* 6" 260 GPM 18 PSI
One Unit 3 HP 10 to 40 ft. 4" 200 GPM 12 PSI
up to 50 ft.* 6" 200 GPM 12 PSI
4
* 6" pipe will allow distances of well over
50 ft. However, control box needs to be
within 50 ft. for the pneumatic on/off
button to function properly.
Fig. 1
®
II
!
!
The BADUSTREAM II assembly package contains
all necessary parts for the installation of the unit
into concrete, gunite, liner or fiberglass pools.
: All necessary screws and bolts included
with the BADUSTREAM II are stainless steel or
plastic. ALL screw threads and threaded inserts are
METRIC! ONLY METRIC bolts and nuts may be used!
The two exceptions are the connecting thread for
the intake and delivery connections on the
BADUSTREAM II and pump housing and the hardware
for the air regulator assembly. The intake and delivery
connections on the pump model 21-80 are 3" NPT
threads and 4" slip (3" on pump model 98). The air
regulator assembly hardware is US standard thread.
: The center of the housing (the nozzle)
should be 10" BELOW water level for maximum
efficiency. The air regulator should be approximately
4" ABOVE the water level. (See fig. 3.)
: When connecting the pressure line to the
pressure connection on top of the 4 HP Pump Model
21-80, first install a 15 cm (6") riser (fig. 1) before
installing an elbow and leading the pressure line
downward to the pressure connection at the jet housing.
This will guarantee trouble-free priming of the pump.
(Not required for the 3.5 HP Model.)
: The suction line should run below water
level right up to the pump location.
: In areas with soft soil conditions or with
frequent earth movement, a flexible section of hose
should be attached to the back of the jet housing to
prevent housing breakage.
: Throughout the entire installation, make
sure plumbing connected to the BADUSTREAM II
housing is well supported. Unsupported plumbing
will crack the BADUSTREAM II housing.
(Below Water Level)
4"
4"
4"
4"
4"
2 "
Minimum
Horizontal
10 "
Maximum 4 Feet
Disconnect
Service
Water Level
Pump
Pressure Line
NOTE: Valves are recommended when pump
is installed below water level.
max. 30 feet with 4 " pipe
Air Regulator
Discharge Line
Vertical
Check Value (Optional)
Vertical Suction Line
6 " Riser
Control Box
Valves (Optional)
BaduStream II
Discharge Line
Horizontal Suction Line

Fig. 2

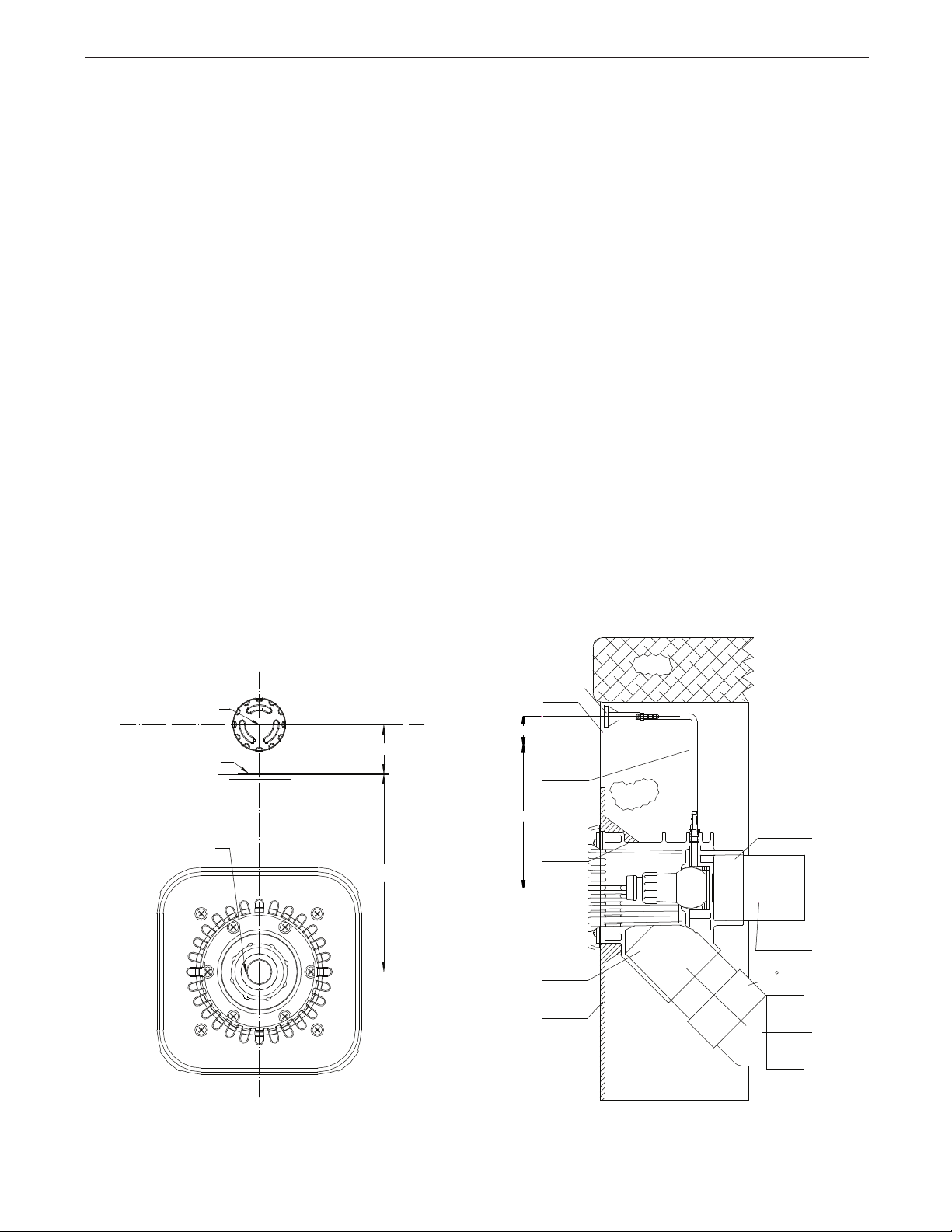

Template for Installation in Gunite or Concrete Pools. BADU STREAM II in Concrete or Gunite Pool.
4. Concrete or Gunite Installation
5
A. Preplumb BADUSTREAM II Housings.
1. Install plumbing manifold or approximately 12" of 4"
SCH 40 pipe to both suction and discharge fittings on
the jet(s) housing. NOTE: If plumbing exceeds 30'
between jet housing and pump, increase pipe size to
6". Install a 6x4" reducing bushing as close to jet
housing as possible.
1. Locate air control hose connector (part #6) at the
top and center of jet housing. Air control hose
connectors must be vertical or the square cover will
be uneven in appearance.
C. Place jet housing into reinforced steel. Jet housing
location is very important.
B. Tape jet housing. Keep concrete out of threaded
inserts and out of the inside of the housing.
2. Install air control PVC hose to hose socket insert
fittings (part # 6). Use hose clamps to secure hose to
insert fitting.
2. The center of the housing (the nozzle) should be
10" BELOW water level for maximum efficiency.
3. Front edge of jet housing should finish even with
inside gunite wall. Make sure a V shaped groove is
scraped out around the housing approximately 1 1/2"
deep to allow marcite to seal against the housing.
4. Recheck location of the jet housing when gunite is
being applied. The force of the gunite may move the
jet location.
5. To avoid stress on the jet housing, we recommend
that the BADUSTREAM II housing be encased with
gunite and at least 2 to 3 inches of the plumbing stub
out is covered with gunite. NOTE: Stress on the
plumbing may crack the BADUSTREAM II
housing.
D. Air regulator installation should be approximately
4" ABOVE the water level.
1. Air regulator holder and hose socket insert fitting
connect to PVC hose. Make sure air regulator holder
face is tapped over to prevent gunite from entering
holder.
2. Air regulator can be located in the tile line above
water line or in the deck.
E. Keep all parts not being used now in original box.
Store in a safe place until needed.
An extension ring is available (upon request) for an
application that has special needs.
Air Regulator
2" Minimum
10"
Plaster
Suction
Pipe
Fitting 4"
45 Elbow
Fitting 4"
Concrete
Wall
Housing
Water Level
Air Line
Tile
Deck
Pressure
2" Minimum
10"
Nozzle
Water Level
Air Regulator
®
Fig. 3

Fig. 4
Housing
Fig. 5
5. Liner and/or Fiberglass Pool Installation
!CAUTION
!CAUTION
6

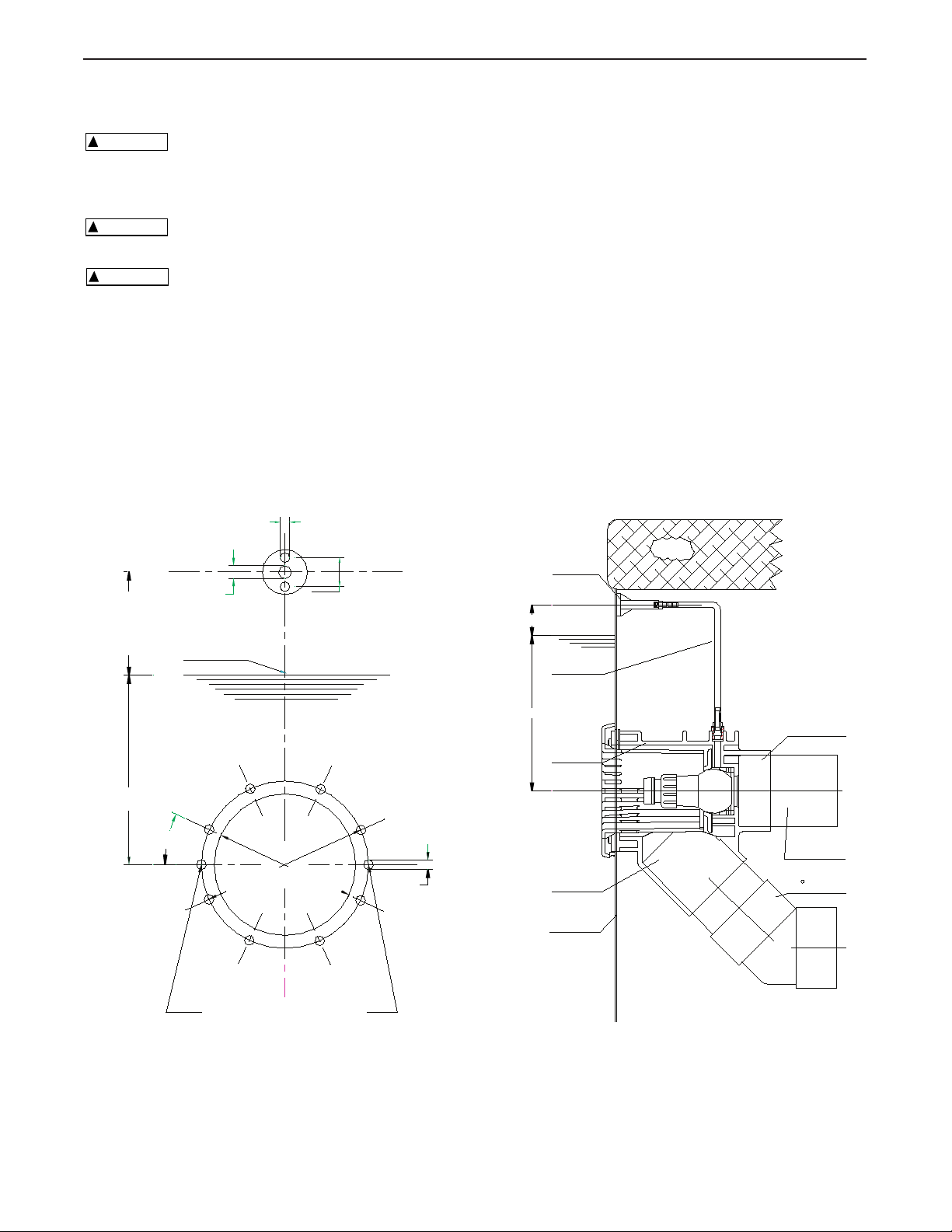

BADU STREAM II in Liner or Fiberglass Pool
Cutout Pool Wall for BADU STREAM II
: Locate the air control hose connector
(part #6) at the top and center of the jet housing.
Connectors must be exactly vertical or the square
cover will be uneven in appearance.
!CAUTION
: Center of Housing should be 10" BELOW
water level for maximum efficiency.
: Clamping ring gasket (part # 12) goes
in FRONT of pool wall. A good RTV silicone may be
used with gasket when mounting jet housing, but in
most cases is not necessary. Installer should decide
whether or not silicone is necessary.
For Fiberglass pools only, the clamping ring (part #
3) can be used to mark and drill the holes as shown
in Fig. 4. For the air regulator, one 1/2" hole must be
provided, preferably along the vertical axis,
approximately 4" ABOVE the water line.
For Liner pools only, two holes at the horizontal
axis of the jet housing and the two holes on the air
regulator will allow both housing and air regulator to
be mounted to the pool wall before the liner is
installed. Use the two plastic M6 counter sunk bolt
(part #18) and two M6 nuts (part #19) (bolt heads on
poolside and nuts on backside) to mount the air
regulator and two screws (part #27) to mount the
housing. This will keep the holder and jet housing
attached to the pool wall during installation or
replacement of liner.
Water Level
1.70"
0.25"
25°
.3"
6.54" dia
5.59"dia
0.5000
10 " 2 " minimum
For Liner Pool ONLY
Liner &
Air Regulator
2" Minimum
10"
Wall
Suction
Pipe
Fitting 4"
45 Elbow
Fitting 4"
Housing
Water Level
Air Line
Deck
Pressure
®®

5a. Removal of Liner
7
Fig. 6
BADU STREAM II dimensional drawing
When replacing liner or removing liner for repairs;
remove 4 bolts (part #9/1) which hold square cover
(part #8) to jet housing. Remove all bolts (part #9/2 &
9/3) except top two, which hold the clamping ring
(part# 3 and gasket (part #12) to jet housing. Back
out the two remaining bolts approximately halfway
and check for any movement of jet housing from the
wall. (NOTE: If the two counter sunk bolts (part# 27)
which hold the jet housing to the wall were installed,
the jet housing should not move, and the two
remaining bolts can be removed.)
Remove one of the remaining two bolts and slide
clamping ring (part #3) to the side. Replace all the
bolts before removing the last bolt. Remove or
replace liner. Reverse process to install liner.
NOTE: When replacing clamping ring and bolts:
locate bolt heads under liner, make small cut on liner
at the bolt heads and push liner over bolt head.
.79"
5.59" 8.27" 6.54" 7.32" 4.72"
8.78 " 2.84"
4.49" 4.92 "
1.97"
1.97"
4.49"
4.92 "
®

6. Plumbing Suggestions
8
Fig. 7
BADU STREAM II single housing installation
Fig. 8
BADU STREAM II dual housing installation
4" Elbow 4"Elbow45
4"Pipe
4"Elbow
4"Pipe 4"Pipe
4 " Pipe
10" to 18"
NOTE: Increase pipe size to 6" when jets are
more than 30 feet from pump. Use 6" x 4"
bushings after 4" manifold tees.
4" Elbow 45
4" Pipe
4 " Tee
4" Pipe 4" Pipe
4" Elbow45
4" Pipe
4 " Elbow
4" Pipe
4 " Pipe
4" Pipe
®
®
To Pump
From Pump
From Pump
To Pump

7. Installation of the Pump and the Control Box
!CAUTION
!WARNING
9
Fig. 9
BADU STREAM II triple housing installation
: Before installing the Speck Pump, read
the entire pump owner's manual found in the pump
box.
Consult local codes for minimum distance between
pump and pool. Locate pump as close to the pool as
practical.
The air button works up to 50 ft. There is 50 ft. of air
tubing in BADUSTREAM II box.
: To reduce the risk of injury, do not permit
children to use this product unless they are closely
supervised at all times.
The wiring of the pool motor and control box should
be done by a licensed electrician in accordance with
local codes. Be certain that the motor frame and
control box are grounded. Motor name plate has
voltage, phase, amp draw, and other motor
information as well as wiring connection instructions.
BONDING: As required by National Electrical Code
Article 680-22, the pump motor must be electrically
bonded to the pool structure (reinforced bars, etc.) by
a solid copper conductor not smaller than No. 8 AWG
via the external copper bonding lug on the pump
motor.
GROUNDING: Permanently ground the pump motor
and control box using a conductor of appropriate size.
Connect to the No. 10 green headed ground screw
provided inside the motor terminal box.
NOTE: Do not connect to electric power supply until
unit is permanently grounded.
Section 6 concerns the electric motor and control box
only since all other parts, the pump, the jet unit, etc.
have complete and absolute separation from the pool
water.
Pump #2
From
10" to18"
NOTE: Check valves must be used on the discharge
side of each pump. Minimum 4" pipe between pump
and BaduStream plumbing manifold.
NOTE: Increase pipe size to 6" when jets are
more than 30 feet from pump. Use 6" x 4"
bushings after 4" manifold tees.
10" to18"
4" Pipe
4" Pipe
4" Elbow 45
4 "Tee
4"Pipe
4" Pipe
4" Elbow 45
4" Pipe
4 " Tee
4" Pipe
4 " Pipe
4" Pipe
4" Elbow 45
4" Pipe
4 " Tee
4" Pipe4" Pipe
®

10. Frequently Asked Questions
8. Operation Instructions
!WARNING
9. Winterizing
10
Remove red filler plug or stainer tank lid on pump and
fill pump with water. Replace red filler plug or lid.
Push pneumatic button on. For the first start-up allow
approximately 5 minutes for the pump to prime. If the
pump has not started priming after 5 minutes, the
amount of water in the pump was not sufficient. Add
more water.
To start swimming, jogging or running it is suggested
that the two nozzles are pointed slightly inward and
slightly upward so that the water "breaks"
approximately 3ft. in front of the BADUSTREAM II
Start swimming with only minimal force in arms and
legs until you feel yourself drifting backwards, then
add force and swim upstream until a proper balance
is found between force and endurance.
Keep in mind that this unit is designed for a balanced
workout. Find a pace that you can keep up for at least
20 minutes. Out pacing is always possible. The idea
is to continue exercise for an extended period of time.
Consult your physician before attempting any
strenuous exercise. This product may not be
challenging or satisfying for all levels of exercise.
The air regulator permits a controlled mixture of air
into the water flow and creates a unique, invigorating,
bubble bath effect. It will also add additional
resistance to swim against.
BADUSTREAM II's adjustable flow nozzle enables
swimmer to regulate the volume of water released
through the jet(s). Turning the nozzle clockwise
reduces the flow.
The swivel nozzle(s) of the BADUSTREAM II can
be positioned in various directions, allowing
swimmers to use various swim styles.
OPTION: A pulsating massage hose can be attached
to one of the nozzles for massages. (Ask your dealer
for availability.) Use massage hose as advised by
your physician.
Directions for use: Consult your physician before
using the massage hose. To reduce the risk of injury,
do not permit children to use the massage hose with
pulsator unless they are closely supervised at all
times. Close air regulator. Reduce the volume of
water by turning the adjustable flow nozzle(s)
clockwise.
Under certain conditions it is possible that the current
"drifts off" the the left or the right from the middle due
to water bouncing off the back wall. In the event that it
interferes with your swimming action, turn unit off for
a few minutes and restart.
Do not use or operate the BADUSTREAM II
if the square, anti-entrapment cover is missing, broken,
or loose.
In areas subject to freezing water temperatures, protect
pump by removing drain plug and red filler plug (or lid).
Drain pool until water level has dropped below the square,
anti-entrapment cover. Alternatively purchase a winter
cover kit part # 2308752006K.
What size pool do I need? The BADUSTREAM II
can be installed in any size pool. However, we
recommend a minimum length of 14' and a minimum
width of a swimming lane.
What size plumbing is necessary? How far away
from the
BADUSTREAM II can the pump be installed?
Use a 4" plumbing up to 30'. For runs longer than 30'
use 6" plumbing. The pump can be placed as close to
BADUSTREAM II as local codes will allow.
How many amps does the pump operate at?
4 HP: Maximum 19.4 amps @ 230 V
3.5 HP: Maximum 13.6 amps @ 230 V
What size breaker do I need? You must use a 40
amp breaker for the 4 HP pump or 30 amp breaker for
the 3 HP pump to avoid nuisance tripping.
Does it matter if the housing is installed higher or
lower than the manual states? Yes, the center of
the jet must be 10" BELOW estimated water level for
proper performance of unit.
Can the air regulator be placed elsewhere? Yes,
as long as it is not continuously flooded with water.
Can the pump be placed below water level? Yes.
However, for best performance we recommend
ordering pump for flooded suction (Model 21-80/33G)
instead of self-priming (Model 21-80/33 GS). We
recommend installing valves for ease of maintenance.
How far away can the air button function
properly? A maximum of 50'. Consult factory for
distances over 50'.
Do I need to install a motor starter? No the pump
has a built-in thermal overload.

11. Parts list for BADU STREAM II
11
®
Part # Qty Description
11Face Ring - Nozzle
26Screw - Tapping 5.5 x 19
31Clamping Ring
41N
ozzle (adjustable flow)
51Bushing
61Hose Connector 1/4"
71Housing
81Square Cover
9/1 4 Bolt - M6 x 25
9/2 8 Bolt - M6 x 20
9/3 8 Bolt - M6 x 25
9/4 8 Bolt - M6 x 40
9/5 4 Bolt - M6 x 45
10 1 Seat - Nozzle
11/1 1 Spacer Ring - 6.2
11/2 2 Spacer Ring - 4
12 2 Gasket - Clamping Ring
13 1 Gasket - Face Ring
Part # Qty Description
(14-21) 1 Holder W/hose Subassembly
14 1 Hose Fitting - 1/4"
15 1 Hose - 8 x 3
16 2 Hose Clamp 14/9
17 1 Holder - Air Regulator
18 2 Bolt - 1/4-20 x 1-1/2"
19 2 Nut - 1/4-20
20 2
21 1 Gasket 60 x 11 x 2
(22-26) 1 Subassembly Complete
22 1 Top Part - Air Regulator
23 1 Bottom Part - Air Regulator
24 1 Bolt -Air Regulator M10 x 80
25 1 Hose Ring - Air Regulator 16 x 30 x 80
26 1 Gasket - Air Control 42 x 11 x 2
27 2 Screw - Jet Housing 14 x 1"
*1 Extension Ring (pre-glued) (not shown)
Washer - 1/4"
* Extension ring
An extension ring (not shown) is available (upon request).
Optional Winter Cover Kit:
Part # Qty Description
Winter Plate (not shown)
12 1 Gasket - Clamping Ring
9/1 4 Bolt - M6 x 25
1
16 14
17 21
18 20
19
26 23
24 25
22
15
16
6
5
7
11/1
11/2
10 4
13 12
12 12
3
8
9/1
9/29/39/4
27
18

12. Limited Warranty
Date of Installation:
Installed By:
For Service Call:
8125 Bayberry Road
Jacksonville, Florida 32256 USA
Phone [phone] Fax [phone]
e-mail: [email protected]
website: www.usa.speck-pumps.com
SAVE THESE INSTRUCTIONS!
POOL PRODUCTS, INCORPORATED
The manufacturer supplies a limited warranty to the
original consumer purchaser of the BADUSTREAM II
on the following terms and conditions:
1. The BADUSTREAM II is warranted to be free
from defects in material and workmanship for a period
of twelve (12) months from the date that the
BADUSTREAM II is originally installed.
2. Notwithstanding any provision herein to the contrary,
the warranties and obligations hereunder shall not
in any event extend for more than 2 years beyond
the date of shipment of the BADUSTREAM II from
Speck Pumps-Pool Products, Inc. in Jacksonville,
Florida.
3. Warranty is void in the following cases: damages
which result in whole or in part from: (a) careless or
improper installation of the BADUSTREAM II; (b)
improper or negligent use and maintenance of the
BADUSTREAM II; (c) tampering with the
BADUSTREAM II by unauthorized repair personnel;
(d) ground movement; (e) substitution of parts and/or
components.
4. The manufacturer's sole obligation hereunder shall be
to replace or repair any defective BADUSTREAM II.
The manufacturer reserves the absolute right to
determine whether any defective BADUSTREAM II
should be replaced or repaired.
5. Any customer who wishes to make a claim under
this Limited Warranty shall notify Speck Pumps, of
such claim by telephone or by mail. After the
customer has been authorized to return a defective
BADUSTREAM II, the customer must return the
BADUSTREAM II to Speck Pumps.
Any goods returned to Speck Pumps without prior
authorization will be returned to the shipper unopened.
Speck Pumps shall not bear any costs or risks
incurred in shipping a defective BADUSTREAM II,
to Speck Pumps or in shipping a repaired or replaced
BADUSTREAM II to a customer.
6. Speck Pumps will charge customers for all non
warranty work which it may perform. Warranty work
will not be performed until the customer has
accepted the price quoted.
7. Except as specifically set forth above, no other
warranties, whether express or implied, including
without limitation, the implied warranties of
merchantability and fitness for a particular
purpose, are made by the manufacturer. In no
event will the manufacturer be liable for any loss,
including time, money, goodwill, lost profits and
consequential damages based on contrast, tort
or other legal theory, which may arise hereunder
or from the use, operation or modification of the
pump, motor or associated parts. The maximum
liability of the manufacturer hereunder shall not
exceed the amount actually paid by the customer
for the pump, motor and associated parts.
8. Some states do not permit limitations on the terms
of implied warranties or on the recovery of incidental
or consequential damages. Accordingly, the
limitations contained in paragraph 7, may not apply
to certain customers.
9. This warranty gives customers specific legal rights
which may vary from state to state. The
BADUSTREAM II is manufactured under license
from Speck Pumpen, GERMANY.
