EBARA EPD Manual

Model EPD, EPPD
Instruction and Operation Manual
PRO Drainer
Submersible Pumps
EBARA International Corporation Standard Pump Division
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Thank you for purchasing this Ebara Stainless Steel Sump
Pump. We hope you are pleased with your purchase and
that our pumps will provide you with long service life and
exceptional performance.
To ensure satisfactory service life, there are several consid-
erations regarding proper installation, operation and power
source. Please review the recommendations outlined within
the installation and operation manual.
Please contact your supplier (supplying dealer or contractor)
if service is necessary or if you have any questions or need
further assistance.
Please retain the following information for your records and
to help expedite service:
Purchase Date: ____________________________
Purchased From: ____________________________
____________________________
Serial No: ____________________________
(Located on the pump nameplate)
Note: For assistance locating the serial number and name plate, please
refer to page 17 of your owner’s manual.
CALL 1-800-577-8111 FOR SALES AND SUPPORT

EPD, EPPD
Important Safeguards
To reduce risk of injury, always follow these instructions and safety precautions
when using this pump and to maintain warranty.
Read All Instructions Prior to Installation
(SAVE THESE INSTRUCTIONS)
Installation/Operation:
• Never lift or carry pump by the electrical cord. Use a chain or rope affixed
on handle to install/remove pump. To reduce potential damage to the pump
from inadvertent lifting by the electrical cord, please refer to “Proper Lifting”
located on the following page.
• This pump must be operated fully submerged. Pump must be shutdown if
sump, pit or pond level drops below the motor housing.
• Pump is designed to pump clean water (maximum temperature of 122••F)
with suspended solids up to 3/16 of an inch. Larger solids will clog the
suction strainer plate leading to dry running and subsequent failure (
Note:
Pumping sand, gravel, and other hard debris will shorten the life of the
pump)
. Elevate the pump with bricks or other support above the sump, pit or
pond bottom if debris is present. Consult dealer for other fluids.
• Clean filter basin when cleaning inlet filter media when pump is shutdown.
• If used with a float switch, the float must have a full range of motion to
operate properly without obstruction. Consult dealer for minimum dimensions
required for proper float operation.
• Pump should be mounted upright only (vertical). Never lay the pump on its side.
Electrical Requirements:
• Pump must be operated with a GFI breaker of at least 20 amps.
• High OR Low Voltage can damage the pump. Power from your utility or generator
set cannot be more or less than 10% of the rated voltage on the pump.
• Maximum distance from power source and pump must not exceed 100 feet
using 16/3 electrical cables. This distance is from the breaker box and
includes the pump cord. If the run is longer, consult a qualified electrician or
your dealer.
• Lightning strikes can destroy the capacitor in your pump. Ensure proper
protection is provided.
• Consult operator manual for other operation and application information.
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

EPD, EPPD
Important Safeguards
Proper Lifting:
A separate chain or rope should be attached to the handle for normal lifting.
Please note that this will help prevent damage due to inadvertent lifting of
the pump by the power cord.
Rope attached to automatic pump
for lifting and installation.
Rope attached to manual pump for
lifting and installation.
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Section Page
General Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Information and Introduction & Specifications . . . . . . . . . . . . . . . . . . 7
Materials/Tools & Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pump Inspection & Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fixed Application Diagram & Performance Table . . . . . . . . . . . . . . . . . . . . 11

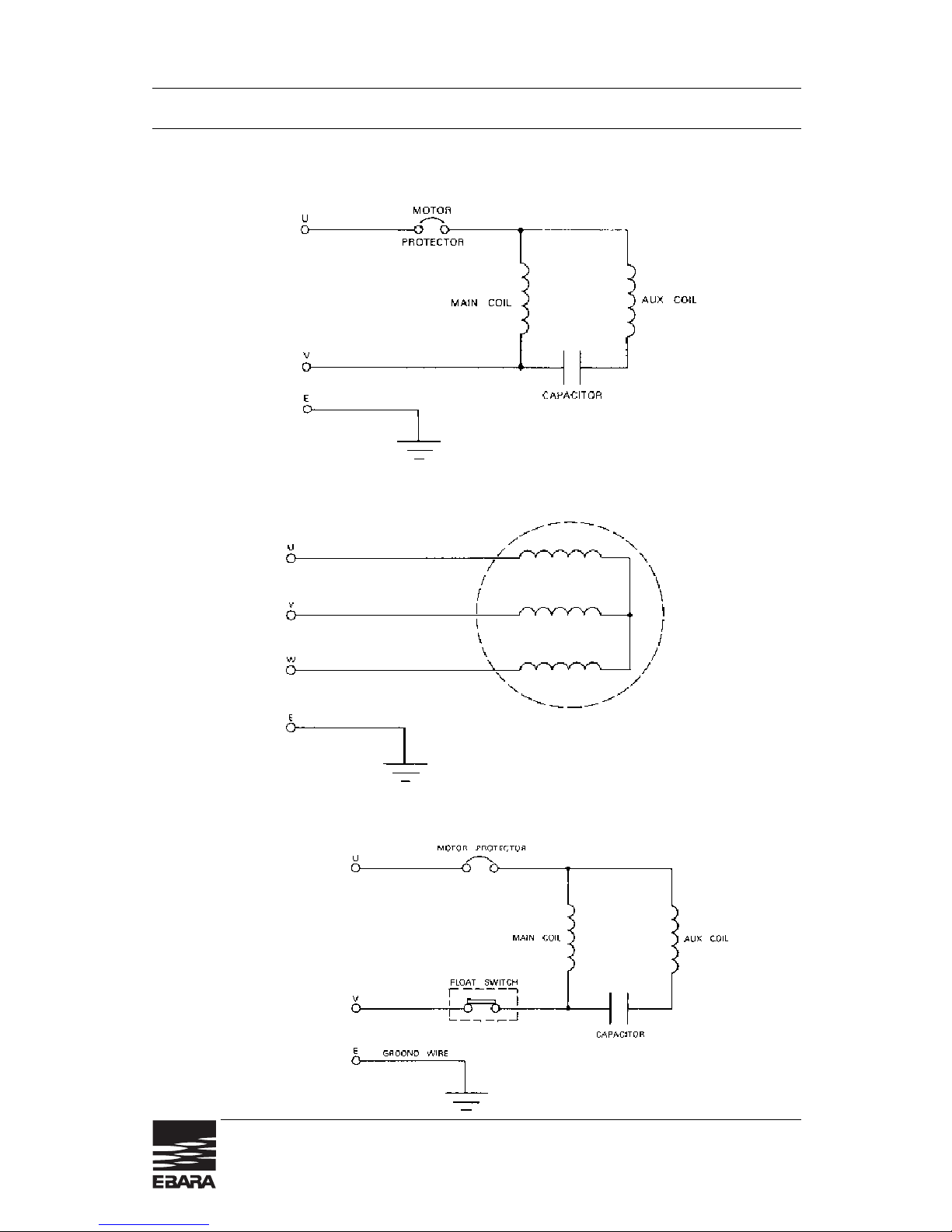

Manual Operation Type Motor Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . 13
Automatic Operation Type Motor Wiring Diagram . . . . . . . . . . . . . . . . . . . . 13
Three Phase Motor Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Nameplate Data & Model No./Item No. Explanation . . . . . . . . . . . . . . . . . . 17
Troubleshooting Checklist & Maintenance Info . . . . . . . . . . . . . . . . . . . . . . 18
Date Code Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Sectional View & Parts Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Disassembly & Assembly Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
The Sump and Installation
If your basement does not currently have a sump installed, it would be necessary to
check local plumbing codes as to the acceptable type of sump that may be used.
Materials commonly specified are: clay tile, fiberglass, steel, concrete and polyethylene.
It may be necessary to cut a hole in the basement floor and excavate
for the sump.
Plumbing and electrical contractors could advise you on proper installations of drain
tiles, sump, pump and electrical service. EBARA recommends that a solid sump base
be provided. The sump is fed by drain tile placed around the outside and/or inside base-
ment walls at the footings. If applications where a gravel base must be used, to relieve
hydraulic pressure under the basement floor, be sure to provide a permanent and solid
base for the pump (bricks or a steel plate). A sump cover capable of supporting 200
pounds should be employed to contain odors and for obvious safety reasons.
Electrical Installation
Electrical service for any sump pump installation must be grounded and separately fused
or breakered directly from the entrance box with a single grounding type receptacle at
the pump. The receptacle should not be less than four feet above the basement floor for
Contents
General Application Information
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

safety reasons. You should never touch a sump pump or discharge piping while the
pump is connected to electrical power and water is present. The pump should be
disconnected from the electrical source before handling in all cases.
Discharge Piping Installation
To assure the maximum performance from your sump pump, the discharge pipe size
and piping fittings should not be smaller than the discharge port of the pump. Smaller
pipe will add to friction losses and reduce the capacity of the pump. Normally accepted
materials are galvanized pipe, rigid plastic pipe or
acceptable flexible pipe or hose. A piece
of flexible hose between the pump discharge
and the discharge piping will provide for ease
in alignment, reduce vibration and noise, and will act as a union when it is necessary to
remove the pump. Where the discharge pipe is long, a check valve is often employed to
prevent the water from flowing back into the sump when the pump turns off. If the discharge
is directed into a sanitary sewer, a suitable anti-siphon device or a free flow check valve
should be inserted in the line to prevent backflow into the pit. Sump pumps are not
designed to handle raw sewage. Do not attempt to adapt one for this type of application.
A sewage ejector pump especially designed to handle solids must be used.
Pump Installation
When the sump, electrical and discharge plumbing installation is complete and ready for
the pump, clean all solid debris from the pit. Complete the plumbing connection to the
pump and then plug the pump into the electrical outlet. A few extra minutes to test the
sump pump installation are now in order. Fill the sump with water, note the turn on and
turn off level of the pump, and the pumping cycle. This will allow you to calculate the
approximate discharge flow of the pump system. If everything is operating properly,
install the sump cover.
Pump Selection
The pump should be of sufficient capacity and head to satisfy anticipated use require-
ments. Capacity is determined by a fixture unit value if effluent is drained to sump basin.
Your local Wholesaler can assist you in fixture unit values.
Basement perimeter water intrusion varies by area and region. Typically a 1/3 HP or 1/2
HP DRAINAGE PUMP WILL EVACUATE MOST HOME SUMP PITS.
Commercial and industrial drainage applications require that calculations of pumping
volume and pumping head be performed to determine the proper size pump is applied.
NOTE: Pumping volume may vary seasonally due to rainfall and area run-off.
General Application Information (cont.)
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Basin and Cover
The basin should not be less than 18 inches in diameter and 24 inches deep.
Larger diameters are advisable in instances of increased pump capacity requirements:
The basin should be located such that all water flows into the basin due to gravity.
Outdoor installations should be at a sufficient depth to ensure protection from freezing.
Maintenance Tips
•Every three or four months:
1) Clean the pump screen or inlet opening. If your sump collects the discharge
from an automatic washing machine, cleaning will be required more often. (Before
removing the pump be sure to disconnect the unit from electrical power; and
reconnect after completion of cleaning);
2) Pour enough water into the sump to cycle the pump and assure its proper
functioning.
•Annually:
Remove and clean the pump. Clean the sump pit also.
WARNING
Before handling this pump, always disconnect
the power first.
This pump should only be serviced by a qualified person or a factory
trained person.
CAUTION
This instruction manual includes necessary items for installation, operation and maintenance.
Read this manual carefully to ensure correct installation,
operation and maintenance.
Be sure to keep this instruction manual on hand for future reference.
Required Minimum
Pump Capacity Basin Diameter
up to 35 GPM 18"
over 35 GPM 24"
over 60 GPM 30"
over 100 GPM 36"
over 150 GPM 48"
General Application Information (cont.)
Safety Information and Introduction
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Check the nameplate for your pump’s head (HEAD), discharge volume (CAPACITY), speed
(SPEED), motor voltage and current. Other specifications are noted in the chart below:
ITEM NO. MODEL DISCHARGE MOTOR MOTOR WEIGHT
DIA. OUTPUT PHASE VOLTAGE
MANUAL OPERATION INCH (HP)
EPPD-3MS1 32Z707U6.3S 11/41/3 1 115 11
EPD-3MS1 32P707U6.3S 11/41/3 1 115 11
EPD-5MS1 40P707U6.6S 11/21/2 1 115 27
EPD-5MT2 40P707U6.62 11/21/2 3 230 27
EPD-5MT4 40P707U6.64 11/21/2 3 460 27
EPD-7MS1 40P707U6.9S 11/23/4 1 115 28
EPD-7MT2 40P707U6.92 11/23/4 3 230 28
EPD-7MT4 40P707U6.94 11/23/4 3 460 28
EPD-10MT2 40P707U61.12 11/21 3 230 31
EPD-10MT4 40P707U61.14 11/21 3 460 31
EPD-15MT2 40P707U61.32 11/211/23 230 31
EPD-15MT4 40P707U61.34 11/211/23 460 31
20 FT POWER CORDS – AVAILABLE ON MOST MODELS
ITEM NO. MODEL DISCHARGE MOTOR MOTOR WEIGHT
DIA. OUTPUT PHASE VOLTAGE
AUTOMATIC OPERATION INCH (HP)
EPPD-3AS1 32Z707AU6.3S 11/41/3 1 115 11
EPD-3AS1 32P707AU6.3S 11/41/3 1 115 11
EPD-5AS1 40P707AU6.6S 11/21/2 1 115 27
EPD-7AS1 40P707AU6.9S 11/23/4 1 115 27
20 FT POWER CORDS – AVAILABLE ON MOST MODELS
CAUTION
Be careful not to exceed the given specifications in the use of your products.
• Screw driver
• Pipe wrench
• Adjustable wrench (medium-large)
• Hacksaw with 24-tooth blade for cutting plastic pipe
• Knife or round file for smoothing inside of all plastic pipe connections
Specifications
Tools Needed
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

• PVC or ABS pipe cement (read manufacturer’s instructions carefully)
• PVC or ABS pipe;
– 11/4" for EPPD-3 & EPD-3
– 11/2" for EPD-5,7,10 & 15
• PVC adapter
– 11/4" for EPPD-3 & EPD-3
– 11/2" for EPD-5, 7, 10 & 15
• In line check valve
• Sump basin 18” or larger diameter plastic, fiberglass or concrete.
(See page 2 for minimum diameter basin size by pump capacity.)
• Optional: gate valve
(see installation drawing on page 6)
Step 1 Inspection: Your pump has been carefully packaged to prevent damage during
shipping. However, occasional damage does occur due to rough handling. Carefully
inspect the pump for damage that could cause it to fail.
Step 2: Attach desired length of PVC or ABS discharge pipe to pump outlet, using PVC
adapter (11/4" pipe and adapter for EPPD-3 & EPD-3 11/2" for EPD-5, 7, 10 & 15). Make
sure open end of pipe will be above top of basin.
Step 3: Clear sump basin of any water, debris or sediment.
Step 4: Lower pump into basin.
Step 5: Attach in line check valve to discharge pipe 12" to 18" above pump discharge
with arrow pointing away from the pump (with the flow). Connect other end of check
valve securely to drain pipe and tighten clamps.
Note: Do not put check valve directly into pump discharge opening.
Step 6: Drill a 1/8" relief hole in the discharge pipe 5" above pipe connection to pump.
Step 7: Plug in pump and fill sump basin with water to test unit. Pump should turn on at
13" to 14" water level. Allow pump to go through several ON-OFF cycles to assure satis-
factory operation.
Note: If pump does not operate properly, see the troubleshooting checklist on page 12.
Septic Tank Installation
The PRO•DRAINER pumps can be used to pump septic tank effluent, but must be
installed as follows:
• Install pump in separate compartment at the discharge side of the septic tank. Never
install pump in main tank where sludge collects.
• Use with a junction box.
WARNING: Sump basin must be vented in accordance with local plumbing codes.
These pumps are not designed for and CANNOT be installed in locations classified as
hazardous in accordance with the National Electric Code, ANSI/NEPA 70-1984.
Materials Needed
Installation Instructions
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

• Pumps are 115 V, 60 Hz and are grounded to prevent electrical shock.
WARNING: Risk of electric shock—this pump is supplied with a grounding conductor
and grounding-type attachment plug. To reduce the risk of electric shock, be certain that
it is connected only to a properly grounded, grounding-type receptacle.
• Use a separate 15 amp circuit breaker or 15 amp fuse block with the pump.
•Do not use an extension cord with the pump.
•Do not cut off the ground pin or use an adapter fitting.
•Do not work on the pump or switch until any or all power cords are unplugged.
1. Before installing or servicing your pump, BE CERTAIN pump power source is disconnected.
2. Installation and electrical wiring must adhere to state and local codes and must be
complete before priming pump. Check appropriate community agencies, or contact
local electrical and pump professionals.
3. CALL AN ELECTRICIAN WHEN IN DOUBT. Pump should be connected to a separate
15 amp circuit breaker or 15 amp fuse block. Plugging into existing outlets may cause low
voltage at motor, causing blown fuses, tripping of motor overload, or burned out motor.
4. Do not connect pump to a power supply until permanently grounded. For maximum
safety, ground pump to a circuit equipped with a fault interrupter device.
5. Voltage of power supply must match the voltage of the pump.
6. Before installing pump, clear sump basin of any water, debris, or sediment. WARN-
ING: Sump basin must be vented in accordance with local plumbing codes.
EBARA PRO•DRAINERS are not designed for and CANNOT be installed in
locations classified as hazardous in the National Electric Code, ANSI/NFPA 70.
7. The sump basin should be between 18" and 24" in diameter and made of plastic,
fiberglass, or concrete.
8. The following may cause severe damage to pump and will void warranty:
• Using an extension cord.
• Cutting off the ground pin or using an adapted fitting.
• Working on pump or switch while plugged in.
• Removing motor housing, unscrewing impeller, or otherwise removing impeller seal.
PIPING
Plastic PVC pipe is shown in the illustrations, but galvanized steel or copper pipe may
be used if desired. All piping must be clean and free of all foreign matter to prevent
clogging. Use thread compound on all threaded joints unless specified otherwise.
IMPORTANT INSTRUCTIONS BEFORE INSTALLATION
Failure to follow these instructions may cause serious bodily injury and/or property damage.
Electrical information
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Refer to the installation illustration on the following page for the following instructions. Be
certain sump basin is clean and all power to pump is shut off. If pump fails to operate prop-
erly after installation, refer to the troubleshooting checklist on page 12 or contact EBARA.
General Materials Needed
• One can PVC cement (read instructions carefully)
• One can thread compound (read instructions carefully)
• One male PVC adapter: 11/4" for 1/3HP; 11/2" for 1/2, 3/4, 1 & 11/2horsepower models.
• Enough rigid PVC pipe and couplings to reach from bottom of sump basin to discharge:
11/4" for 1/3HP; 11/2" for 1/2, 3/4, 1 & 11/2horsepower models.
• One Check Valve.
Tools Needed for all pump installations:
Pipe wrench, slot screwdriver, 24-tooth hacksaw, knife or round file.
Step 1 – Thread male PVC adaptor into pump discharge opening.
Step 2 – Cement a 15" piece of PVC pipe to adaptor. Use appropriate diameter piping.
Drill a 1/8" relief hole in the pipe 5" above pump connection. This hole prevents pump
from air-locking.
Step 3 – Clamp Check Valve to top of 15" PVC pipe with water flow arrow pointing
away from pump.
Step 4 – Lower pump into basin. Clamp needed PVC discharge pipe and fittings to
open end of Check Valve.
Step 5 – Plug in pump and fill sump basin with water. Pump should turn on at 13" to
14" water level. Perform several ON-OFF cycles to assure satisfactory operation.
TOTAL HEAD
ITEM NO
EPPD-3
1/3 HP
EPD-3
1/3 HP
EPD-5
1/2 HP
EPD-7
3/4 HP
EPD-10
1 HP
EPD-15
11/2HP
10
39
39
73
5
45
45
15
31
31
67
20
21
21
60
74
83
30
40
58
75
81
35
27
49
65
74
40
9
39
55
65
45
27
42
54
50
16
27
42
55
25
25
5
5
51
67
82
88
GPMGPM GPM GPM GPM GPM
TOTAL HEAD
Submersible Pump Installation
EPD, EPPD
Performance Table (Capacity in Gallons per Minute)
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

101/2" Min.
14" Min.
Bottom of
inlet pipe
Sump pump
Drill 1/8" relief hole 5" above pump
discharge
Discharge piping can be PVC or
ABS plastic with proper adapters, or
can be galv. steel
shut-off
gate valve
(optional)
Turn on level
Grounded type
115 volt receptacle
min. height above
floor – 4 ft.
133/8"
Turn-off level
Lifting handle
Mechanical float switch
*All equipment other than pump to be
supplied by others. Pump only supplied
by EBARA.
11/2" check valve
with rubber sleeve
connectors for
11/4" and 11/2" pipe
Sump basin 18" to 24" dia.
plastic, fiberglass or concrete
11"
PRO Drainer Submersible Installation Diagram
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Manual Operation Type Output (Three Phase)
• Output 1/3to 11/2HP
Automatic Operation Type Output (Single Phase)
• Output 1/3to 3/4HP
Manual Operation Type Output (Single Phase)
• Output 1/3to 3/4HP
Motor Wiring Diagram
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Electrical Wiring – Three Phase
WARNING
Check that the power is locked off and disconnected before working on
pump. All electric work should be performed by a qualified electrician and all
national and local electrical codes must be observed.
NOTE:
Use with approved motor control that matches motor input in full load amperes with overload
element(s) selected or adjusted in accordance with control instructions.
Utiliser un d é marreur approuv é convenant au courant á pleine charge du moteur et dont les
é l é ments thermiques sont r é gl é s ou choisis conform é ment aux instructions qui l’accompagnent.
(1) Wiring
a) Wire as indicated for the appropriate start system as shown in Fig. 4
b) Loose connections will stop the pump. Make sure all electrical connections are secure.
MOTOR WIRING DIAGRAM
• Model P707U
• Output 1/2to 11/2HP
(2) Cable
a) Never let the end of the cable contact water.
b) If the cable is extended, do not immerse the splice in water.
c) Fasten the cable to the discharge piping with tape or vinyl strips.
d) Install the cable so that it will not overheat. Overheating is caused by coiling the
cable and exposing it to direct sunlight.
(3) Grounding
As shown in Fig. 5 ground the green/yellow wire (label E). Under no circumstances
should the green/yellow wire be connected to the power supply.
(4) Use short circuit breakers to prevent danger of electrical shock.
OPERATION
1. Before starting the pump:
(1) After completing installation, measure the insulation resistance again as described in
INSTALLATION.
(2) Check water level.
If the pump is operated continuously for an extended period of time in a dry condition
or at the lowest water level, the motor protector will be activated in single phase units.
Constant repetition of this action will shorten pump service life. Do not start the pump
again in such a situation until after the motor has completely cooled.
(RED)
(BLACK)
(WHITE)
(GREEN/YELLOW)
Fig. 4
U phase: black
V phase: red
W phase: white
E phase: green/yellow
ground
plate
* Three phase only
Fig. 5
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Model EPPD-3AS1
EPD-3AS1
EPD-5AS1 and EPD-7AS1
Automatic Operation Pumps Performance: ISO 2548
Standard Optional
Discharge Size 1/3HP – 11/4inch
1/2HP and 3/4HP – 11/2inch
Range of HP 1/3, 1/2, and 3/4HP
Range of Performance Capacity 2.7 to 72 GPM
Head 9.3 to 57 feet
Limitation
Maximum Water Temperature 122°F/50°C
Solids
3
/8'' Spherical (2% by concentration)
Speed 3600 RPM
Materials
Casing 304L Stainless Steel
Impeller 304L Stainless Steel*
Shaft 303 Stainless Steel
Motor Frame 304L Stainless Steel
Fasteners 304L Stainless Steel
Shaft Seal (Double)**
Material – Upper Side NBR Fitted Carbon/Ceramic
1/2, 3/4, 1, and 11/2HP
Material – Lower Side Viton Fitted Silicon Carbide/Silicon
Carbide 1/2, 3/4, 1, and 11/2HP
Impeller Type Semi-Open
Bearing Sealed Ball Bearing
Motor Air-filled, Insulation Class F, 2 Pole,
Rated Continuous Duty–
Permanent Split Capacitor
Single Phase 115 Volt
Motor Protection Built-in Motor Protection with
Auto Reset
Power Cord UL/CSA SJTow-A with ECS No. 250
capplug with grounding pin –
20 Ft. Length
Rated 15 Amp 125V – NEMA 5-15P
Automatic Float Switch Mechanical Float
* ITEM NO. EPPD-3AS1 Model No. 32Z707AU6.3S – Impeller/Diffuser material is Thermo Plastic-
Noryl GFN2
** EPPD-3AS1 & EPD-3AS1 – 1/3HP Shaft Seal is Non-Mechanical Double Oil Seal (Rubber)
Specifications
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Model EPPD-3MS1
EPD-3MS1
EPD-5 to 15
Manual Operation Pumps Performance: ISO 2548
Standard Optional
Discharge Size 1/3HP – 11/4inch
1/2HP through 11/2HP – 11/2inch
Range of HP 1/3, 1/2, 3/4, 1, and 11/2 HP
Range of Performance Capacity 2.7 to 86 GPM
Head 9.3 to 61 feet
Limitation
Maximum Water Temperature 122°F/50°C
Solids 3/8'' Spherical
Speed 3600 RPM
Materials
Casing 304L Stainless Steel
Impeller 304L Stainless Steel*
Shaft 303 Stainless Steel
Motor Frame 304L Stainless Steel
Fasteners 304L Stainless Steel
Shaft Seal (Double)**
Material – Upper Side NBR Fitted Carbon/Ceramic
1/2, 3/4, 1, and 11/2HP
Material – Lower Side Viton Fitted Silicon Carbide/Silicon
Carbide 1/2, 3/4, 1, and 11/2HP
Impeller Type Semi-Open
Bearing Sealed Ball Bearing
Motor Air-filled, Insulation Class F, 2 Pole,
Rated Continuous Duty–Permanent
Split Capacitor
Single Phase 115 V
Three Phase 230V or 460V
Motor Protection†Built-in Motor Protection with
Auto Reset
Power Cord
Single Phase UL/CSA SJTOW-A with ECS No.
250 cap plug with grounding pin –
20 Ft. Length
Rated 15 Amp 125V – NEMA 5-15P
Three Phase UL/CSA STOW-A water resistant,
stripped end jacket removed 2''
and conductor stripped 5/8'' –
20 Ft. length
* ITEM NO. EPPD-3MS1 Model No. 32Z707U6.3S – Impeller/Diffuser material is Thermo Plastic-Noryl GFN3
** EPPD-3MS1 & EPD-3MS1 – 1/3HP Shaft Seal is Non-Mechanical - Double Oil Seal (Rubber)
† Three Phase models require user to provide motor protection
Specifications
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

EBARA PUMP
No. (Serial Number)
①
Model ➁
CAP. USGPM ➂➄
HEAD FT ➃➅
➆
PHASE INDUCTION MOTOR
➇ kW ⑨ HP 60 Hz
➉ VA
POLE 2 INS. CLASS F MAX. AMB. 122° F
MOTOR MODEL
NAME PLATE
12
ITEM No. DESIGNATION:
EXAMPLE:
EPD 3M S
1
HORSEPOWER
3 = 1/3 HP
5 = 1/2 HP
7 = 3/4 HP
10 = 1 HP
15 = 11/2HP
M – MANUAL
A – AUTOMATIC
S – SINGLE PHASE
T – THREE PHASE
1 = 115 VOLT
2 = 230 VOLT
4 = 460 VOLT
EBARA PRO•DRAINER
MODEL No. DESIGNATION:
EXAMPLE:
A: AUTOMATIC
NON: MANUAL
OUTLET DIA. IN MM
32 MM – 11/4INCH
40 MM – 11/2INCH
32 Z707 A U 6.3 S
MODEL
6.3 : 60HZ – 1/3 HP
6.6 : 60HZ – 1/2 HP
6.9 : 60HZ – 3/4 HP
61.1 : 60HZ – 1 HP
61.3 : 60HZ – 11/2HP
EPD SERIES PRO•DRAINER
➄
5
5
40
16
27
42
①
EPPD-3MS1
EPPD-3AS1
EPD-EMS1
EPD-3AS1
EPD-5MS1
EPD-5AS1
EPD-5MT2
EPD-5MT4
EPD-7MS1
EPD-7AS1
EPD-7MT2
EPD-7MT4
EPD-10MT2
EPD-10MT4
EPD-15MT2
EPD-15MT4
➁
32Z707U6.3S
32Z707AU6.3S
32P707U6.3S
32P707AU6.3S
40P707U6.6S
40P707AU6.6S
40P707U6.62
40P707U6.64
40P707U6.9S
40P707AU6.9S
40P707U6.92
40P707U6.94
40P707U61.12
40P707U61.14
40P707U61.32
40P707U61.34
➂
45
45
73
58.5
83.5
81.5
➃
5
5
10
30
20
30
➅
25
25
30
50
50
50
➆
1
3
1
3
➇
0.3
0.6
0.9
1.1
1.3
⑨
1/3
1/2
3/4
1
11/2
➉
115
230
460
115
230
460
23046
0
23046
0
4
9
3.1
1.55
12.0
3.8
2
4.8
2.5
5.3
2.7
SM
SA
SM
SA
SM
SA
SM
SM
SM
SA
SM
SM
SM
SM
SM
SM
11 12
Nameplate & Model No./Item No. Explanation
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

POSSIBLE CAUSES
• Line circuit breaker is off, or fuse is blown or loose.
• Water level in sump has not reached turn-on level as indicated in
installation drawing.
• Pump cord is not making contact in receptacle.
• Float is stuck. It should operate freely in basin.
• If all of the above are OK, then the motor winding may be open.
• Check valve is installed backwards. Arrow on valve should point in
direction of flow.
• Discharge shut-off valve (if used) may be closed.
• Pump is air-locked. Start and stop several times by plugging and
unplugging cord. Check for clogged vent hole in pump case.
• Impeller or volute openings are fully or partially clogged. Remove
pump and clean.
• Inlet holes in pump base are clogged. Remove pump and clean
the openings.
• Vertical pumping distance is too high. Reduce distance or resize pump.
• Float is stuck in up position. Be sure float operates freely in basin.
• Defective float switch.
• Pump is air-locked. Start and stop several times by plugging and
unplugging cord.
Check for clogged vent hole in pump case.
• Vertical pumping distance is too high. Reduce distance or resize pump.
• Inlet holes in pump base are clogged. Remove pump and clean
the openings.
• Impeller or volute openings is fully or partially clogged. Remove
pump and clean.
• Pump impeller is partially clogged with tar or paint, causing motor \
to run slow and overload. Remove pump and clean.
• Pump impeller is partially clogged with tar or paint, causing motor
to run slow and overload. Remove pump and clean.
• Motor stator may be defective.
• Fuse size or circuit breaker may be too small. Must be 15 amps.
• Impeller or volute openings are fully or partially clogged. Remove
pump and clean.
• Inlet holes in pump base are clogged. Remove pump and clean
the openings.
• Pump impeller is partially clogged with tar or paint, causing motor
to run slow and overload. Remove pump and clean.
• Motor stator may be defective.
• Impeller or volute openings are fully or partially clogged. Remove
pump and clean.
PROBLEM
Pump does not run or
hums.
Pump runs but does not
deliver water.
Pump runs and pumps out
sump, but does not stop.
Pump runs but delivers
only a small
amount of water.
Fuse blows or circuit
breaker trips when
pump starts.
Motor runs for a short
time, then stops.
Troubleshooting Checklist
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

WARNING: Pump warranty becomes void if you remove motor housing, unscrew
impeller, or otherwise remove impeller seal.
If pump does not operate properly, follow the steps shown under Troubleshooting.
For any work on pump or switch, always unplug power cord(s). Do not just turn
off circuit breaker or unscrew fuse.
Cleaning float
If pump becomes inoperative because of trash accumulation on the float, remove pump
from sump and clean float switch.
Wipe all water and dirt from the pump and float switch.
Be sure float switch operates freely after cleaning.
Cleaning impeller and volute case
Remove screws that hold lower base to housing.
CAUTION: Do not remove motor housing or unscrew impeller. Use screwdriver to pry
base from housing. Pry in several places.
Be sure impeller turns freely after cleaning. Clean out holes in the pump base and wash
thoroughly before replacing.
MONTH
JAN.
FEB.
MAR.
APR.
MAY
JUN.
JUL.
AUG.
SEP.
OCT.
NOV.
DEC.
INDICATION
1
2
3
4
5
6
7
8
9
X
Y
Z
[
[
YEAR
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
2002
2003
2004
2005
2006
INDICATION
M
N
P
S
T
U
W
X
Y
A
B
C
D
E
F
G
Maintenance and Service
Manufacturing Year and Month
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT

Sectional View – Z707U
*Recommended spare parts
Part No. Part ASTM, AISI No. for
No. Name Material Code 1 Unit
007 Outer Casing 304 Stainless AISI 304 1
012 Suction Cover Noryl G.F. 3 1
021 Impeller Noryl G.F. 3 1
041 Sleeve 304 Stainless/Ceramic 1
048 Impeller Nut 304 Stainless AISI 304 1
*114 Oil Seal NBR 1 set
200 Lifting Hanger 304 Stainless AISI 304 1
244 Strainer 304 Stainless AISI 304 1
262 Float Switch — 1
801 Rotor — 1
802 Stator — 1
809 Capacitor — 1
811 Submersible Cable —1
814 Motor Frame 304 Stainless AISI 304 1
816 Bracket Alminume 1
817 Bracket Noryl G.F. 3 1
830 Shaft 303 Stainless AISI 303 1
842 Motor Cover Moplen 1
*849-1 Ball Bearing — 1
*849-2 Ball Bearing — 1
862-1 Cable Connector Nylon 66 G.F. 3 1
862-2 Cable Boot NBR 1
Automatic Type Output 1/3 HP (Single Phase)
EPD, EPPD
CALL 1-800-577-8111 FOR SALES AND SUPPORT
CALL 1-800-577-8111 FOR SALES AND SUPPORT
