Speco WDR705H User manual

- 1 -
INSTRUCTION
MANUAL
SPECO 960H WDR Series
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 12/01/2015
WDR705H
(Miniature Camera)

- 1 -
◑
Contents...................................................... 1
◑
Precautions................................................. 2, 3
◑
Safety Instructions ...................................... 4
◑
Package Contents....................................... 5
◑
Camera Installation..................................... 5
◑
Camera Dimension ..................................... 5
◑
Specications.............................................. 6
◑
Features...................................................... 7
◑
OSD Menu Details ...................................... 8-31
◑
Trouble Shooting......................................... 32
Precautions

- 2 -
Precautions
Do not install the camera in
extreme temperature conditions.
Do not touch the front lens of the
camera.
Never keep the camera pointed
directly at strong light.
Do not expose the camera to
radioactivity.
Do not install the camera under
unstable lighting conditions.
Do not drop the camera or subject
it to physical shocks.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to
provide ventilation when operating under
high temperatures.
This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.
It can cause malfunctions to occur. If exposed to radioactivity the CCD
will fail.
Severe lighting change or flicker can
cause the camera to work improperly.
Housing damage can compromise
weatherproof ratings.
NOTE
* If the camera is exposed to spotlight or object reflecting strong light,
smear or blooming may occur.
* please check that the power satisfies the normal specification before
connecting the camera.

- 3 -
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.
In USA and Canada, Use Class 2 Power Supply Only

- 4 -
Safety Instructions
Precautions for use
Please handle this camera carefully :
◑ This camera should be installed by qualied personnel only
◑There are no user serviceable parts inside
◑Do not disassemble this camera other than to make initial adjustments
◑Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
◑Do not use a strong or abrasive detergent when cleaning the camera
◑Do not install near cooling or heating device

- 5 -
Package Contents
Please make sure that the following items are included in the Package:
WDR705H
• 1 Video Test Connector, Power Jack
• Set Screw
- 2 Tapping Screws M3x10
- 2 Machine Screws M2x3

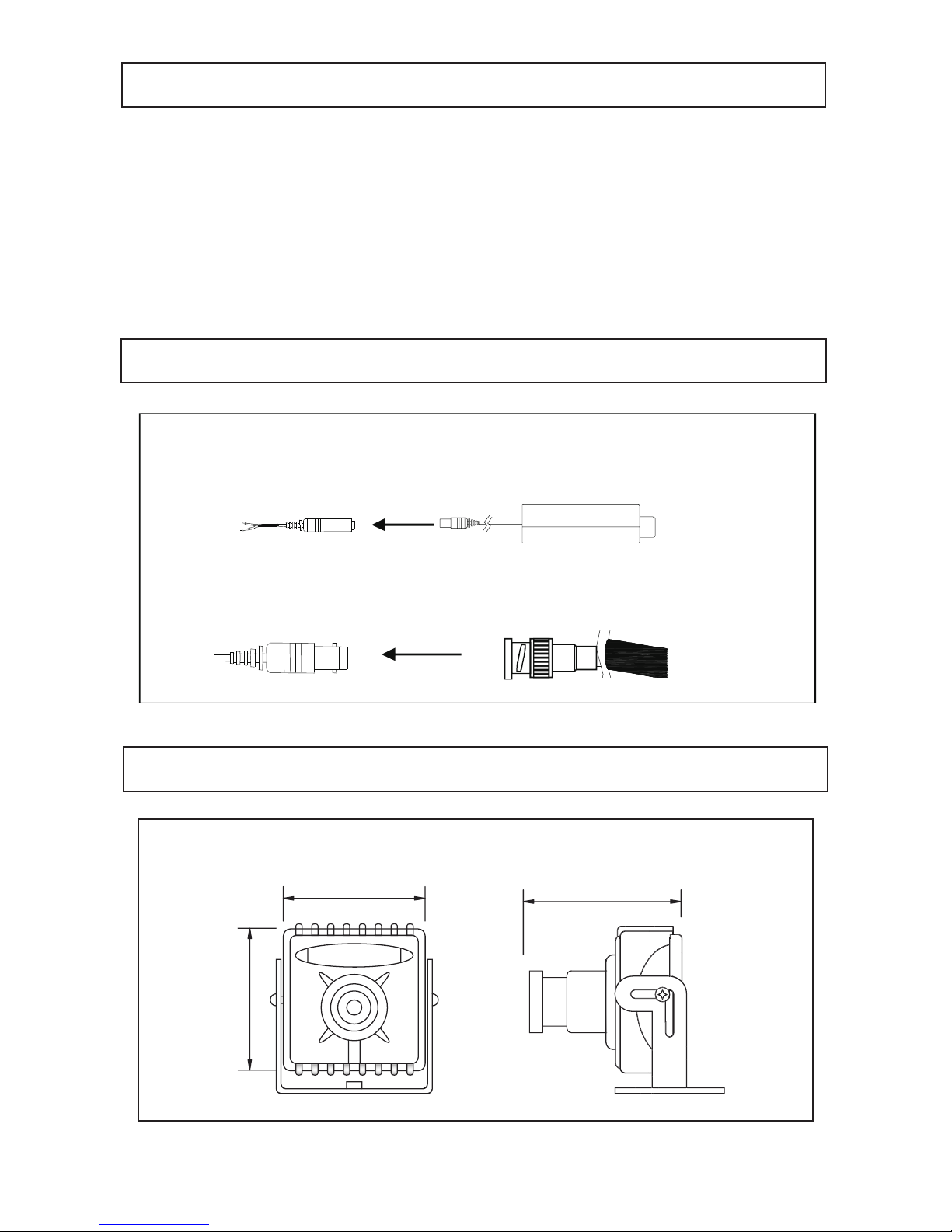

CAMERA INSTALLATION
CONNECT POWER CABLE
1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)
2. CONNECT VIDEO CABLE
- CONNECT BNC CABLE TO THE BNC JACK.
G
kjGXY} GwGz
wGpGaylk
jGaGORP
CAMERA DIMENSION
WDR705H
5| Digital Video Security Systems
1.34” 1.38”
1.34”

- 6 -
Speco Technologies
(Miniature Camera)
4mm Fixed Board Lens
WDR705H
■
0.001Lux
700
0.001Lux
700
0.001Lux
700
SPECIFICATIONS
MODEL WDR705H
1/3 Inch Super HAD CCD Ⅱ (ICX662, ICX663)
SONY CXD4141GG / CXD5148GG
NTSC : 1028(H) x 508(V)
NTSC : 976(H) x 494(V)
700TV Lines
Internal
NTSC : 525 Lines 2:1 Interlaced
1.0Vp-p Composite 75 Ohms
Standard γ=0.45
More than 50dB (AGC OFF)
Color: 0.1Lux (F1.2,50IRE,AGC ON); B/W:0.001Lux (F1.2,50IRE,AGC ON)
Auto : 1/50[s] 1/60[s] ~ 1/100,000[s]
Manual / Fix : 6~44.8[dB] / 2 ~ 256 FLD
1,800K ~ 10500K AUTO
ATW / PUSH / USER1 / USER2 / Manual / PUSH LOCK
FULL AUTO / INDOOR / OUTDOOR / BACKLIGHT / ITS / CUSTOM(OFF)
Adjusted to 0-6 steps
WDR / ATR-EX / OFF control
ON(AUTO, CENTER) / OFF
electronic zoom images to ON or OFF
Digital Image Stabilizer function ON/OFF selection
15 EA Privacy mask setting
4 frames Monitoring frame function / 96EA Dead band setting
Top bottom / Left right / Rotation by 180 degrees
Monitor type selection LCD / CRT
character string of up to 26 characters on 2 lines
ON / OFF
AUTO / ON / OFF
AUTO / ON / OFF
English / Spanish / Russian / Portuguese / German / French / Japanese
white pixel detection (AUTO / MANUAL / DATA CLEAR)
WDR / ATR-EX / OFF control
12VDC / 24VAC
DC 12V 160mA
-4ºF ~ +140ºF RH 95% Max
-4ºF ~ +140ºF RH 95% Max
1.34"(W) * 1.34"(H) * 1.38"(D)
0.78 lbs
Image sensor
DSP / AFE
Total pixels
Effective Pixels
H. Resolution
Synchronizing system
Scanning system
Video output
Gamma Correction
S/N ratio
Minimum Illumination
Shutter/AGC
White balance
Scene Select function
2/3DNR
WDR / ATR-EX II
IR OPTIMIZER
EZOOM
DIS
PRIVACY MASK
MOTION Detection
FLIP
LCD / CRT
Camera ID
DEFOG
Flickerless
ANTI CR
Language
White pix mask
WDR / ATR-EX
Power Source
Operating Consumption
Operation Temperature / Humidity
Storage Temperature / Humidity
Dimension(mm)
Weight

- 7 -

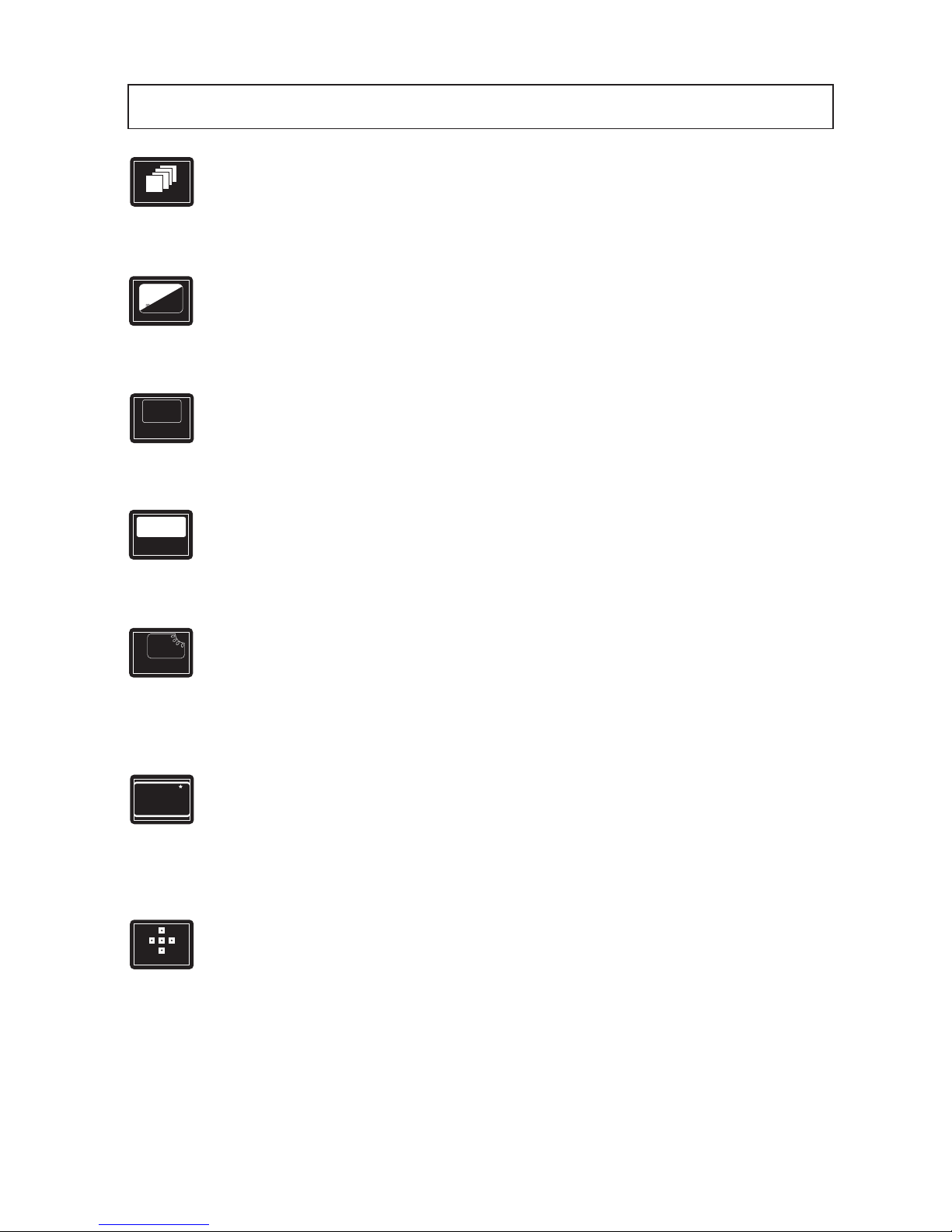

General Features
Scene Select
Provide the best image automatically for every situation by intelligent scene analysis. Provide
the best image by automatic tuning for selected scene manually.
2D.3DNR Filtering Method of Newly Advanced DNR Function
Newly developed 2D filtering enhances Digital Noise reduction at low light levels. 2D Filtering of
the Video Signal Optimises the Signal to Noise ratio.
700TV Lines
The combination of a Sony Super HAD CCD image sen-sor and DNR DSP provides an excellent
resolution of 700 TV lines.
WDR(Wide Dynamic Range)
WDR is a powerful and ultra advanced technology that captures cleaner and superior high
Resolution pic-tures even where images appear dark because there is a strong back light present.
High Spotlight BLC Function
High Spotlight BLC Function is Especially Effective to Read the Number Plate of the Vehicles in
the Street or Parking Lot at Night Time. Especially Users Can Adjust and Select the Special
Required Area to Observe the Target Object Under the Strong Spots of Light Exist.
Illumination
With an Incredibly Minimum Illumination of Amazing 0.01Lux can Capture Good Images Even in Extremely Low
Light Conditions and Related Noises are Significantly Reduced by the Ultra Advanced DNR (Digital Noise Reduction)
Technology.
Additional Functions
OSD - On Screen Display menu with multi-Language support.
Privacy Masking -15 zones, Motion - 4 zones.
2D-DNR
Digital
Reduction
Noise
0.01 Lux
Illumination
Minimum
Resolution
Horizontal
700
Tone Reproduction
Adaptive
ATR
Backlight
Compensation
BLC
DSP
2D-DNR
OSD
Smart-IR
2D.3DNR
Digital
Reduction
Noise
0.01 Lux
Illumination
Minimum
Resolution
Horizontal
700
Wide Dynamic Range
WDR
Backlight
Compensation
BLC
DSP
2D-DNR
OSD
Smart-IR
2D-DNR
Digital
Reduction
Noise
0.01 Lux
Illumination
Minimum
Resolution
Horizontal
700
Tone Reproduction
Adaptive
ATR
Backlight
Compensation
BLC
DSP
2D-DNR
OSD
Smart-IR
2D-DNR
Digital
Reduction
Noise
0.01 Lux
Illumination
Minimum
Resolution
Horizontal
700
Tone Reproduction
Adaptive
ATR
Backlight
Compensation
BLC
DSP
2D-DNR
OSD
Smart-IR
2D-DNR
Digital
Reduction
Noise
0.01 Lux
Illumination
Minimum
Resolution
Horizontal
700
Tone Reproduction
Adaptive
ATR
Backlight
Compensation
BLC
DSP
2D-DNR
OSD
Smart-IR
Scene Select
2D-DNR
Digital
Reduction
Noise
0.01 Lux
Illumination
Minimum
Resolution
Horizontal
700
Tone Reproduction
Adaptive
ATR
Backlight
Compensation
BLC
DSP
2D-DNR
OSD
Smart-IR
Scene Select
2D-DNR
Digital
Reduction
Noise
0.01 Lux
Illumination
Minimum
Resolution
Horizontal
700
Tone Reproduction
Adaptive
ATR
Backlight
Compensation
BLC
DSP
2D-DNR
OSD
Smart-IR

- 8 -
Menu items can be selected by using the OSD buttons of the camera
1. Press the Set Up button.
* The Set Up menu will be displayed on the monitor.
2. Move and select the required function using the Up and Down button.
* Move the arrow indicator Up or Down to select the desired feature by pressing
the Up or Down button.

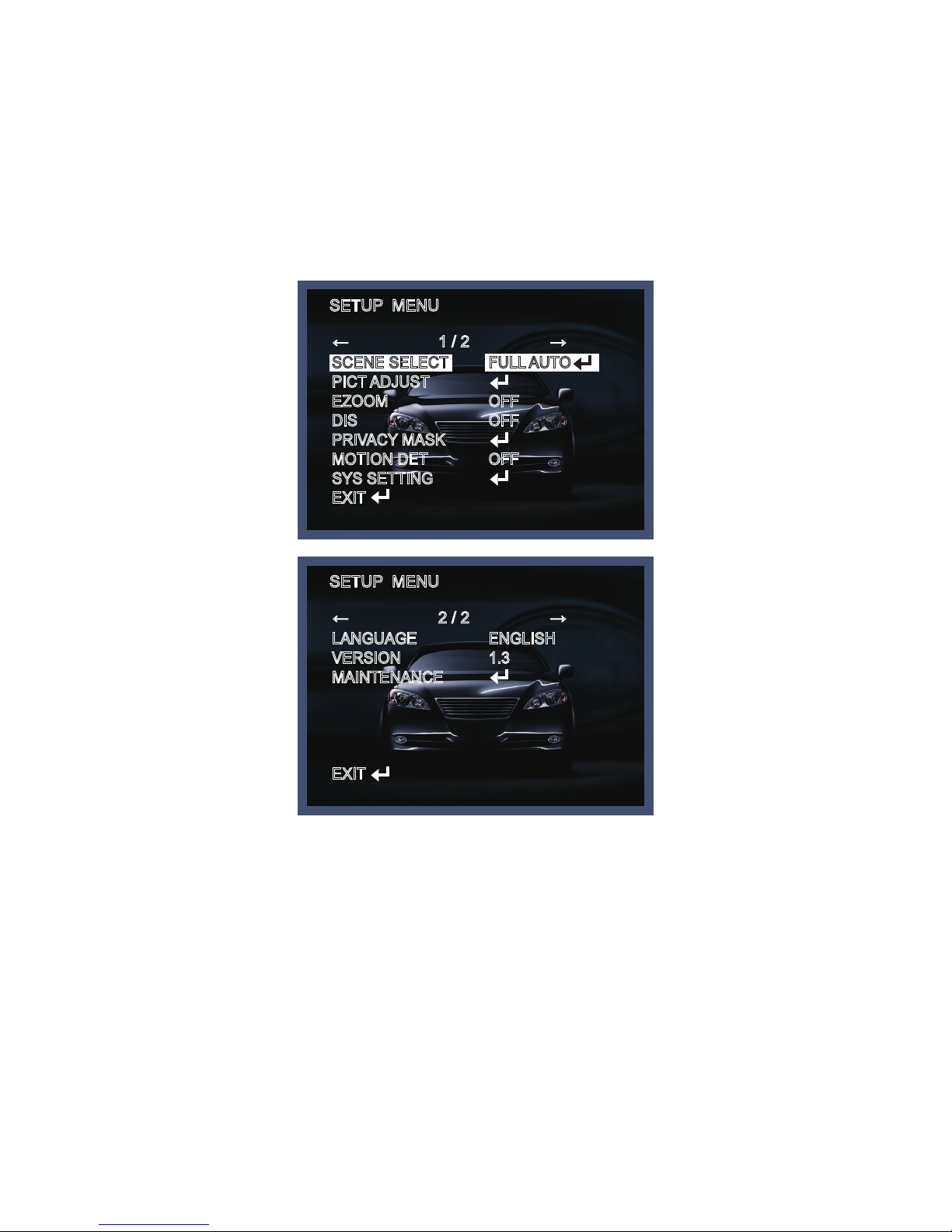

SETUP MENU
SETUP MENU
SETUP MENU
← 2 / 2 →
SCENE SELECT
PICT ADJUST
EZOOM
DIS
PRIVACY MASK
MOTION DET
SYS SETTING
EXIT
LANGUAGE
VERSION
MAINTENANCE
EXIT
ENGLISH
1.3
← 1 / 2 →
FULL AUTO
OFF
OFF
OFF

- 9 -
Provide the best image automatically for every situation by intelligent scene analysis. Provide the best
image by automatic tuning for selected scene manually.
SCENE SELECT
→ ADVANCED MENU

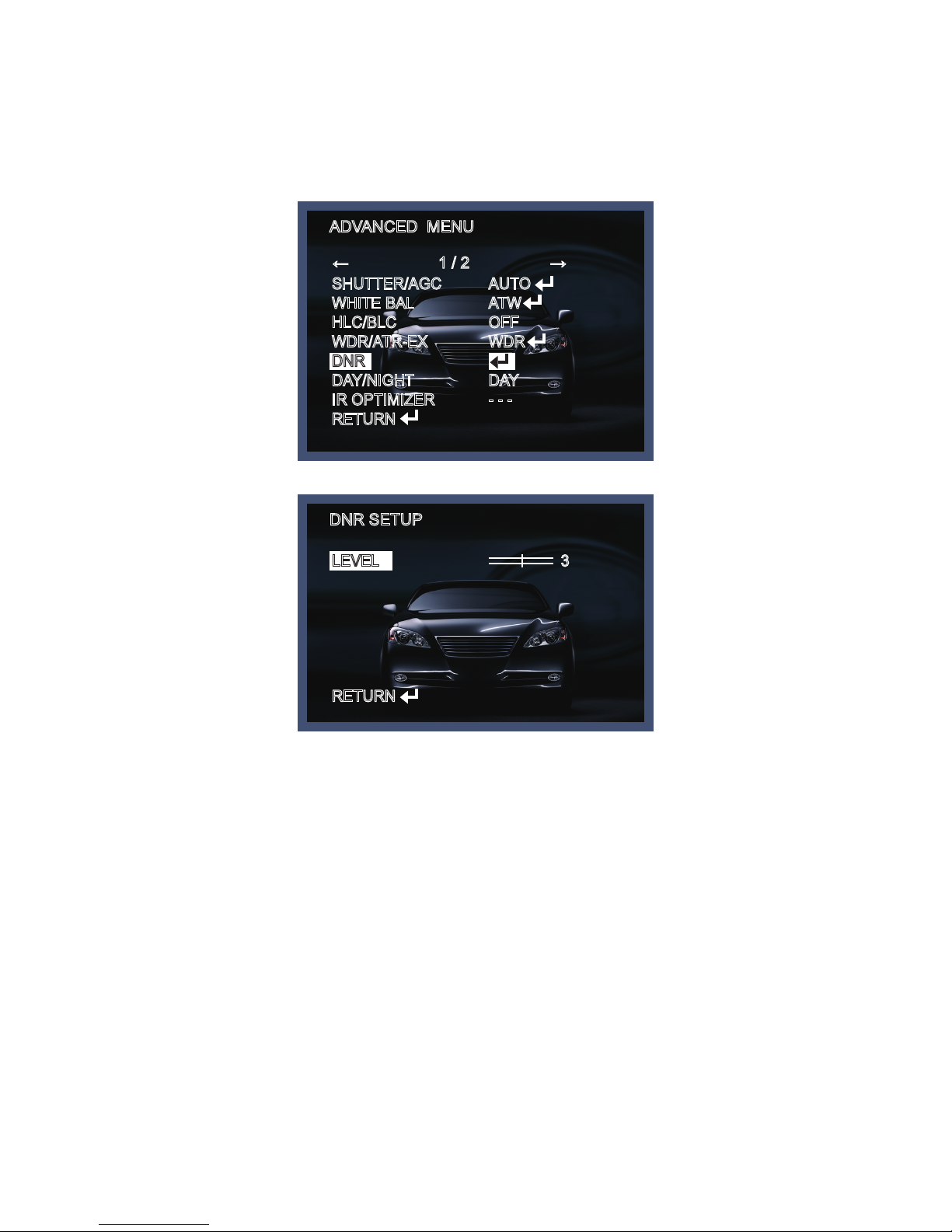

ADVANCED MENU
ADVANCED MENU
← 1 / 2 →
← 2 / 2 →
SHUTTER/AGC

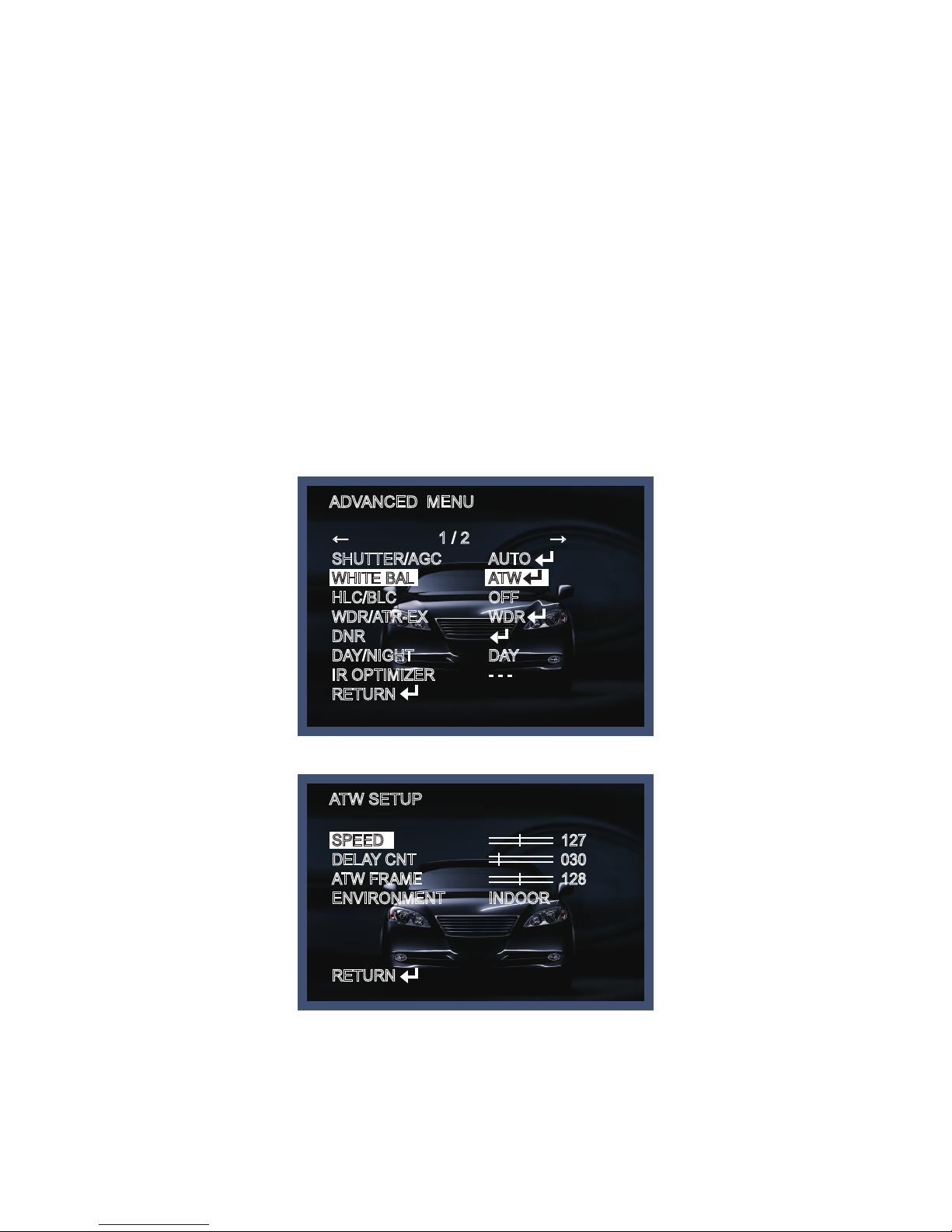

WHITE BAL

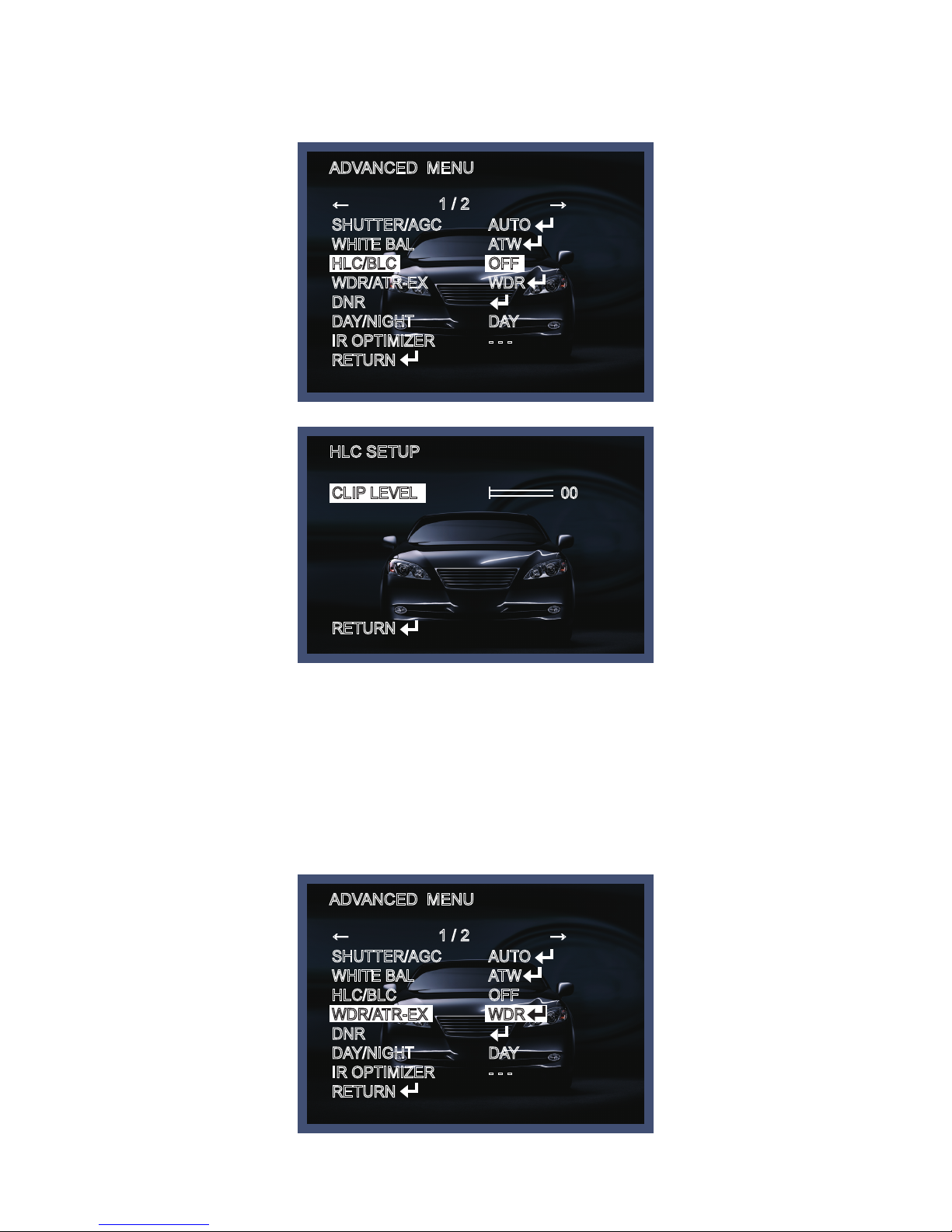

HLC/BLC
WDR/ATR-EX
DNR

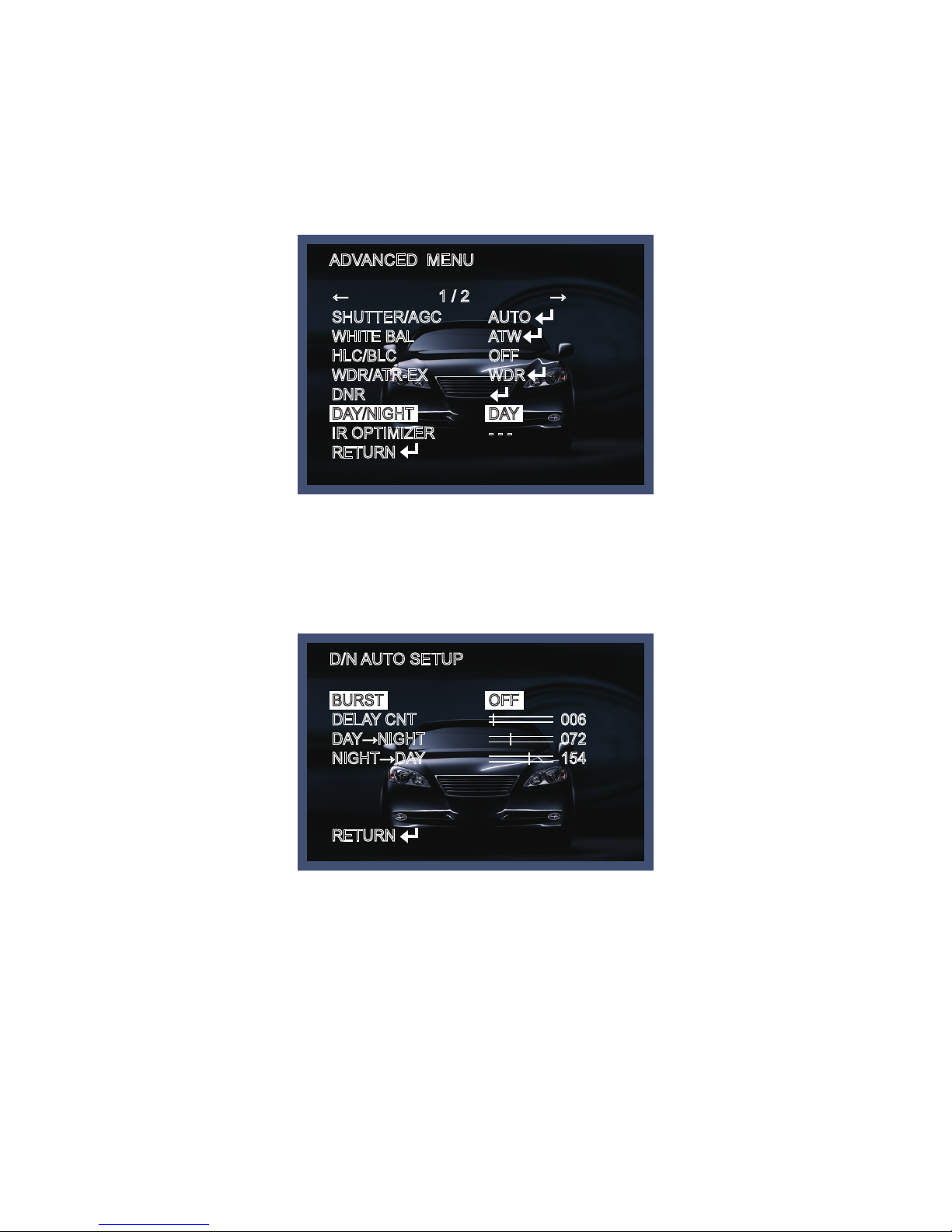

DAY/NIGHT
IR OPTIMIZER
RETURN

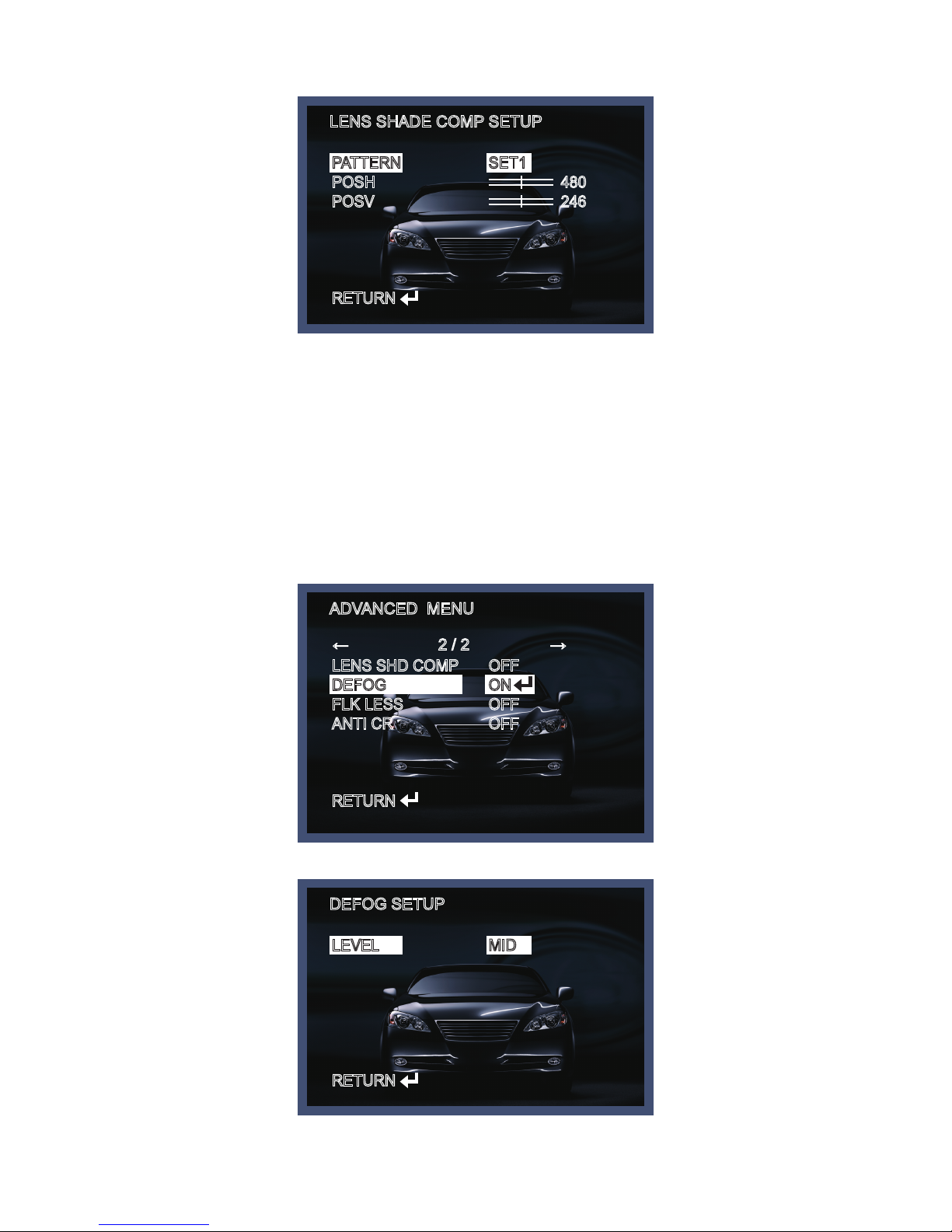

LENS SHD COMP
DEFOG
FLK LESS
ANTI CR
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -
OFF
ON
OFF
OFF
SETUP MENU
SCENE SELECT
PICT ADJUST
EZOOM
DIS
PRIVACY MASK
MOTION DET
SYS SETTING
EXIT
← 1 / 2 →
FULL AUTO
OFF
OFF
OFF

- 10 -
◆ SHUTTER/AGC
This function is used to select Automatic or Manual shutter speed control.
1. On the Set Up menu screen select SHUTTER/AGC by using the Up or Down button.
2. Select the desired shutter mode by pressing the Left or Right button.
* AUTO
- AE LEVEL : Control of the brightness of bright lux.
- AGC(Auto gain control) MAX : Control of the brightness of dark lux.
- SENS UP : At night and/ or in dark condition, the sens-up will be helped to keep the clear image.
ADVANCED MENU
← 1 / 2 →
SHUTTER/AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
IR OPTIMIZER
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -
AUTO SETUP
AE LEVEL
AGC MAX
SENS UP
RETURN
100
30 DB
OFF

- 11 -
◆ WHITE BAL
This function is used to set the white balance operation mode.
1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button.
2. Select the desired mode by using the Left or Right button.
* MANUAL
- SHUTTER : The function is used to control the light exposure.
- AGC MAX : The function is to control the brightness of dark lux.
* FIX
- SHUTTER : The function is used to control the light exposure.
- AGC : The brighter image can be displayed by adjusting AGC( Auto gain control) level.
ADVANCED MENU
ATW SETUP
← 1 / 2 →
SHUTTER/AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
IR OPTIMIZER
RETURN
SPEED
DELAY CNT
ATW FRAME
ENVIRONMENT
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -
127
030
128
INDOOR

- 12 -

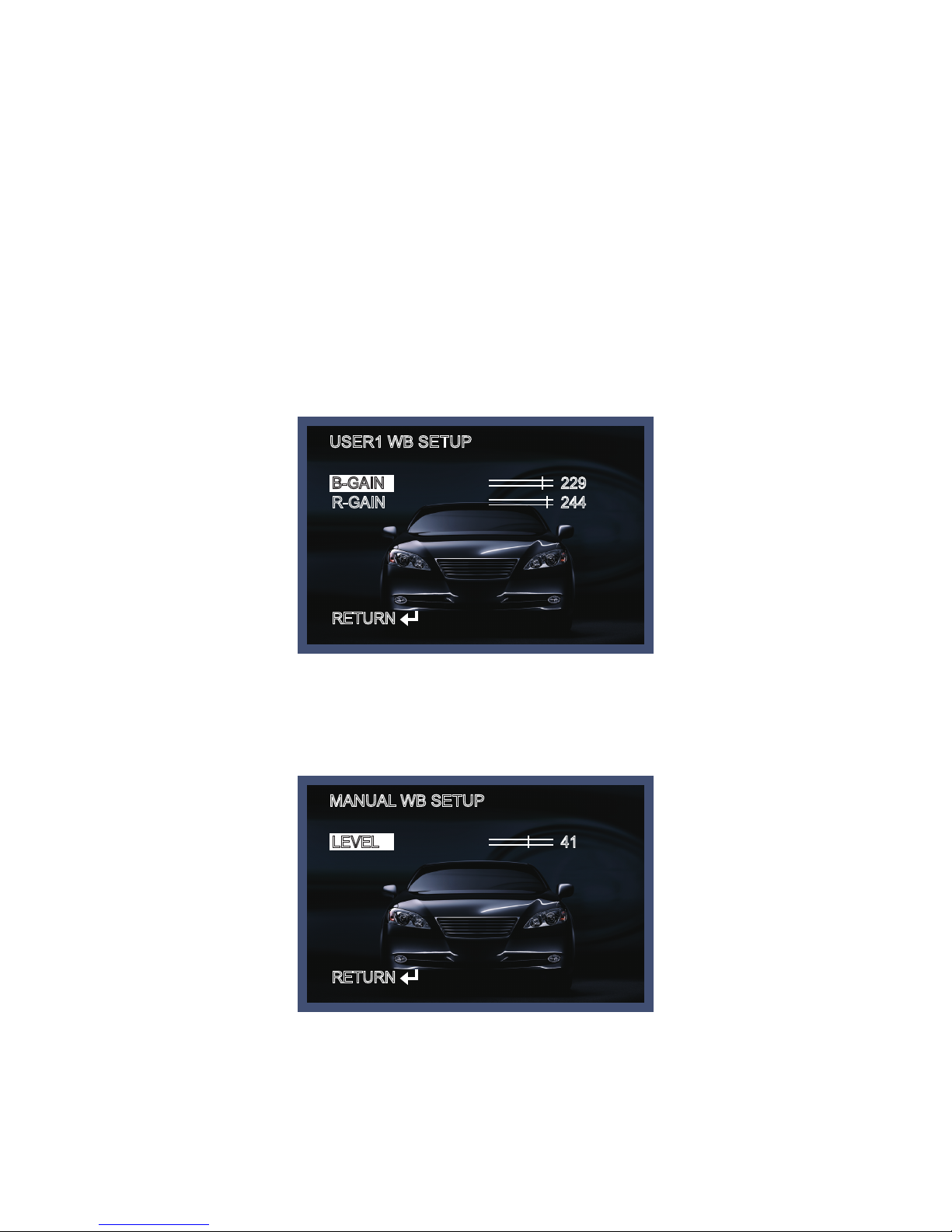

USER1 WB SETUP
B-GAIN
R-GAIN
RETURN
229
244
* ATW : Auto tracking white, normal environment setting under fluorescent lamp or outdoors.
- SPEED : Select the start point of auto tracking speed and time by pressing the left or the right button.
- DELAY CNT : Select the start point of Auto tracking speed and time by pressing the left or the right
button.
- ATW FRAME : Set up the frame megnification by pressing the left or the right button.
- ENVIRONMENT : It improves color temperature chase accuracy in accordance with environmental
set-up. Select the environment by pressing the left or the right button.
* PUSH : Regardless of subject condition, adjust white balance. Always control locking mode with full-
in frame, white color as set point.
*User1, User2 : These are user defined modes the blue and red gains can be adjusted.
* MANUAL : The B and R gain values for manual WB are set on this screen.
MANUAL WB SETUP
LEVEL
RETURN
41
* PUSH LOCK : To get the most suitable status at current lighting environment, push the SET button
while camera focuses on a white plain paper.

- 13 -
◆ HLC/BLC
HLC SETUP
CLIP LEVEL
RETURN
00
ADVANCED MENU
← 1 / 2 →
SHUTTER/AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
IR OPTIMIZER
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -
* HLC : HLC, control and mask process for a strong light source. Select 0~255 by pressing the left or
the right button.
* BLC : Turn off or on the Back light compensation.
◆ WDR/ATR-EX
ADVANCED MENU
← 1 / 2 →
SHUTTER/AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
IR OPTIMIZER
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -

- 14 -
*ATR-EX
- CONTRAST : Increase bright illuminance and dark illuminance level over average value and then
control the contrast by selecting LOW, MID and high.
- CLEAR FACE : The function is to increase the lux when the object is in the back light.
*WDR : The wide dynamic range (WDR) function of a camera is intended to provide clear images even
under back light circumstances where intensity of illumination can vary excessively, namely when there
are both very bright and very dark areas simultaneously in the field of view of the camera.
- CONTRAST : Increase bright illuminance and dark illuminance level over average value and then
control the contrast. Select the LOW, MID, HIGH by pressing the left or the right button.
- CLEAR FACE : The function is to increase the lux when the object is in the back light.
ATR-EX SETUP
WDR SETUP
CONTRAST
CLEAR FACE
RETURN
CONTRAST
CLEAR FACE
RETURN
MID
MID
MID
MID

- 15 -
◆ DNR
The level of DNR noise removal mode is getting higher, noise removal effect will be good, but ghost
effect may be shown up. Select 0~6 by pressing the left or the right button.
ADVANCED MENU
← 1 / 2 →
SHUTTER/AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
IR OPTIMIZER
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -
DNR SETUP
LEVEL
RETURN
3

- 16 -
◆ DAY/NIGHT
Picture can be displayed in either color of black and white.
1. Select DAY/NIGHT using the Up or Down button on the SETUP menu screen.
2. Select the desired mode using the Left and Right buttons.
ADVANCED MENU
← 1 / 2 →
SHUTTER/AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
IR OPTIMIZER
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -
D/N AUTO SETUP
BURST
DELAY CNT
DAY→NIGHT
NIGHT→DAY
RETURN
OFF
006
072
154
* DAY : Users can fix in DAY Mode.
* NIGHT : : Users can fix in Night Mode.
- BURST : Adjust color signal ON/OFF in night(B/W) mode.
* AUTO
- BURST : Adjust color signal ON/OFF in night(B/W) mode.
- DELAY CNT(OPTION) : Sets the judgment time for transition between the Day and Night.
- DAY→NIGHT(OPTION) : Adjust the DAY→NIGHT switch level 0~255 by pressing the DAY→NIGHT
button.
- NIGHT→DAY(OPTION) : Adjust the NIGHT→DAY switch level 0~255 by pressing the NIGHT→DAY
button.

- 17 -
◆ IR OPTIMIZER
ADVANCED MENU
← 1 / 2 →
SHUTTER/AGC
WHITE BAL
HLC/BLC
WDR/ATR-EX
DNR
DAY/NIGHT
IR OPTIMIZER
RETURN
AUTO
ATW
OFF
WDR
DAY
- - -
IR OPTIMIZER SETUP
MODE
IR AREA
LEVEL
IR LED
COLOR NIGHT
IR SHADE COMP
RETURN
AUTO
- - - -
06
DAY/NIGHT
OFF
OFF
- MODE : IR LED saturation is fixed positions or set the areas automatically.
- IR AREA : When the IR Optimizer is set in center on the mode menu, the intensity level can be
controlled by up, down, left and right.
IR AREA
TOP
BOTTOM
LEFT
RIGHT
WEIGHT
RETURN
2
4
3
5
04

- 18 -
IR SHADE COMP SETUP
PATTERN
POSH
POSV
LEVEL
RETURN
- LEVEL : The level of IR Optimizer can be controlled by selecting from 0 to 12.
- IR LED(OPTION) : IR LED can be select on or off.
- COLOR NIGHT : The function is to present the color in the night mode.
- IR SHADE COMP
→PATTERN : Adjust the size of the IR LED area.
→POSH : Adjust the IR LED area by left and right.
→ POSV : Adjust the IR LED area by Up and down.
→ LEVEL : Adjust the brightness when the IR LED is on.
SET2
480
246
MID
◆ LENS SHD COMP
ADVANCED MENU
← 2 / 2 →
LENS SHD COMP
DEFOG
FLK LESS
ANTI CR
RETURN
OFF
ON
OFF
OFF

- 19 -
- PATTERN : The function is to increase the brightness of outside of lens.
- POSH : Adjust the bright area by left and right .
- POSV : Adjust the bright area by up and down.
LENS SHADE COMP SETUP
PATTERN
POSH
POSV
RETURN
SET1
480
246
◆ DEFOG
This function helps to recognize the object in a foggy or dusty weather condition.
ADVANCED MENU
← 2 / 2 →
LENS SHD COMP
DEFOG
FLK LESS
ANTI CR
RETURN
OFF
ON
OFF
OFF
DEFOG SETUP
LEVEL
RETURN
MID
