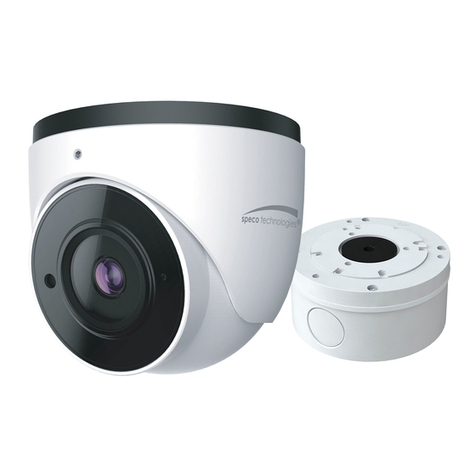

Speco O2VT1 User manual

Quick Start Guide
O2VT1

1Warning and Caution
■ If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to disassemble
the camera yourself. Any unauthorized changes or modifications
could void the warranty.
■ Do not allow water or liquid intrusion into the camera.
■ All installation and operation here should conform to local
electrical safety codes. Make sure the device is firmly installed
on the wall or ceiling.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use cleaning cloth to wipe it
gently.
■ Do not aim the camera at the sun or extremely bright light
sources.
■ Do not place the camera in extremely hot or cold environments
and dusty and damp locations . Do not expose it to highly
electromagnetic radiation.
■ Do not block any ventilations.
Package
2

Overview
3
Junction box
Overview
3
Camera Quick start guide
CD Plastic plug ×3
Drill template
Screwdriver
Tapping screws × 3
Power connector
3
4
Mounting base
Ethernet connector
1
2
Reset
Micro SD card slot
5
6
7
Fixed screw
Microphone
Rubber plug
1
2
3
4
5
6
7

* 1 It is recommended to install the security cap for outdoor installations.
* 2 DC 12V power supply is not required if a PoE switch or injector is used to power
the camera.
► Connecting Network Cable
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through both
elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the nut
and the main cover.
2
13
Security Cap
DC12V

Installation
4
* Before you start, please make sure that the wall or ceiling is strong enough
to withstand three times the weight of the camera and the junction box.
① Open the mounting base and the upper cover of the junction box.
② Install junction box onto the wall by using the screws provided.
Mounting Base
Upper Cover

③ Loosen the fixed screw to disassemble the camera. Then remove
the cover from the dome to insert the SD card. After that, install the
cover back to the dome and fix it firmly with the screws. (Note that
the cover should not be installed unevenly .)
⑤
Then reinstall the upper cover onto the junction box.
Route the cables through the cable hole and connect the cables.
④ Fasten the camera onto the junction box.
Cover Insert a micro SD card
Fixed Screw

⑥
preview the image of the camera on a monitor. After that, tighten the
fixed screw to finish the installation.
Adjust the camera to obtain an optimum angle. Before adjustment,
Web Operation and Login
5
IP Scanner can search for the device on the local network.
Fixed screw

③ In the device list, you can view the IP address, model number, and
MAC address of each device. Select the applicable device and double
click to open up the web viewer. You can also manually enter the IP
address in the address bar of the web browser.
The login interface is shown above. Default user name is admin and
password is 1234. After logging in, follow directions to install
applicable plugins.
● Operation
① Make sure that the camera and the PC are connected to the same
local network. The camera is set to DHCP by default.
② Install IP Scanner from the CD and run it after installation.
O2 V T1
