Speco x20 HD-SDI PTZ Outdoor User manual

Ver. 0.5 / 2011.03
User’s Manual
All-In-One Camera
HD-SDI PTZ Outdoor

Safety Information
2
This symbol indicates that dangerous voltage
consisting a risk of electricshock is present within
this unit.
Warning Precaution
This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (servicing)instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
To prevent damage which may result in fire or electric shock
hazard, do not expose this appliance to rain or moisture.
Be sure to use only the standard adapter that is specified in
the specification sheet. Using any other adapter could cause
fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery
may cause explosion, fire, electric shock, or damage to the
product.
Do not connect multiple cameras to a single adapter.
Exceeding the capacity may cause abnormal heat generation
or fire.
Securely plug the power cord into the power receptacle.
Insecure connection may cause fire.
When installing the camera, fasten it securely and firmly.
A falling camera may cause personal injury.
Do not place conductive objects (e.g. screw drivers, coins,
metal things, etc.) or containers filled with water on top of
the camera. Doing so may cause personal injury due to fire,
electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations.
Doing so may cause fire or electric shock.
If any unusual smells or smoke come from the unit, stop
using the product. In such case, immediately disconnect the
power sorce and contact the service center. Continued use
in such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest
service center. Never disassemble or modify this product in
any way.
When cleaning, do not spray water directly onto parts of the
product. Doing so may cause fire or electric shock.
WARNING
WARNING
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Precautions
Operating
• Before using, make sure power supply and others are
properly connected.
•While operating, if any abnormal condition or malfunction
is observed, stop using the camera immediately and then
•contact your Special dealer.
Handling
• Do not disassemble or tamper with parts inside the camera.
• Do not drop or subject the camera to shock and vibration as
this can damage camera.
• Care must be taken when you clean the clear dome cover.
Especially, scratch and dust will ruin your quality of camera.
Installation and Storage
• Do not install the camera in areas of extreme temperature,
which exceed the allowable range.
• Avoid installing in humid or dusty places.
• Avoid installing in places where radiation is present.
• Avoid installing in places where there are strong magnetic
elds and electric signals.
• Avoid installing in places where the camera would be subject
to strong vibrations.
• Never expose the camera to rain and water.

3
1. Read these instructions. - All these safety and operating instructions should be read before the product is operated.
2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use instructions should be followed.
5. Do not use this apparatus near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a
wet basement; near a swimming pool; etc.
6. Clean only with dry cloth. - Unplug this product from the wall outlet befor cleaning. Do not use liguid cleaners.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Slots and
openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protec it
from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar
surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided and the manufacturer’s unstructions have been adhere to.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Important Safety Instructions

4
Disposal of Your Old Appliance
1. When this crossed-out wheel bin symbol is attached to a product it mean the product is covered by
the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately form the municipal waste
stream via designated by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for
the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city oce,
waste disposal service or the shop where you purchased the product.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interferenece at his own expense.

Contents
5
6
7
8
Product & Accessories
Parts Name & Functions_Appearance
Parts Name & Functions_Inside
4 Precautions
1. Introduction
9
13
15
Installation
DIP Switch Setup
Cabling
2. Installation
17
18
19
20
21
22
23
25
26
27
28
Check Points before Operation
OSD -
ROOT MENU & SYSTEM INFORMATION
OSD - MOTION SETUP
OSD - FUNCTION SETUP > PRESET SETUP
OSD - FUNCTION SETUP > SCAN SETUP
OSD - FUNCTION SETUP > PATTERN SETUP
OSD - FUNCTION SETUP > GROUP SETUP
OSD - CAMERA SETUP > WB SETUP
OSD - CAMERA SETUP > AE SETUP
OSD - CAMERA SETUP > OTHER SETUP
OSD - SYSTEM SETUP
3. OSD Menu
29 Dimensions
4. Specification

6

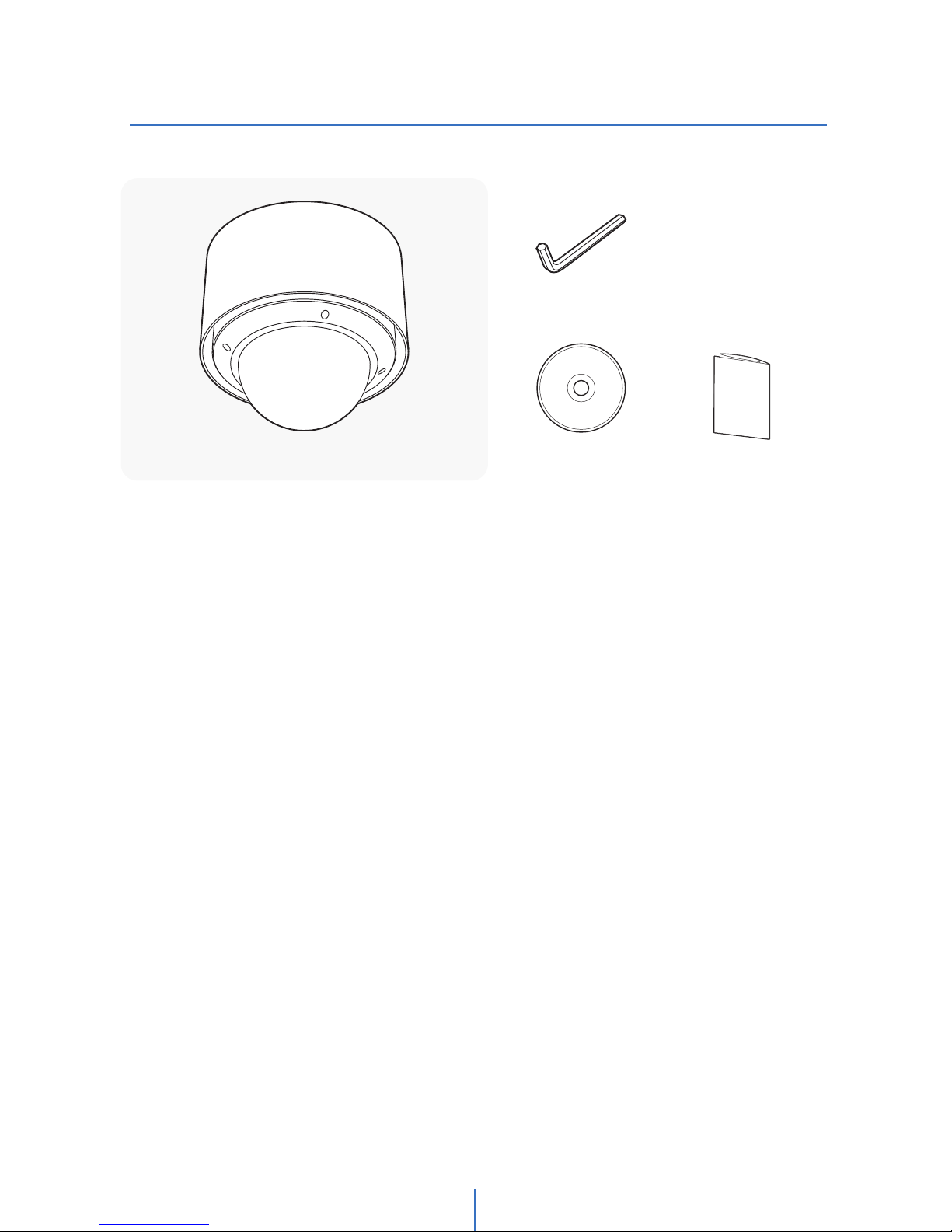

Product & Accessories
Introduction -
1
All-In-One Camera Manual CD
Hexagonal Wrench
Product Accessories
Quick Manual

7

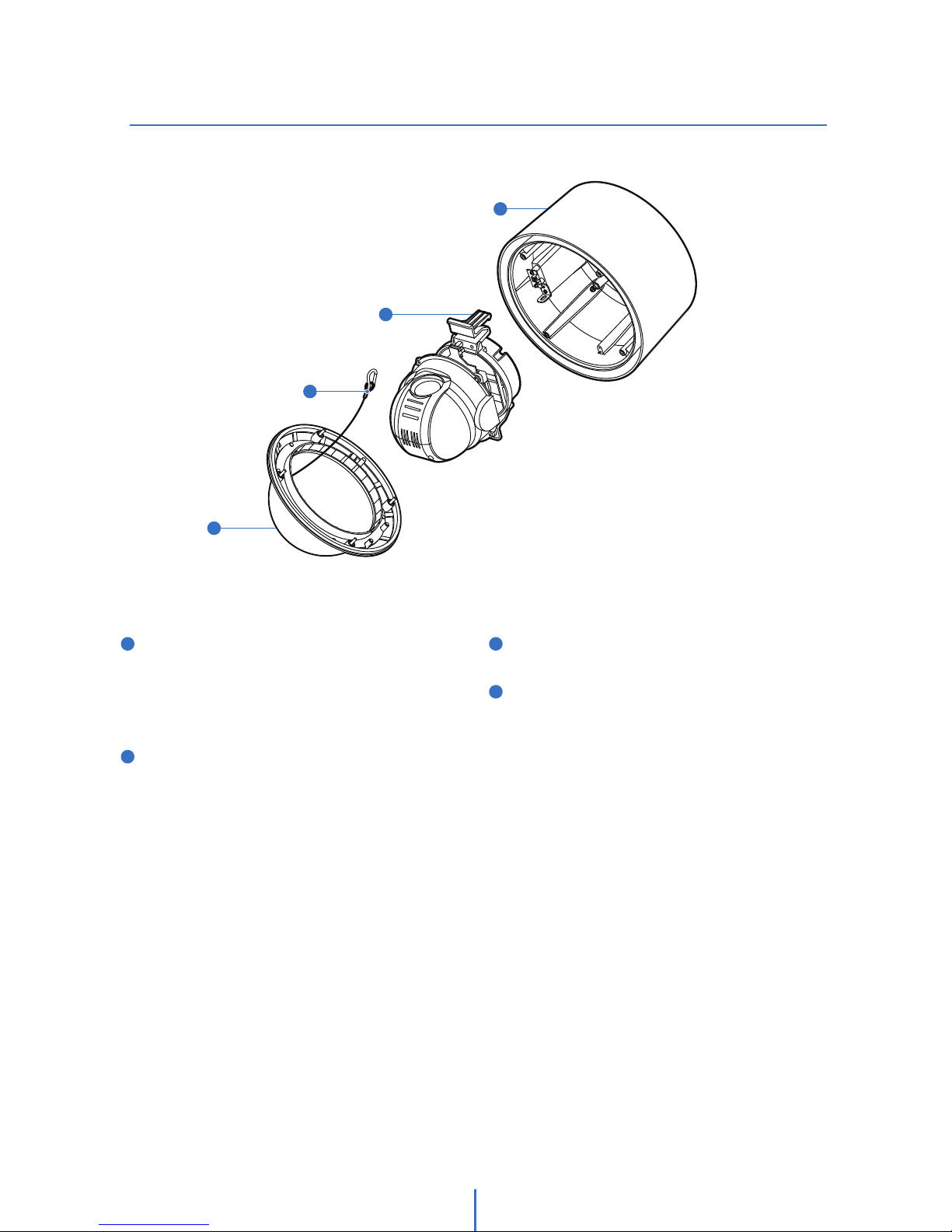

Part Name & Functions_Appearance
Introduction -
1
3
4
Dome Safety Wire
Prevents the dome cover from falling.
Dome Cover
Do not detach protection lm from dome cover before
finishing all installation process to protect dome cover
from scratches or dust. In the dome cover, there are fan
and heater to remove moisture on the bubble dome.
1
2
Sunshield & Upper Housing
Sunshield protect bubble dome cover from the sun rays and
rain fall. In the sunshield, there is the upper housing which
will contain accommodate PTZ mechanism. Also, the upper
housing will be connected to both mounting brackets and
dome cover.
PTZ Mechanism
Control the PTZ operations of the camera.
1
Sunshield & Upper Housing
2
PTZ Mechanism
3
Dome Safety Wire
4
Dome Cover

8
Part Name & Functions_Inside
Introduction -
1
6
7
8
9
10
2nd Video Output Port
Video out check the screen during installation.
ID Setup Switch
Specify the camera ID.
Communication Setup Switch
Set the transfer rate and protocols.
RS-485 Port
Used for RS-485 communications.
Power Port
Connect the power source here.
1
2
3
4
5
BNC Coxial Cable
Connects to video output device such as monitor using the
BNC coaxial cable.
Alarm Output Port
It connects to the alarm lights, siren or lamps, and it is
activated according to the OSD menu or ‘Setup’ on the Web
-viewer setting.
Alarm Input Port
It connects to IR sensor, IrDA sensor or door switch. If the
sensor is activated, it can activate to move camera to the
specic angle and to connect the alarm device.
Fan
Defrosts the dome cover and removes moisture.
Heater
Defrost the dome cover in a low temperature by increasing
the internal temperature of the housing.
Alarm Output Port
Alarm Input Port
Fan
Heater
ID Setup Switch
Communication
Setup Switch
RS-485 Port
Power Port
2nd Video
Output Port
2
3
4
5
6
7
1
Video Coxial Cable
8
10
9

9
Installation
Installation -
2
5You have to detach the PTZ mechanism from the upper
housing to plug the connector of cable. When detach PTZ
mechanism, pressing down and holding up the black
handles in both sides of PTZ mechanism.
6[1] Wind the water proof tape on the pipe of upper housing.
[2] Hooking the safety wire on the hole of pipe.
[3] Attach the upper housing to wall mount bracket by
turning it at least seven turns.
To fix the upper body orientation, turn the handle of
double nuts to clockwise tightly.
[2]
[1]
[3]

10
Installation
Installation -
ab
cd
e
f
2

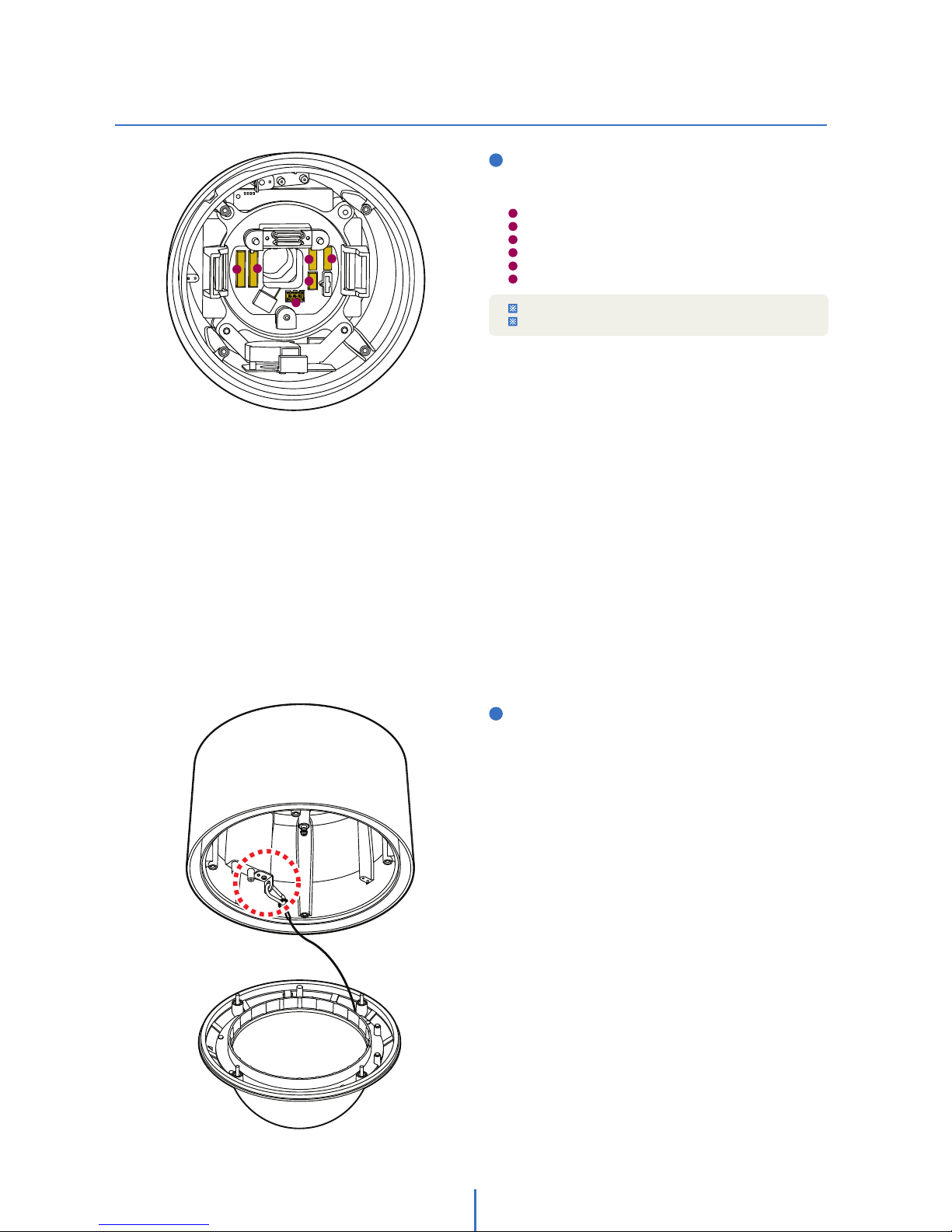

Connect each of the following cables to the applicable port
and set the DIP switch to congure the camera ID,
communication protocol.
Alarm Output Port
Alarm Input Port
DIP Switch for Camera ID Setup
DIP Switch for Communication
RS-485 Port
Power Port
Refer to 13, 14 page for detail DIP switch setting.
Refer to 15, 16 page for detail cablings.
a
b
c
d
e
f
Make sure that the dome cover is connected rmly to the
safety wire.
8
7

11
Installation
Installation -
2
8
7

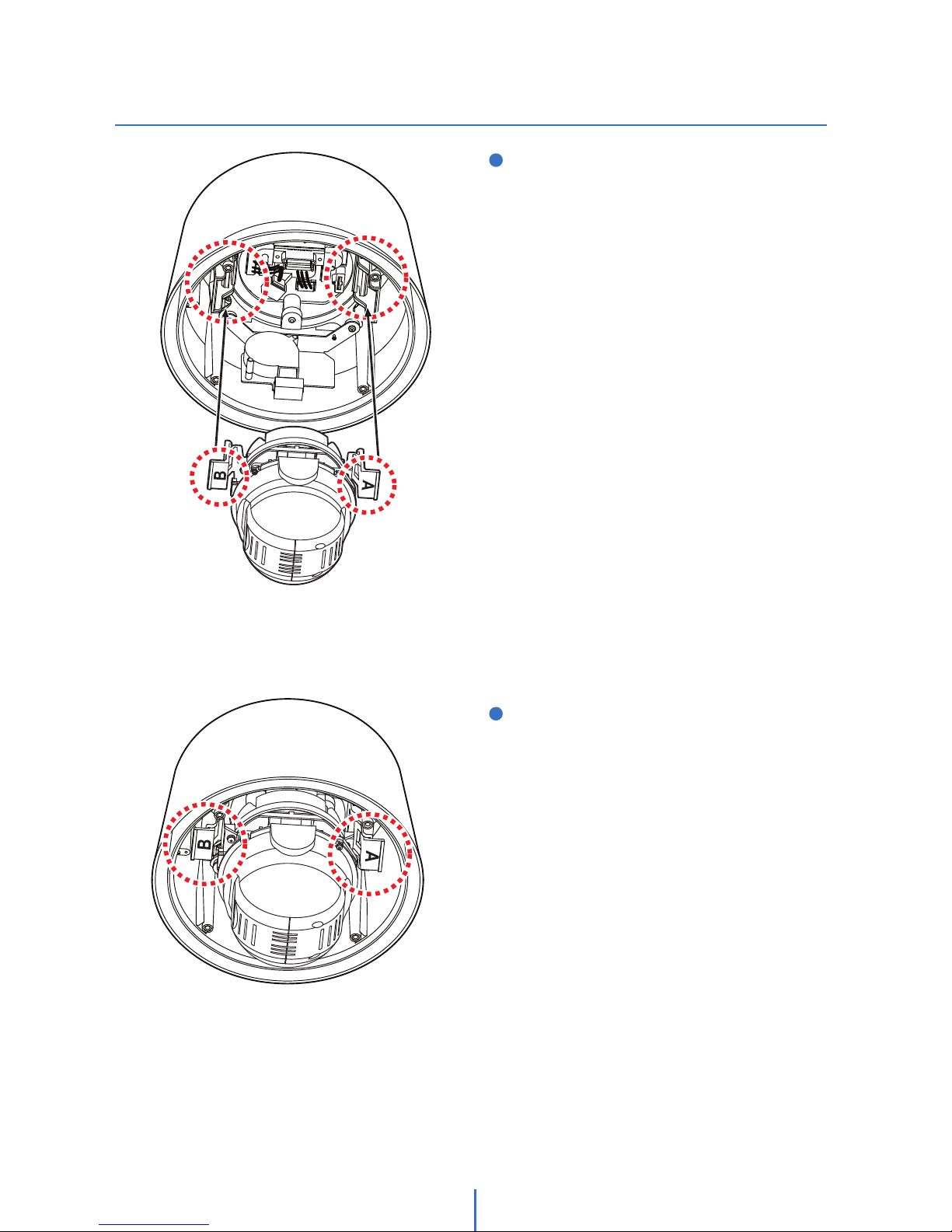

To lock the PTZ mechanism to the upper housing, press the
two black handles till it sounds snap.
Plug the connector of cable from junction box into properly.
After checking the orientation of one touch connector in the
upper housing, press the PTZ mechanism into hook in the
upper housing.

12
Installation
Installation -
2
10

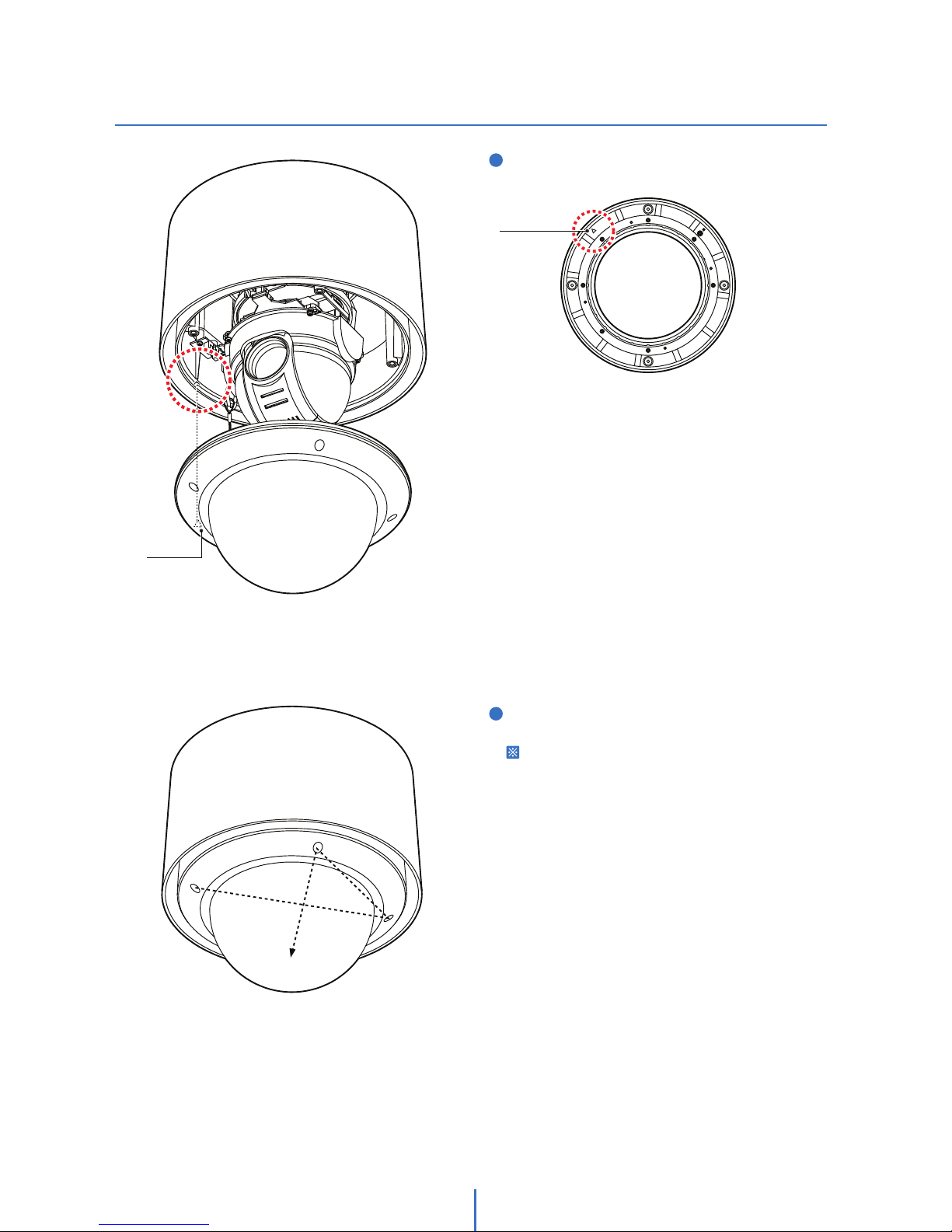

9Close the dome cover. Care must be taken to locate dome
cover by matching the ‘Arrow Mark’.
Tighten four screws on the dome cover in sequence as
shown in the picture.
To maintain the best sealing, the torque of each screw
must be in the range between
0.5 ~ 1.0 N·m(0.3 ~ 0.73 lbf·ft).
Arrow Mark
Arrow Mark

13
DIP Switch Setup
Installation -
2
Before installing the camera, you should set
the DIP switch to configure the camera ID,
communication protocol.
Interface Board
1. Communication Protocol Setup
Select the appropriate protocol with DIP switch combination.
- If you set the protocol as ‘Auto’ protocol, camera
will
automatically recognize PELCO-D or PELCO-P protocol.
- If you want to control using DVR or system keyboard, their
protocol must be identical to camera. Otherwise, you can
not control the camera.
- If you change camera protocol by changing DIP switch, the
change will be eective after you reboot the camera.
Protocol Setup Baud Rate Setup RS-485
Termination Resistor
ON
8J 21 3 4 5 6 7 8
1Auto - Factory Default
ON
8J 21 3 4 5678
2
ON
8J
21 3 4 5678
PELCO-D
3
ON
8J
21 3 4 5678
PELCO-P
4
5
6
7
SAMSUNG
ON
21 3 4 5678
Panasonic
8J
ON
21 3 4 5678
GE(Kalatel)
8J
ON
21 3 4 5678
AD(American Dynamics)
ON
8J
21 3 4 5678

14
DIP Switch Setup
Installation -
2
2. Communication Baud Rate Setup
Select the appropriate baud rate with DIP switch combination.
4. Camera ID Setup
ID number of camera is set using binary number.
The example is shown below.
Interface Board
1
2
3
4
5
ON
8J
21 3 4 5678
2400 BPS - Factory Default
ON
8J
21 3 4 5678
4800 BPS
ON
8J
21 3 4 5678
9600 BPS
ON
8J
21 3 4 5678
19200 BPS
38400 BPS
ON
8J
21 3 4 5678
3. RS-485 Termination Resistor
- Pin 8 is used for on/off of RS-485 termination.
- Normally, it must be off state.
- Especially, when you have trouble with long daisy chain style
connection, turn on this termination switch of the last camera.
ON
8J 21 345678
Pin 1 2 3 4 5 6 7 8
1 2 4 8 16 32 64 128ID Value
ex) ID=5
ex) ID=10
on
off
off
on
on
off
off
on
off
off
off
off
off
off
off
off
- If you want to control a certain camera, you must match the
camera ID with ‘CAM ID’, setting of DVR or keyboard controller.
- ID number of the camera is set using binary number.
- The range of ID is 0~255.
- Factory default of camera ID is 1.
- Camera ID will be effective without rebooting the camera.

15
2
Cabling
Installation -
13
2
RS-485 Communication (DVR/Keyboard)
For PTZ control, connect this line to keyboard and DVR.
To control multiple cameras at the same time, RS-485
communication lines of them are connected in parallel as
shown below.
Keyboard Controller/DVR
RS-485
#1 #2 #n
~
Video Output
Connects to video output device such as monitor using the
BNC coaxial cable.
Power Connection
Please, check the voltage and current capacity of rated
power carefully.
Coil up the power cable to the Ferrite Core. It will control the
electromagnetic waves of Power Cable.
Rate Power PoE
Current
Consumption
AC 24V 802.3at class 4Heater Off: 24W Heater On: 55W
RS-485
(Keyboard Controller/DVR)
3
RS-485
Video Output
1
AC 24V
F.G
Power
2

16
Cabling
Installation -
2
OUT1 OUT2 OUT3 OUT4
6
5Alarm Output
There are 4 alarm outputs and all of them are relay contact
type. Therefore, you do not have to care about polarity,
AC/DC, and isolations between channels. Care must be taken
for the power capacity of relay contact written above.
Out Out
N.C
Activation
Activation
N.O In 2
COM
In 2
COM
In 2
COM
In 2
COM
It is noted that short circuit between GND and Input pin
means alarm activation.
Sensor Input/Sensor
If you want to use alarm input, the types of sensor must be
selected in OSD menu. The sensor types are ‘Normal Open’
and ‘Normal Close’. If sensor type is not selected properly,
the alarm can be activated reversely.
COM
In 1
ALARM INPUT
GND1 234 5678
Alarm Input/Sensor
ALARM INPUT
GND1 234 5678
COM
In 1
In 8
Alarm Output
Alarm Input
Alarm Output
6
5
OUT1 OUT2 OUT3 OUT4

1. Before power is applied, please check the cables carefully.
2. The camera ID of the controller must be identical to that of the camera to be controlled. The camera ID can be check in the
system information of OSD menu.
3. If your controller supports multi-protocols, the protocol must be changed to match to that of the camera.
4. If you changed camera protocol by changing DIP switch, the change will be eective after you reboot the camera.
5. Since the operation method can be dierent for each controller available, refer to the manual for your controller if camera
cannot be controlled properly.
Check Points before Operation
Preset and Pattern Function Pre-check
- Check how to operate preset, pattern, scan and group
function with keyboard controller/DVR in advance to
operate camera function using them.
(Refer to your system keyboard manual)
Start OSD Menu
Using the OSD menu, preset, pattern, scan, group and alarm
input function can be configured for each application.
Enter ‘Preset key + 95’.
17
Check Points before Operation
OSD -
1
2
3

18
ROOT MENU & SYSTEM INFORMATION
OSD -
3
ROOT MENU
<SYSTEM INFORAMTION>
Shows information and current configuration.
<MOTION SETUP>
Setup for motion related settings.
<FUNCTION SETUP>
Setup for various functions such as preset, scan, pattern, group and
schedule.
<CAMERA SETUP>
Configure camera related functions and data.
<SYSTEM SETUP>
Configure for basic system setup.
SYSTEM INFORMATION
FIRMWARE VER
Shows the current firmware version.
HD-SDI
Shows the current resolution of HD-SDI.
PROTOCOL
Shows the current PTZ control protocol.
BAUD RATE
Shows the current baud rate of the PTZ control.
CAMERA ADDRESS
Shows the current camera ID of the PTZ control.
11
11
ROOT MENU
====================================================
<SYSTEM INFORMATION>
<MOTION SETUP>
<FUNCTION SETUP>
<CAMERA SETUP>
<SYSTEM SETUP>
EXIT
<SYSTEM INFORMATION>
====================================================
FIRMWARE
HD-SDI
PROTOCOL
BAUD RATE
CAMERA ADDRESS
BACK
EXIT
v0.52_110311 [18]
1920x1080i60
Pelco-D
2400
1

19
MOTION SETUP
OSD -
11
2
3
4
2
MOTION SETUP
Setup the general functions of pan/tilt motions.
PWR UP ACTION
This function enables to resume the last action executed before power
down. Most of actions such as preset, pattern, scan and group are
available for this function but jog actions are not available to resume.
JOG MAX SPEED
Sets maximum jog speed. Jog speed is inversely proportional to zoom
magnification. As zoom magnification goes up, pan/tilt speed goes down.
JOG DIRECTION
If you set this to ‘NORMAL’, the view in the screen is moving same
direction with jog tilting. If ‘INVERSE’ is selected, the view in the screen
is moving reversely.
<ALARM INPUT SETUP>
Moves to ‘ALARM INPUT ACTION’ screen.
ON / OFF
30/SEC ~ 150/SEC
NORMAL / INVERSE
ALARM INPUT SETUP
If an external sensor is activated, camera will move to
corresponding action.
3ALARM INPUT SETUP - Type Setup
1) Move joystick up/down to set alarm type.
2) Move joystick right to set alarm action.
ALARM INPUT SETUP - Alarm Action Setup
1) Move joystick up/down to set the action(HOME, PRESET,
SCAN, PATTERN, GROUP) and number.
2) Move joystick left/right to move the focus to set alarm type,
function name and function number.
3) By pressing near key, save the current setting.
4
Alarm Number
Alarm Type
- Sets sensor input type.
- Refer page 14 for more detailed information.
Alarm Action
Assign counter-action to each alarm input. Among 149 actions, choose
the action as explained below.
1 ~ 8
N.O(Normal Open) / N.C(Normal Close)
NOT USED / HOME / PRESET 1~255 /
SCAN 1~8 / PATTERN 1~4 / GROUP 1~8
<MOTION SETUP>
====================================================
POWER UP ACTION
JOG MAX SPEED
JOG DIRECTION
<ALARM INPUT SETUP>
BACK
EXIT
ON
100/SEC
NORMAL
3
‘<ALARM INPUT SETUP>’ select
and press the ‘NEAR’ Key
<ALARM INPUT SETUP>
====================================================
ALARM 1
ALARM 2
ALARM 3
ALARM 4
ALARM 5
ALARM 6
ALARM 7
ALARM 8
BACK
EXIT
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
N.O
N.O
N.O
N.O
N.O
N.O
N.O
N.O
<ALARM INPUT SETUP>
====================================================
ALARM 1
ALARM 2
ALARM 3
ALARM 4
ALARM 5
ALARM 6
ALARM 7
ALARM 8
BACK
EXIT
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
N.O
N.O
N.O
N.O
N.O
N.O
N.O
N.O
<ALARM INPUT SETUP>
====================================================
ALARM 1
ALARM 2
ALARM 3
ALARM 4
ALARM 5
ALARM 6
ALARM 7
ALARM 8
BACK
EXIT
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
N.C
N.O
N.O
N.O
N.O
N.O
N.O
N.O
Select ‘Alarm Number’
by move joystick up/down.
And press the ‘NEAR’ key
Select ‘Alarm Type’
by move joystick up/down.
And move joystick right.
Select ‘Alarm Action’
by move joystick up/down.
And press the ‘NEAR’ key to save.

20
FUNCTION SETUP > PRESET SETUP
OSD -
1
2
3
<FUNCTION SETUP>
====================================================
<PRESET SETUP>
<SCAN SETUP>
<PATTERN SETUP>
<GROUP SETUP>
BACK
EXIT
<PRESET SETUP>
====================================================
PRESET NUMBER
<EDIT SCENE>
CLEAR PRESET
ALARM OUT
BACK
EXIT
1
CANCEL
- - - -
<EDIT SCENE>
====================================================
MOVE TO TARGET POSITION
[NEAR:SELECT/FAR:CANCEL]
3
Select ‘<PRESET SETUP>’
and press the ‘NEAR’ key
After define the ‘PRESET NUMBER’,
select ‘<EDIT SCENE>’
and press the ‘NEAR’ key
FUNCTION SETUP
Configure 4 special functions with this menu.
1
PRESET SETUP
255 presets from the number 1 to 255 can be assigned excluding
preset 95, 131~134, 141~148, 151~158 reserved for menu.
PRESET NUMBER
Selects the preset number to edit.
<EDIT SCENE>
Define the current preset scene position(i.e. PTZ).
CLEAR PRESET
Deletes current preset data.
ALARM OUT
State of four alarm outputs can be freely controlled in conjunction
with preset run. The character ‘ - ’ means off state and the number
representing each bit means on.
Ex) If it is set to be ‘ - 2 3 - ‘, output relay 2, 3 will be on and 1, 4 will be
be off, when you run this preset.
1 ~ 255
CANCEL / OK
- - - - / 1234
EDIT SCENE
1) By PTZ controling, move camera to desired position.
2) By pressing the ‘NEAR’ key, the save current PTZ data.
3) If you want cancel the editing, press the ‘FAR’ key.
3
2
