Spectra PowerTwin P08C-AL-SR User manual

SPECTRAPOWERTWIN
Panel‐PCE3950/N4200
ApolloLakewith sunreadable
Displays
USERMANUAL
Version1.60– September2020

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 2
Contents
Preface
Revision .....………………………………………….……..……………….……….. 04
Copyright Notice ..…………………………………………………………………… 04
Acknowledgement …………………………………………….………................... 04
Disclaimer ………………………………………………………….……………….. 04
Declaration of Conformity ……………………………………….………………… 04
Product Warranty Statement ……………………………………….…………….. 05
Technical Support and Assistance ………………………………….……………. 06
Conventions Used in this Manual …………………………………….………….. 06
Safety Precaution …..…………………………………….…………….………….. 07
Package Contents ……………………………………………….……….………… 08
Ordering Information …………………………………………….……….………… 09
Optional Accessories and Modules…………...........................…...................... 10
Chapter 1 Product Introductions
1.1 Overview ………………………………………….……………….…….. 12
1.2 Highlights ………………………………………….…………………….. 12
1.3 Product Pictures ..…………………………….…………………………. 13
1.4 Key Feature ……..…………………………….…………………………. 13
1.5 Hardware Specification ………………………….…………………..…..14
1.5.1 PowerTwin P08C-AL-SR……………….…….......... ..........………….… 14
1.5.2 PowerTwin PH10C-AL-SR........................... .......... ...................… 16
1.5.3 PowerTwin PH12C-AL-SR………………….......... ..........…………...…18
1.5.4 PowerTwin P15C-AL-SR………………….......... ........……………. 20
1.5.5 PowerTwin P17C-AL-SR…………………….......... .......…………. 22
1.5.6 PowerTwin P19C-AL-SR…………………….......... .......…………. 24
1.6 System I/O .……………………………………….……………………… 26
1.6.1 Front ……………………………………………………………… 26
1.6.2 Rear ………….………………………………….………………... 26
1.6.3 Side (Left) …………………………………..….………………... 27
1.6.4 Side (Right) …………………………………….………………... 27
1.6.5 Top ..………………………………..….…….……………………. 28
Chapter 2 System Pin Definitions and Settings
2.1 Settings .……………………………………….………………………..... 30
2.2 Location of the Connectors, Jumpers and Switches .…..………….... 30
2.2.1 Top View ..……………………………….…………………………30
2.2.2 Bottom View ..…………………………………………………….. 31
2.3 Connector / Jumper / Switch Definition ......………….…….………..... 32
2.4 Definition of Switches ..……….……………........................................ 33
2.5 Definition of Connectors ……….……..………................................... 35
Chapter 3 System Setup
3.1 Removing the Top Cover .……...…………………………..…………... 40
3.2 Installing a Half Size Mini PCIe Card ……………………………….... 41
3.3 Installing a Full Size Mini PCIe Card ………………....…………….... 42
3.4 Installing Antennas …………………………………..….…………….... 43
3.5 Installing a SO-DIMM ……………………………………....…….….... 45

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 3
3.6 Installing CPU Thermal Pad ..……………………….….…………….... 46
3.7 Installing the Top Cover …………………………….….…………….... 46
3.8 Installing a SATA Hard Drive ………………………..….……………... 47
3.9 Installing a SIM Card ………………………………..….……………… 49
3.10 Connecting with PowerTwin Display Module ……..……………….... 50
3.11 VESA Mount ....………………………....…..….……………................ 52
3.12 Panel Mount..........................................…..….……………................ 53
Chapter 4 BIOS Setup
4.1 BIOS Introduction …….……….……….…….…….…..….…………... 58
4.2 Main Setup ……..……….…………….…….…..….………………...... 59
4.3 Advanced Setup ……………………….……….……………………….. 60
4.3.1 ACPI Settings ……..…………….……….………………………. 60
4.3.2 F81866 Super IO Configuration ..…….………………………... 61
4.3.3 Hardware Monitor ………………..…………………………….... 63
4.3.4 S5 RTC Wake Setting …….……..……………..……………..... 63
4.3.5 Serial Port Console Redirection ..……………..….……….….... 64
4.3.6 CPU Configuration ....……………………….……..…………..... 65
4.3.7 Network Stack Configuration ..……………….……………….... 66
4.3.8 CSM Configuration …………………………….………..………. 66
4.3.9 USB Configuration ………………………..…………………….. 68
4.4 Chipset Setup.…...……….………………….……….…..……………... 69
4.4.1 North Bridge ………….…………………….…………………….. 69
4.4.2 South Bridge ………….………………………………………….. 70
4.4.3 South Cluster Configuration …………………………………….. 71
4.5 Security Setup …...……….………………….……….…..……………... 74
4.6 Boot Setup …..……….….………………….……….…..….…………... 75
4.7 Save & Exit …...……….….………………….…..….…..…………….... 76
Chapter 5 Product Application
5.1 Digital I/O (DIO) application……………………….…..….…………….. 78
5.1.1 Digital I/O Programming Guide …….…………………………... 78
5.2 Digital I/O (DIO) Hardware Specification ……….….…………………. 83
Chapter 6 Optional Module Pin Definitions and Settings
6.1 Location of the Connectors and Switches ……………..…………….. 86
6.2 Installing a CFM-IGN Power Ignition Module …………..……………. 86
6.3 Installing a CFM-PoE Control Module ………………..………………. 88

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 4
Preface
Revision
Revision Description Date
1.00 First Release 2018/07/30
1.10 Correction Made 2018/11/20
1.20 P08 Product Info and Mechanical Dimensions Added 2019/02/15
1.30 Updated LAN Chip Information 2019/04/26
1.40 Updated Watchdog 2019/06/18
1.50 Edit Models names 2019/08/13
1.60 Removed Optical Bonding Option 2020/09/21
Copyright Notice
© 2019 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied,
modified, or reproduced in any form or by any means for commercial use without the prior written
permission of Spectra GmbH & Co. KG. All information and specification provided in this manual are
for reference only and remain subject to change without prior notice.
Acknowledgement
All registered trademarks and product names mentioned herein are used for identification purposes
only and may be trademarks and/or registered trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject to change
without notice. It does not represent a commitment on the part of Spectra. This product might include
unintentional technical or typographical errors. Changes are periodically made to the information
herein to correct such errors, and these changes are incorporated into new editions of the publication
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European Union
(CE) directives if it has a CE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires proper
cable and cabling techniques.

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 5
Product Warranty Statement
Warranty
Spectra products are warranted by Spectra GmbH & Co. KG to be free from defect in materials and
workmanship starting from the date of purchase by the original purchaser. The actual warranty period
of Spectraproducts vary with product categories. During the warranty period, we shall, at our option,
either repair or replace any product that proves to be defective under normal operation.
Defects, malfunctions, or failures of the warranted product caused by damage resulting from natural
disasters (such as by lightening, flood, earthquake, etc.), environmental and atmospheric disturbances,
other external forces such as power line disturbances, plugging the board in under power, or incorrect
cabling, and damage caused by misuse, abuse, and unauthorized alteration or repair, and the product
in question is either software, or an expendable item (such as a fuse, battery, etc.), are not warranted
RMA
Before sending your product in, you will need to fill in a Spectra RMA Request Form and obtain a
RMA number from us. Please go to www.spectra.de/RMA to fill in this form. Our staff is available at
any time to provide you with the most friendly and immediate service.
RMA Instruction
Customers must fill in Spectra Return Merchandise Authorization (RMA) Request Form and
obtain a RMA number prior to returning a defective product to Spectra for service.
Customers must collect all the information about the problems encountered and note anything
abnormal and describe the problems on the “Spectra Service Form” for the RMA number apply
process.
Charges may be incurred for certain repairs. Spectra will charge for repairs to products whose
warranty period has expired. Spectra will also charge for repairs to products if the damage
resulted from acts of God, environmental or atmospheric disturbances, or other external forces
through misuse, abuse, or unauthorized alteration or repair. If charges will be incurred for a
repair, Spectra lists all charges, and will wait for customer’s approval before performing the
repair.
Customers agree to insure the product or assume the risk of loss or damage during transit, to
prepay shipping charges, and to use the original shipping container or equivalent.
Customers can be send back the faulty products with or without accessories (manuals, cable,
etc.) and any components from the system. If the components were suspected as part of the
problems, please note clearly which components are included. Otherwise, Spectra is not
responsible for the devices/parts.
Repaired items will be shipped along with a "Repair Report" detailing the findings and actions
taken.

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 6
This indication alerts operators to an operation that, if not strictly
observed, may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly
observed, may result in safety hazards to personnel or damage to
equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE
Technical Support and Assistance
1. Visit our website at www.spectra.de where you can find the latest information about the product.
2. Contact our technical support team or sales representative for technical support if you need
additional assistance. Please have following information ready before you call:
Product name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages
Conventions Used in this Manual

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 7
Safety Precautions
Before installing and using this device, please note the following precautions:
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current rating
of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10.All cautions and warnings on the equipment should be noted.
11.If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.
12.Never pour any liquid into an opening. This may cause fire or electrical shock.
13.Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it work according to the user's manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 8
Item Description Q’ty
1PanelPC 1
2 UtilityDVDDriver 1
3ScrewPack 1
4PanelMountingKit 1
5PowerTerminalBlockConnector 1
6RemotePowerOn/OffTerminalBlockConnector 1
7DIOTerm i nalBlockConnector 1
8ThermalPad(forCPUThermalBlock) 1
Note: Notify your sales representative if any of the above items are missing or damaged.
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 9
ModelNo. ProductDescription
Spectra PowerTwin
P08C‐AL‐SR
8.4"TFT‐LCD1600nitsSunlightReadableTouchPanelPCwithIntel®Atom®
E3950QuadCoreProcessorandP‐Cap.Touch
Spectra PowerTwin
P08C‐ALN42‐SR
8.4"TFT‐LCD1600nitsSunlightReadableTouchPanelPCwithIntel®Pentium®
N4200QuadCoreProcessorandP‐Cap.Tou c h
Spectra PowerTwin
PH10C‐AL‐SR
10.4"TFT‐LCD1500nitsSunlightReadableTouchPanelPCwithIntel®Atom®
E3950QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
PH10C‐ALN42‐SR
10.4"TFT‐LCD1500nitsSunlightReadableTouchPanelPCwithIntel®
Pentium®N4200QuadCoreProcessor,P‐Cap.Touc h
Spectra PowerTwin
PH12C‐AL‐SR
12.1"TFT‐LCD1500nitsSunlightReadableTouchPanelPCwithIntel®Atom®
E3950QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
PH12C‐ALN42‐SR
12.1"TFT‐LCD1500nitsSunlightReadableTouchPanelPCwithIntel®
Pentium®N4200QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
P15C‐AL‐SR
15"TFT‐LCD1600nitsSunlightReadableTouchPanelPCwithIntel®Atom®
E3950QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
P15C‐ALN42‐SR
15"TFT‐LCD1600nitsSunlightReadableTouchPanelPCwithIntel®Pentium®
N4200QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
P17C‐AL‐SR
17"TFT‐LCD1500nitsSunlightReadableTouchPanelPCwithIntel®Atom®
E3950QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
P17C‐ALN42‐SR
17"TFT‐LCD1500nitsSunlightReadableTouchPanelPCwithIntel®Pentium®
N4200QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
P19C‐AL‐SR
19"TFT‐LCD1600nitsSunlightReadableTouchPanelPCwithIntel®Atom®
E3950QuadCoreProcessor,P‐Cap.Touch
Spectra PowerTwin
P19C‐ALN42‐SR
19"TFT‐LCD1600nitsSunlightReadableTouchPanelPCwithIntel®Pentium®
N4200QuadCoreProcessor,P‐Cap.Touch
Ordering Information

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 10
ModelNo. Description
PB‐3000A‐IGN CFMModulewithPowerIgnitionSensingControlFunction,12V/24VSelectable
(43x36mm)
PT‐PN4‐CFM‐PoE02 CFMModulewithPoEControlFunction,IndividualPort25.5W
PowerAdapter,
60W/12V,3pin AdapterAC/DC12V5A60W,GST60A12‐CIN1,widetemp(‐30°C~+70°C),LevelVI
PowerAdapter,
120W/24V,3pin AdapterAC/DC24V5A120W,GST120A24‐CIN,widetemp(‐30°C~+70°C),levelVI
Uponrequest AdapterAC/DC24V9.2A220W,GST220A24‐CIN,widetemp(‐30°C~+70°C),level
VI(ForPowerTwinP19only)
UniversalMountKit
forPowerTwin19" Universal19"RackMountKitforIndustrialPanelPC&IndustrialMonitor
Optional Modules & Accessories

Product Introductions
Chapter 1

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 12
1.1 Overview
Spectra PowerTwin P-AL-SR Series is a TFT-LCD sunlight readable touch panel PC offering
ultra-high brightness and high resolution. The system is based on Intel® Atom® / Pentium®
processor and supports triple independent displays (via VGA and DisplayPort outputs).
Spectra PowerTwin P-AL-SR Series features extensive connectivity including 2x GbE, 4x USB
3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM
socket for a variety of wireless data connections.
Through the ready-to-use CFM modules, users can easily add power ignition sensing and
Power over Ethernet (PoE) functions for a variety of applications. Spectra PowerTwin P-AL-
SR Series also supports Convertible Display System (CDS) technology. Comparing with
regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically.
Featuring with rigorous industrial protections, wide range operating temperature (-20°Cto
70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), Spectra
PowerTwin P-AL-SR Series is appropriate for harsh environments and critical applications.
Wide Temperature
Spectra PowerTwin P-AL-SR
Series supports wide range
operating temperature from -
20°C to 70°C and is suitable for
deploying in extreme and harsh
environments.
Sunlight Readable
Providing ultra high brightness
and high resolution, Spectra
PowerTwin P-AL-SR Series is
suitable for all lighting conditions
including direct sunlight.
Multiple Functions
Spectra PowerTwin P-AL-SR
Series provides extensive I/O,
Mini-PCIe slot, 2.5” SATA drive
bay, mSATA socket, and SIM
card slot. It also supports power
ignition sensing and PoE by
adding ready-to-use CFM
modules.
1.2 Highlights

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 13
1.3 Product Pictures
• 8.4” ~ 19” TFT LCD with Ultra High Brightness up to 1,600nits
• Onboard Intel® Atom® / Pentium® Processor
• Triple Independent Displays (via VGA and DisplayPort outputs)
• Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
• 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
• Wide Range Operating Temperature -20°Cto70°C
• Designed with Aluminum Die-casting Front Frame
• True Flat IP65 Front Panel Protection
• Supports CDS Technology, Ignition Sensing and Power over Ethernet
• Supports Panel / VESA / *Rack Mounting (*with optional mounting kit)
1.4 Key Features
Front Rear

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 14
Display
• LCD Size: 8.4" (4:3)
• Max. Resolution: 800 x 600
• Brightness (cd/m2): 1600
• Contrast Ratio: 600 : 1
• LCD Color: 16.2M
• Pixel Pitch (mm): 0.213 (H) x 0.213 (V)
• Viewing Angle (H-V): 160 / 140
• Backlight MTBF: 50000 hrs. (LED Backlight)
Touch
• Projected Capacitive Touch
Processor System
• Onboard Intel® Atom® x7-E3950 Quad Core Processor,
up to 2.00 GHz
• Onboard Intel® Pentium® N4200 Quad Core Processor,
up to 2.50 GHz
Memory
• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM
Socket
• Supports up to 8GB (un-buffered and non-ECC)
Graphics
• Integrated Intel® HD Graphics 505
• Supports Triple Independent Display (via VGA &
DisplayPort outputs)
Audio Codec
• Realtek ALC888-GR
External I/O Interface
• 1x VGA (1920 x 1200 @60Hz)
• 1x DisplayPort (4K x 2K @60Hz)
• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame &
PXE), RJ45
- GbE1: Intel® I210IT
- GbE2: Intel® I210IT
• 4x USB 3.0 (Type A)
• 4x RS-232/422/485 with Auto Flow Control (Supports
5V/12V), DB9
• 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x Reset Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/Off Connector, 2-pin Terminal
Block
• 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Storage
• 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
• 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe
Socket)
Expansion
• 2x Full-size Mini-PCIe Socket
• 1x SIM Socket
• Supports Control Function Module (CFM) Technology
- Optional CFM IGN Module for Power Ignition
-Function
- Optional CFM PoE Module for Power over Ethernet
-Function
• Supports Convertible Display System (CDS)
Technology
• 4x Antenna Holes
Other Features
• Watchdog Timer: Software Programmable Supports
1~256 Levels System Reset
• Internal Speaker AMP 2W + 2W
• OSD Function: LCD On/Off, Brightness Up, Brightness
Down
• SuperCap Integrated for CMOS Battery Maintenance-
free Operation
• Supports Instant Reboot Technology (0.2 sec)
Power Requirement
• Supports AT/ATX Power Type
• 1x 3-pin Terminal Block
• Power Input Voltage 9~48VDC
• Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
(Optional)
Physical
• Dimension (WxDxH, mm): 262 X 186.2 X 69.35 mm
• Weight: 3.07 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA / *Rack Mounting (*with
optional mounting kit)
• Fanless Design
1.5.1 PowerTwin P08C-AL-SR
1.5 Hardware Specification

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 15
Environment
• Operating Temperature: -20°C to 70°C
(with extended temperature peripherals; Ambient with
air flow)
• Storage Temperature: -20°C to 70°C
• Relative Humidity: 85% RH @ 40°C (non-condensing)
• Shock: Operating, 15 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
• Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
• IP Level: IP 65 Compliant Front Panel
• EMC: CE, FCC Class A
Protection
• Reverse Power Input Protection
• Over Voltage Protection: 58V
• Over Current Protection: 15A
• ESD Protection: +/-15kV (air), +/-8kV (contact)
• Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs
waveform)
Operating System
• Windows® 10
• Linux: Supports by project

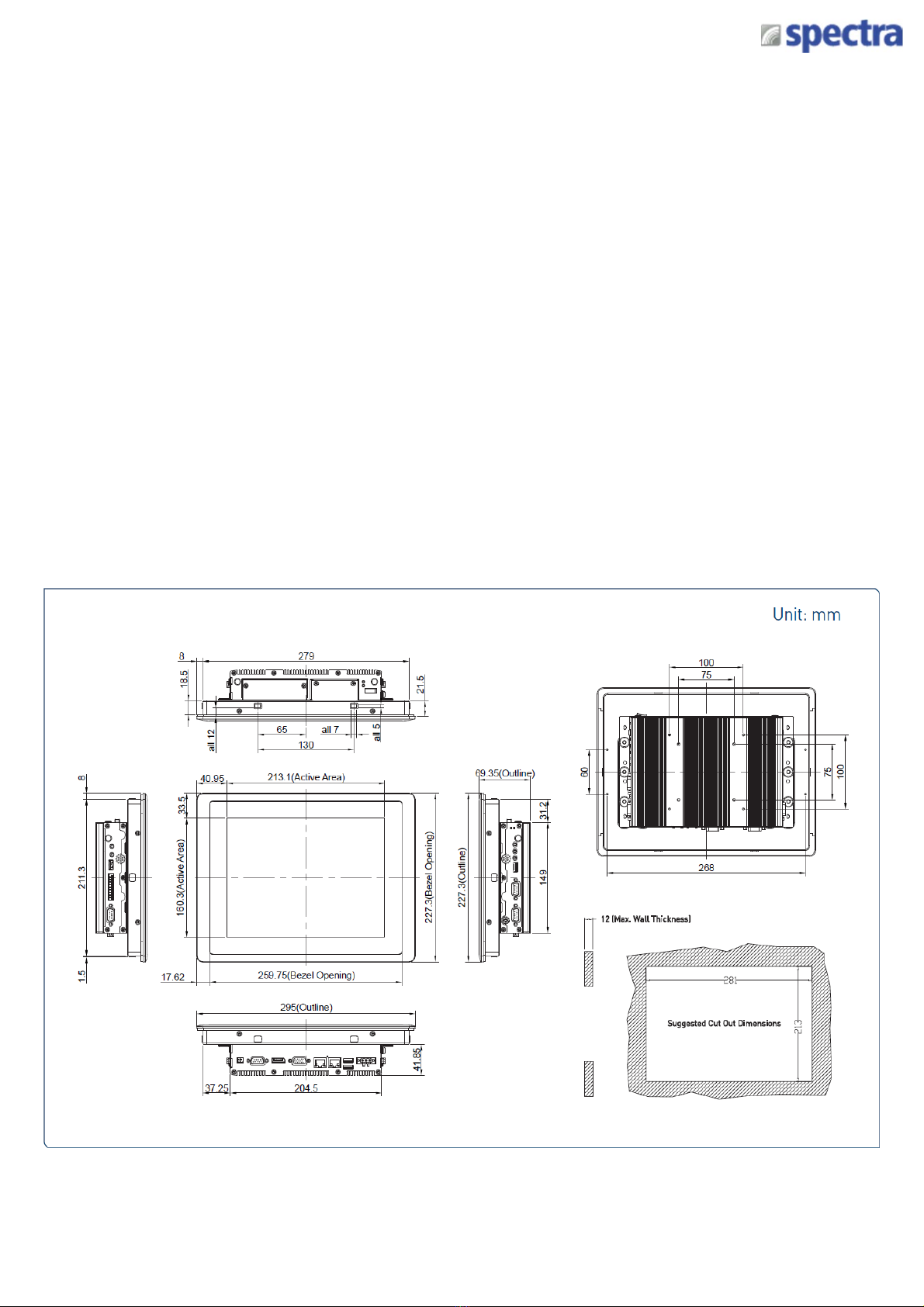

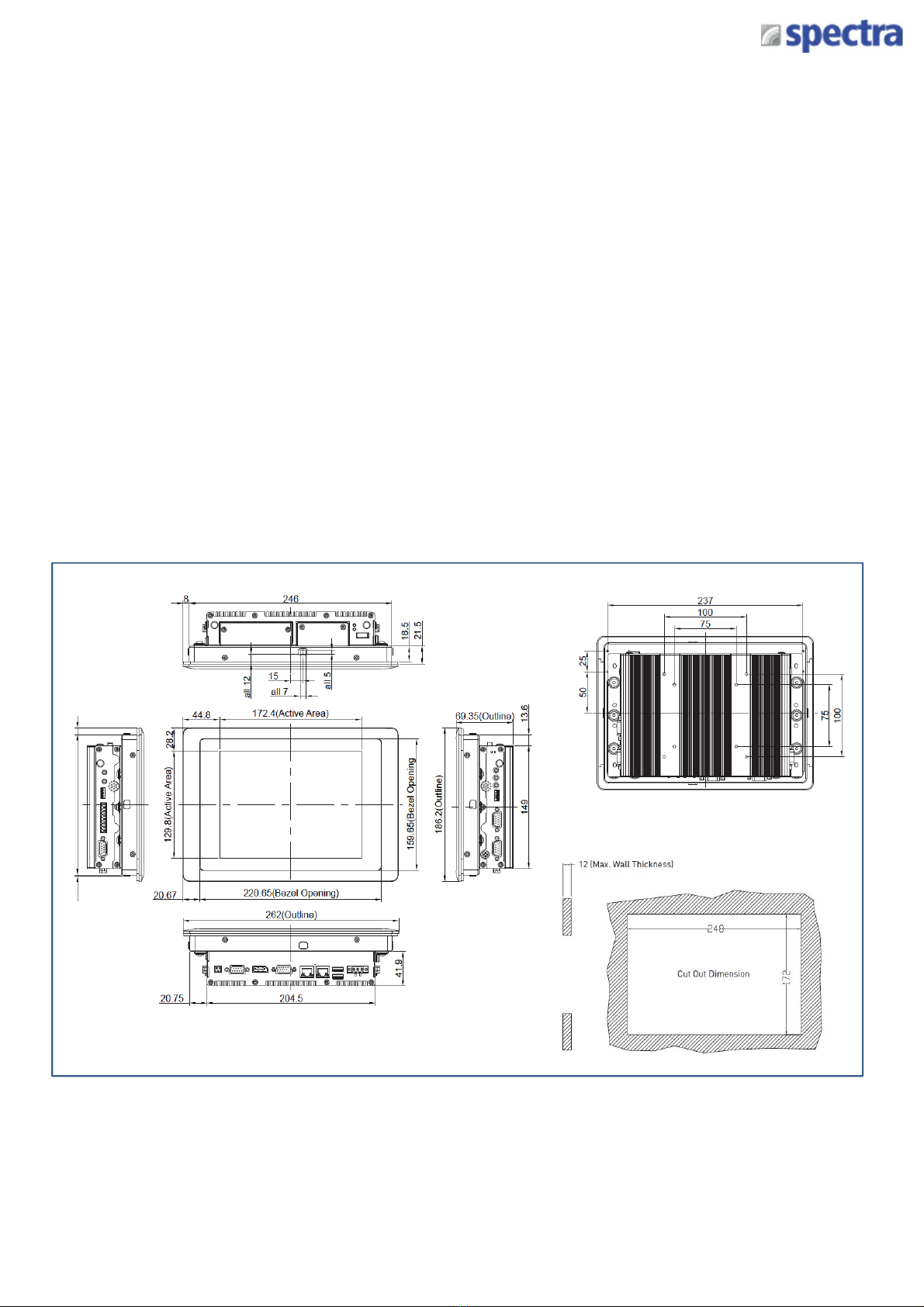

Dimension

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 16
Display
• LCD Size: 10.4" (4:3)
• Max. Resolution: 1024 x 768
• Brightness (cd/m2): 1500
• Contrast Ratio: 1400 : 1
• LCD Color: 16.2M
• Pixel Pitch (mm): 0.206 (H) x 0.206 (V)
• Viewing Angle (H-V): 178 / 178
• Backlight MTBF: 50000 hrs. (LED Backlight)
Touch
• Projected Capacitive Touch
Processor System
• Onboard Intel® Atom® x7-E3950 Quad Core Processor,
up to 2.00 GHz
• Onboard Intel® Pentium® N4200 Quad Core Processor,
up to 2.50 GHz
Memory
• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM
Socket
• Supports up to 8GB (un-buffered and non-ECC)
Graphics
• Integrated Intel® HD Graphics 505
• Supports Triple Independent Display (via VGA &
DisplayPort outputs)
Audio Codec
• Realtek ALC888-GR
External I/O Interface
• 1x VGA (1920 x 1200 @60Hz)
• 1x DisplayPort (4K x 2K @60Hz)
• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame &
PXE), RJ45
- GbE1: Intel® I210IT
- GbE2: Intel® I210IT
• 4x USB 3.0 (Type A)
• 4x RS-232/422/485 with Auto Flow Control (Supports
5V/12V), DB9
• 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x Reset Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/Off Connector, 2-pin Terminal
Block
• 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Storage
• 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
• 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe
Socket)
Expansion
• 2x Full-size Mini-PCIe Socket
• 1x SIM Socket
• Supports Control Function Module (CFM) Technology
- Optional CFM IGN Module for Power Ignition
-Function
- Optional CFM PoE Module for Power over Ethernet
-Function
• Supports Convertible Display System (CDS)
Technology
• 4x Antenna Holes
Other Features
• Watchdog Timer: Software Programmable Supports
1~256 Levels System Reset
• Internal Speaker AMP 2W + 2W
• OSD Function: LCD On/Off, Brightness Up, Brightness
Down
• SuperCap Integrated for CMOS Battery Maintenance-
free Operation
• Supports Instant Reboot Technology (0.2 sec)
Power Requirement
• Supports AT/ATX Power Type
• 1x 3-pin Terminal Block
• Power Input Voltage 9~48VDC
• Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
(Optional)
Physical
• Dimension (WxDxH, mm): 295 X 227.3 X 69.35 mm
• Weight: 3.73 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA / *Rack Mounting (*with
optional mounting kit)
• Fanless Design
1.5.2 PowerTwin PH10C-AL-SR

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 17
Environment
• Operating Temperature: -20°C to 70°C
(with extended temperature peripherals; Ambient with
air flow)
• Storage Temperature: -20°C to 70°C
• Relative Humidity: 80% RH @ 40°C (non-condensing)
• Shock: Operating, 15 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
• Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
• IP Level: IP 65 Compliant Front Panel
• EMC: CE, FCC Class A
Protection
• Reverse Power Input Protection
• Over Voltage Protection: 58V
• Over Current Protection: 15A
• ESD Protection: +/-15kV (air), +/-8kV (contact)
• Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs
waveform)
Operating System
• Windows® 10
• Linux: Supports by project
Dimension

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 18
Display
• LCD Size: 12.1" (4:3)
• Max. Resolution: 1024 x 768
• Brightness (cd/m2): 1500
• Contrast Ratio: 700 : 1
• LCD Color: 16.2M
• Pixel Pitch (mm): 0.24 (H) x 0.24 (V)
• Viewing Angle (H-V): 160 / 160
• Backlight MTBF: 50000 hrs. (LED Backlight)
Touch
• Projected Capacitive Touch
Processor System
• Onboard Intel® Atom® x7-E3950 Quad Core Processor,
up to 2.00 GHz
• Onboard Intel® Pentium® N4200 Quad Core Processor,
up to 2.50 GHz
Memory
• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM
Socket
• Supports up to 8GB (un-buffered and non-ECC)
Graphics
• Integrated Intel® HD Graphics 505
• Supports Triple Independent Display (via VGA &
DisplayPort outputs)
Audio Codec
• Realtek ALC888-GR
External I/O Interface
• 1x VGA (1920 x 1200 @60Hz)
• 1x DisplayPort (4K x 2K @60Hz)
• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame &
PXE), RJ45
- GbE1: Intel® I210IT
- GbE2: Intel® I210IT
• 4x USB 3.0 (Type A)
• 4x RS-232/422/485 with Auto Flow Control (Supports
5V/12V), DB9
• 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x Reset Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/Off Connector, 2-pin Terminal
Block
• 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Storage
• 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
• 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe
Socket)
Expansion
• 2x Full-size Mini-PCIe Socket
• 1x SIM Socket
• Supports Control Function Module (CFM) Technology
- Optional CFM IGN Module for Power Ignition
-Function
- Optional CFM PoE Module for Power over Ethernet
-Function
• Supports Convertible Display System (CDS)
Technology
•4xAntennaHoles
Other Features
• Watchdog Timer: Software Programmable Supports
1~256 Levels System Reset
• Internal Speaker AMP 2W + 2W
• OSD Function: LCD On/Off, Brightness Up, Brightness
Down
• SuperCap Integrated for CMOS Battery Maintenance-
free Operation
• Supports Instant Reboot Technology (0.2 sec)
Power Requirement
• Supports AT/ATX Power Type
• 1x 3-pin Terminal Block
• Power Input Voltage 9~48VDC
• Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
(Optional)
Physical
• Dimension (WxDxH, mm): 345 X 265.3 X 69.85 mm
• Weight: 4.65 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA / *Rack Mounting (*with
optional mounting kit)
• Fanless Design
1.5.3 PowerTwin PH12C-AL-SR

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 19
Environment
• Operating Temperature: -20°C to 70°C
(with extended temperature peripherals; Ambient with
air flow)
• Storage Temperature: -20°C to 70°C
• Relative Humidity: 80% RH @ 40°C (non-condensing)
• Shock: Operating, 15 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
• Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
• IP Level: IP 65 Compliant Front Panel
• EMC: CE, FCC Class A
Protection
• Reverse Power Input Protection
• Over Voltage Protection: 58V
• Over Current Protection: 15A
• ESD Protection: +/-15kV (air), +/-8kV (contact)
• Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs
waveform)
Operating System
• Windows® 10
• Linux: Supports by project
Dimension

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinPE3950/PN4200Apollo+sunreadable Displays 20
Display
• LCD Size: 15" (4:3)
• Max. Resolution: 1024 x 768
• Brightness (cd/m2): 1600
• Contrast Ratio: 800 : 1
• LCD Color: 16.2M
• Pixel Pitch (mm): 0.297 (H) x 0.297 (V)
• Viewing Angle (H-V): 160 / 150
• Backlight MTBF: 50000 hrs. (LED Backlight)
Touch
• Projected Capacitive Touch
Processor System
• Onboard Intel® Atom® x7-E3950 Quad Core Processor,
up to 2.00 GHz
• Onboard Intel® Pentium® N4200 Quad Core Processor,
up to 2.50 GHz
Memory
• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM
Socket
• Supports up to 8GB (un-buffered and non-ECC)
Graphics
• Integrated Intel® HD Graphics 505
• Supports Triple Independent Display (via VGA &
DisplayPort outputs)
Audio Codec
• Realtek ALC888-GR
External I/O Interface
• 1x VGA (1920 x 1200 @60Hz)
• 1x DisplayPort (4K x 2K @60Hz)
• 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame &
PXE), RJ45
- GbE1: Intel® I210IT
- GbE2: Intel® I210IT
• 4x USB 3.0 (Type A)
• 4x RS-232/422/485 with Auto Flow Control (Supports
5V/12V), DB9
• 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x Reset Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/Off Connector, 2-pin Terminal
Block
• 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Storage
• 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
• 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe
Socket)
Expansion
• 2x Full-size Mini-PCIe Socket
• 1x SIM Socket
• Supports Control Function Module (CFM) Technology
- Optional CFM IGN Module for Power Ignition
-Function
- Optional CFM PoE Module for Power over Ethernet
-Function
• Supports Convertible Display System (CDS)
Technology
• 4x Antenna Holes
Other Features
• Watchdog Timer: Software Programmable Supports
1~256 Levels System Reset
• Internal Speaker AMP 2W + 2W
• OSD Function: LCD On/Off, Brightness Up, Brightness
Down
• SuperCap Integrated for CMOS Battery Maintenance-
free Operation
• Supports Instant Reboot Technology (0.2 sec)
Power Requirement
• Supports AT/ATX Power Type
• 1x 3-pin Terminal Block
• Power Input Voltage 9~48VDC
• Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
(Optional)
Physical
• Dimension (WxDxH, mm): 408 X 312.4 X 72.35 mm
• Weight: 5.85 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA / *Rack Mounting (*with
optional mounting kit)
• Fanless Design
1.5.4 PowerTwin P15C-AL-SR
