1General Description
This End-of-Line Encapsulated Resistor P/N 777915-X is used with the
flame detector series, when detectors are connected as a 4-wire
connection to the alarm panel through the Fault and Alarm delays.
This resistor is used as end-of-line, when the detectors are in a loop
with several detectors. At normal operation, the controller will see the
end-of-line. At Fault, the fire alarm will see disconnection. At Alarm,
the Alarm panel will see short circuit.
The value of the resistor is defined by the controller type.
The resistor has several options.
2End-of-Line Encapsulated Resistor
Options
The End-of-Line Encapsulated Resistor has 10 different resistor values,
which give a wide variety of options for different fire alarm panels:
Options
Resistor Value
Max. Current
777915-1
1.56KΩ
21mA
777915-2
2.35KΩ
14mA
777915-3
4.7KΩ
7mA
777915-4
7.5KΩ
4.3mA
777915-5
10KΩ
3.2mA
777915-6
20KΩ
1.6mA
777915-7
47KΩ
0.7mA
777915-8
56KΩ
0.57mA
777915-9
68KΩ
0.47mA
777915-10
75KΩ
0.43mA
3Product Certification
The End-of-Line Encapsulated Resistor, P/N 777915-X, is certified
per ATEX and IECEx: Ex II 2 G D
Ex mb IIC Gb
Ex mb IIIC Db
Operation voltage: 18–32VDC
The maximum current permitted is defined in End-of-Line
Encapsulated Resistor Options on page 7.

8
SharpEyeTM End-of-Line Encapsulated Resistor Installation Guide
4Certification Instructions
The marking of this equipment is:
Ex II 2 G D
Ex mb IIC Gb
Ex mb IIIC Db
This equipment may be used with flammable gasses and vapors
with apparatus groups IIA and IIC:
T5 in the ambient temperature range: -67°F/-55°C to
+167°F/+75°C.
The prospective short circuit current (PSCC) of the power supply
which supplies equipment incorporating the components should be
no more than 1500A. The PSCC of the supply should be limited by a
fuse with a breaking capacity of at least 1500A, and a voltage
rating at least corresponding to the working voltage of the circuit in
which it is installed.
Where limitation in the previous section is satisfied by limitation of
the voltage across the resistor to 32V (Option A), the service
temperature range of the encapsulated resistor is -67°F/-55°C to
+260°F/+127°C. Under testing of the Ex component based on this
voltage rating, the service temperature rise is 40.7K and the
surface temperature rise is 39.5K.
Where limitation in the previous section is satisfied by limitation of
current drawn by the resistor, by the use of a fuse (Option B), the
service temperature range of the equipment is 67°F/-55°C to
266°F/+130°C. Under testing of the Ex component based on the
current rating, the temperature rises recorded on the component,
within the compound and on the compound surface, were 101K and
85.9K respectively.
The local ambient and surface temperature of the resistor should be
taken into account in determining the service temperature within
the compound in any equipment applications.
5Resistor Installation
The resistor should be installed at the factory only.
For the 40/40 Flame Detector Series, the resistor should be ordered
by definition 40/40X-XXXXE resistor value.
When ordering 40/40X-XXXXE, the marking of the detector will
change to:
Ex II 2 G D
Ex db eb mb op is IIC T4 Gb
Ex tb op is IIIC T98°C Db
(-55°C≤Ta≤+75°C)
The resistor will be connected between Terminals 5 and 6 (see
Figure 1), and a label will be glued to the detector’s back cover
(see Figure 2).

Resistor Installation
TM777915-X Rev (5), June 2017
9

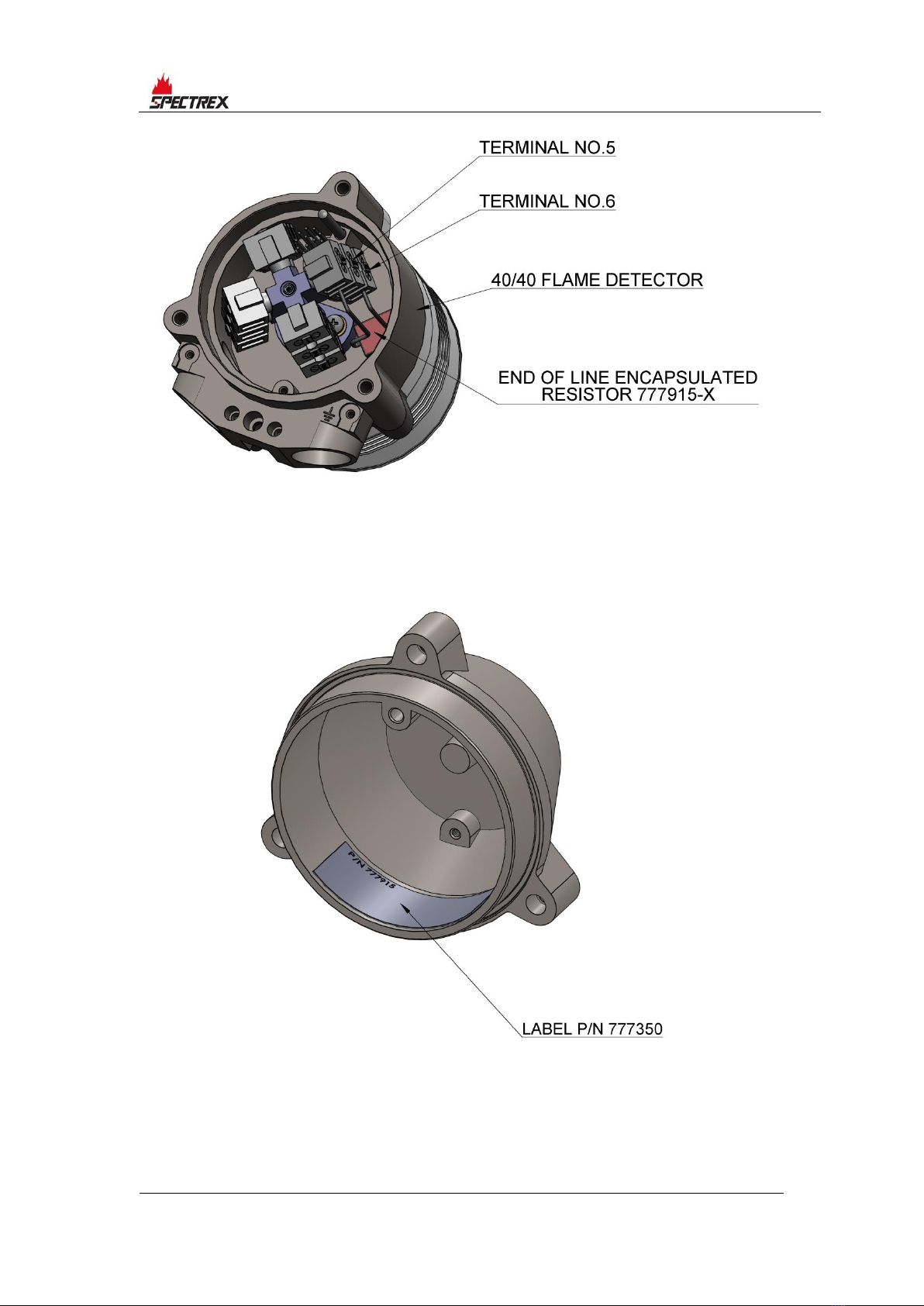

Figure 1: End-of-Line Resistor Installed in 40/40 Series
Figure 2: End-of-Line Resistor Label Installed in the Back Cover
