SPI LIGHTING AIP11846 User manual

24IN (AIP11846)
36IN (AIP11847)
48IN (AIP11848)
60IN (AIP11849)
IMPORTANT SAFETY AND INSTALLATION INSTRUCTIONS
WARNING: Risk of fire and electrical
shock. This product is to be installed by
a qualified electrician only.
CAUTION: When using electrical
equipment, basic safety precautions
should always be followed including the
following: Read all instructions carefully
before installation and save
for future use. Make sure installation and
all connections are in accordance with
National Electrical Code and any local
regulations. To avoid possible electrical
shock, be sure that power supply is turned
off before installing or servicing this fixture.
Servicing should be performed by qualified
service personnel.
These instructions do not claim to cover
all details or variations. When additional
information is desired, please contact
your SPI representative.
SPI
Tel [phone] F x (262) 242- 6414

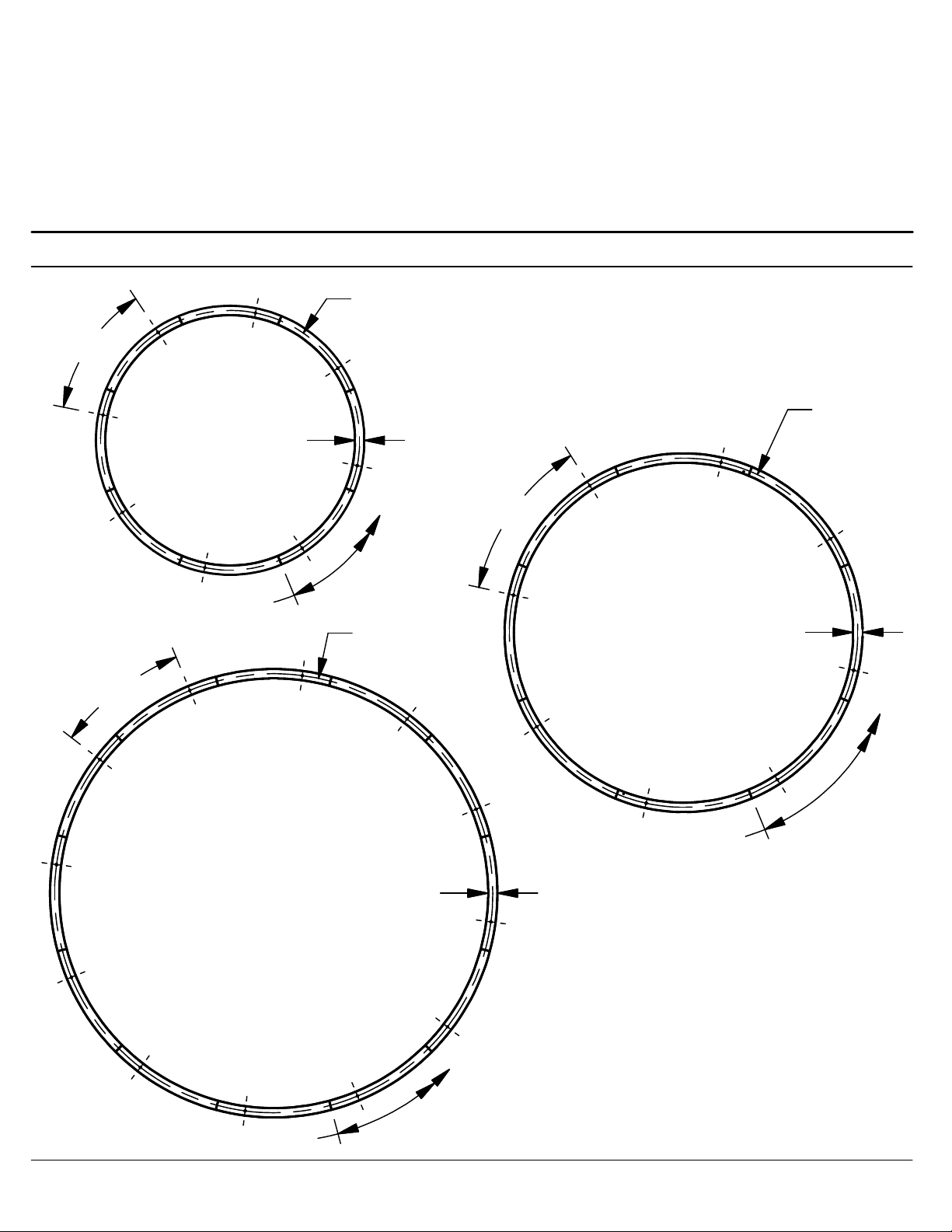

Nov to Ring Str ight C ble Mounting Loc tions
IS109159X
10/30/2020
SPIte [email protected]om
LIGHTING
n 20.8 M.C.
120°
120°
n 33.1 M.C.
120°
5.00
5.00
5.00
n 44.75 M.C.
5.00
n 56.125 M.C.
120°

72IN (AIP11997)
96IN (AIP12084)
120IN (AIP12099)
IMPORTANT SAFETY AND INSTALLATION INSTRUCTIONS
WARNING: Risk of fire and electrical
shock. This product is to be installed by
a qualified electrician only.
CAUTION: When using electrical
equipment, basic safety precautions
should always be followed including the
following: Read all instructions carefully
before installation and save
for future use. Make sure installation and
all connections are in accordance with
National Electrical Code and any local
regulations. To avoid possible electrical
shock, be sure that power supply is turned
off before installing or servicing this fixture.
Servicing should be performed by qualified
service personnel.
These instructions do not claim to cover
all details or variations. When additional
information is desired, please contact
your SPI representative.
SPI
Tel [phone] F x (262) 242- 6414
Nov to Segmented Ring Str ight C ble Mounting Loc tions
IS109159X
10/30/2020
SPIte [email protected]om
LIGHTING
90°
n 67 M.C.
5.00
90° SEGMENTS
n 91 M.C.
90° SEGMENTS
5.00
90°
45° SEGMENTS
45°
n 115 M.C.
5.00

144IN (AIP12185)
192IN (AIP12186)
240IN (AIP12187)
IMPORTANT SAFETY AND INSTALLATION INSTRUCTIONS
WARNING: Risk of fire and electrical
shock. This product is to be installed by
a qualified electrician only.
CAUTION: When using electrical
equipment, basic safety precautions
should always be followed including the
following: Read all instructions carefully
before installation and save
for future use. Make sure installation and
all connections are in accordance with
National Electrical Code and any local
regulations. To avoid possible electrical
shock, be sure that power supply is turned
off before installing or servicing this fixture.
Servicing should be performed by qualified
service personnel.
These instructions do not claim to cover
all details or variations. When additional
information is desired, please contact
your SPI representative.
SPI
Tel [phone] F x (262) 242- 6414
Nov to Segmented Ring Str ight C ble Mounting Loc tions
IS109159X
10/30/2020
SPIte [email protected]om
LIGHTING
45°
5.00
45° SEGMENTS
n 139 M.C.
45°
5.00
45° SEGMENTS
n 187 M.C.
30°
30° SEGMENTS
n 235 M.C.
5.00
