Spirit XT185 User manual

X T18 5 Treadmill
OWNER’S MANUAL

2

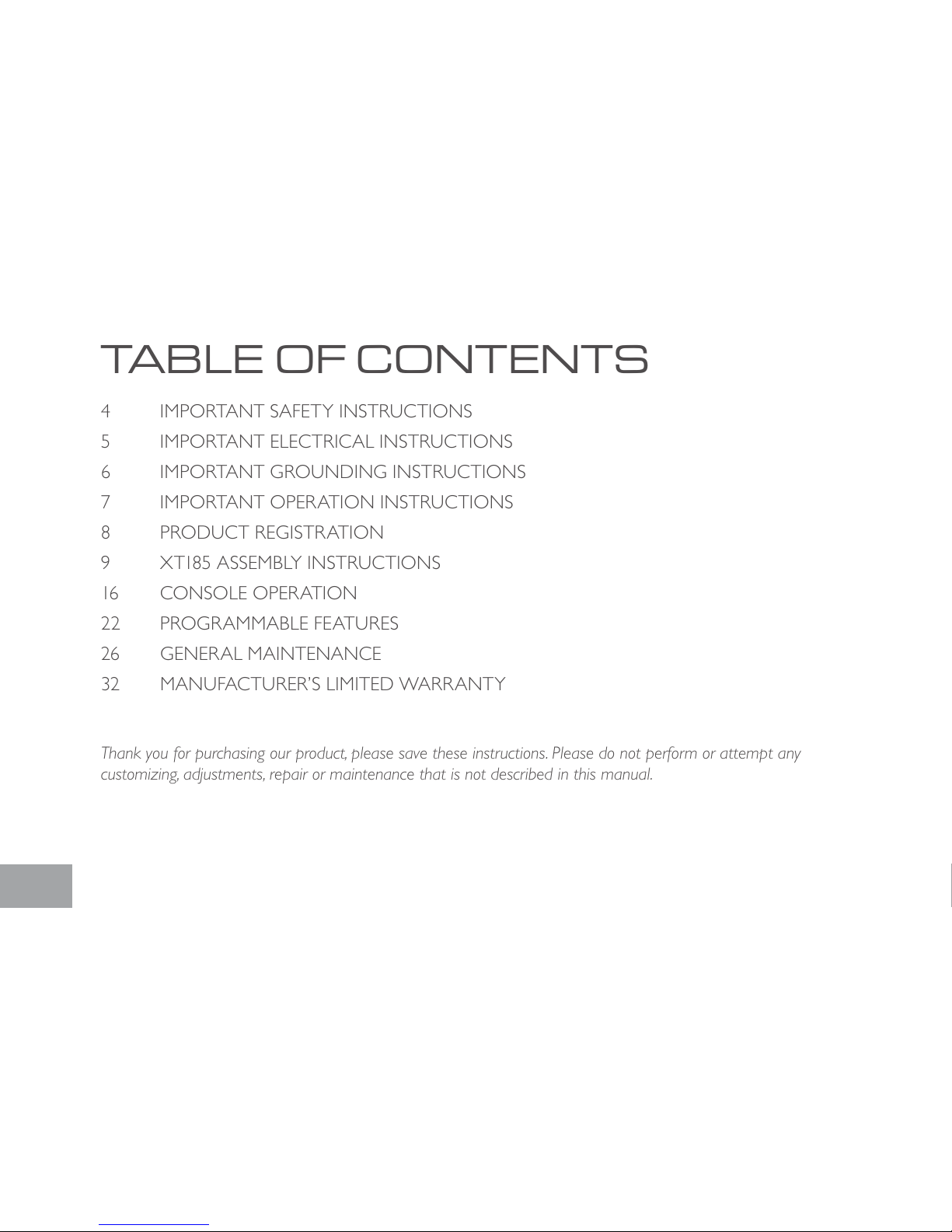

TABLE OF CONTENTS
4 IMPORTANT SAFETY INSTRUCTIONS
5 IMPORTANT ELECTRICAL INSTRUCTIONS
6 IMPORTANT GROUNDING INSTRUCTIONS
7 IMPORTANT OPERATION INSTRUCTIONS
8 PRODUCT REGISTRATION
9 XT185 ASSEMBLY INSTRUCTIONS
16 CONSOLE OPERATION
22 PROGRAMMABLE FEATURES
26 GENERAL MAINTENANCE
32 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

3

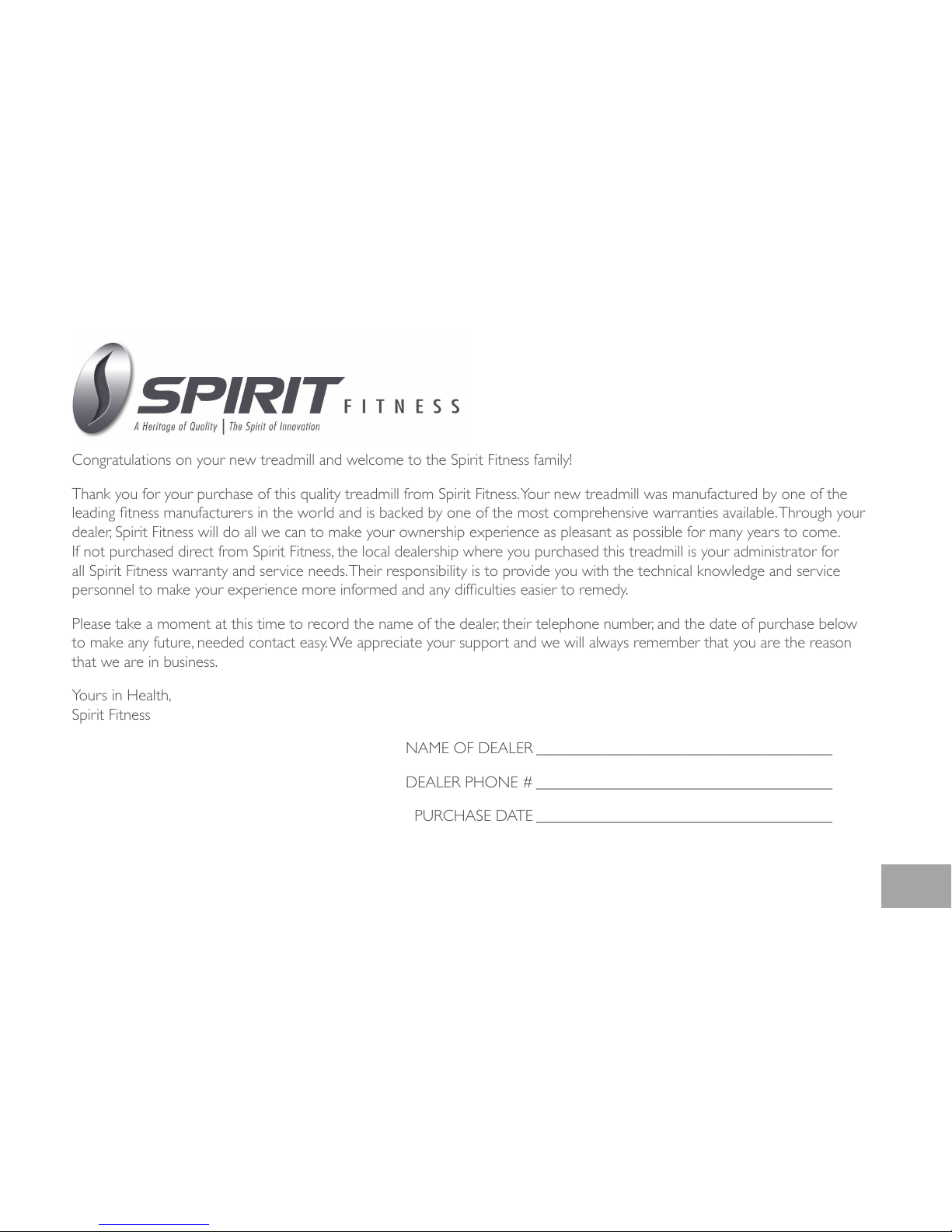

Congratulations on your new treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality treadmill from Spirit Fitness.Your new treadmill was manufactured by one of the
leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available. Through your
dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come.
If not purchased direct from Spirit Fitness, the local dealership where you purchased this treadmill is your administrator for
all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical knowledge and service
personnel to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase below
to make any future, needed contact easy.We appreciate your support and we will always remember that you are the reason
that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

4
Important Safety Instructions
WARNING
When using an electrical appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this appliance.
DANGER -To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet
immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric
shock, or injury to persons, install the treadmill on a at level
surface with access to a 110-volt, 15-amp grounded outlet
with only the treadmill plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR
BETTER,WITH ONLY ONE OUTLET ON THE END:
• To reduce the risk of burns, re electric shock, or injury
to persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord
or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return
the appliance to a service center for examination and
repair.
• Do not carry this appliance by supply cord or use cord
as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and the
like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only.
• The appliance is intended for household use.
• This appliance is not intended for use by persons with
reduced physical, sensory or metal capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!

5
Fitness Equipment Safety Instructions
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for persons over the age
of 35 or persons with pre-existing health conditions.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Their purpose is to provide you with an approximate measurement in
relation to your target heart rate. Use of a chest transmitter strap (sold separately) is a much more accurate method
of heart rate analysis .Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your equipment. Quality
athletic shoes are recommended to avoid leg fatigue.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly
others) to injury, and reduce the longevity of the equipment.
Important Electrical Instructions
WARNING
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with
a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the
elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten percent (10%)
or more, the performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you
suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture.This product is NOT designed for use outdoors, near a pool or spa, or in
any other high humidity environment. The operating temperature specication is 40 to 120 degrees Fahrenheit, and humidity
is 95% non-condensing (no water drops forming on surfaces).

6
Circuit Breakers: Some circuit breakers used in homes are not rated for high inrush currents that can occur when a
treadmill is rst turned on or even during use. If your treadmill is tripping the house circuit breaker (even though it is
the proper current rating) but the circuit breaker on the treadmill itself does not trip, you will need to replace the home
breaker with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no ability to
control. This part is available through most electrical supply stores. Examples: Grainger part # 1D237, or available online at
www.squared.com part #QO120HM.The electrical outlet used should have a dedicated 15 amp circuit breaker.
Grounding Instructions
This product must be grounded. If the your equipment should malfunction or breakdown, grounding provides a path
of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an
equipment-grounding plug.The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a
qualied electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product if it will not t the outlet; have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 110-volt/15 amp dedicated circuit, and has a grounding plug that looks like the plug

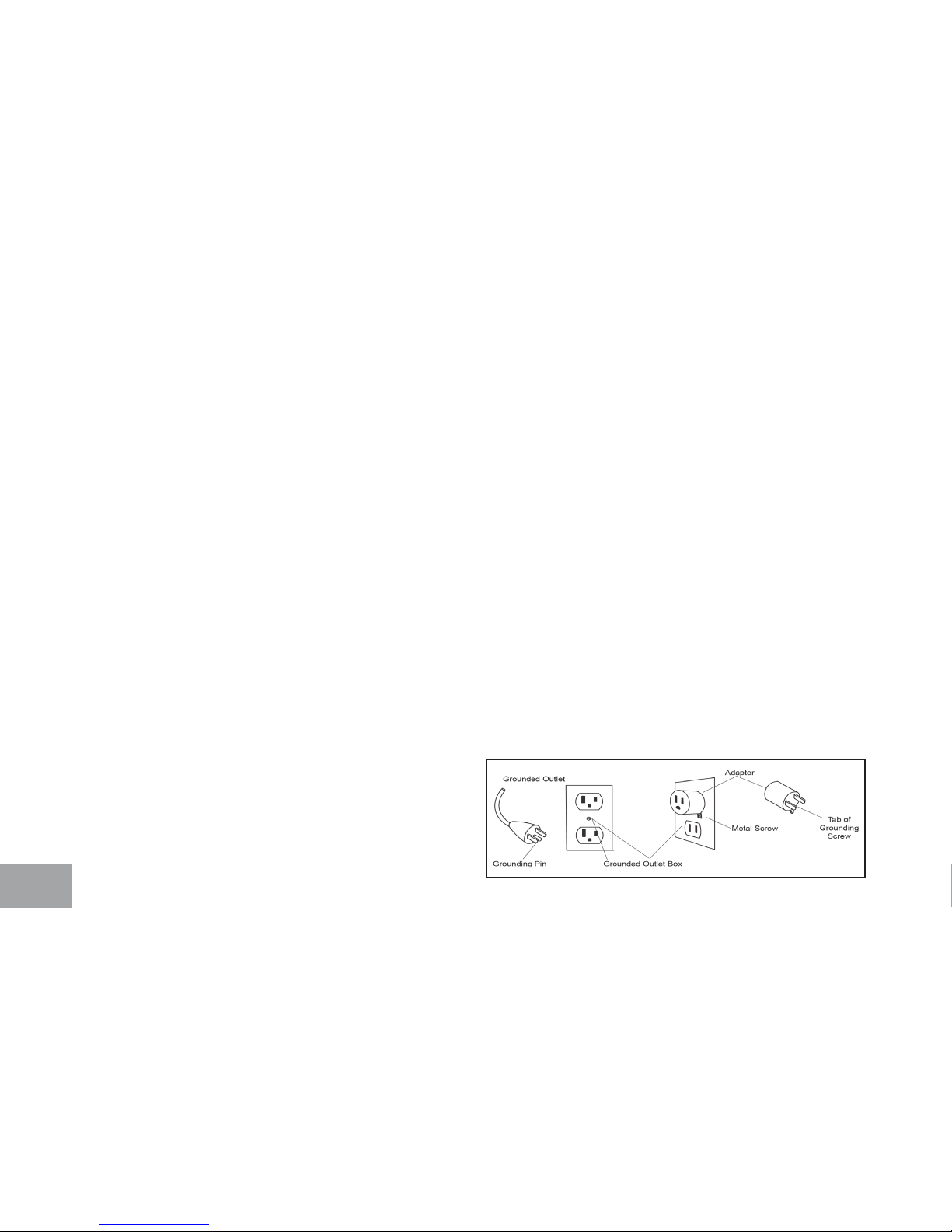

illustrated below. A temporary adapter that looks like the adapter illustrated below may be used to connect this plug to a
2-pole receptacle as shown below if a properly grounded outlet is not available. The temporary adapter should be used
only until a properly grounded outlet, (shown below) can
be installed by a qualied electrician. The green colored
rigid ear-lug, or the like, extending from the adapter, must
be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it
must be held in place by a metal screw.

7
Important Operation Instructions
• NEVER operate this treadmill without reading and completely understanding the results of any operational change you
request from the computer.
• Understand that changes in speed and incline do not occur immediately. Set your desired work level on the computer
console and release the adjustment key.The computer will obey the command gradually.
• NEVER use your treadmill during an electrical storm. Surges may occur in your household power supply that could
damage treadmill components. Unplug the treadmill during an electrical storm as a precaution.
• Use caution while participating in other activities while walking on your treadmill; such as watching television, reading,
etc.These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure
Safety Tether Cord
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for your
safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop tread-belt movement.
To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note:The magnet has strong enough
power to minimize accidental, unexpected stopping. The clip should be attached securely to make certain it does not
come off. Be familiar with its function and limitations.The treadmill will stop, depending on speed, with a one to two
step coast anytime the magnet is pulled off the console. Use the Stop / Pause switch in normal operation.

8
Record Your Serial Number
Please record the serial number of this tness product in the space provided
below.
Serial Number:
Register Your Purchase
The self-addressed product registration card must be completed
in full and returned to Spirit Fitness.You can also go to https://www.spirittness.com/
residentialwarrantyregistration.html under the Support tab to register online.
Serial Number Location

9
X T 18 5 PRE ASSEMBLY
UNPACKING
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect for any damage
or missing parts. If parts are damaged or missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools rst. Remove the
hardware for each step as needed to avoid confusion. The numbers in
the instructions that are in parenthesis (#) are the item number from the
assembly drawing for reference.
TOOLS INCLUDED:
Phillips Head Screwdriver
M6_L Allen Wrench
Combination M5 Allen Wrench
& Phillips Head Screw Driver
PARTS INCLUDED:
1 Main Frame
2 Uprights
2 Frame Base Covers
2 Console Mast Covers
1 Console Assembly
1 Deck
1 Power Cord
1 Lubricant
1 Hardware Kit

10
CONSOLE
UPRIGHTS
BELT
HANDLES
END CAPS
MOTOR COVER
SIDE RAILS
CONSOLE FAN

11
X T 18 5 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
132 NUT CLIP M5 6
1. Gather HARDWARE FOR STEP 1.
2. Take 6 Speed NUT CLIPS (132) and attach them at
the front and each side of the unit as shown left.
3. Guide the right upright through FRAME BASE
COVER RIGHT (43) and CONSOLE MAST
COVER RIGHT (100).
4. Next take the RIGHT UPRIGHT (4) and attach
the MIDDLE COMPUTER CABLE (38) to the
LOWER COMPUTER CABLE (39). Be careful
not to pinch the cable or damage may occur to the
system.
5. Slide the right upright (4) to sit into the frame base.
6. Repeat from step 3 on the left.

12
X T 18 5 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
93 BOLTS 5/16” X UNC18 X 15L 8
1. Gather HARDWARE FOR STEP 2.
2. Having inserted RIGHT AND LEFT UP-
RIGHTS (4, 5) into the FRAME BASE
(2), use the COMBINATION M5 ALLEN
WRENCH AND PHILLIPS HEAD SCREW
DRIVER (96) to tighten 8 BUTTON HEAD
SOCKET BOLTS (93) securing the uprights
to the frame base.

13
X T 18 5 STEP THREE
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
88 TAPPING SCREWS 5” X 16MM 6
1. Gather HARDWARE FOR STEP 4.
2. Install FRAME BASE COVER RIGHT AND
LEFT (42, 33) onto the FRAME BASE (2)
using 6 Tapping Screws (88).Tighten with the
PHILIPS HEAD SCREW DRIVER (122).

14

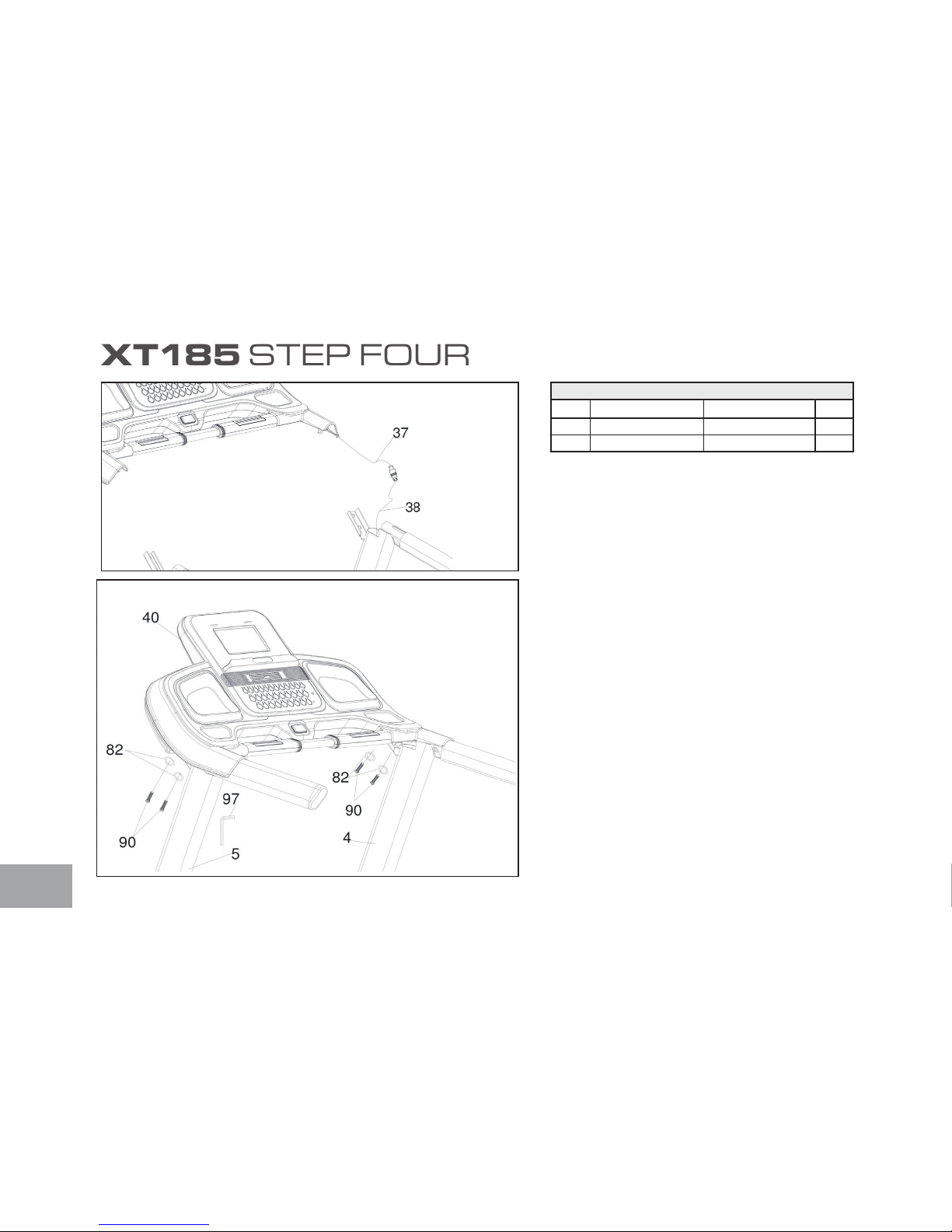

X T 18 5 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
90 BOLTS 3/8” X 1-3/4” 4
82 SPLIT WASHER Ø10 × 2.0T 4
1. Gather HARDWARE FOR STEP 4
2. Connect the MIDDLE COMPUTER CABLE
(38) to the UPPER COMPUTER CABLE
(37). Be careful not to pinch the cables.
3. Insert the CONSOLE ASSEMBLY (40)
onto the RIGHT AND LEFT UPRIGHTS
(4, 5) and secure with 4 BUTTON HEAD
SOCKET BOLTS (90) and 4 SPLIT
WASHERS (82). Use the ALLEN WRENCH
(97) to tighten.

15

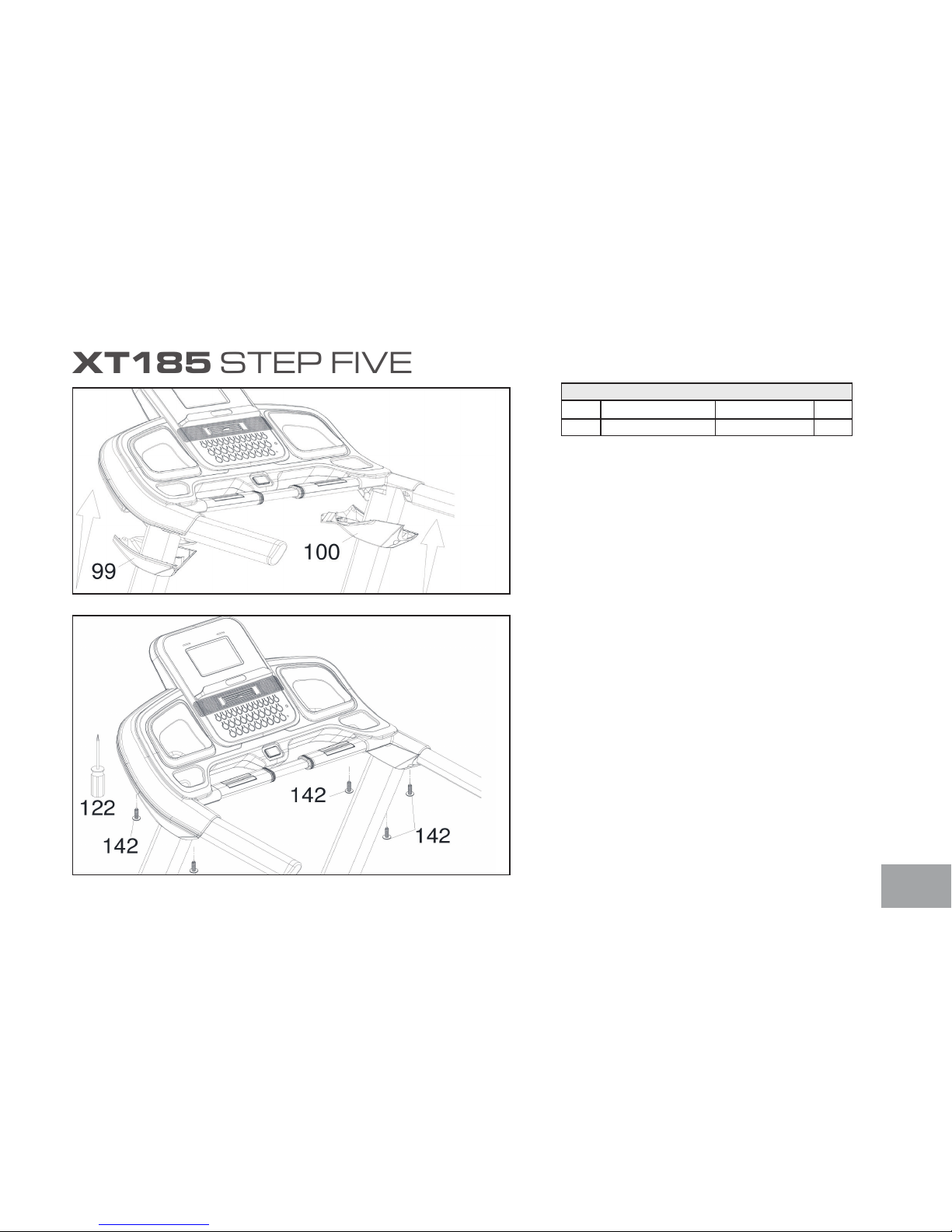

X T 18 5 STEP FIVE
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
142 SHEET METAL SCREWS Ø3.5 × 16L 6
1. Gather HARDWARE FOR STEP 5.
2. Slide CONSOLE MAST COVER RIGHT
AND LEFT (100, 99) up the uprights. Secure
them with 6 SHEET METAL SCREWS
(142) using the PHILLIPS HEAD SCREW
DRIVER (122).

16
X T 18 5 CONSOLE OPERATION
Six programs offer a
variety of work-outs
Easy-Touch
Control Keys
Swivel Fan to
keep you cool
Large LCD with
scrolling feedback
and scrolling
message center
Quick Keys Control
Speed & Incline

17
Quick Speed & Incline Buttons
You are able to set your speed and incline settings quickly by using the quick keys on the console. Just
press either Speed or Incline, then select 2 digits, then press Enter and the treadmill will automatically
adjust to that value. This saves time because you don’t have to press and hold or hold a button down
until reaching the desired value. The maximum value you may input for speed is 9.9 mph or KPH and
incline level 9.5. Speed values can be entered in 0.1 mph increments and Incline in .5 level increments.
Examples:
Press the Quick Incline button, then 1, 0 = Incline Level 1.0 Press the Quick Incline button, then 3, 5
= Incline Level 3.5 Press the Quick Speed button, then 8, 0 = 8.0 mph or KPH Press the Quick Speed
button, then 0, 8 = 0.8 mph or KPH
Console
The console will display Pace, Calories burned, Time (elapsed or countdown), Distance travelled, Pulse,
Speed, Incline, Program Name, number of Laps completed, and Segment Time. There is also a Speed &
Incline prole graph that lets you see how hard you have worked and how challenging the upcoming
segments will be.

18
Getting Started
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch
located at the front of the treadmill below the motor cover. Ensure that the safety key is installed, as the
treadmill will not power on without it.
When the power is turned on, all the lights on the display will light for a short time.Then the Time and
Distance windows will display Odometer readings for a short time.The Time window will show how
many hours the treadmill has been in use and the Distance window will show how many miles (or
Kilometers if the treadmill is set to metric readings) the treadmill has gone.Then a message will scroll
across the Message Center showing the current software version.The treadmill will then enter idle
mode, which is the starting point for operation.
Quick Start/ Manual Operation
1. Press and release the Start key to wake display up (if not already on).
Note: Installing the tether key will also wake up the console.
2. Press and release the Start key to begin belt movement, at 0.5 mph, then adjust to the desired
speed using the Speed + / - or Fast/Slow keys (console or hand rail).You may also use the quick
speed key, then 0 through 9 to adjust the speed.
3. To adjust the speed, press and hold Speed Up / Down keys (console or handgrip keys) to achieve
desired speed.You may also adjust to the desired speed by pressing Quick Speed and then 0
through 9.
4. To adjust the Incline level, press and hold the Incline Up / Down keys (console or handgrip keys) to
achieve desired gradient. You may also adjust to the desired incline by pressing the Quick Incline key

19
and then 0 through 9.
5. To stop the tread-belt press and release the Stop key.
Pause/Stop/Preset
1. When the treadmill is running the pause feature may be utilized by pressing the red Stop key once.
This will slowly decelerate the tread-belt to a stop. The incline will go to zero percent. The Time,
Distance and Calorie readings will hold while the unit is in the pause mode. After 5 minutes the
display will reset and return to the start up screen.
2. To resume your exercise, when in Pause mode, press the Start key. The speed and incline will return
to their previous settings.
• Pause is executed when the Stop button is pressed once. If the Stop key is pressed a second time, the program will end
and a workout summary will be displayed. If the Stop button is pressed a third time, the console will return to the idle
mode (start up) screen. If the Stop button is held down for more than 3 seconds the console will reset
Incline
1. Incline may be adjusted anytime after belt movement.
2. Press and hold the Incline Up / Down keys to achieve desired gradient. You may also choose a
more rapid increase / decrease by selecting the Quick Incline key, then 0 through 9.
• The display will indicate incline percent in increments of 0.5 as adjustments are made.
• The incline will return to zero unless the main power switch or safety key are turned off while
incline is at a higher setting.
Dot Matrix Center Display
Twenty columns of boxes (10 high) indicate each segment of a workout.The boxes only show an

20
approximate level (resistance) of effort. They do not necessarily indicate a specic value - only an
approximate percent to compare levels of intensity. In Manual Operation the resistance dot matrix
window will build a prole “picture” as values are changed during a workout.
1/4 Mile Track
The 1/4-mile track (one lap) will be displayed around the dot matrix window. The ashing segment
indicates your progress. Once the 1/4-mile (Metric - 0.4k) is complete this feature will begin again. The
Lap track will move in a counterclockwise direction There is a lap counter in the message window for
monitoring your distance.
Pulse Grip Feature
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the
workout.You must use both stainless steel sensors on the stationary grips or the heart rate transmitter
chest strap to display your pulse. Pulse value displays anytime the upper display is receiving a Pulse
signal. You may not use the Pulse Grip feature while in Heart Rate Programs.
Note: Refer to Important Safety Instructions (page 4) concerning Pulse Grip operation.
Calorie Display
Displays the cumulative calories burned at any given time during your workout.
Note: This is only a rough guide used for comparison of different exercise sessions, and is not to be used for medical
purposes.
