XT485ENT Treadmill
OWNER’S MANUAL

2

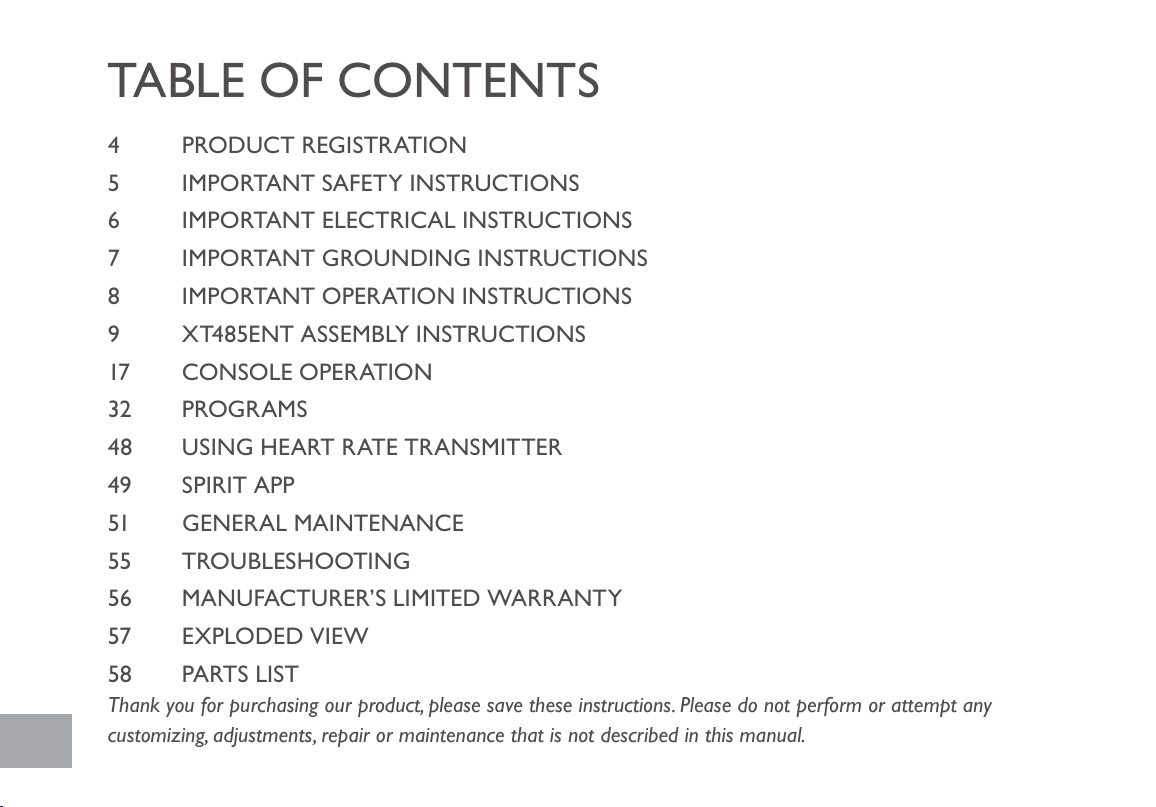

TABLE OF CONTENTS
4 PRODUCT REGISTRATION
5 IMPORTANT SAFETY INSTRUCTIONS
6 IMPORTANT ELECTRICAL INSTRUCTIONS
7 IMPORTANT GROUNDING INSTRUCTIONS
8 IMPORTANT OPERATION INSTRUCTIONS
9 XT485ENT ASSEMBLY INSTRUCTIONS
17 CONSOLE OPERATION
32 PROGRAMS
48 USING HEART RATE TRANSMITTER
49 SPIRIT APP
51 GENERAL MAINTENANCE
55 TROUBLESHOOTING
56 MANUFACTURER’S LIMITED WARRANTY
57 EXPLODED VIEW
58 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

3
Congratulations on your new treadmill and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality treadmill from Spirit Fitness.Your new treadmill was manufactured by one
of the leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many
years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this treadmill is your
administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical
knowledge and service personnel to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase
below to make any future, needed contact easy.We appreciate your support and we will always remember that you are
the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _________________________________
DEALER PHONE # _________________________________
PURCHASE DATE _________________________________

4
RecordYour Serial Number
Please record the serial number of this tness product in the space provided below.
Serial Number:
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to https://www.spirittness.com/warranty under the Support tab to register
online.

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using an electrical appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet
immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric
shock, or injury to persons, install the treadmill on a at
level surface with access to a 110-volt, 15-amp grounded
outlet with only the treadmill plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR
BETTER, WITH ONLY ONE OUTLET ON THE END:
To reduce the risk of burns, re electric shock, or injury to
persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord or
plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the appliance
to a service center for examination and repair.
• Do not carry this appliance by supply cord or use cord
as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and the
like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only.
• The appliance is intended for household use.
• This exercise equipment is not intended for use by
persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
WARNING: This product can expose you to
chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov

6
FITNESS EQUIPMENT SAFETY INSTRUCTIONS
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may
result.
• Before beginning this or any exercise program, consult a physician. This is especially important for persons over the
age of 35 or persons with pre-existing health conditions.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Their purpose is to provide you with an approximate measurement in
relation to your target heart rate. Use of a chest transmitter strap (sold separately) is a much more accurate method
of heart rate analysis .Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
The pulse sensors are intended only as exercise aids in determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your equipment. Quality
athletic shoes are recommended to avoid leg fatigue.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and
possibly others) to injury, and reduce the longevity of the equipment.
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING
Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten percent (10%) or more, the
performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you
suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa,
or in any other high humidity environment. The temperature specication is 40 degrees C, and humidity is 95%, non-
condensing (no water drops forming on surfaces).

7
Circuit Breakers: Avoid AFCI/GFCI circuit breakers
if possible. These breakers may trip occasionally during
exercise because of the high inrush currents of the
treadmill drive electronics and motor. This is an issue that
affects all treadmill brands. New laws in your area may
require these breakers. If you do have these breakers
and outlets in your home, and are experiencing nuisance
tripping, you should check if there are any other devices
plugged into the same circuit. Some examples of devices
that may also cause tripping are uorescent lights with
electronic ballasts, coffee maker, space heater, hair drier.
Optimally the treadmill should be the only device plugged
into the circuit. Our treadmills have surge suppressors
built in to help avoid nuisance tripping. We have tested
several AFCI/GFCI breakers and outlets with our products.
Brands we have tested are: Eaton (Cutler Hammer Series),
Leviton (Smart lock pro) and Schneider Electric (Canadian
home series). These breakers do not trip in our testing,
when connected to our treadmills, as long as no other
devices are plugged into the same circuit.
GROUNDING INSTRUCTIONS
This product must be grounded. If the your
equipment should malfunction or breakdown, grounding
provides a path of least resistance for electric current,
reducing the risk of electric shock. This product is
equipped with a cord having an equipment-grounding plug.
The plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER - Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are
in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product if it
will not t the outlet; have a proper outlet installed by a
qualied electrician. This product is for use on a nominal
110-volt dedicated circuit, and has a grounding plug that
looks like the plug illustrated below. A temporary adapter
that looks like the adapter illustrated below may be used
to connect this plug to a 2-pole receptacle as shown
below if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet, (shown below) can be installed by a
qualied electrician. The green colored rigid ear-lug, or the
like, extending from the adapter, must be connected to a
permanent ground such as a properly grounded outlet box
cover. Whenever the adapter is used, it must be held in
place by a metal screw.

8
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this treadmill without reading and completely understanding the results of any operational change
you request from the computer.
• Understand that changes in speed and incline do not occur immediately. Set your desired work level on the
computer console and release the adjustment key. The computer will obey the command gradually.
• NEVER use your treadmill during an electrical storm. Surges may occur in your household power supply that
could damage treadmill components. Unplug the treadmill during an electrical storm as a precaution.
• Use caution while participating in other activities while walking on your treadmill; such as watching television,
reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for
your safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop tread-belt
movement.
To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power.
Note: The magnet has strong enough power to minimize accidental, unexpected stopping. The clip should be
attached securely to make certain it does not come off. Be familiar with its function and limitations. The treadmill
will stop, depending on speed, with a one to two step coast anytime the magnet is pulled off the console. Use the
Stop / Pause switch in normal operation.

9
XT485ENT PRE ASSEMBLY
UNPACKING
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect for any damage
or missing parts. If parts are damaged or missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools rst. Remove the
hardware for each step as needed to avoid confusion. The numbers in
the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
TOOLS INCLUDED:
L Allen Wrench
Phillips Head Screwdriver
Combination M5 Allen Wrench
& Phillips Head Screw Driver
PARTS INCLUDED:
1 Main Frame
2 Uprights
2 Console Mast Covers
2 Frame Base Covers
1 Console
1 Deck
1 Beverage Holder
1 Audio Cable
1 Power Cord
1 Lubricant
1 Hardware Kit

10

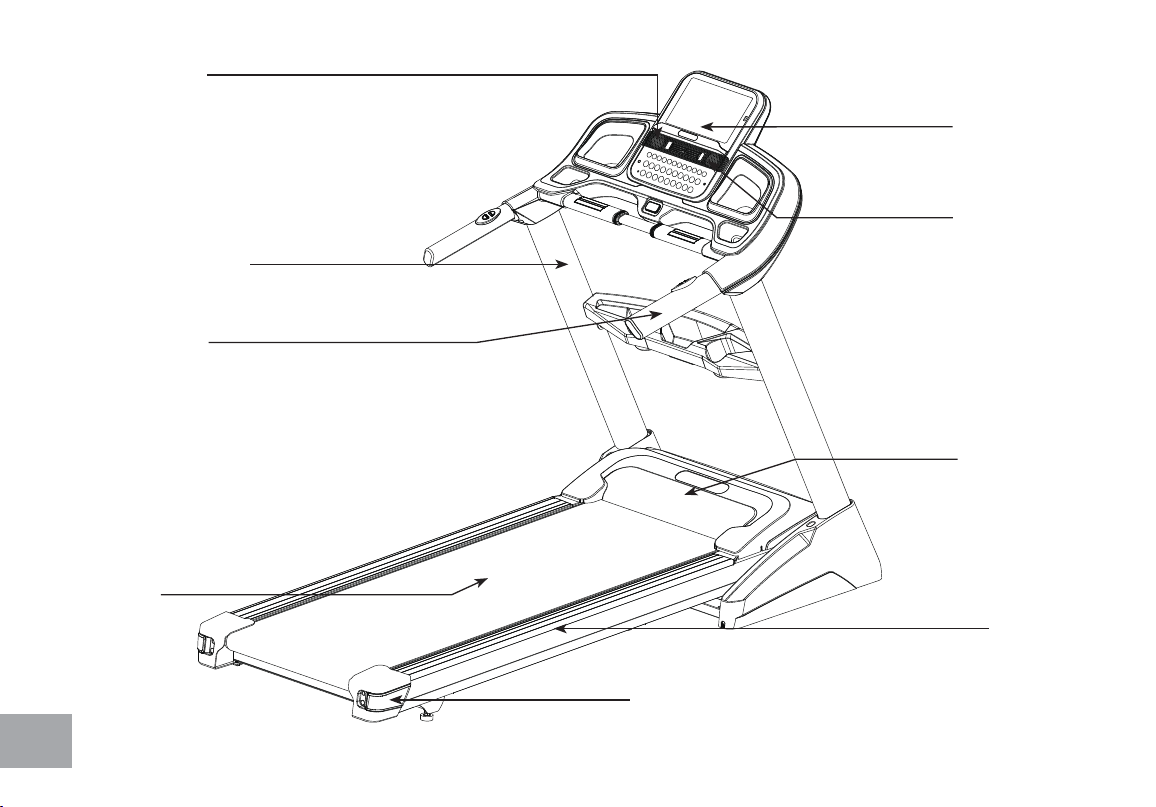

SPEAKERS
CONSOLE
UPRIGHTS
BELT
HANDLES
END CAPS
MOTOR COVER
SIDE RAILS
CONSOLE FAN

11
XT485ENT STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
128 NUT CLIP M5 6
1. Gather HARDWARE FOR STEP 1.
2. Take 6 Speed NUT CLIPS (128) and attach them
at the front and each side of the unit as shown left.
3. Guide the right upright through FRAME BASE
COVER RIGHT (62) and CONSOLE MAST
COVER RIGHT (67).
4. Next take the RIGHT UPRIGHT (4) and attach
the MIDDLE COMPUTER CABLE (50) to the
LOWER COMPUTER CABLE (49). Be careful
not to pinch the cable or damage may occur to the
system.
5. Slide the RIGHT UPRIGHT (4) to sit into the
frame base.
6. Repeat from step 3 on the left.

12

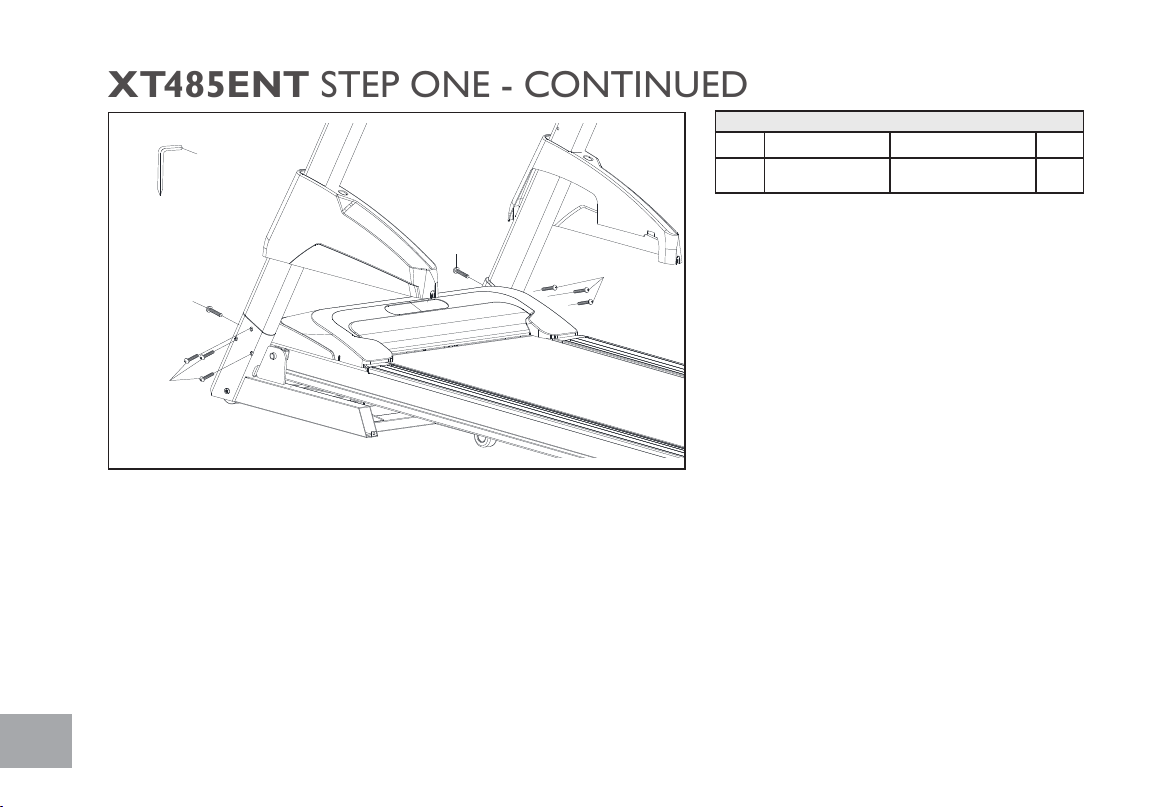

XT485ENT STEP ONE - CONTINUED
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
130 BUTTON HEAD
SOCKET BOLTS
5/16” X 15MM 8
7. Having inserted RIGHT AND LEFT UP-
RIGHTS (4, 5) into the FRAME BASE
(2), use the COMBINATION M5 ALLEN
WRENCH AND PHILLIPS HEAD
SCREW DRIVER (131) to tighten 8 BUT-
TON HEAD SOCKET BOLTS (130)
securing the uprights to the frame base.
Insert Right and Left Uprights (4) and (5) into the Frame Base (2) and use Combination M5 Allen
Wrench & Phillips Head Screw Drive (131) to tighten 8 pcs of 5/16” x15mm” Button Head Socket
Bolts (130)
130
131
130 130
130
STEP 2.
Connect the Speed Adjustment Switch W/Cable (54) into the Speed Cable (Upper)(37).
Connect the Incline Adjustment Switch W/Cable (55) into the Incline Cable (Upper)(38).
Connect the Computer Cable (Middle)(50) and Computer Cable (Upper)(48).
55
38
48
37
54
50
132

13

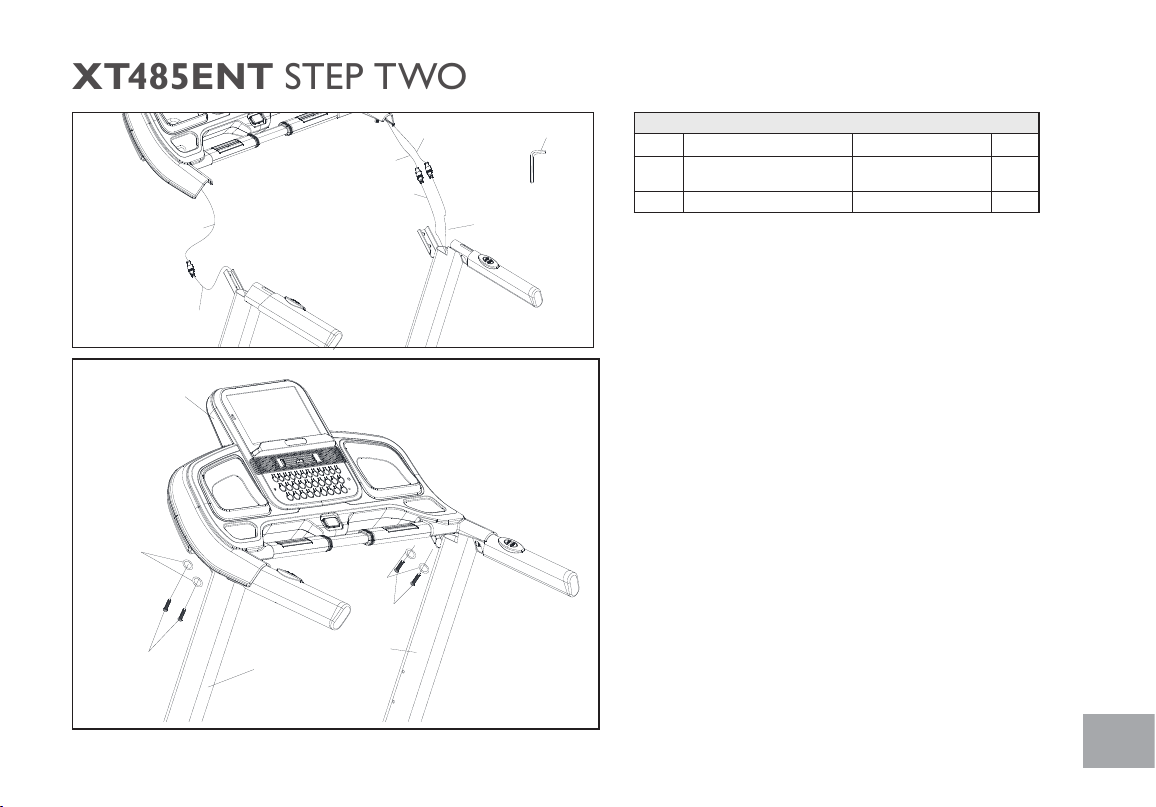

XT485ENT STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
133 BUTTON HEAD SOCKET
BOLTS
3/8” X 1-1/2” 4
113 SPLIT WASHER Ø10 × 2.0T 4
1. Gather HARDWARE FOR STEP 2
2. Connect the SPEED ADJUSTMENT
SWITCH W/ CABLE (54) with the
UPPER SPEED CABLE (37).
3. Connect the INCLINE ADJUSTMENT
SWITCH W/ CABLE (55) with the
UPPER INCLINE CABLE (38).
4. Connect the MIDDLE COMPUTER
CABLE (50) to the UPPER COMPUTER
CABLE (48).
5. Be sure not to pinch any of the cables or
damage may occur to the system.
6. Insert the CONSOLE ASSEMBLY (52)
onto the RIGHT AND LEFT UPRIGHTS
(4, 5) and secure with 4 BUTTON HEAD
SOCKET BOLTS (133) and 4 SPLIT
WASHERS (113). Use the ALLEN
WRENCH (132) to tighten.
Insert Right and Left Uprights (4) and (5) into the Frame Base (2) and use Combination M5 Allen
Wrench & Phillips Head Screw Drive (131) to tighten 8 pcs of 5/16” x15mm” Button Head Socket
Bolts (130)
130
131
130 130
130
STEP 2.
Connect the Speed Adjustment Switch W/Cable (54) into the Speed Cable (Upper)(37).
Connect the Incline Adjustment Switch W/Cable (55) into the Incline Cable (Upper)(38).
Connect the Computer Cable (Middle)(50) and Computer Cable (Upper)(48).
55
38
48
37
54
50
132
Insert Console Assembly (52) into right and left Uprights (4) and (5) and secure with 4 pcs of
3/8”x1- 1/2”Button Head Socket Bolts (133) with 4 pcs of Ø10 × 2T Split Washers (113) by using
M6_Allen Wrench (132).
STEP 3.
Install Frame Base Covers (L) and (R),(61) and (62), on the Frame Base (2) and secure with 6 pcs
of 5×16mm Tapping Screws (120) by using Phillips Head Screw Driver (148).
120
120
120
61
120
62
2
120
120
133
113
4
5
133
113
52
148

14

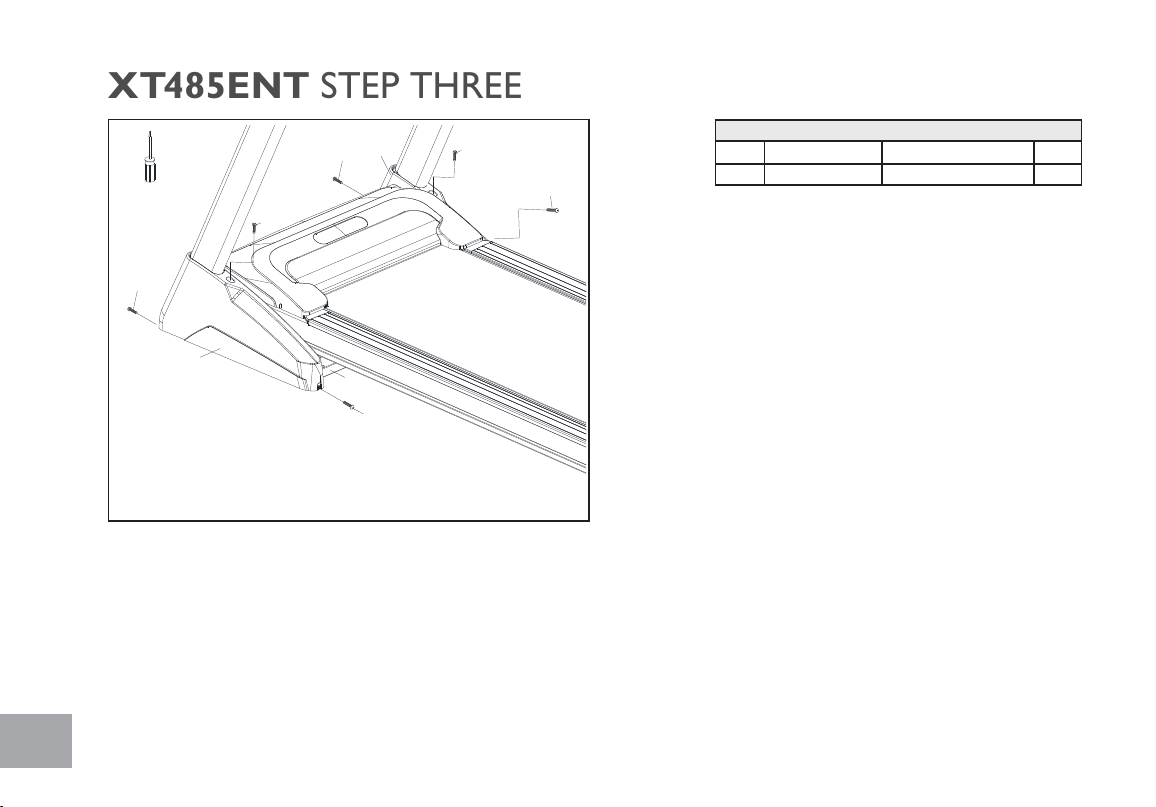

XT485ENT STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
120 TAPPING SCREWS 5” X 16MM 6
1. Gather HARDWARE FOR STEP 3.
2. Install FRAME BASE COVER RIGHT
AND LEFT (62, 61) onto the FRAME
BASE (2) using 6 TAPPING SCREWS
(120). Tighten with the PHILLIPS HEAD
SCREW DRIVER (148).
Insert Console Assembly (52) into right and left Uprights (4) and (5) and secure with 4 pcs of
3/8”x1- 1/2”Button Head Socket Bolts (133) with 4 pcs of Ø10 × 2T Split Washers (113) by using
M6_Allen Wrench (132).
STEP 3.
Install Frame Base Covers (L) and (R),(61) and (62), on the Frame Base (2) and secure with 6 pcs
of 5×16mm Tapping Screws (120) by using Phillips Head Screw Driver (148).
120
120
120
61
120
62
2
120
120
133
113
4
5
133
113
52
148

15

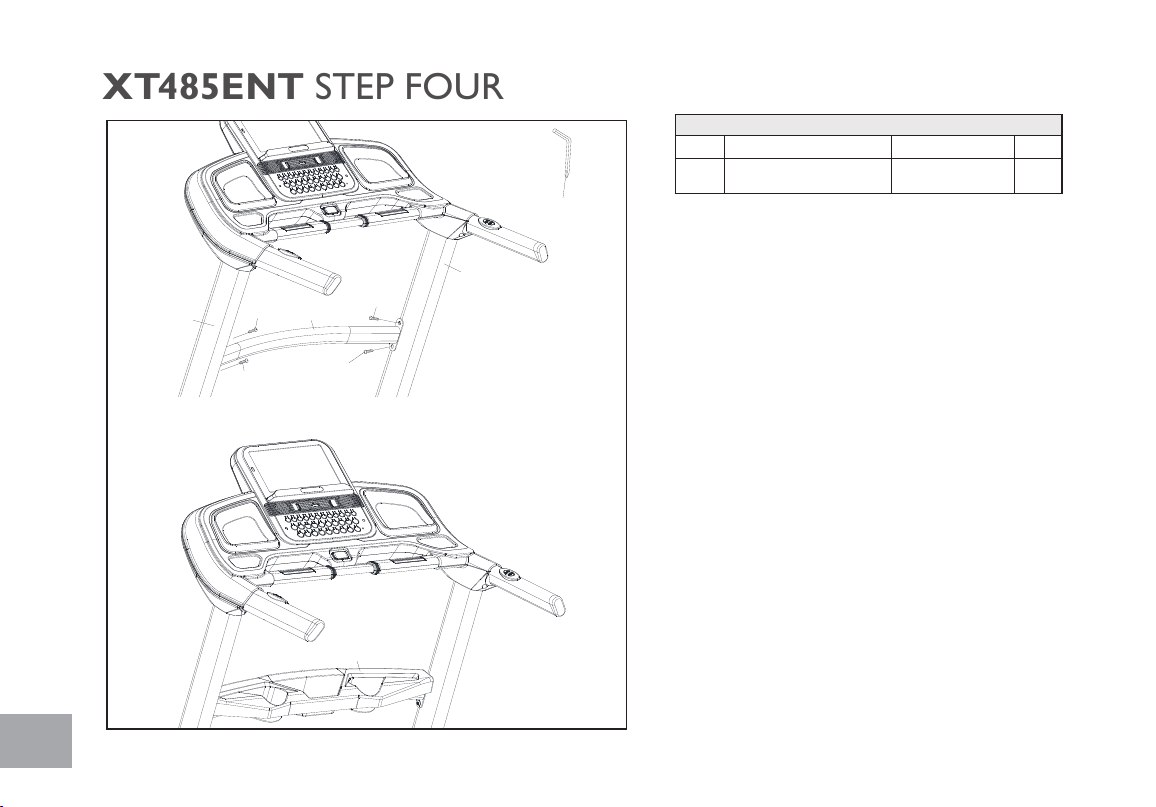

XT485ENT STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
142 SHEET METAL SCREWS Ø3.5 × 16L 8
1. Gather HARDWARE FOR STEP 4.
2. Slide CONSOLE MAST COVER RIGHT
AND LEFT (67, 66) up the uprights. Secure
them with 8 SHEET METAL SCREWS
(142) using the PHILLIPS HEAD
SCREW DRIVER (148).
STEP 4.
Install Upright Cover(R) and (L),(67) and (66) ,on the right and left Uprights (4) and (5) and
Console Support (6) with 8pcs of 3.5x16mm Sheet Metal Screws (142) by using Phillips Head
Screw Driver (148).
67
66
142
142
142
142
148
STEP 4.
Install Upright Cover(R) and (L),(67) and (66) ,on the right and left Uprights (4) and (5) and
Console Support (6) with 8pcs of 3.5x16mm Sheet Metal Screws (142) by using Phillips Head
Screw Driver (148).
67
66
142
142
142
142
148

16
XT485ENT STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
150 BUTTON HEAD BUTTON
BOLTS
5/16” X 3/4” 4
1. Gather HARDWARE FOR STEP 4.
2. Place the HANDRAIL SUPPORT (119)
between the LEFT AND RIGHT UPRIGHTS
(5, 4) and use the COMBINATION ALLEN
WRENCH & PHILLIPS HEAD SCREW
DRIVER (131) to tighten 4 BUTTON
HEAD SOCKET BOLTS (150). Install
the BEVERAGE HOLDER (121) onto the
HANDRAILS SUPPORT (119).
Install Handrail Support (119) between right and left Uprights (4) and (5) and use Combination M5
Allen Wrench & Phillips Head Screw Driver (131) to tighten 4 pcs of 5/16” x 3/4”Button Head
Socket Bolts (150). Install the Beverage Holder (121) onto the Handrails Support (119).
121
NOTE: Please Tighten All Screws After All Components Assembly Complete.
4
150
150
150
119
5150
131

17
XT485ENT CONSOLE OPERATION
Easy-Touch
Control Keys
Swivel Fan
Direct Access Speed and Incline
Buttons Handrail Control Buttons
Tablet Rack
USB Port
Integrated Speakers
Touchscreen Display
Audio Jack

18
FEATURES
Handrail Adjustments
The treadmill allows you to make speed and incline changes on the side handrails. You can also
choose to turn these off if you frequently hold on to these rails. This is achieved by pressing
the Handrails On/Off button on the right side of the lower portion of the console. When the
indicator light is lit, the handrail controls are disabled.
Buttons
The physical buttons are as follows:
• Direct Access Incline/Speed keys 0~9
• Speed + or - buttons to control the speed
• Incline + or - buttons to control the incline of the treadmill
• Start button to begin workout
• Stop button to end, or pause the workout
• Fan button to control the fan speed
• Handrail Controls button to enable/disable the incline/speed controls on the handrails
POWER
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power
switch located at the front of the treadmill below the motor hood. Ensure that the Safety Key is
installed, as the treadmill will not power on without it. When the power is turned ON, the screen
will show a brief loading screen and then display the WELCOME Screen which indicates that the
machine is ready to operate.

19
Direct Access Speed and Incline Buttons
You are able to set your speed and incline settings quickly by using the Direct Access Keys on the
console. Just press either Speed or Incline, then select either 2, or 3 digits and the treadmill will
automatically adjust to that value. This saves time because you don’t have to press and hold or hold
a button down until reaching the desired value. The maximum value you may input for speed is 12.0
mph or 18.0 kmph and incline 15.0%
Examples: Press the Select Incline button, then 1, 0 = Incline Level 1.0
Press the Select Incline button, then 3, 5 = Incline Level 3.5
Press the Select Speed button, then 8, 0 = 8.0 mph or kmph
Press the Select Speed button, then 0, 8 = 0.8 mph or kmph
Start Workout operation
• Press any button to wake display up if not already on.
• Press the Start Workout button on the screen to begin. Belt will start at 0.5 mph. To adjust
speed, use the Speed +/- keys on the screen or using the keys at the bottom of the console.
• To slow tread-belt press and hold the Slow - key (console or hand rail) to the desired speed.
• To stop the tread-belt press and release “Stop” button.
Pause/Stop
• Press “Stop” button once, the belt will slow down gradually till fully stop. After 5 minutes the
display will reset and show the workout summary on the screen.
• Press “Resume” button to continue the workout from the pause.
• Press “Finish” button to end workout.

20
Incline
• The incline is changeable any time during the workout.
• Press and hold Incline ▲or ▼ buttons on the handrail or Incline + or - buttons on the
screen to change the incline to the desired level.
• Incline may also be changed by using the Direct Access Incline buttons on the console below the
touchscreen.
Heart rate feature
Pulse (heart rate) on the screen shows the current value of the heart beats per minute. You must
hold both left and right stainless steel sensors to measure the pulse. The pulse value will be shown
on the screen continuously. You may use the hand pulse sensors while in Heart Rate Control. It will
also pick up wireless heart rate transmitters that are Polar and Bluetooth compatible.
