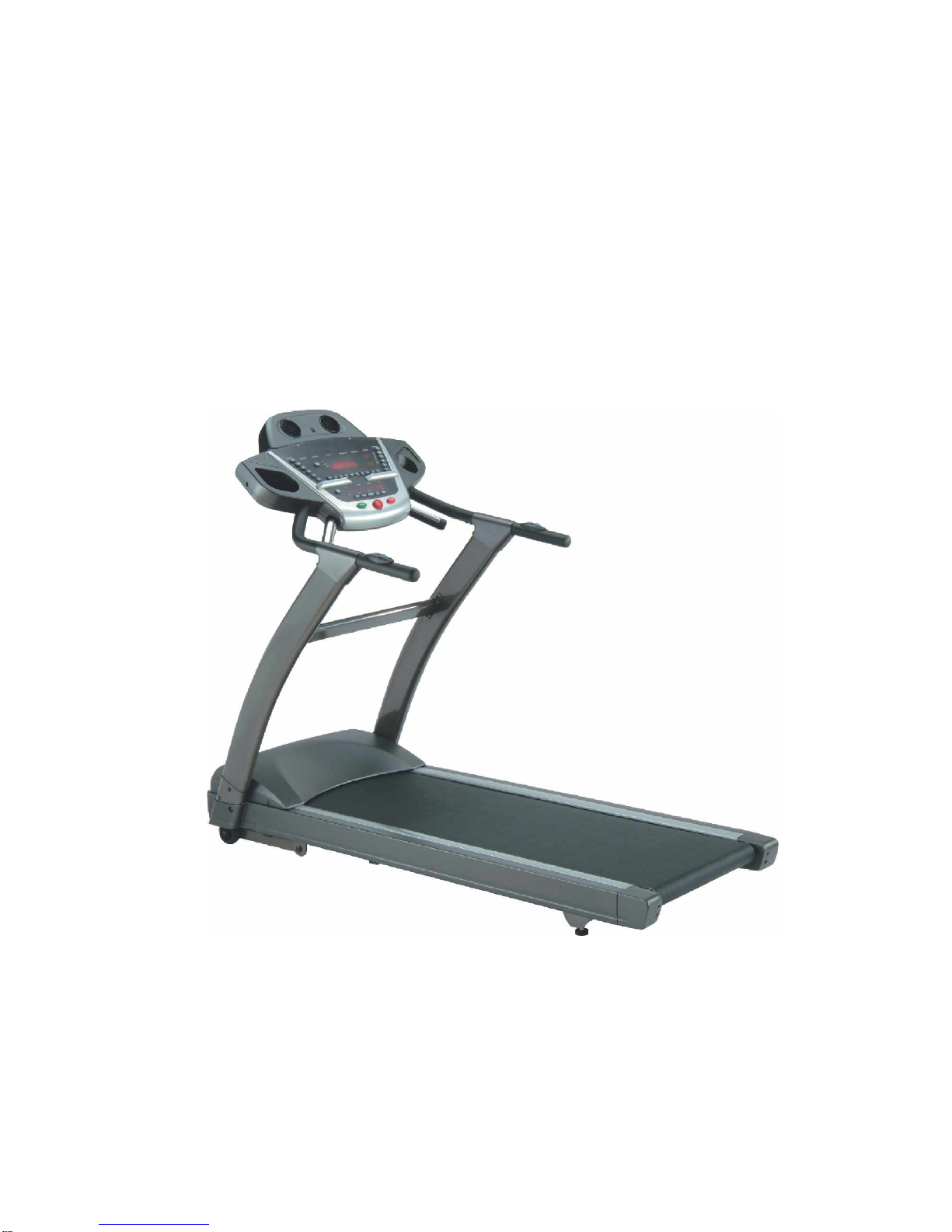

Spirit Z700-A82 User manual

Z
Z7 70 00 0- -A A8 82 2/ /1 12 20 0V VT Tr re ea ad dm mi il ll l
S
Se er rv vi ic ce eM Ma an nu ua al l

WARNING:
ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL
OUTLET BEFORE SERVICING THE UNIT.

S
Se er rv vi ic ce eM Ma an nu ua al lT
Ta ab bl le eo of fC Co on nt te en nt ts s
T
Ta ab bl le eo of fC Co on nt te en nt ts s1 1
TABLE OF CONTENTS
Table of Contents....................................................................1
Table of Figures......................................................................3
Description .............................................................................4
A ELECTRICAL CONFIGURATION......................................4
1. z700-A82 Treadmill components.................................4
B GENERAL INFORMATION ...............................................5
1. Console.......................................................................5
2. Main controller............................................................5
3. Treadmill motor ..........................................................5
Operation................................................................................7
A WINDOW DISPLAY MODE..............................................7
1. OFF Mode...................................................................7
2. READY Mode.............................................................7
3. SLEEP Mode ..............................................................7
4. RUN Mode..................................................................7
B FUNCTION......................................................................8
1. SPEED........................................................................8
2. TIME..........................................................................8
3. DISTANCE.................................................................8
4. CALORIES.................................................................9
5. PULSE........................................................................9
6. LAPS ..........................................................................9
7. SCAN .........................................................................9
C FUNCTION BUTTON INMAIN MODE ............................10
1. READY MODE........................................................10
2. SLEEP MODE..........................................................11
3. RUN MODE .............................................................11
D CALIBRATION PROCEDURE..........................................12
1. Calibration ................................................................12
Troubleshooting....................................................................14
1. General......................................................................14

S
Se er rv vi ic ce eM Ma an nu ua al lT
Ta ab bl le eo of fC Co on nt te en nt ts s
T
Ta ab bl le eo of fC Co on nt te en nt ts s2 2
2. Troubleshooting Matrix.............................................15
Diagrams and Schematics.....................................................20
APPENDIX A......................................................................25
1. TREADBELT ADJUSTMENT.................................25
APPENDIX B ......................................................................27
1. TREADMILL LUBRICATION................................27
APPENDIX C ......................................................................28
1. RESET SWITCH RESETTING................................ 28
APPENDIX D......................................................................29
1. FUSE REPLACEMENT........................................... 29
APPENDIX E.......................................................................30
1. SPEED SENSOR ADJUSTMENT............................30
2. SERVICE QUESTIONS...........................................30

S
Se er rv vi ic ce eM Ma an nu ua al lT
Ta ab bl le eo of fF Fi ig gu ur re es s
T
Ta ab bl le eo of fF Fi ig gu ur re es s3 3
TABLE OF FIGURES
Figure 1 Operational Flowchart..............................................6
Figure 2 Console Layout......................................................20
Figure 3 Mechanical Layout.................................................21
Figure 4 Main Controller information & voltages.................21
Figure 5 Function JK1 connector on Main Controller...........22
Figure 6 Wiring Diagram.....................................................23
Figure 7 Schematic Diagram................................................24
Figure 8 If Treadbelt slips....................................................25
Figure 9 If tread belt shifts too far to the Right.....................25
Figure 10 If tread belt shifts too far to the Left.....................26
Figure 11 Resetting Reset switch .........................................28
Figure 12 Fuse replacement .................................................29

S
Se er rv vi ic ce eM Ma an nu ua al lD
De es sc cr ri ip pt ti io on n
D
De es sc cr ri ip pt ti io on n4 4
DESCRIPTION
A ELECTRICAL CONFIGURATION
Note: Electrical servicing of this treadmill is limited to board
level replacement.
1. Z700-A82 TREADMILL COMPONENTS
a) Safety key:
Magnetic key fits in the Console to activate all functions.
b) Console:
Interface that controls all functions of the treadmill.
c) Main controller:
A circuit board that incorporates the DC power supply and
takes input from the console and sends out appropriate
voltages that control the treadmill functions.
d) Treadmill motor:
A variable speed, reversing 0 - 90 volt D.C. motor that
powers the main running belt.

S
Se er rv vi ic ce eM Ma an nu ua al lD
De es sc cr ri ip pt ti io on n
D
De es sc cr ri ip pt ti io on n5 5
B GENERAL INFORMATION
1. CONSOLE
a) Contains 6 windows which are twenty rows of Tri-color “dots”
(8high) indicate each segment of a workout.
2. MAIN CONTROLLER
a) Contains power supply and control circuits
3. TREADMILL MOTOR
a) Variable speed reversing 0-90 volt DC motor.
b) Has three wires red, black and green.
If there is DC voltage on the Red wire (M+) the treadmill
motor will turn clockwise.
If there is DC voltage on the Black wire (M-) the treadmill
motor will turn counter-clockwise
The higher the voltage the faster the motor turns.
The green wire is ground.

S
Se er rv vi ic ce eM Ma an nu ua al lD
De es sc cr ri ip pt ti io on n
D
De es sc cr ri ip pt ti io on n6 6
Figure 1 Operational Flowchart

S
Se er rv vi ic ce eM Ma an nu ua al lO
Op pe er ra at ti io on n
O
Op pe er ra at ti io on n7 7
OPERATION
A WINDOW DISPLAY MODE
1. OFF MODE
a) If console can’t be displayed, be sure your safe keyhas
attached. Pull the safe keyaway will power off the treadmill.
2. READY MODE
a) When the treadmill is ON and the SAFETY KEY is inserted in
console, (6 LED windows and twenty rows of Tri-color “dots”
(8high)) 7 SEGMENT LED display “0:00”, MANUAL LED
will be bright, the LAP light s run a circle each second. ????
b) TIME, DISTANCE and CALORIES Values will all be saved
when RUN Mode enters READY Mode.
c) In READY Mode, if user doesn’t press any button for 30
minutes it will automatically turn off (blank out).
d) Console will display current software version in MESSAGE
window; DISTANCE window displays total accumulated
working distance; TIME window displays total accumulated
working time.
e) Incline will be calibrated to zero automatically. If incline is
faulty, INCLINE window will display ERR (At this time,
incline is non-function but other functions are normal.
3. SLEEP MODE
a) In SLEEP Mode, if any buttons are pressed then the treadmill
enters READY Mode.
4. RUN MODE

S
Se er rv vi ic ce eM Ma an nu ua al lO
Op pe er ra at ti io on n
O
Op pe er ra at ti io on n8 8
a) In RUN Mode, press the “STOP” button and remove the
SAFETY KEY will cause the treadmill stop instantly and enter
OFF Mode.
b) Display will automatically shift every 5 seconds.
c) Press “Display” button to exchange the displaying of LED
which includes laps of Track, Incline profile and Speed profile.
B FUNCTION
1. SPEED
a) In RUN Mode, DISPLAY range is 0.0 to 99.9 km.
b) WORK range is 1 to 18 km.
c) Press “FAST” or ”SLOW” to adjust speed, each increment and
decrement is 0.1mph/km.
2. TIME
a) In RUN Mode, TIME divides into COUNT UP and COUNT
DOWN. System preset is COUNT UP; if user sets the time
then timer is COUNT DOWN.
b) DISPLAY range is 0:00 to 99:59.
c) WORK range is 0:00 to 99:59.
d) COUNT DOWN setup range is 10:00 to 99:59.
e) When TIME is set, the count will go to zero.
f) In RUN Mode, press “START” button to save value of time
and enter “RUN” Mode again that value will continue count up
time.
3. DISTANCE

S
Se er rv vi ic ce eM Ma an nu ua al lO
Op pe er ra at ti io on n
O
Op pe er ra at ti io on n9 9
a) In RUN Mode, DISTANCE preset is COUNT UP.
b) DISPLAY range is 0.00 to 999.
c) WORK range is 0.0 to 999.
d) In RUN Mode, press the “START” button that DISTANCE
value will still display and save all data. If RUN Mode is
entered, the distance will count up again.
4. CALORIES
a) In RUN Mode, CALORIES preset is COUNT UP.
b) DISPLAY range is 0.0 to 999.
c) WORK range is 0.0 to 999.
d) In RUN Mode, press the “START” button to save value of
distance and entering “RUN Mode” again that value will
continue count up time.
5. PULSE
a) In RUN Mode, DISPLAY range is 0 to 999.
b) WORK range is 40 to 240.
c) If the treadmill doesn’t have a signal for 8 seconds then value
will become “P”.
6. LAPS
a) Display your current laps. (One lap means 0.4km).
7. SCAN
a) Display will automatically shift every 5 seconds.

S
Se er rv vi ic ce eM Ma an nu ua al lO
Op pe er ra at ti io on n
O
Op pe er ra at ti io on n1 10 0
b) At the Dot Matrix window that displays profiles of speed and
incline which will shift every 5seconds.
C FUNCTION BUTTON INMAIN MODE
1. READY MODE
a) In “READY” mode, user could choose any programs which
includes MANUAL, HILL, FATBURN, CARDIO,
STRENGTH, INTERVAL, USE1, USE2, HR1, HR2 or press
“START” button to execute directly.
b) START button: When press “START” button, there will be 3
warning beep, then machine starts running. In MANUAL,
treadmill starts at MIN SPEED and treadmill starts at program
preset value in PROGRAM.
c) When press the “Stop” button once, pause is executed. If press
“Stop” button a second time, the program will end and a
workout summary will be displayed. If press “Stop” button a
third time, the console will return to the idle mode (start up)
screen. If the Stop button is held down for more than 3 seconds
the console will reset.
d) RESET button: Press ”RESET” button to reset all data.
e) ENTER button: Press “ENTER ” button to setup COUNT
DOWN time.
f) FAST button: If user doesn’t enter a setting then this button is
non-functional.
g) SLOW button: If user doesn’t enter a setting then this button is
non-functional.
h) UP button: Press “UP” button to increase your incline and each
increase is 1 level.
i) DOWM button: Press “DOWN” button to decrease your incline
and each decrease is 1 level.

S
Se er rv vi ic ce eM Ma an nu ua al lO
Op pe er ra at ti io on n
O
Op pe er ra at ti io on n1 11 1
j) 10 preset program buttons and 6 preset buttons for rapid speed
and rapid incline
2. SLEEP MODE
a) MANUELL, HILL, FATBURN, CARDIO, STRENGTH,
INTERVAL, USE1, USE2, HR1, HR2 buttons: Enter the
READY Mode.
b) START button: Enter the READY Mode.
c) Enter button: Enter the READY Mode.
d) FAST button: Enter the READY Mode.
e) SLOW button: Enter the READY Mode.
3. RUN MODE
a) MANUAL, HILL, FATBURN, CARDIO, STRENGTH,
INTERVAL, USE1, USE2, HR1 buttons: above mentioned
buttons are non-functional.
b) START button: press “START” button to stop and enter
READY Mode. (Which nearby Dot Matrix window.)
c) DISPLAY button 1 (which nearby Display window): press
“DISPLAY” button to select displaying mode and the LED will
be light per your current mode.
d) In “SCAN” mode, display automatically shifts every 5 seconds
and the LED light will flash per your current profile.
e) DISPLAY button 2 (which nearby Message window):
Press ”DISPLAY” button to change displayed windows which
include Time, Distance, Kcal, Pulse/ Speed, Incline, Kcal/HR,
Pace/Scan.
→
TRACK
→
SPEED PROFILE
→
INCLINE PROFILE
→
TRACK

S
Se er rv vi ic ce eM Ma an nu ua al lO
Op pe er ra at ti io on n
O
Op pe er ra at ti io on n1 12 2
f) FAST button: Press the button to increase your speed and each
increase is 0.1mph/km. If button is pressed continuously then
speed increases to MAX SPEED quickly.
g) SLOW button: Press the button to decrease your speed and
each decrease is 0.1mph/km. If button is pressed continuously
then speed decreases to MIN SPEED quickly.
DCALIBRATION PROCEDURE
1. CALIBRATION
a) Turn on power.
b) Press “START” and “FAST” button at the same time.
c) Inserts the SAFETY KEY on monitor that will
display ”FACTORY SETTING PRESS NETER” in
MESSAGE window.
d) Km/Mile Mode: Press “NETER” to choose the unit mode and
in Dot Matrix will display ”UNIT ENGLISH”, press “FAST”
button to change to Mile which will display ”UNIT METRIC.
e) Set wheel size: Press “NETER” button to set “WHEEL SIZE”
and in “TIME” window will display 2.5(preset value). Dot
Matrix will display “ADJUST WHEEL SIZE THEN PRESS
NETER” then adjust the value from 1.5 to 3.5. (preset value is
2.72)
f) Set Min. speed: Press “NETER” button to set the minimum
speed that will display the value 1.0 in the TIME window. Dot
Matrix will display ”ADJUST MIN SPEED THEN PRESS
NENTER”.
g) Set Max. speed: Press “NETER” button to set the high speed
that will display the value 20 in TIME window. Dot Matrix will
display ”ADJUST MIN SPEED THEN PRESS NENTER” then
enter the value “18”.

S
Se er rv vi ic ce eM Ma an nu ua al lO
Op pe er ra at ti io on n
O
Op pe er ra at ti io on n1 13 3
h) Set Max. elevation: In “TIME” window displays “MAX
ELEVATION” and in Dot Matrix window displays “ADJUST
MAX ELEVATION THEN PRESS START TO
CALIBRATION”.
i) Press “FAST/SLOW” buttons to adjust the setting values.
j) After correcting, treadmill would reset then enter “READY
MODE”.

S
Se er rv vi ic ce eM Ma an nu ua al lT
Tr ro ou ub bl le es sh ho oo ot ti in ng g
T
Tr ro ou ub bl le es sh ho oo ot ti in ng g1 14 4
TROUBLESHOOTING
WARNING:
ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL
OUTLET BEFORE SERVICING THE UNIT.
1. GENERAL
a) Do a visual check of all wiring and connections looking for
chafed wires or lose connections.
b) Make sure any wiring is safely positioned and/or secured away
from moving parts.
c) If you find a fuse blown on a circuit board replace the circuit
board.

S
Se er rv vi ic ce eM Ma an nu ua al lT
Tr ro ou ub bl le es sh ho oo ot ti in ng g
T
Tr ro ou ub bl le es sh ho oo ot ti in ng g1 15 5
2. TROUBLESHOOTING MATRIX
Condition Reason Solve
When turn on power, ON/OFF switch
isn’t bright. 1. Power cord don’t plug into outlet in right position.
2. Power cord don’t plug into unit.
3. The voltage of outlet is too lower.
4. Plug or connector of power cord is imperfection.
5. Connector of power cord was broken.
6. Connecting cable came away.
7. Breaker tripped.
8. Breaker was broken.
9. ON/OFF switch was broken.
Plug the power cord into outlet.
Plug the power cord into unit.
Check the voltage of outlet.
Replace power cord.
Replace power cord.
Check the wire if came away, connect it
again.
Press the small red button to come back
original status.
Replace breaker.
Replace A.C switch.
After turning on power, treadmill has
sound of blowing. 1. Power cord plug in wrong position, varistor was broken on controller. Check the voltage of power is 110V.
When insert safe key, no display is on
monitor. 1. Haven’t switch ON/OFF switch. 2. Insert the Safe key on wrong position.
3. Computer cable of 12PIN was broken.
4. Fuse of controller was broken.
5. Varistor of controller was broken.
Switch the A.C switch.
Insert the safe key on right position.
Replace computer cable of 12PIN.
Replace fuse or controller.
Replace varistor or controller.

S
Se er rv vi ic ce eM Ma an nu ua al lT
Tr ro ou ub bl le es sh ho oo ot ti in ng g
T
Tr ro ou ub bl le es sh ho oo ot ti in ng g1 16 6
6. Reed switch of console was broken. (open)
7. Other components are imperfection. Replace reed switch or console. Replace console.
When console didn’t insert safe key
but treadmill could display or operate. 1. Reed switch of console was broken. (short) 2. Have other magnetic components on console. Replace reed switch or console. Remove magnetic component beside safe
key.
When press “START”, treadmill don’
t
start. 1. Motor M+ or M- wire didn’t connect into right position.
2. Controller was broken. (No power to motor)
3. Motor was broken.
Please check and plug again.
Replace controller or IGBT G30N60 and
add the Silicone Heat Sink Paste suitably.
Replace motor.
Please check the wire and connector if it
was broken.
Treadmill stops or shuts off byitself. 1. House breaker tripped.
2. Treadmill breaker tripped.
3. Treadmill controller fuse was broken.
4. Treadmill controller shut down and LED would
be bright.
Reset it.
Reset treadmill breaker.
Replace fuse
Turn off the AC switch and turn on
power.
After removing safe key, treadmill
can’t stop. 1. Reed switch of console was broken. Replace reed switch or console.
LED has problem that would be not
bright, incomplete or imperfect. 1. LED light was broken. Replace LED or console.

S
Se er rv vi ic ce eM Ma an nu ua al lT
Tr ro ou ub bl le es sh ho oo ot ti in ng g
T
Tr ro ou ub bl le es sh ho oo ot ti in ng g1 17 7
Seven segment displays have problem
that would be not bright, incomplete
or imperfect.
1. Seven segment displays was broken. Replace console and calibrate it.
When press “START” button to start
treadmill, running belt isn’t running
and window displays “LS” error
message after 8 seconds.
1. Controller has unusual with shut down, the S_D
light will be always bright.
2. Motor wires (red, black) didn’t plug into
controller.
3. Computer cables don’t connect on right position.
4. Computer cables were broken that got damage.
5. Motor belt was cut off.
6. Controller was broken.
7. Motor was broken.
8. Console was broken.
Turn off power and reset the treadmill.
Plug wires again.
Plug the wire again on controller,
connector and console.
Replace the wires.
Replace motor belt.
Replace controller.
Replace motor.
Replace console.
When press “START” button to start
treadmill, running belt is running but
window displays “LS” error message
after 8 seconds.
*Speed sensor cable was
broken,(open) console can’t receive
1. The distance is too long between speed sensor
cable and magnet.
2. Don’t have magnet or magnet fall off.
3. Magnet doesn’t have magnetic.
4. Speed sensor cable was broken.(short)
5.The 12C508A was broken on the controller.
Adjust the distance to 5mm between
speed sensor cable and magnet.
Replace a magnet.
Use metal material to test the magnet if
have magnetic.
Replace sensor cable.
Replace “12C508A” or controller.

S
Se er rv vi ic ce eM Ma an nu ua al lT
Tr ro ou ub bl le es sh ho oo ot ti in ng g
T
Tr ro ou ub bl le es sh ho oo ot ti in ng g1 18 8
the speed. 6. Computer cable of 12PIN didn’t connect into
right position.
7. Computer cable of 12PINwas broken.
8. Console was broken.
Plug the cable again on controller,
connector and console.
Gray and purple wires got damage,
replace the wires.
Replace console.
When press “START” button to start
treadmill, running belt is getting
running but window displays “LS”
error message after 8 seconds.
*Speed sensor cable was broken
(open), console can’t receive signal
for unusual speed.
1. The distance is too long between speed sensor
cable and magnet.
2. Sensor cable was broken.
3. Computer of 12PIN didn’t connect in right
position.
4. Computer cable of 12PIN was broken.
5. Console was broken.
Adjust the distance to 5mm between
speed sensor cable and magnet.
Replace sensor cable.
Plug the cable again on controller,
connector and console. Gray and purple
wires got damage, replace the wires.
Replace console.
The windows display is not 1 to 18.0
km/h 1. Monitor is not calibrated. Calibrate the monitor.
The speed of running doesn’t match
with console display. 1. Monitor is not calibrated. Calibrate the monitor.
The windows display “Err” 1. EEPROM was broken or accessing problem. Replace console and calibrate it.
After pressing “START” button, the
treadmill stop
immediately.
1. Controller was broken. Replace controller and calibrate it.
