SPL Supreme dri bubble User manual

Congratulations on choosing Supreme Hand Dryers
For best results follow these instructions.
Phone: [phone]

TECHNICAL SPECIFICATIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS OBSERVE THE FOLLOWING:
•
Use this unit only in the manner intended by the manufacturer. The manufacturer is not responsible for
any damages caused by misuse or defective installation.
The instructions contained within the installation Template must be followed carefully when installing
this unit. Failure to accurately follow the instructions may result in the incorrect operation of this unit,
damage to property and/or personal injury.
Installation work and electrical wiring must be done by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
This unit must be powered by a dedicated circuit branch protected by a circuit breaker with the
appropriate rating. Circuit cable must be fit current consumption for this unit.
This unit has been designed for indoor use only, protect from water, sun and extreme temperatures, do
not install it outdoors or close to moisture and heat generators.
This unit can only be revised, maintained, repaired and removed by qualified person(s).
If the unit stops and works strangely, contact your regional dealer or contractor.
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not
allow children to play with the appliance or carry out cleaning and user maintenance on this hand dryer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
•
•
•
•
•
•
•
•
⚠
3
EN
Standard mode
Quiet mode
Power 12W
Operating cycle 1 hour on, 1 hour off
Air speed 17m/s
Performance Data
Item Category
Drying Time
10 ~ 12 sec
Drip Proof
Isolation
Unit Size
IPX3
CLASS I
H 322.1mm x W 270.5mm x D 144.6mm
Sensor Type
Auto Infrared touch free operation
Sensor Range
45° 10~20cm
Timing Protection
50 seconds auto shut off
Standby Power
≤
0.5 W
Air Speed (sensing max)
96 m/s
Motor Type
Brushless DC Motor, 30,000 RPM
Operating Voltage
Power
AC 220~240 V, 50 Hz / AC 110~120, 60Hz
320 W (Heater off)/ 720 W (Heater on)
Q mode 'ON' , 130 W(Heater off) / 530 W (Heater on)
Sterlilization mode
220~240 V
110~120 V 320 W (Heater off)/ 820 W (Heater on)
220~240 V
110~120 V
Q mode 'ON' , 130 W(Heater off) / 630 W (Heater on)
（Applicable only for PEBBLE PLUS model)

UNPACKING
1. Remove all packing material. Recycling is recommended.
2. Carefully remove the hand dryer from the shipping carton, using care not to drop the appliance.
3.
Inspect carefully for any damage that may have occurred during transit. Check for any loose, missing or
damaged parts. If the hand dryer is damaged, promptly inform the shipper or dealer where you purchased it.
Standard items with the hand dryer are shown in Fig.1 together with tools need by the installer.
Service Tool
& Spare Screw
Installation
template
Wall mounting
anchors with screws
Power cable cover
& Screw
1
INSTALLATION
1. Wall bracket removal
1.1 Place the appliance on a cloth to avoid marking its surface.
1.2 Remove the one security screw seated on the bottom surface of the unit, using the service tool (fig.2).
1.3 Pull down the wall mounting bracket and remove from the unit (fig.3).
2 3
1
2
Unit
EN
4
EN

4
CAUTION
•Make sure power supply breaker is switched off.
•Check that the electrical supply corresponds to that shown on the rating plate. If the unit is connected
to any electrical supply other than stated on the rating plate of the unit, permanent damage or unsafe
operation of the unit may result.
The unit must be mounted on a flat vertical wall capable of supporting the full weight of the unit.
•
•

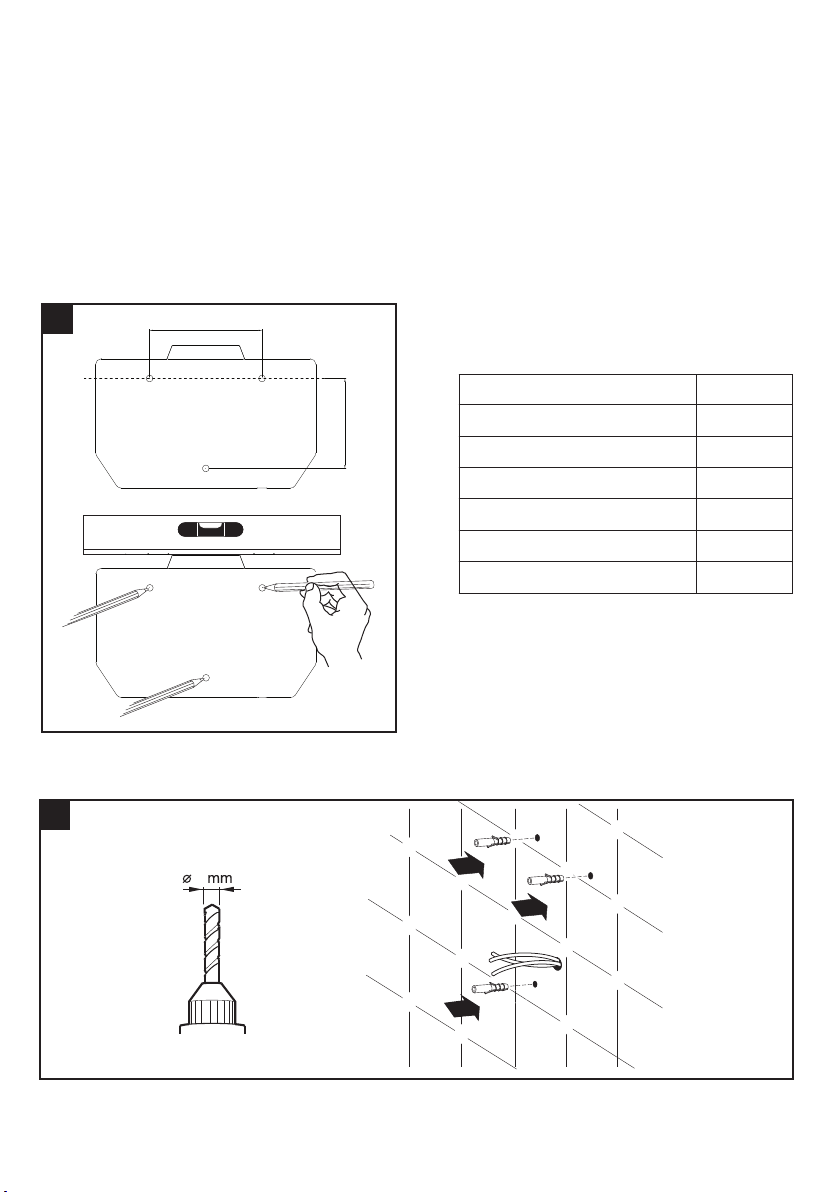

2. Positioning
100mm
80mm
2.1 Mark the location on the wall with a pencil. Use the Installation Template to mark the locations for the
three fixing points (fig. 4).
Adult male 1400mm
Adult female 1365mm
Children 5-8 years old 1028mm
Children 8-11 years old 1128mm
Children 11-14 years old 1208mm
Wheelchair user 1150mm
Recommended height measurements form the
floor to top screws
Installation target Height
2.2 Pre-drill the wall in the marked locations using 5/16” (8mm) drill, insert the plastic anchors and
tap flush to the wall. If the cable entry is to be done from the wall provide a proper cable exit (fig. 5)
8
5
5
EN

4. Fix the Main unit to Wall mounting bracket
4.1 Position the unit centrally above the wall mounting bracket so the metal bracket on the rear is positioned
over the mating part of the wall bracket moulding. Keeping the dryer firmly against the wall, slowly slide the
dryer down until there is no further travel. The dryer should then be electrically connected (fig 7).
4.2 Insert and tighten the security screw seated on the bottom surface (fig 7A).
3. Installing Power cable & Connection terminal block
WARNING: ENSURE POWER NOT CONNECTED
3.1 Pull the cable through the hole in the wall mounting bracket. Ensure the cable is long enough to route
correctly through the wall mounting bracket to the terminal block (fig. 6).
3.2 The cable must sit in the dedicated channel. If the cable come through Power cable entry from outside, It is
recommended that the cable is routed via the 3 bosses as in fig. 6B .
3.3 As shown, connect cable to terminal block.
3.4 Screw in terminal block.
3.5 Fix the wall mounting bracket to the wall. Screw to the wall using the appropriate fitting (fig 6A).
3.6 Fix the cable cover with screw on the wall mounting bracket.
Power Cable Entry
6
L
N
6mm
Power Cable Exit
(in case with power cord cable)
CAUTION: Connect the ground wire to the terminal block marked “ ”
Do not over-tighten and crush the power cable.
6A
7 7A
5. Turn power on and test the unit for correct operation.
L N
6
EN
Back View
6B

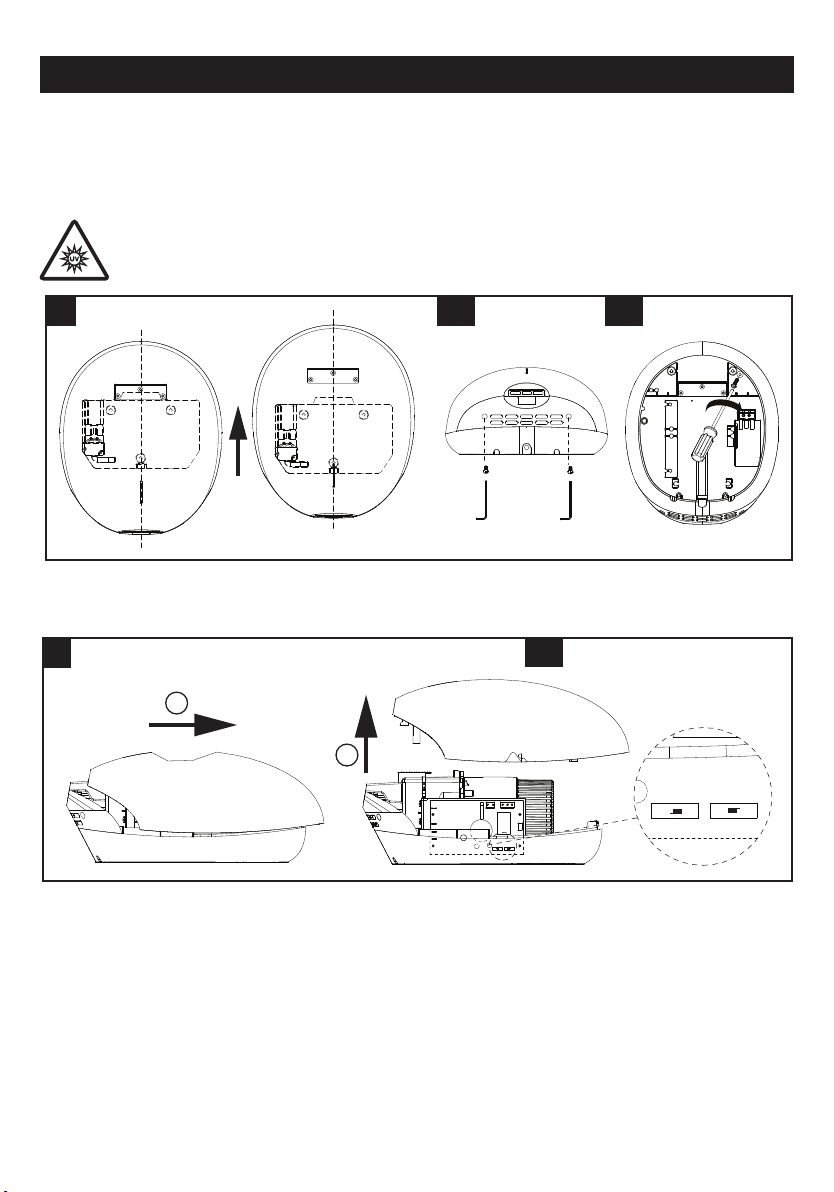

HEATER SWITCH & QUIET (Q) MODE SWITCH
Heater Switch ON/OFF & Quiet Mode Switch (Factory default setting Heater “ON” / Quiet “OFF”)
8
3. Remove the (2) security screws from the unit, using the service tool (fig 8A).
4. Remove the (1) screw from back of unit, using the + screw driver (fig 8B).
5. Lift the front cover off the unit (fig. 9).
8A
9
1
ATTACHING UNIT
Reposition the front cover on the unit.
Refix the 2 cover security screws into the bottom of the front cover (fig. 8A).
Refix the cover screw situated in the base of the dryer (fig. 8B)
Reposition the unit on the wall mounting bracket and insert and tighten one
security screw into the bottom
of front cover (fig. 7~7A).
Test the unit for correct operation. The LED light on the cover should flash 3 times with a red light after
the power supply has been correctly connected and followed by continuous light white LED.
Note: If the LED light remains off, the unit must be refitted correctly.
9A
6. To turn off or turn on heater, use the left switch shown in fig. 9A.
7. To change Quiet mode, use the right switch shown in fig. 9A.
2
1. Remove the one security screw seated on the bottom surface from the unit, using the service tool (fig. 2).
7
EN
The unit has a built in UV-C lamp, avoid exposure to direct germicidal UV rays.
Heat
ON
ON
1
QMode
ON
Heat
ON
ON
1
ON
1
Q Mode
ON
2. Lift the unit off the wall mounting bracket (fig. 8).
Note: Ensure the LED light on the front of the unit is OFF before opening the front cover, if the LED light
is still ON, wait until the light goes off.
ON
1
8B

If the LED light on the front of the unit flashes red then the filter if fitted needs to be changed. The filter
functions for approximately 60,000 operations.
1. Remove the one security screw from the middle of the bottom face of the unit (fig.2).
2. Lift the unit off the TERRA4 wall mounting bracket (fig. 8).
3. Remove the (2) security screws from the unit, using the service tool (fig. 8A).
4. Remove the (1) screw from back of unit, using the + screw driver (fig 8B).
5. Lift the front cover off the unit (fig. 9).
6. Turn the filter cover to open direction (fig. 10).
The dot is aligned with the arrow present on the motor cover (fig. 10A).
Note: Ensure the LED light on the front of the Unit is OFF before opening the front cover, if the LED
light is still ON, wait until the light goes off.
CLOSE OPEN
(A) (B)
Filter Cover
Filter
1
7. Remove the filter(fig. 10B).
10 10A
10B 10C
8. Insert the New filter.
The dot on the filter cover is aligned with the arrow on the motor cover (fig.10C).
9. Turn the filter cover to close direction. The dot is positioned to the right of the arrow on the motor
cover (fig.10A-A).
8
EN
FILTER & UV-C LAMP REPLACING

WARNING - If the dryer has been fitted with a filter, it will need to be replaced after 60,000
operations but will continue working for a further 15,000 operations but without the benefits of
the HEPA filter. At approximately 75,000 operations the red LED will be flashing on the window
positioned at the front of the cover and the unit will stop working until a replacement filter is fitted.
!
ATTACHING UNIT
Replace the filter (shown in Page 8) and attaching unit on the wall mounting bracket (Shown in Page 7).
Note: On power up should the red LED continue to flash this means the filter is not fitted correctly and
needs to be refitted.
9
EN
OPERATING LED LIGHT
LED Lighting for standard and Black Edition
Filter Alert Lighting
Front Cover color Stand by Mode Working Mode Sterilization mode
White / Silver White LED ON White LED fast mode White LED slow mode
Black Edition Red LED ON Red LED fast mode Red LED slow mode
White LED White LED ON /
White LED slow mode
White LED ON
fast mode
Red LED Red LED flashing OFF
Location LED (blue) OFF ON
White LED White LED ON
slow mode
White LED ON
slow mode
Red LED Red LED flashing Red LED flashing
Location LED (blue) OFF Flashing
Filter uses Light
Stanby / Sterilization mode
From 60,000 uses
~74,999uses
75,000 uses ~until
replace new filter
working mode
(sensing mode)
The sterilization function of UV-C lamp will be weakened after 3 years use, the UV-C lamp needs to be
replaced for maintaining proper function.
(Applicable only for PEBBLE PLUS model which is equipped Air sterilizer option)
11

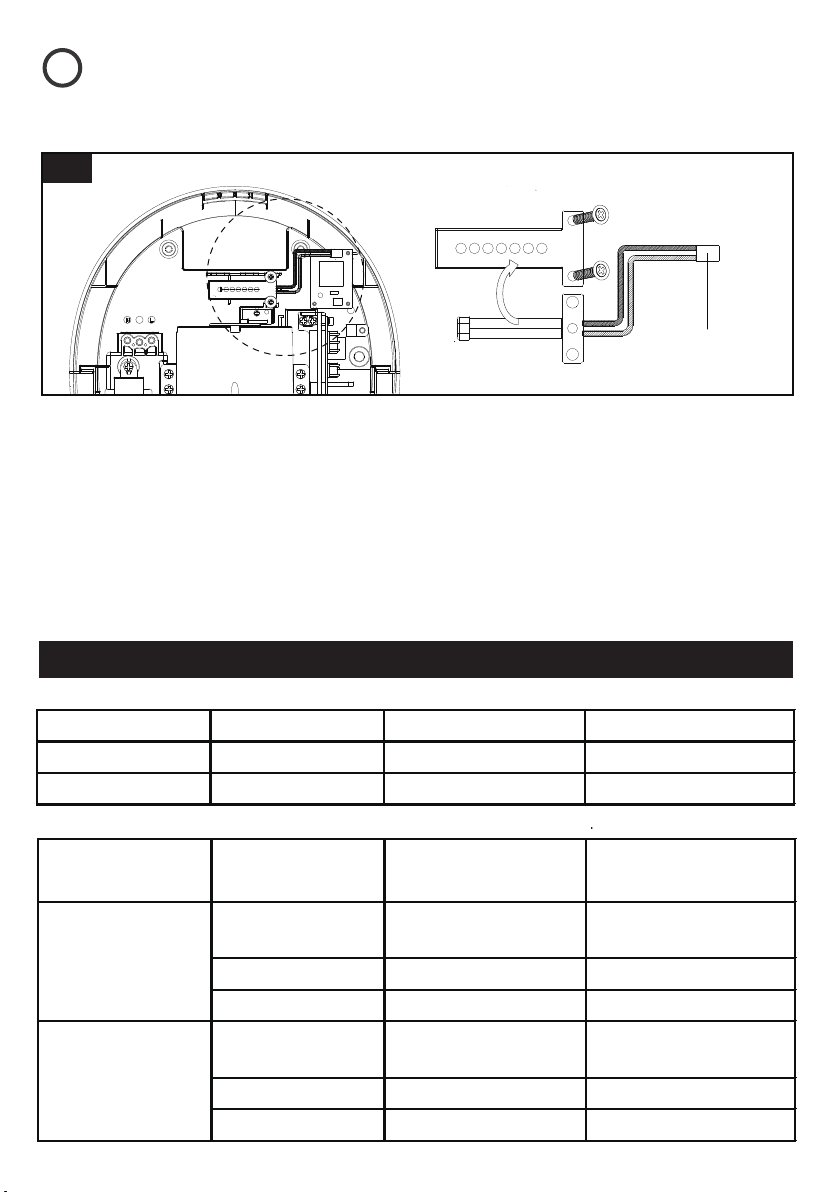

UV-C lamp wire jack
1. Remove the filter cover and filter shown in page 8.
2. Remove the two screws on the UV-C lamp cover and remove UV-C lamp cover and pull out the UV-C lamp wire
jack from the UV light board.(fig.11).
3. Insert the New UV-C lamp and replace the UV-C lamp cover tighten the two screws and replace the wire jack on
the UV-C lamp board.

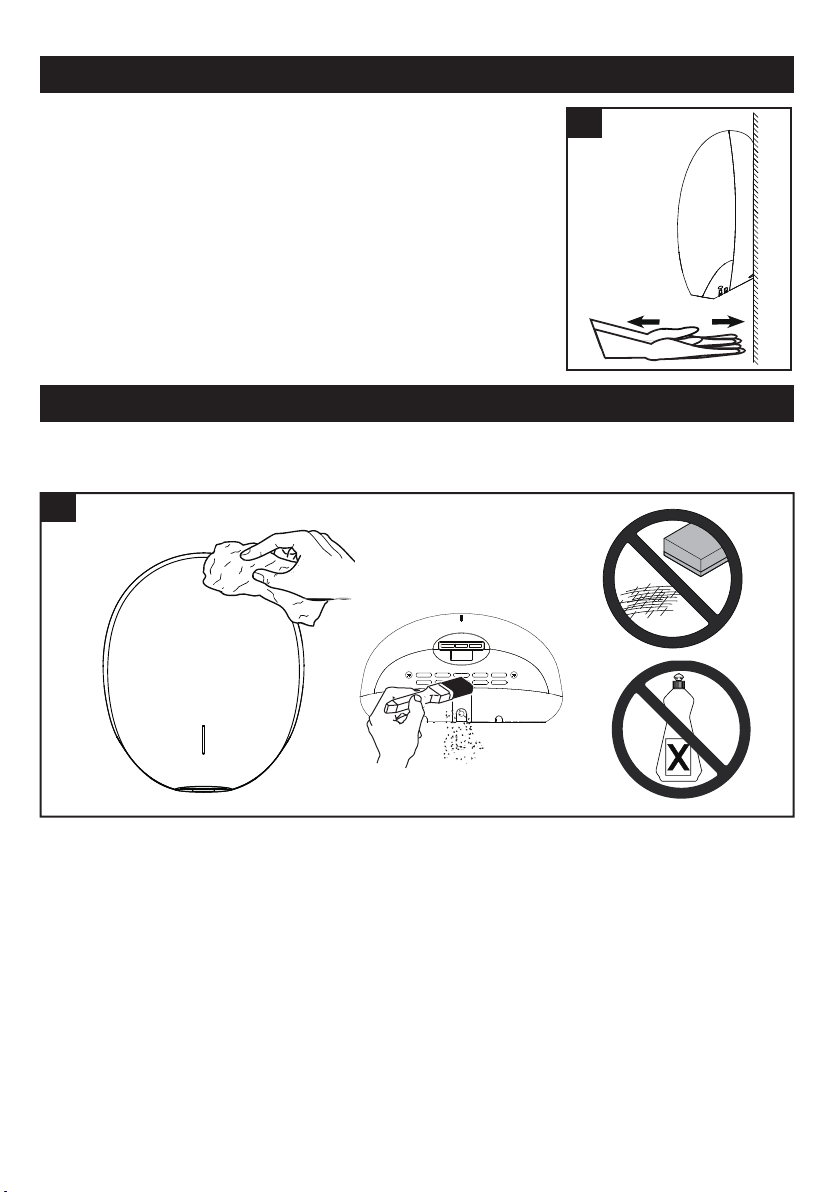

USE
10
EN
1. No touch operation.
2. Shake excess water from hands.
3. Place hands under the outlet to start operation (fig. 12).
4. Slowly move hands back and forth under the outlet at the bottom of
the dryer.
5. The blue hand location LED situated by the dryer outlet starts with
the drying operation.
6. The dryer and blue LED stops when the hands are removed.
7. Hand dryer also auto shuts off after 50 seconds of uninterrupted use.
12
MAINTENANCE AND CLEANING
Lift the Unit off the wall mounting bracket before maintenance or repair.
13
Regular maintenance
Regularly clean the outer casing use a soft, damp cloth to gently wipe away any dirt.
CAUTION: Never use abrasives or chemicals to clean the cover. Do not soak.
Periodical deep clean
1. Clean and maintenance must not taken until the unit has been removed from the wall mounting bracket or cut off
power.
2. Use the service tool or security hex driver to remove the two cover security screw.
3. Remove the cover.
4. Clean all dust and lint from the interior of the hand dryer.
5. Replace the cover.
6. Wipe the cover with a damp cloth.
⚠
If there is an electrical or motor problem, the blue LED will flash when
hands off the placed under the dryer outlet.
The sterilization function turns on and off automatically
