Splash SuperPools SuperStream PRO V3 User manual

SuperStream PRO
V3
Installation Manual
Issued 01/2008

Congratulations on your purchase of the new Splash SuperStream
®
Pro exercise and fitness pool.
In addition to the pools boxes and equipment, you should have received the following SuperStream
®
boxes
with the listed contents, it is important to check the contents before you start. If there are any missing
items, please contact Splash Superpools Customer Service.
1. SuperStream
®
Manifold Box (Photo #1)
• SuperStream
®
Installation manual
• Suction Manifold
• Jet Manifold
• 1 –Jet Wrench
• 2 –Nozzles with retaining rings
• 2 –1½” Ball valves
• 2 –Wall fittings
• 2 –Suction screens
• 1 –4.5’ long hose
• 1 –9’ 10” long hose
• 1 –30 amp control box
2. SuperStream
®
Ladder Box (Photo #2)
• Manual
• Ladder parts
• 1 –platform section with air button installed
• 1 –coil of 1/8” x 30’ air hose
3. SuperStream
®
4 hp Waterway pump

By now, you should have your new pool together and ready to fill with water. Make sure that you
positioned the pool correctly so the jet pump assembly is at the desired end.

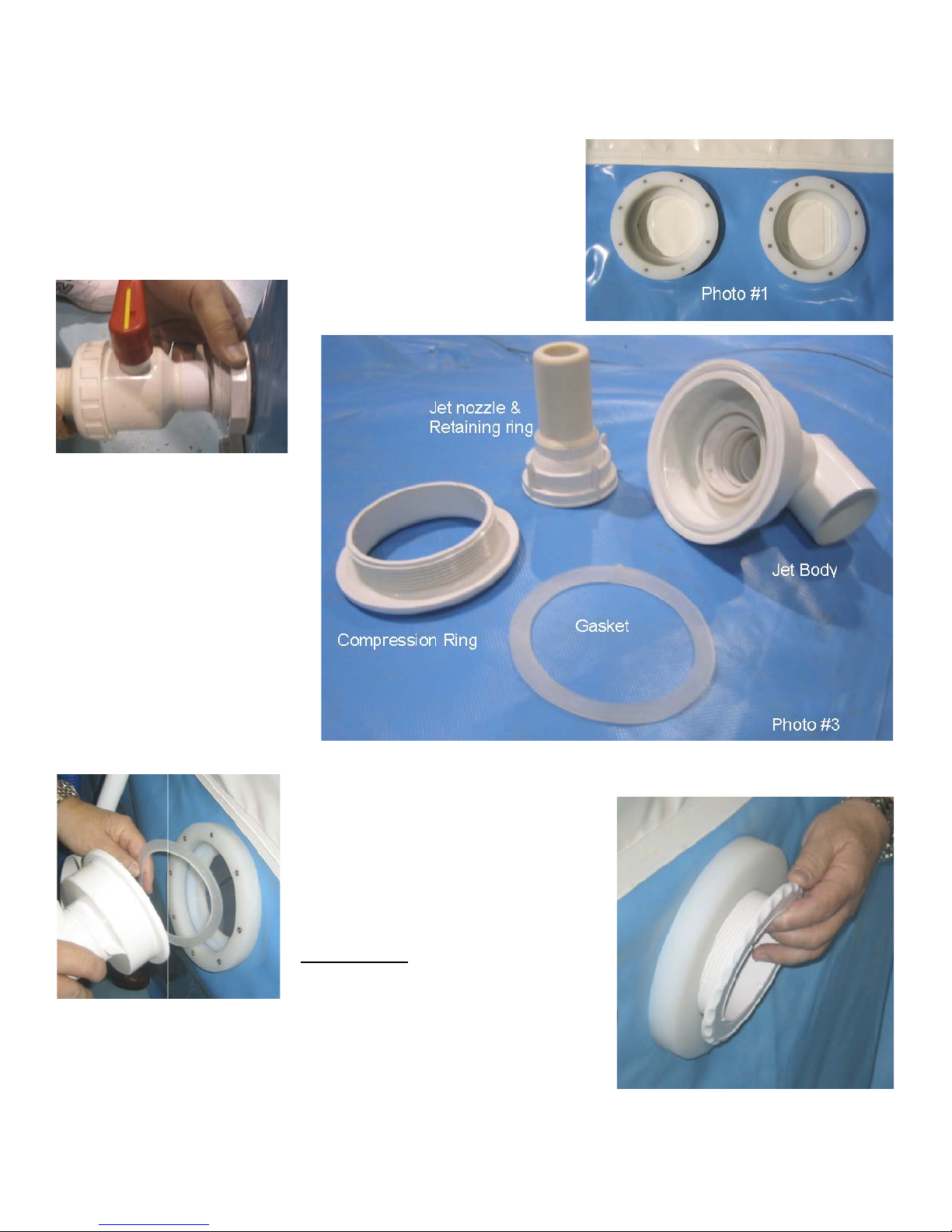

At the factory, we have pre-installed the retaining rings for the
jets, as shown in Photo #1 and pre-punched suction holes in the
corners. You will need to install the supplied wall fittings, suction
screens and ball valves at this time (Photo #2). The ball valves
should be shut (red handle perpendicular to the valve body).
At this time, to make the
Photo #1
installation easier, fill the pool to
Jet nozzle &
Retaining ring
Photo #2
the bottom of the swim jet
retaining rings.
Locate the swim jets and unscrew the compression Jet Body rings from the jet bodies. Photo #3
shows the jet body
Gasket
assemblies and the parts of
Compression Ring
the jets.
First, remove the gaskets from
the compression rings
Photo #3
and place the gasket into the
retaining ring assemblies on the “dry” side (Photo #4). Holding the jet body assembly into the
retaining ring, screw the compression rings into the jet bodies, from the
inside of the pool (photo #5) and
hand tighten. Using the supplied jet
tool, tighten the compression rings.
This is a good time to also install the
jet nozzles as shown in photo #6.
The retaining ring screws into the
center of the jet and should be left
slightly loose to allow the jets to be
adjusted. Next, close the valve on
#4
the jet assembly and continue filling the pool
to the appropriate level.
Photo #5
To complete this installation, you will need the following items:
1. #2 phillips screwdriver
2. Strap wrench (for tightening pump unions if necessary)
3. 12” x 12” cement paver to set pump on.

Unpack the 4 hp pump (may be Waterway or Pentair brand)
and install as shown in Photo #7 and tighten the union. Next,
attach the suction manifold
to the pump, as shown in
Photo #8 and install the
supplied hoses with
gaskets, paying attention
that the hoses are different
lengths, between the suction
manifold and the corner
suction fittings (ball valves). Note:
depending on the surface, you may or may not need the paver to set the
pump on.
Next you will need to have a electrician install the 220 volt power to
the jet pump. A 220v/30amp control box w/GFCI and air switch is
provided. For safety
reasons, your ON/OFF
function is controlled by a
non-conductive air switch,
allowing you to turn the jet pump on or off while you are wet
and in the pool. The air switch airline (1/8” clear plastic
tubing) connects to a port on the control box (See directions
with the control box) and to the air switch button that is installed into the
ladder platform as shown in Photo #9.
Turning the pumps ON/OFF is done by pressing the air switch button
that was installed on the underside of the ladder platform, on the right
side.
Before turning on the pump, open the valve on the jet manifold, open
the valve on the suction manifold and open the ball valves on the
corners of the pool. Press the air button and enjoy your new
SuperStream Pro.
Adjusting the Jets
The jets are adjustable for direction only. To aim, move the nozzle to the desired direction WITH THE
PUMPS OFF. Aiming the jets may take a few moments because personal preference will determine where
they will be pointed. As a preliminary set-up, both jets should aim to a single point in the middle of the pool,
at the surface of the water and approx. 4’ from the jets in the center of the pool. A piece of ¾” rigid PVC
approx. 4’ long inserted into the jet nozzle can be helpful in the aiming process.
There is a round black patch welded on the bottom of the pool. The spot is a target to be used when
swimming, to enable the swimmer to stay in the middle of the pool and in the current.

Winterization
If your pool is located outside and you will not be using the pool during the winter months when freezing is
a possibility, the following steps must be followed to prevent damage to the SuperStream system:
1. Lower the pool water level below the swim jet openings.
2. Remove the jet manifold and store.
3. Remove the pump, suction manifold and hoses and store.
4. Remove the skimmer, hoses and filter pump and store.
Now install a pool cover, which should be properly fastened to the pool structure so as to prevent blow off.
