SPLIT SECOND 45-0505 Operator's manual

French and Spanish language manuals are
available for download at
www.splitsecondlogsplitter.com
http://www.splitsecondlogsplitter.com Form No. 41874 02/03/15
Tool Tray (Model 45-0505)
4
2
3
4
2
3
1
2
REF QTY PART NO DESCRIPTION
1 1 68296 Tool Tray
2 4 43088 Washer, 5/16"
3 2 47407 Hex Bolt, 5/16-18 x 4"
4 2 47810 Nylock Nut, 5/16-18

Safety Rules
WARNING
Any equipment can cause injury if operated
improperly of if the user does not understand
how to operate the equipment. Exercise
caution at all times when using this equipment.
General Safety
yRead and understand the instructions in the owner's manual
before using the tool tray.
yNever allow anyone who has not read and understood these
instructions to use the tool tray.
yNever allow children to use the tool tray.
yDo not exceed the manufacturer's recommended weight
capacity (35 lbs.) of the tool tray.
yDo not climb, sit, or stand on tool tray.
yAlways check for loose nuts and bolts before each use and
tighten any that are found to be loose.

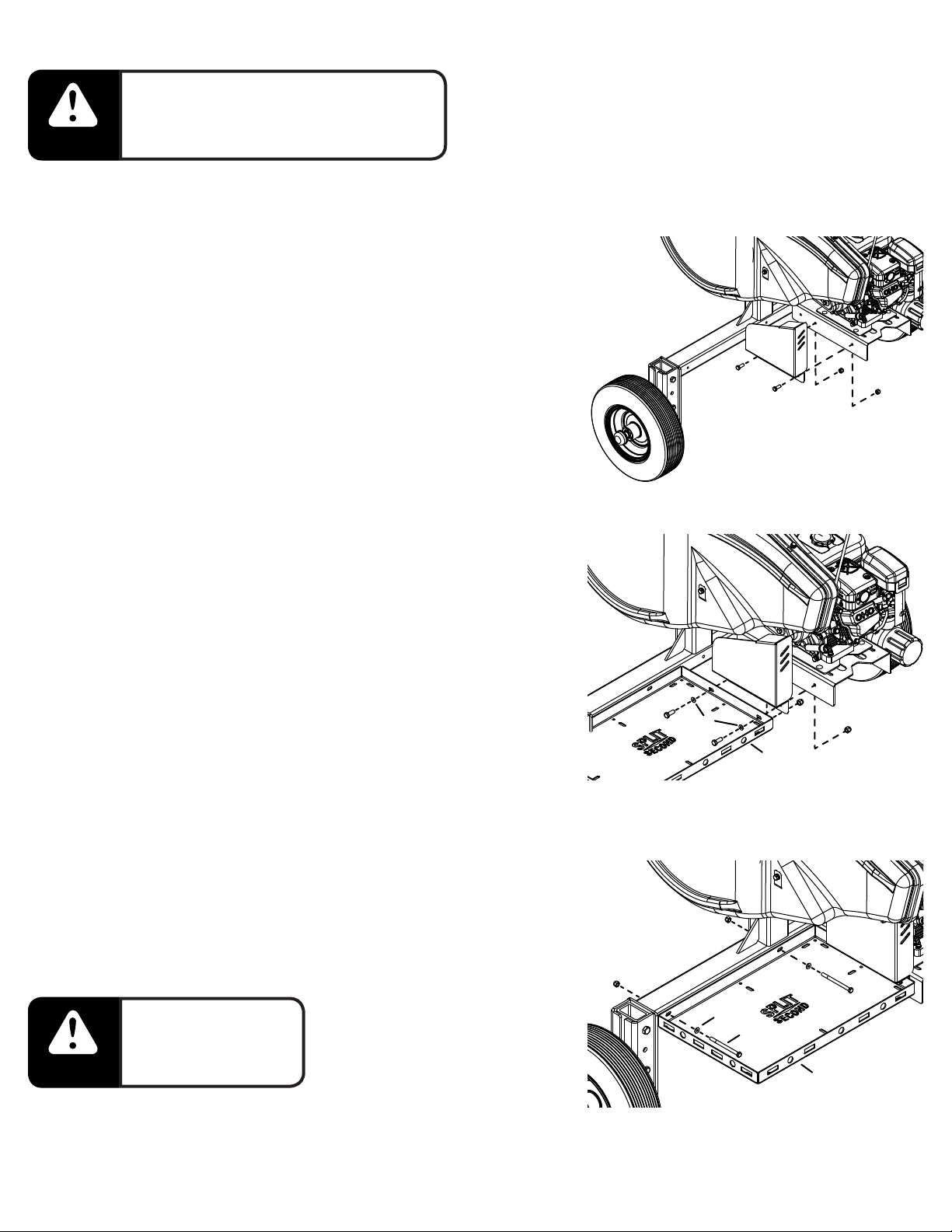

Assembly Instructions
Preparing Log Splitter (Figure 1)
1. On the Log Splitter, remove the back two bolts that attach the belt guard to
the engine mount bracket. You will use these holes and hardware to attach
the Tool tray as shown in Figure 2.
Attaching Tool Tray (Figure 2)
1. Attach the Tool Tray (1) and belt guard to the engine mount bracket using the
hardware you removed in Figure 1 and two 5/16" washers (2).
Securing Tool Tray (Figure 3)
2. Secure the Tool Tray (1) to the frame assembly using two 5/16 x4" hex bolts
(3), two 5/16" washers (2), and two 5/16" nylock nuts (4).
Operating Instructions
WARNING
This tool tray is designed
to hold up to a total
weight of 35 lbs. Do not
exceed this weight limit.
Before Each Use
1. Check for loose fasteners. Tighten any fasteners that are loose.
FIGuRE 1
FIGuRE 2
2
1
FIGuRE 3
4
2
1
3
