Spon XC-9602B User manual

Basic functions
Receivingbroadcast which is initiated by server(NAS-8500 orXC-9000) or other terminals.
Settingparameters through WEB pages: users can configure network and audio parameters, modify
login password through browser to realize personalized settings.
Wireless sound system (optional)
The 2.4G wireless microphone work with correctly frequency speaker to realizeamplification. 1 to 2
meterswill be required for frequency distance, and using distance will bemore than 15 meters (It may
not cause any interference to the wireless microphone and receiving module).
Offline ringing
Scheduled task can be sent to the terminal for internal storage through server or PC. It will
automatically broadcasting the task when the terminal and server disconnected.
Line input
Connecting computer and mobile phone for amplificationthrough 3.5mm interface.
Line output
Providing one road of line output after received the network tasks, connect with power
amplifier or speakersfor amplification.
Constant voltage backup (optional)
When face the network failure (offline/network task can not bereceived/unstable network
condition), it will automatically switch to the constant voltage line to broadcasting.

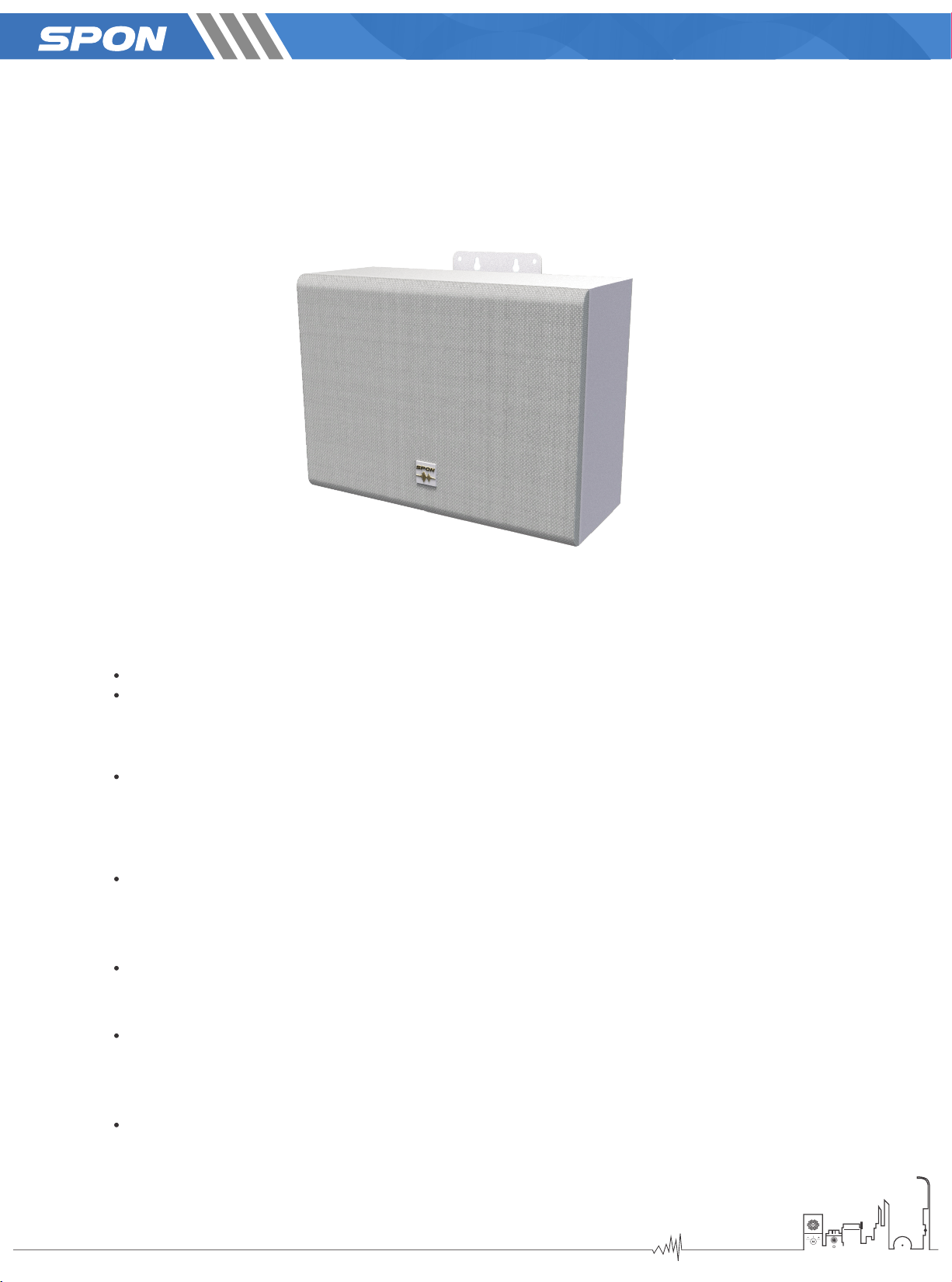

XC-9602B
IP SPEAKER
MAIN FUNCTIONS
IP Speaker

Power output
Providing resistance impedance power output in 30W 8Ω during main speaker working, the vice
speaker can be enabled as well.
POE
Power in2*10W during POE supply.
Data transfer via dual network ports
With dual network ports and data transfer function, which can work with hand-in-hand or one-input and
output connection with the network devices (computers, AIO device and etc.).
Status
A dual-color indicator lightshows terminal status (power supply, login and task acceptance), and two of
single color indicator lightsshow network port status (connection, data sending and receiving).
Hardware reset, IP broadcasting
Withconcealed reset button, press once to broadcasting IP address, ID number and other information
during the network in offline status. Long press to reset as factory settings.
SNTP
User server or network clock server.
Text display
The clock and text information can be displayed through USB interface connect with dot matrix display
screen.
IP Speaker

XC-9602B
Speaker
Audio
Amplifier
Network
System
integration
General
SPECIFICATIONS
IP Speaker
Audio streaming
CODEC protocol
Audio input
Audio sampling rate
Speaker component
MAX SPL
Frequency response
Sensibility
Built-in amplifier
Transmission network
Security
Protocol
VoIP
Power
Intelligent detection
Output power (DC)
Output power (POE)
Event actions
Housing color
Housing material
Memory
Power
Interface
Reliability
Operating conditions
Storage conditions
Approvals
Dimensions
Weight
Included accessories
Optional accessories
Software
Languages
Warranty
Two-way
G.711a、G.711u、PCM、MP3
3.5mm stereo input
8KHz-44.1KHz
Constant resistance 8Ω
92dB±3dB
50Hz～18KHz
86dB±3dB W/M
Class D amplifier
10/100M network self-adaption
Password protection
TCP/IP、SIP、UDP、ARP、ICMP、IGMP Protocol
Work with SIP protocol, and voice transmissionwith IP PBX system
≤5W
Offline detection
2×30W
2*10W
Work with XC-9000 for broadcast, alarmand other functions
Black
Wood
RAM 128M
24V/2.7A or POE（IEEE 802.3af）
RJ45 support POE（IEEE 802.3af）
Designed for 24/7 operation
–10°C to 45°C (14 °F to 113°F) Humidity <90% RH (no condensing)
-20 °C to 65 °C (-4 °F to 149 °F)
3C
310*156.5*232mm (12.2 x 6.16 x 9.13 in)
8.7 KG(main speaker + vice speaker)
Wiring terminal(5.08-2P)1PCS,Pwer adapter1PCS(DC24V/27Amale
connecntor),Power bracket 1PCS,Semi-circular head self-tapping
screw2PCS(m4*22Black),Mounting bracket 1PCS,Installation
manual 1PCS,Certificate and warranty card 1 PCS.
Wireless microphone 1 PCS (wireless module for optional)
Simplified Chinese, English
1 year

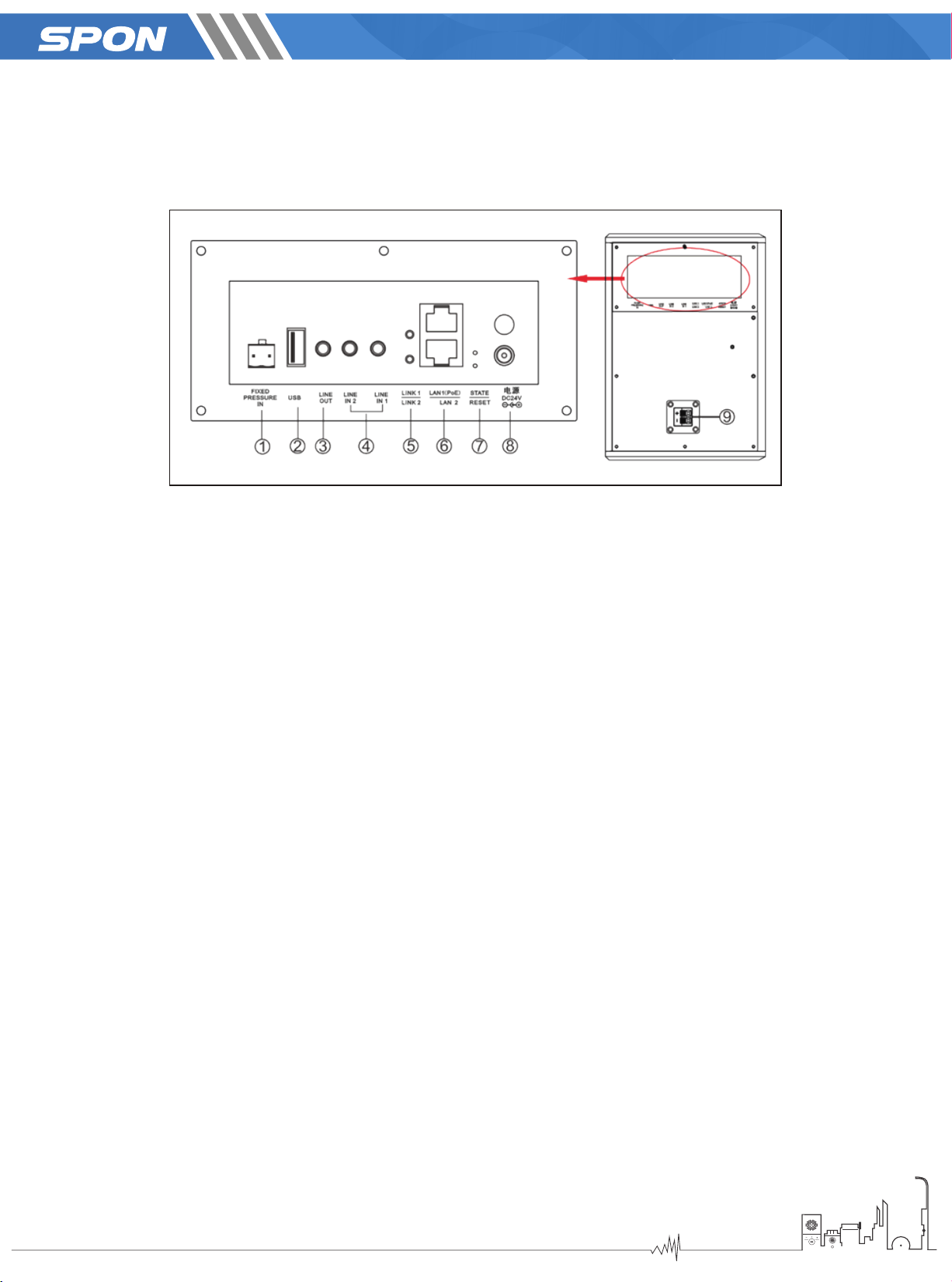

INSTALLATION
①Constant voltage backup input port: 100V constant voltage audio input. When
the network in abnormal or power failure, we can switch to analog constant voltage
broadcast(this module is for optional).
②USB interface: used for downloading programs or connecting with LED screen
and clock. LED screen can display text, date andtime.(LED screen is for optional).
③Line output port: stereo output in 500mV@10k.
④Line input port:stereo input in 500mV@10k.
⑤Network data indicator light: the green light flashes slowly when the terminal is
powered on, and the green light flashes quickly with data. LINK1 and LINK2 corre-
sponding to network port 1 and 2 respectively;
⑥RJ45 network port: dual network port, 10M/100M self-adaption. The first network
port in POE power supply, if connect with POE switcher, needn’t connect with
power.
⑦The first one is terminal status indicator: red light flashes slowly in offline status,
green lightalways on in online idle status.
The second one is reset button: press the button with tweezers or a small pin to
broadcasting the device ID, IP address and etc. Hold it for 5 seconds to restore to
factory settings.
⑧DC24V/2.7A；Power input port: connect with AC220V power supply.
⑨Constance resistance output interface: red for +, black for -, used for connect
with vice speaker(30W/8Ω).
IP Speaker

IP Speaker
Step 1: horizontallyinstalling 2pcs of M4
screws to the wallaccording to the hole posi-
tion, leaving 5mm distance, please see the
right picture showing:
Step 2: please placing 2pcs of holes to
hanging on the screw, and then tighten the
screw to ensure fixed it well.
And keep the device inhorizontallyinstalla-
tion.
Note: please ensure the hardness of the installation surface, do not directly installed on the wall which is
not in insufficient hardness such as gypsum board. Please reinforce the installation surface if necessary.
( installation screws are not included in accessories)
INSTALLATION

IP-NETWORK
NTPTime Server
SEC-1000
LED Screen
SEC M1101A-
Classroom
IP Speaker
XC 9602B-
Deputy Speaker
NAC 301-H

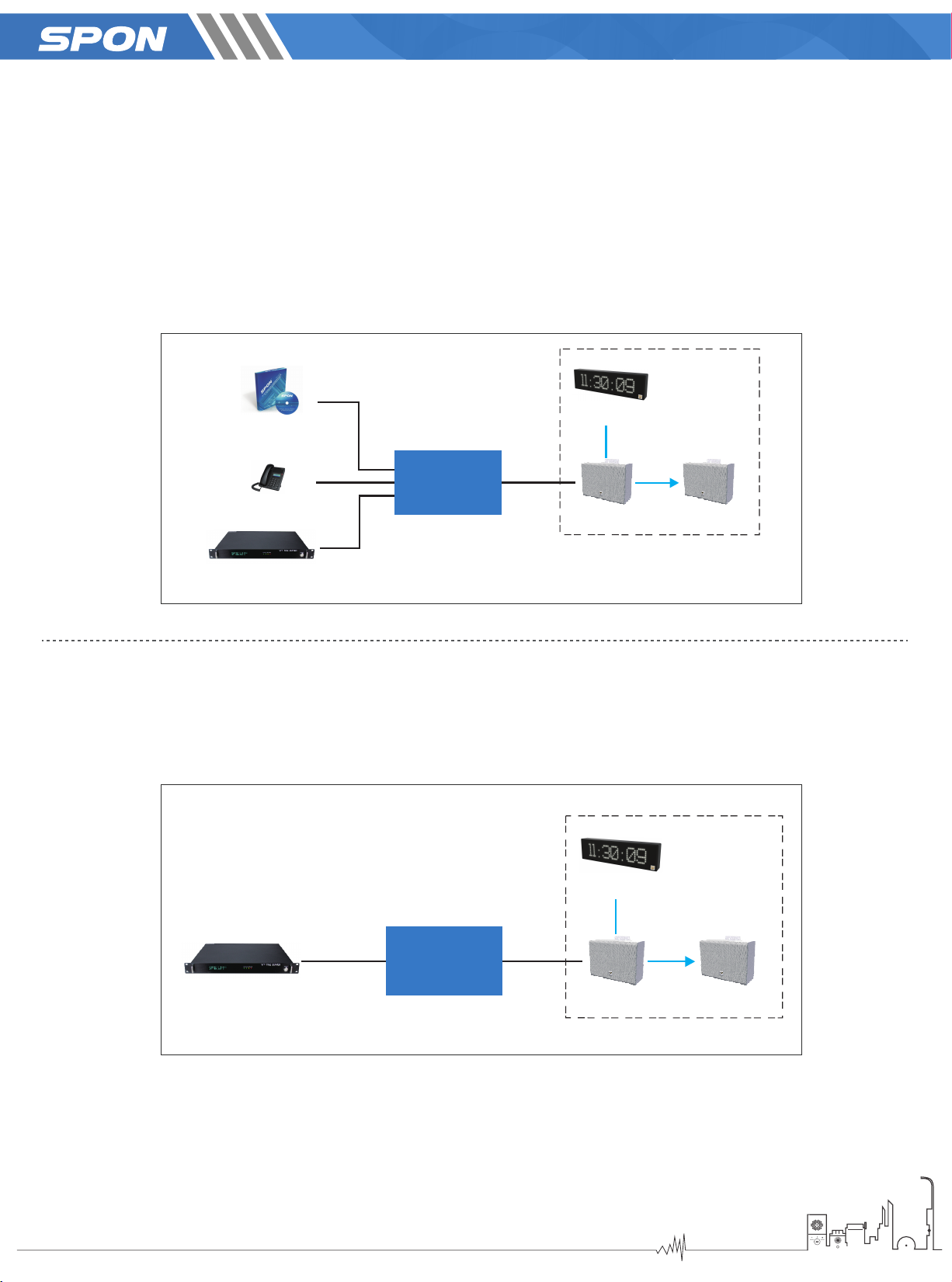

APPLICATION
Application 1
The IPspeaker XC-9602Bworkwith SPON XCoIP protocol,SIP telephone can initiate
broadcast to one or more than one of XC-9602B.
IP Speaker
Application 2
The IP speaker XC-9602B can work in offline status. When the device is offline, it can
play scheduled ringing tasks which is set by server during offline, such as school
ringing for class begin and close.
IP-NETWORK
Intercom Server Software
XC 9000-
NTPTime Server
SEC-1000
IP Speaker
XC 9602B-
Deputy Speaker
NAC 301-H
SIP Phone
LED Screen
SEC M1101A-
Classroom

IP Speaker
Address: SPON Industrial Park, Changsha, Hunan, China
Tel: [phone]
Fax: [phone]
Mail: [email protected]
Http: //en.spon.com.cn/
Changsha SPON Communication Technology Co.,Ltd
Application 3
IP speaker XC-9602Bwork with standard SIP protocol, and it will be ok for registering
to the mainstream IP-PBX and receiving SIP callsor the broadcasting which is initiate
by SIP soft calls.
IP-NETWORK
NTPTime Server
SEC-1000
SIP Phone
LED Screen
SEC M1101A-
Classroom
IP PBX
IP Speaker
XC 9602B-
Deputy Speaker
NAC 301-H
