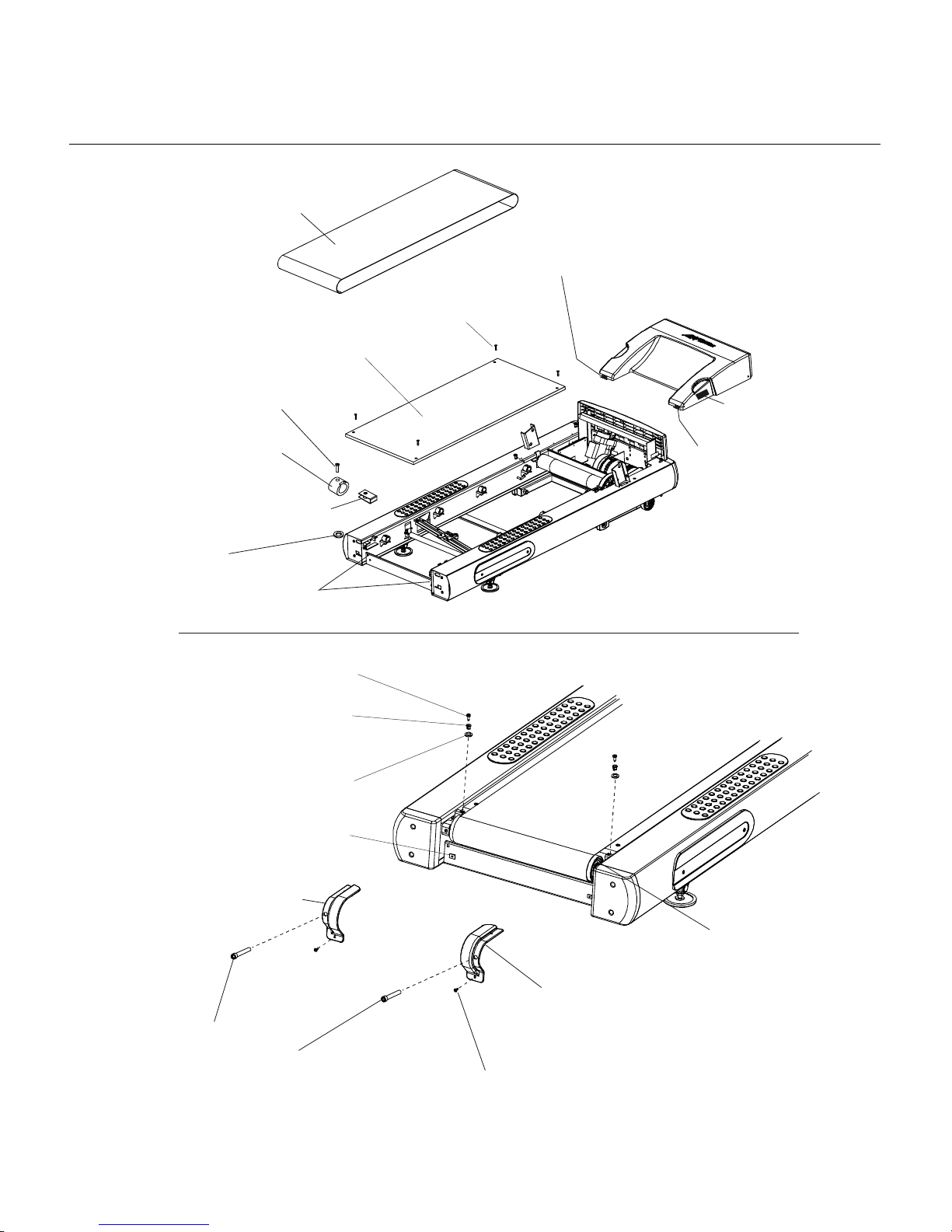

Sportsmith 97Ti 97T-0XXXX-01 Configuration guide

1Page 1 of 16
Treadmill 97Ti 97T-0XXXX-01
General Assembly S/N TTN100000
Touch-Up Paint Color Container
0017-00008-0196 Silver Bullet Bottle
0017-00008-0197 Silver Bullet Spray Can
0017-00008-0198 Stealth Gray Bottle
0017-00008-0199 Stealth Gray Spray Can
Manual/Video Part Number
Operation Manual, Eng M051-00K58-A081
Service Manual M051-00K58-A097
Installation Video M051-00K58-A098
Service Video M051-00K58-A099
Access Panel Cover (2)
0K58-01279-0000
Screw (4)
0017-00101-1771
Leveler
Assembly
Rear End Cap (2)
0K58-01268-0000
Screws (4)
0017-00101-1772
Striding Belt, Deck,
and Rear Roller
Handrail
Components
Console
Cup Holder, LT
AK58-00247-0002
Cup Holder, RT
AK58-00247-0001
Motor Cover, Endcaps,
and Hardware
Frame
Components
Access Panel Decal, RT
0K58-01334-0001
Access Panel Decal, LT
0K58-01334-0002
ERGO Bar
Power
Components
Cables

2Page 2 of 16
Treadmill 97Ti 97T-0XXXX-01
Frame Assembly S/N TTN100000
Idler Arm
Assembly
Lift Motor
and Frame
Motor
Controller Wax Lift
Board
Fan Assembly
A
K58-00126-0000 (100v)
AK58-00145-0000 (200V
Mounting Screws
0017-00101-1781
A
nti-StaticTinsel
0K58-01102-0001
Tinsel Spring
0017-00009-0901
Anti-Scuff Pad (2)
0K58-01306-0000
W
ax Components
Static Brush
Motor
Assembly Front Roller
Assembly
Frame Tag PCB
B084-92187-0000

3Page 3 of 16
Treadmill 97Ti 97T-0XXXX-01
Console Assembly S/N TTN100000
Console Assembly Overlay Switch Bezel Assy Overlay Language
AK58-00196-0001 AK58-00202-0001 0K58-01296-0001 Eng/Met
AK58-00196-0002 AK58-00202-0001 0K58-01296-0001 Eng/Eur
AK58-00196-0003 AK58-00202-0003 0K58-01296-0003 German
AK58-00196-0004 AK58-00202-0004 0K58-01296-0004 Spanish
AK58-00196-0006 AK58-00202-0006 0K58-01296-0006 Japanese
AK58-00196-0007 AK58-00202-0007 0K58-01296-0007 French
AK58-00196-0008 AK58-00202-0008 0K58-01296-0008 Italian
AK58-00196-0009 AK58-00202-0009 0K58-01296-0009 Dutch
AK58-00196-00010 AK58-00202-00010 0K58-01296-00010 Portuguese
AK58-00196-00011 AK58-00202-00011 0K58-01296-00011 Chinese
PCB Assembly
A084-92185-A009
Rear Console Case
0K58-01272-0000
Rear Console Decal
0K58-01357-000
Console Screw (8)
0017-00101-1288
Console Accessory
Cover
0K58-01280-0000
PCB Mounting Screw (8)
0017-00101-1275
Polar/E-Stop Cable Assy
AK58-00237-0000
Polar Receiver
118E-00001-0152
Polar PCB Cable Assy
AK39-00064-0000
Switch Membrane
118E-00001-0129
Front Console Case
0K58-01273-0000
Stop Switch
0K58-01321-0000
Micro-Switch
0017-00032-0185
CD Tray, Rubber Pad
0K58-01359-0000
Tether Stop Assy
AK58-00246-0000
Magnet Disc
0K40-01070-0000
See Table
See Table

4Page 4 of 16
Treadmill 97Ti 97T-0XXXX-01

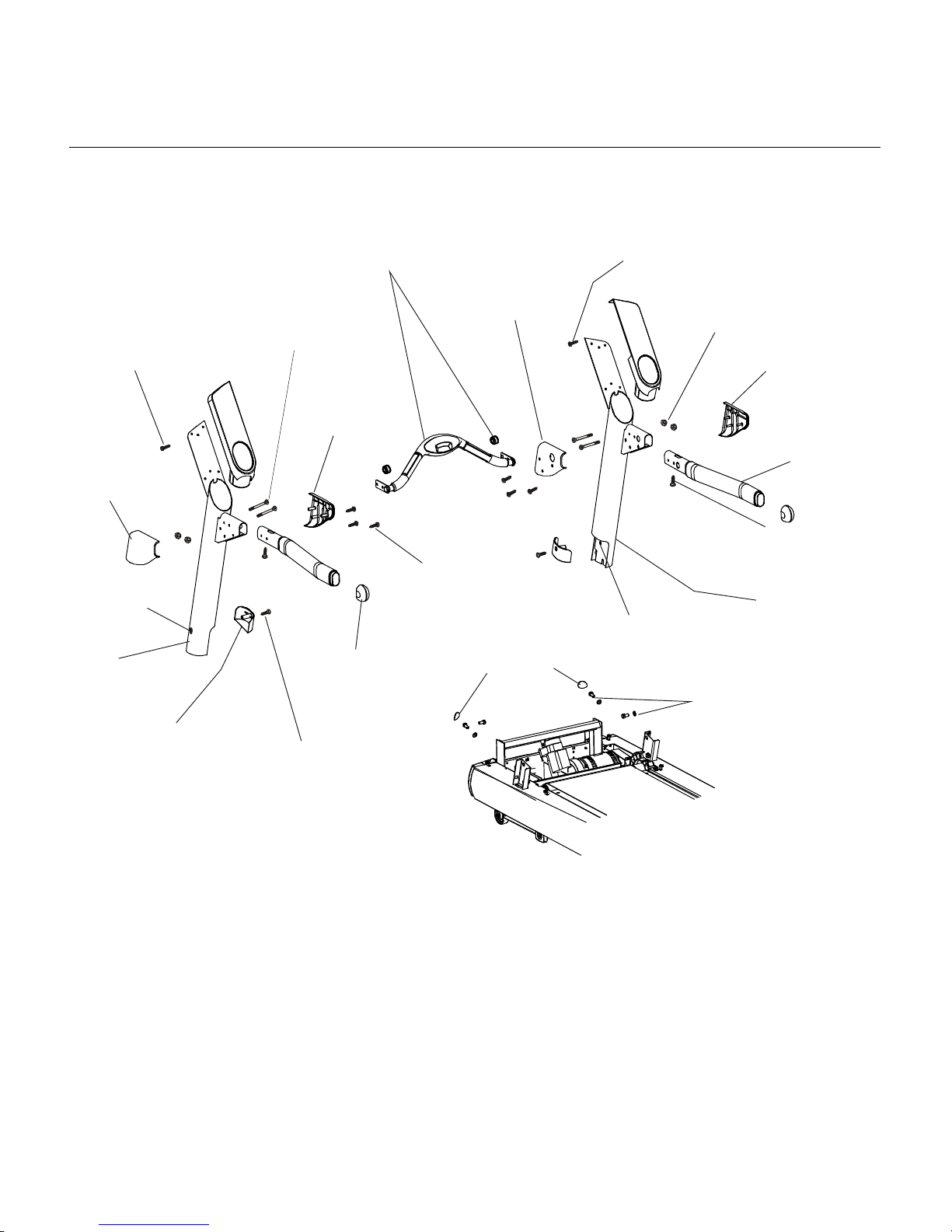

Handrail Assembly S/N TTN100000
Hardware Bag Assembly
AK58-00226-0000
Handrail Hex Nut (4)
0017-00103-0327
Handrail (2)
AK58-00192-0000
Top RT Handrail Boot
0K58-01303-0001
Console/Cup Holder
Mounting Screw (8)
0017-00101-1780
Bottom RT
Handrail Boot
0K58-01304-0001
Handrail Mounting
Screw (4)
0017-00101-1774
Handrail Boot
Screws (6)
0017-00101-1770
Bottom LT
Handrail Boot
0K58-01304-0002
Console Mounting
Screw (4)
0017-00101-1773
Top LT Handrail Boot
0K58-01303-0002
Handrail Screw (2)
0017-00101-1773
Handrail Tube Cap (2)
0K58-01289-0000
Upright, RT
AK58-00255-0001
Upright, LT
AK58-00255-0002
Upright Tube Cap (2)
0K58-01302-0000 Upright Tube
Cap Screw (2)
0017-00101-1772
Grommet (2)
0017-00042-0326
Upright Plug (2)
0K58-01305-0000
Upright Mounting
Screw - 0017-00101-1778 (6)
W
asher - 0017-00104-0335 (6)
Upright, Plug (2)
0K58-01305-0000
ERGO Bar Assembly
AK58-00219-0000
ERGO Bar Gasket (2)
0K58-01347-0000

5Page 5 of 16
Treadmill 97Ti 97T-0XXXX-01

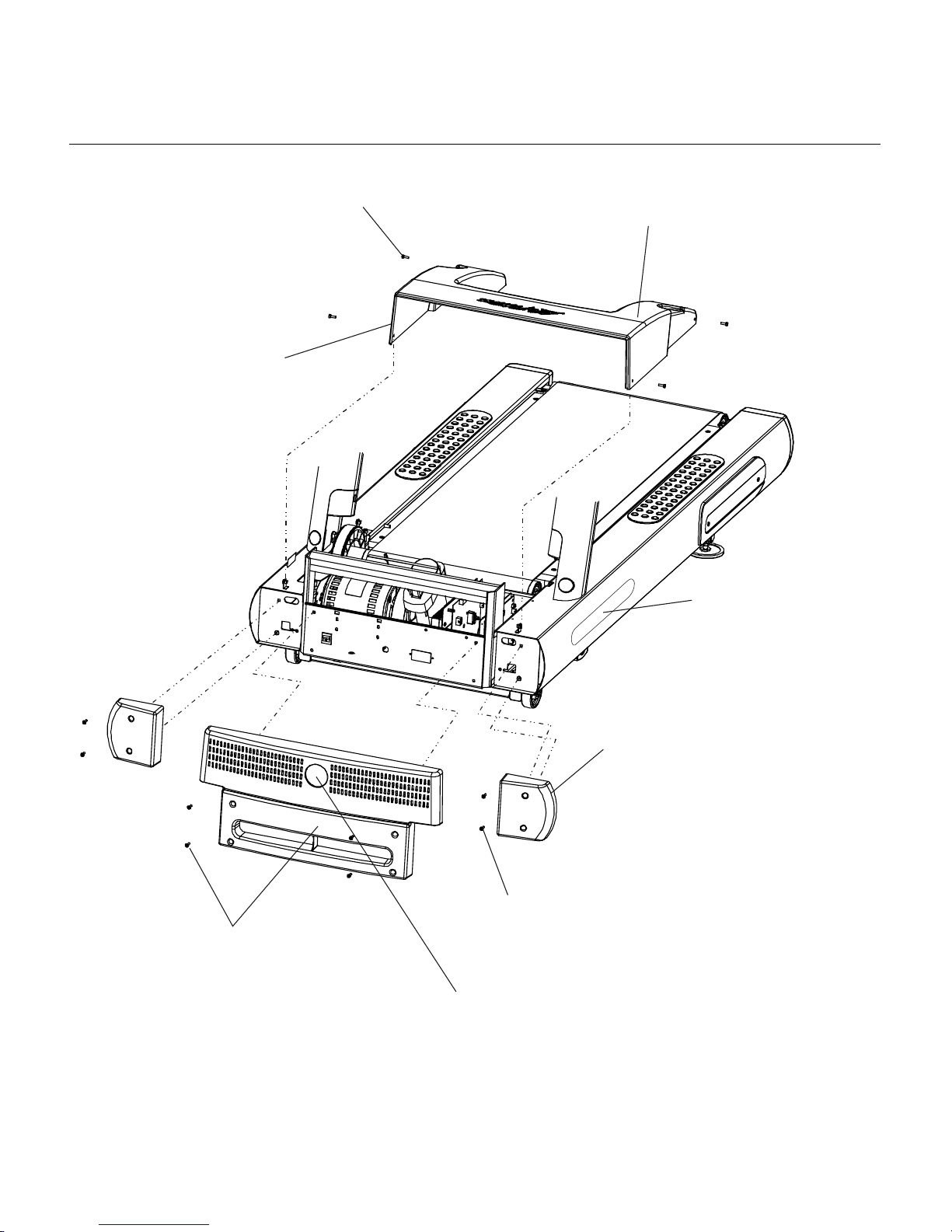

Covers, End Caps, Hardware S/N TTN100000
Front End Cap (2)
0K58-01267-0000
End Cap Screws (4)
0017-00101-1772
Front Cover
0K58-01266-0000
Screws (4)
0017-00101-1771
Motor Cover Screws (4)
0017-00101-1772 Motor Cover
AK58-00228-0000
Bug Medallion Assembly
AK58-00245-0000
Felt Strip - 28”
0017-00081-0294
Flex Deck Decal (2)
0K58-01365-0000

6Page 6 of 16
NOTE: S/N TTN100264 & Below, use Kit No. GK58-00002-0067
Treadmill 97Ti 97T-0XXXX-01
Belt, Deck, Rear Roller S/N TTN100000
Deck
0K58-01091-0001
Deck Mounting Screws (4)
0017-00101-1775
Grommet (2)
0017-00042-1147
TECSPAK Spring (8)
0K40-01026-0002
Washer (8)
0017-00104-0101
TECSPAK Tinnerman Clip (8)
0017-00103-0198
TECSPAK Mounting Screw (8)
0017-00101-1652
Belt Limit Label, RT
M051-00K58-A100
Caution Label
M051-00K58-A014
Striding Belt
0K58-01191-0000
Belt Limit Label, LT
M051-00K58-A101
Rear Roller Guard, LF
0K58-01349-0002
Round Grommet
0017-00042-0326
Roller Guard Screw (4)
0017-00101-1776
Rear Roller Guard, RT
0K58-01349-0001
Square Grommet
0017-00042-1147
Screw
0017-00101-1776
Washer
0017-00104-0043
Rear Roller
0K58-01002-0000
Rear Roller
Adjusting Screws
0017-00101-1779

7Page 7 of 16
Treadmill 97Ti 97T-0XXXX-01
Lift Motor and Frame S/N TTN100000
Lock Nut (2)
0017-00103-0285
Hex Screw (2)
0017-00101-1777
Flat Washer (2)
0017-00104-0259
Bronze Sleeve (2)
0K58-01089-0000
Line Cord Clip
0017-00042-0840
Lift Frame
0K58-01066-0000
Lock Nut
0017-00103-0025
Lift Motor Hex Bolt
0017-00101-1021
Vinyl Cap
0017-00042-1075
Wheel
0K58-01071-0000
Phillips Screw
0017-00101-1621
Washer
0017-00104-0189
Lift Frame End Cap
0017-00042-1076
IEC Receptacle
0017-00003-0949
Retainer Bracket w/Screw
0017-00042-1145
Frame Screws
0017-00101-1723
Clevis Clip
0017-00007-0208
Clevis Pin
0017-00007-0214
A
ctuator (Lift)
Motor Assembly
AK58-00075-0000
Decline Switch Bracket
0K58-01150-0003
Actuator Motor
0K58-01062-0000
Lock Nuts
0017-00103-0283
Screw (2)
0017-00101-1629 Decline Switch
0017-00032-0194

8Page 8 of 16
Treadmill 97Ti 97T-0XXXX-01
Wax/Lift & Motor Controller Assy S/N TTN100000
Wax/Lift & Motor Controller Assembly
AK58-00153-0001 (120v/60Hz)
AK58-00153-0002 (230v/50Hz)
W
ax/Lift PCB
A
084-92261-A001
Pin Collar Spacer
0017-00042-1070
Spacer Retainer
0017-00042-1071
Phillips Pan Screw
0017-00101-1641
Nut
0017-00103-0005
“LINE” End
Line Filter
Mounting Screws
0017-00101-0134
“LOAD” End
Speed Sensor
Cable Thermo-Switch
Cable
Bushing
0017-00042-1069
Hex Nut
0017-00103-0005
Thermal Switch
118E-00001-0132
Washer
0017-00104-0456
Phillips Screw
0017-00101-1059
Insulator Barrier
0K58-01228-0000
Hex Nut
0017-00103-0005
Retainer Bracket
0K58-01144-0000
Wax PCB Retainer
0K58-01149-0000
Washer
0017-00104-0456
Phillips Screw
0017-00101-1759
Line Filter (50Hz units Only)
0017-00003-0898

9Page 9 of 16
Treadmill 97Ti 97T-0XXXX-01

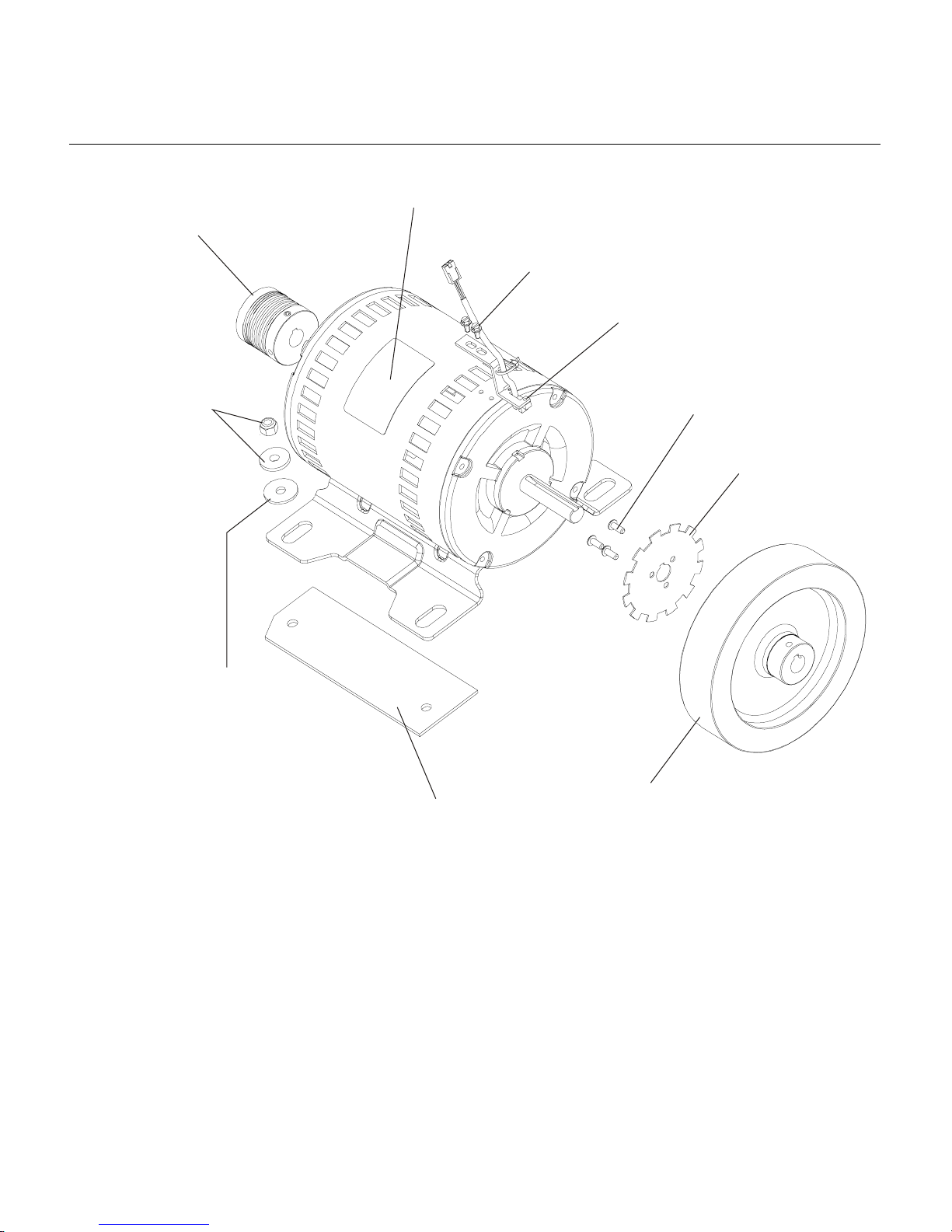

Drive Motor Assembly S/N TTN100000
Poly-V Pulley
0K58-01097-0001
Motor w/Caution Label
AK58-00171-0000
Slotted Hex Screw (2)
0017-00101-0975
Speed Sensor Assembly
AK58-00073-0001
Sensor Wheel
Mounting Screw (3)
0017-00101-1631
Sensor Wheel
0K58-01094-0000
Locking Nut (4)
0017-00103-0027
Washer (4)
0017-00104-0409
Insulating Shoulder
Washer (4)
0K58-01255-0000
Insulating Pad (2)
0K58-01256-0001
Flywheel Assembly
AK58-00090-0002

10Page 10 of 16
Treadmill 97Ti 97T-0XXXX-01

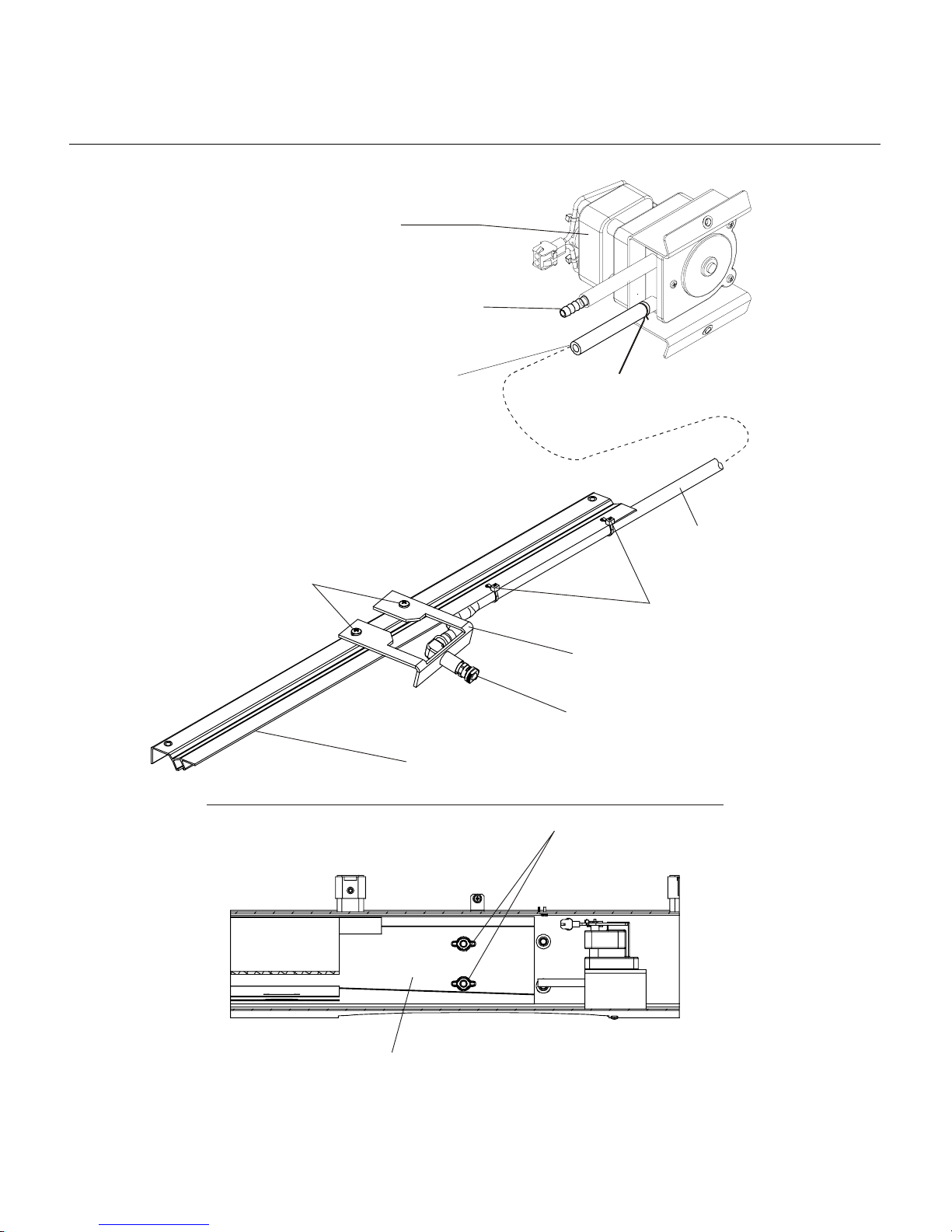

Wax Components S/N TTN100000
Brass Spray Tip
0017-00009-0842
Extrusion
0K58-01111-0001
Phillip Screws
0017-00101-0658 Tie Straps
0017-00042-0622
PVC Tube - 22”
0017-00041-0830
Spray Nozzle Assembly
AK58-00046-0000
Protective Sleeve
0K58-01080-0000
Wax Refill Bag
GK58-00002-0002
Wing Nuts
0017-00103-0284
Tube Reducer Connector
0017-00021-2188
Hose Clamp
0017-00042-0842
Wax Pump
AK58-00187-0000
Replacement Hose
AK58-00148-0000

11Page 11 of 16
Treadmill 97Ti 97T-0XXXX-01
Idler Arm Assembly S/N TTN100000
Idler Arm Assembly
AK58-00053-0002
Idler Pin
0017-00007-0248
Idler Spring Damper
0K26-02055-0000
Idler Spring
0k58-01085-0000
Wire Clamp
0017-00042-1072
Screw
0017-00101-1193
Limit Switch
0017-00032-0195
Motor Pulley
0K58-01057-0001
Allen Screw
0017-00101-0333
Grommet
0017-00042-0326
Drive Belt
0K58-01115-0000
Idler Pulley
0K26-01731-0000
Threaded Idler
0K58-01084-0002
Lock Nut: Idler
0017-00103-0324
Shaft
Tinsel Bracket
0K58-01263-0001
Tinsel Bracket Screw(2)
0017-00101-1193
Plug
0017-00042-1053
(For units not
equipped with
circuit breaker.)

12Page 12 of 16
Treadmill 97Ti 97T-0XXXX-01
Leveler Assembly AK58-00052-0000 S/N TTN100000
Assembly Leveler & Bushing
AK58-00089-0000
Pivot Pin
0K58-01098-0001
Leveling Foot
0K58-01110-0000
Stop Nut
0K58-01099-0000
Hex Nut-4
(8-18x10)
0017-00101-1253
Lock Washer-4
0017-00104-0333
Flat Washer-4
0017-00104-0190

13Page 13 of 16
Treadmill 97Ti 97T-0XXXX-01
Front Roller Assy AK58-00067-0000 S/N TTN100000
Polley V Pulley 8”
0K58-1105-0000
Hex Bolt
0017-00101-1632 Flat Washer
0017-00104-0330
Lock Washer
0017-00104-0005
Flat Washer
0017-00104-0043
Mounting Bolt
0017-00101-0974

14Page 14 of 16
Treadmill 97Ti 97T-0XXXX-01

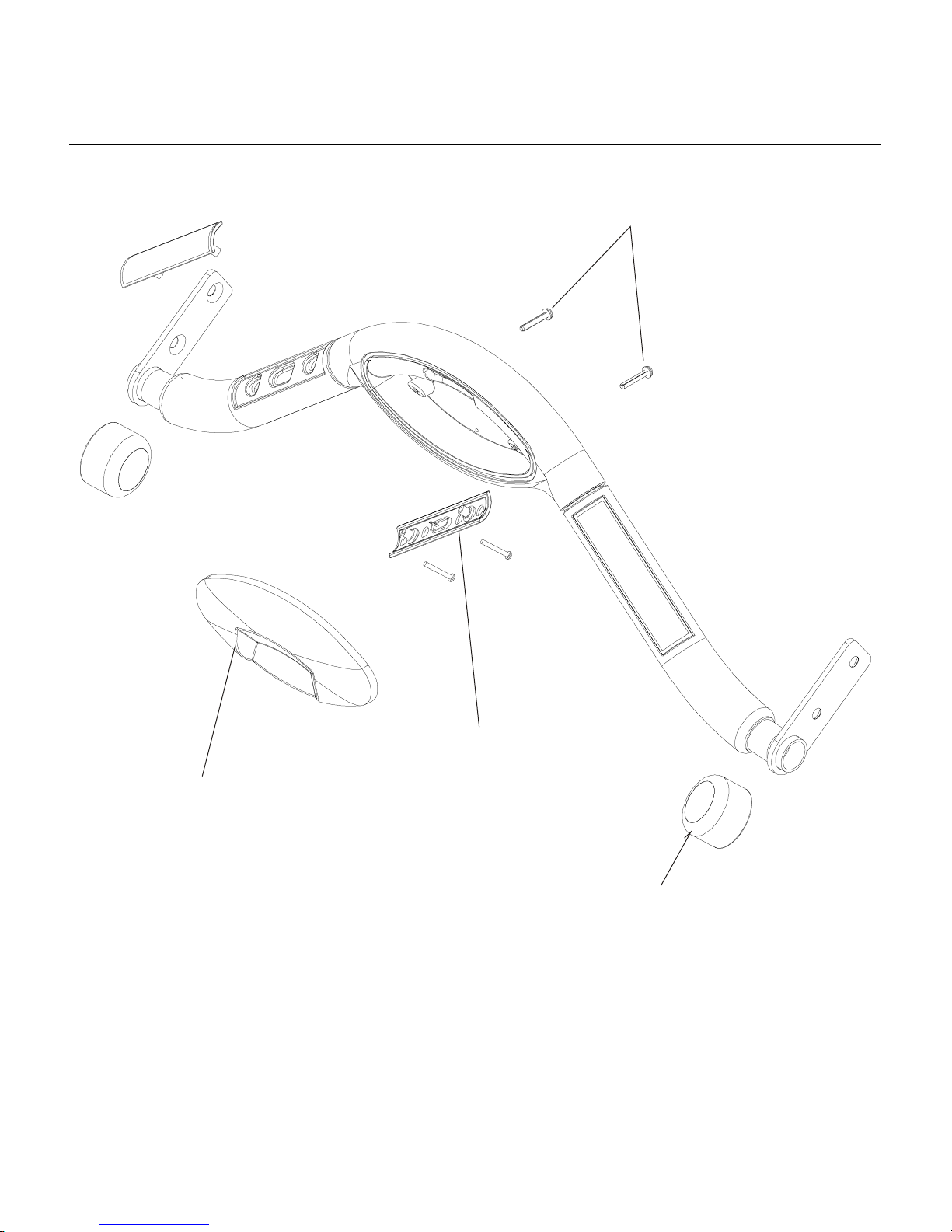

ERGO Bar w/Lifepulse S/N TTN100000
Lens Cover
Mounting Screw (2)
0017-00101-0824
Lens Cover Assembly
AK58-00064-0000
Heart Rate Electrode Kit
GK20-00002-0005
Ergo Bar Gasket (2)
0K58-01347-0000

15Page 15 of 16
Treadmill 97Ti 97T-0XXXX-01
Power Components S/N TTN100000
Voltage Power Cable Part No. Breaker AMP/Part No.
120v GK58-00002-0061 Not Used
100v GK58-00002-0062 4 AMP/0017-00003-0950
200v GK58-00002-0063 2 AMP/0017-00003-0626
220/230v GK58-00002-0064 2 AMP/0017-00003-0626
240+ GK58-00002-0065 2 AMP/0017-00003-0626
10 Amp Line Filter
units with 220v or lo
w
0017-00003-0898
20 Amp Line Filter
units with 230v or hi
g
0017-00003-0943
On/Off switch
0017-00032-0198
4” Black Wire
AK58-00081-0000
6” White Wire
AK58-00082-0000
5” Green/Yellow Wire
AK58-00083-0000
(foreign
units
only)
AK58-00210-0000
MOV/Filter Cable Assy.
AK58-00224-0001
Line Cord (Plug End Changes)
0017-00003-0947 12’ 120v
0017-00003-0923 Domestic
0017-00003-0948 12’ 220v
0017-00003-0915 RT Angle Plug
0017-00003-0781 220v/60Hz
0017-00003-0696 Continental
0017-00003-0890 Uk

16Page 16 of 16
Treadmill 97Ti 97T-0XXXX-01
Cables S/N TTN100000
