Squareled Non-Plus-Ultra Violet User manual

User Manual: Squareled Non-Plus-Ultra Violet

1. Summary
Thank you for purchasing our PS1212. Please read these instructions carefully before begin and ope-
rate the xtures according to these instructions to avoid any possible damages and accidents causes
by misusage
Products introduction: LED PS1212 light uses casting aluminum housing, designed in a fashion of
hydrodynamic form. Appearance shows. It adopts high power 6-in-1 LED, which refers to single LED is
made of R,G,B,A,W,UV 6-IN-1 LED, And long life span, low consumption, good color mixing eect and
high brightness are the most prominent features. Each kind of LED can be independently dimmed.
The built-in program includes dimming, strobe, eotic, gradual change, fading and so on. It uses power
switch, performs low weight and consumption, stable capability and long life. International standard
DMX 512 signal is requested.
Packing list: 1xPS1212, 1x DMX Signal Cable , 1 xWaterproof input power cable, User Manual,
Warranty Card
2. Safety Instruction
Safety Notes
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving and moving;.
! Avoid direct eye exposure to the xture when it is on;
Safety instruction
Make sure the power supply voltage are consistent with this lights，Ensure the use of voltage is in
the range of the request technical parameter.
Before the installation, please check the light’s fasteners and mechanical structure have been recei-
ved in good condition and appear no damage.
This light is designed for indoor use; working temperature is lower than 50 degree.
The xtures maybe mounted in any position provided there is adequate room for ventilation. Make
sure there are no inammable and explosive items (ornaments) in 0.5 meters away.
Yellow / green cabling earthling safety; no icker when the xture is working on.
Manual | Non-Plus-Ultra Violet


Manual | Non-Plus-Ultra Violet
3. outside Size Picture


Manual | Non-Plus-Ultra Violet
4. Main Function
»high quality LED: low consumption, brightness, stable capability and long life
»each color of LED with 16666 dimming. RGB can make over 16.7 million colors, addingW can achieve
many eects.
»Liner dimming from 0-100%, strobe, gradual change, jumping change etc eects
»Touch Buttoms,Unusual feeling to you.
»DMX512 Controller: 4 button set DMX ID address with led display
»auto run /sound activated/master slave/interconnected multi-machine control
»using switching power supply to protect the LED to work well
»Built-in temperature control function :The output of LED will be reduced when LED is too hot.
»lens degree: 15º, 25º, 45º optional
»Protection grade: IP65
5. DMX Control Function
DMX Channel (6CH):
channel DMX value Control Function Remarks
1CH 0-255 R 0-100%
2CH 0-255 G 0-100%
3CH 0-255 B 0-100%
4CH 0-255 A 0-100%
5CH 0-255 W 0-100%
6CH 0-255 UV 0-100%
DMX Channel (7CH):
channel DMX value Control Function Remarks
1CH 0-255 R 0-100%
2CH 0-255 G 0-100%
3CH 0-255 B 0-100%
4CH 0-255 A 0-100%
5CH 0-255 W 0-100%
6CH 0-255 UV 0-100%
7CH 0-10 Close Strobe
11-255 Adjust Strobe Speed (1-20Hz)

Manual | Non-Plus-Ultra Violet
DMX Channel (8CH):
channel DMX value Control Function Remarks Priority
1CH 0-255 General dimming
2CH 0-255 R 0-100%
3CH 0-255 G 0-100%
4CH 0-255 B 0-100%
5CH 0-255 A 0-100%
6CH 0-255 W 0-100%
7CH 0-255 UV 0-100%
8CH 0-10 Close Strobe
11-255 Adjust Strobe Speed (1-20Hz)
DMX Channel (8CH):
channel DMX value Control Function Remarks
1CH 0-255 General dimming 0——100%
2CH 0-255 red dimming 0——100%
3CH 0-255 Green dimming 0——100%
4CH 0-255 blue dimming 0——100%
5CH 0-255 Amber dimming 0——100%
6CH 0-255 White dimming 0——100%
7CH 0-255 UV dimming 0——100%
8CH 0-10 Close Strobe
11-255 Adjust Strobe Speed (1-20Hz)
9CH
0-15 Dimming
16-18 R
19-21 G
22-24 B
25-27 A
28-30 W
31-33 UV
34-36 R+G
37-39 R+B
40-42 R+A
43-45 R+W
46-48 R+UV
49-51 G+B
52-54 G+A
55-57 G+W
58-60 G+UV
61-63 B+A

Manual | Non-Plus-Ultra Violet
9CH
64-66 B+W
67-69 B+UV
70-72 A+W
73-75 A+UV
76-78 W+UV
79-81 R+G+B
82-84 R+G+A
85-87 R+G+W
88-90 R+G+UV
91-93 R+B+A
94-96 R+B+W
97-99 R+B+UV
100-102 R+A+W
103-105 R+A+UV
106-108 R+W +UV
109-111 G+B+A
112-114 G+B+W
115-117 G+B+UV
118-120 G+A+W
121-123 G+A+UV
124-126 G+W+UV
127-129 B+A+W
130-132 B+A+UV
133-135 B+W+UV
136-138 A+W+UV
139-141 R+G+B+A
142-144 R+G+B+W
145-147 R+G+B+UV
148-150 R+G+A+W
151-153 R+G+A+UV
154-156 R+G+W+UV
157-159 R+B+A+W
160-162 R+B+A+UV
163-165 R+B+W+UV
166-168 R+A+W+UV
169-171 G+B+A+W
172-174 G+B+A+UV
175-177 G+B+W+UV
178-180 G+A+W+UV
181-183 B+A+W+UV
184-186 R+G+B+A+W

187-189 R+G+B+A+UV
190-192 R+G+B+W+UV
193-195 R+G+A+W+UV
196-198 R+B+A+W+UV
199-201 G+B+A+W+UV
202-204 R+G+B+A+W+UV
205-255 auto -run eect(the more value,the faser
speed)
10CH
0-15 Invalid
16-255 Multi-colors jumping change(the more
value,the faser speed)
11CH
0-5
Set by LCD display
DIMMER0-4
6-55 DIMMER0
56-105 DIMMER1
106-155 DIMMER2
156-205 DIMMER3
206-255 DIMMER4
6. Display Operation
»MENU : access the menu or return to a previous menu option
»ENTER: select the current menu option
»UP: menu selection or parameter increments
»DOWN: menu selection or parameters decrease
Manual | Non-Plus-Ultra Violet


Manual | Non-Plus-Ultra Violet

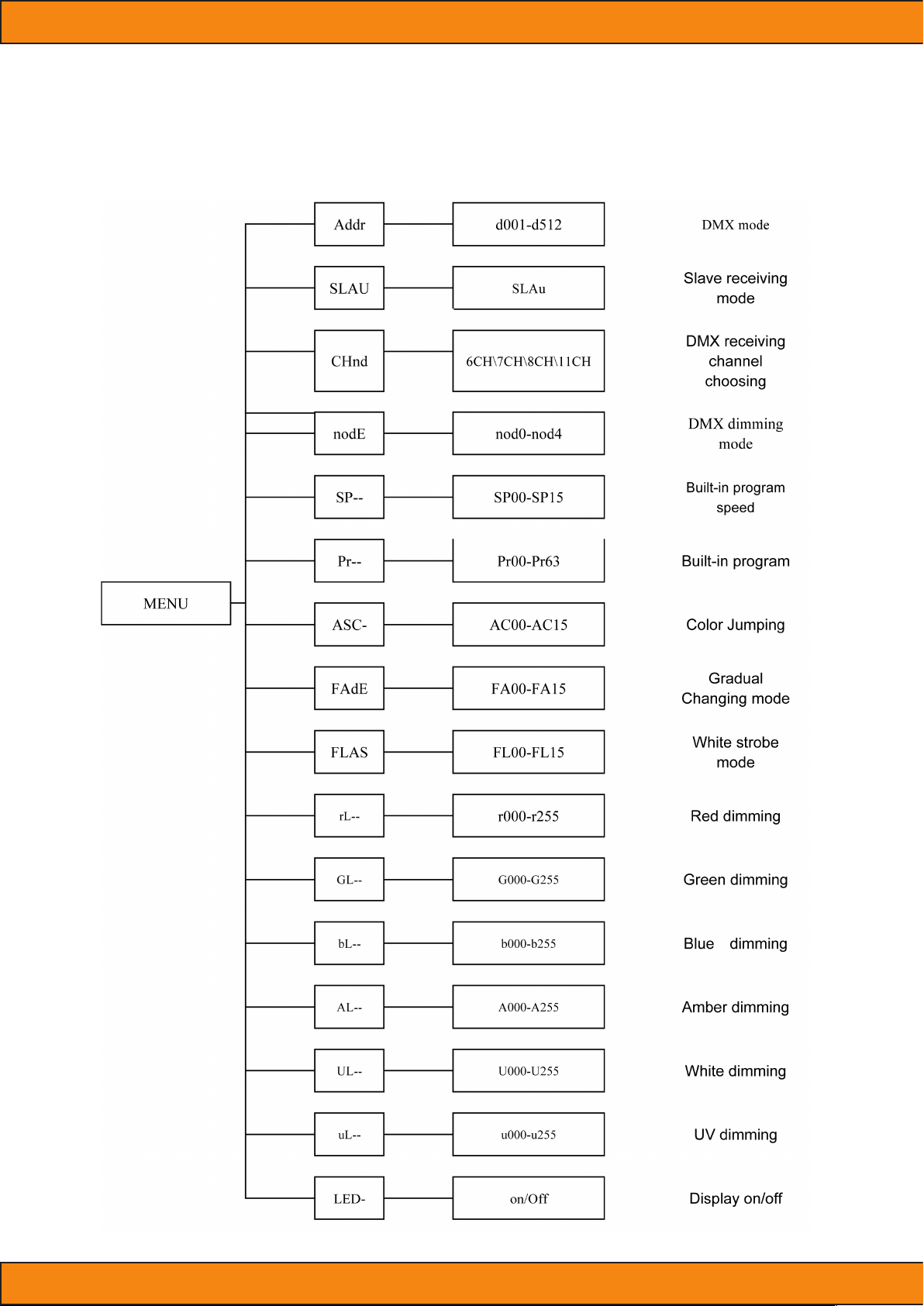

7. Menu Instruction

1. Operating instruction:
MENU (UP/DOWN)+ENTER+(UP/DOWN)+ENTER
Remark: Exp: Select the DMX mode, Here are the operation details:
»Press the MENU, go back to the initial setting
»Press UP/DOWN, display“Addr”
»Press ENTER to change the content, the display will glinting at this moment
»Press UP/DOWN to change the address code to select A001
»Press ENTER to select and store the current menu options. DMX mode will be stored automatically and
the screen will stop glinting.
»Exp: Select DMX Channels optional mode, the operation is as below:
»Press MENU: go back to the initial setting
»Press UP/DOWN: display ”CHnd”
»Press ENTER to change the content, the display will glinting at this moment
»Press UP/DOWN to select the DMX channels that you need, 5CH, 6CH, 9CH and so on
»Press ENTER to select and store the current menu options. DMX mode will be stored automatically and
the screen will stop glinting.
Exp: Close the display, the operation is as below:
»Press MENU: go back to the initial setting
»Press UP/DOWN: display“LED”
»Press ENTER to change the content, the display will glinting at this moment
»Press UP/DOWN to select“OFF”
»Press ENTER to conrm, the select the working mode that you need.When stop pressing, the display will
shut after a while.When the display is closed, press any button to activate the display. If setting the led to
“o”, when stop pressing, the display will shut after a while.
2. Details of program built inside (Pr- -)
Press MENU, go back to the initial setting
»Press UP / DOWN until Pr--
»Press ENTER to choose, the display will glinting at this moment
»Press UP / DOWN to change the address code to select pr00
»Press ENTER to select and store the current menu options. DMX mode will be stored automatically and
the screen will stop glinting.
»Remark: Pr00--- Pr62 R,G,B.W single color or multi-colors lighting
»Pr63: Multi colors jumping.
»Pr63 can modify the content of SP--,modify the jumping speed.SP00 is the fastest, SP15 is the slowest
Manual | Non-Plus-Ultra Violet

Manual | Non-Plus-Ultra Violet
8. Operating Control Instruction
Master/Slave:
Master:The master should always work as a master as long as it is not set in a DMX mode whatever
other modes it is. And it send out the signal so that the slave synchronous with it.To avoid the host
signal and DMX512 signals interfere with each other, should cut o the DMX512 signals.The signal
lines are longer than 60 meters (32 lamps) ,should increase a signal amplier.
Slave: the Slave must be set in DMX mode and the address code should be A001, to assure receive the
master’s signals correctly. Only one light can be set as a Master and others are slaves.

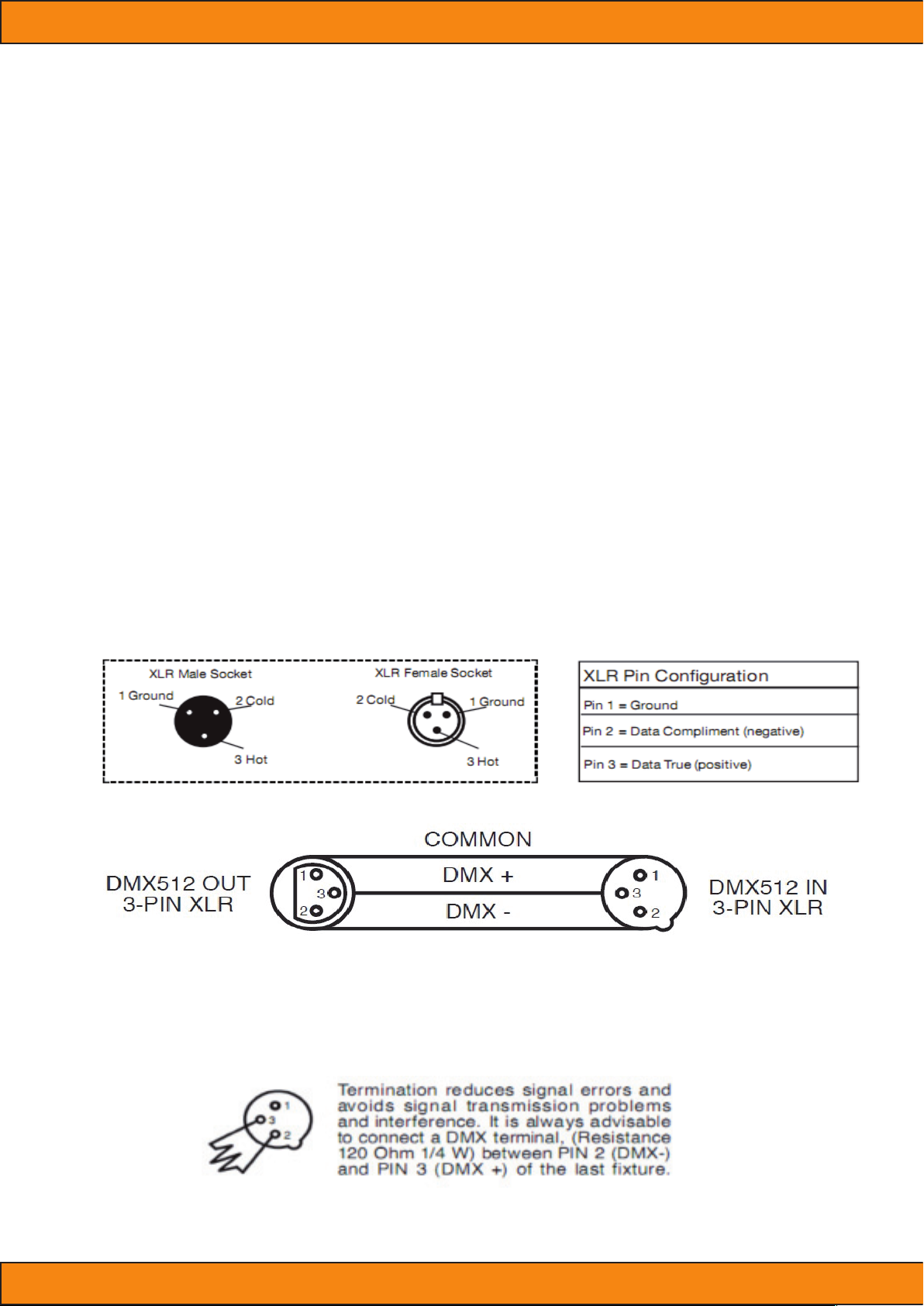

10. XLR cable connecting
XLR cable:
The standard way of connecting the XLR is: one end connects to the male plug, and the other end
connects to the female. As bellow: pin 1: ground, pin 2: negative signal, pin 3: positive signal
Noted: In order to avoid failures and interference signal transmission, we connect a resistance120Ω
(1/4W) at the end of the DMX connecting as below:




Manual | Non-Plus-Ultra Violet
The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable
10. Connecting picture
Light connecting picture:


Manual | Non-Plus-Ultra Violet
11. Trouble Shooting
Problem Checking Way
Can not turn on the light
• Check the power source plug is in normal or not
• Check the switch of the lights is o or on
• Check the fuse if in normal
DMX can not control it
• Check the DMX cable is connect to the lights or not
• Check the DMX512 controller work in normal or not
• Check the DMX cable is normal or not
• Check if the lights is in DMX mode (A001)
Display not bright
• When connect to the electricity, did the led ash one time? If so, the power source is
normal; If not, please check if the switch and the transformer has power out
• Check if the power input of the IC board is normal
• Check if the cable connect to the display loose
• Change the main board to see if it is normal.
• Change the display
LED not light
• When connect to the electricity, did the led ash one time? If so, the power source is
normal; If not, please check if the switch and the transformer has power out
• Check if the power input of the IC board is normal
• Check if the cable connect to the display loose
• Change the main board to see if it is normal.
• Chang the display
Some of the LED not light
• LED is connected by leds in series rst, then connect parallel, so please check if the
leds is loose
• Use the multimeter to check if the led is bright or not, of not, please change the led
• check whether current limiting resistor is normal or not
• Check constant current IC is normal or not (compared with the normal IC)
Single color leds always
bright/not bright
• Check the switch of this color is normal or not
• Change the IC control board
Noted: only professional persons can do as above!

Manual | Non-Plus-Ultra Violet
12. Technical Specication
• Input voltage: AC 100V-264V/47-63HZ
• Output voltage: DC24V
• Consume: 144W
• Lamp Type: High Power LED (12W)
• Lamp Spec: 6-in-1 12W (112PCS)
• Constant current driver: 500MA
• PWM Dimmer: 400HZ(16666 grades)
• Refresh rate: >400HZ
• Life span: 50000~100000hours
• Control Signal: DMX512, sound activated, auto run
• Control mode: stand alone/ sound activated
• Channel: 6CH, 7CH, 8CH, 11CH
• Color eect: RGBAW UVmixing
• Function Eect: dimmer, strobe, gradual change, sound activated
• Beam Angle: 15°, 25°, 45°
• Cooling mode: Natural Convection
• IP rate: IP65
• Anti-electricity intension: 1.5KV
• Insulation Resistance: >2MΩ
• Size: 287.3*270.1*166.0mm
• Net Weight: 5.2 Kg
