Stage right 612565 User manual

STAGE RIGHT
Stage Right Flash Bang 60-Watt LED DMX Strobe Light
P/N 612565
User's Manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES ...................................................................................................................................3
INTRODUCTION............................................................................................................................................................................................4
FEATURES .........................................................................................................................................................................................................5
CUSTOMER SERVICE................................................................................................................................................................................5
PACKAGE CONTENTS.............................................................................................................................................................................5
PRODUCT OVERVIEW.............................................................................................................................................................................6
DIMENSIONS DIAGRAM.......................................................................................................................................................................6
SAMPLE WIRING DIAGRAM.............................................................................................................................................................. 7
DMX TERMINATION................................................................................................................................................................................. 7
CONTROLS AND MENU DISPLAY.................................................................................................................................................8
MENU MAP......................................................................................................................................................................................................9
nodE FUNCTION..........................................................................................................................................................................................9
MASTER/SLAVE MODE .......................................................................................................................................................................10
DMX CONTROL..........................................................................................................................................................................................10
1CH Mode................................................................................................................................................................................................10
2CH Mode...............................................................................................................................................................................................10
4CH Mode ...............................................................................................................................................................................................11
5CH Mode ..............................................................................................................................................................................................12
10CH Mode ............................................................................................................................................................................................12
TECHNICAL SUPPORT........................................................................................................................................................................... 13
SPECIFICATIONS .......................................................................................................................................................................................14
REGULATORY COMPLIANCE..........................................................................................................................................................14
Notice for FCC....................................................................................................................................................................................14
Notice for Industry Canada.....................................................................................................................................................15

3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future
reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks
or other containers with moisture on or near the device. If moisture does get in
or on the device, immediately unplug it from the power outlet and allow it to
fully dry before reapplying power.
When installing this device, ensure that the mount is sufficiently robust to
support the weight of the unit and to prevent unwanted movement.
Always secure the device to the mount using a safety wire or chain sufficiently
robust to bear the weight of the device.
Do not subject the product to extreme force, shock, or fluctuations in
temperature or humidity.
Do not touch the device, the power cord, or any other connected cables with
wet hands.
Do not expose this device to excessively high temperatures. Do not place it in,
on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it
in direct sunlight.
This device ventilates excessive heat through the slots and openings in the case.
Do not block or cover these openings. Ensure that the device is in an open area
where it can get sufficient airflow to keep from overheating.
Do not expose this device to excessively high temperatures. Do not place it in,
on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it
in direct sunlight.
Do not operate this device when the ambient temperature exceeds +104°F
(+40°C).
Ensure that there is sufficient ventilation to allow the unit to cool. Do not block
any ventilation vents or slots and ensure that there are no flammable materials
or adjacent surfaces within 20 inches of this device.

4
Prior to operation, check the unit and power cord for physical damage. Do not
use if physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
This device uses a grounded power cord and requires a ground connection for
safe operation. Ensure that the power source has a proper ground connection.
Do not modify the plug or use a "cheater" plug to bypass the ground connection.
Unplug this device from the power source when not in use.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that
the power cord does not present a tripping hazard.
Never connect this device to a dimmer pack.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
Avoid direct eye exposure to the light from this device. Do not look directly into
the light source.
INTRODUCTION
Thank you for purchasing this Stage Right Flash Bang 60-Watt LED DMX Strobe Light! This
strobe light features 120 0.5-watt SMD LEDs, a 0 to 17 Hz strobe rate, and a greater than
400Hz refresh rate, ensuring flicker free operation for television broadcasts and video
recordings. It includes a sound activated mode, as well as a built-in programs and 1-, 2-, 4-,
5-, and 10-channel DMX control. It features 32-bit dimming technology for smooth, even
fades.

5
FEATURES
High-power, LED strobe light creates attractive effects using 5 zones of control
1-, 2-, 4-, 5- or 10-channel DMX modes
0 to 17 Hz strobe rate
>400Hz refresh rate for flicker free operation for television broadcasts and video
recordings
Includes exciting sound activation and built-in programs
32-bit smooth dimming technology
Built-in automated programs via master/slave
Combine ring control and special effect macros for stunning visual impact
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for
a replacement.
1x LED strobe flat PAR light
1x AC power cable
1x User's manual

6

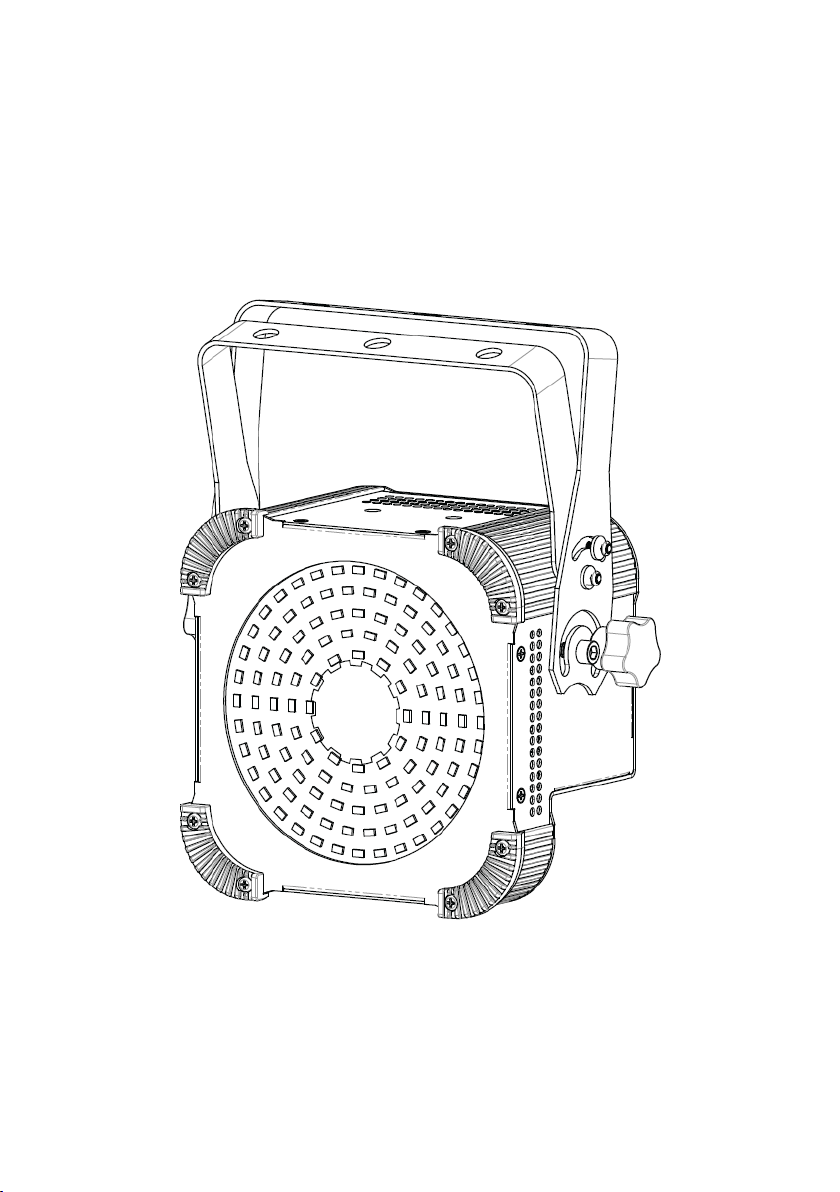

PRODUCT OVERVIEW

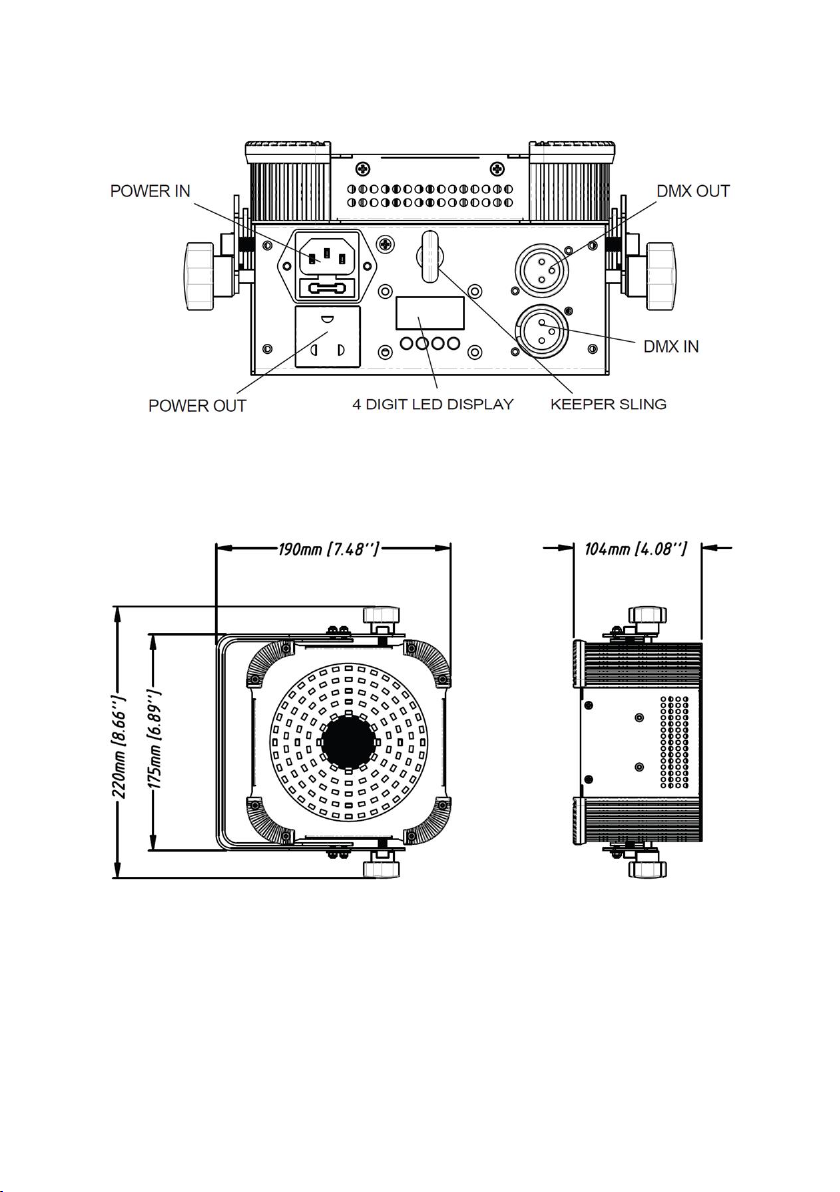

DIMENSIONS DIAGRAM

7
SAMPLE WIRING DIAGRAM
Following is a sample wiring diagram for a multiple fixture installation. Note that the final
fixture must have a DMX Terminator plugged into the DMX Out connector.
DMX TERMINATION
As with all DMX devices, the last unit in any chain must have a DMX
terminator connected to the DMX Out connector. If using just a single
light, connect a DMX terminator to the DMX Out connector.
A DMX terminator is a DMX plug with a 120-ohm, 1/4-watt resistor
soldered between pins 2 and 3.

8

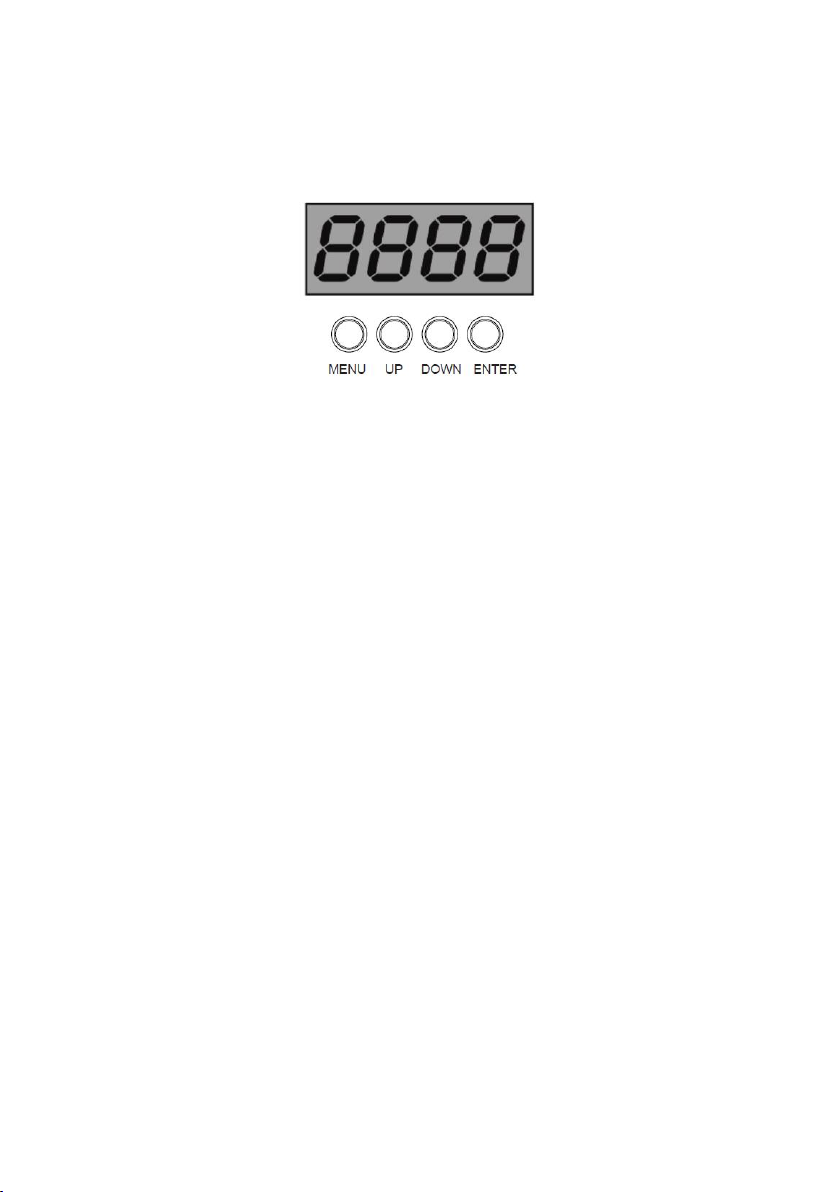

CONTROLS AND MENU DISPLAY
The 4-digit LED display indicates the mode and the value for the selected function or
mode.
Press the MENU button to access the menu system.
Press the ENTER button to edit the currently displayed mode.
Press the UP button to increase the value of the selected function or mode.
Press and hold the button to rapidly increase the displayed value. The list will
cycle back to the beginning after the maximum value is reached.
Press the DOWN button to decrease the value of the selected function or mode.
Press and hold the button to rapidly decrease the displayed value. The list will
cycle back to the end after the minimum value is reached.
Once the desired value is displayed, press the ENTER button to set that value for
the displayed function or mode and allow for selection of another function or
mode.
If you want to discard any changes made to the value of the selected function or
mode, press the MENU button to cancel editing.

9
MENU MAP
MODE
VALUES
DESCRIPTION
Addr
d001-d512
DMX address
UErn
UE2.0
Displays the software version number
nodE
nod0-nod4
Speed limiter (see the nodE FUNCTION section for details)
LEd
on/oFF
LED display always on/auto off (after about 2 minutes)
SoUA
So.UA
Sound activation mode on/off
UL--
U000-U255
White dimming
FLAS
FL00-FL15
Strobe mode (fast to slow)
FAdE
FA00-FA15
Pattern face (fast to slow)
ASC
AC00-AC15
Additional patterns, no speed control
Pr--
Pr00-Pr12
Preset selection
SP--
SP00-SP15
Program speed (fast to slow)
SLAU
SL.AU
Slave mode
CHnd
1,2,3,4,10CH
DMX channel selection
nodE FUNCTION
The nodE function serves as a speed limiter for manual dims and fades. When set to nod0,
any manual dims or fades will occur in real time, meaning that the light will dim or fade as
fast as you move the slider. The other nodE values (1-4) are progressively slower than real
time. It is recommended to use the nod1 value if using a low-res DMX controller.
Note that this functionality is expanded in channel 10 of the 10-channel DMX control
mode.

10
MASTER/SLAVE MODE
Whenever the light is set to a mode other than a DMX address or Slave mode (SL.AU), the
fixture is in Master mode. For example, when set to Sound Activation mode (So.UA), it is
in Master mode. You can daisy-chain additional fixtures to the Master fixture using 3-pin
DMX cables. All other connected fixtures must be set to Slave mode (SL.UA) and will
perform the same functions as the Master fixture. Note that the final fixture in the daisy-
chain must have a DMX terminator connected to the DMX Out connector. Note that you
cannot use a DMX controller when connecting multiple lights in Master/Slave mode.
DMX CONTROL
When the light is set to a DMX address it will respond to signals from a DMX controller.
The number and complexity of the signals it can respond to correspond directly to the
number of channels selected. The following tables show the functions and values for each
channel in the five different channel modes (1, 2, 4, 5, and 10).
1CH Mode
CHANNEL
VALUE
FUNCTION
REMARKS
1
000-255
General dimming 0-100%
2CH Mode
CHANNEL
VALUE
FUNCTION
REMARKS
1
000-255
General dimming 0-100%
2
000-014
No effect
015-255
Strobe 0-17 Hz

11
4CH Mode
CHANNEL
VALUE
FUNCTION
REMARKS
1
000-255
General dimming 0-100%
2
000-014
No effect
015-255
Strobe 0-17 Hz
3
000-010
Not used
011-035
Preset program Pr01
036-060
Preset program Pr02
061-085
Preset program Pr03
086-110
Preset program Pr04
111-135
Preset program Pr05
136-160
Preset program Pr06
161-185
Preset program Pr07
186-210
Preset program Pr08
211-235
Preset program Pr01-Pr08
236-255
Sound activated
4
000-255
Speed (slow to fast)

12
5CH Mode
CHANNEL
VALUE
FUNCTION
REMARKS
1
000-255
Zone 1 dimming 0-100%
2
000-255
Zone 2 dimming 0-100%
3
000-255
Zone 3 dimming 0-100%
4
000-255
Zone 4 dimming 0-100%
5
000-255
Zone 5 dimming 0-100%
10CH Mode
CHANNEL
VALUE
FUNCTION
REMARKS
1
000-255
General dimming 0-100%
2
000-255
Zone 1 dimming 0-100%
3
000-255
Zone 2 dimming 0-100%
4
000-255
Zone 3 dimming 0-100%
5
000-255
Zone 4 dimming 0-100%
6
000-255
Zone 5 dimming 0-100%
7
000-014
No effect
015-255
Strobe 0-17 Hz
8
000-010
Not used
011-035
Preset program Pr01
036-060
Preset program Pr02
061-085
Preset program Pr03
086-110
Preset program Pr04
111-135
Preset program Pr05
136-160
Preset program Pr06
161-185
Preset program Pr07
186-210
Preset program Pr08

13
8
211-235
Preset program Pr01-Pr08
236-255
Sound activated
9
000-255
Speed (slow to fast)
000-005
Uses the "nodE" setting
Similar to the "nodE"
setting, but with variable
speed control. Dimmer 0
has the fasted range,
Dimmer 4 the slowest.
Dependent on use of
channels 1-7.
006-055
Dimming 0
056-105
Dimming 1
106-155
Dimming 2
156-205
Dimming 3
206-255
Dimming 4
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [e-mail]

14
SPECIFICATIONS
Model
612565
Light Source
120x 0.5-watt white SMD LEDs
LED Lifespan
50,000 ~ 100,000 hours
DMX Channels
1, 2, 4, 5, and 10
Control Modes
Standalone, Master/Slave, Auto, Sound Activated
Strobe Rate
0-17 Hz
Signal Input/Output
3-pin XLR
Function Effect
DMX, Strobe, Sound Activated, Gradual Change
Refresh Rate
> 400 Hz, flicker free for television broadcasts and
video recordings
Beam Angle
120°
Protection Grade
IP20
Input Power
100 ~ 260 VAC, 50/60 Hz
Maximum Power Consumption
70 watts
Dimensions
8.7" x 7.4" x 3.9" (220 x 188 x 98 mm)
Weight
4.4 lbs. (2.0 kg)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your

15
right to use the equipment may be limited by FCC regulations, and you may be required
to correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
