Stage right 612733 User manual

STAGE RIGHT
Stage Right Truss Wash Uplight
P/N 612733
User's Manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES ...................................................................................................................................3
INTRODUCTION............................................................................................................................................................................................4
FEATURES .........................................................................................................................................................................................................5
CUSTOMER SERVICE................................................................................................................................................................................5
PACKAGE CONTENTS.............................................................................................................................................................................5
IR REMOTE CONTROL .............................................................................................................................................................................6
PRESETS..............................................................................................................................................................................................................6
DIMENSIONS DIAGRAM.......................................................................................................................................................................7
DMX TERMINATION.................................................................................................................................................................................7
CONTROLS AND MENU DISPLAY.................................................................................................................................................8
MENU MAP......................................................................................................................................................................................................9
nodE FUNCTION..........................................................................................................................................................................................9
MASTER/SLAVE MODE .......................................................................................................................................................................10
DMX CONTROL..........................................................................................................................................................................................10
3CH Mode...............................................................................................................................................................................................10
6CH Mode ..............................................................................................................................................................................................10
7/8CH Mode ..........................................................................................................................................................................................11
TECHNICAL SUPPORT........................................................................................................................................................................... 13
SPECIFICATIONS .......................................................................................................................................................................................13
REGULATORY COMPLIANCE..........................................................................................................................................................14
Notice for FCC....................................................................................................................................................................................14
Notice for Industry Canada.....................................................................................................................................................14

3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future
reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks
or other containers with moisture on or near the device. If moisture does get in
or on the device, immediately unplug it from the power outlet and allow it to
fully dry before reapplying power.
When installing this device, ensure that the mount is sufficiently robust to
support the weight of the unit and to prevent unwanted movement.
Always secure the device to the mount using a safety wire or chain sufficiently
robust to bear the weight of the device.
Do not subject the product to extreme force, shock, or fluctuations in
temperature or humidity.
Do not touch the device, the power cord, or any other connected cables with
wet hands.
Do not expose this device to excessively high temperatures. Do not place it in,
on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it
in direct sunlight.
This device ventilates excessive heat through the slots and openings in the case.
Do not block or cover these openings. Ensure that the device is in an open area
where it can get sufficient airflow to keep from overheating.
Do not expose this device to excessively high temperatures. Do not place it in,
on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it
in direct sunlight.
Do not operate this device when the ambient temperature exceeds +104°F
(+40°C).
Ensure that there is sufficient ventilation to allow the unit to cool. Do not block
any ventilation vents or slots and ensure that there are no flammable materials
or adjacent surfaces within 20 inches of this device.

4
Prior to operation, check the unit and power cord for physical damage. Do not
use if physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
This device uses a grounded power cord and requires a ground connection for
safe operation. Ensure that the power source has a proper ground connection.
Do not modify the plug or use a "cheater" plug to bypass the ground connection.
Unplug this device from the power source when not in use.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that
the power cord does not present a tripping hazard.
Never connect this device to a dimmer pack.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
Avoid direct eye exposure to the light from this device. Do not look directly into
the light source.
INTRODUCTION
Thank you for purchasing this Stage Right Truss Wash Uplight! This light features three 3-
watt RGB 3-in-1 LEDs and 16-built-in presets. It employs 32-bit dimming technology for
smooth, even fades. It can operate in standalone mode, as a master or slave, or with 3-, 6-,
7-, or 8-channel DMX control. It has a greater than 1.5kHz refresh rate, ensuring flicker free
operation for television broadcasts and video recording.

5
FEATURES
Three 3-watt RGB 3-in-1 LEDs
3, 6, 7, or 8-channel DMX modes
16 built-in presets
32-bit smooth dimming technology
1.5kHz refresh rate
Flicker free for television broadcasts and video recording
Variable electronic strobe, dimming, and color changing effects
Standalone, Master/Slave, and DMX modes
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for
a replacement.
1x LED truss uplight
1x AC power cable
1x IR remote control
1x User's manual

6
IR REMOTE CONTROL
When using the included IR remote control, disable any wireless DMX and
remove all DMX connections. The following table identifies the function
for each button on the remote control.
Dimming+
Dimming-
Power Off
Power On
Red
Green
Blue
White
100%R+24%G
90%G+23%B
22%R+87%B
Flash
100%R+47%G
82%G+46%B
48%R+75%B
Strobe
100%R+71%G
72%G+69%B
67%R+62%B
Fade
100%R+100%G
100%G+100%B
100%R+100%B
Smooth
PRESETS
This light fixture features 16 built-in presets, which are outlined in the following table.
Pr--
Function
Pr--
Function
00
Red
08
Green + Strobe
01
Green
09
Blue + Strobe
02
Blue
10
Red + Green + Strobe
03
Red + Green
11
Green + Blue + Strobe
04
Green + Blue
12
Red + Blue + Strobe
05
Red + Blue
13
Red + Green + Blue + Strobe
06
Red + Green + Blue
14
RGB Color Cycling
07
Red + Strobe
15
Pr00 - Pr06 Color Cycling

7
DIMENSIONS DIAGRAM
DMX TERMINATION
As with all DMX devices, the last unit in any chain must have a DMX
terminator connected to the DMX Out connector. If using just a single
light, connect a DMX terminator to the DMX Out connector.
A DMX terminator is a DMX plug with a 120-ohm, 1/4-watt resistor
soldered between pins 2 and 3.

8

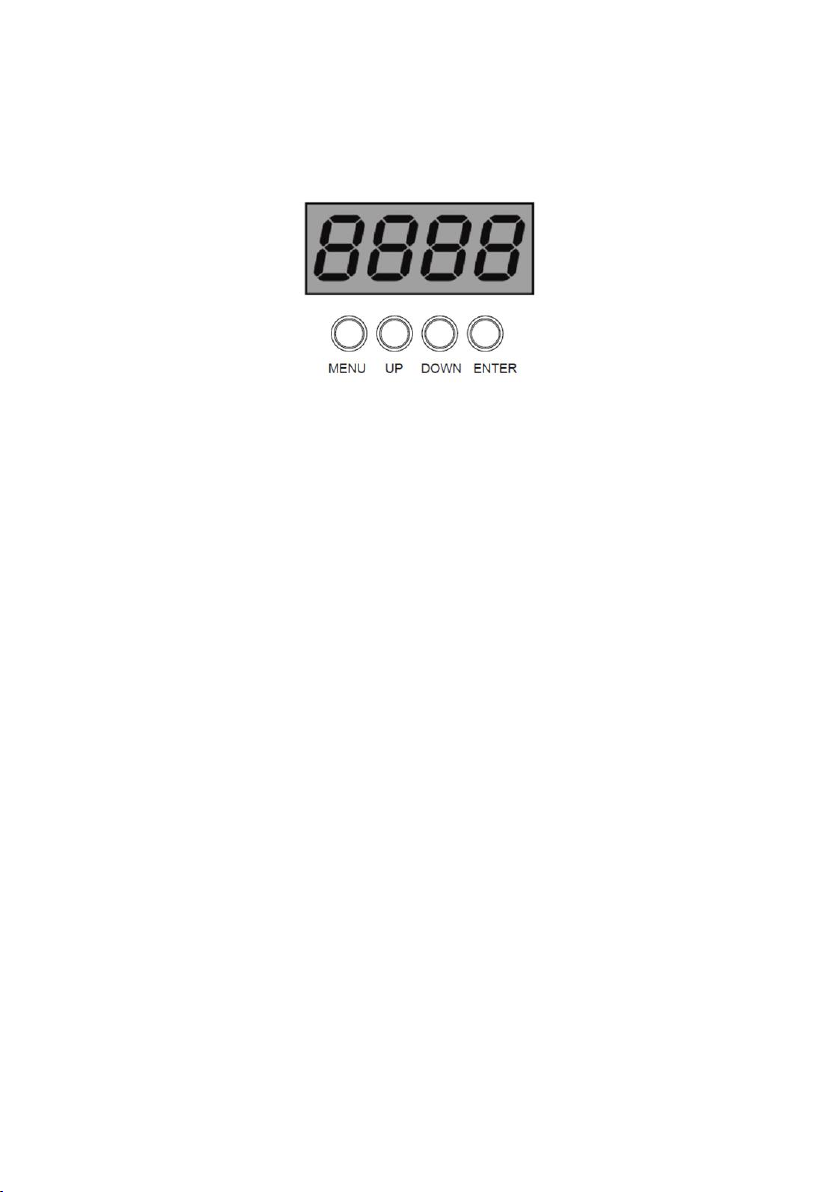

CONTROLS AND MENU DISPLAY
The 4-digit LED display indicates the mode and the value for the selected function or
mode.
Press the MENU button to access the menu system.
Press the UP or DOWN buttons to cycle through the various modes.
Press the ENTER button to edit the currently displayed mode.
Press the UP button to increase the value of the selected function or mode.
Press and hold the button to rapidly increase the displayed value. The list will
cycle back to the beginning after the maximum value is reached.
Press the DOWN button to decrease the value of the selected function or mode.
Press and hold the button to rapidly decrease the displayed value. The list will
cycle back to the end after the minimum value is reached.
Once the desired value is displayed, press the ENTER button to set that value for
the displayed function or mode and allow for selection of another function or
mode.
If you want to discard any changes made to the value of the selected function or
mode, press the MENU button to cancel editing.

9
MENU MAP
MODE
VALUES
DESCRIPTION
Addr
d001-d512
DMX address
UErn
UE2.0
Displays the software version number
nodE
nod0-nod4
Speed limiter (see the nodE FUNCTION section for details)
LEd
on/oFF
LED display always on/auto off (after about 2 minutes)
SoUA
So.UA
Sound activation mode on/off
bL--
b000-b255
Blue dimming
GL--
G000-G255
Green dimming
rL--
r000-r255
Red dimming
FLAS
FL00-FL99
Strobe mode (slow to fast)
FAdE
FA00-FA99
Color fade (slow to fast)
ASC-
AC00-AC99
Color jump (slow to fast)
Pr--
Pr00-Pr15
Preset selection
SP--
SP00-SP99
Program speed (slow to fast)
SLAU
SL.AU
Slave mode
CHnd
3,6,7,8CH
DMX channel selection
nodE FUNCTION
The nodE function serves as a speed limiter for manual dims and fades. When set to nod0,
any manual dims or fades will occur in real time, meaning that the light will dim or fade as
fast as you move the slider. The other nodE values (1-4) are progressively slower than real
time. It is recommended to use the nod1 value if using a low-res DMX controller.
Note that this functionality is expanded in channel 8 of the 8-channel DMX control mode.

10
MASTER/SLAVE MODE
Whenever the light is set to a mode other than a DMX address or Slave mode (SL.AU), the
fixture is in Master mode. For example, when set to Sound Activation mode (So.UA), it is
in Master mode. You can daisy-chain additional fixtures to the Master fixture using 3-pin
DMX cables. All other connected fixtures must be set to Slave mode (SL.UA) and will
perform the same functions as the Master fixture. Note that the final fixture in the daisy-
chain must have a DMX terminator connected to the DMX Out connector. Note that you
cannot use a DMX controller when connecting multiple lights in Master/Slave mode.
DMX CONTROL
When the light is set to a DMX address it will respond to signals from a DMX controller.
The number and complexity of the signals it can respond to correspond directly to the
number of channels selected. The following tables show the functions and values for each
channel in the four different channel modes (3, 6, 7, and 8).
3CH Mode
CHANNEL
VALUE
FUNCTION
PRIORITY
REMARKS
1
000-255
Red dimming 0-100%
2
000-255
Green dimming 0-100%
3
000-255
Blue dimming 0-100%
6CH Mode
CHANNEL
VALUE
FUNCTION
PRIORITY
REMARKS
1
000-255
General dimming 0-100%
1
2
000-255
Red dimming 0-100%
3
000-255
Green dimming 0-100%
4
000-255
Blue dimming 0-100%

11
5
000-014
Dimming
2
015-255
Strobe (fast to slow)
6
000-031
Not used
3
Must use channels 1-
4 to get light.
Channel 5 is speed
control.
032-063
Dark to Bright
064-095
Bright to Dark
096-127
Dark to Bright to Dark
128-159
Color Gradient
Channels 1-4 not
used. Channel 5 is
speed control.
160-191
Color Scroll Fade to Black
192-223
Color Jump
224-255
Sound Activated
7/8CH Mode
CHANNEL
VALUE
FUNCTION
PRIORITY
REMARKS
1
000-255
General dimming 0-100%
1
2
000-255
Red dimming 0-100%
3
000-255
Green dimming 0-100%
4
000-255
Blue dimming 0-100%
5
000-014
Dimming
3
015-255
Strobe (fast to slow)
6
000-031
Not used
3
Must use channels 1-
4 to get light.
Channel 5 is speed
control.
032-063
Dark to Bright
064-095
Bright to Dark
096-127
Dark to Bright to Dark
128-159
Color Gradient
Channels 1-4 not
used. Channel 5 is
speed control.
160-191
Color Scroll Fade to Black
192-223
Color Jump

12
6
224-255
Sound Activated
3
7
000-009
Not used
2
CH1 control color
gray
010-029
R100%
030-039
R85% + G15%
040-049
R60% + G40%
050-069
R50% + G50%
070-079
R40% + G60%
080-089
R15% + G85%
090-109
G100%
110-119
G85% + B15%
120-129
G60% + B40%
130-149
B100%
150-159
B85% + G15%
160-169
B60% + G40%
170-189
B50% + G50%
190-199
B50% + R50%
200-219
B40% + R60%
220-229
R50% + B40% + G20%
230-255
R34% + G33% + B33%
8
000-055
Dimming 0
1
Similar to the "nodE"
setting, but with
variable speed
control Dimming 0
has the fastest rang,
Dimming 4 the
slowest. Dependent
on use of channels 1-
4. Note that the
056-105
Dimming 1
106-155
Dimming 2
156-205
Dimming 3

13
8
206-255
Dimming 4
1
nodE option in the
menu must be set to
nod0.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [e-mail]
SPECIFICATIONS
Model
612733
Light Source
3x 3-watt RGB 3-in-1 LEDs
LED Lifespan
50,000 ~ 100,000 hours
DMX Channels
3, 6, 7, or 8 channels
Control Modes
Standalone, Master/Slave, Auto, Sound Activated
Signal Input/Output
3-pin XLR
Function Effect
DMX, Strobe, Sound Activated, Gradual Change
Refresh Rate
1.5kHz, flicker free for television broadcasts and
video recording
Protection Grade
IP20
Input Power
100 ~ 260 VAC, 50/60 Hz
Maximum Power Consumption
12 watts
Dimensions
4.8" x 4.3" x 4.8" (121 x 108 x 123 mm)
Weight
1.5 lbs. (0.7 kg)

14
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required
to correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
