USER MANUAL
Ecopar6
LT
SLT-ECOPAR6
Please read the instructions carefully before use

!
SAFETY INSTRUCTIONS
Please read the instructions carefully as they include important
information about the installation, operation and maintenance.
• Please keep this user’s guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
• All fixtures leave the manufacturer intact. Please note that any damages incurred
by the user is not covered by the guarantee.
• Unpack and check carefully that there is no transportation damage before using
the unit.
• The unit is for indoor use only. Use only in a dry location.
• Use a safety bond when attaching the fixture to a lighting rig. Handle by the
hanging bracket when fixing.
• The unit must be installed in a location with adequate ventilation at least 50 cm
from adjacent surfaces.
• Make sure that no ventilation slot is blocked, otherwise the unit will overheat.
• Before operating, ensure that the voltage and frequency of the power supply
match the power requirements of the unit.
• Make sure all equipment is properly earthed.
• Do not operate the unit if the ambient temperature is higher than 40°C.
• Do not hardwire to any mains dimmer.
• On the first start, there may be some normal operational start-up smell.
• Make sure that there is no flammable material close to the unit while operating, as
it is a fire hazard.
• Look over power wires carefully and replace immediately if there is any damage.
• Never run on for a long time lest shortening lifespan. Avoid any inflammable
liquids, water or metal objects entering the unit. In case it happens, cut off the
mains power immediately.
• Do not operate in a dirty or dusty environment. Clean fixtures regularly.

• Do not allow children unsupervised to operate the fixture.
• Do not touch any wire during operation as there might be a hazard of electric
shock.
• Avoid placing power wires next to other cables.
• Disconnect the mains power before replacing or servicing the fuses.
• Replace fuse only with the same type.
• In the event of a serious operating problem, stop using the unit immediately.
• Never turn on and off the unit time after time.
• The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
• Do not open the unit as there is no user serviceable part inside.
• Never try to repair the unit by yourself. Repairs carried out by unskilled people can
lead to damage or malfunction. Please contact the nearest authorized technical
assistance centre.
• Disconnect the mains power if the fixture is not used for a long time.
• Use the original packaging to transport regarding any warranty issue.
• Do not look directly at the LED light beam while the fixture is on.
• Do not connect more than 7 units to the same power source.
INS T ALLA TION
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure
that the structure to which you are attaching the unit is secure and able to support
10 times the unit’s weight. Also, always use a safety cable that can hold 12 times
the unit’s weight when installing the fixture.
The equipment must be fixed in an appropriate place by professionals. Keep it
out of the reach of unqualified people.

TECHNICAL SPECIFIC A TIONS
- 5 in 1 6x10W LED
- Beam angle: 25°
- Protocol: DMX-512. 2, 4, 7, 8 channels
- Functions: DMX, Auto, Sound, LightTheme™
- Display: 4-digit
- Housing: Plastic
- Fixation: 2 brackets (to hang or lay the spotlight)
- Input and output: 3-pin DMX and IEC in and out
- Use: Indoor
- Power consumption: 65 watts
- Box dimensions: 23.3 x 27.1 x 32 cm (9.2” x 10.6” x 12.6”)
- Weight: 2 Kg (4,4 lbs)

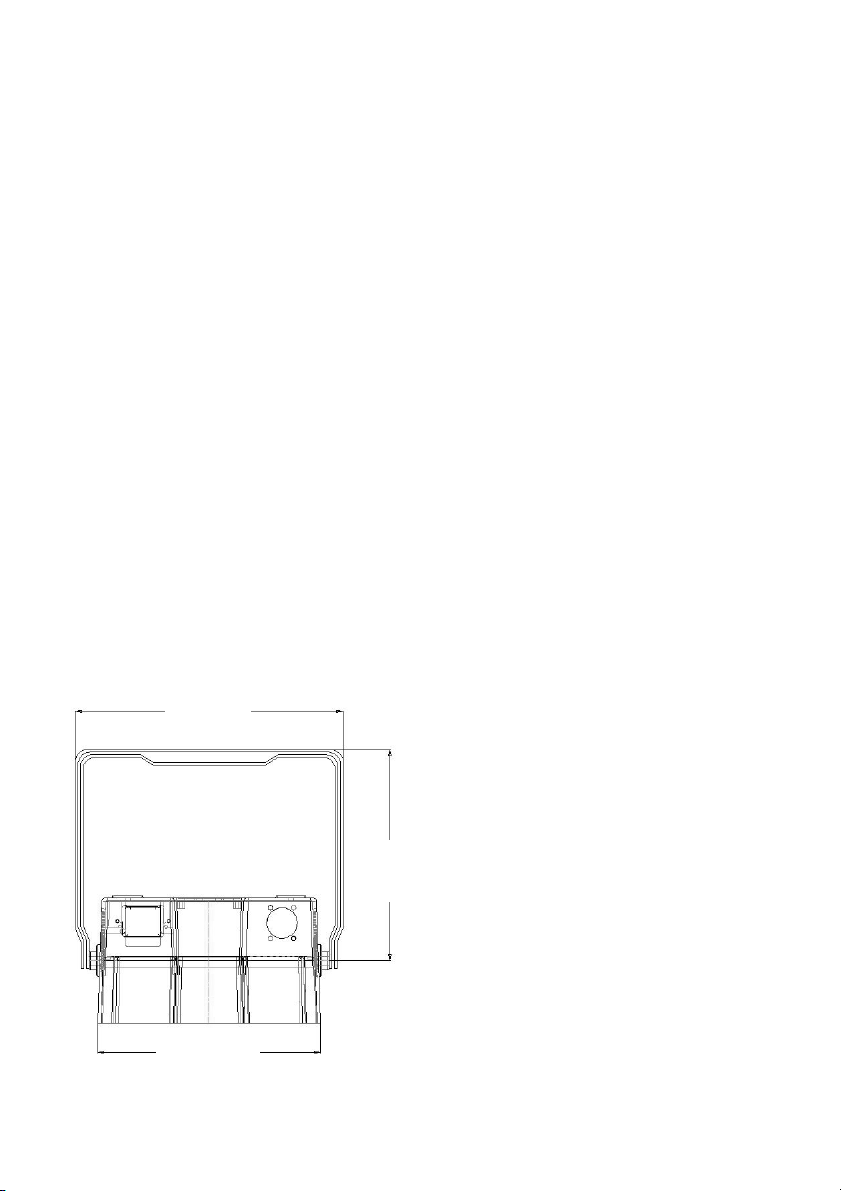

210 mm
8.3”
165 mm
6.5”
175 mm
6.6”

SETTING UP THE DEVICE
Menu
Addr
A1
A512
chan
cH05
cH02
cH07
cH08
LTA
LTB
Auto
Th-1 Se-1
Se-9
Th-13
Soun
Sou1
Sn-1
Sn-9
Sou2
Sn-1
Sn-9
Sou3
Sn-1
Sn-9
Colo
Co01
Co29
ATF
R001~255
A001~255
W001~255
G001~255
B001~255
Slav Sl-A
Sl-B
DMX mode (1 to 512)
Channel selection mode
LightTheme™mode
LightTheme mode selection
Sound mode
Manual colour mode

DMX Mode
With the menu button, select the DMX mode (Addr) and press the enter key to confirm.
Then use the up and down buttons to choose the desired DMX channel (1 – 512) and
press the enter key to confirm. Press the menu button to return to the main menu.
Sound mode
With the menu button, select the sound mode (Soun) and press the enter key to confirm.
Then use the up and down buttons to choose between sound 1, sound 2 and sound 3 and press
enter. Then use the up and down buttons to select the desired sensibility and press the
menu button to return to the main menu.
In this mode, the fixture will react to the sound thanks to the built-in microphone.
Colour mode
With the menu button, select the colour mode (Colo) and press the enter key to confirm.
Then use the up and down buttons to select the desired colour. Several presets are
already preprogramed (Co01 to Co29). You can also choose your own colour. To do so,
select the ATF mode (ATF) and press the enter key to confirm. Now choose between red
(R001), green (G001), blue (B001), white (W001), amber (A001) and press the enter key to
confirm. Then use the up and down buttons to select the intensity of the colour (between 1
and 255). The chosen colour is automatically displayed. Press the menu button to return to
the main menu.

LightTheme™ Mode
Create a professional light show in just a few minutes – no programming time, plug-and-
play, suitable for any moment of your event!
Imagine a remote with buttons corresponding to different moods, dance styles, events,
and more.
Press a button and all LightTheme™ compatible lights connected by a DMX cable start
their show, creating a complex and complete lighting presentation.
Dance style themes synchronize to the music. An event style like “wedding,” while
transforming slowly, creates a fairy-tale atmosphere.
And where do you fit in?
If you are a DJ, concentrate on your music. Add accents, blackouts and flashes, or just
let the program run until you choose another button.
If you are hosting an event, concentrate on your guests and let the show run itself.
There’s no programming necessary! The lights are self-sufficient and are completely
synchronized. Best of all, you don’t need to understand how a DMX mixer works.
LightTheme™ compatible lights can handle standard DMX mixers, work as a
standalone device in colour mode, or by using LightTheme™.
LightTheme™ compatible fixtures include Pars, Ecopars, Moving heads, Effect lights,
LED bars, and more.

Using one LightTheme™ fixture
Press the menu button, use the up and down buttons to select the Auto mode and press
the enter key to confirm. Then, use the up and down buttons to choose the theme that
best fit your mood (Th-1 to 13). Press enter again to control the sensibility to the music
thanks to the up and down buttons (se-1 to 9).
Using several LightTheme fixtures
1. Connect LightTheme-compatible fixtures using a standard DMX cable (see the
DMX 512 connections section).
2. Choose the first light as a controller (see the One Light Theme fixture procedure)
or connect the LightTheme remote control (sold separately) with a DMX cable..
3. On the other lights, select either theme slave A or B, which are complementary
presets specifically programmed for each theme. To do that, with the menu button,
select the slave mode (SLAv) and press the enter key to confirm. Then use the up and
down buttons to select Slave A or B (SL-A or B).
4. Select the theme that best fits your mood on the first fixture or on the remote
control.
5. Enjoy!

Themes list
1. Wedding Dinner: A smooth blend of blue and purple illuminates the dining room like
a fairy tale castle.
2. Ballad: A slow mix of colours brings love to the dancefloor.
3. Pop: Everybody dances when blue and red are your party colours.
4. Electro: Feel the deep bass with high-energy flashes and strobes.
5. Disco: Get down and get funky with these upbeat colours from the 1970s.
6. Colourful: From reggae to salsa, move your feet with red, pink, yellow and blue.
7. Band: Feel like a star with these classy stage colours.
8. Rainbow: The unicorn is near with all the colours of the rainbow.
9. Strobe: Flash, blind, flash, blind, flash, blind, repeat!
10.Warm White 10%: A warm spot in the darkness.
11.Warm White 25%: Cosy! Isn’t it?
12.Warm White 50%: Just enough.
13.Warm White 100%: Full Power! Now it’s clear!
…And much more...
For more info and updates, scan the QR code:

Channel selection mode
With the menu button, select the channel selection mode (Chnd) and press the enter key
to confirm. Then use the up and down buttons to choose the desired mode, that is 2-
channel mode (2ch), 5-channel mode (5ch), 7-channel mode (7ch) or 8-channel mode
(8ch). Then press the enter key to confirm. Press the menu button to return to the main
menu.
DMX channels & Values: 2 channels mode
Channel
Value
Function
1
0-134
COLOR MACROS
134-215
Auto Model
216-255
Sound Model
2
0-255 (when Channel 1 is
0-134)
Strobe
0-255 (when Channel1is
134-215)
Auto model
0-255 (when Channel 1 is
216-215)
Adjust Sound
Sensitivity
DMX channels & Values: 5 channels mode
Channel
Value
Function
1
0-255
Red(0%-100%)
2
0-255
Green(0%-100%)
3
0-255
Blue(0%-100%)
4
0-255
White(0%-100%)
5
0-255
Amber(0%-100%)

DMX channels & Values: 7 channels mode
Channel
Value
Function
1
0-255
Master Dimmer (0-100%)
2
0-255
Red(0%-100%)
3
0-255
Green(0%-100%)
4
0-255
Blue(0%-100%)
5
0-255
White(0%-100%)
6
0-255
Amber(0%-100%)
7
0-255
Strobe (0-100%)
DMX channels & Values:8 channels mode
When Channel 8 value is 0, Channels 1-7 will be assigned like 7channels mode.
Channel
Value
Function
1
0-255
Master Dimmer (0-100%)
2
0-255
Red(0%-100%)
3
0-255
Green(0%-100%)
4
0-255
Blue(0%-100%)
5
0-255
White(0%-100%)
6
0-255
Amber(0%-100%)
7
0-255
Strobe (0-100%)
8
0

When Channel 8 value is between 1-134,
Channel
Value
Function
1
0-255
No Function
2
0-255
No Function
3
0-255
No Function
4
0-255
No Function
5
0-255
No Function
6
0-255
No Function
7
0-255
Strobe (0-100%)
8
1-134
Color Macros
When Channel 8 value is between 135-215
Channel
Value
Function
1
0-255
No Function
2
0-255
No Function
3
0-255
No Function
4
0-255
No Function
5
0-255
No Function
6
0-255
No Function
7
0-255
Adjust Speed
8
135-215
Auto Mode
When Channel 8 value is between 215-255
Channel
Value
Function
1
0-255
No Function
2
0-255
No Function
3
0-255
No Function
4
0-255
No Function
5
0-255
No Function
6
0-255
No Function
7
0-255
Sound Sensitivity
8
216-255
Sound Mode

DMX512 CONNECTIONS
The DMX512 is widely used in intelligent lighting control, with a maximum of 512
channels.
Warning
To avoid signal transmission problems and interferences when using fixtures in chain, use
a Stagg N-series professional 3-pin DMX terminator (resistance: 120 ohms; pin2: DMX-;
pin3:DMX+).
FIXTURE CLEANING
An internal cleaning must be carried out periodically to optimize the light output. The
cleaning frequency depends on the environment in which the fixture operates: a damp,
smoky or particularly dirty surrounding can cause greater accumulation
of dirt on the fixtur e ’ s optics. Clean the fixture with a soft cloth and normal glass cleaning
fluid. Always dry the parts carefully. Clean the internal optics at least every
30 days. Clean the external optics at least every 20 days.

For more info and last updates:
staggmusic.com
12/2017
