Operating instructions
Additional languages www.stahl-ex.com
EN
Industrial Horn Loudspeakers
Series 8495/14

Function and device design
2257134 / 849560300110
2016-10-13·BA00·III·en·00
Industrial Horn Loudspeakers
Series 8495/14
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
1 Function and device design
1.1 Function
Product series 8495 is a public address loudspeaker. The device emits intelligible voice sounds with
highlevels of audibility suitable for the transmission of emergency messages.
2 Technical data
Technical Data
Acoustic data
Rated power 30 W
Max. power 40 W
Sound pressure level
at 1 W / 1 m 110 dB
at rated power /
1 m
124 dB
Frequency range 310 ... 8000 Hz
Dispersion (-6 dB)
1 kHz / 4 kHz 115° / 30°
Directivity factor, Q 9.3 (2 kHz)
Ambient conditions
Design 8495/14-..-..-..
Operating
temperature range
-50 ... +150 °C
Mechanical data
Cable entries 2 x M20
1 x cable gland M20
1 x stopping plug M20
Material / Colour
Design 8495/14-..-..-..
Enclosure Polyamide / RAL 7035
Flare Polyamide / RAL 7035
Bracket Polyamide / RAL 7035
Labels Polyester foil
External fixings Stainless steel
20 Hz 50 100 200 500 1K 2K 5K 10K 20K
dBSPL
50
60
70
80
90
100
110
102

257134 / 849560300110
2016-10-13·BA00·III·en·00
Mounting and installation
3
Industrial Horn Loudspeakers
Series 8495/14
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
3 Mounting and installation
3.1 Dimensions / fastening dimensions
3.2 Mounting / dismounting, operating position
3.2.1 Electrical Connection
Versions with Transformer
• Connect conductors up to 4 mm2 according to wiring diagram
Tappings
Degree of protection IP67
Mounting / Installation
Mounting via bracket
Connection Screw terminals
Dimensional Drawings (All Dimensions in mm [inches]) - Subject to Alterations
18102E00
Connector
1: 530 W
1: 420 W
1: 315 W
1 : 2 7.5 W
2 : 4 3.5 W
2: 32 W
Technical Data
ØØ 237 [ 9,33]
ØØ 7 [ 0,28]
ØØ 10,5 [ 0,41]
30 [1,18]
112 [4,41]
M20
286 [11,26]
125 [4,92]
ØØ
60 [ 2,36]
ØØ
123 [ 4,84]
151 [5,94]
M20
M8
42
[1,65]
4
3
1
70 V
100 V
4
3
2
1
6
8
9
5

Operation
4257134 / 849560300110
2016-10-13·BA00·III·en·00
Industrial Horn Loudspeakers
Series 8495/14
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

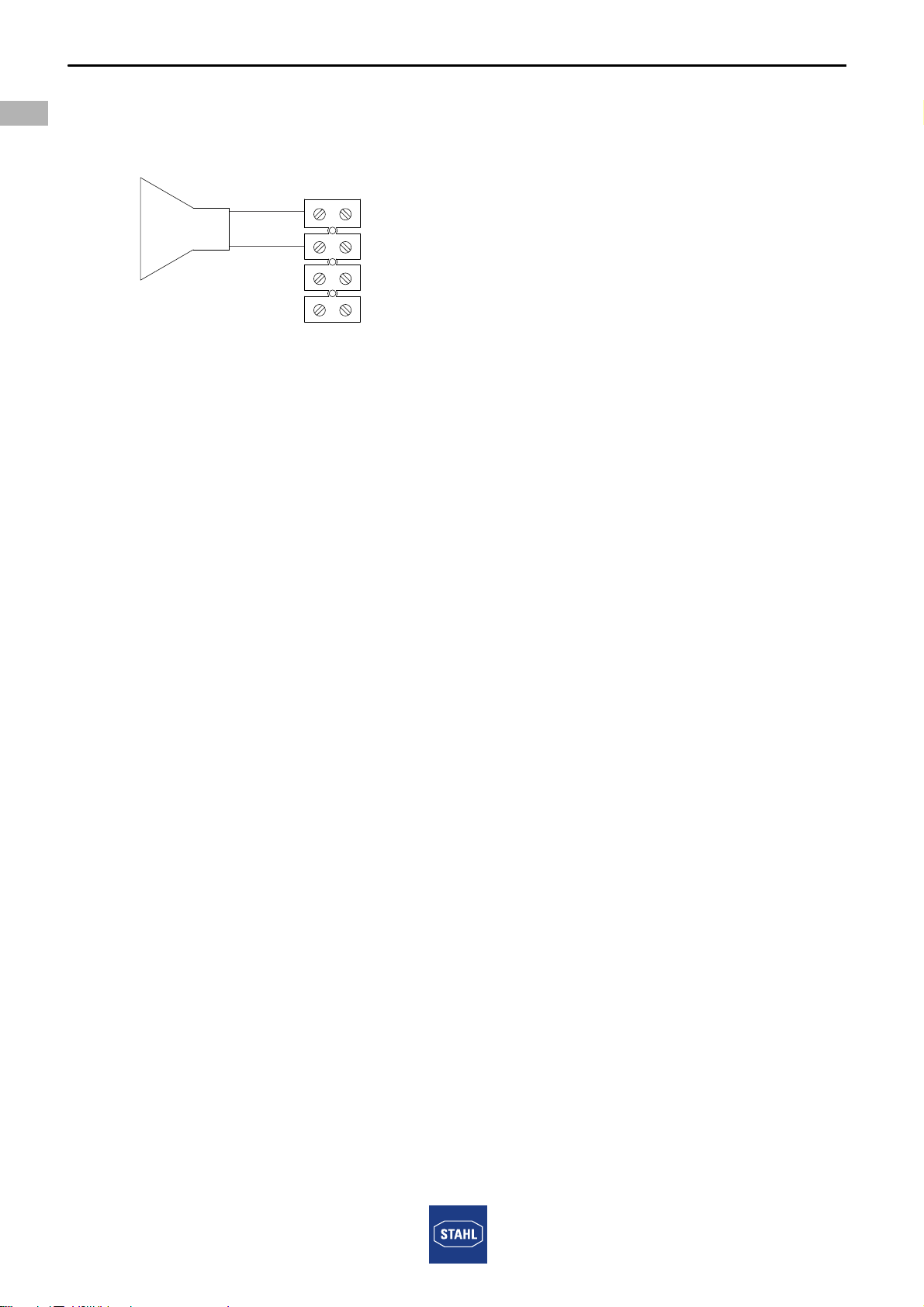

Low Impedance Version 8 Ω or 20 Ω
• Connect conductors up to 4 mm2 according to wiring diagram
Installation, Operation and Maintenance Procedures
• Unscrew lid, lead cable through cable gland, connect to terminal (70V or 100V) and select required
tapping on transformer.
• Fasten lid with a torque of 1,2 – 1,5 Nm.
• Fasten bracket to wall or ceiling with 1 to 3 screws.
• To change the position of the loudspeaker, please adjust the bracket
(by loosening / tightening the screws) as required.
• For optimum performance, always use the correct voltage / power and operate within the frequency
limits as stated.
•Do not open loudspeaker when energized.
4 Operation
The device is used for clear transmission of audio signals.
18099E00
