Stairville DMX MASTER I & II User manual

Owner‘s Manual
DMX MASTER I & II

2
Content
Introduction .......................................................................................................................................................................2
Technical Specification .......................................................................................................................................................2
Maintenance and care .......................................................................................................................................................2
1. Notes on safety..............................................................................................................................................................3
2. General Instructions.......................................................................................................................................................3
3. Overview........................................................................................................................................................................5
4. Operation Guide............................................................................................................................................................7
4-3 Programming Chase ..................................................................................................................................................13
4-4 Assign/Reverse DMX channel ....................................................................................................................................16
4-5 Running Scenes .........................................................................................................................................................22
4-6 Running Chases.........................................................................................................................................................23
4-7 MIDI Operation .........................................................................................................................................................25
4-8 Send File Dump .........................................................................................................................................................26
4-9 Receive File Dump......................................................................................................................................................26
5. Disposal .......................................................................................................................................................................27
Introduction
Thank you for purchasing our DMX MASTER I or II. Enjoy your new equipment and make sure to read this
manual carefully before operation!
Technical Specification
Power Input .............................................................. DC 9V, 300 mA min.
DMX Input ................................................................. 3 pin male XLR
DMX Output .............................................................. 3 pin female XLR
MIDI Signal ............................................................... 5 pin standard interface
Audio Input ............................................................... By built-in microphone or line in
Dimensions ............................................................... 482x132x73 mm
Weight (approx.) ....................................................... 2.5 kg
Our products are subject to a process of continual further development. Therefore modications to the
technical features remain subject to change without further notice.
Maintenance and care
• Never submerse the device in water or any other liquid. Don‘t let any liquid get into the housing. This would
damage the unit and cause a short circuit.
• Before cleaning the device you must disconnect it from the mains. Clean the surface of the device only with
a slightly damp cloth. Never use petrol, solvents or any aggressive cleaners! These could damage the sur-
face of the unit‘s housing!

3
1. Notes on safety
For your own safety you should read through this chapter at rst completely!
Risk of electrical shocks!
• Only connect the device using the mains adaptor supplied to a properly wired and earthed mains power
socket providing mains voltage of 230 V ~ /50 Hz.
• Do not operate the device if the power adaptor, its cord or the mains plug is damaged.
• Never submerse the device in water. Wipe it with a slightly moistened cloth only.
• Do not expose the device to rain and never use it in a damp or wet environment.
• Make sure that the power adaptor or the adaptor cable never becomes wet or moist during use.
• Under no circumstances may you open the housing of the device or the adaptor. Should you do so your
safety would not be assured and the warranty will become void. There are no operational components what-
soever inside, only really high voltage that can give you a deadly shock!
• Do not place objects containing uids, e.g. ower vases or beer bottles, on or near the device.
• Notice regarding disconnection from mains-power:
To completely disconnect the device from mains power, you must disconnect the adaptor from the power
socket. For this reason the device should be placed in a position where unobstructed access to the power
socket is assured at all times, so that in an emergency you will be able to immediately pull out the adaptor.
To eliminate the risk of re you should completely disconnect the adaptor from the power socket when the
device is not going to be used for a long time, for example, during holidays.
• Always grasp the power adaptor itself. Do not pull on the cord and never touch the power adaptor with wet
hands as this could result in a short circuit or an electrical shock. Do not place the device, speakers or any-
thing else on the adaptor cord and make sure that it does not become clamped. Never tie knots in the adap-
tor cord and do not bind it together with other cables. Lay the adaptor cord so that no one can step on or
stumble over it. A damaged power adaptor can cause a re or an electrical shock. Check the power adaptor
and its cord from time to time. Should it become damaged contact our customer service department to have
it replaced.
 Riskofre!
• Never leave the device unattended during operation.
• Never cover the ventilation slots of the device while it is on. Do not place the device in locations that are
subject to direct sunlight. If you do, it may overheat and become irreparably damaged.
• Never operate the LED commander in the vicinity of heat sources such as cookers, heating elements or
other heat producing installations.
• Do not place open re sources, such as candles, on the device.
• Before a storm and/or a thunderstorm with a risk of lightning, please disconnect the device from the electri-
cal power source.
Risk of personal injury!
• Keep children away from the power adaptor and the device. Children frequently underestimate the dangers
of electrical devices.
• Provide a stable location for the device.
• Do not operate the device if it has sustained a fall or is damaged. Have the device checked or, if necessary,
repaired by qualied technicians.
2. General Instructions
Please read the user manual carefully, as it includes important information regarding details of operation,
maintenance, and technical data. Keep this manual with the unit for future consult.
Features
X192 DMX channels.
X12 scanners of 16 DMX channels.
X30 banks of 8 programmable scenes.
X6 chases of 240 programmed scenes from 30 banks

4
X8 faders for manual control
XAll data can be sent or received between two units
XAuto programs (scenes and chases) under control by Wait Time sliders (or Tap Sync) and Fade Time
sliders
XFade Time/Assign Fade Time
XThe scanners under control by Pan and Tilt jog wheels (Master II)
XFine adjustment of the Pan and Tilt
XReverse DMX channels causing the faders to control the output reversely
XPreview assigned or reversed DMX channels
X8 CH./16 CH. mode for Assigned or Reversed DMX channels
XBlackout master / Stand alone mode
XManual override
XBuilt-in microphone for Music triggering
XMIDI control over banks, chases and Blackout
XLCD display
XDMX polarity select
XPower failure memory
XAuto Address
WARNINGS
• DO NOT let any inammable liquids, water or metal objects enter the unit.
• Should any liquid be spilled on the unit, DISCONNECT the power supply to the unit immediately.
• STOP using the unit immediately In the event of serious operation problems and either contact your local
dealer for a check or contact us directly.
• DO NOT open the unit - there are no user serviceable parts inside.
• NEVER try to repair the unit yourself. Repairs by unqualied people could cause damage or faulty opera-
tion. Contact your nearest dealer.
CAUTIONS
• This unit is NOT intended for home use.
• After having removed the packaging check that the unit is NOT damaged in any way. If in doubt, DON‘T use
it and contact an authorized dealer.
• Packaging material (plastic bags, polystyrene foam, nails, etc.) MUST NOT be left within children‘s reach, as
it can be dangerous.
• This unit must only be operated by adults. DO NOT allow children to tamper or play with it.
• NEVER use the unit under the following conditions:
In places subject to excessive humidity.
In places subject to vibrations or bumps.
In places with a temperature of over 45 °C/113 °F or less than 2 °C/35.6 °F.
• Protect the unit from excessive dryness or humidity (ideal conditions are between 35% and 80%).
• DO NOT dismantle or modify the unit.

5

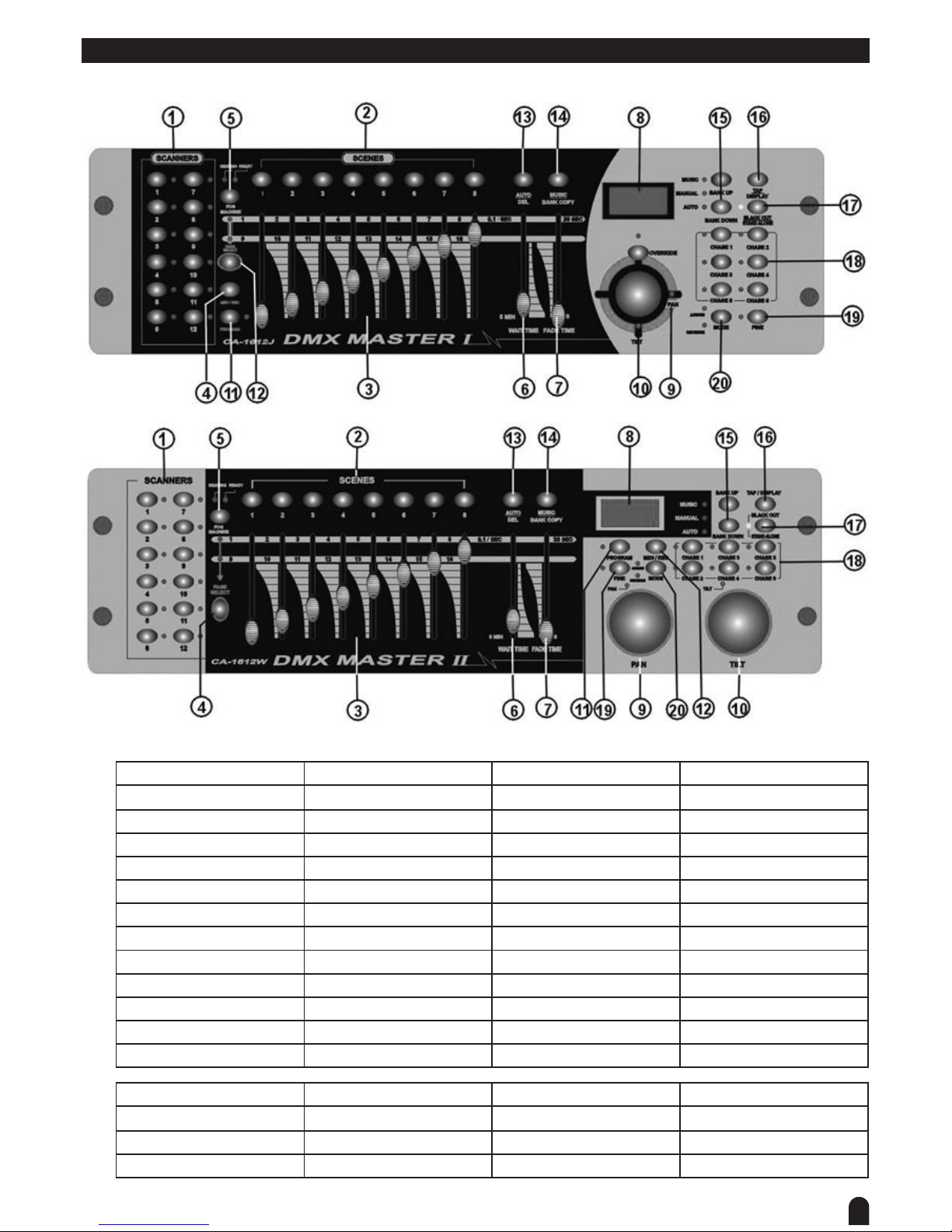

3. Overview
Controller Front
1) Scanner Buttons (1-12): 12 scanners of 16 DMX channels & fader control
Scanners DMX channels Fader control LED
1 1-16 Off Off
2 17-32 Off Off
3 33-48 Off Off
4 49-64 Off Off
5 65-80 Off Off
6 81-96 Off Off
7 97-112 Off Off
8 113-128 Off Off
9 129-144 Off Off
10 145-160 Off Off
11 161-176 Off Off
12 177-192 Off Off
Scanners DMX channels Fader control LED
1 1-16 On On
2 17-32 On On
3 33-48 On On

6
Scanners DMX channels Fader control LED
4 49-64 On On
5 65-80 On On
6 81-96 On On
7 97-112 On On
8 113-128 On On
9 129-144 On On
10 145-160 On On
11 161-176 On On
12 177-192 On On
Press a scanner button to turn on manual fader control. Press the scanner button again to turn off fader
control. The LED next to the button lights up or goes out to indicate your selection.
2. Scene Buttons Press the scene buttons to load or store your scenes. There are a maxi-
mum of 240 programmable scenes.
3. Faders These faders are used to control the intensity of channel 1-8 or channel
9-16 depending upon the selected page.
4. Page Select Button Used to select page between Page A (1-8) and Page B (9-16).
5. Fog Machine Button Activates Fog Machine .
6. WAIT Time Slider Used to adjust the chase wait time within the range of 0.1 second to 5
minutes.
7. Fade Time Slider Used to adjust the fade time. Fade time is the amount of time it takes for a
scanner(or scanner) to move from one position to another, for the dimmer
to fade in or fade out.
8. LCD Display Shows the current activity or programming state.
9. Pan Wheel This jog wheel is used to control the pan of the scanner or for program-
ming.
10. Tilt Wheel This jog wheel is used to control the Tilt of the scanner or for programming.
11. Program Button Activates Program mode.
12. MIDI/Rec Used to control MIDI operation or to record programs.
13. Auto/Del Activates Auto mode or to delete scenes or chases.
14. Music/Bank Copy Activates Music mode or to copy a bank of scenes
15. Bank Up/Down Press the Up/Down button to select from 30 banks.
16. Tap/Display Used to create a standard beat or to change the value mode between %
and 0-255.
17. Blackout/Stand alone Button Tap to momentarily pause the whole output. Hold on this button to enter
Stand alone mode.
18. Chase Buttons(1-6) These buttons are used for activating the chase of programmed scenes.
19. Fine Button When Fine is on, the Pan or Tilt wheel will control the scanner in the small-
est increment.
20. Mode Button Pressing Fine and Mode buttons allows to activate Assign or Reverse
mode.

7
Rear View
1. AUDIO IN 0.1V~1Vp-p.
2. MIDI IN Receives MIDI data.
3. DMX Polarity Select Used to select DMX polarity.
4. DMX Out This connector sends your DMX value to the DMX scanner or DMX pack.
5. DMX In This connector accepts your DMX input signals.
6. Fog Machine Connector This connector is used to plug in the Fog Machine.
7. DC Input DC 9 -12V, 300mA min.
8. Power Switch This switch turns On/Off the power.
Fog machine diagram
4. Operation Guide
General
This unit allows you to program 12 scanners of 16 DMX channels, 30 banks of 8 programmable scenes, 6
chases of 240 programmed scenes using 8 faders and other function buttons. With the use of two jog wheels,
you may easily control the Pan or Tilt of the scanners. To tailor your special effect lighting, this unit enables
you to Assign or Reverse the DMX channels. In addition, two units can set up communication so that they can
send or receive le dump.
Display Information
The LCD Display contains a maximum of 2x8 characters.
LCD Display Message
CHASE 5 Chase 5 is activated.
STEP 002 The 2nd step of a chase

8
DATA 151 DMX value (000-255)
WT: 1M36S The current Wait Time is 1 minute and 36 seconds
TP: 5.32S The time of the last two taps is 5.32 seconds
FT: 10.5S Fade Time is 10.5 seconds
ASS 07 08 Assign DMX channels 7 and 8
RES 10 13 Reverse DMX Channels 10 and 13
SN 6 Scene 6
BK 03 Bank 03
4-1 Program Enable
When the power is turned on, this unit enters Manual mode automatically. Press the Program button for three
seconds to activate Program mode, the LED near to this button lights indicating Program in active.

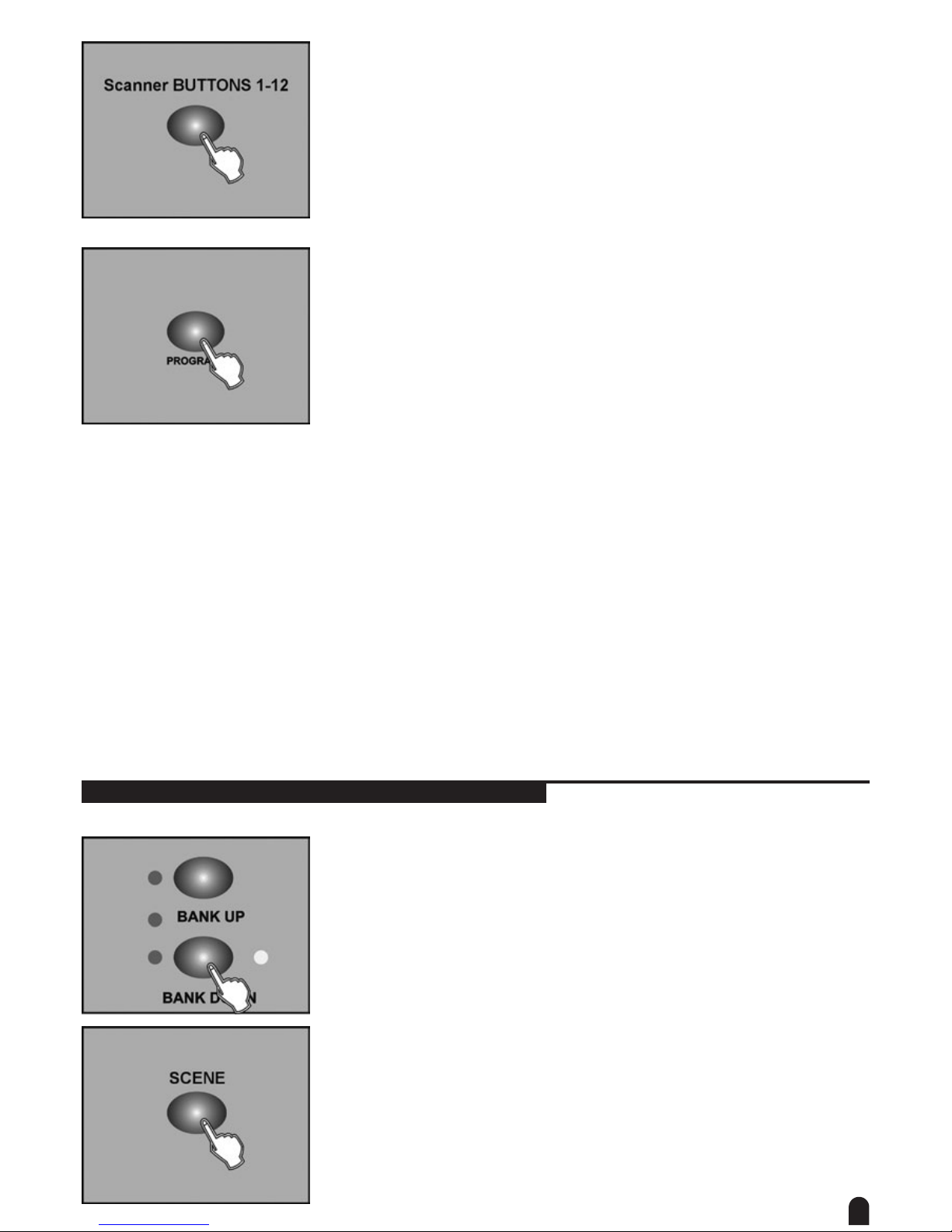

4-2 Programming Scenes
1. Enter Program mode.
2. Press the Scanner button to turn on its fader control, which is indicated by
the lit LED.
You may select several scanners at a time by tapping of these Scanner
buttons, so you can set several scanners at a time.
3. Move the faders to select your desired dimmer intensity if you are using
a dimmer. You can also use the two jog wheels to control the Pan or Tilt
movement of the scanner.
4. If necessary , you may tap the Page Select button to control the second set of 8 DMX channels.
5. Once the scene is satisfactory, tap the MIDI/Rec button to program this
scene into memory.
6. Tap the Bank Up/Down button to select the bank you want to store your
scene into. There are total 30 banks you can select, you may store up to 8
scenes into each bank.
7. Tap the Scene button to store your scene, all LEDs and the Segment
Display will ash three times briey indicating this operation, then the LCD
will show the bank and the scene.

9
8. Repeat steps 3-7 until all desired scenes have been programmed into
memory. Tap the Scanner button again to turn off its fader control. To
set another scanner (scanner), you may tap the corresponding Scanner
button to turn on its fader control, then you may begin your programming
again.
9. If you don’t intend to continue your programming, press and hold down the
Program button for three seconds to exit Program mode, the LED goes
out indicating this selection.
EXAMPLE: Program 8 scenes with channel 1-8 at full in sequence into bank 3 and assign these scenes
to scanner 1.
1. Program enable.
2. Tap the Scanner 1 button to turn on its fader control.
3. Tap the Page Select button to select Page A.
4. Push Fader 1 to the top position.
5. Tap the MIDI/Rec button.
6. Select bank 3 using Bank Up/Down button.
7. Tap the Scene 1 button to store the rst scene.
8. Repeat steps 4-7 until all 8 scenes have been programmed into bank 3.
9. Tap the Scanner 1 button again to turn off its fader control.
10. Press the Program button for 3 seconds to exit Programming mode.
4-2.1 Scene Editing
1. Program enable.
2. Tap the Bank Up/Down button to select the bank that contains the scene
you wish to edit.
3. Select the scene you want to edit by tapping its Scene button.

10
4. Use the Faders or jog wheels to make your desired adjustments.
5. Once you’ve made your changes, tap the MIDI/Rec button
6. Tap the Scene button that corresponds to the scene you’re editing. This
will overwrite the exited scene
NOTE:
Be sure to select the same scene in steps 3 and 6, otherwise you may accidentally record over an
exited scene.
4-2.2 Scanner Copy
This function allows you to copy the settings of one scanner to another.
1. Press and hold down the Scanner button you want to copy.
2. While holding the Scanner button, tap the Scanner button you want to
copy to.

11

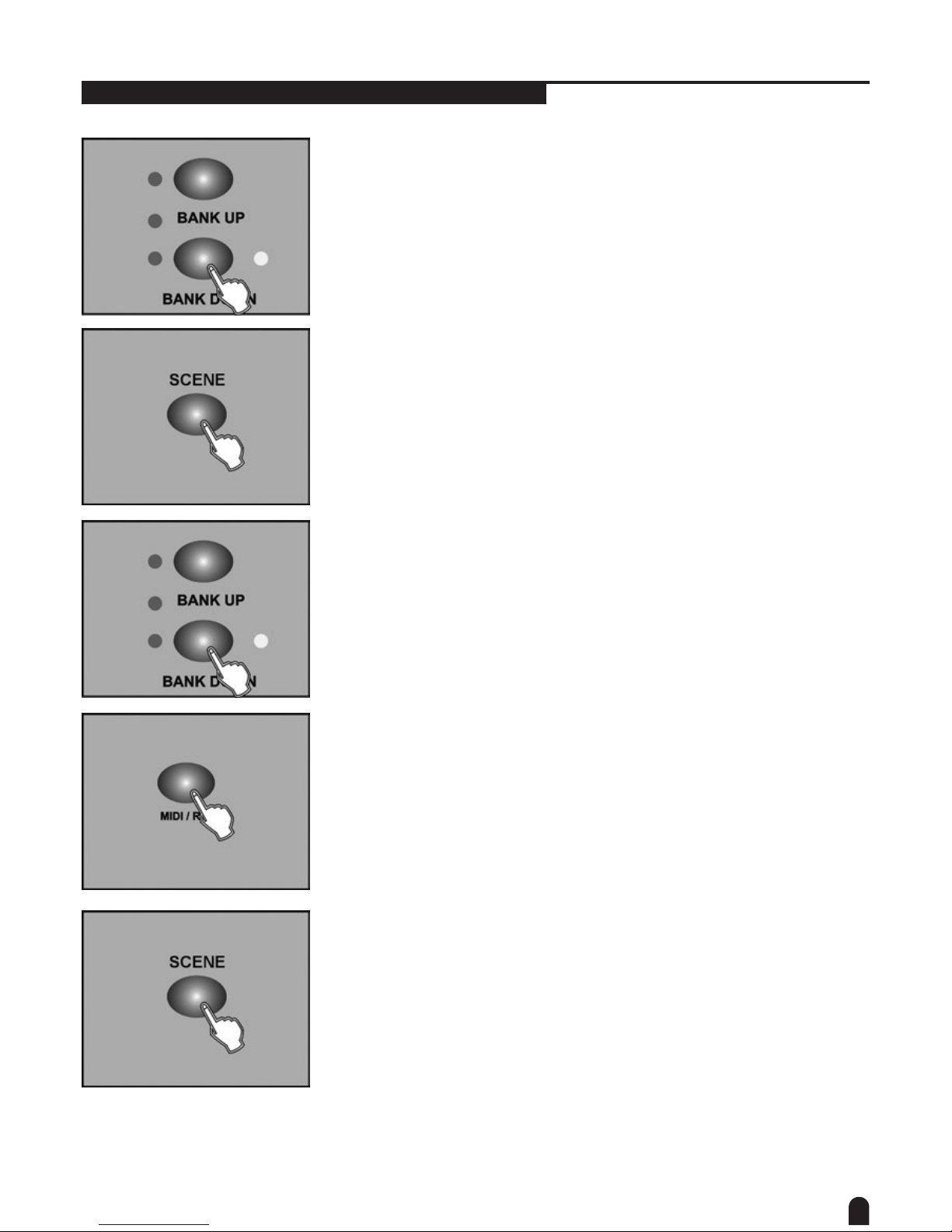

4-2.3 Scene Copy
1. Program enable.
2. Tap the Bank Up/Down button to select the bank that contains the scene
you wish to copy.
3. Select the scene you want to copy by tapping its Scene button
4. Tap the Bank Up/Down button to select the bank you wish to copy the
scene to.
5. Tap the MIDI/Rec button.
6. Tap the Scene button you wish to copy the scene to.

12
4-2.4 Delete a Scene
1. Tap the desired Scene button to select the scene you wish to delete
2. Press and hold down the Auto/Del button. While holding down the Auto/Del
button, tap the Scene button that stores the scene you wish to delete.
4-2.5 Delete all Scenes
This function will reset all DMX channel to 0 output.
1. With the power off, press and hold down the Program and Bank Down
buttons at a time.
2. Apply power again, all scenes should be cleared.
4-2.6 Bank Copy
1. Program enable.
2. Tap the Bank Up/Down button to select the bank you wish to copy.
3. Tap the MIDI/Rec button.
4. Tap the Bank Up/Down button to select the bank you wish to copy to.

13
5. Tap the Music/Bank Copy button, all LEDs will ash three times briey
indicating the function has been completed.
6. Press the Program button for three seconds to exit Programming mode.
4-3 Programming Chase
You must program scenes before you can program chases, this function allows you to store up to 240 scenes
into one chase.
1. Program enable.
2. Tap the Chase button to select the chase to program. Each time you can
select a chase only.
3. Select a desired scene from the bank that has stored scenes.(described in
Programming Scenes)
4. Tap the MIDI/Rec button.
5. Repeat steps 3-4 until you’ve reached your desired effect.
You may record up to 240 scenes into a chase.
4-3.1 Program a bank of scenes into a Chase
1. Program enable.
2. Select the chase using Chase buttons 1-6.
3. Use Bank Up/Down button to select the bank that contains the scenes you
wish to copy.
4. Tap the Music/Bank Copy button.
5. Tap the MIDI/Rec Copy button, all LEDs will ash three times briey
indicating all 8 scenes in this bank have been programmed into this chase.

14

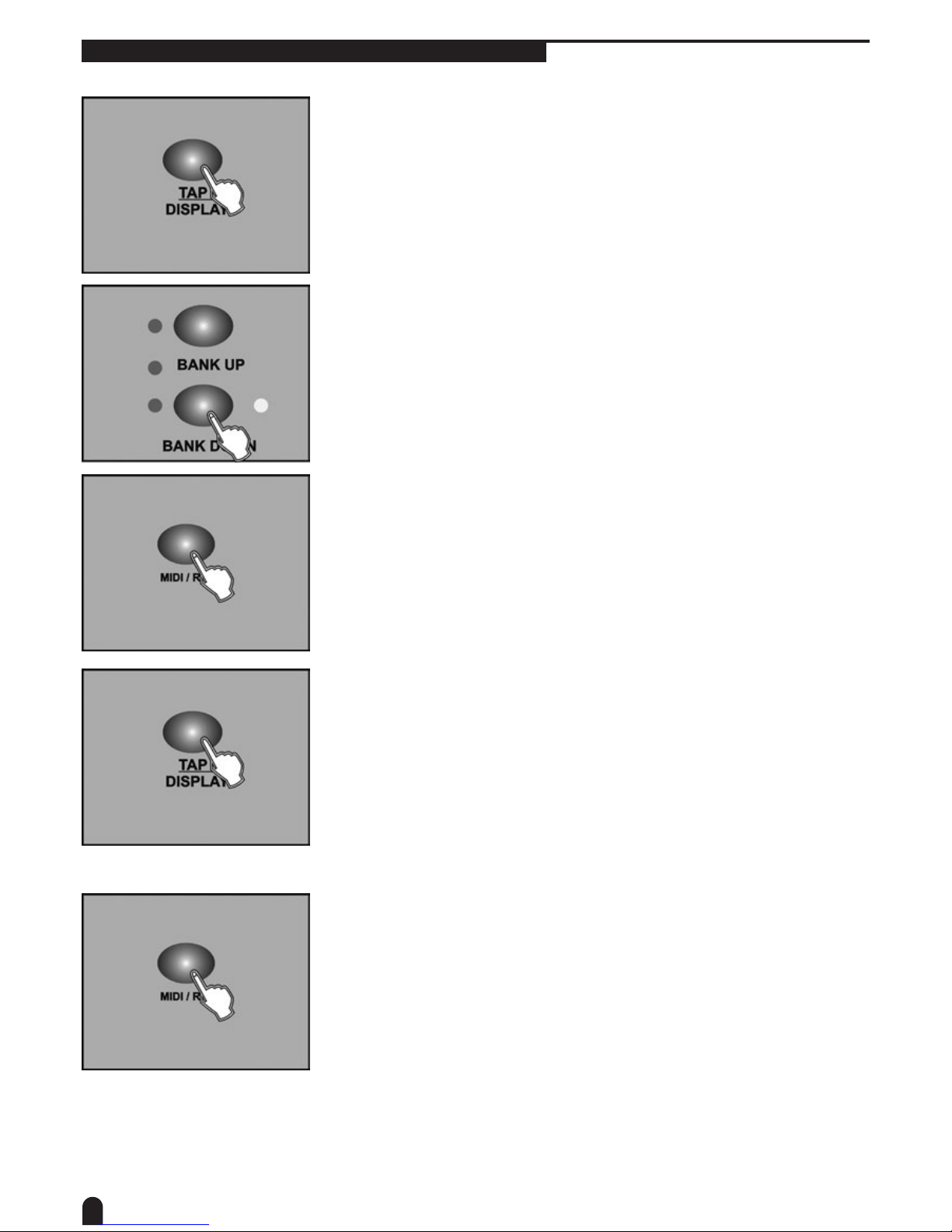

4-3.2 Add a Step
1. Program enable.
2. Select the chase you wish to add a step to.
3. Tap the Tap/Display button, the LCD shows the current step.
4. Tap the Bank Up/Down button to scroll to the step you wish to add a step
after.
5. Tap the MIDI/Rec button, the Segment Display will read the step one
higher than before. For example, if you want to insert a step between step
3 and step 4, and you scroll to step 3, when you tap the MIDI/Rec button,
the LCD will read “STEP 004”.
6. Tap the Tap/Display button again, the LCD shows the current chase, scene
and bank. Create a desired scene and record it as a new step or select a
programmed scene you wish to add into this chase.
Hints: You may tap the Tap Sync/Display button to change the display mode between step and the bank.
7. Tap the MIDI/Rec button again , all LEDs will ash three times briey
indicating the new step has been inserted into this chase.

15

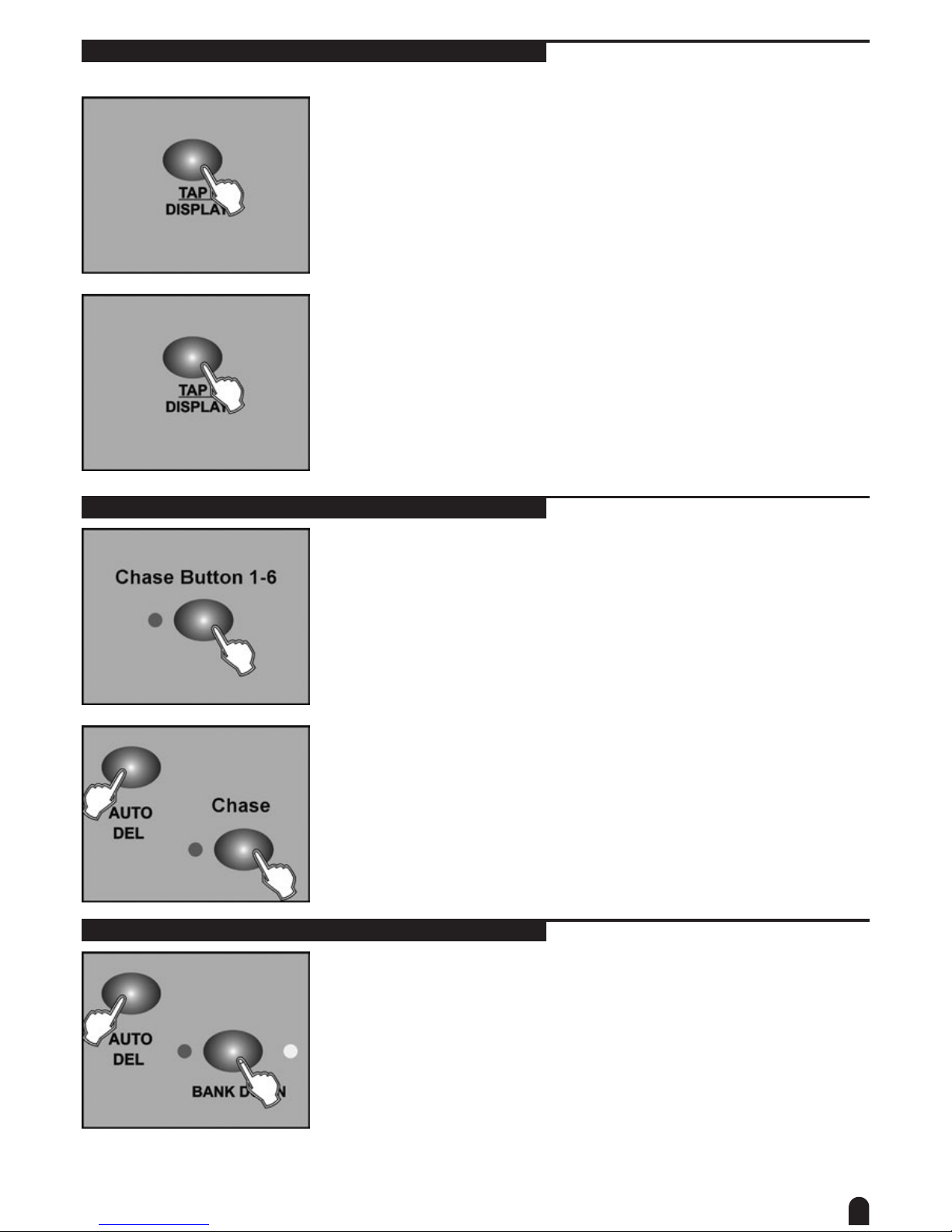

4-3.3 Delete a Step
1. Program enable.
2. Select the chase that contains the step you wish to delete.
3. Tap the Tap/Display button, the LCD shows the current step.
4. Tap the Bank Up/Down button to scroll to the step you wish to delete.
5. Tap the Auto/Del button to delete the step, all LEDs will ash three times
briey indicating that the step has been deleted.
4-3.4 Delete a Chase
1. Select the chase you wish to delete.
2. Press and hold down the Auto/Del button. Tap the Chase button while
holding down the Auto/Del button, all LEDs will ash three times briey
indicating this chase has been deleted.
4-3.5 Delete all Chases
1. With the power off, press and hold down the Auto/Del and Bank Down
buttons at the same time.
2. Apply the power again.

16
4-4 Assign/Reverse DMX channel
4-4.1 Assign DMX channel
1. Program enable.
2. Press the Fine and Mode buttons at a time,the Assign LED lights up
indicating Assign mode is active.
3. Use Bank Up/Down button to change between the Pan and Tilt, the
corresponding LED lights indicating this selection.
4. Tap the Tap/Display button to change between 8 CH. and 16 CH. mode,
the LCD reads
ASSXX XX or ASSXX XX
X/Y 08CH X/Y 16CH
5. Tap the Scanner button to select the scanner.
6. Tap the Page Select button to select Page A or Page B.

17
7. While pressing the Mode button, tap the Scene button, all LEDs should
ash briey indicating the DMX channel is assigned.( Scene button 1
stands for DMX channel 1, Scene button 2 stands for DMX channel 2, and
so on.)
8. Continue steps 3-7 , 8CH Mode: you may assign 24 scanners for the PAN/
TILT movements. Under 8CH mode, PAN / TILT can be set both in page A
and page B.
16CH mode: you may assign 12 scanners for PAN / TILT movements.
Under 16CH mode, PAN / TILT can only be set in page A or page B.
4-4.2 Reverse DMX channel
1. Program enable.
2. Press the Fine and Mode buttons the second time, the Reverse LED lights
up indicating Reverse mode is active.
3. Use Bank Up/Down button to change between the Pan and Tilt, the
corresponding LED lights indicating this selection.
4. Tap the Tap/Display button to change between 8 CH. and 16 CH. mode.
5. Tap the Scanner button to select the scanner.

18

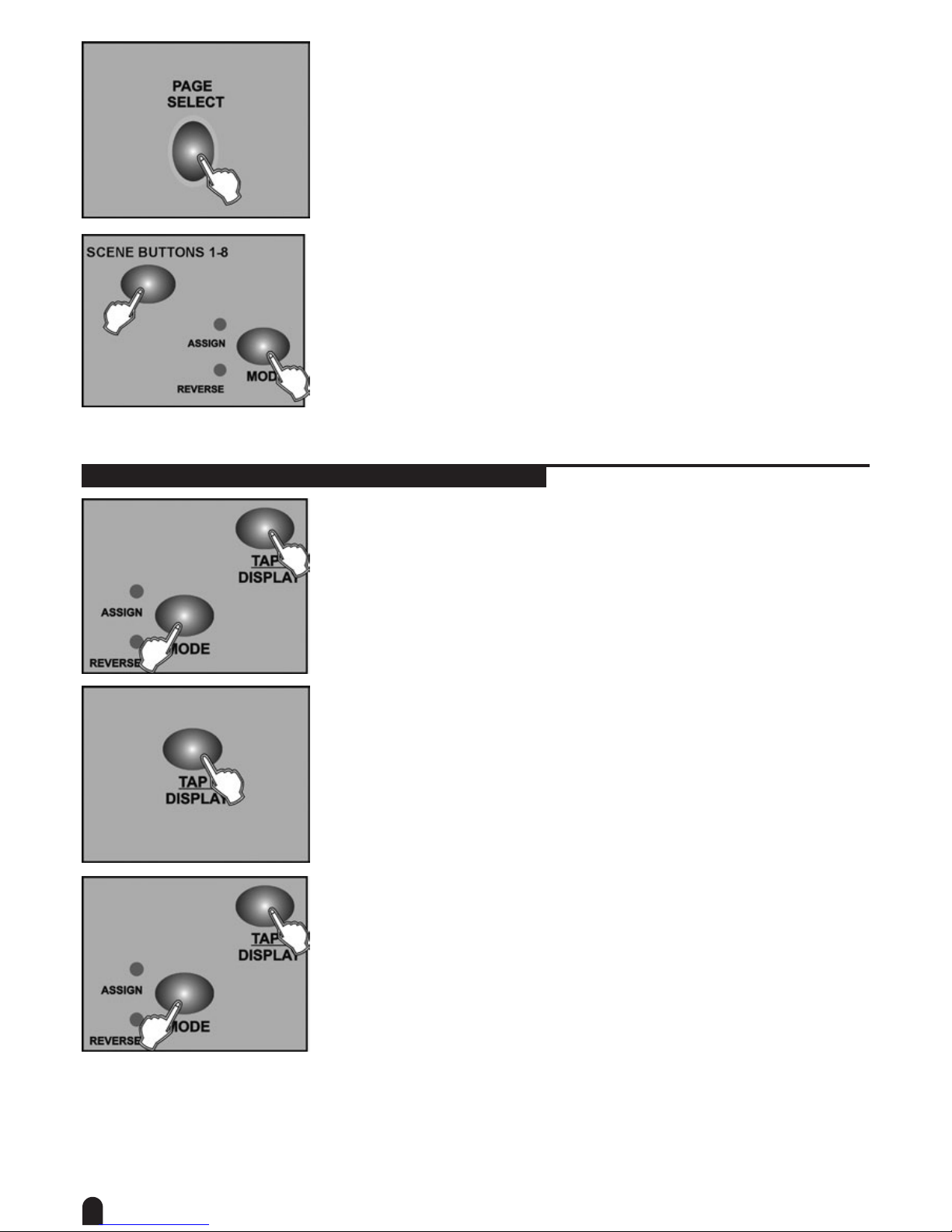

6. Tap the Page Select button to select Page A or Page B.
7. While pressing the Mode button, tap the Scene button, all LEDs should
ash briey indicating the DMX channel is reversed.( Scene button 1
stands for DMX channel 1, Scene button 2 stands for DMX channel 2, and
so on.)
8. Continue steps 3-7 , 8CH Mode: you may reverse PAN/ TILT movements
for 24 scanners. Under 8CH mode, PAN / TILT can be set both in page A
and page B.
16CH mode: you may reverse PAN / TILT movements for 12 scanners.
Under 16CH mode, PAN / TILT can only be set in page A or page B.
4-4.3 Fade Time/Assign Fade Time
1. With the power off, press the Mode and TAP/Display buttons at a time.
2. Apply the power again, tap the TAP/Display button to change between
Fade Time and Assign Fade Time, the LCD reads
ALL CH or ONLY X/Y
FD TIME FD TIME
3. Press the Mode and TAP/Display buttons at a time to store your setting
into memory.
If you are not going to save your setting, tap the Blackout button to leave
this operation.

19
4-4.4 Delete a scanner of DMX channels
1. Activate Assign or Reverse mode (Described in the sub-chapter 2.2.4.1 or
2.2.4.2).
2. Tap the Scanner button to select the scanner you wish to delete.
3. Press the Mode and Auto/Del buttons at a time,all LEDs should ash
briey, indicating the scanner is deleted.
4-4.5 Clear all DMX channels
1. Turn the power off.
2. Press the Mode and Auto/Del buttons at a time.
3. While pressing the two buttons, apply the power again, all LEDs should
ash briey,indicating all assigned or reversed DMX channel are cleared.
4-4.6 Display DMX channel
1. Press the Fine and Mode buttons at a time,the Assign LED lights.
2. Press the Fine and Mode buttons the second time,the Assign LED goes
out and the Reverse LED lights.

20
3. Tap the Scanner button that holds the Pan and Tilt channel, the LCD
shows the Pan and Tilt.
4-4.7 Set Up a new Logo
1. Turn the power off.
2. Press and hold down the Scanner 6 and Scanner 12 buttons at a time.
Apply the power again while pressing the two buttons, then release the
two buttons.
3. Tap the Scanner 6 (or 12) button to move the cursor to the left (or right).
4. Continue steps 3-4. You may enter a maximum of 16 characters in two
rows.
5. Press the Scanner 6 and 12 buttons at a time to store the new characters
into memory, all LEDs should ash briey indicating this operation. If you
are not going to save these new characters, just tap the Blackout button to
leave this operation.
