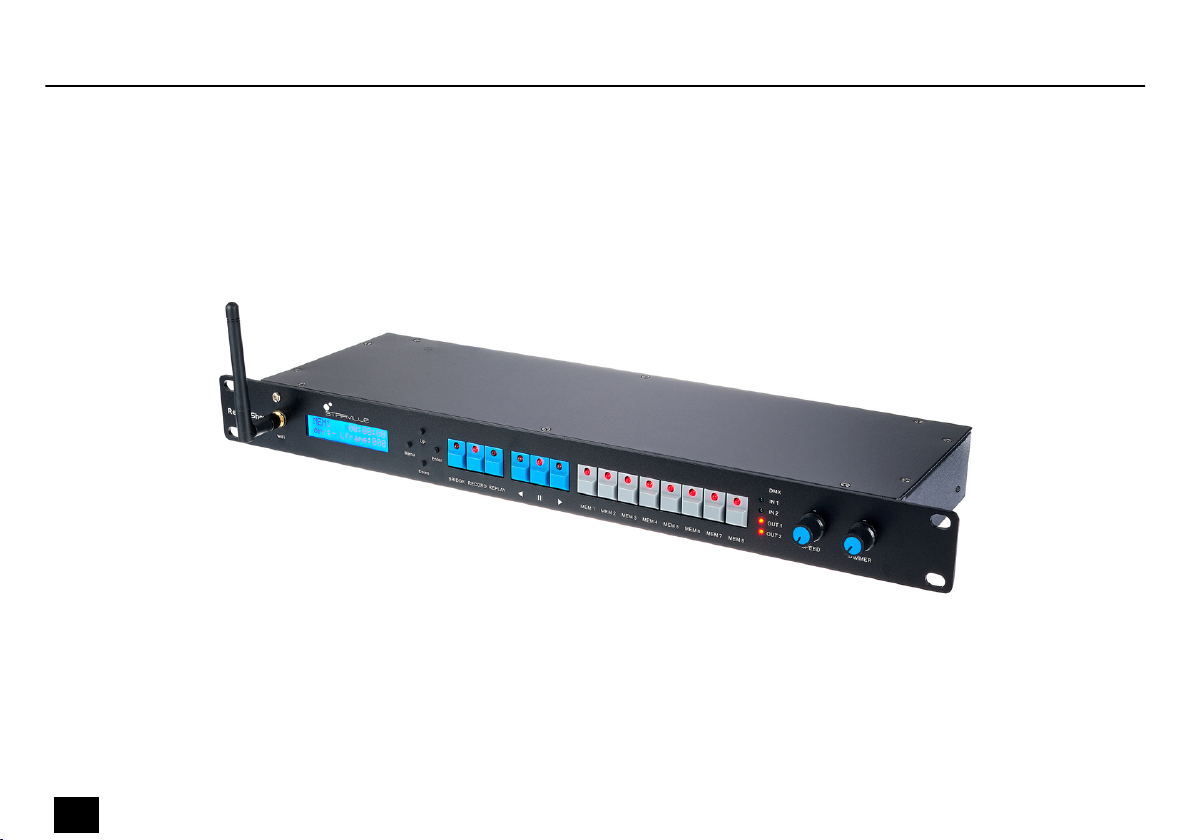

Stairville Replay Show User manual

Replay Show
DMX Manager
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
26.09.2023, ID: 474470 (V3)

Table of contents
1 General information................................................................................................................................. 5
1.1 Symbols and signal words............................................................................................................... 5
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 10
4 Installation and starting up................................................................................................................ 11
5 Connections and controls................................................................................................................... 14
6 Operating.................................................................................................................................................... 18
6.1 Starting the device........................................................................................................................... 18
6.2 Setting the operating modes....................................................................................................... 18
6.3 Software update............................................................................................................................... 25
7 Technical specications....................................................................................................................... 27
8 Plug and connection assignments.................................................................................................. 29
9 Protecting the environment.............................................................................................................. 30
Table of contents
Replay Show 3
DMX Manager

4Replay Show
DMX Manager

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
Replay Show 5
DMX Manager

Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
6Replay Show
DMX Manager

2 Safety instructions
This device is used for real-time recording, playback and distribution of DMX signals via LAN or
WLAN. Use the device only as described in this user manual. Any other use or use under other
operating conditions is considered to be improper and may result in personal injury or prop‐
erty damage. No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
Intended use
Safety instructions
Replay Show 7
DMX Manager

NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
NOTICE!
Radio interference due to electromagnetic elds!
The unit emits electromagnetic radio signals. Overlapping radio waves may cause interference with the device and other devices. Do
not use the device in locations where the use of wireless devices is prohibited.
NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient
conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sun‐
light, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uc‐
tuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the device immediately.
Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments
with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualied specialists at reg‐
ular intervals to prevent damage due to overheating and other malfunctions.
NOTICE!
Damage to the external power supply due to high voltages!
The device is powered by an external power supply. The external power supply can be damaged if it is operated with the incorrect
voltage or if high voltage peaks occur. In the worst case, excess voltages can also cause a risk of injury and res. Make sure that the
voltage specication on the external power supply matches the local power grid before plugging in the power supply. Only operate
the external power supply from professionally installed mains sockets that are protected by a residual current circuit breaker (FI). As
a precaution, disconnect the power supply from the power grid when storms are approaching or it the device will not be used for a
longer period.
Safety instructions
8Replay Show
DMX Manager

NOTICE!
Risk of re due to installation of a wrong fuse!
Using fuses of a dierent type than compatible with the device may cause a re and seriously damage the device. Only use fuses of
the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter.
Safety instructions
Replay Show 9
DMX Manager

3 Features
DMX manager with the following features:
nDMX recorder and Art-Net-Node with wireless function
n2 DMX universes (1024 DMX channels)
nReal-time recording and playback of DMX and Art-Net signals
nBuilt-in WiFi access point
nArt-Net in/out via RJ45 socket or WLAN
n8 directly recallable memory locations, each with up to 20 hours of recording capacity
nOperation via buttons and display on the unit
n2 playback modes: Single playback or endless loop
nDimmer and speed control
n2in1 DMX merge (HTP / LTP / Override / Backup)
n1in2 DMX splitter (adjustable via buttons and display)
nPower supply via Power Twist or USB port
nIncludes SD card (16 GB) for storing the shows
nRobust metal housing
Features
10 Replay Show
DMX Manager

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
nThis equipment uses a frequency range that is free of charge and registration within the
European Union.
For more information, please visit: http://www.thomann.de.
nMake sure that no metal objects are located between transmitter and receiver.
nAvoid interference by other radio and in-ear systems.
Notes on radio transmission
Installation and starting up
Replay Show 11
DMX Manager

NOTICE!
Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.

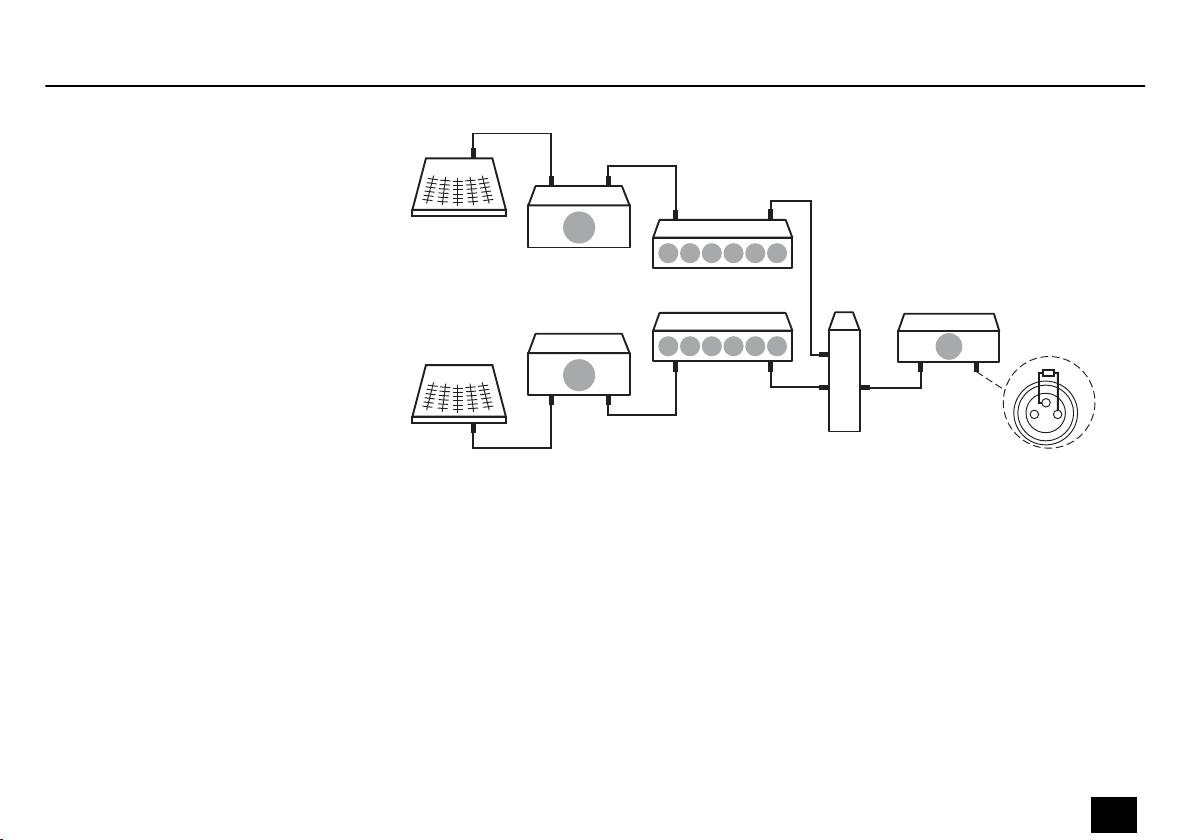

Connect the output of the rst DMX device to the input of the second one and so on, to form a
series connection. Connect the output of this DMX chain to input A on the front or back of the
DMX Manager. Connect the output of a second DMX chain to input B on the front or back of
the DMX Manager. Connect the output on the front or rear of the DMX Manager to the DMX
input of a DMX controller or other DMX device. Make sure that the output of the last DMX
device in the chain is terminated by a resistor (110 Ω, ¼W). Note that the ports on the front
and back can not be used in parallel.
Connections in ‘DMX’ mode
Installation and starting up
12 Replay Show
DMX Manager

DMX OutDMX In
DMX OutDMX In
DMX Out
C
1
2
DMX OutDMX In
DMX OutDMX In
DMX Out
C
1
2 M
110 Ω, ¼ W
1 2
3
DMX OutDMX In
n
BA
Out
M
While both the device and the DMX manager are in operation, the DMX indicators [DMX IN 1]/
[DMX IN 2] show that a DMX signal is being received on the input.
The device is designed for mounting in a standard 19-inch rack; it occupies one rack unit (RU).
DMX indicator
Rack mounting
Installation and starting up
Replay Show 13
DMX Manager

5 Connections and controls
Replay Show
ö # % & '$ ( ) *

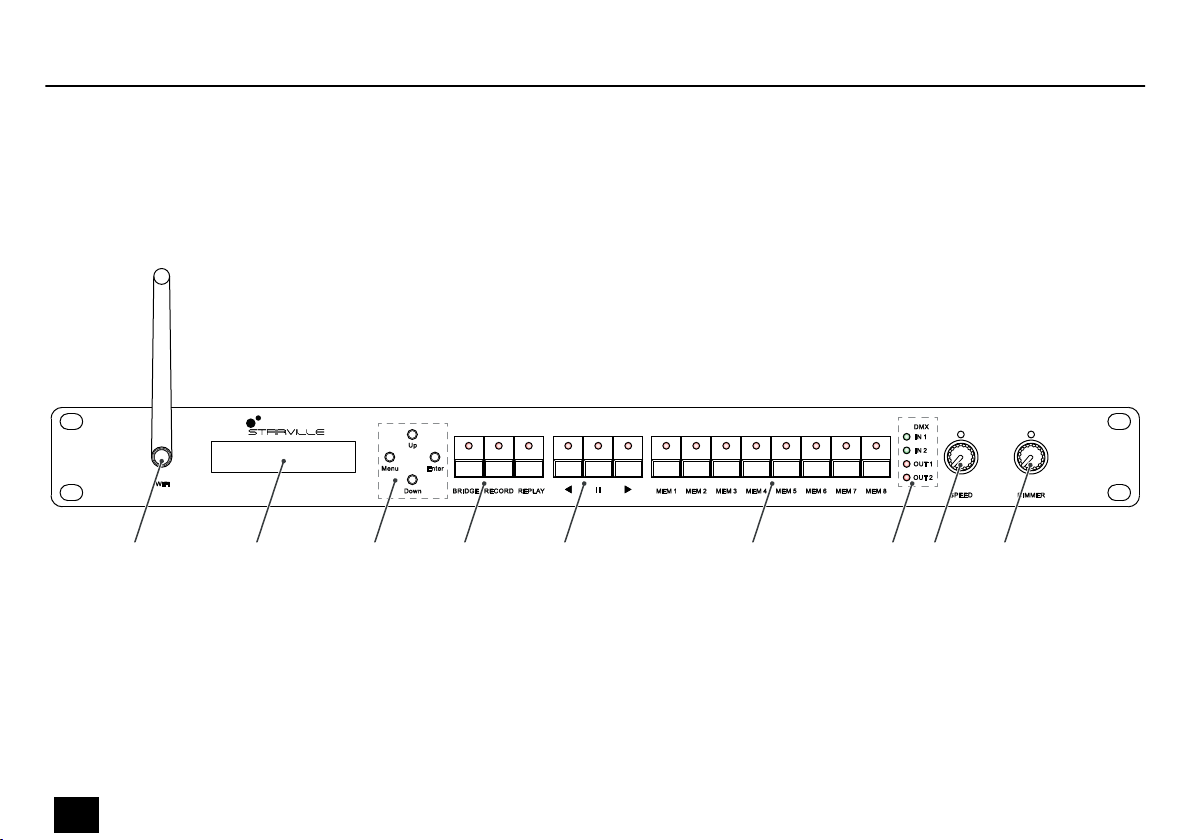

Front panel
Connections and controls
14 Replay Show
DMX Manager

1[WiFi] | WLAN antenna, can be unscrewed
2 Display
3[MENU] | Button for activating the main menu and switching between the menu items. Closes an open submenu.
[UP] / [DOWN] | Button for switching between the menu items of a menu level, and for increasing and decreasing the
displayed value by one.
[ENTER] | Button for conrming the set value
4[BRIDGE] / [RECORD] / [PLAY] | Buttons for selecting the operating mode
5/ / | Buttons for controlling the recording and playback functions
6[MEM 1]…[MEM 8] | Buttons for selecting the memory slots
7[DMX IN 1] / [DMX IN 2] | Status display. The indicator LED for the DMX input lights up green as soon as a signal is
received.
[DMX OUT 1] / [DMX OUT 2] | Status display. The indicator LED for the DMX output lights up red as soon as a signal is
sent.
8[SPEED] | Rotary control for adjusting the speed
9[DIMMER] | Rotary control for adjusting the brightness
Connections and controls
Replay Show 15
DMX Manager

+ , - . 0 1 2/

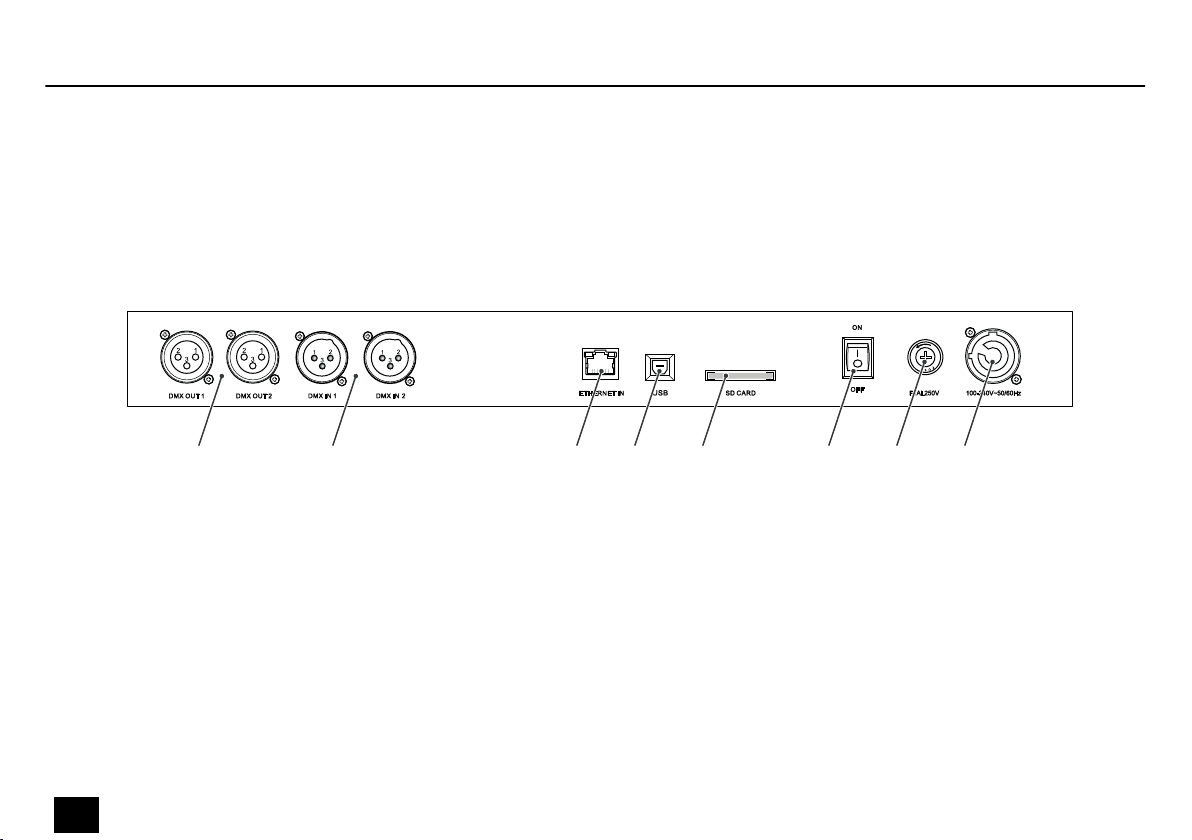

Rear panel
Connections and controls
16 Replay Show
DMX Manager

10 [DMX OUT 1] / [DMX OUT 2] | 2 × DMX out, designed as an XLR socket
11 [DMX IN 1] / [DMX IN 2] | 2 × DMX input, designed as an XLR plug
12 [ETHERNET IN] | Network connection, designed as RJ45 socket, for data input and output
13 [USB] | USB 2.0, type B for alternative power supply
14 [SD CARD] | SD card slot for the supplied memory card
15 [ON] / [OFF] | Main switch. Turns the device on and o.
16 Fuse holder
17 Lockable input socket (Power Twist) for powering the device
Connections and controls
Replay Show 17
DMX Manager

6 Operating
6.1 Starting the device
Connect the device to the power grid and turn it on with the main switch to start operation.
The display shows the current rmware version. Press [MENU] to enter the main menu and
make further settings.
6.2 Setting the operating modes
The device oers three dierent operating modes: BRIDGE, RECORD and PLAY.
6.2.1 Operating mode Bridge
In BRIDGE mode, the device operates as a signal converter. In this mode, you can switch the
device to splitter or merge mode.
Menu level 1 Menu level 2
‘Bridge Mode01’
‘DMXin>DMXout’
‘IN1/2>OUT1/2’
‘IN1>OUT1&2’
Operating
18 Replay Show
DMX Manager

Menu level 1 Menu level 2
‘IN2>OUT1&2’
‘Bridge Mode02’
‘DMXin>LAN’
Signal input: DMX inputs, signal output: LAN
socket
‘Bridge Mode03’
‘LAN>DMXout’
Signal input: LAN socket, signal output: DMX
outputs
‘Bridge Mode04’
‘WiFi>DMXout’
Signal input: WLAN, signal output: DMX out‐
puts
‘Bridge Mode05’
‘WiFi>LAN’
Signal input: WLANasD, signal output: LAN
socket
Operating
Replay Show 19
DMX Manager

Menu level 1 Menu level 2
‘Bridge Mode06’
‘DMX MERGE’
‘HTP’
‘LTP’
‘override’
‘backup’
6.2.1.1 SPLITTER operation
In SPLITTER mode, the device has three dierent ways to divide incoming signals.
1. Press [BRIDGE] to enter the “BRIDGE” operating mode. The LED lights.
2. Press [UP] or [DOWN] until the display shows ‘Bridge Mode01’ and conrm with [ENTER].
Operating
