QUICK REFERENCE GUIDE
Ovation C-805FC QRG Rev. 3
About This Guide
The Ovation C-805FC Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu
options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product’s housing may be hot when lights are operating. Mount this product in a location with
adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a
product. From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.
What is Included
• Ovation C-805FC
• Neutrik® powerCON® power cord
• 2 Gel Frames 5.32 x 9.65 in (135 x 245 mm)
• 2 Omega Brackets with mounting hardware
• Warranty Card
• Quick Reference Guide

EN
2
Ovation C-805FC QRG Rev. 3
QUICK REFERENCE GUIDE
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 9 Ovation C-805FC products at 120 VAC or 17 at 230 VAC. Never exceed this number. Power linking
cords can be purchased separately.
AC Plug
Replacing the Fuse
1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Ovation C-805FC will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is
available from www.chauvetprofessional.com.
DMX Connection
The Ovation C-805FC uses a 3- or 5-pin DMX data connection for its DMX personalities: ranging from 3CH to 31CH in
1-cell modes and 2-cell modes:
See the User Manual for information about connecting and configuring the product for DMX operation.
Master/Slave Connection
The Ovation C-805FC uses the DMX data connection for its Master/Slave mode. See the User Manual for information
about connect and configure the product for master/slave operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers
have this capability. The Ovation C-805FC supports RDM protocol that allows feedback to make changes to some menu
map options. Download the User Manual from www.chauvetprofessional.com for more details.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Mode 1-Cell 2-Cell
DMX-VCW-CCT 3 N/A
RGB 3 6
RGBA 4 8
RGBAL 5 10
RGB EXT 8 15
RGBA EXT 9 17
RGBAL EXT 10 19
RGBAL Fine 10 20
RGBAL FULL 17 31
!

3
EN
QUICK REFERENCE GUIDE
Ovation C-805FC QRG Rev. 3
Virtual Color Wheel
The Ovation C-805FC includes a new feature called the Virtual Color Wheel (VCW). This feature is available as a stand-
alone control mode for manual use and also as a control channel in each of the products DMX personalities. Over thirty
pre-mixed colors based on popular gel colors from are available to call up for easier programming. When manually
selecting the colors on the Virtual Color Wheel, the referenced gel number appears on the LED display for convenient
selection and ease-of-use.
Color Chart
DMX Channel
Value Display Readout Red Value Green Value Blue Value Amber Value Lime Value
000 005
006 013
014 021
022 028
029 035
036 043
044 051
052 059
060 067
068 075
076 083
084 091
092 099
100 107
108 115
116 121
122 130
131 138
139 146
147 154
155 162
163 170
171 178
179 186
187 194
195 202
203 210
211 218
219 226
227 234
235 242
243 250
251 255
--
C90Y
R11
R312
R03
R18
R20
R21
R26
R27
R33
R337
R38
R41
R42
R44
R349
R54
R64
R364
R65
R80
R81
R82
R382
R83
R383
R91
R92
R93
R393
R90
--
000
246
251
227
255
255
255
250
255
215
255
255
255
255
255
255
255
255
177
190
101
048
127
082
100
055
015
020
047
091
063
043
000
000
195
175
185
143
169
162
126
080
005
129
064
068
049
015
020
000
202
255
225
255
175
187
217
000
150
100
123
094
180
147
170
000
000
028
043
002
064
063
006
031
038
033
105
104
106
046
058
105
106
117
169
152
153
155
138
218
160
150
092
025
032
084
075
073
000
000
176
203
235
085
219
244
243
050
002
250
217
245
164
167
255
009
017
219
238
218
000
081
154
000
000
035
049
043
123
094
043
000
000
212
203
191
175
070
136
119
029
002
222
238
252
108
000
132
101
227
230
235
137
124
136
219
000
020
030
051
039
175
133
087
000
Note: The colors above are simulated renditions of the color output produced as compared to
other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

EN
4
Ovation C-805FC QRG Rev. 3
QUICK REFERENCE GUIDE
Color Temperature Chart
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the
mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps/

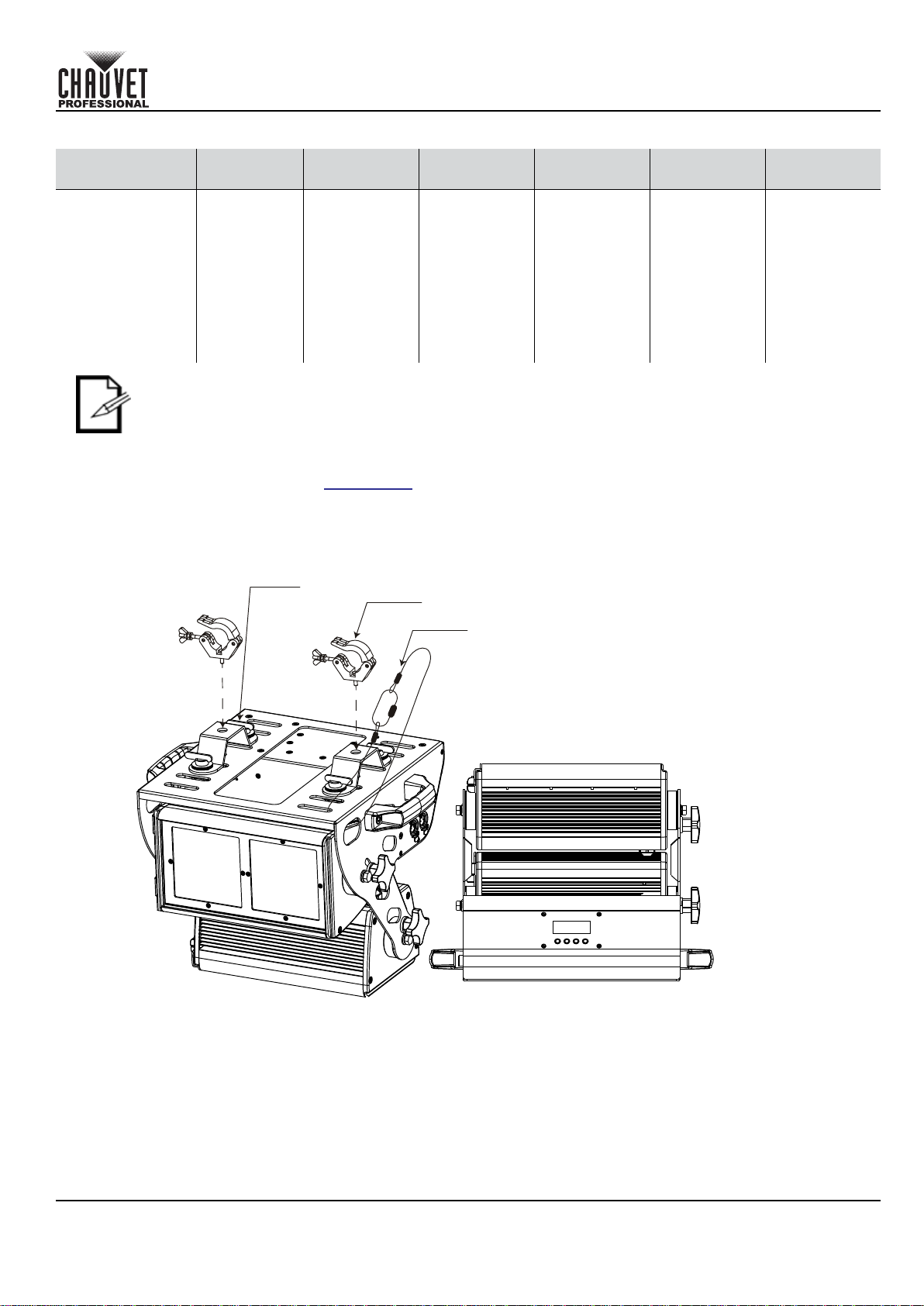

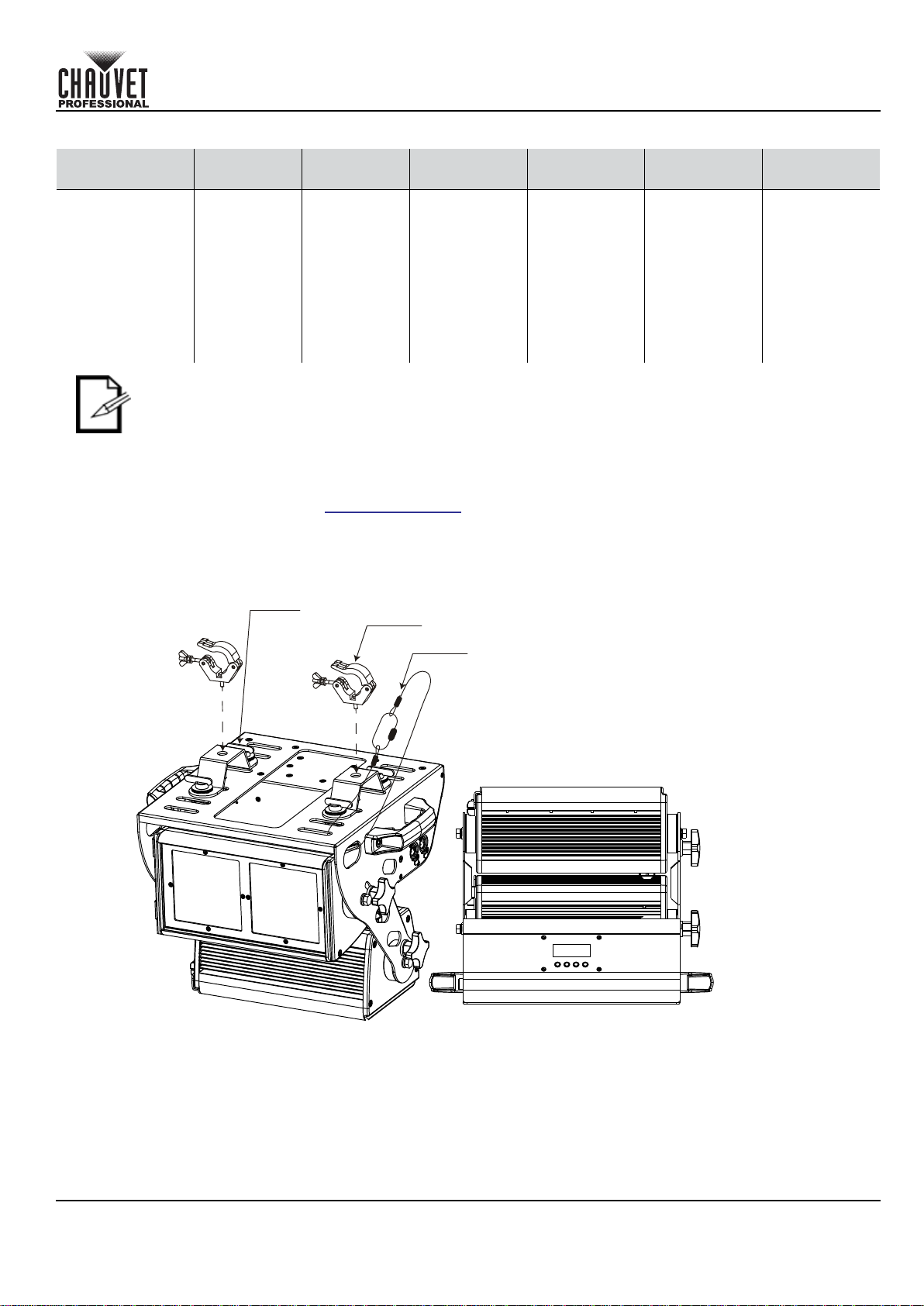

Product Mounting Diagram
DMX Channel
Value Display Readout Red Value Green Value Blue Value Amber Value Lime Value
000 005
006 025
026 050
051 075
076 100
101 125
126 150
151 175
176 200
201 225
226 255
--
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
--
000
185
190
200
195
195
195
200
181
180
000
000
160
180
194
204
212
219
229
230
233
000
000
90
102
111
122
132
140
148
152
157
000
000
248
148
249
249
249
249
251
252
252
000
000
180
180
180
180
187
187
181
182
182
000
Note: The color temperatures above are simulated renditions of the color output produced as
compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of
the color output accuracy.
Safety Cable
Mounting Clamp
Omega Bracket
Overhead
Mounting Floor Mounting

5
EN
QUICK REFERENCE GUIDE
Ovation C-805FC QRG Rev. 3
Control Panel Description
Passcode
After being prompted, enter the following passcode by pressing:
<UP>, <DOWN>, <UP>, <DOWN>, <ENTER>
This passcode cannot be changed and must be used whenever prompted.
Menu Map
Button Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the currently selected value into the
selected function
<UP> Navigates upwards through the menu list or increases the numeric value when in a
function
<DOWN> Navigates downwards through the menu list or decreases the numeric value when in
a function
Main Level Programming Levels Description
Start
Address 001–510* Selects starting address (*highest
channel restricted to personality
chosen)
Personality
1-Cell
DMX-VCW-CCT 3CH 3-channel: dimmer, virtual color
wheel, color temperature
RGB 3CH 3-channel: RGB
RGBA 4CH 4-channel: RGBA
RGBAL 5CH 5-channel: RGBAL
RGB EXT 8CH 8-channel: 16-bit dimmer, RGB, virtual color wheel, color
temperature, strobe
RGBA EXT 9CH 9-channel: 16-bit dimmer, RGBA, virtual color wheel, color
temperature, strobe
RGBAL EXT 10CH 10-channel: 16-bit dimmer, RGBAL, virtual color wheel, color
temperature, strobe
RGBAL Fine 10CH 10-channel: 16-bit RGBAL
RGBAL FULL 17CH 17-channel: 16-bit dimmer, 16-bit
RGBAL, virtual color wheel, color
temperature, strobe, color macros,
dimmer mode
2-Cell
RGB 6CH 6-channel: RGB (per cell)
RGBA 8CH 8-channel: RGBA (per cell)
RGBAL 10CH 10-channel: RGBAL (per cell)
RGB EXT 15CH 15-channel: 16-bit dimmer, RGB
(per cell), virtual color wheel (per
cell), color temperature (per cell),
strobe (per cell)
RGBA EXT 17CH 17-channel: 16-bit dimmer, RGBA
(per cell), virtual color wheel (per
cell), color temperature (per cell),
strobe (per cell)
RGBAL EXT 19CH 19-channel: 16-bit dimmer, RGBAL
(per cell), virtual color wheel (per
cell), color temperature (per cell),
strobe (per cell)
RGBAL Fine 20CH 20-channel: 16-bit RGBAL (per cell)
RGBAL FULL 31CH
31-channel: 16-bit dimmer, 16-bit
RGBAL(per cell), virtual color wheel
(per cell), color temperature (per
cell), strobe (per cell), color macros,
dimmer mode

EN
6
Ovation C-805FC QRG Rev. 3
QUICK REFERENCE GUIDE
VCW
(Virtual
Color
Wheel)
VCW
(Virtual
Color
Wheel)
R4590-Cal90 Yellow
Dimmer
000-255
Virtual Color Wheel simulates the
output of each gel color. Refer to the
Color Chart section for specific
values.
R11-Light Straw
R312-Canary
R03-Dark BAmber
R18-Flame
R20-Medium Amber
R21-Golden Amber
R26-Light Red
R27-Medium Red
R33-NoColor Pink
R337-True Pink
R38-Light Rose
R41-Salmon
R42-Deep Salmon
R44-Middle Rose
R349-Fisher Fuchsia
R54-Special Lavender
R64-Light Steel Blue
R364-Blue Bell
R65-Daylight Blue
R80-Primary Blue
R81-Urban Blue
R82-Surprise Blue
R382-Congo Blue
R83-Medium Blue
R383-Sapphire Blue
R90-Dk Yellow Green
R91-Primary Green
R92-Turquoise
R93-Blue Green
R393-Emerald Green
CCT
(Color Temperature)
2800K
Preset white color temperatures.
Emulates a tungsten lamp at the
specified color temperature. Refer
to the Color Temperature Chart
section for specific values.
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
MCM
(Manual Color Mixer)
Red Combine red, green, blue, amber,
and lime to make a custom color
(0–100%)
Green
Blue
Amber
Lime
Auto Show
Auto 1
Speed 1–100 Selects automatic programs and
auto program speed
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8
Auto 9
Fade
Main Level Programming Levels Description

7
EN
QUICK REFERENCE GUIDE
Ovation C-805FC QRG Rev. 3
Ovation C-805FC Sections for DMX Cell Control
Master/
Slave Master Master mode
Slave Slave mode
Dimmer
Mode
Off Linear dimmer
Dimmer 1 Fast dimmer curve
Dimmer 2 Medium dimmer curve
Dimmer 3 Slow dimmer curve
White
Balance
Off Uses factory default white setting
Manual
Red
125–255
Sets red LED maximum value
Green Sets green LED maximum value
Blue Sets blue LED maximum value
Amber Sets amber LED maximum value
Lime Sets lime LED maximum value
LED
Frequency
600Hz
Selects the PWM output frequency
1200Hz
2000Hz
2400Hz
6000Hz
18KHz
25KHz
Display Normal Normal display orientation
Inverted Inverted display
Back Light
On Display backlight always on
10S Turns off display backlight after 10
sec of inactivity
20S Turns off display backlight after 20
sec of inactivity
30S Turns off display backlight after 30
sec of inactivity
Information
Fixture Hours _ _ _ _ Shows total product hours
Version V_._-V_ _ Shows installed software version
Device ID _ _ _ _ _ _ _ _ _ Shows product device ID
UID _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID
Factory
Setting No Reset to factory defaults
Yes
Main Level Programming Levels Description
2
1

EN
8
Ovation C-805FC QRG Rev. 3
QUICK REFERENCE GUIDE
DMX Values
2-Cell Personalities
RGBAL
Full 31 CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2 Fine Dimmer 000 255 0-100%
3 Red 1 000 255 0-100%
4 Red Fine 1 000 255 0-100%
5 Green 1 000 255 0-100%
6 Green Fine 1 000 255 0-100%
7 Blue 1 000 255 0-100%
8 Blue Fine 1 000 255 0-100%
9 Amber 1 000 255 0-100%
10 Amber Fine 1 000 255 0-100%
11 Lime 1 000 255 0-100%
12 Lime Fine 1 000 255 0-100%
13 Virtual Color
Wheel 1 000 255 Refer to the Color Chart section for specific values
14 Color
Temperature 1 000 255 Refer to the Color Temperature Chart section for specific values
15 Strobe 1 000 010
011 255 No function Strobe, slow to fast
16 Red 2 000 255 0-100%
17 Red Fine 2 000 255 0-100%
18 Green 2 000 255 0-100%
19 Green Fine 2 000 255 0-100%
20 Blue 2 000 255 0-100%
21 Blue Fine 2 000 255 0-100%
22 Amber 2 000 255 0-100%
23 Amber Fine 2 000 255 0-100%
24 Lime 2 000 255 0-100%
25 Lime Fine 2 000 255 0-100%
26 Virtual Color
Wheel 2 000 255 Refer to the Color Chart section for specific values
27 Color
Temperature 2 000 255 Refer to the Color Temperature Chart section for specific values
28 Strobe 2 000 010
011 255 No function Strobe, slow to fast
29 Strobe All 000 010
011 255 No function Strobe, slow to fast
30 Color Macros 000 015
016 255 No function Color macros
31 Dimmer Speed
000 051
052 101
102 152
153 203
204 255
Preset dimmer speed from display menu
Dimmer speed mode off
Dimmer speed mode 1 (fastest)
Dimmer speed mode 2
Dimmer speed mode 3 (slowest)

9
EN
QUICK REFERENCE GUIDE
Ovation C-805FC QRG Rev. 3
RGBAL
Fine 20CH Channel Function Value Percent/Setting
1 Red 1 000 255 0–100%
2 Red Fine 1 000 255 0–100%
3 Green 1 000 255 0–100%
4 Green Fine 1 000 255 0–100%
5 Blue 1 000 255 0–100%
6 Blue Fine 1 000 255 0–100%
7 Amber 1 000 255 0–100%
8 Amber Fine 1 000 255 0–100%
9 Lime 1 000 255 0–100%
10 Lime Fine 1 000 255 0–100%
11 Red 2 000 255 0–100%
12 Red Fine 2 000 255 0–100%
13 Green 2 000 255 0–100%
14 Green Fine 2 000 255 0–100%
15 Blue 2 000 255 0–100%
16 Blue Fine 2 000 255 0–100%
17 Amber 2 000 255 0–100%
18 Amber Fine 2 000 255 0–100%
19 Lime 2 000 255 0–100%
20 Lime Fine 2 000 255 0–100%
RGBAL
EXT 19CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0–100%
2 Dimmer Fine 000 255 0–100%
3 Red 1 000 255 0–100%
4 Green 1 000 255 0–100%
5 Blue 1 000 255 0–100%
6 Amber 1 000 255 0–100%
7 Lime 1 000 255 0–100%
8Virtual Color
Wheel 1 000 255 Refer to the Color Chart section for specific values
9Color
Temperature 1 000 255 Refer to the Color Temperature Chart section for specific values
10 Strobe 1 000 010
011 255 No function Strobe, slow to fast
11 Red 2 000 255 0–100%
12 Green 2 000 255 0–100%
13 Blue 2 000 255 0–100%
14 Amber 2 000 255 0–100%
15 Lime 2 000 255 0–100%
16 Virtual Color
Wheel 2 000 255 Refer to the Color Chart section for specific values
17 Color
Temperature 2 000 255 Refer to the Color Temperature Chart section for specific values
18 Strobe 2 000 010
011 255 No function Strobe, slow to fast
19 Strobe All 000 010
011 255 No function Strobe, slow to fast

EN
10
Ovation C-805FC QRG Rev. 3
QUICK REFERENCE GUIDE
RGBAEXT
17CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2 Fine Dimmer 000 255 0-100%
3 Red 1 000 255 0-100%
4 Green 1 000 255 0-100%
5 Blue 1 000 255 0-100%
6 Amber 1 000 255 0-100%
7Virtual Color
Wheel 1 000 255 Refer to the Color Chart section for specific values
8Color
Temperature 1 000 255 Refer to the Color Temperature Chart section for specific values
9 Strobe 1 000 010
011 255 No function Strobe, slow to fast
10 Red 2 000 255 0-100%
11 Green 2 000 255 0-100%
12 Blue 2 000 255 0-100%
13 Amber 2 000 255 0-100%
14 Virtual Color
Wheel 2 000 255 Refer to the Color Chart section for specific values
15 Color
Temperature 2 000 255 Refer to the Color Temperature Chart section for specific values
16 Strobe 2 000 010
011 255 No function Strobe, slow to fast
17 Strobe All 000 010
011 255 No function Strobe, slow to fast
RGB EXT
15 CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2 Fine Dimmer 000 255 0-100%
3 Red 1 000 255 0-100%
4 Green 1 000 255 0-100%
5 Blue 1 000 255 0-100%
6Virtual Color
Wheel 1 000 255 Refer to the Color Chart section for specific values
7Color
Temperature 1 000 255 Refer to the Color Temperature Chart section for specific values
8 Strobe 1 000 010
011 255 No function Strobe, slow to fast
9 Red 2 000 255 0-100%
10 Green 2 000 255 0-100%
11 Blue 2 000 255 0-100%
12 Virtual Color
Wheel 2 000 255 Refer to the Color Chart section for specific values
13 Color
Temperature 2 000 255 Refer to the Color Temperature Chart section for specific values
14 Strobe 2 000 010
011 255 No function Strobe, slow to fast
15 Strobe All 000 010
011 255 No function Strobe, slow to fast

11
EN
QUICK REFERENCE GUIDE
Ovation C-805FC QRG Rev. 3
RGBAL
10 CH Channel Function Value Percent/Setting
1 Red 1 000 255 0-100%
2 Green 1 000 255 0-100%
3 Blue 1 000 255 0-100%
4 Amber 1 000 255 0-100%
5 Lime 1 000 255 0-100%
6 Red 2 000 255 0-100%
7 Green 2 000 255 0-100%
8 Blue 2 000 255 0-100%
9 Amber 2 000 255 0-100%
10 Lime 2 000 255 0-100%
RGBA 8CH Channel Function Value Percent/Setting
1 Red 1 000 255 0-100%
2 Green 1 000 255 0-100%
3 Blue 1 000 255 0-100%
4 Amber 1 000 255 0-100%
5 Red 2 000 255 0-100%
6 Green 2 000 255 0-100%
7 Blue 2 000 255 0-100%
8 Amber 2 000 255 0-100%
RGB 6CH Channel Function Value Percent/Setting
1 Red 1 000 255 0-100%
2 Green 1 000 255 0-100%
3 Blue 1 000 255 0-100%
4 Red 2 000 255 0-100%
5 Green 2 000 255 0-100%
6 Blue 2 000 255 0-100%

EN
12
Ovation C-805FC QRG Rev. 3
QUICK REFERENCE GUIDE
1-Cell Personalities
RGBAL
FULL
17CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2 Fine Dimmer 000 255 0-100%
3 Red 000 255 0-100%
4 Red Fine 000 255 0-100%
5 Green 000 255 0-100%
6 Green Fine 000 255 0-100%
7 Blue 000 255 0-100%
8 Blue Fine 000 255 0-100%
9 Amber 000 255 0-100%
10 Amber Fine 000 255 0-100%
11 Lime 000 255 0-100%
12 Lime Fine 000 255 0-100%
13 Virtual Color
Wheel 1 000 255 Refer to the Color Chart section for specific values
14 Color
Temperature 1 000 255 Refer to the Color Temperature Chart section for specific values
15 Strobe 000 010
011 255 No function Strobe, slow to fast
16 Color Macros 000 015
016 255 No function Color macros
17 Dimmer Speed
000 051
052 101
102 152
153 203
204 255
Preset dimmer speed from display menu
Dimmer speed mode off
Dimmer speed mode 1 (fastest)
Dimmer speed mode 2
Dimmer speed mode 3 (slowest)
RGBAL
Fine 10CH Channel Function Value Percent/Setting
1 Red 000 255 0-100%
2 Red Fine 000 255 0-100%
3 Green 000 255 0-100%
4 Green Fine 000 255 0-100%
5 Blue 000 255 0-100%
6 Blue Fine 000 255 0-100%
7 Amber 000 255 0-100%
8 Amber Fine 000 255 0-100%
9 Lime 000 255 0-100%
10 Lime Fine 000 255 0-100%

13
EN
QUICK REFERENCE GUIDE
Ovation C-805FC QRG Rev. 3
RGBAL
EXT 10CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2 Dimmer Fine 000 255 0-100%
3 Red 000 255 0-100%
4 Green 000 255 0-100%
5 Blue 000 255 0-100%
6 Amber 000 255 0-100%
7 Lime 000 255 0-100%
8Virtual Color
Wheel 000 255 Refer to the Color Chart section for specific values
9Color
Temperature 000 255 Refer to the Color Temperature Chart section for
specific values
10 Strobe 000 010
011 255 No function Strobe, slow to fast
RGBAEXT
9CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2 Fine Dimmer 000 255 0-100%
3 Red 000 255 0-100%
4 Green 000 255 0-100%
5 Blue 000 255 0-100%
6 Amber 000 255 0-100%
7Virtual Color
Wheel 000 255 Refer to the Color Chart section for specific values
8Color
Temperature 000 255 Refer to the Color Temperature Chart section for specific values
9 Strobe 000 010
011 255 No function Strobe, slow to fast
RGB EXT
8CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2 Fine Dimmer 000 255 0-100%
3 Red 000 255 0-100%
4 Green 000 255 0-100%
5 Blue 000 255 0-100%
6Virtual Color
Wheel 000 255 Refer to the Color Chart section for specific values
7Color
Temperature 000 255 Refer to the Color Temperature Chart section for specific values
8 Strobe 000 010
011 255 No function Strobe, slow to fast
RGBAL
5CH Channel Function Value Percent/Setting
1 Red 000 255 0-100%
2 Green 000 255 0-100%
3 Blue 000 255 0-100%
4 Amber 000 255 0-100%
5 Lime 000 255 0-100%

EN
14
Ovation C-805FC QRG Rev. 3
QUICK REFERENCE GUIDE
RGBA 4CH Channel Function Value Percent/Setting
1 Red 000 255 0-100%
2 Green 000 255 0-100%
3 Blue 000 255 0-100%
4 Amber 000 255 0-100%
RGB 3CH Channel Function Value Percent/Setting
1 Red 000 255 0-100%
2 Green 000 255 0-100%
3 Blue 000 255 0-100%
DMX-
VCW-CCT
3CH Channel Function Value Percent/Setting
1 Dimmer 000 255 0-100%
2Virtual Color
Wheel 000 255 Refer to the Color Chart section for specific values
3Color
Temperature 000 255 Refer to the Color Temperature Chart section for specific values

15
ES
GUÍA DE REFERENCIA RÁPIDA
Ovation C-805FC QRG Rev. 3
Acerca de Esta Guía
La Guía de Referencia Rápida (GRR) del Ovation C-805FC contiene información básica sobre el producto, como
montaje, opciones de menú y valores DMX. Descargue el manual de usuario de www.chauvetprofessional.com for more
details.
Exención de Responsabilidad
La información y especificaciones contenidas en esta GRR están sujetas a cambio sin previo aviso.
Notas de Seguridad
• NO abra este producto. No contiene piezas reparables por el usuario.
• NO mire a la fuente de luz cuando el producto esté encendido.
• Para evitar un desgaste innecesario y alargar su vida útil, desconecte complemente el producto de la
alimentación, mediante el interruptor
• o desenchufándolo, durante los periodos en los que no se use.
• Cuidado: cuando transfiera el producto desde ambientes con temperatura extrema (p. ej., del remolque frío de un
camión a una sala de baile con calor y humedad), puede formarse condensación en la electrónica interna del
producto. Para evitar que se produzca una avería, deje que el producto se aclimate completamente al ambiente
antes de conectar la alimentación.
• ¡CUIDADO! La carcasa de este producto está caliente cuando las luces están en funcionamiento.
• Monte este producto en una ubicación con ventilación adecuada, al menos a 20'' (50 cm) de superficies
adyacentes.
• NO deje ningún material inflamable a menos de 50 cm de este producto mientras esté funcionando o conectado
a la alimentación.
• USE un cable de seguridad cuando monte este producto en lo alto.
• NO ponga en funcionamiento este producto en el exterior o en cualquier ubicación en la que el polvo, calor
excesivo, agua o humedad puedan afectarlo.
• NO ponga en funcionamiento este producto si sospecha que la carcasa, lentes o cables están dañados.
• NO conecte este producto a un atenuador o reostato.
• Conecte este producto SOLO a un circuito con toma de tierra y protegido.
• Use SOLAMENTE los soportes de colgar/montar o las asas para mover este producto.
• En caso de un problema grave de funcionamiento, deje de usarlo inmediatamente.
• La máxima temperatura ambiente es de 113 °F (45 °C). No haga funcionar este producto a temperaturas más
altas.
Contacto
Fuera de EE.UU, Reino Unido, Irlanda, México o Benelux, póngase en contacto con su distribuidor para solicitar
asistencia o devolver el producto.Visite Contact Us para información de contacto.
Qué va Incluido
• Ovation C-805FC
• Cable de Alimentación Neutrik® powerCON®
• 2 Marcos de Gel accesorios 5,32 x 9,65 '' (135 x 245 mm)
• 2 Soportes Omega
• Tarjeta de Garantía
• Guía de Referencia Rápida

ES
16
Ovation C-805FC QRG Rev. 3
GUÍA DE REFERENCIA RÁPIDA
Corriente Alterna
Este producto tiene una fuente de alimentación con detección automática que puede funcionar con un rango de tensión
de entrada de 100–240 VCA, 50/60 Hz.
Alimentación en Cadena
Puede enlazar hasta 9 productos Ovation C-805FC a 120 V, o 17 productos a 230 V. Los cables de alimentación en
cadena se pueden adquirir por separado.
Enchufe CA
Sustitución del Fusible
1. Desconecte el producto de la toma de corriente.
2. Con un destornillador de estrella Nº2 desatornille la tapa del portafusibles.
3. Quite el fusible fundido del portafusibles y sustitúyalo con otro del mismo tipo y categoría.
4. Vuelva a atornillar la tapa del portafusibles en su sitio y conecte de nuevo la alimentación.
Enlace DMX
El Ovation C-805FC funcionará con un controlador DMX usando una conexión serie DMX normal. Hay un Manual DMX
disponible en www.chauvetprofessional.com.
Conexión DMX
El Ovation C-805FC usa una conexión de datos DMX normal para suspersonalidades DMX: que van de 3CH a 31CH en
modos de 1 celda y modos de 2 celdas:
Conexión Maestro/Esclavo
El Ovation C-805FC usa la conexión de datos DMX para su modo Maestro/Esclavo Vea el Manual de usuario para
conectar y configurar para funcionamiento Maestro/Esclavo.
RDM (gestión remota del dispositivo)
Remote Device Management (gestión remota del dispositivo) o RDM, es un estándar que permite a los dispositivos con
capacidad DMX una comunicación bidireccional por un cableado DMX existente. El Ovation C-805FC admite protocolo
RDM, que posibilita información para supervisar cambiar las opciones del mapa de menú. Descargue el manual de
usuario de www.chauvetprofessional.com para una información más detallada.
Conexión Cable (EE.UU) Cable (Europa) Color del Tornillo
CA Cargado Negro Marrón Amarillo/Bronce
CA Neutro Blanco Azul Plata
CATierra Verde/Amarillo Verde/Amarillo Verde
Para evitar un desgaste innecesario y alargar su vida útil, desconecte complemente el producto
de la alimentación, mediante el interruptor o desenchufándolo, durante los periodos en los que
no se use.
Modo 1 Celda 2 Celda
DMX-VCW-CCT 3 N/A
RGB 3 6
RGBA 4 8
RGBAL 5 10
RGB EXT 8 15
RGBA EXT 9 17
RGBAL EXT 10 19
RGBAL Fine 10 20
RGBAL FULL 17 31
!

17
ES
GUÍA DE REFERENCIA RÁPIDA
Ovation C-805FC QRG Rev. 3
Rueda de Color Virtual (VCW)
El Ovation C-805FC cuenta con una nueva característica llamada Rueda de Color Virtual (VCW). Esta característica
está disponible como modo de control independiente para uso manual y también como canal de control en cada una de
las personalidades DMX del dispositivo. Más una treintena de colores pre-mezclados basados en los colores de gel más
populares de están disponibles para su utilización, facilitando la programación. Cuando seleccione los colores
manualmente en la Rueda de Color Virtual, el número de gel correspondiente aparecerá en la pantalla LED para una
selección más cómoda y facilidad de uso.
Tabla de Colores
Valor del Canal
DMX Lectura en Pantalla Valor Rojo Valor Verde Valor Azul Valor Ámbar Valor Lime
000 005
006 013
014 021
022 028
029 035
036 043
044 051
052 059
060 067
068 075
076 083
084 091
092 099
100 107
108 115
116 121
122 130
131 138
139 146
147 154
155 162
163 170
171 178
179 186
187 194
195 202
203 210
211 218
219 226
227 234
235 242
243 250
251 255
--
C90Y
R11
R312
R03
R18
R20
R21
R26
R27
R33
R337
R38
R41
R42
R44
R349
R54
R64
R364
R65
R80
R81
R82
R382
R83
R383
R91
R92
R93
R393
R90
--
000
246
251
227
255
255
255
250
255
215
255
255
255
255
255
255
255
255
177
190
101
048
127
082
100
055
015
020
047
091
063
043
000
000
195
175
185
143
169
162
126
080
005
129
064
068
049
015
020
000
202
255
225
255
175
187
217
000
150
100
123
094
180
147
170
000
000
028
043
002
064
063
006
031
038
033
105
104
106
046
058
105
106
117
169
152
153
155
138
218
160
150
092
025
032
084
075
073
000
000
176
203
235
085
219
244
243
050
002
250
217
245
164
167
255
009
017
219
238
218
000
081
154
000
000
035
049
043
123
094
043
000
000
212
203
191
175
070
136
119
029
002
222
238
252
108
000
132
101
227
230
235
137
124
136
219
000
020
030
051
039
175
133
087
000
Nota: Los colores listados son interpretaciones simuladas de la emisión de color generada en
comparación con otros productos incandescentes similares. Chauvet no garantiza la exactitud
del color emitido.

ES
18
Ovation C-805FC QRG Rev. 3
GUÍA DE REFERENCIA RÁPIDA
Gráfico de temperaturas de color
Montaje
Antes de montar este producto, lea las Notas de Seguridad. Use at least one mounting point per product. Make sure the
mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps/
Diagrama de Montaje del Producto
Valor del Canal
DMX Lectura en Pantalla Valor Rojo Valor Verde Valor Azul Valor Ámbar Valor Limón
000 005
006 025
026 050
051 075
076 100
101 125
126 150
151 175
176 200
201 225
226 255
--
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
--
000
185
190
200
195
195
195
200
181
180
000
000
160
180
194
204
212
219
229
230
233
000
000
90
102
111
122
132
140
148
152
157
000
000
248
148
249
249
249
249
251
252
252
000
000
180
180
180
180
187
187
181
182
182
000
Nota: Las temperaturas de color que aparecen arriba son interpretaciones simuladas de la
emisión de color producida cuando se compara con una lámpara de tungsteno a la temperatura
de color especificada. Chauvet no garantiza la exactitud del color emitido.
Cable de Seguridad
Soporte de Montaje
Soporte Omega (2x)
Montaje en Alto Montaje en Suelo

19
ES
GUÍA DE REFERENCIA RÁPIDA
Ovation C-805FC QRG Rev. 3
Descripción del Panel de Control
Código de acceso
Después de que se le solicite, introduzca el siguiente código de acceso pulsando:
<UP>, <DOWN>, <UP>, <DOWN>, <ENTER>
Este código no se puede cambiar y se debe usar cuando se le solicite.
Botón Función
<MENU> Sale del menú o función actual
<ENTER> Habilita el menú actualmente en pantalla o configura el valor seleccionado
actualmente dentro de la función seleccionada
<UP> Navega hacia arriba por la lista de menú y aumenta el valor numérico cuando está
en una función
<DOWN> Navega hacia abajo por la lista de menú y disminuye el valor numérico cuando está
en una función
