1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6Show Bar Pro 16x10W RGBAW IP65
LED Floodlight

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
Show Bar Pro 16x10W RGBAW IP65 7
LED Floodlight

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Letterings
Displays
General information
8Show Bar Pro 16x10W RGBAW IP65
LED Floodlight

Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
General information
Show Bar Pro 16x10W RGBAW IP65 9
LED Floodlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
10 Show Bar Pro 16x10W RGBAW IP65
LED Floodlight

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord). Do not modify the mains cable. Failure to do so could result in
electric shock/death or re. If in doubt, seek advice from a registered electrician.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
WARNING!
Risk of burns
The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and
after switching o wait for at least 15 minutes.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
Show Bar Pro 16x10W RGBAW IP65 11
LED Floodlight

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series must
not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the device.
Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient dimensioning
(wire cross section) of the power cables used for all devices connected in series.
Safety instructions
12 Show Bar Pro 16x10W RGBAW IP65
LED Floodlight

3 Features
The LED oodlight is particularly suited for professional lighting tasks in tour and festival use.
n16 5-in-1 RGBAW LEDs (10 W each)
nspecial positioning of the LEDs for superior colour mixing already over short distances
nalso suited for xed installation due to extensive control options
nOperating modes
– DMX (four modes) with the optionally available IP65 DMX adapter cable
– automatic with 25 preprogrammed shows
– master / slave
– manually via buttons and display at the unit
nrobust and weatherproof metal housing
nvarious mounting options
nsplash-proof connectors
nprotection type IP65, suitable for outdoor use
nSplashproof safety plug (IP44)
nPressure compensation element (prevents condensation inside the device)
nwith the optionally available lter (item no. 437012), the beam angle can be increased
from 20° to 50°
Features
Show Bar Pro 16x10W RGBAW IP65 13
LED Floodlight

Equipment with protection class IP65 are dust-tight and completely protected against contact
(rst code number). They are also protected against splash water from any angle (second code
digit). That is why this equipment can also be used outdoors. Event technology equipment is
generally only designed for temporary use however (event lighting) and not for permanent
use outdoors.
The specied protection class does not make a statement about the weather resistance of the
equipment (resistance to changing ambient conditions as well as against the eects of sun‐
light and UV rays).
The seals and screw connections of the equipment must be checked regularly to ensure a
fault-free operation. In cases of doubt, consult a specialist workshop in due time.
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Information about protection
class IP65
Features
14 Show Bar Pro 16x10W RGBAW IP65
LED Floodlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
NOTICE!
Risk of overheating
Always ensure sucient ventilation.
The ambient temperature must not exceed the limits stated in the chapter Tech‐
nical Specications of the User Manual.
Installation
Show Bar Pro 16x10W RGBAW IP65 15
LED Floodlight

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
NOTICE!
Possible damage due to moisture
Moisture entering into open connectors (plugs and couplers) of DMX or power
cords can cause short circuits.
Close unused connectors with end caps intended for this purpose
(www.thomann.de).
Installation
16 Show Bar Pro 16x10W RGBAW IP65
LED Floodlight

ö # $
Proceed as follows to connect the DMX-IP65 connectors:
1. Insert the plug completely and straight into the coupling.
2. Make sure that the exible sealing ring has complete contact.
3. Turn the union nut straight onto the thread of the coupling. Hand-tighten the union nut.
You can install the device on the wall, the ceiling or on the oor. Two mounting brackets and
the necessary screws are included.
Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the unit must be cordoned o.
Connecting the DMX IP65 con‐
nectors
Mounting options
Installation
Show Bar Pro 16x10W RGBAW IP65 17
LED Floodlight

The lter, optionally available as accessory (item no. 437012), can be xed at the front of the
unit with four undetachable thumb screws. Place the lter onto the front side and tighten the
screws successively nger-tight.
Attaching the lter
Installation
18 Show Bar Pro 16x10W RGBAW IP65
LED Floodlight

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one and so on,
to form a series connection.
Such a chain may consist of up to 30 DMX devices. Make sure that the output of the last device
in the chain is terminated by a resistor (110 Ω, ¼W).
Connections in ‘DMX’ mode
Starting up

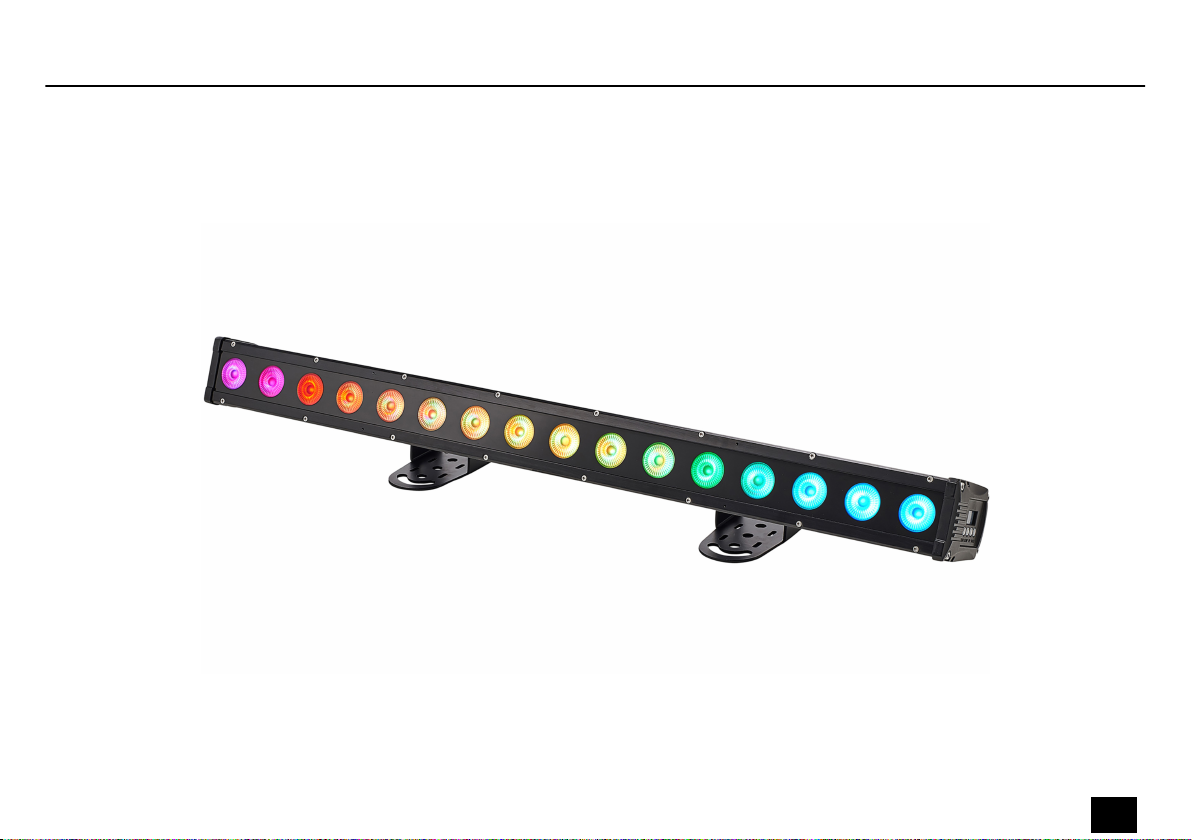

Show Bar Pro 16x10W RGBAW IP65 19
LED Floodlight

If the unit is in DMX mode and a DMX controller is connected and turned on, the ‘d’ is ashing
in the rst digit of the display.
When you congure a group of devices in ‘Master / Slave’ mode, the rst unit will control the
others. This feature is especially useful to start a show without much programming. Connect
the DMX output of the master unit to the DMX input of the rst slave unit. Then connect the
DMX output of the rst slave unit to the DMX input of the second slave unit and so on (max‐
imum 30 slaves).
Please note that this device must not be connected to a dimmer.
DMX indicator
Connections in ‘Master /
Slave‘ mode
Starting up
20 Show Bar Pro 16x10W RGBAW IP65
LED Floodlight
