Stam Audio SA-16 User manual

STAM AUDIO ENGINEERING
SA-16 - USER MANUAL
SA-16 - USER MANUAL PAGE 1

STAM AUDIO ENGINEERING
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with the arrowhead symbol, within an equilateral triangle, is to alert the user
to the presence of non insulated dangerous voltage within the products enclosure that may be
of sufficient magnitude to constitute a risk of electric shock to humans.
The exclamation point within an equilateral triangle is intended to alert the users to the presence
of important operating and maintenance.
All the following safety and operating instructions should be read before operating the unit.
Caution to reduce the risk of electric shock
● Do not remove the top cover (or the rear section). No user serviceable parts
inside. Refer servicing to qualified personnel.
Caution to reduce the risk of fire or electric shock
● Do not expose the equipment to rain and moisture.
● The equipment shall not be exposed to dripping or splashing liquids and no
objects filled with liquids shall be placed on the equipment.
● To reduce the risk of electric shock do not perform any servicing other than that
contained in the operation instructions.
● Repairs have to be performed by qualified service personnel.
● Read these instructions.
● Keep these instructions.
● Heed all warnings.
● Follow all instructions.
● Do not use this equipment near water.
● Clean only with dry cloth.
● Do not block any ventilation openings.
● Install in accordance with the manufacturer’s instructions.
● Do not install near any heat sources
SA-16 - USER MANUAL PAGE 2

STAM AUDIO ENGINEERING
● Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
● Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the equipment.
● Use only attachments/accessories specified by the manufacturer.
● Unplug this equipment during lightning storms or when unused for long periods of
time.
● Refer all servicing to qualified service personnel. Servicing is required when the
equipment has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the equipment, the
equipment has been exposed to rain or moisture, does not operate normally, or
has been dropped.
● The equipment shall be connected to a MAINS socket outlet with a protective
earthing connection.
● Correct disposal of this product: This product must not be disposed of with
household waste, according to the WEEE Directive (2012/19/EU) and your
national law. This product should be taken to a collection center licensed for the
recycling of waste electrical and electronic equipment (EEE). The mishandling of
this type of waste could have a possible negative impact on the environment and
human health due to potentially hazardous substances that are generally
associated with EEE. At the same time, your cooperation in the correct disposal
of this product will contribute to the efficient use of natural resources. For more
information about where you can take your waste equipment for recycling, please
contact your local city office, or your household waste collection service.
● Do not install in a confined space.
● Do not place naked flame sources, such as lighted candles, on the equipment.
20. Please keep the environmental aspects of battery disposal in mind. Batteries
must be disposed-of at a battery collection point. 21. Use this equipment in
tropical and/or moderate climates.
● Stam Audio accepts no liability for any loss which may be suffered by any person
who relies either wholly or in part upon any description, photograph, or statement
contained herein. Technical specifications, appearances and other information
are subject to change without notice.
SA-16 - USER MANUAL PAGE 3

STAM AUDIO ENGINEERING
1.0 INTRODUCTION
The SA-16 is a modern, state-of-the art, active summing amplifier capable of providing
the character from two legendary flavors of the 70’s; accomplished by switching
between two fully discrete, independent output stages.
Every audio signal goes through a THAT CORP 1240 chip as a line receiver; from there
the signal goes into the summing circuit, centered around a 134 Op-Amp which is
recognized as the best integrated Op-Amp on the market. Finally, the signal reaches the
output stage; where you can select between three different flavors: a clean & wide solid
state choice (as found on the Oxford consoles), an “A” styled 2520 Op-Amp based
output section as found on vintage American consoles (in your face, punchy and tight)
and an “N” styled BA-440 output section (as found on the legendary 33609) giving you
instant “British” vibe & attitude!
The SA-16 features three balanced stereo insert points; allowing you to add your favorite
external units (such as compressors, limiters, and equalizers). A fully stepped output
level control and three selectable output stages (Standard, British and American MODs)
round-out the features of the SA-16!
1.1 COMPONENTS OVERVIEW
● Individual channel THAT-CORP line drivers with InGenius technology
● Audio grade relay switching system
● Precision metal film resistors and Vishay capacitors
● UTM audio transformers
SA-16 - USER MANUAL PAGE 4

STAM AUDIO ENGINEERING
● Fully discrete output stages on British and American mods
● Sifam Knobs / VU Meter
1.2 FEATURES
● 16 true balanced mono input channels
● individual MONO button on each input pair
● true balanced, stereo insert points on input pair 1-2 , 9-10 and Master output.
● 3dB stepped output level control
● 3 selectable output stages (MOD)
● Additional Stereo Aux input
● Additional Stereo Aux output
● External power supply
●Output level meter

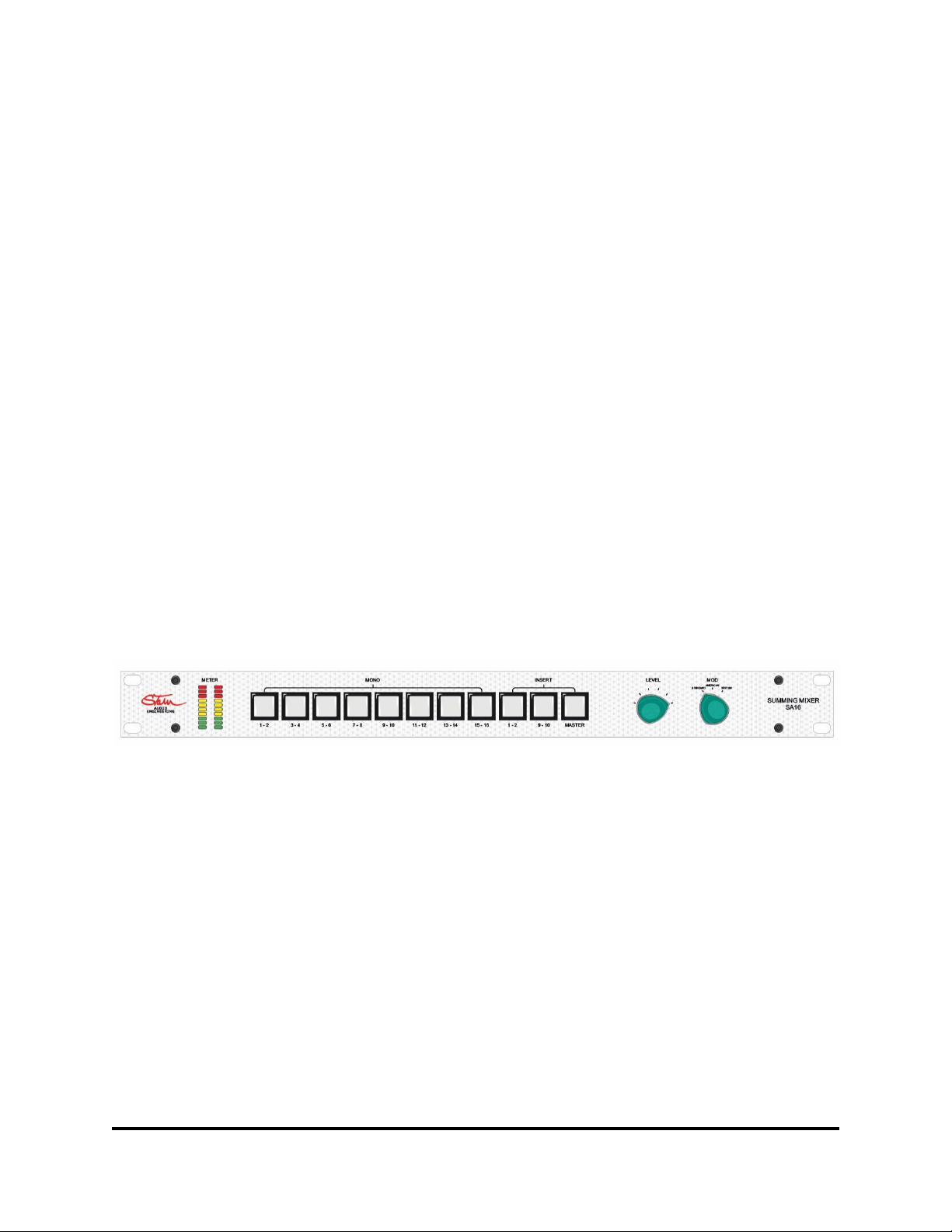

2.0 CONTROLS
2.1 MONO:
Routes the selected stereo input pair to the center, following the equal power pan law.
2.2 INSERT:
Routes the selected signal pair to the SEND/RETURN connections (see the CONNECTIONS
section for the DB25 pinout), allowing to connect an external outboard as a true balanced insert.
2.3 LEVEL:
A stepped output level control (3dB each step), from -9 to +6.
2.4 MOD:
Select 3 completely independent output stages (Standard, American, British)
SA-16 - USER MANUAL PAGE 5

STAM AUDIO ENGINEERING
3.0 AUDIO CONNECTIONS
INPUTS 1-8
Inputs channels 1-8 ascending, according to Tascam D-SUB25 standard
INPUTS 9-16
Inputs channels 9-16 ascending, according to Tascam D-SUB25 standard
INSERTS
1-2 : INSERT CH.1 SEND/RETURN
3-4 : INSERT CH.2 SEND/RETURN
5-6 : INSERT CH.9 SEND/RETURN
7-8 : INSERT CH.10 SEND/RETURN
AUX/OUT
1-2 : STEREO AUX OUT (COPY of L-R)
3-4 : MASTER OUT LEFT INSERT SEND/RETURN
5-6 : MASTER OUT RIGHT INSERT SEND/RETURN
7-8 : STEREO AUX IN
SA-16 - USER MANUAL PAGE 6

STAM AUDIO ENGINEERING
SA-16 - USER MANUAL PAGE 7
