Stamina Seated Inversion Therapy System User manual

When calling for parts or
service, please specify
the following number :
Model#: 55-1541A
CAUTION:
Weight on this product should not exceed 250 lbs.
Owner's
Manual
This Product is Produced Exclusively by
2040 N. Alliance, Springeld, MO 65803
Customer Service
1 [phone]
www.staminaproducts.com
Product May Vary Slightly From Pictured.
!WARNING !
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
STAMINA PRODUCTS
MADE IN CHINA
© 2010 Stamina Products, Inc.
2010, 07

TABLE OF CONTENTS
Safety Instructions ...................................... 2
Before You Begin ........................................ 4
Equipment Warning & Notice Labels ........ 5
Hardware Identication Chart .................... 6
Assembly Instructions ................................ 7
Operational Instructions ........................... 12
Storage ....................................................... 15
Maintenance ............................................... 15

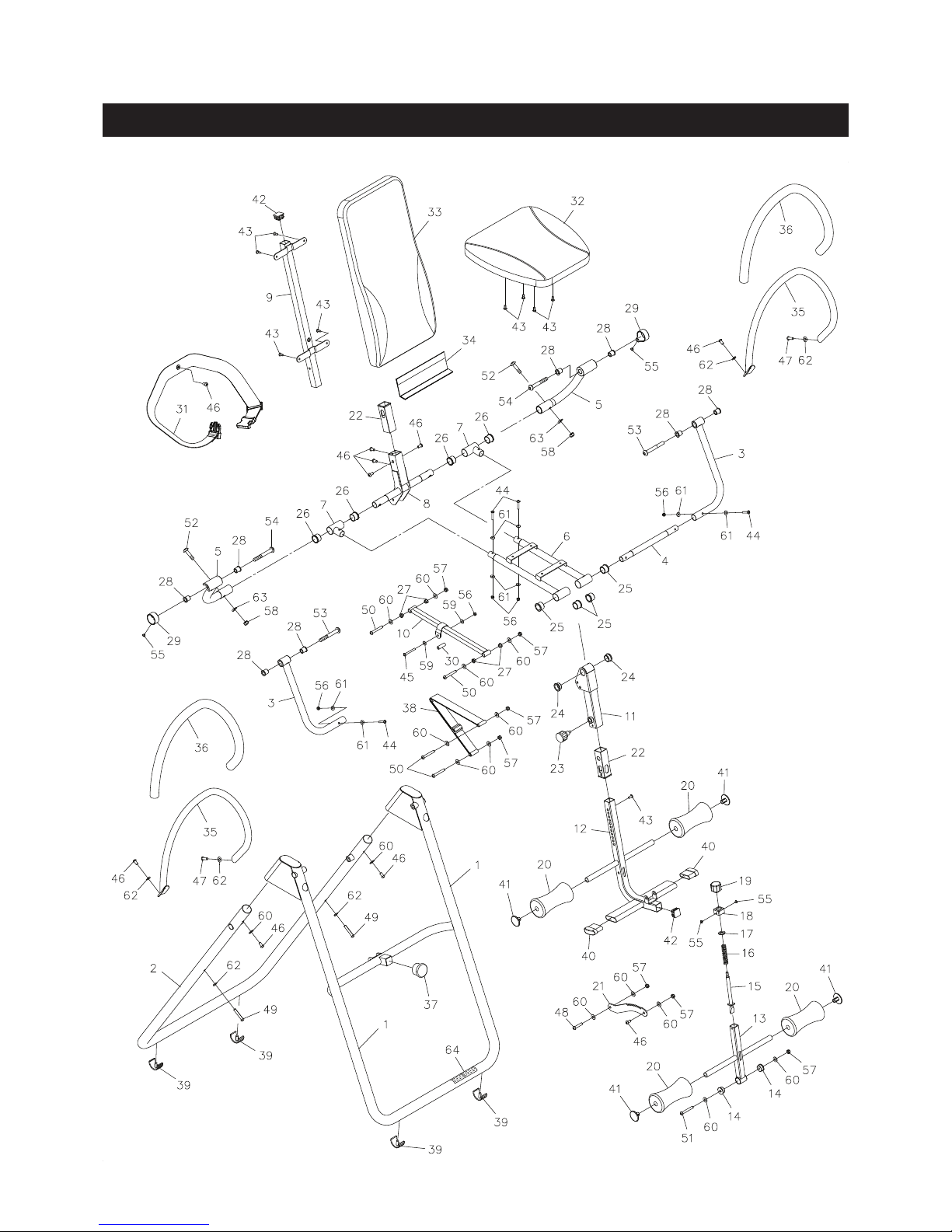

Product Parts Drawing .............................. 16
Parts List .................................................... 17
Warranty ..................................................... 19
Notes ........................................................... 20
Fax/Mail Ordering Form ............................ 22
SAFETY INSTRUCTIONS
2
WARNING: Before using this equipment you should consult with your personal physician to see if
inversion equipment is appropriate for you. Do not use this equipment without your physician’s
approval. Do not use this equipment if you have any of the following conditions or ailments:
!
Extreme obesity
Glaucoma, retinal detachment or conjunctivitis
Pregnancy
Spinal injury, cerebral sclerosis, or acutely swollen joints
Middle ear infection
High blood pressure, hypertension, recent stroke or transient ischemic attack
Heart or circulatory disorders for which you are being treated
Hiatus hernia or ventral hernia
Bone weaknesses including osteoporosis, unhealed fractures, medullary pins, or
Surgically implanted orthopedic supports.
Use of anti-coagulants including aspirin in high doses
1. Read all warnings posted on the Seated Inversion Therapy System.
2. The Seated Inversion Therapy System should only be used after a thorough review of the
Owner's Manual.
3. We recommend that two people be available for assembly of this product.
4. Do not use the Seated Inversion Therapy System alone. Always have a helper available in case
assistance is needed in recovering from the decline position.
5. Always use the seat belt. Make sure the seat belt is securely fastened before inverting.
6. You must understand how to recover from the inverted position before using the Seated Inversion
Therapy System.
7. Do not allow children to use or play on the Seated Inversion Therapy System.
8. Keep small children and pets away from the Seated Inversion Therapy System at all times.
9. The Seated Inversion Therapy System should not be used by persons weighing more than 250 lbs.
10. The Seated Inversion Therapy System should not be used by persons over 6 feet 6 inches tall.
11. It is recommended that you place this exercise equipment on an equipment mat.
12. Use the Seated Inversion Therapy System only on a level surface.
13. Wear appropriate clothing when exercising; do not wear loose clothing that could become caught
in the Seated Inversion System.
14. Be sure the Seated Inversion Therapy System is placed in an area where there is enough room
for the seat to rotate completely.
15. Use the Seated Inversion Therapy System only as described in the manual.
16. The safety level of the Seated Inversion Therapy System can be maintained only if it is
examined regularly for damage and wear.
17. This equipment is for home use only. It is not for commercial use.
!WARNING: This product contains a chemical known to the State of California to cause
cancer and birth defects or other reproductive harm.
!WARNING: To reduce the risk of serious injury, read the following Safety Instructions
before using the Seated Inversion Therapy System.

THANK YOU FOR PURCHASING THE
Seated Inversion Therapy System
To help you get started, we have pre-assembled most of your
Seated Inversion Therapy System at the factory with the exception
of those few parts left unassembled for shipping purposes.
Simply follow the few assembly instructions set forth in this manual.
With regular workouts, you will be getting your body into shape
and be on your way to achieving a happier and healthier lifestyle.
Should you have any questions,
please call our Customer Service Department toll-free number,
1 [phone]
Monday - Thursday, 7:30 A.M. - 5:00 P.M., Central Time.
Friday, 8:00 A.M. - 3:00 P.M., Central Time.
TELEPHONE
CUSTOMER SERVICE
Tel: [phone]
FAX
CUSTOMER SERVICE
Fax: [phone]
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Service
P.O. Box 1071
Springeld, MO. 65801-1071
ONLINE
CUSTOMER SERVICE
[email protected]
www.staminaproducts.com
3
Call Us First
www.staminaproducts.com
1(800) 375-7520
Customer Service

THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY:
Thank you for choosing the Seated Inversion
Therapy System. We take great pride in producing
this quality product and hope it will provide many
hours of quality exercise to make you feel better,
look better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The Seated Inversion
Therapy System provides a convenient and
simple method to begin your assault on getting
your body in shape and achieving a happier and
healthier lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled.
Read this manual carefully before using the
Seated Inversion Therapy System.
BEFORE YOU BEGIN
Although Stamina constructs its products with
the nest materials and uses the highest standards
of manufacturing and quality control, there can
sometimes be missing parts or incorrectly sized
parts. If you have any questions or problems with
the parts included with your Seated Inversion
Therapy System, please do not return the
product. Contact us FIRST!
If a part is missing or defective, please call
us toll free at 1-800-375-7520 (in the U.S.). Our
Customer Service Staff is available to assist you
from 7:30 A.M. to 5:00 P.M. (Central Time) Monday
through Thursday and 8:00 A.M. to 3:00 P.M.
(Central Time) on Friday.
If you would like to contact us online, go to our
website at www.staminaproducts.com and access
the Customer Service section.
Be sure to have the name and model number of
the product available when you contact us.
4
Allen Wrench (6mm)
Allen Wrench (8mm)
Rear Pivot Arm
Warning Label
Security Belt
Handrail
Back Cushion
Leg Adjustment Frame
Handrail
Seat Belt
Front Pivot Arm
Swing Bar
Rear Frame
Foam Pad
Seat
Knob
Lever
Stand
Front Frame
Combination Wrench
Allen Wrench (4mm)

Label is larger than actual size
This chart is provided to help identify the warning and notice labels on the Seated Inversion
Therapy System. Please take a moment to familiarize yourself with all of the warning and notice
labels.
EQUIPMENT WARNING & NOTICE LABELS
WARNING LABEL(64)W1
5

49 Bolt, Button Head (M8 x 1.25 x 50mm) 2
50 Bolt, Button Head (M8 x 1.25 x 55mm) 1
57 Nylock Nut (M8 x 1.25) 1
60 Washer (M8) 4
Part Number and Description Qty
43 Round Head Bolt (M6 x 1 x 15mm) 9
46 Bolt, Button Head (M8 x 1.25 x 15mm) 9
47 Bolt, Button Head (M8 x 1.25 x 25mm) 2
62 Arc Washer (M8) 6
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
length
length
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
55 Screw, Round Head (M4 x 6mm) 2
HARDWARE IDENTIFICATION CHART
6
mm.
in.
INCHES
MILLIMETERS
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1/2 1 1/2 2 1/2 3 1/2 4 1/2 5 1/2 6
6 8 10 12
3/16" 1/4" 5/16" 3/8" 1/2"
53 Bolt, Button Head (M12 x 1.75 x 85mm) 2
54 Bolt, Button Head (M12 x 1.75 x 95mm) 2

Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the
packing materials until assembly is completed. Read each step carefully before beginning. If you
are missing a part please call our toll-free number for assistance 1-800-375-7520 or e-mail us at
[email protected].
ASSEMBLY INSTRUCTIONS
STEP 1
Insert the REAR FRAME(2) into the brackets on the FRONT FRAME(1) and secure with BUTTON
HEAD BOLTS(M8x1.25x15mm)(46) and WASHERS(M8)(60).
7

ASSEMBLY INSTRUCTIONS
STEP 2
Position the SWING BAR(11) at the front of the BUMPER(37). Attach the FRONT PIVOT ARMS(3) to
the FRONT FRAME(1) with BUTTON HEAD BOLTS(M12x1.75x85mm)(53) on both sides.
STEP 3
Refer to detail drawing A. Slide the RING COVERS(29) over the REAR PIVOT ARMS(5). Then attach
the REAR PIVOT ARMS(5) to the REAR FRAME(2) with BUTTON HEAD BOLTS(M12x1.75x95mm)(54)
on both sides.
STEP 4
Refer to detail drawing B. Align the holes on the RING COVER(29) and the REAR PIVOT ARM(5), then
secure with ROUND HEAD SCREW(M4x6mm)(55). Repeat on other side.
STEP 5
Attach the bottom end of the SECURITY BELT(38) to the bracket on the FRONT FRAME(1) with
BUTTON HEAD BOLT(M8x1.25x55mm)(50), WASHERS(M8)(60), and NYLOCK NUT(M8x1.25)(57).
8
A.
B.
Back-Bottom View
FRONT
NOTE: Do not over tighten BUTTON HEAD BOLTS(53, 54) as the FRONT and REAR PIVOT ARMS(3, 5)
must be able to pivot freely after BUTTON HEAD BOLTS(53, 54) are tightened.

ASSEMBLY INSTRUCTIONS

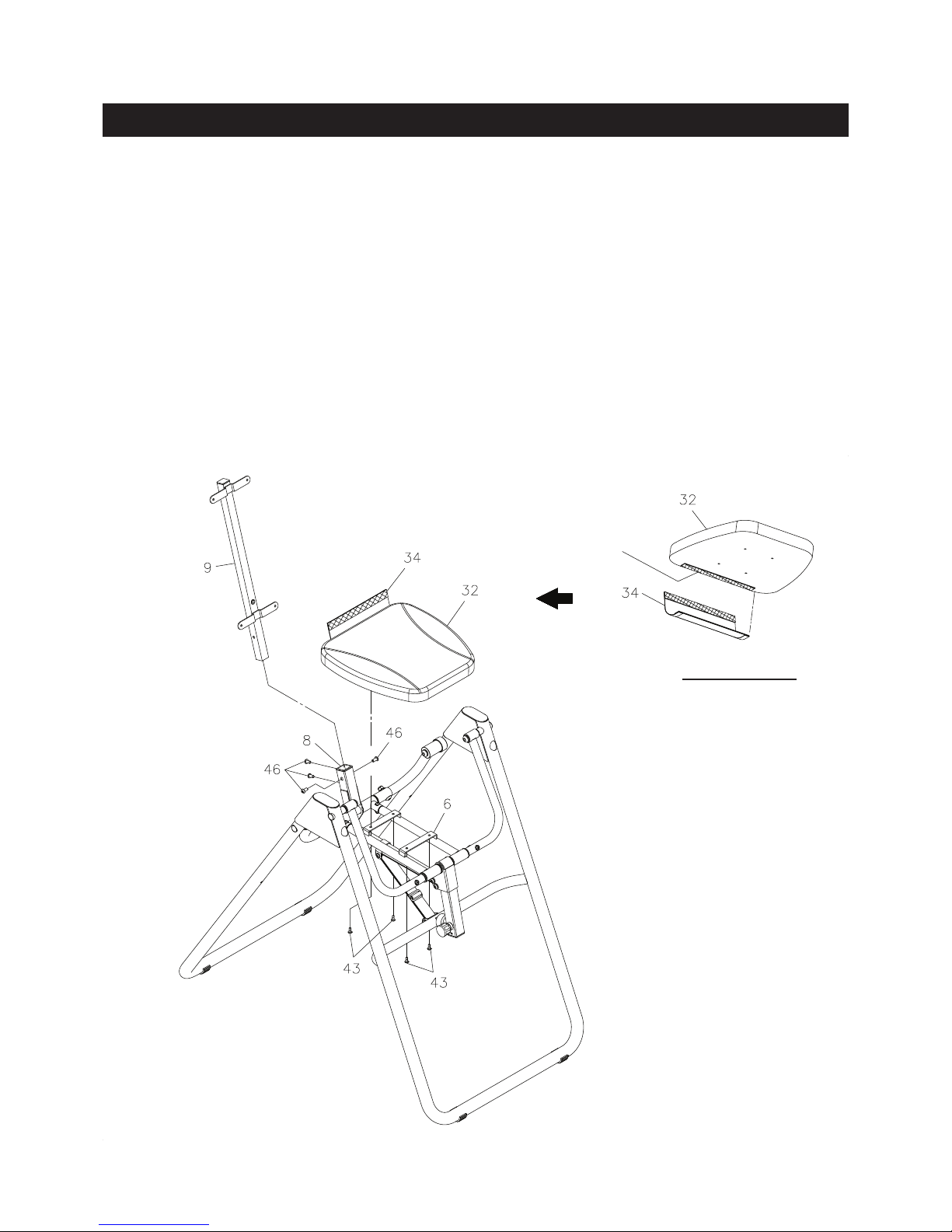

STEP 6
Insert the BACK FRAME(9) into the BACK PIVOT FRAME(8) and secure BUTTON HEAD BOLTS
(M8x1.25x15mm)(46).
STEP 7
Refer to the Bottom View of the illustration below. Align the hook and loop material on the HINGE WEAR
COVER(34) and the SEAT(32), then press them to attach together.
STEP 8
Attach the SEAT(32) to the SEAT FRAME(6) with ROUND HEAD BOLTS(M6x1x15mm)(43).
9
Bottom View
hook and
loop material

ASSEMBLY INSTRUCTIONS
10
STEP 9
Attach the SEAT BELT(31) to the BACK FRAME(9) with BUTTON HEAD BOLTS(M8x1.25x15mm)(46).
STEP 10
Refer to the Back View of the illustration below. Align the hook and loop material on the HINGE WEAR
COVER(34) and the BACK CUSHION(33), then press them to attach together. Attach the BACK
CUSHION(33) to the BACK FRAME(9) with ROUND HEAD BOLTS(M6x1x15mm)(43).
NOTE: Pull the upper part of the BACK CUSHION(33) back and invert the system so that the BACK
CUSHION(33) and SEAT(32) are in the same plane. Check that the HINGE WEAR COVER(34)
is not too tight or too loose when the unit is in its inverted position. If necessary, adjust the
position of the HINGE WEAR COVER(34) on the BACK CUSHION(33) and the SEAT(32).
Back View
hook and
loop material

ASSEMBLY INSTRUCTIONS
11

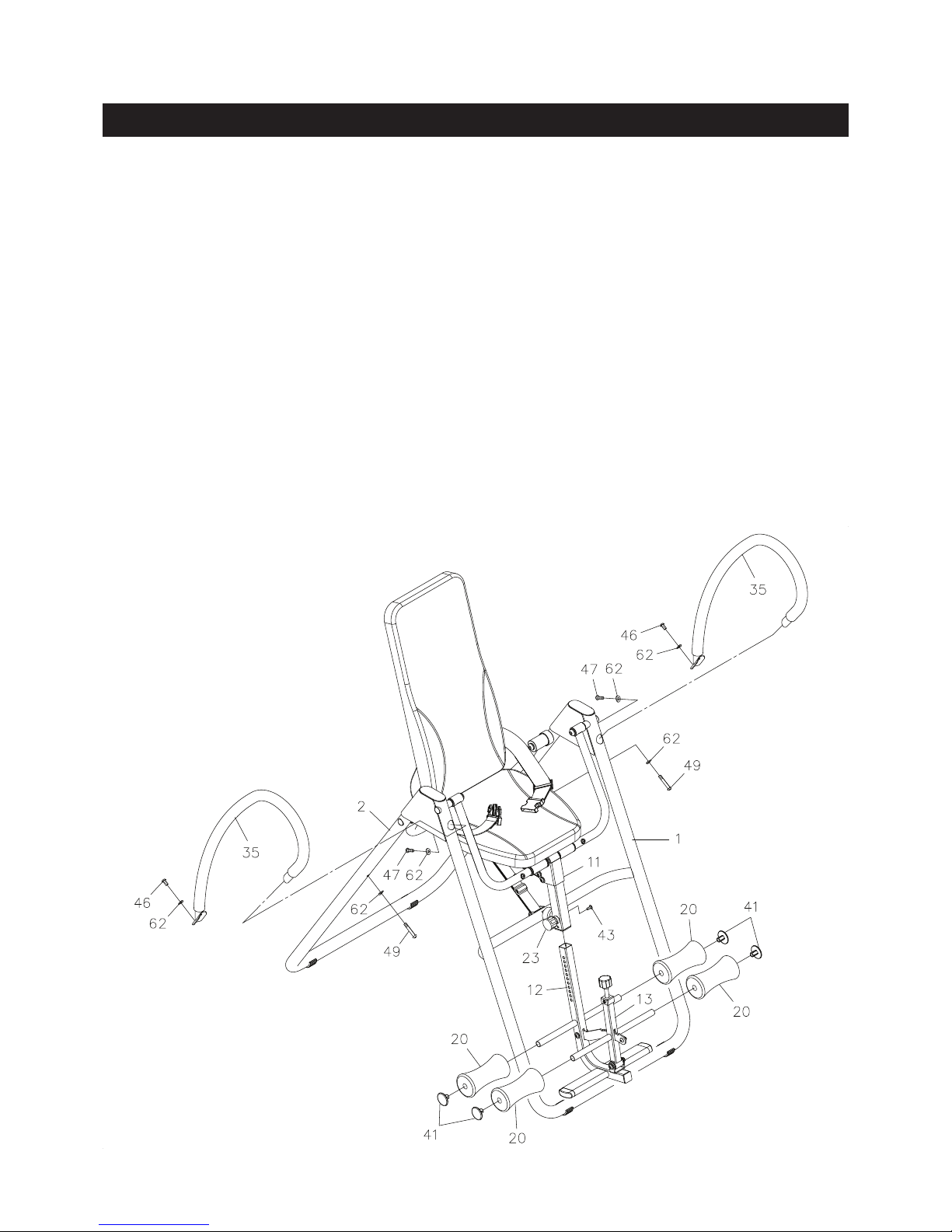

STEP 11: Insert the upper end of the HANDRAIL(35) into the FRONT FRAME(1) and secure with
BUTTON HEAD BOLTS(M8x1.25x25mm)(47) and ARC WASHER(M8)(62). Do no tighten the
bolt. Attach the lower end of the HANDRAIL(35) to the REAR FRAME(2) with BUTTON HEAD
BOLTS(M8x1.25x15mm)(46), BUTTON HEAD BOLTS(M8x1.25x50mm)(49), and ARC WASHER(M8)
(62). Tighten the BUTTON HEAD BOLTS(M8x1.25x25mm)(47). Repeat on other side.
STEP 12: Pull the ADJUSTMENT KNOB(23) and insert the LEG ADJUSTMENT FRAME(12) into the
SWING BAR(11). Align the holes on the LEG ADJUSTMENT FRAME(12) and the SWING BAR(11).
Then insert the ROUND HEAD BOLT(M6x1x15mm)(43) through the SWING BAR(11) and bolt into the
LEG ADJUSTMENT FRAME(12).
NOTE: The pin on the ADJUSTMENT KNOB(23) must be inserted into one of the adjustment holes in
the LEG ADJUSTMENT FRAME(12). The ADJUSTMENT KNOB(23) should be screwed in tight
to make the LEG ADJUSTMENT FRAME(12) t securely in the SWING BAR(11).
STEP 13: Slide the FOAM PADS(20) onto both sides of the LEG ADJUSTMENT FRAME(12) and the
LEVER(13). Press the ROUND PLUGS(41) into the round tubes on the LEG ADJUSTMENT FRAME(12)
and the LEVER(13).

2. Adjustable Belt: This belt is used to control the
inversion decline angle of the Seated Inversion
Therapy System. For a steeper decline angle, adjust the buckle higher to lengthen the belt. For a
less steep angle, adjust the buckle lower to shorten the belt. Check the decline angle as you like
before using the Seated Inversion Therapy System.
12
OPERATIONAL INSTRUCTIONS
GENERAL PRECAUTIONS
1. Do not use the Seated Inversion Therapy System alone. Always have a helper available in case
assistance is needed in recovering from the decline position.
2. Make sure the SECURITY BELT(38) is attached on the Seated Inversion Therapy System properly.
Check the SECURITY BELT(38) for damage and wear.
3. Make sure that the LEG ADJUSTMENT FRAME(12) is properly set for your height.
4. Make sure that the FOAM PADS(20) are holding your feet properly.
5. Make sure that there is enough room for the Seated Inversion Therapy System to rotate completely.
SECURITY BELT ADJUSTMENT
Buckle
Limit Belt
Buckle
adjusted to the
lowest position.
Buckle
adjusted to the
highest position.
Min. Decline Angle, 10 Degree. Max. Decline Angle, 50 Degree.
The SECURITY BELT(38) included a double belt design,
please refer to the illustration.
1. Limit Belt: This belt is a very important safety device
to limit the Seated Inversion Therapy System's
maximum inversion decline angle. If you pass the
maximum inversion decline angle limit, the support
frames of the FOAM PADS(20) which hold your feet
will continue inverting backward and could cause
serious bodily injury or death to the user.
Adjustable Belt
Before use, always check the SECURITY BELT(38) to be sure it is attached on the
Seated Inversion Therapy System properly, and is free from damage and wear. Failure
of the SECURITY BELT(38) can cause serious bodily injury or death.
STOP!

OPERATIONAL INSTRUCTIONS
13

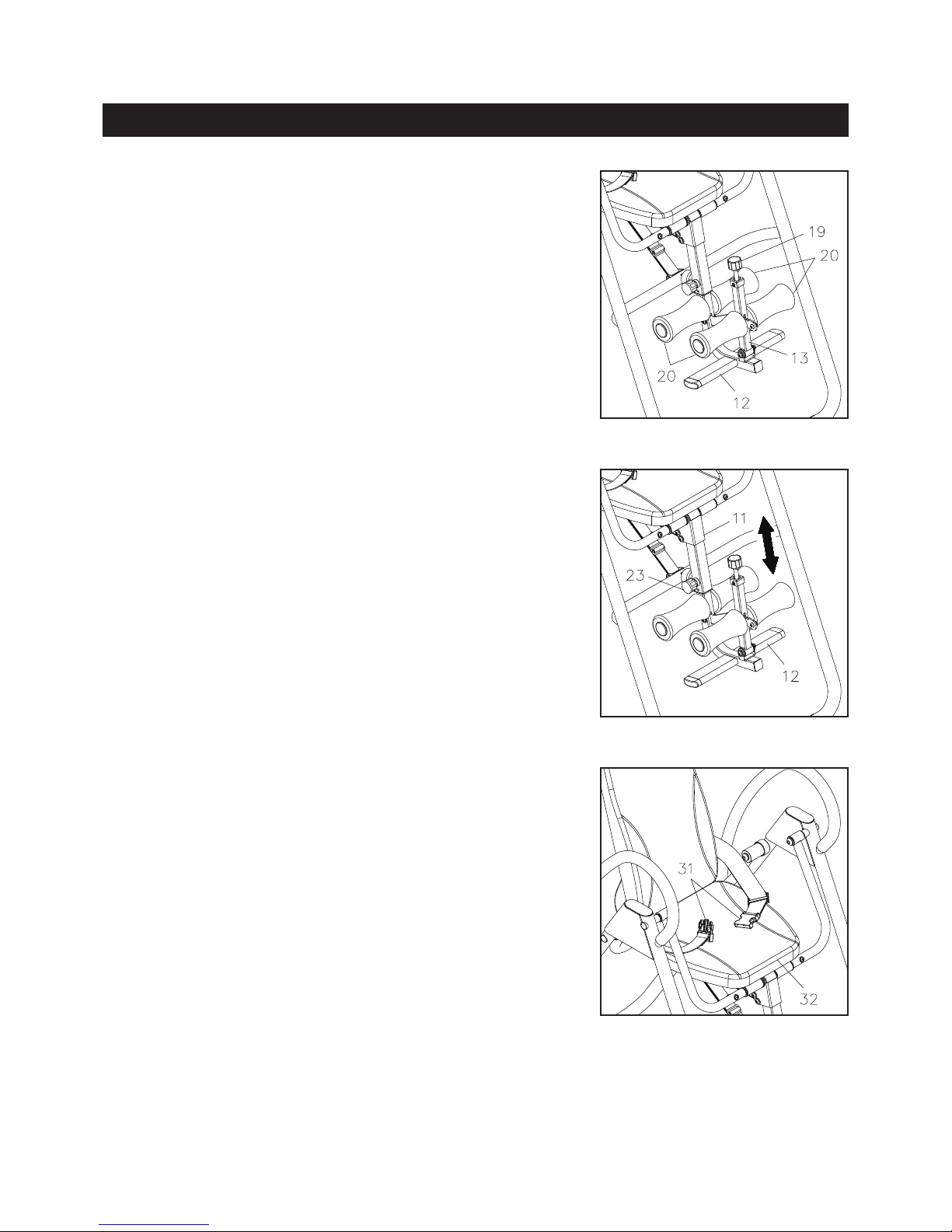

Proper adjustment of the LEG ADJUSTMENT FRAME(12) is very
important.
1. Loosen the ADJUSTMENT KNOB(23) on the SWING BAR(11).
2. Pull the ADJUSTMENT KNOB(23) and slide the LEG
ADJUSTMENT FRAME(12) to adjust.
3. Sit on the machine to make sure you feel comfortable with the
FOAM PADS(20).
4. Tighten the ADJUSTMENT KNOB(23) after adjustment.
LEG HEIGHT ADJUSTMENT
FOAM PAD USE AND LEVER ADJUSTMENT
1. Place your feet under the FOAM PADS(20) with your ankles
between the FOAM PADS(20).
2. Pull the KNOB(19) and swing the LEVER(13) toward you until
your ankles are comfortably yet rmly held between the FOAM
PADS(20).
3. To release your feet or relax the grip, pull the KNOB(19) and
swing the LEVER(13) forward.
THE SEAT BELT
CAUTION: Always use the SEAT BELT(31). Make sure the SEAT
BELT(31) is securely fastened before inverting.
Sit on the SEAT(32). Place both ends of the SEAT BELT(31) on top
of your upper legs and connect the buckles of the SEAT BELT(31).

OPERATIONAL INSTRUCTIONS
THE HANDRAILS
The HANDRAILS(35) are located on both sides of the Seated
Inversion Therapy System. The HANDRAILS(35) are to
help you return from inversion to the upright position. Pull the
HANDRAILS(35) and pull yourself to the upright position.
1. Start by sitting on the machine and leaning back on the BACK CUSHION(33) with your hands at your
side, or resting on your thighs.
2. Use the HANDRAILS(35) and both hands to rotate the BACK CUSHION(33) slowly backward until the
inversion stopped by the SECURITY BELT(38).
3. It is recommended that the Seated Inversion Therapy System be used for ve or ten minutes each
morning, and again each evening.
4. Grasp the HANDRAILS(35), and pull yourself to the upright position.
USING THE SEATED INVERSION THERAPY SYSTEM
SUGGESTIONS FOR USE
14
1. Begin slowly: invert only 15-20 degrees to begin with. Stay inverted only as long as you are
comfortable. Return upright slowly.
2. Make gradual changes: increase the angle only if it is comfortable. Increase the angle only a few
degrees at a time. Increase the time of use 1-2 minutes up to ten over a period of weeks. Add
stretching and light exercise only after you are comfortable with inversion.
3. Watch your body: come up slowly, dizziness after a session means you came up too fast. Wait a while
after eating before using the Seated Inversion Therapy System. If you get nauseous, do not ght it,
come up as soon as you feel queasy.
4. Keep moving:Movement may be accomplished by either rhythmic traction or light
exercise. Do not exercise strenuously while inverted. Limit partial inversion without movement to one
or two minutes. Limit full inversion with no movement to only a few seconds.
5. Invert regularly: we recommend two or three times a day depending upon your current condition. Try
to schedule it for the same times each day.

The safety and integrity designed into the Seated Inversion Therapy System can only be maintained
when the Seated Inversion Therapy System is regularly examined for damage and wear. Special
attention should be given to the following:
STORAGE
MAINTENANCE
15
1. To store the Seated Inversion Therapy System, simply keep it in a clean dry place.
2. Move the Seated Inversion Therapy System by lifting the frame and moving slowly.
NOTE: Two people are required to move the Seated Inversion Therapy System.
1. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
2. Check the security belt, seat belt, pivot arms, cushions, foam pads, adjustment pin, and lever device
for damage and wear.
3. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Tighten loose nuts and bolts.
4. Worn or damaged components shall be replaced immediately or the Seated Inversion Therapy
System removed from service until repair is made.
5. Verify that the WARNING LABEL(64) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement WARNING LABEL(64) if it is missing or damaged.
6. Only Stamina Products supplied components shall be used to maintain/repair the Seated Inversion
Therapy System.
7. Keep your Seated Inversion Therapy System clean by wiping with an absorbent cloth after use.

PRODUCT PARTS DRAWING
16
BACK
FRONT

PART# PART NAME QTY
1 Front Frame 1
2 Rear Frame 1
3 Front Pivot Arm 2
4 Shaft 1
5 Rear Pivot Arm 2
6 Seat Frame 1
7 Seat Frame Connecter 2
8 Back pivot frame 1
9 Back Frame 1
10 Linkage 1
11 Swing Bar 1
12 Leg Adjustment Frame 1
13 Lever 1
14 Lever Bushing 2
15 Claw Bar 1
16 Spring 1
17 Support Washer 1
18 Retaining Cap 1
19 Knob 1
20 Foam Pad 4
21 Ratchet Plate 1
22 Sleeve 2
23 Adjustment Knob 1
24 Leg Extension Bushing 2
25 Seat Frame Bushing 4
26 Connecter Bushing 4
27 Linkage Bushing 4
28 Pivot Arm Bushing 8
29 Ring Cover 2
30 Roller 1
31 Seat Belt 1
32 Seat 1
33 Back Cushion 1
34 Hinge Wear Cover 1
35 Handrail 2
36 Foam Grip 2
37 Bumper 1
38 Security Belt 1
39 Stand 4
40 Oval Endcap (20 x 60mm) 2
41 Round Plug (25.4mm) 4
42 Square Plug (30 x 30mm) 2
43 Bolt, Round Head (M6 x 1 x 15mm) 9
44 Bolt, Round Head (M6 x 1 x 35mm) 4
45 Bolt, Round Head (M6 x 1 x 55mm) 1
46 Bolt, Button Head (M8 x 1.25 x 15mm) 10
47 Bolt, Button Head (M8 x 1.25 x 25mm) 2
PARTS LIST
17

48 Bolt, Button Head (M8 x 1.25 x 40mm) 1
49 Bolt, Button Head (M8 x 1.25 x 50mm) 2
50 Bolt, Button Head (M8 x 1.25 x 55mm) 4
51 Bolt, Button Head (M8 x 1.25 x 60mm) 1
52 Bolt, Button Head (M10 x 1.5 x 45mm) 2
53 Bolt, Button Head (M12 x 1.75 x 85mm) 2
54 Bolt, Button Head (M12 x 1.75 x 95mm) 2
55 Screw, Round Head (M4 x 6mm) 4
56 Nylock Nut (M6 x 1) 5
57 Nylock Nut (M8 x 1.25) 7
58 Nylock Nut (M10 x 1.5) 2
59 Washer (M6) 2
60 Washer (M8) 15
61 Arc Washer (M6) 8
62 Arc Washer (M8) 6
63 Arc Washer (M10) 2
64 Warning Label 1
65 Combination Wrench 1
66 Allen Wrench (4mm) 1
67 Allen Wrench (6mm) 1
68 Allen Wrench (8mm) 1
69 Manual 1
PART# PART NAME QTY
PARTS LIST
18

LIMITED WARRANTY
WARRANTY
MODEL 55-1541A
Stamina Products, Inc. warrants that this product will be free from defects in materials and workmanship
under normal use, service and proper operation for a period of 90 days on the parts and one year on
the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY SHALL
NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE, ABUSE,
MISUSE, ALTERATION OF ANY TYPE OR CAUSE OR TO ANY DEFECT OR DAMAGE CAUSED BY
REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS OTHER THAN PARTS PROVIDED
BY STAMINA PRODUCTS, INC. Commercial use includes use of the product in athletic clubs, health
clubs, spas, gymnasiums, exercise facilities, and other public or semipublic facilities whether or not the
product's use is in furtherance of a prot making enterprise, and all other use which is not for personal,
family, or household purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071,
Springeld Missouri, USA, 65801-1071, or email us at [email protected], or
call us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to
return the product or part to us for free repair or replacement at our option. NO ACTION FOR BREACH
OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE THAN ONE (1) YEAR AFTER THE
DATE THE ALLEGED BREACH WAS OR SHOULD HAVE BEEN DISCOVERED. NO ACTION FOR
BREACH OF ANY IMPLIED WARRANTY MAY BE COMMENCED MORE THAN ONE (1) YEAR AFTER
DELIVERY OF THE PRODUCT TO THE PURCHASER. This limited warranty is not transferable. IF
ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED WARRANTY OR ANY
IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY
AVAILABLE TO YOU. In the event that the purchaser makes any claim under this limited warranty or any
implied warranty, the Warrantor reserves the right to require the product to be returned for inspection,
at the purchaser's expense, to the Warrantor's premises in Springeld, Missouri. Return of the enclosed
warranty registration card is not required for warranty coverage, but is merely a way of establishing the
date and place of purchase.
Stamina Products, Inc. SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS
OF TIME, INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL,
SPECIAL OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY
IMPLIED WARRANTY.
This limited warranty is the only written or express warranty given by Stamina Products, Inc. This
warranty gives you specic legal rights, and you may also have other legal rights which vary from state to
state. ANY OTHER RIGHT WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY.
The laws in some jurisdictions restrict the rights of manufacturers and distributors of consumer goods
to disclaim or limit implied warranties and consequential and incidental damages with respect thereto.
If any such law is found to be applicable, the foregoing disclaimers and limitations of and on implied
warranties and consequential and incidental damages with respect thereto shall be disregarded and shall
be deemed not to have been made to the extent necessary to comply with such legal restriction.
19

NOTES
20
