Stand Up Vans RAM PROMASTER FOOTREST User manual

INSTRUCTION MANUAL
COMPONENTS - TOOLS NEEDED - INSTALLATION
PATENT PENDING
RAM PROMASTER FOOTREST

OVERVIEW
TOOLS NEEDED
HARDWARE
COMPONENTS
7/16” WRENCH 9/16” WRENCH 4MM ALLEN KEY
(SUPPLIED)
1/4” ALLEN KEY
3/8” NUT
SMALL HOLE WASHER
BIG HOLE WASHER
AXLE BOLT
X4X2
ACORN NUT
LOCK WASHER
1/4” X 1/2” HEX HEAD BOLT
RIGHT SIDE BRACKET
LEFT SIDE BRACKET FOOTREST DECK FOOTREST PLATE

1 - MAIN BOLT
2 - LARGE
HOLE WASHER
4 - 3/8” NUT
3 - SMALL HOLE
WASHER
2X
2X
3 - ACORN NUT
2 - LOCK WASHER
1 - 1/4” X 1/2” BOLT
ASSEMBLY INSTRUCTIONS

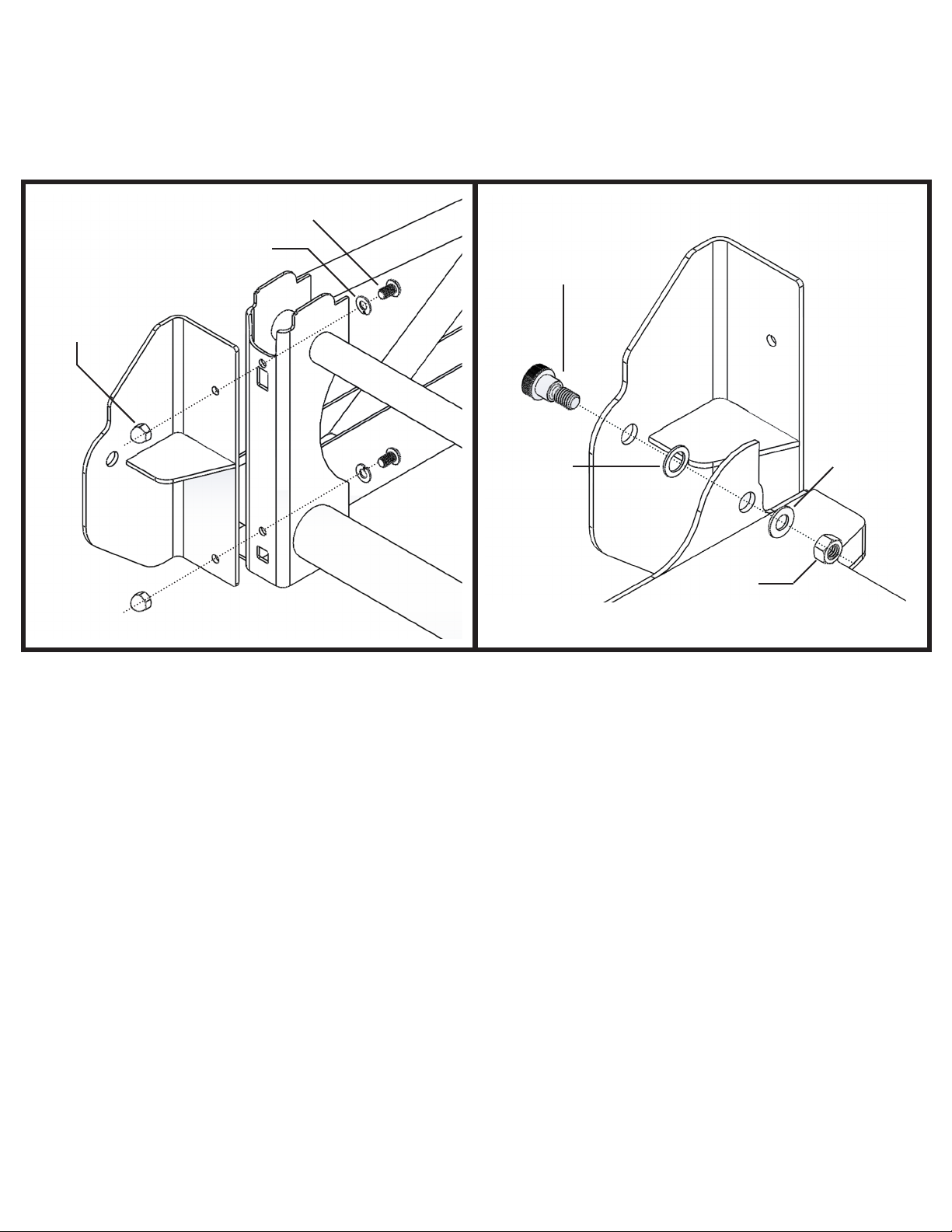

FIGURE 1: SIDE BRACKET MOUNTING FIGURE 2: FOOTREST DECK MOUNTING
Fig 1 Fig 2
STEP 1: MOUNT FIXED BRACKETS TO SEAT BASE
1. Attach mounting brackets to seat base
- Use provided 1/4” x 1/2” bolts (1), lock washer (2) and acorn nuts (3). Arrange as shown in gure 1.
- Fit bolt to supplied 4mm allen wrench and reach within seat base to t bolt (1) through the upper factory holes in seat base.
- With upper bolt (1) coming through the seat base mount the footrest side bracket using the acorn nut (3) and lock washer (2).
- Attach the lower bolt (1), lock washer (2), and acorn nut (3).
- Repeat on other side.
STEP 2: CONNECTING AXLE BOLTS TO FOOTREST
2. Attach footrest deck to side brackets
- Following gure 2, start on either side, slide the axle bolt (1) through the axle hole on the side bracket, then slide on the large
hole washer (2), footrest deck,small hole washer (3), and 3/8” nut (4), do not fully tighten.
- Move on to the other side and repeat the process. It is helpful to rest the footrest deck on something to help with alignment.
- fully tighte n axle bolts (1).
- Installation is complete.
