Argon Cube

TABLE OF CONTENTS
2
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
UNPACKING AND TESTING THE APPLIANCE .......................................................................................................... 4
LOCATING THE FIREPLACE ........................................................................................................................................... 4
MANTEL CLEARANCE ..................................................................................................................................................... 4
NMAECUBE ......................................................................................................................................................................... 5
INSTALLATION ................................................................................................................................................................ ..6
MEDIA OPTIONS .............................................................................................................................................................. ..8
DECORATIVE MEDIA INSTALLATION ...................................................................................................................... ..8
OPERATION ....................................................................................................................................................................... ..9
MANUAL OPERATION ................................................................................................................................................... ..9
REMOTE CONTROL OPERATION ................................................................................................................................ 10
IFI OPERATION ............................................................................................................................................................. 13
CARE AND MAINTENANCE ......................................................................................................................................... 16
REPLACEMENT PARTS .................................................................................................................................................. 17
EXPLODED VIE ............................................................................................................................................................ 18
TROUBLE SHOOTING ..................................................................................................................................................... 19
SERVICE HISTORY .......................................................................................................................................................... 20
ARRANTY ...................................................................................................................................................................... 21
Please read and carefully follow all of the instruction found in this manual. The instructions
included here will assure that you have many years of dependable and enjoyable service
from your Stanley product.

3
IMPORTANT INSTRUCTIONS
PLEASE RETA N TH S USER GU DE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains
at least 3 feet/ 915mm from the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the
unit is left operating and unattended.
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has
malfunctioned, the fireplace has drooped or damaged in any manner
5) This fireplace is not suitable for use in wet areas such as bathrooms or utility rooms.
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the
like. Arrange the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not
recommended by the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with programmer, timer, separate remote-control system or any
other device that switches the heater on automatically, since a fire risk exists if the heater
is covered or positioned incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust
opening as this may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other liquid
12) n order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device
CAUTION: Procedures and techniques, which, if not carefully followed, will result in damage to
the equipment.
WARNIN : Procedures and techniques, which, if not carefully followed, will expose the user to
the risk of fire, serious injury, illness or death.
SAVE THESE INSTRUCTIONS
Always use a certified electrician should new circuits or outlets be required, the socket or
switched fused spur should be accessible at all times to isolate the product.

4
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a conveniently located 240 olt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components operate correctly.
As with most electronic devices
℉
, your new
℃
electric fireplace has been designed to operate at
temperatures between 5 (41 ) and 35 (95 ). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
NOTE: There may be trace of odor durin the first few minutes of initial use. This is
harmless, normal and will never occur a ain.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances.
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 240 olt, 50 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit
breakers to trip of fuses to blow.
℃
℉
MANTEL CLEARANCE
6"
Fireplace Mantel
Wall (Combustible facing allowed)
Floor
Fireplace
The clearance to the mantel should be 6”/ 152 mm minimum when a mantel is applied
(Measurement is taken from the glass front).

NMARCUBE
5

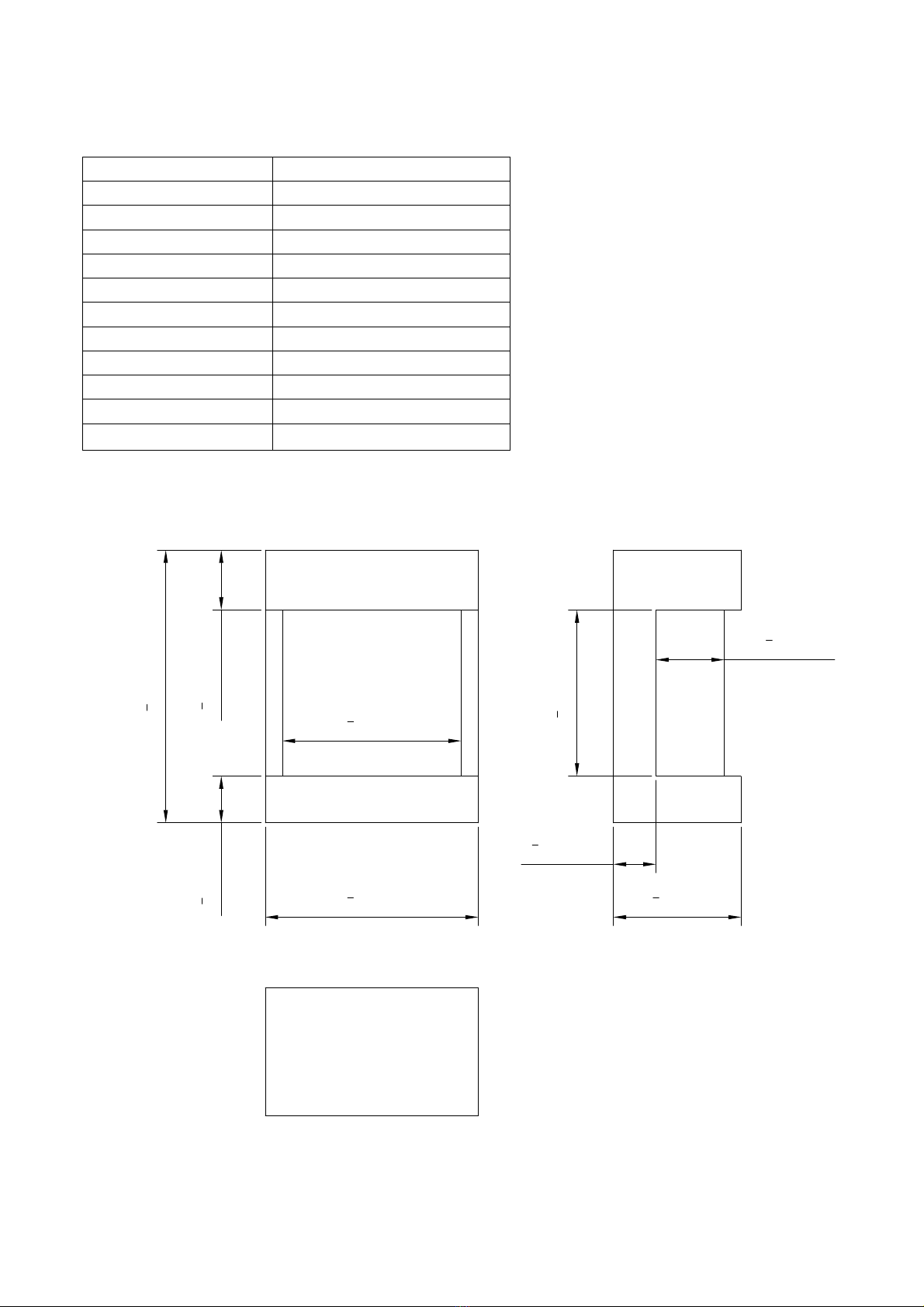

Description
ELECTRIC FIREPLACE
Voltage 230V ac 50Hz
Watts 1900W Max
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 19 5/8" or 500 mm
Appliance Height 25 1/4" or 641 mm
Appliance Depth 11 3/4" or 300 mm
Gross Weight 50.7 lbs or 22 kgs
Plug Location Left side
Cord Length 70 7/8” or 1800 mm
BTU 6500
195
8" [500]
251
4" [641]
51
2" [141]
4
3
8" [110]
161
2" [420]
11
3
4" [300]
61
4" [160]
15
3
8" [390]
37
8" [100]

INSTALLATION WALL-
MOUNT
NOTE: Due to the many different materials used on different walls, it is highly recommended
that you consult your local builder before you install this appliance.
1.
Select a location that is not prone to
moisture and is located at least 0.91 m or 3
feet away
from combustible materials such
as curtains or drapes, furniture, bedding,
paper, etc.
2. S
elect a suitable position in whic
the heater horizontally –
use a spirit level to
achieve this (Fig. 1).
3.
Check the wall to ensure there is no wiring,
pipe wires etc.
in the area to be drilled. Drill
8 or more pilot
holes (8mm diameter &
40mm depth) using a suitable size drill a
put the wall plugs into the
holes.
4. Take
out the hanger from the fireplace by
unscrew the screw (Fig.2).
5. Fix the hanger to the wall.
Referring to Fig. 3
6. Avoid
fireplace to move, use screw fix
fireplace to wall (Fig. 4).
Warn ng!
Be sure that the bolts
have been f xed
f rmly enough to w thstand the we ght
Fig. 1
MOUNT
NOTE: Due to the many different materials used on different walls, it is highly recommended
that you consult your local builder before you inst
all this appliance.
Select a location that is not prone to
moisture and is located at least 0.91 m or 3
from combustible materials such
as curtains or drapes, furniture, bedding,
elect a suitable position in whic
h to mount
use a spirit level to
Check the wall to ensure there is no wiring,
in the area to be drilled. Drill
holes (8mm diameter &
40mm depth) using a suitable size drill a
nd
holes.
out the hanger from the fireplace by
Referring to Fig. 3
.
fireplace to move, use screw fix
have been f xed
f rmly enough to w thstand the we ght
！
Fig. 2
Fig.3
Fig. 4
NOTE: Due to the many different materials used on different walls, it is highly recommended
Fig. 2
Fig.3
Fig. 4
6

INSTALLATION ARGON CUBE LEGS
1.
Screw the base legs to the steel
2.
Unscrew the adjustable feet from the
bottom of the unit.
Screw the base legs to the steel
panel.
Unscrew the adjustable feet from the
3. Place
the unit onto the base leg
in the adjustable feet, fixing the unit and
the base leg.
4. You have completed
the CUBE-BASE-
LEGS.
the unit onto the base leg
and screw
in the adjustable feet, fixing the unit and
completed
the installation of
LEGS.
7

MEDIA OPTIONS
MEDIA INSTALLATION

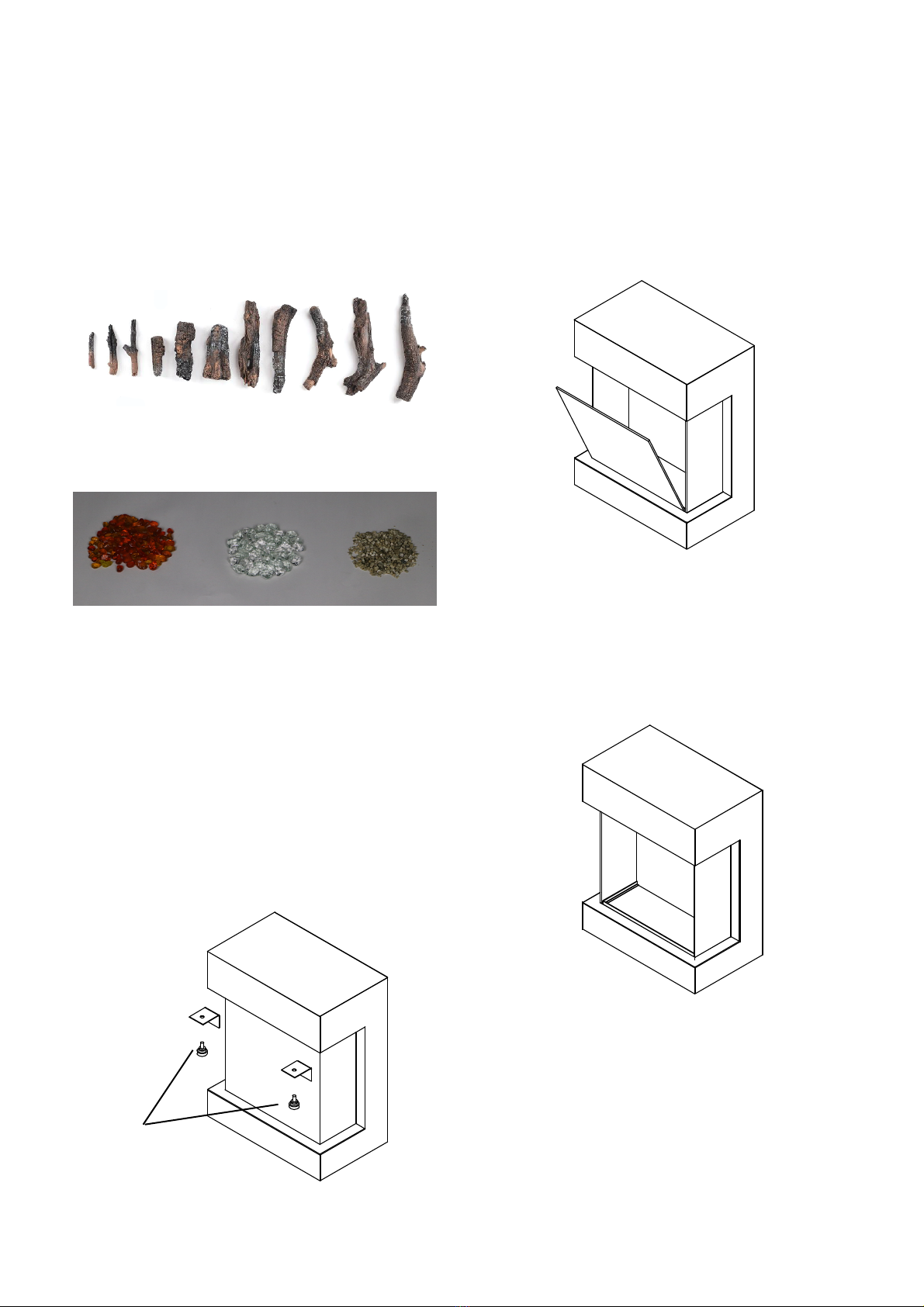

STEP 1: Unplug the unit and make sure
controls are switched off.
STEP 2: Unscrew 2 adjustable screws that
securing the front glass panel. (Always secure
the front glass before unscrewing the securing
screws, removal of the securing screws may
cause the front glass to fall out suddenly)
STEP 4: After finishing decoration, re-install
the front glass panel using the securing
screws removed in step 2.
adjustable screws
STEP 3: Remove the front glass panel to
decorate your fireplace. Pour the decorative
media into the tray. Feel free to use any
combination of fire glass media that you find
most appealing.
Oak log set
Suntea Clear glass Vermiculite
The media that come with this appliance are
Oak og Set, Clear glass, Suntea glass and
White Vermiculite. Consumers may purchase
optional decorative media if they choose. See
dealer for more details.

OPERATION
Plug the fireplace into a 15 Amp wall socket.
MANUAL OPERATION
Plug the fireplace into a 15 Amp wall socket.
1. Press to turn on and off the fireplace.
2. Press to adjust the flame’s brightness. There are 7 brightness levels (L5 L4 - L3
L2 L1 L0 L6).The indicator light turns off automatically leaving it not operated within
10 seconds.
3. Press to adjust the ember bed brightness. There are 12 brightness levels (D4 D5
D6 D7 D8 D9 DA DB D0 D1 D2 D3).
4. Press to set the turn-off time, 30min-1h-2h-3h-4h-5h-6h-7h-8h-t0. The indicator light
turns off automatically leaving it not operated within 10 seconds. The timing turns off
when is pressed.
5. Press to turn on and off the heater in its AUTO mode. The setting temperature
switch through 59℉- 61℉- 63℉- 64℉- 66℉- 68℉- 70℉- 72℉- 73℉- 75℉- 77℉- 79℉-
81℉- 83℉ - ℉ in Fahrenheit or 15℃ -16℃ -17℃ - 18℃ - 19℃ - 20℃ - 21℃ - 22℃ - 23℃
- 24℃ - 25℃ - 26℃ - 27℃ - 28℃ - ℃ in Celsius. The temperature setting mode will be
closed automatically if leaving not operated for 5 seconds.
6. When the heater is on, press the for 5 seconds to switch between Celsius and
Fahrenheit.
The Fireplace operates by using either the touch panel located on the upper left hand corner
or by remote control.
9

REMOTE CONTROL OPERATION
For remote to function make sure the fireplace is plugged in and the remote has batteries.
Important: When operating the remote make sure you point the remote to the center of the
fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes
some time for the receiver to respond to the transmitter. Do not PRESS the buttons more
than once within two seconds for correct operation.
Set the current time of the remote control
Press the to activate the remote control and press to set the time and date.
When one of the “Sun” “Mon” “ Tue” “Wed” “Thu” “Fri” “Sat” is flashing, press or to
set the day of the week, press to confirm day of the week and then enter hour setting.
Press or to set the hour, press to confirm the hour and then enter minute
setting. Press or to set the minute and press to confirm the minute and
finish time setting.
Press this Power button to turn on and off the fireplace.
Press this Timer button to set the time to turn off the fireplace.
The available settings range from 3 minutes to 8 hours. As
shown in the following: :3 - 1: - 1:3 - 2: - 2:3 - 3: -
3:3 - 4: - 4:3 - 5: - 5:3 - 6: - 6:3 - 7: - 7:3 - 8: .
Once you have set the timer, the icon will be displayed
on the LCD screen of the remote control. Press this button
again to cancel the timer setting and the icon disappears.
Press the HEATER button once, one setting of heater works,
95 W, indicating “H 1” on display; Press again, two settings of
heater work, 19 W, indicating “H 2” on display; Pr ess for the
10

third time to turn on the AUTO mode, press or to set the temperature
and or to switch temperature unit between Celsius and Fahrenheit.
Press this button to adjust the speed of the flame. There are 3 options: High-
Medium- Low.
Press this button to turn on and off the ember bed light. When in ON position, the
display screen of the remote control shows AD 1, when the number “1” flashes, you
can set the color of the ember bed by or . There are 1 different ember bed
light colors (AD1-1 ). When in AD 11 status, the color of the ember bed light cycles
through 1 colors. Press “SET” to confirm the setting.
Press the Flame button to turn on and off the Flame. When in ON position, the LCD
screen of the remote control shows 6 6 6. Press or or to change
the brightness of each color flame.
7 Day Timer Function
Press once, 7 days from Monday to Sunday will display on the LCD screen of
the remote control, press within 5 seconds to enter 7 day timer function. When
“Sun” flashes, press or to select the day that you want to set, press to
confirm your setting. Then “ON” will be display on the LCD screen of the remote
control, at the same time, digital of time hour flashes, press or to set the
time to turn the fireplace on. After setting the startup time, “OFF” will be displayed on
the LCD screen and press or to set the shutdown time. When the
shutdown time’s set, “AUTO” will be displayed on the LCD screen of the remote
control and the digital of temperature flashes. At this time, you can set the
temperature by or . Now, you have finished setting of this function.
11

12
When the 7 day timer’s set, the icon will be displayed on the LCD screen of the
remote control. Press again to cancel the 7 da
will disappears.
NOTE: If the 7 day timing and the general timing are set at the same time, the
system will respond to an earlier shutdown time.
Press Refer button to check the settings of 7 day timer. Press or to see the
settings of the day of the week and or the settings of the startup and
shutdown time.
y timer and the icon

13
WIFI OPERATION
IN TALL Tuya mart life
There are 2 ways to install TuyaSmart;
1. Search for “TuyaSmart life” in the APP store on your phone, download and install.
2. Scan the QR code below with your mobile phone.
WIFI ETTING AND FIREPLACE OPERATION
1. Create an account and log in.

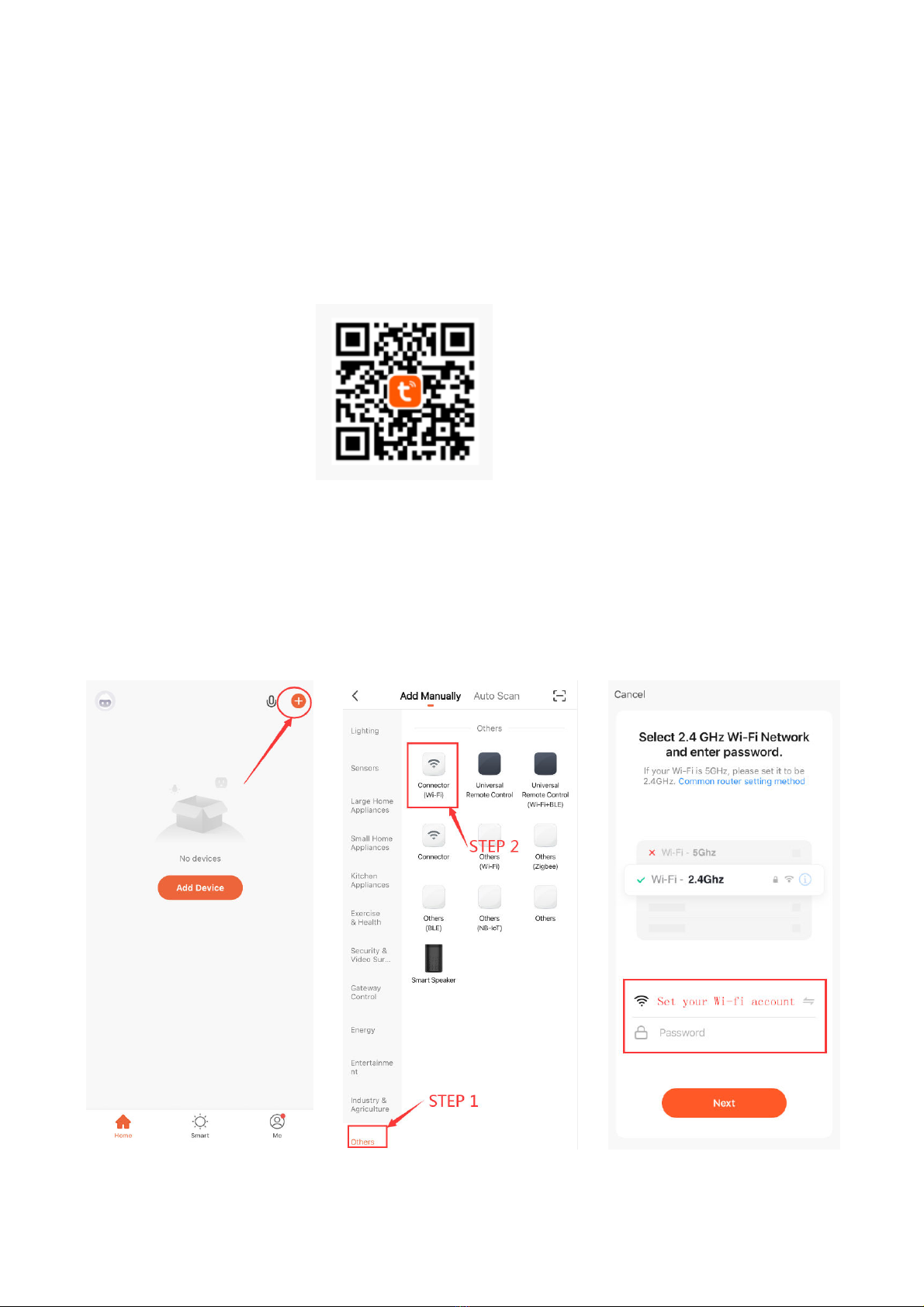

2. When you log in, touch “+” (FIG.1) to enter in FIG.2. Touch “others” on the left corner first
and then choose “Connector (Wi-fi)” to enter in FIG.3 to set your Wi-fi account and
password.
FIG.1 FIG. 2 FIG.3

14
FIG.4
3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds
when the fireplace in standby mode. There will be 2 beeps come out from the fireplace
and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then
please confirm to go next. (FIG.5)
4. The APP will scan (FIG.6) and add the fireplace to APP (FIG.7) automatically. Please
make sure the Wi-fi account and password you set are correct and Wi-fi signal is good.
5. Touch “Done” to finish Wi-fi setting.(FIG.7)
FIG.5 FIG.6 FIG.7

15
6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi.
FIG.7
NOTE: Turn off the flashing blue Wifi indicator light
Touch the (power button) once, the blue light will stop flashing.

CARE AND MAINTENANCE
CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the
surface finish of the plastic components.
CONFORMITY WITH DIRECTIVES
Conforms to all relevant European directives
ENVIRONMENTAL PROTECTION
Recycling
This symbol is known as the 'Crossed-out Wheelie Bin Symbol'. When
this symbol is marked on a product or battery, it means that it should not
be disposed of with your general household waste. Some chemicals
contained within electrical/electronic products or batteries can be harmful
to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment.
1. Switch off and unplug from the power supply before cleaning.
2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface
of the products.
CAUTION: Allow the product to completely cool before handling or cleaning it.
3. Do not allow water or other liquids to run into the interior of the product, as this could create a
fire and/or electrical hazard.
4. We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner
nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the
unit.
16

17
REPLACEMENT PART
Ref. Description Quantity NMARCUBE
1 Front Glass 1 10701357
2 Adjustable crew 2 10201505
3 Fixer for Front Glass 1 3123010
4 ide Glass 2 10701356
5 Back Glass 1 10702216
6 Tray Glass 1 10702215
7 Blower & Heater Assembly 1 602083D
8 Touch Panel 1 10124003
10 Box 1 3158501
11 Circuit Board 1 10124129
12 ignal Receiver 1 301506
13 Flame Motor 2 10101501
14 Flicker Assembly for Tray 1 3056504E
Flicker Assembly for Tray 1 3056503D
15 LED trip 2 601144
16 Remote 1 10105501
17 Canopy Light 1 601139B
18 WiFi Card 1 212051
*Remote Control, Canopy Light & Touch Panel are not shown in the exploded view
*Items may not appear exactly as illustrated

EXPLODED VIEW
1

TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Dim or no flame Flame LED’s are burnt out. Inspect the LED’s and replace them if
necessary.
Back black cloth is falling off
and rolled up in the flicker.
Change a flicker and back black cloth.
Ember bed is not
glowing or dimming
Ember LED’s are burnt out Inspect the ember bed LED’s and
replace them if necessary.
Appliance turns off and
will not turn on
Appliance has overheated, and
safety device has caused the
thermal switch to disconnect.
Turn off the main switch, allow
appliance to cool for 10 minutes,
turn back on.
House
tripped.
circuit breaker has Reset house circuit breaker.
Appliance’s fuse has blown. Replace the fuse.
Appliance will not come
on when switch is
flipped to ON
Appliance is not plugged into an
electrical outlet.
Check plug and plug in.
Appliance has overheated and
safety device has caused the
thermal switch to disconnect.
Turn off the main switch, allow
appliance to cool for 10 minutes, turn
back on.
Circuit board is burnt out. Inspect the circuit board and replace
it if necessary.
No warm air coming out
of appliance
Heater is burnt out. Inspect the burner and heater
assembly and replace it if necessary.
Flame sputters Flame motor is defective. Call a ualified service technician and
replace flame motor.
Remote Control does
not work.
Low batteries.
Unit switch in “O” position.
Replace AAA batteries in remote
control.
Turn the switch in “I” position.
Flame is fixed. Wiring may be loose or the
flame motor may be defective.
19

SERVICE HISTORY
This heater must be serviced annually depending on usage.
Date Dealer
Name
Serv ce techn c an
Name
Serv ce Performed Spec al Concerns
NOTES:
20
