Stanley Argon NMARWH90 User manual

NMARWH90
NMARWH110
Argon Wall Mounted
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALWITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.
NMARWH140

TABLE OFCONTENTS
Pleaseread and carefullyfollowallof the instructionfoundinthismanual. Pleasepayspecial
attention tothesafetyinstructionsprovided inthismanual. The instructionsincluded herewill
assurethatyou havemanyyearsofdependableand enjoyableservicefromyourStanley
product.
2
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
UNPACKING AND TESTING THE APPLIANCE .......................................................................................................... 4
LOCATING THE FIREPLACE ........................................................................................................................................... 4
NMARWH90 ......................................................................................................................................................................... 5
NMARWH110 ....................................................................................................................................................................... 6
NMARWH140 ....................................................................................................................................................................... 7
INSTALLATION WALL-MOUNT .................................................................................................................................. ..
INSTALLATION BUILT-IN ............................................................................................................................................. ..9
MEDIA OPTIONS .............................................................................................................................................................. 10
DECORATIVE MEDIA INSTALLATION ...................................................................................................................... 10
OPERATION ....................................................................................................................................................................... 11
MANUAL OPERATION ................................................................................................................................................... 11
REMOTE CONTROL OPERATION ................................................................................................................................ 12
WIFI OPERATION ............................................................................................................................................................. 14
CARE AND MAINTENANCE ......................................................................................................................................... 17
REPLACEMENT PARTS .................................................................................................................................................. 1
EXPLODED VIEW ............................................................................................................................................................ 19
TROUBLE SHOOTING ..................................................................................................................................................... 20
SERVICE HISTORY .......................................................................................................................................................... 21
WARRANTY ...................................................................................................................................................................... 22

3
IMPORTANT INSTRUCTIONS
PLEASE RETA N TH S USER GU DE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains
at least 3 feet/ 915mm from the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the
unit is left operating and unattended.
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has
malfunctioned, the fireplace has drooped or damaged in any manner
5) This fireplace is not suitable for use in wet areas such as bathrooms or utility rooms.
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the
like. Arrange the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not
recommended by the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with programmer, timer, separate remote-control system or any
other device that switches the heater on automatically, since a fire risk exists if the heater
is covered or positioned incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust
opening as this may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other liquid
12) n order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device
CAUTION: Procedures and techniques, which, if not carefully followed, will result in damage to
the equipment.
WARNIN : Procedures and techniques, which, if not carefully followed, will expose the user to
the risk of fire, serious injury, illness or death.
Consult with professional electrician and adhere to all code requirements for
installations in bathrooms
SAVE THESE INSTRUCTIONS

UNPACKINGAND TESTINGAPPLIANCE
Carefullyremovethe appliancefromthe box.Priortoinstalling theappliance,testtomake
surethe applianceoperatesproperlybyplugging the powersupplycordintoaconveniently
located 240Voltgrounded outlet.
LOCATINGTHEFIREPLACE
Plan wheretolocateand framethe fireplace.Thiswillsavetimeand moneylaterwhen you
installthefireplace. Beforeinstallation considerthe following:
1.Wherethe fireplaceislocatedmustallowforwall and ceiling clearances(see
INSTALLATION-WALLMOUNT)
2.Consideralocation wherethefireplacescreenwill notbeexposed todirectsunlightfrom
windowsordoors.
3. A15 ampere,240 Volt, 50 Hzbranchcircuitwithproperground mustbe availableatthe
location.Preferablyadedicated branchcircuitshouldbe provided toavoidcircuit
breakerstotripof fusestoblow.
Screw
There are two screws on each side to fix the front glass.
Please see the figure right side.
TAKE OUT THIS SCREW ON EACH SIDE
before you take off the front glass.
NOTE: There may be trace f d r during the first few minutes f initial use. This is
harmless, n rmal and will never ccur again.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
4

NMARWH90
Description Built-inorWall Mount Appliance
Voltage 230V ac 50Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 25 1/2”or64.9 cm
ApplianceHeight 21 1/8”or53.6 cm
ApplianceDepth 6 1/8”or15.5 cm
Gross Weight 55.68 lbs or 25.31kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWallOpening
Size 27”22or 68.60 cm 55.9 cm
BTU 6500
”
5

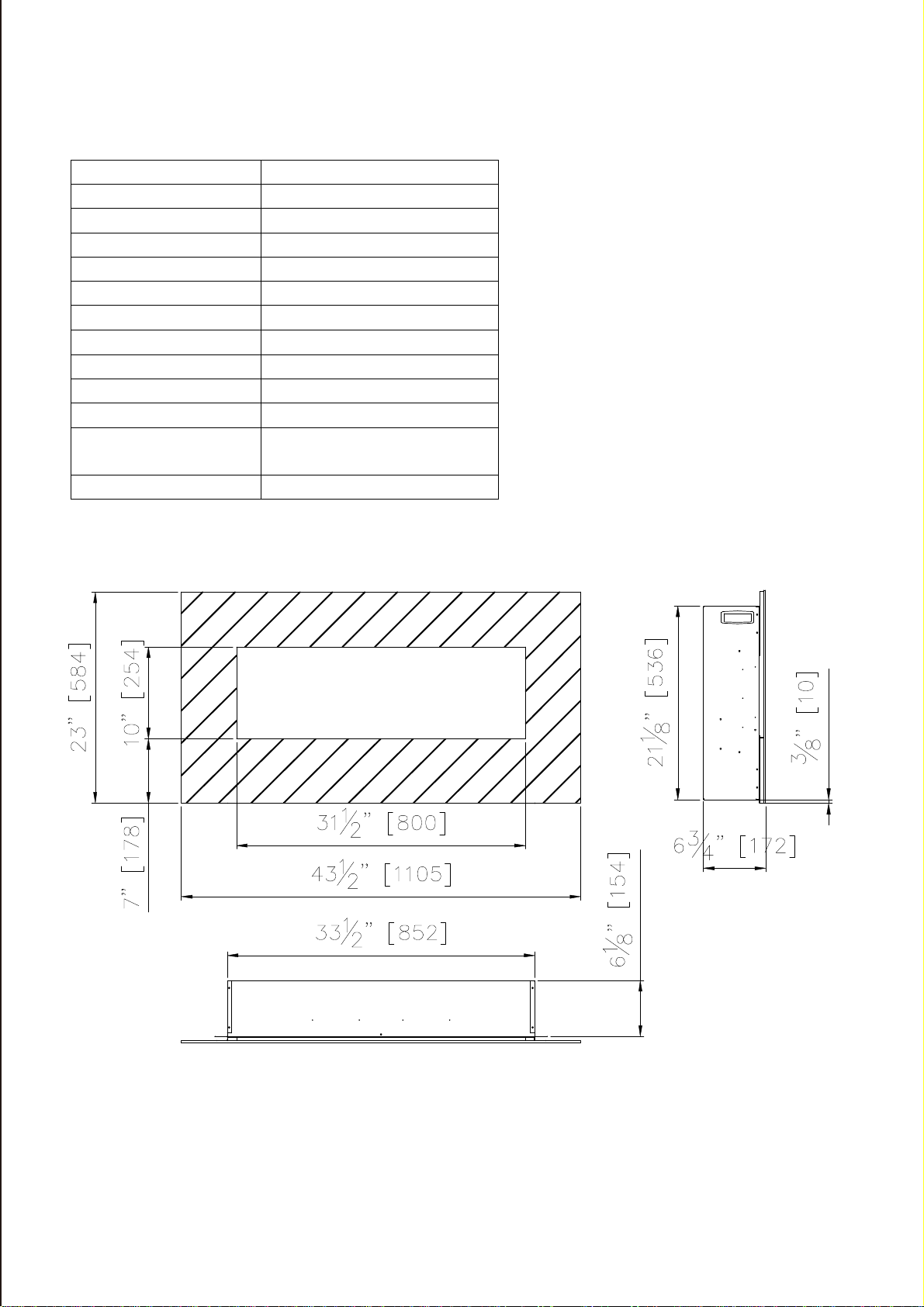

NMARWH110
Description Built-inorWall Mount Appliance
Voltage 230V ac 50Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 33 1/2”or85.2cm
ApplianceHeight 21 1/8”or53.6 cm
ApplianceDepth 6 1/8”or15.5 cm
Gross Weight 65.78 lbs or 29.90kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWallOpening
Size 35”22or 88.90 cm 55.9 cm
BTU 6500
”
6

NMARWH140
Description Built-inorWall Mount Appliance
Voltage 230V ac 50Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 47 1/2”or120.7 cm
ApplianceHeight 21 1/8”or53.6 cm
ApplianceDepth 6 1/8”or15.5 cm
Gross Weight 82.17 lbs or 37.35kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWallOpening
Size 49”22or 124.50 cm 55.9 cm
BTU 6500
”
7

INSTALLATION-WALLMOUNT
1. Selectalocation thatisnotprone to
moistureandislocated atleast0.91 m
or3feetawayfromcombustible
materialssuchascurtainsordrapes,
furniture, bedding ,paper, etc.
2.Referring toFig.1belowselecta
suitablepositioninwhichtomountthe
heaterhorizontally –useaspiritlevelto
achievethis.
3.Check the wall toensurethereisno
wiring,pipe wiresetcintheareatobe
drilled.Drill8ormoreholes(8mm
diameter&40mm depth)using a
suitablesizedrillandputthewallplugs
intothe holes.
4.Takeoutthe hangerfromthe fireplace
byunscrewthe screw.Referring to
Fig.2.
5. Referring toFig. 3，fixthe hangertothe
wall.
6. ReferringtoFig.4，avoidfireplaceto
move, usescrewfixfireplacetowall.
Warning!Alwaysensurethefireplace
isatleast350mm abovethefloor!
Besurethattheboltshavebeenfixed
firmlyenoughtowithstandthe
weight
Fig. 1
Fig. 2
Fig.3
Fig. 4

INSTALLATION-BUILT-IN
1.Selectalocation thatisnotprone to
moistureand islocated atleast0.91mor
3feetawayfromcombustiblematerials
suchascurtainsordrapes,furniture,
bedding, paper, etc.
2.Markthe desired location on the floor
and storeapplianceinasafe,dryand
dust freelocation.
3.Prepareawallwithaframed opening to
accommodatethe sizeofyourunit.
Leaveatleast1/4”(6mm)around the
edge ofthe appliance.Anynewwiring
mustbe done incompliancewithlocal
and nationalcodesand otherapplicable
regulations.
Note:Fireplacemuststick outofthewalla
minimumof 21/4”or5.8cm.
Priortoinstallingtheappliance,testto
make suretheappliance operates
properlybypluggingthepowersupply
cordintoaconvenientlylocated240 Volt
groundedoutlet.

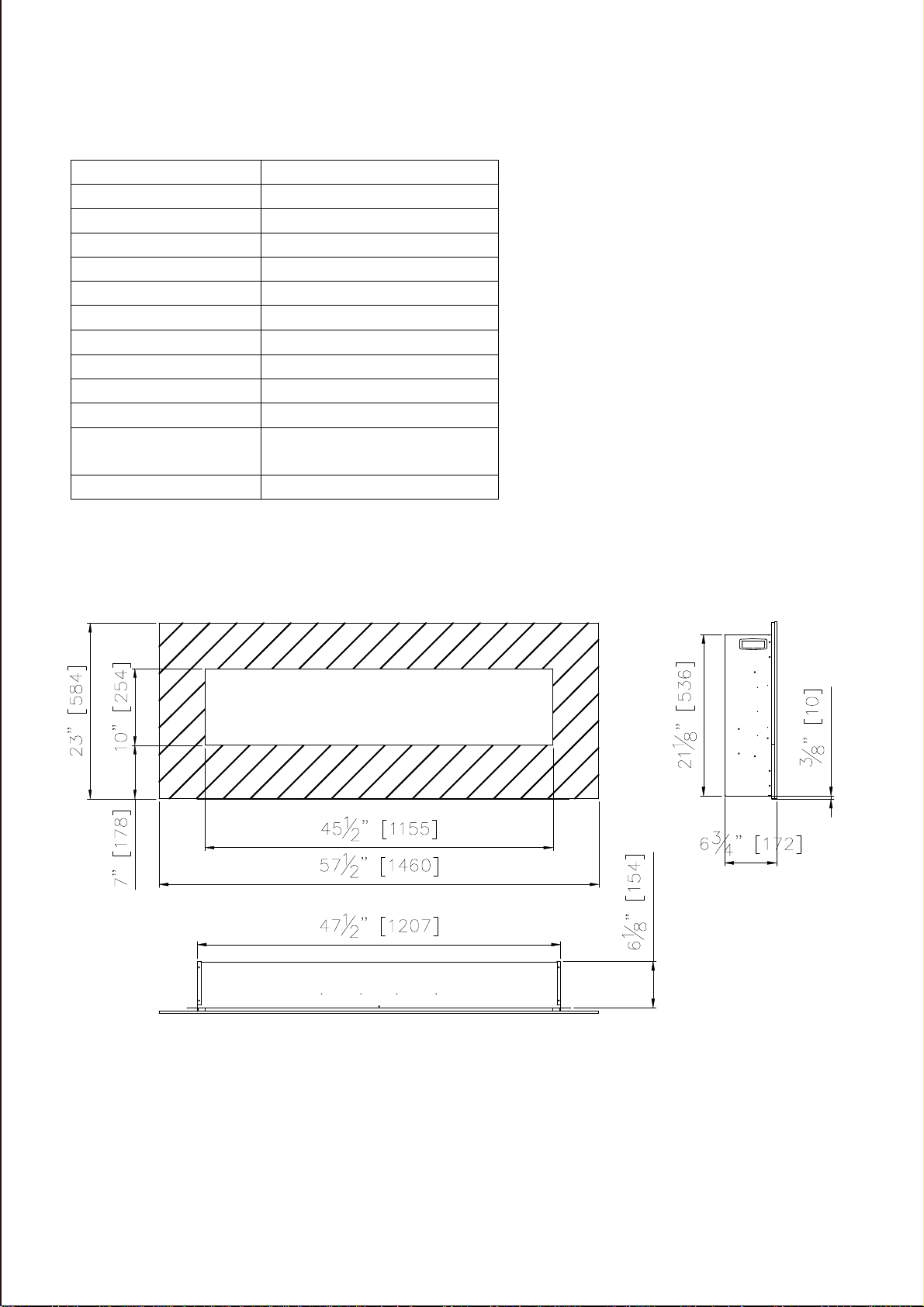

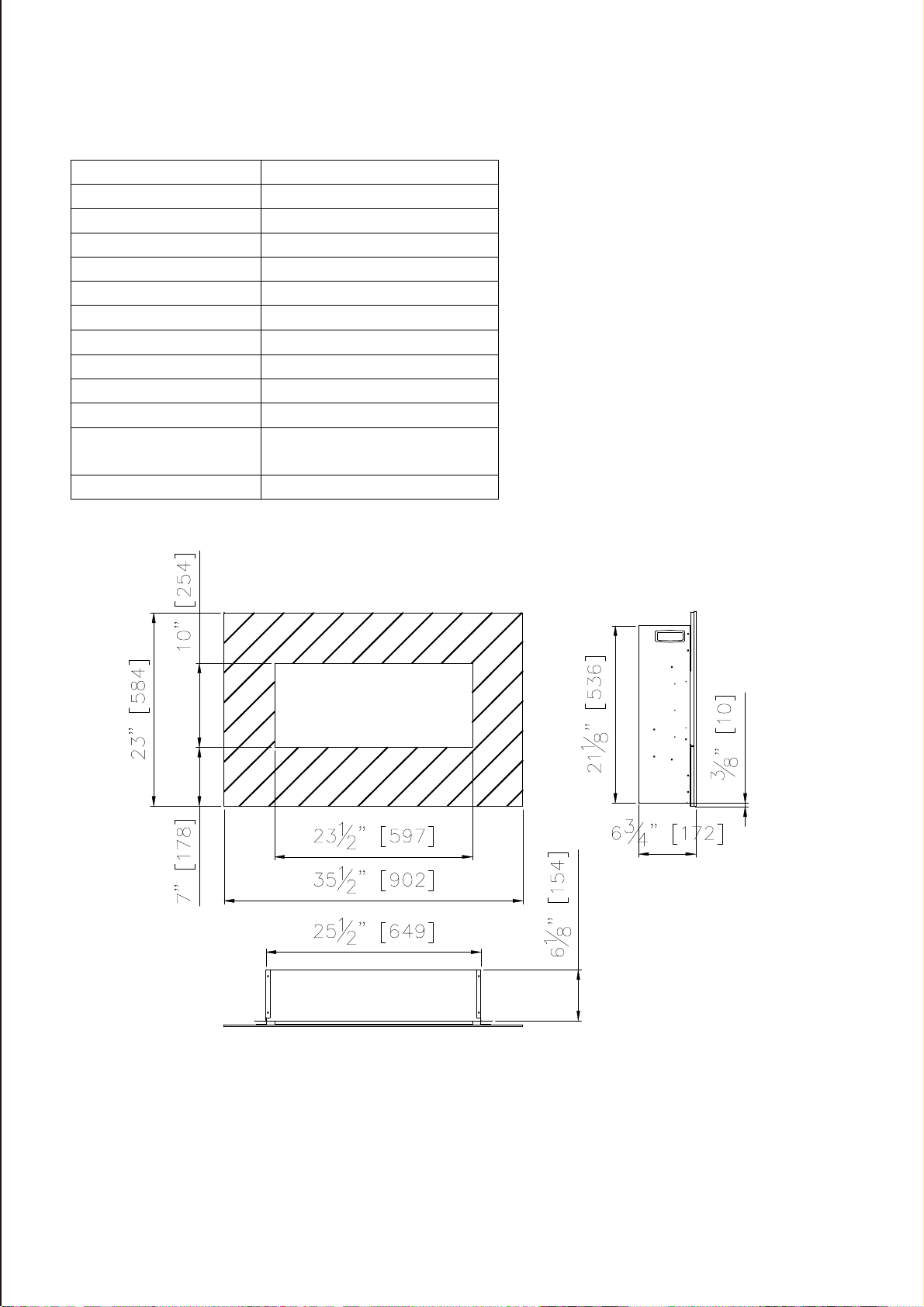

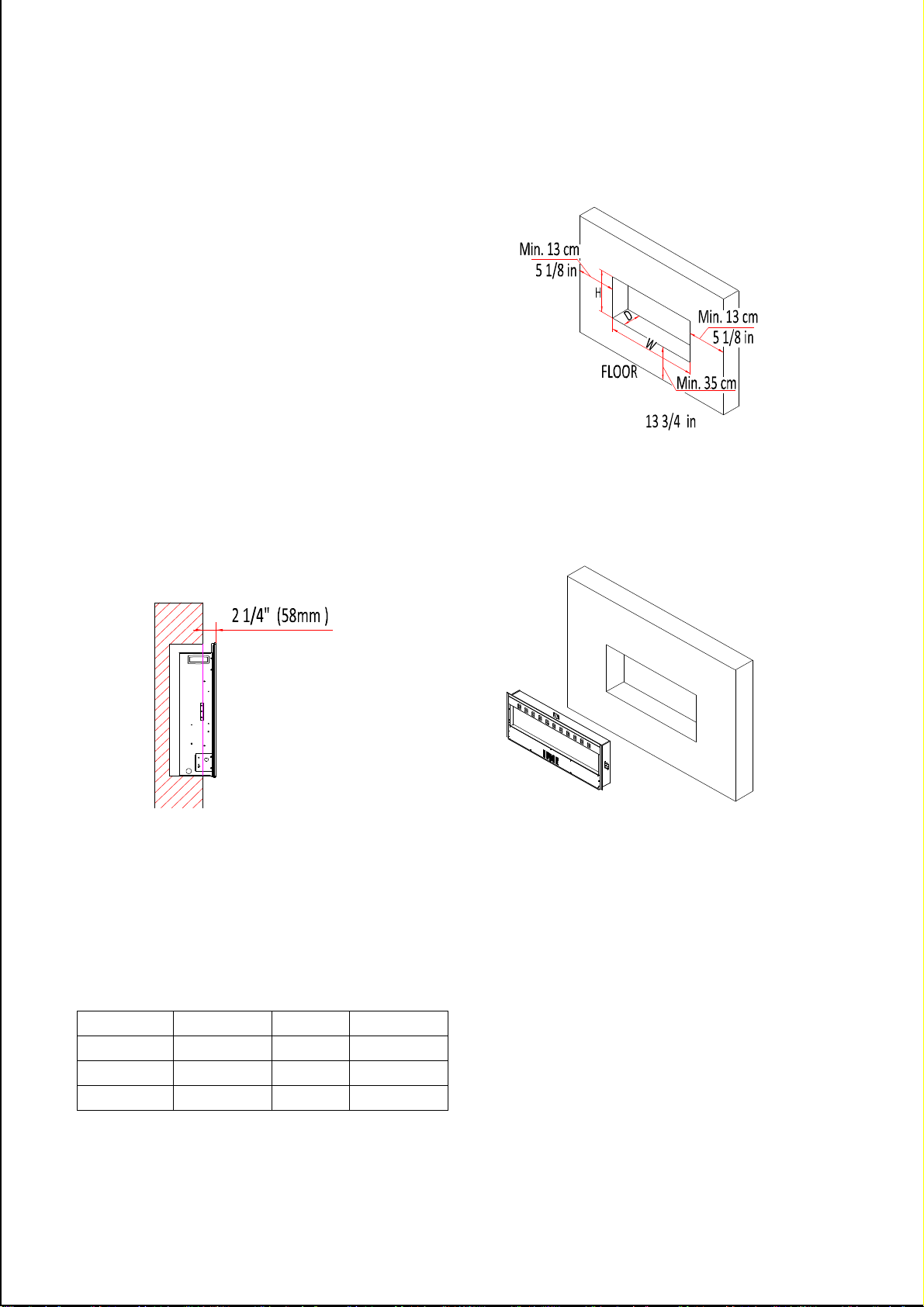

The rough wallopening sizeof thefireplace.
1. Takethefrontglass off fromtheunit.Putthe
bracketson thebothsidesandtopofthefireplace
asshownblew.
2.Lift fireplaceand insertintoopening.
3.Makesurethatthe powersupplyportis
not behindthe wall.
4.Levelthe fireplace.
5.Drivemounting screwsintothe
mounting bracketson theunitand the
wall studs.
9
W D H
NMARWH90 27”/ 68.58cm 5”/ 12.7cm 22”/ 55.88cm
NMARWH110 35”/ 88.9cm 5”/ 12.7cm 22”/ 55.88cm
NMARWH140 49”/ 124.46cm 5”/ 12.7cm 22”/ 55.88cm

2. Installing the fire glass media. Pour the
decorative media into the tray. Feel free
to use any combination of fire glass
media that you find most appealing.
3. crew back the front glass.
MEDIA OPTIONS
MEDIA INSTALLATION
The media that come with this appliance are
og Set, Clear glass, Suntea glass and White
Vermiculite. Consumers may purchase optional
decorative media if they choose. See dealer for
more details.
Log set
Suntea Clear glass Vermiculite
. Unscrew screw each on left and right
side of the fireplace. Pull the glass panel
upward to remove it.
NOTE: Two people are recommended to do
it.
10
Screw locations on uint Lift glass from shoulder posts

OPERATION
Plug the fireplace into a 15 Amp wall socket.
MANUAL OPERATION
Plug the fireplace into a 15 Amp wall socket.

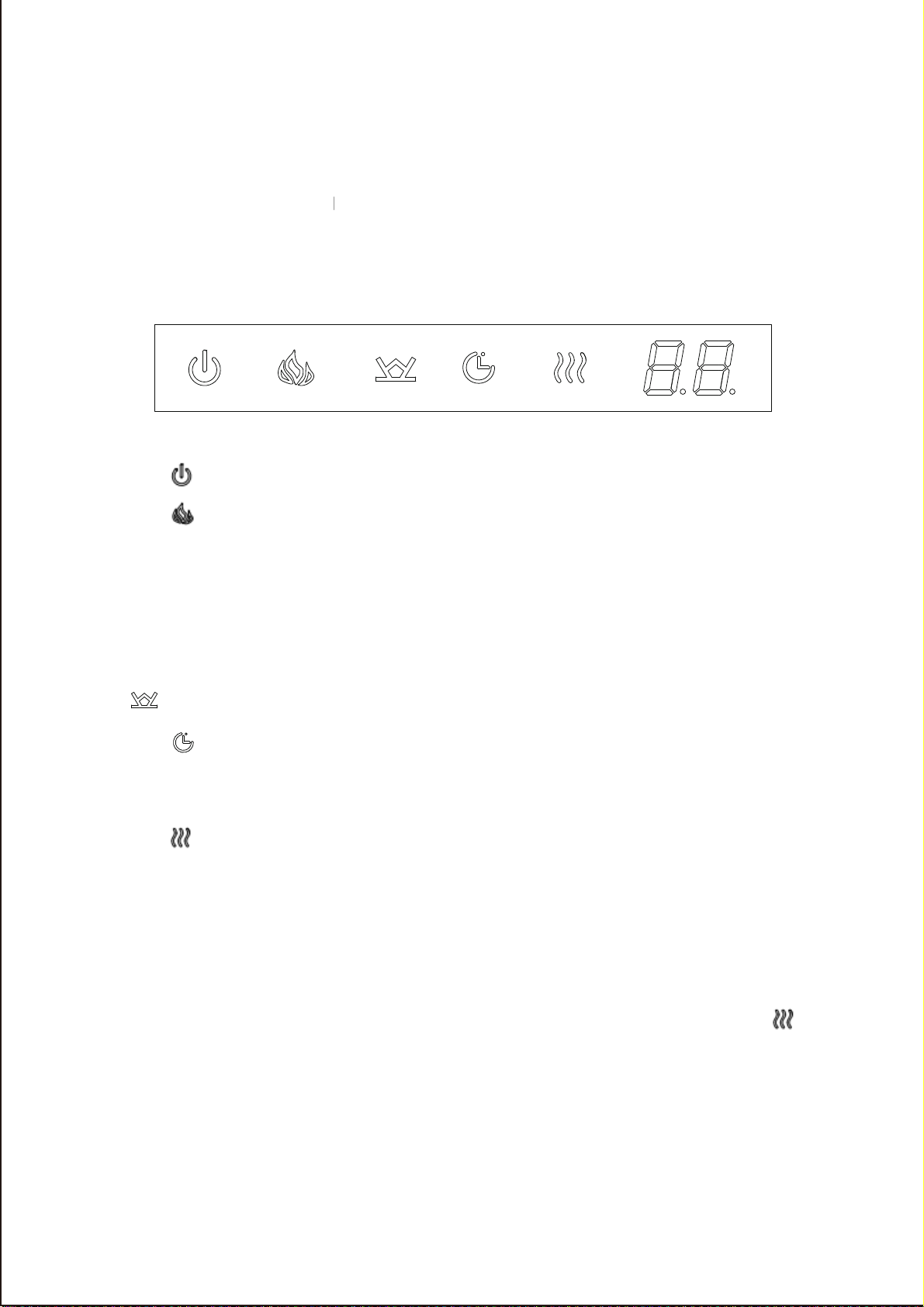

The Fireplace operates by using either the touch panel located on the upper left hand corner
or by remote control.
11
1.
2.
Press to turn on and off the fireplace.
Press to adjust the flame brightness. There are 6 brightness levels（L6-L1） and
an off(OF) position. Each time the flame button is pressed, the brightness of the flame
decrease.
press the flame button for 10 seconds, the timing indicator light on and will rapidly

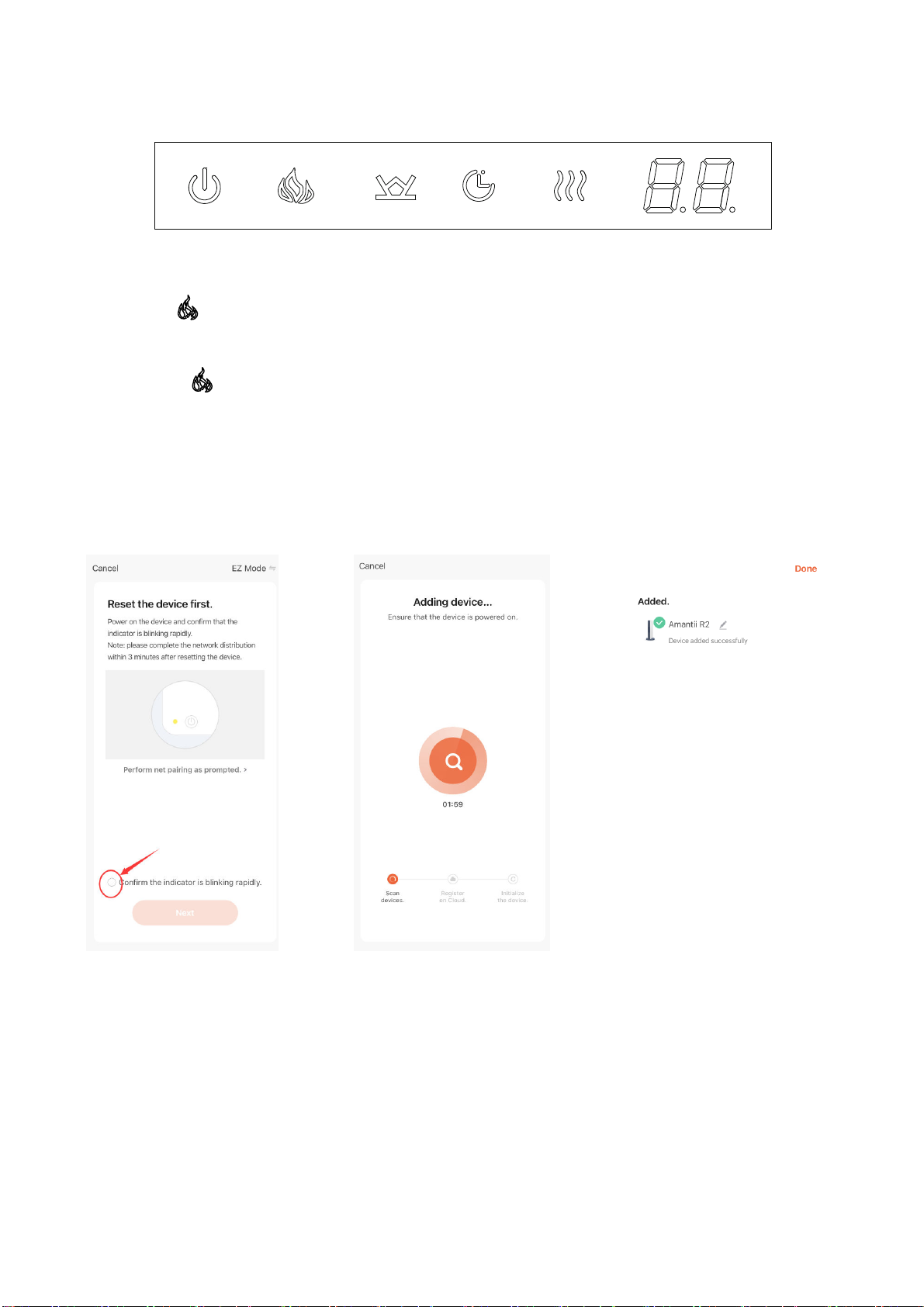

blinks, at this time, You can use the TuyaSmart APP to connect to the fireplace.
4. Press to set the turn-off time, 30min-1h-2h-3h-4h-5h-6h-7h-8h-t0. The indicator light
the current timing. If the timing in off position, the second press will show 30. Multiple times
to set operating duration to OF, 30 min, 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h.
5. Press or the first time to display the current setting temperature，press the button
again to clear the current temperature. If the heater in off position, the second press will
show 22℃(72℉).Multiple times to set ambient temperatures at 22℃( 72℉) , 23℃
(74℉) ,24℃( 76℉) , 25℃( 78℉) , 26℃( 80℉) , 27℃( 82℉) , 28℃( 84℉) ,15℃( 52℉) ,
16℃( 54℉) , 17℃( 56℉) ,18℃( 58℉) , 19℃( 60℉) , 20℃( 62℉) , 21℃( 64℉) .
Temperature unit convert functionZ When the heater is on, press and hold the“ ”
Button for 5 seconds, current temperature unit display will convert to another temperature
unit.
3. is void in this model.

12
REMOTE CONTROL OPERATION
For remote to function make sure the fireplace is plugged in and the remote has batteries.
Important: When operating the remote make sure you point the remote to the center of the
fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes
some time for the receiver to respond to the transmitter. Do not PRESS the buttons more
than once within two seconds for correct operation.
Set the current time of the remote control

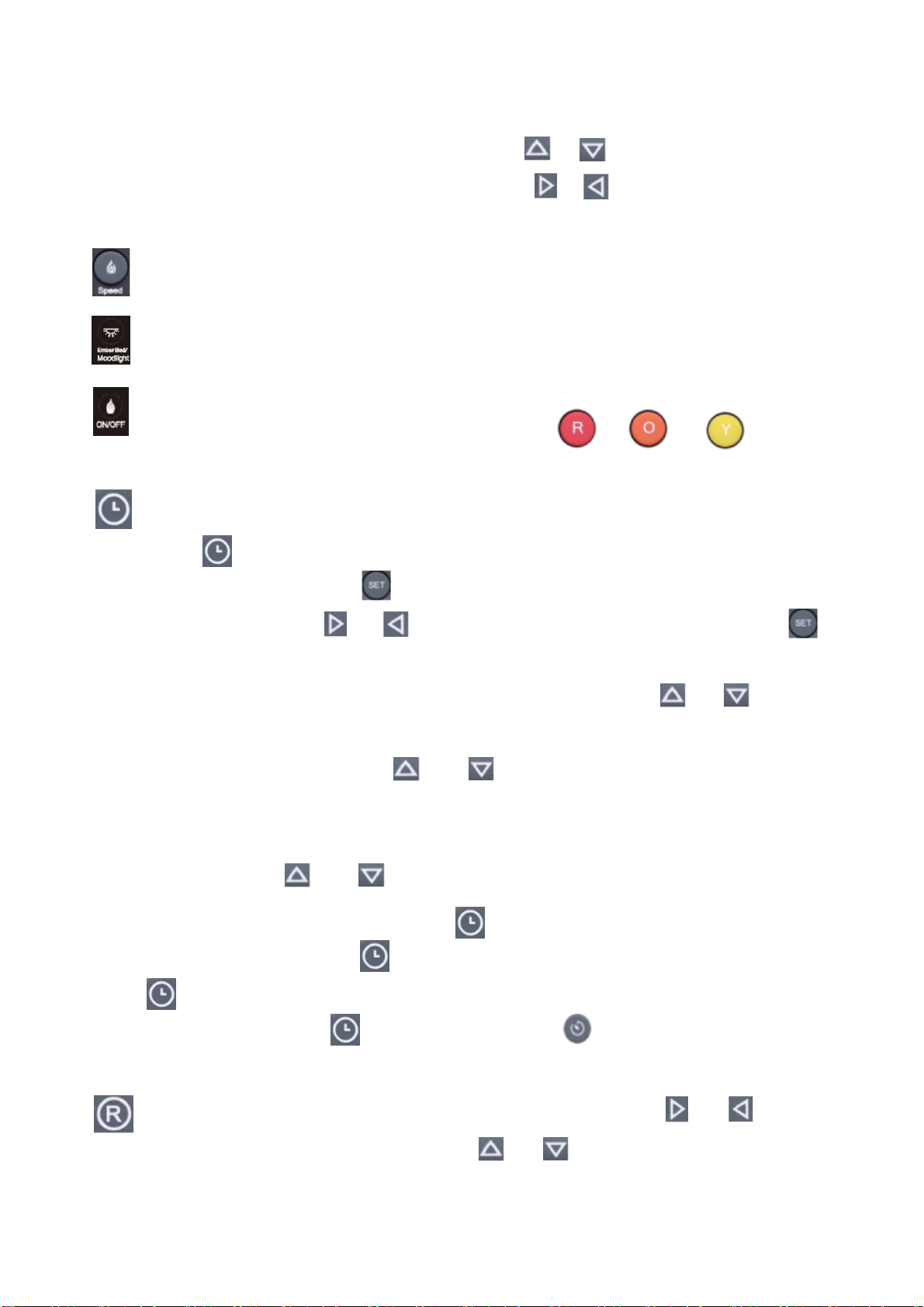

Press the to activate the remote control and press to set the time and date.
When one of the “Sun” “Mon” “ Tue” “Wed” “Thu” “Fri” “Sat” is flashing, press or to
set the day of the week, press to confirm day of the week and then enter hour setting.
Press or to set the hour, press to confirm the hour and then enter minute
setting. Press or to set the minute and press to confirm the minute and
finish time setting.
Press this Power button to turn on and off the fireplace.
Press this Timer button to set the time to turn off the fireplace.
The available settings range from 3 minutes to 8 hours. As
shown in the following: :3 - 1: - 1:3 - 2: - 2:3 - 3: -
3:3 - 4: - 4:3 - 5: - 5:3 - 6: - 6:3 - 7: - 7:3 - 8: .
Once you have set the timer, the icon will be displayed
on the LCD screen of the remote control. Press this button
again to cancel the timer setting and the icon disappears.
Each time the Heater Button is pressed, the power of the
heater will change. As shown the following: H1- H2-
AUTO（22℃）- OFF（no display）
H1 means the fireplace on Low Heat/950W
H2 means the fireplace on High Heat/1900W

This button is void in this model.
Press this button to adjust the speed of the flame. There are 3 options: High-
Medium- Low.
Press the Flame button to turn on and off the Flame. When in ON position, the LCD
screen of the remote control shows 6 6 6. Press or or to change
the brightness of each color flame.
7 Day Timer Function
Press once, 7 days from Monday to Sunday will display on the LCD screen of
the remote control, press within 5 seconds to enter 7 day timer function. When
“Sun” flashes, press or to select the day that you want to set, press to
confirm your setting. Then “ON” will be display on the LCD screen of the remote
control, at the same time, digital of time hour flashes, press or to set the
time to turn the fireplace on. After setting the startup time, “OFF” will be displayed on
the LCD screen and press or to set the shutdown time. When the
shutdown time’s set, “AUTO” will be displayed on the LCD screen of the remote
control and the digital of temperature flashes. At this time, you can set the
temperature by or . Now, you have finished setting of this function.
AUTO means fireplace can automatically adjust to the temperature you set. When in
AUTO, you can set the desired temperature with or keys. You can switch
temperature between Celsius and Fahrenheit with or keys.When it is on Auto
When the 7 day timer’s set, the icon will be displayed on the LCD screen of the
remote control. Press again to cancel the 7 da
will disappears.
NOTE: If the 7 day timing and the general timing are set at the same time, the
system will respond to an earlier shutdown time.
Press Refer button to check the settings of 7 day timer. Press or to see the
settings of the day of the week and or the settings of the startup and
shutdown time.
y timer and the icon
13
mode, fireplace operate at 1900W.

14
WIFI OPERATION
IN TALL Tuya mart life
There are 2 ways to install TuyaSmart;
1. Search for “TuyaSmart life” in the APP store on your phone, download and install.

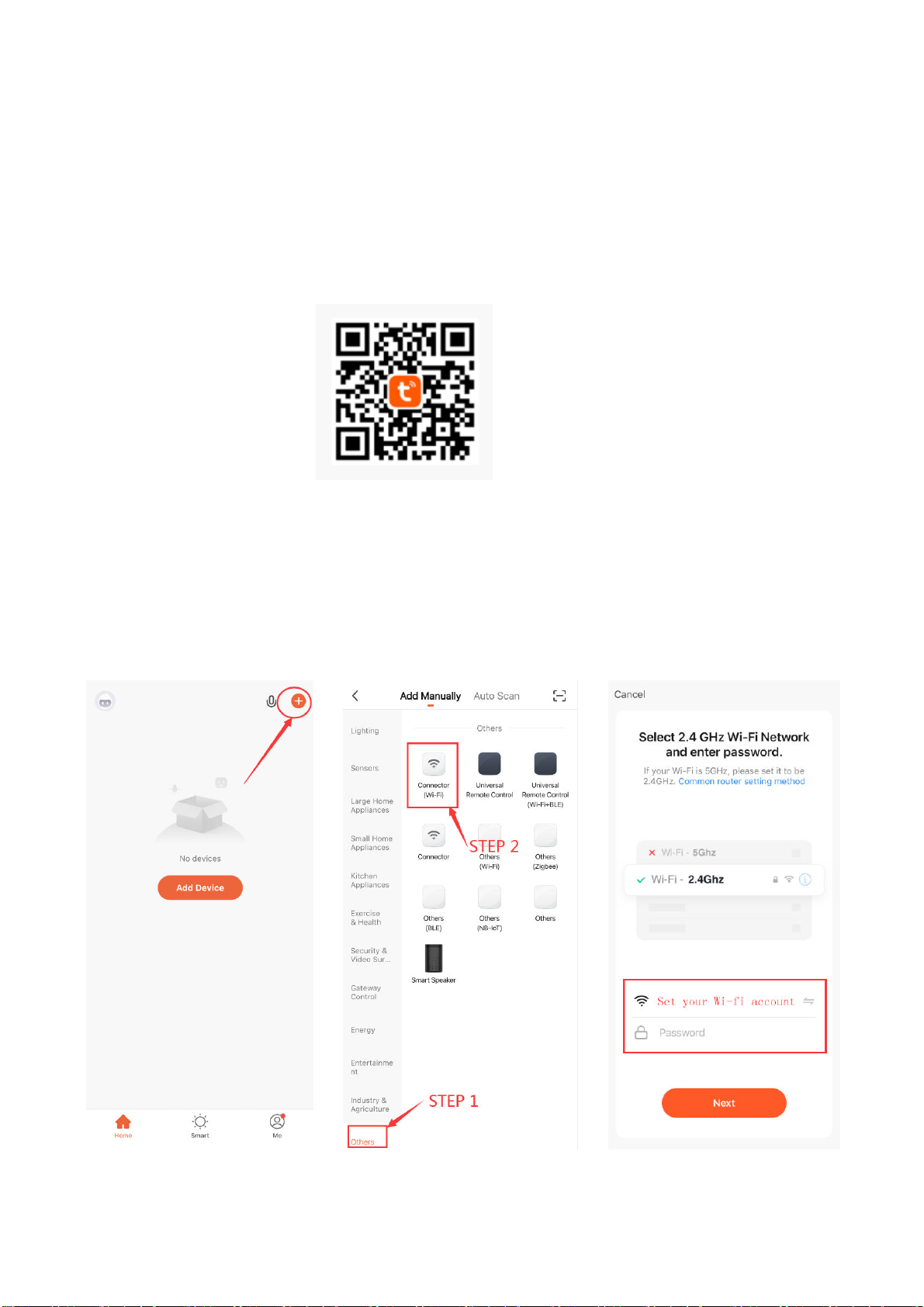

2. Scan the QR code below with your mobile phone.
WIFI ETTING AND FIREPLACE OPERATION
1. Create an account and log in.
2. When you log in, touch “+” (FIG.1) to enter in FIG.2. Touch “others” on the left corner first
and then choose “Connector (Wi-fi)” to enter in FIG.3 to set your Wi-fi account and
password.
FIG.1 FIG. 2 FIG.3

15
FIG.4
3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds
when the fireplace in standby mode. There will be 2 beeps come out from the fireplace
and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then
please confirm to go next. (FIG.5)
4. The APP will scan (FIG.6) and add the fireplace to APP (FIG.7) automatically. Please
make sure the Wi-fi account and password you set are correct and Wi-fi signal is good.
5. Touch “Done” to finish Wi-fi setting.(FIG.7)
FIG.5 FIG.6 FIG.7

16

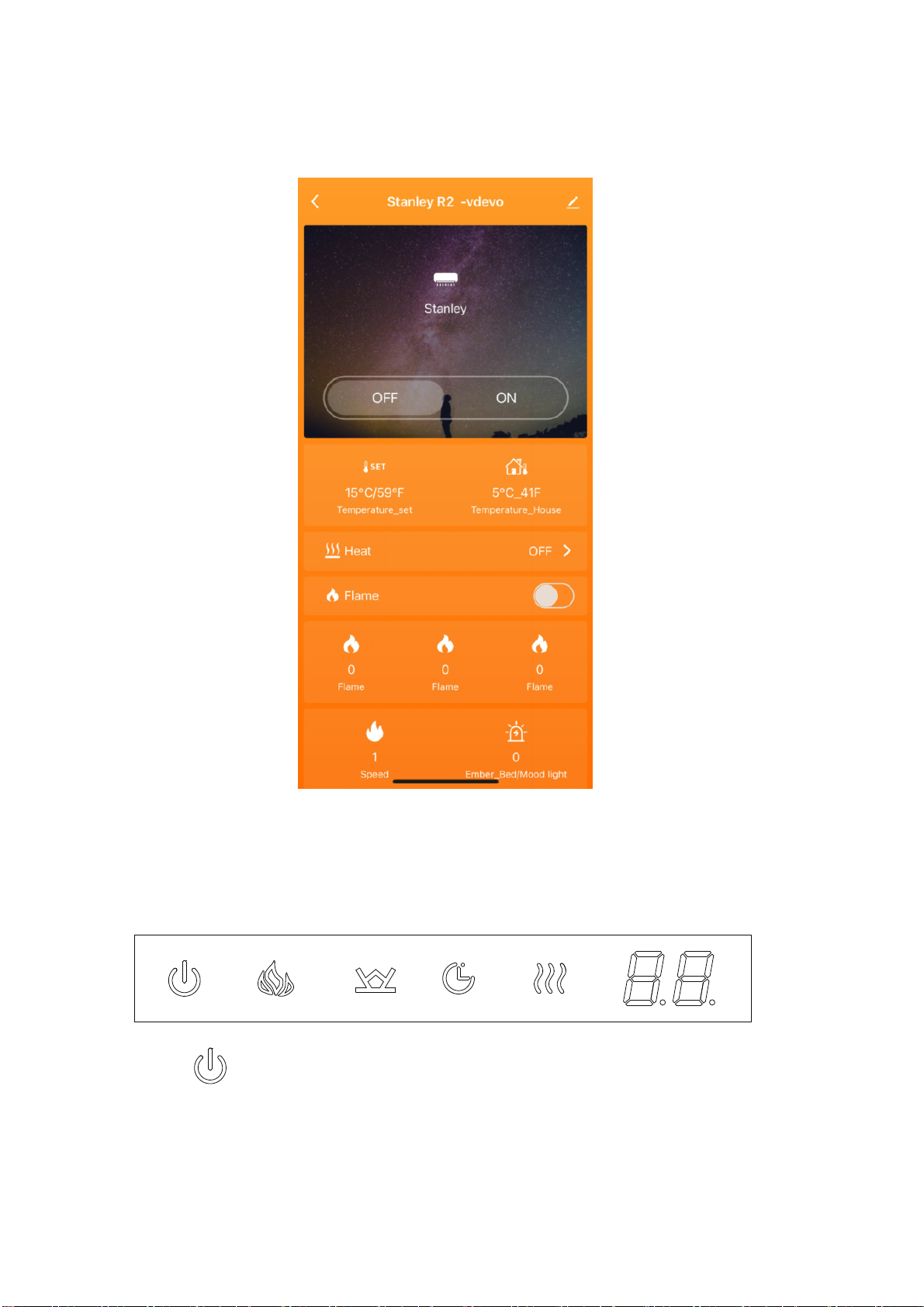

6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi.
FIG.7
NOTE: Turn off the flashing blue Wifi indicator light
Touch the (power button) once, the blue light will stop flashing.

CARE AND MAINTENANCE
CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the
surface finish of the plastic components.
CONFORMITY WITH DIRECTIVES
Conforms to all relevant European directives
ENVIRONMENTAL PROTECTION
Recycling
This symbol is known as the 'Crossed-out Wheelie Bin Symbol'. When
this symbol is marked on a product or battery, it means that it should not
be disposed of with your general household waste. Some chemicals
contained within electrical/electronic products or batteries can be harmful
to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment.
1. Switch off and unplug from the power supply before cleaning.
2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface
of the products.
CAUTION: Allow the product to completely cool before handling or cleaning it.
3. Do not allow water or other liquids to run into the interior of the product, as this could create a
fire and/or electrical hazard.
4. We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner
nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the
unit.
17

REPLACEMENT PARTS
Ref. Description Quantity NMARWH90 NMARWH 0 NMARWH 40
1 Fireplace Box 1 2 Signal Receiver 1 301506 301506 301506 3 Circuit Board 1 10124129 10124129 10124129 5 Touch anel 1 10124003 10124003 10124003 7 Blower And Heater Assembly 1 602083F 602083F 602083F 8 Back Glass 1 107021171 107021181 107021191 9 Blower Mount 1 3093003 3093003 3093003
12 Tray Glass 1 10702143C 10702144C 10702145C 13 Flame Motor 1 1010501 1010501 1010501 14 Flicker Assembly
1
3241505B 3094502B 3119506B
16 ower Cord 1 10103007 10103007 10103007 18 LED Light
Qty R quir d Bas d
on Siz of th Unit
601136C - Qty 2 601136C - Qty 3 601136C - Qty 4
601144 – Qty 2 601144 – Qty 3 601144 – Qty 4
19 Front Glass 1 10701151C 10701152C 10701153C 20 Remote control 1 10105501 10105501 10105501 21 Wi-Fi Card 1 212051 212051 212051
*R mot Control & WIFI Card ar not shown in th xplod d vi w *It ms may not app ar xactly as illustrat d
1

EXPLODEDVIEW
19

TRUBLESHOOTING
PROBLEMPOSIBBLECAUSE SOLUTION
Dimorno flame FlameLEDsareburnt out InspecttheLED sand replace
themif necessary.
Emberbedisnot
glowingordimming EmberLEDsareburntout Inspectthe emberbed LED sand replacethemif necessary.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Housecircuitbreakerhas
tripped Reset housecircuit breaker.
Applianceturnsoff
and willnot turnon
Appliancesfusehasblown Replacethe fuse.
Applianceisnotplugged into
an electricaloutlet Check plug andplug in.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Appliancewillnot
comeon when switch
isflippedtoON
Circuitboardisburnt out Inspectthe circuitboardand
replaceitifnecessary.
Nowarmaircoming
out of appliance Heaterisburnt out Inspectthe burnerand heater assemblyand replaceitif
necessary.
Flamesputters
Flamemotorisdefective. Callaqualified servicetechnician and replaceflamemotor.
RemoteControldoes
not work. Lowbatteries. Unit switchin “O”position. ReplaceAAAbatteriesinremote control.
Turntheswitchin “I”position.
Flameisfixed. Wiringmaybe looseorthe
flamemotormaybe defective.
20
