Stanley Cara Glass User manual

Cara Glass Non Boiler
Insert Stove
PLEASE RETAIN
INSTALLATION AND OPERATING INSTRUCTIONS
This appliance is hot while in operation and retains its heat for a long period of time after use. Children,
aged or infirm persons should be supervised at all times and should not be allowed to touch the hot
working surfaces while in use or until the appliance has thoroughly cooled.
When using the stove in situations where children, aged and/or infirm persons are present a fireguard
must be used to prevent accidental contact with the stove. The fireguard should be
manufactured in accordance with BS 8423:2010.

2
TABLE OF CONTENTS
PAGE NO.
1. Stanley Solid Fuel Stove Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Important Operation/ Maintenance Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4. Installation & Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..6
5. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..6
6. Pre Installation Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
7. Flues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..7
8. Chimney . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
9. Fitting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
10. Fully Lined Chimney . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
11. Not Fully Lined Chimney . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
12. Down Draughts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
13. Ventilation & Combustion Air Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
14. Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
15. Clearance to Combustibles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
16. Floor Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
17. Stove Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
18. Commissioning & Handover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
19. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
20. Air Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
21. Recommended Fuels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
22. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
23. Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
24. Lighting The Stove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
25. Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
26. Slow Burning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
27. De-Ashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
28. Disposal of Ashes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
29. Monthly Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
30. Grate Removal & Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
31. Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
32. Chimney Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
33. Glass Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
34. Cleaning The Outer Casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
35. Prolonged Periods of Non Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
36. Fire Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
37. Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
38. CO Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
39. Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..20

STANLEY SOLID FUEL STOVE WARRANTY
CONDITIONS OF WARRANTY
Your Stanley Solid Fuel Stove is guaranteed against any part that fails (under normal operating conditions) as detailed
in the following table with timelines specified from the date of installation of the appliance. If the unit is not installed with-
in six months of date of purchase, the warranty will commence six months from the date of purchase.
Warranty Period Parts Covered (Parts & Labour unless Stated)
Up to 1 Year • Refractory materials (supply only)
• Rope seals, glass seals and cement seals.
• Surface Finish on Seno models.
• Grates and fire bars.
• Ceramic glass is covered for Thermal breakage (supply only).
• Rust (if reported before installation)
• Aesthetic Damage (provided reported on date of receipt)
Up to 5 Years • All external castings & enamel finishes (excluding impact damage or
damage caused by overfiring). Pictures of damage must be submitted to
WS Service Department.
All warranty claims must be reported to the Waterford Stanley Service Department and must be submitted with the prod-
uct serial number (located on the bottom RH corner of the front plate), date of purchase, proof of purchase (if request-
ed) and details of the specific nature of the problem.
The warranty is given only to the original consumer/purchaser only and is non- transferable. The appliance must be
installed by a suitable qualified person and installed as per the requirements of the manual. Failure to comply with the
Installation requirements or Building Regulations will void your warranty. Waterford Stanley reserve the right to replace
any part due to manufacturing defect that fails within the warranty period under the terms of the warranty. The unit must
be used for normal domestic purposes only and in accordance with manufacturer's operation instructions.
3
LIMITS OF LIABILITY
The warranty does not cover:
* Special, incidental or consequential damages, injury to persons or Property, or any other consequential loss.
* Any issue caused by negligence, misuse, abuse or circumstances beyond Waterford Stanley’s control.
* Any issue with wear and tear, modification, alteration, or servicing by anyone other than an authorized service
engineer.
* Installation and operational related problems such as draught related issues external to the stove, inadequate
venting or ventilation, excessive flue offsets, negative air pressure caused by insufficient burning of improper
fuel.
* Damage caused to the unit while in transit.
* Enamel discolouration due to over firing, enamel damage caused by impact, damage to baffles caused by
over firing and fading of surface finish on casting.
* Stress fractures on bricks.
* Rust on cast iron parts unless reported prior to unit being installed.
* Aesthetic damage, rust & missing parts on units purchased off display.
Note: Adequate clearance must be maintained around the appliance to ensure the ease of part removal in the possi-
ble event of their damage/failure. Waterford Stanley are not responsible for any costs incurred in the removal of items
installed in the vicinity of the appliance that have to be moved to facilitate a part replacement.

INSTALLATION CHECK LIST
Tick
Flue System
1. Minimum Flue Height of 4.6 metres (15 feet).
2. Appliance should be connected to a 125mm (5”) flue pipe within a metre and then
the flue size increased to a minimum of 150mm (6”) diameter.
3. The horizontal flue run should not exceed 150mm (6”)
4. All flue pipework passing through walls must be sleeved & adequately insulated in line
with current Building Regulations.
5. Appliance should be connected to a chimney of less than 200mm (8”) in diameter
(otherwise the chimney must be lined with a 6” flue liner).
6. The chimney/ flue termination must be located in accordance with building regulations part J.
7. The chimney serving this appliance should not serve any other appliance.
8. Access should be provided to the chimney serving the appliance to allow for cleaning.
9. It is a requirement by Building Regulations to have a carbon monoxide alarm
fitted to any room with a solid fuel appliance.
Location
10. Clearance to combustible materials must be adhered to as described in the Clearance
to Combustible section.
11. The stove must be installed on a floor protector that covers the area under the stove
and extends 14” to the front and 10” to the sides.
12. Clearance must be maintained to allow for maintenance and part replacement.
Ventilation & Combustion Air Requirements
13. The room in which the appliance is located should have an air vent of adequate
size to support correct combustion (see Ventilation & Combustion Air Requirement
Section for specific details).
14. The stove must not be installed in the same room as an extractor fan.
4

5
IMPORTANT OPERATION / MAINTENANCE NOTES
Now that your Stanley Solid Fuel Stove is installed and no doubt you are looking forward to many comforts it
will provide, we would like to give you some tips on how to get the best results from your stove.
1. We would like if you could take some time to read the operating instructions/hints, which we are
confident, will be of great benefit to you.
2. Do not burn fuel with a high moisture content, such as a damp peat or unseasoned timber. This will
only result in a build up of tar in the stove and in the chimney.
3. IMPORTANT: The first few fires should be relatively small to permit the refractory to set properly
and season the stove. During these firings it is recommended to ventilate the room as an
unpleasant (not toxic) odour may be emitted as the paint is completing curement.
4. Inspect the flue-ways of the stove weekly and ensure that there are no blockages. Check flue
ways before lighting especially after a shut down period. Please see chimney cleaning section.
5. Before loading fresh fuel into the firebox, riddle fully to remove all ashes. This will allow better and
cleaner burning. See Re-Fuelling section.
6. Never allow a build up of ashes in the ash pan, as this will cause the grate to burn out prematurely.
Empty the ashpan when refuelling.
7. Avoid slow burning of damp or unseasoned fuel as this will result in tarring flue ways and chim-
ney i.e. peat or timber.
8. Allow adequate air ventilation to ensure plenty of air for combustion.
9. Do not burn rubbish/household plastic.
10. Clean the chimney at least twice a year.
11. Burning soft fuels such as timber and peat will stain the glass. Regular cleaning will prevent
permanent staining. Clean with soapy water when cool.
12. Keep all combustible materials a safe distance away from unit, please see section for clearances
to combustibles.
13. Never use aerosol spray near the appliance when it is in operation.
14. For safety reasons never leave children or the elderly unaccompanied while stove is in use. Use a
fire guard.
15. Avoid contact with the appliance when in use as stove reaches very high operating temperatures.
16. This appliance should be regularly maintained by a competent service engineer.
FUEL CALORIFIC VALUES - SOLID FUELS
Anthracite 25-50mm C.V.: 8.2kW/Kg 14,000 BTUs/lb
House Coal 25-75mm C.V.: 7.2kW/Kg 12,000 BTUs/lb
Timber - Firebox size C.V.: 5.0kW/Kg 8,600 BTUs/lb
Peat Briquettes C.V.: 4.8kW/Kg 8,300 BTUs/lb

6
THE CARA GLASS SOLID FUEL NON BOILER STOVE
INSTALLATION & OPERATING INSTRUCTIONS
GENERAL
When installing, operating and maintaining your
Cara Stove respect basic standards of fire safety.
Read these instructions carefully before commenc-
ing the installation. Failure to do so may result in
damage to persons and property. Consult your local
Municipal office and your insurance representative
to determine what regulations are in force. Save
these instructions for future reference.
Please note that it is a legal requirement under
England & Wales Building Regulations that the
installation of the stove is either carried out under
Local Authority Building Control approval or is
installed by a Competent Person registered with a
Government approved Competent Persons
Scheme. HETAS Ltd operate such a scheme and a
listing of their Registered Competent Persons can
be found on their website at www.hetas.co.uk.
Special care must be taken when installing the stove
such that the requirements of the Health & Safety at
Work Act are met.
Handling
Adequate facilities must be available for loading,
unloading and site handling.
Fire Cement
Some types of fire cement are caustic and should
not be allowed to come into contact with the skin. In
case of contact with the skin wash immediately with
plenty of water.
Asbestos
This stove contains no asbestos. If there is a possi-
bility of disturbing any asbestos in the course of
installation then please seek specialist guidance and
use appropriate protective equipment.
Metal Parts
When installing or servicing this stove care should
be taken to avoid the possibility of personal injury.
“IMPORTANT WARNING”
This stove must not be installed into a chimney that
serves any other heating appliance.
The complete installation must be done in accor-
dance with current Standards and Local Codes. It
should be noted that the requirements and these
publications may be superseded during the life of
this manual.
Please refer to the current standards, BS EN 15287-
1:2007 Design, Installation and Commissioning of
chimneys. BS EN 14336:2004: Heating Systems in
Buildings. Installation & Commissioning of Water
Based Heating Systems. BS EN 12828: 2003;
Heating Systems in Buildings. Design of Water
Based Heating Systems. BS EN 12831: 2003;
Heating Systems in Buildings. method for
calculation of the design heat load.
PRE-INSTALLATION ASSEMBLY
After removing the stove from the packaging, open
the fire door and remove the loose packing. Prior to
installation all the internal components of the stove
are removed to gain access to fixings and to make it
lighter for installation.
Remove the refractory fire bricks, these bricks are
loose and just need to be lifted clear of the grate
support plate before they can be removed.
To remove the loose baffle, lift on right side and
move this up and to the right to give maximum clear-
ance at the opposite side to allow the baffle be low-
ered clear of the supporting ledge on the left hand
side casting.
Next, remove the grate by pushing it from under-
neath, the riddling bar is not fixed to the grate.
The cast iron side liners must be removed prior to
the fixed baffle, to remove the side liners lift the bot-
tom edge clear of the grate support and slide the
bottom edge towards the opposite side of the stove,
when the casting is moved to a diagonal position it
will be free to be lifted from the stove.
To remove the fixed baffle, loosen the two roof bolts,
support the baffle with one hand while removing the
L shaped brackets with the other hand, see Fig.1.

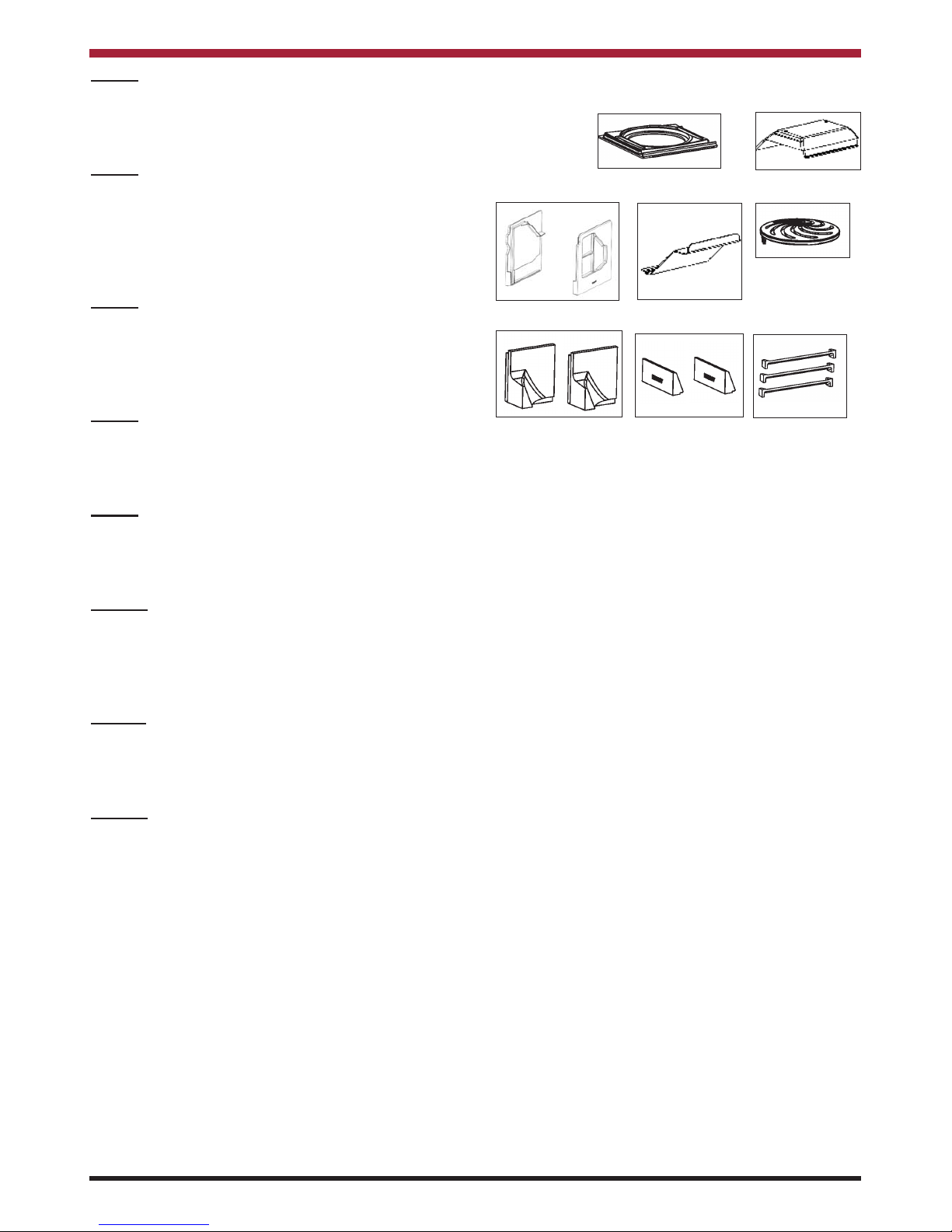

Your Cara Glass stove is supplied with the following
items:
• Ashpan
• Operating Tool
• Glove
• Side Bricks
• Clay Adaptor
• Rigid Pipe
•15
oAdaptor

Do not overtighten the roof bolts when refitting the
baffle. It is adequate to leave them in a position
where the L shaped bracket has just enough room to
be removed.
Remove the flue spigot and gasket by removing the
four bolts.
To remove the insert stove from the external casing,
lift out the grate support, this will allow access to two
M6 fixings which attach the stove to the outer cas-
ing. Remove the 2 fixings, allowing the insert stove
to be removed from the external casing.
FLUES
Flues should be vertical wherever possible and
where a bend is necessary, it should not make an
angle of more than 45owith the vertical. Horizontal
flue runs should be avoided in order to minimise flue
resistance and to make sweeping easier it is recom-
mended to use 2 x 45obends rather than a 90o
bend.
CHIMNEY
Do not connect to a chimney serving another
appliance.
The stove is a radiant room heater and must be con-
nected to a chimney of the proper size and type.
The chimney must have a cross-sectional area of at
least 30 square inches 19350sq. mm or a diameter
of at least 6” (150mm). It is best to connect to a
chimney of the same size, as connection to a larger
size may result in a somewhat less draught.
A flue that has proved to be unsatisfactory, particu-
larly with regard to down draught should not be used
for venting this appliance until it has been examined
and any faults corrected. An existing masonry chim-
ney should be inspected and if necessary repaired
by a competent mason or relined using an approved
lining system.
The stove must be connected to a chimney with a
minimum continuous draught of 0.06 w.g. Poor
draught conditions will result in poor performance.
All register plates, restrictor plates, damper etc.,
which could obstruct the flue at a future date should
be removed before connecting this appliance.
If connecting to an existing chimney with a flue
diameter of more that 8” it is recommend to line the
flue using a suitable stainless steel flue liner.
Where a masonry chimney is not available a propri-
etary type of 6”/150mm - twin wall, fully insulated
pipe may be used.
A chimney / flue termination must be located to min-
imise wind effects, a basic guide is that the distance
from the termination to the roof should be at be at
least 2300mm when measured horizontally and at
least 1000mm when measured vertically, (see
Fig.2). In circumstances where there are adjoining
buildings/ structures/ roof openings there are addi-
tional requirements, please refer to building regula-
tions part J.

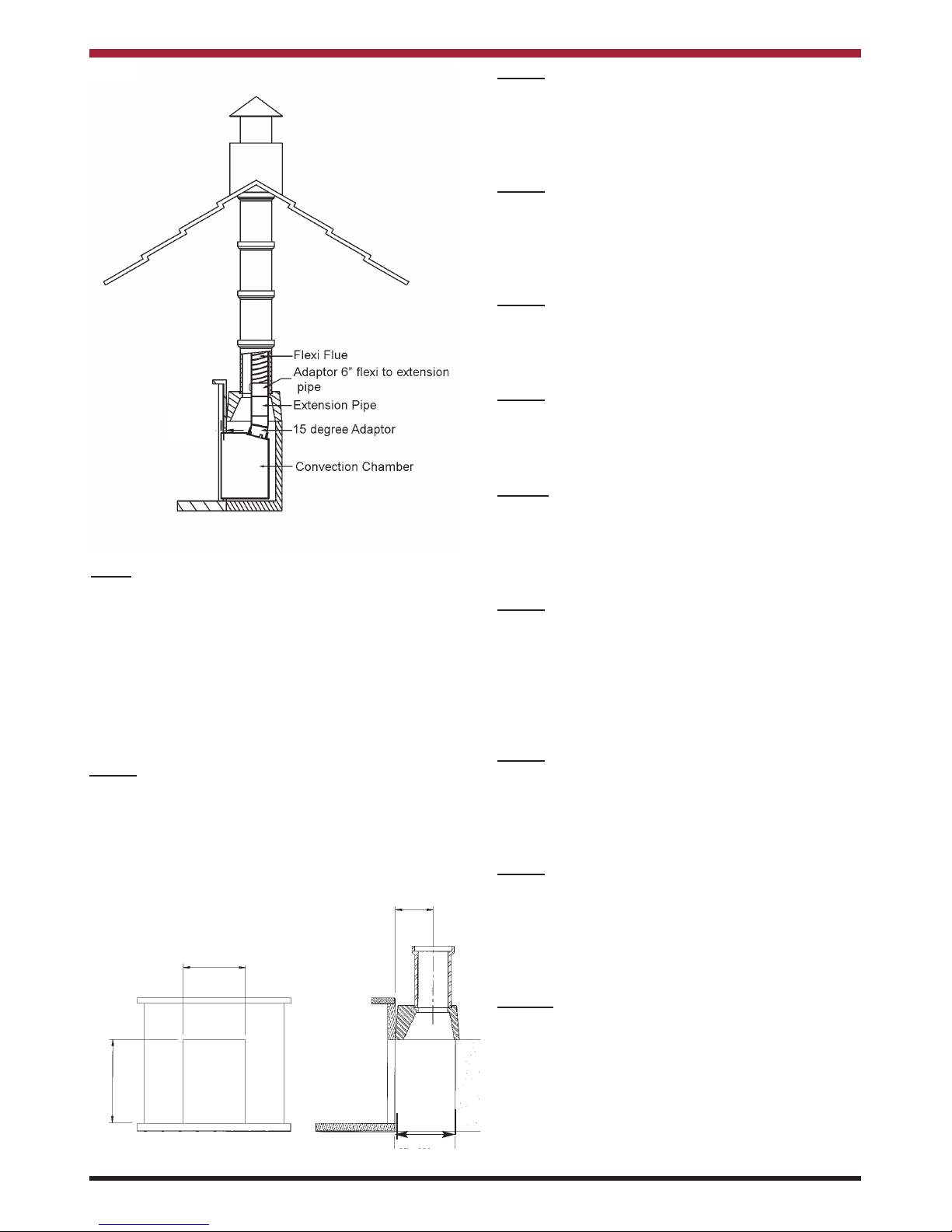

Fig.2
2300
1000
Fit
appliance
back into
wall
The liner should be approved for use with solid
fuel. (See Fig. 3)
Fig.1
7

8
Fig.3
405mm - 455mm
240mm - 320mm
550mm - 575mm
Min 400mm
Step 2
Ensure the floor area is level with the hearth, this
area needs to be level as the insert fire is screw
fixed to the floor. Remove all internal parts as per
pre-assembly instructions.
Step 3
Drop the flexi flue liner down through the chimney
and into the fireplace. Fit the adaptor ( not supplied
available to order) to the end of the flexible flue liner
along with the extension pipe which is supplied.
Step 4
Lay the external casing into the opening and posi-
tion it so that the front plate is up against the front
edge of the opening.
Step 5
Mark the drill locations and drill the holes using a
5.5mm drill bit. Fix the casing to the floor using the
self tapping screws provided.
Step 6
Lift the stove into the casing approximately 75mm
first and then it can be pushed into the final position
while taking care to lift the front edge to preserve the
hearth.
Step 7
Lay the sealing gasket on to the flue spigot, then fit
the flue spigot to the end of the15 degree adaptor.
Fix the 15 degree adaptor to the flue spigot using the
grub screws provided. Then pass the 15 degree
adaptor through the flue opening and connect it to
the extension pipe.
Step 8
Then using the M6 x 10mm screws secure the stove
to the convection chamber. Push the insert stove
against the fireplace before fully tightening these
bolts.
Step 9
Pull the flue liner back up through the flue outlet until
the flue spigot is in position. Fix the flue spigot using
the M8 bolts provided. It may be necessary to cut a
prop to hold the spigot in place while the fixings are
being attached.
Step 10
Complete the installation of the flexi flue at the top of
the chimney in accordance with the manufacturers
instructions.
Note:
Where the product is to be installed at minimal clear-
ances to non combustible rendered walls, it will be
necessary to have the adjacent surfaces rendered
using a heat resistant render/ plaster.
Fig.4
FITTING INSTRUCTIONS
Fully Lined Chimney
Step 1
Prepare the fireplace area with milner brick removal.
Ensure the opening is suitable for fitting of the insert
stove opening required, i.e. remove fire surround
trim if fitted. See Fig.4.

9
Fig.5
Step 1
Prepare the fireplace area with milner brick removal.
Ensure the opening is suitable for fitting of the insert
stove opening required, i.e. remove fire surround
trim if fitted. See Fig.4.
Step 2
Ensure the floor area is level with the hearth, this
area needs to be level as the insert fire is screw
fixed to the floor. Remove all internal parts as per
pre-assembly instructions prior to lifting it.
Fig.5a
Fig.5b
Step 3
Measure the distance to the flue outlet of the stove
and compare to the chimney, decide on best orien-
tation of the offset adaptor.
Step 4
Push the offset adaptor into position and make a
seal using approved fire cement between the adap-
tor and the clay liner. The seal should be tapered to
allow any condensation that may occur in the
chimney flow back into the flue. See Fig.5.

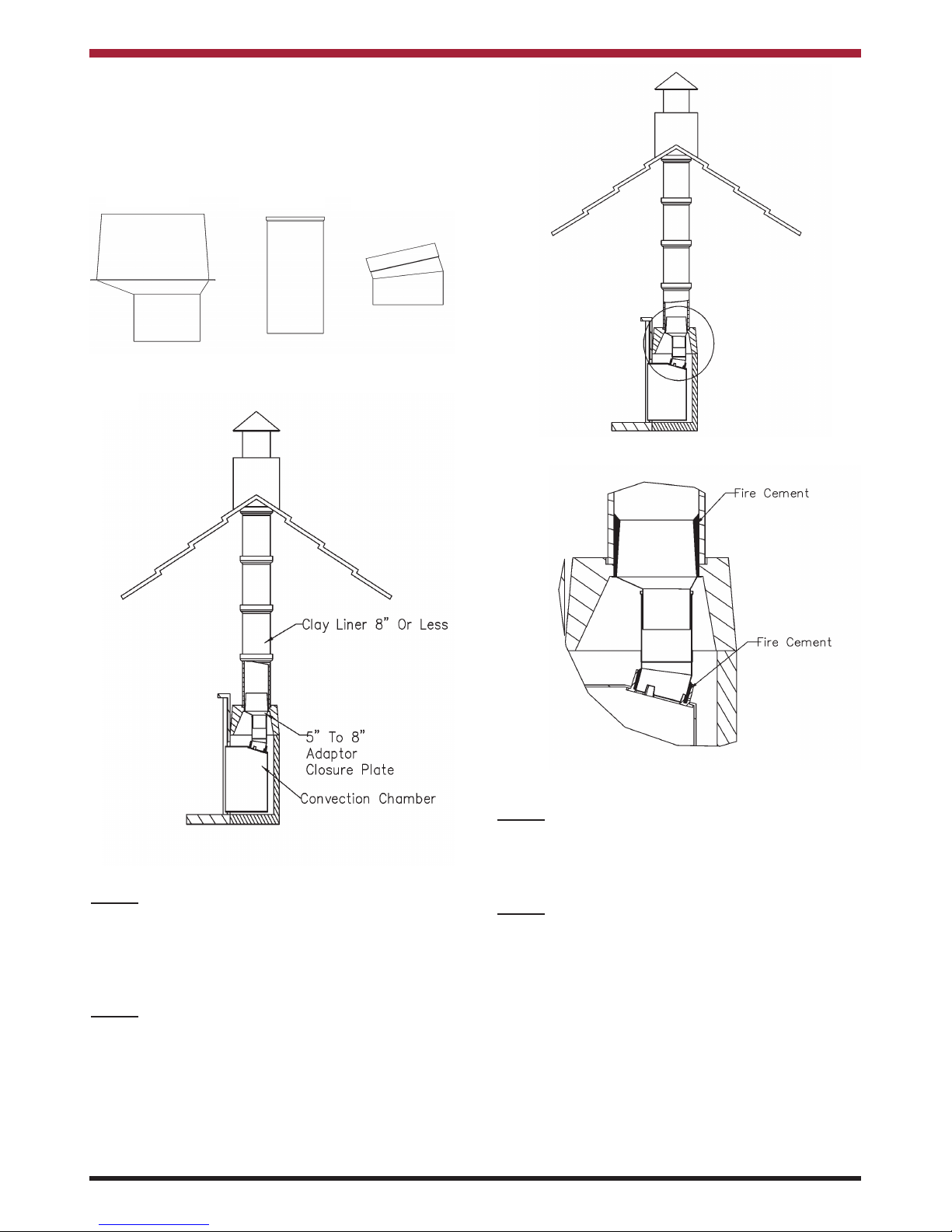

Fig.5 Chimney Connectors
Offset Adaptor Extension Pipe 15 degree Adaptor
NOT FULLY LINED CHIMNEY (Using Closure
Plate & Pipe Extension)

10
Step 5
Mark the drill locations and drill the holes using a
5.5mm drill bit. Fix the casing to the floor using the
self tapping screws provided.
Step 6
Lift the stove into the external casing. The stove can
be lifted into the casing approximately 75mm first
and then it can be pushed into the final position
while taking care to lift the front edge to preserve the
hearth.
Step 7
Then using the M6 x 10mm screws secure the stove
to the convection chamber. Push the insert stove
against the fireplace before fully tightening these
bolts.
Step 8
Temporarily fit the flue spigot and the 15 degree
adaptor. Measure the required length for the exten-
sion pipe.
Step 9
Measure and cut the extension pipe at the straight
end to the required dimension using the guide collar
provided.
Step 10
Lay the flue gasket onto the flue spigot and then fit
15 degree adaptor and extension pipe to the spigot
using the grub screws to fix the 15 degree adaptor
provided and seal using fire cement.
Step 11
Fit the spigot adaptor and extension pipe so that it
completes the flue installation between the stove
and adaptor (closure plate).
Step 12
Bolt the spigot to the stove and re-apply fire cement
to the seals where it may have been disturbed dur-
ing the installation.
Fit the individual components in the following order:
1. Grate Support
2. Fixed Baffle
3. Cast Iron Side Liners
4. Loose Baffle
5. Grate
6. Back Bricks
7. Side Bricks
8. Fire Fence
Fig 6
1. Grate Support 2. Fixed Baffle
3. Cast Iron Side Liners 4. Loose Baffle 5. Grate
6. Back Bricks 7. Side Bricks 8. Fire Fence
1. Grate Support
Tilt the grate support up on one side and pass it
carefully through the door opening, it should then
rest on three supports approx 100mm from the floor
of the stove.
2. Fixed Baffle
The baffle fits to the roof of the stove using the two
M6 bolts and L shaped stainless steel clips. The
bolts should be still in place following removal of the
baffle, simply lift the baffle into place with the hex
head bolts passing through the holes in the baffle,
then fit the L shaped clip over the head of the bolt to
hold the baffle in place. It is best to leave the bolts
half a turn loose to allow for ease of removal.
3. Cast Iron Side Liners
To insert the side liner, place the casting diagonally
into the stove with the top edge to the side it is
intended, then push the bottom edge across while
making sure the top edge passes inside the fixed
baffle. The casting should fall into its final location at
the side where the bottom edge is located by the
grate support.
4. Loose Baffle
To fit the bottom baffle, place it into the stove as
shown in fig. 7a with the bend in the baffle aligned
with the bottom edge of the top baffle. Slide the baf-
fle up to one side as far as possible until it can be lift-
ed past the support ledge on the opposite side
panel, then lower the baffle into its correct position
centrally in the stove with the rear edge in contact
with the rear of the stove and resting on the support
ledges of the side panels and with the chamfer locat-
ed in the top corner as per fig. 7b.

11
5. Grate
The grate simply lays into the grate support but care
needs to be taken that the riddling bar will rest in the
middle of the fork.
6 & 7. Side & Back Bricks
Lay the side and back bricks in as shown in Fig.8.
8. Fire Fence
Lay the fire fence into the slots provided ensuring
that they slope from front to back so that no embers
can fall out through the fire fence.
Fig 8
DOWN DRAUGHTS
However well designed constructed and positioned,
the satisfactory performance of the flue can be
adversely affected by down draught caused by near-
by hills, adjacent tall buildings or trees. These can
deflect wind to blow directly down the flue or create
a zone of low pressure over the terminal.
A suitable terminal or cowl will usually effectively
combat direct down blow but no cowl is likely to pre-
vent down draught due to a low pressure zone.
(See Fig.9).
Fig 7a Fig 7b
Three Sided Frame
Fit the three sided frame by placing the top section
of the frame over the top hinge point for the door and
engaging the cut-outs on the back of the frame into
the fixing points on the shell (See fig. 8a).
Four Sided Frame
Fit the four sided frame by inserting the frame over
the firedoor and air controls and engaging the cut-
outs on the back of the frame into the fixing points on
the shell. Secure in position using the two fixing
screws as shown in figure 8b.
Fig 8a
Fig 8b

12
Fig 9 Direction of wind
Direction of wind
Direction of wind
Pressure zone
Pressure zone
Suction zone
Suction zone
Pressure zone Suction zone
VENTILATION & COMBUSTION AIR REQUIRE-
MENTS
It is imperative that there is sufficient air supply to
the stove in order to support correct combustion.
The air supply to this appliance must comply with
current Building Regulations Part J, Heat Providing
Appliances. If another appliance is fitted in an adja-
cent room it will be necessary to calculate an addi-
tional air supply.
The minimum effective air requirement for this appli-
ance is 8.25cm2. When calculating combustion air
requirements for this appliance use the following
equation: 550mm2per each kW of rated output
above 5 kW should be provided, where a flue
draught stabiliser is used the total free area shall be
increased by 300mm2for each kW of rated output.
If there is another appliance using air fitted in the
same or adjacent room, it will be necessary to pro-
vide an additional air supply.
Note:
There must not be an extractor fan fitted in the same
room as the stove as this can cause the stove to emit
smoke and fumes into the room.
All materials used in the manufacture of air vents
should be such that the vent is dimensionally stable,
corrosion resistant, and no provision for closure.
The effective free area of any vent should be ascer-
tained before installation. The effect of any grills
should be allowed for when determining the effective
free area of any vent.
Air vents should be positioned so that they are not
liable to blockage.
Air vents direct to the outside of the building should
be located so that any air current produced will not
pass through normally occupied areas of the room.
An air vent outside the building should not be locat-
ed less than the dimensions specified within the
Building Regulations and B.S. 8303: Part 1 from any
part of any flue terminal. These air vents must also be
satisfactorily fire proofed as per Building Regulations
and B.S. 8303: Part 1.
Air vents in internal walls should not communicate
with bedrooms, bedsits, toilets, bathrooms or rooms
containing a shower.
Air vents traversing cavity walls should include a con-
tinuous duct across the cavity. The duct should be
installed in such a manner as not to impair the weath-
er resistance of the cavity.
Joints between air vents and outside walls should be
sealed to prevent the ingress of moisture. Existing air
vents should be of the correct size and unobstructed
for the appliance in use.
If there is an extraction fan fitted in adjacent rooms
where this appliance is fitted, additional air vents may
be required to alleviate the possibility of spillage of
products of combustion from the appliance/flue while
the fan is in operation. Refer to B.S. 8303 Part 1.
Where such an installation exists, a test for spillage
should be made with the fan or fans and other appli-
ances using air in operation at full rate, (i.e.extraction
fans, tumble dryers) with all external doors and win-
dows closed.
If spillage occurs following the above operation, an
additional air vent of sufficient size to prevent this
occurrence should be installed.

13
‘HETAS product approval covers this appliance
when installed in accordance with the manufactur-
er’s instructions and relevant standards. As there is
currently no standard for Ducted Combustion Air
Supply this does not fall within the remit for HETAS
product approval. Responsibility for the specification
of this and for appropriate manufacturer’s instruc-
tions is carried by the appliance manufacturer, as
allowed for under the Building Regulations.’
Especially Airtight Properties:-
If the stove is being fitted in a property where the
design air permeability is less than 5m3/ (h.m2)
(normally newer properties built from 2006), then a
permanent ventilation must be fitted to provide
550mm2of ventilation for each kW of rated output.
If a draught stabiliser is also fitted then the require-
ment is 850mm2per kW of rated output.
LOCATION
There are several conditions to be considered in
selecting a location for your Stanley Glass Stove.
a. Position in the area to be heated, central
locations are usually best.
b. Allowances for proper clearances to
combustibles.
c. Allowances for proper clearances for mainte-
nance work.
Clearances to Combustibles
This appliance must be installed in a recess, the
recess should not contain any combustible material.
Wood battens and plaster board should not be used
within the clearance to combustibles. The minimum
clearance to combustibles required is as follows:
To the Top 550mm (22”)
To the Front 550mm (22”)
From the Sides 250mm (10”)
To Combustible Flooring 350mm (14”)
550mm
250mm 250mm
Fig.10
350mm
550mm
Fig.11
If the mantlepiece protrudes further than 100mm
from the fireplace, then it will be necessary to have
further clearance to the top of the stove. The dis-
tance the mantle protrudes past the 100mm should
be added to the clearance.
For example, if the mantle protrudes 200mm, the
clearance to the mantle should be 650mm. (See
Figs 10 & 11).
If there is a studded wall surrounding the fire-
place as in Fig.16, ensure the clearances in this
Fig are adhered to.

Fig.12 FLOOR PROTECTION
It is recommended that the appliance is installed on
a solid, level, concrete base of non combustible
hearth conforming to the current Building
Regulations must extend 350mm in front of the unit
and 250mm from the sides of the front edge. This
will provide protection from sparks and embers
which may fall out when stoking on refuelling.
14
STOVE DIMENSIONS
Fig.13
WARNING: DO NOT OBSTRUCT PRIMARY AIR SUPPLY TO THE STOVE
Note: Dimensions stated are in millimetres unless otherwise stated and may be subject to a slight +/- variation.
3 SIDED FRAME
4 SIDED FRAME

15
COMMISSIONING AND HANDOVER
On completion of the installation allow a suitable
period of time for any fire cement and mortar to dry
out, when a small fire may be lit and checked to
ensure the smoke and fumes are taken from the
stove up the chimney and emitted safely to the
atmosphere. Do not run at full output for at least
24 hours.
Ensure that the operating instructions for the stove
are left with the customer. Ensure to advise the cus-
tomer on the correct use of the appliance with the
fuels likely to be used on the stove and warn them to
use only the recommended fuels for the stove.
Advise the user what to do should smoke or fumes
be emitted from the stove. The customer should be
warned to use a fireguard to BS 8423: 2010 in the
presence of children, aged and/or infirm persons.
OPERATION
Check that all dampers and catches are operating
correctly and ensure that all flue connections are
thoroughly sealed.
AIR CONTROLS
The Stanley Cara Glass Insert has two independent
air controls.
1. The primary air control lever is the left hand
lever under the fire door. Slide left to close
and right to open.
2. The secondary air control lever is the right
hand lever under the fire door. Slide left to
close and right to open.
Note: When the stove is hot, use the glove provided
to operate the air controls.

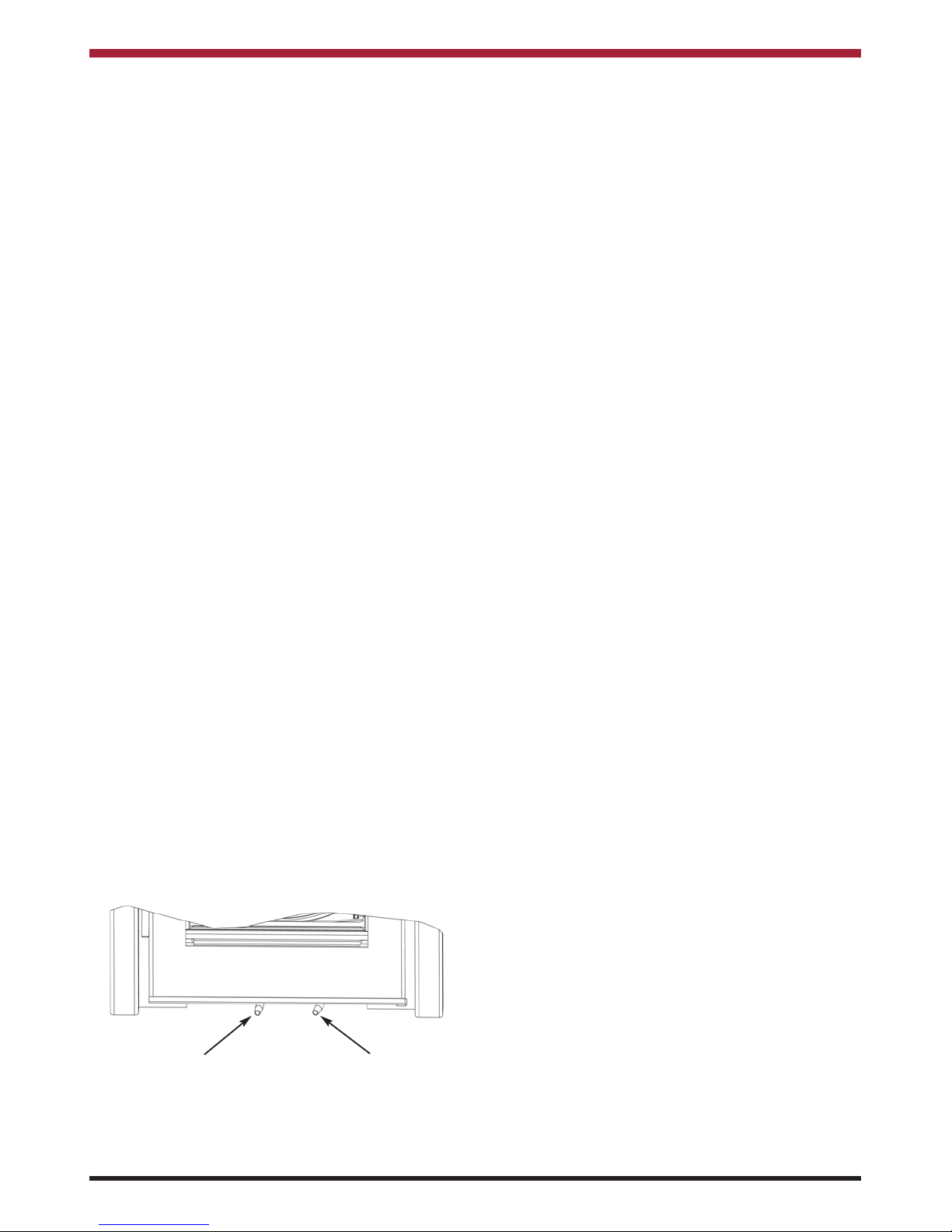

Fig.14
RECOMMENDED FUELS
All fuels should be stored under cover and kept
as dry as possible prior to use.
This appliance has been tested using seasoned
wood logs and manufactured briquetted smokeless
fuel (Ancit) for closed appliances, sized between
20g and 140g. Other fuels are commercially avail-
able and may give similar results. Wood logs up to
340mm long are suitable. All fuels should be stored
under cover and kept as dry as possible prior to use.
Do not use fuels with a Petro-coke ingredient as this
may cause the grate to overheat, causing damage.
Reduced outputs will result when fuels of lower
calorific values are used. Never use gasoline or
gasoline type lantern fuel, kerosene, charcoal lighter
fluid or similar liquids to start or freshen up a fire in
this heater. Keep all such liquid well away from the
heater at all times. Operate the stove only with the
fuelling door closed except for re-fuelling.
This stove has obtained HETAS Ltd approval for
burning natural and manufactured smokeless fuels
only as detailed in recommended fuels below.
HETAS Approval does not cover the use of other
fuels either alone or mixed with the recommended
fuels listed, nor does it cover instructions for the use
of other fuels.
Primary Air Secondary Air

16
Model
Energy
Efficiency
Class
Heat Output
to Room
Heat Output
to Water
Energy
Efficiency
Index
Preferred
Fuel
Nominal
Heat
Output Net Efficiency
Cara Glass
NB SF
Stove A 5 N/A 104.25 Wood 5 78.1
LIGHTING
Before lighting the stove check with the installer that
the installation work and commissioning checks
described previously have been carried out correct-
ly and that the chimney has been swept clean, is
sound and free from any obstructions. As part of the
stoves commissioning and handover the installer
should demonstrate how to operate the stove cor-
rectly.
LIGHTING THE STOVE
1. Open the firebox door and remove all debris
from the grate and ashpan.
2. Open the primary air control fully.
3. Set the secondary air controls to the required
position depending on the fuel being burned i.e.
open when burning wood and closed when
burning coal/ anthracite.
4. Place pieces of paper and kindling on top of the
grate and add a small quantity of fuel. Light the
fire and close the firebox door.
5. When a good fire is established, open the fire
door and load the fuel as required.
6. Adjust the primary and secondary air controls as
required depending on the fuel type being used
and the heat output required (see table below).
Both controls should be adjusted in conjunction
with each other to get the appropriate burn rate
with exact settings on each control depending
on the draught conditions of the chimney to
which the unit is connected.
TECHNICAL DATA
MANUFACTURED SMOKELESS FUEL WOOD
Max Output: (kW)
Nominal Output: (kW)
Room
6.5 kW
5.0 kW
Room
5.0 kW
5.0 kW
Typical refuelling intervals to obtain nom-
inal outputs:
MSF 1 hour WOOD 0.8 hour
Mean Flue Gas Temperature oC288 316
Flue Gas Mass Flue 3.6 4.0
Gross Weight: 100 kgs
Flue Outlet: 125 mm
Efficiency 80.0% 78.1%
Flue Draught: 12 Pa 12 Pa
Log Size: - 310

17
REFUELLING
Before opening the door, open the primary air con-
trol fully as this will help to eliminate any smoke or
fly ash resident in the combustion chamber. Add fuel
to fire, close fire door and re-set the air controls to
the required setting.
SLOW BURNING
To achieve slow burning when burning wood close
the secondary air control and open a few millime-
tres. Slow burning will cause the window glass to
blacken and should not be used for a long period as
it will leave sooty deposits in the flueways. Opening
the secondary air control will increase the heat out-
put and will clear the glass.
To obtain slow burning when burning coal, close the
secondary air control fully and partially open the pri-
mary air control a few millimetres.
DE-ASHING
Never allow the ashpan to over fill as it will cause
damage to the grate. Empty the ashpan before
lighting. Always ensure that ashes have thoroughly
cooled before removing the ashpan. Open the fire
door and remove ashpan using the ashpan tool.
Close the fire door. When the ash is disposed of,
replace the empty ashpan. Do not leave the fire
unattended with the fire door open, even for a
minute.
Fig.15
DISPOSAL OF ASHES
Your stove is provided with a stainless steel ashpan.
This ashpan should be emptied every day.
If ashes are allowed to build to grate level you could
damage the firebars by overheating. We recom-
mend that you remove ashes after you have riddled
the fire when the stove is thoroughly cooled.
Ashes should be placed in a metal or other non-
combustible container with a tight fitting lid. The
closed container of ashes should be placed on a
non-combustible material, pending final disposal. If
ashes are buried in soil, or otherwise dumped they
should be retained in the closed container until they
are thoroughly cooled.
Open the firedoor and remove the ashpan using the
tool provided, see Fig 15. Close the door. When the
ash is disposed of replace the ashpan.
FUEL PRIMARY AIR SECONDARY AIR
Anthracite Adjust for Desired Heat Output Fully Closed
Coal Adjust for Desired Heat Output Fully Closed
Turf/ Wood Maximum Opening of 50% Adjust for Desired Heat Output
WARNING: DO NOT LEAVE BOTH AIR CONTROLS FULLY OPEN AS THIS CAN CAUSE THE STOVE TO
OVERHEAT, DAMAGING THE INTERNAL COMPONENTS.

18
GRATE REMOVAL & CLEANING
Over time fuel deposits, clinker & ash can lodge
between the grate and grate support which can
cause difficulties when moving the grate during de-
ashing. To help reduce this occurrence, it is recom-
mended that the grate is cleaned on a monthly basis
when undertaking the general cleaning of the flue
pathways using the following procedure:

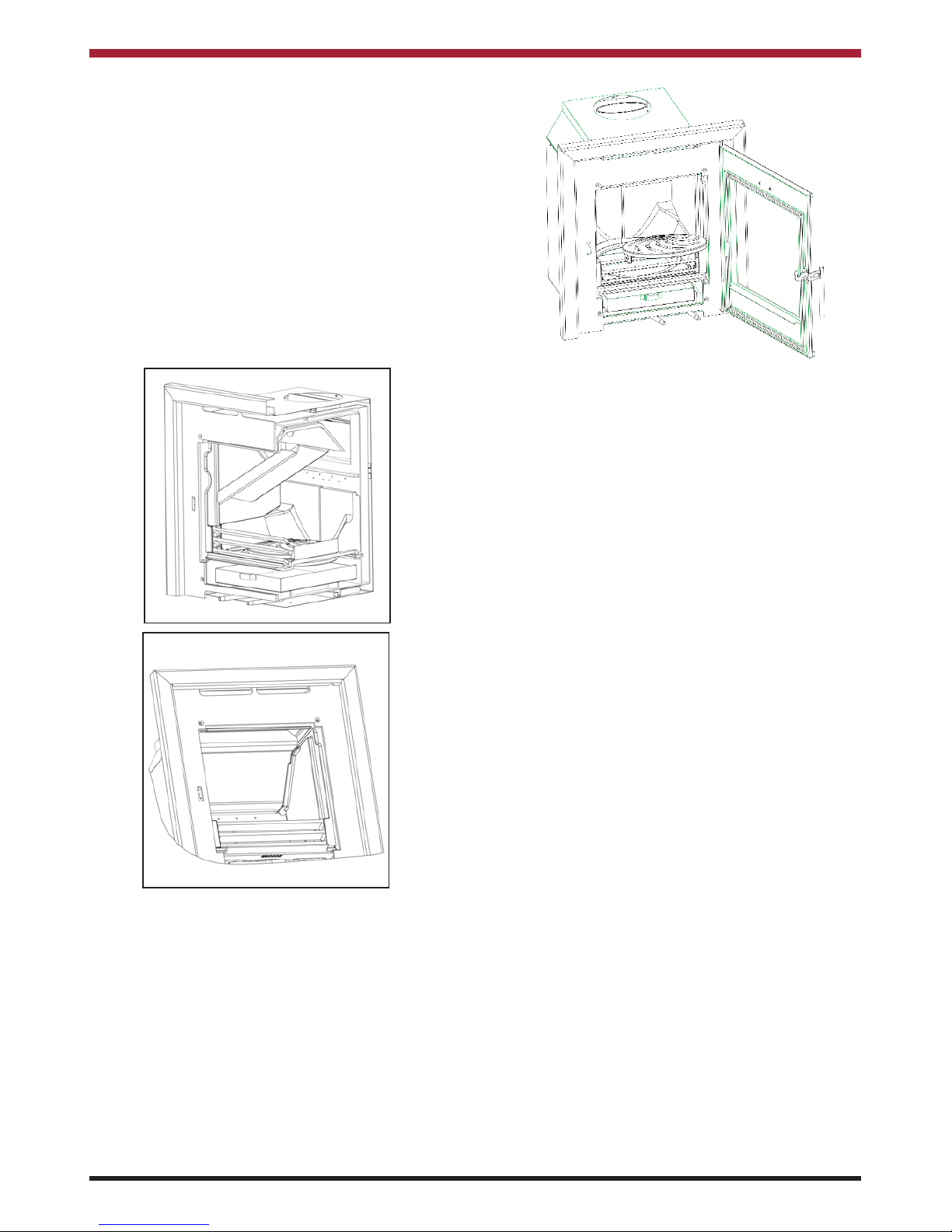

1. The grate is removed by removing the ashpan
and then lifting the grate out of the grate insert
from underneath the grate (See fig. 17)
MONTHLY MAINTENANCE
Cleaning Stove Flue Pathways
It is recommended that the flue pathways in the
stove are cleaned on a monthly basis (or less
depending on the soot build-up created by the fuel
being used) and the chimney cleaned annually. To
access the chimney pathways, use the following
procedure:
1. Remove the firebars and firebricks.
2. Remove the bottom baffle by lifting up the
front of the baffle and pulling the back edge
forward, allowing it to drop into the firebox
area. Turn the baffle at an angle to remove it
through the door opening (see Fig. 16).
CHIMNEY CLEANING
The chimney should be cleaned twice annually or if
the stove is not used for a prolonged period during
the summer period, it should be cleaned prior to
commencement of usage. The chimney can be
cleaned through the stove depending on the flue
configuration and the flue liner should be cleaned in
accordance with manufacturer's instructions. Always
use a brush with plastic bristles that is the correct
size to reach all areas of the flue.
Fig.16
PERIODIC MAINTENANCE
GLASS CLEANING
The stove glass will self-clean when there is suffi-
cient heat generated by the burning fuel i.e. when
the unit is operated at the maximum air settings. If a
build-up of creosote occurs on the glass it may be
due to low draft conditions, poor quality fuel or oper-
ating the stove at the minimum air settings for long
periods of time. The glass should be cleaned when
cool and cleaned with a non-abrasive cloth using
warm soapy water. For stubborn deposits, a grade 0
steel wool can be used whilst tak¡ng care not to
scratch the glass with any coal/ash deposits.
CLEANING THE OUTER CASING
Cleaning should be done when the stove is cold by
removing any dust or dirt using a dry cloth. Do not
use any water on the matt
black/senotherm finish as this will cause it to rust.
Fig.17

19
WARNING NOTE:
Properly installed, operated and maintained this
stove will not emit fumes into the dwelling.
Occasional fumes from the de-ashing and re-
fuelling may occur. However, persistent fume emis-
sion is potentially dangerous and must not be toler-
ated. If fume emission does persist, then the follow-
ing immediate action should be taken:
(a) Open doors and windows to ventilate room.
(b) Let the fire out or eject and safely dispose of
fuel from the stove.
(c) Check for flue or chimney blockage and clean if
required.
(d) Do not attempt to relight the fire until the cause
of the fume emission has been identified and
corrected. If necessary seek expert advice.
The most common cause of fume emission is flue-
way or chimney blockage. For you own safety
these must be kept clean at all times.
FIRE SAFETY
To provide reasonable fire safety, the following
should be given serious consideration.
1. Do not over fire the stove.
2. Over-firing will also damage painted or enamel
finish.
3. Install a smoke detector in the room.
4. A conveniently located class A fire extinguisher to
contend with small fires resulting from burning
embers.
5. A practical evacuation plan.
6. A plan to deal with a chimney fire as follows:-
(a) Notify the fire department.
(b) Prepare occupants for immediate evacua-
tion.
(c) Close all openings into the stove.

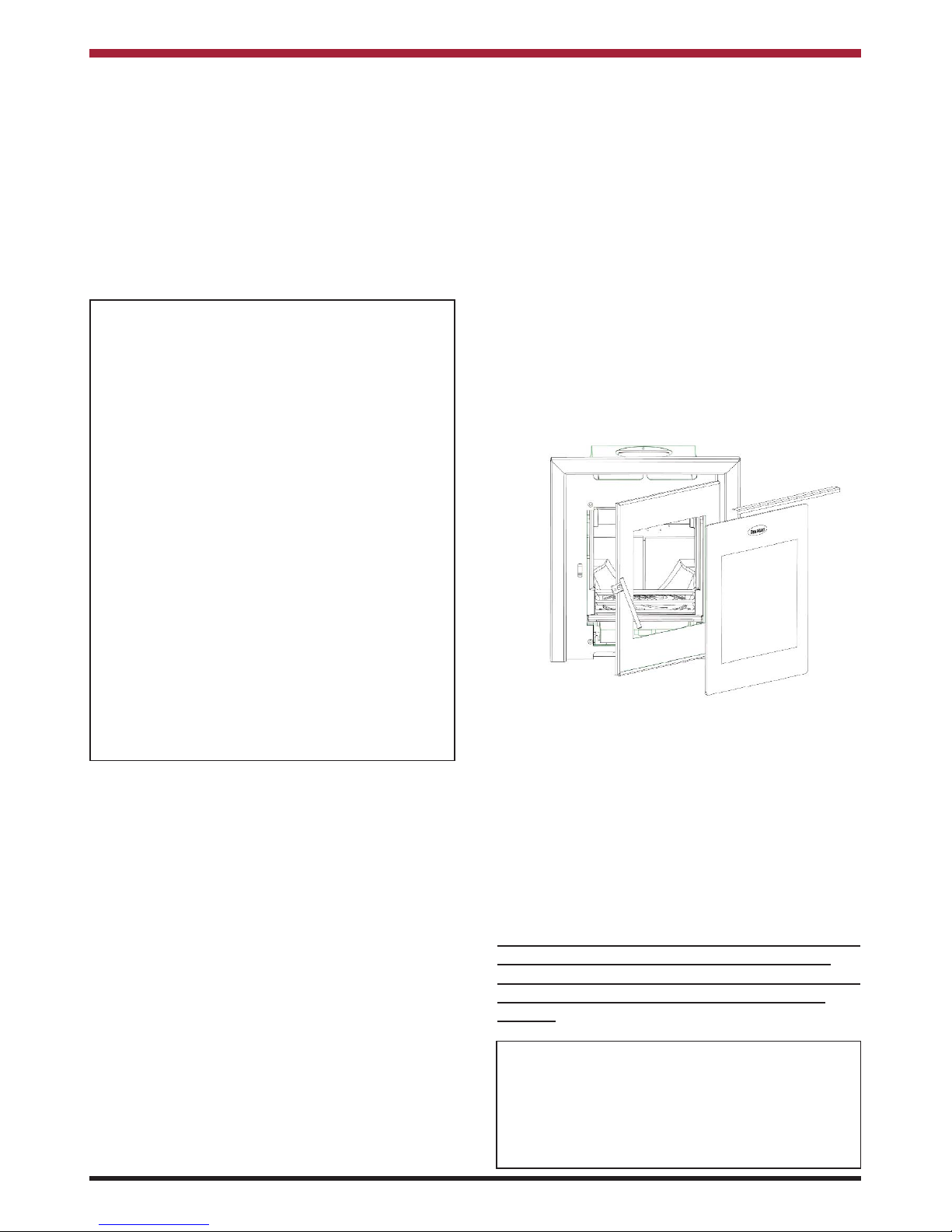

GLASS REPLACEMENT
(a) Open the firedoor fully.
(b) Remove the top glass retaining bracket by
removing the three fixing screws (See fig. 18)
(c) Lift the glass free for the bottom retaining brack-
et.
(d) Before fitting the new glass, check the glass
sealing on the door frame and replace if neces-
sary.
(e) Replace the sealing rope in the door if
necessary
CO ALARM
The fitting of CO Alarms in the same room as the
appliance is a compulsory requirement under cur-
rent Building Regulations. For ROI an additional CO
Alarm must be fitted either inside each bedroom or
within 5 metres of the bedroom door, refer to
Building Regulations Part J. Further guidance on the
installation of a carbon monoxide alarm is available
in BS EN 50292:2002 and from the alarm manufac-
turers instructions.
Provision of an alarm must not be considered a
substitute for either installing the appliance
correctly or ensuring regular servicing and
maintenance of the appliance and chimney
system.
PROLONGED PERIODS OF NON USE
If the stove is to be left unused for a prolonged peri-
od of time then it should be given a thorough clean
to remove ash and unburned fuel residues. To
enable a good flow of air through the appliance to
reduce condensation and subsequent damage,
leave the air controls fully open.
It is important that the flue connection, any appliance
baffles or throat plates and the chimney are swept
prior to lighting up after a prolonged shutdown
period.
(d) While awaiting the fire department watch for
ignition to adjacent combustibles from over-
heated flue pipe or from embers or sparks
from the chimney.
WARNING:-
If the CO Alarm sounds unexpectedly:-
1. Open Doors and windows to ventilate the
room and then leave the premises.
2. Let the fire go out.
Fig.18

20

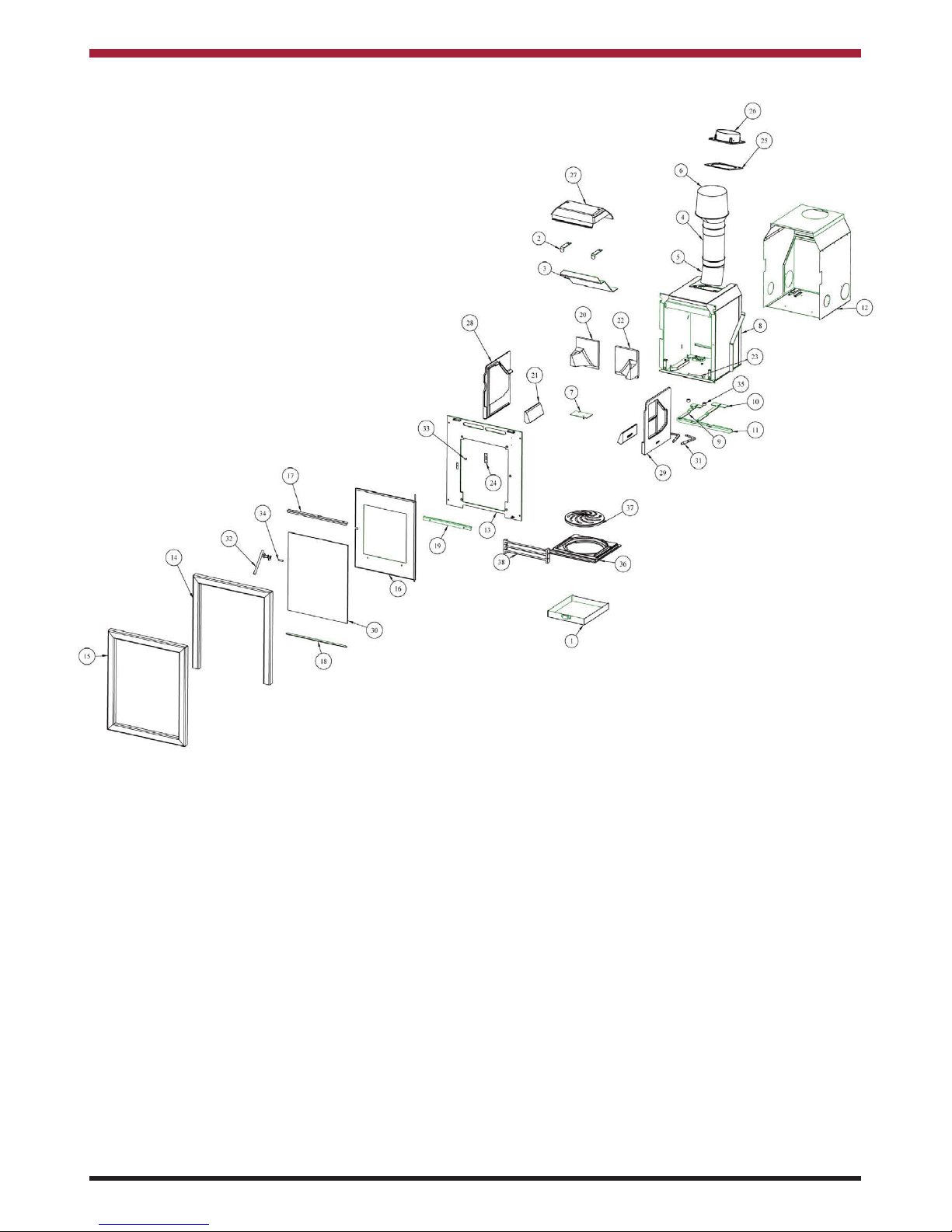

CARA GLASS INSERT STOVE EXPLODED VIEW
1. ASHPAN - F00997AXX
2. BAFFLE SUPPORT - F01084AXX
3. BAFFLE - F01198AXX
4. 5” X 250MM STRAIGHT PIPE - F01199AXX
5. 5” 15 DEGREE BEND - F01200AXX
6. 5” TO 8” OFFSET CLAY ADAPTOR - F01201AXX
7. AIR COVER - F01302AXX
8. COMBUSTION CHAMBER - F01330AXX
9. LH DAMPER PLATE - F01331AXX
10. RH DAMPER PLATE - F01332AXX
11. SEALING BRACKET - F01333AXX
12. CONVECTION CHAMBER - F01334AXX
13. MOUNTING PLATE - F01335AXX
14. DOOR FRAME 3 SIDED - F01336AXX
15. DOOR FRAME 4 SIDED - F01337AXX
16. STEEL DOOR - F01338AXX
17. GLASS RETAINER TOP - F01339AXX
18. GLASS RETAINER BOTTOM - F01340AXX
19. DEFLECTOR PLATE - F01344AXX
20. LH BACK BRICK - H00203AXX
21. SIDE BRICK - H00207AXX
22. RH BACK BRICK - H00208AXX
23. DATA PLAQUE - N00546AXX
24. SERIAL NUMBER PLATE - F00234AXX
25. FLUE GASKET - P00102AXX
26. 5” FLUE - Q00752AXX
27. TOP BAFFLE - Q00761AXX
28. LH SIDE PLATE - Q00790AXX
29. RH SIDE PLATE - Q00791AXX
30. GLASS - T00107AXX
31. OPERATING LEVER - V01075AXX
32. DOOR HANDLE - V01076AXX
33. DOOR CATCH ROLLER - V01078AXX
34. DOOR HANDLE SPACER - V01079AXX
35. BUSH - V01080AXX
36. GRATE SUPPORT - Z00035AXX
37. GRATE - Z00036AXX
38. FIRE FENCE - Z00037AXX
