Stanley K100 User manual

K100 & K300
Wood Pellet toves
INSTALLATION AND OPERATING INSTRUCTIONS
This appliance is hot while in operation and retains its heat for a lon period of time after use.
Children, a ed or infirm persons should be supervised at all times and should not be allowed to touch
the hot workin surfaces while in use or until the appliance has thorou hly cooled.
When usin the stove in situations where children, a ed and/or infirm persons are present a fire uard
must be used to prevent accidental contact with the stove. The fire uard should be manufactured in
accordance with BS 8423:2002.

TABLE OF CONTENT
PAGE NO.
1. Setting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Stanley Pellet Stove Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Important Operation/ Maintenance Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..6
6. Contents -Unpacking- Installation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..8
7 Chimney installation- Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8. Clearance to Combustibles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..10
9. Ventilation & Combustion Air Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
10. uel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
11. Using the pellet stove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
12. Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
13. Control and display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
14 Settings Menu- Language- Time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
15. Setiing Remote control & Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
16. Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
17. Auger Calibration - an Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
18. Power Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
19. Thermostats Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
20. Chrono menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
21. Info Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
22. ault inding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
23. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
24. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
25. CO Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
26. Side Panel Assembly Insturctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
27. Resevoir / Hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
28. DailyMaintenance/ Ash removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
29. Glass Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
30. Weekly Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
31. Additional Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
32. Mainteneance plan and log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
33 Service / Cleaning Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
34. Exploded views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
35. Spare parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
36. Electrical diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
37. Ignition logic flow diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
38. shut down logic flow diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

TANLEY PELLET TOVE WARRANTY
CONDITION OF WARRANTY
Your Stanley pellet stove is guaranteed against any part that fails (under normal operating conditions) as detailed in the
following table with timelines specified from the date of installation of the appliance. If the unit is not installed within six
months of date of purchase, the warranty will commence six months from the date of purchase.
Warranty Period Parts Covered (Parts & Labour unless tated)
Up to 1 Year • Refractory materials (supply only)
• Rope seals, glass seals and cement seals.
• Surface inish on Seno models.
• Grates and fire bars.
• Ceramic glass is covered for Thermal breakage (supply only).
• Rust (if reported before installation)
• Aesthetic Damage (provided reported on date of receipt)
• Electrical components under normal operation.
Up to 2 Years • All external casings & enamel finishes (excluding impact damage or
damage caused by overfiring). Pictures of damage must be submitted to
WS Service Department.
All warranty claims must be reported to the Waterford Stanley Service Department and must be submitted with the prod-
uct serial number (located on the data plaque at the rear of the product), date of purchase, proof of purchase (if request-
ed) and details of the specific nature of the problem.
The warranty is given only to the original consumer/purchaser only and is non- transferable. The appliance must be
installed by a suitable qualified person and installed as per the requirements of the manual. ailure to comply with the
Installation requirements or Building Regulations will void your warranty. Waterford Stanley reserve the right to replace any
part due to manufacturing defect that fails within the warranty period under the terms of the warranty. The unit must be
used for normal domestic purposes only and in accordance with manufacturer's operation instructions.
LIMIT OF LIABILITY
The warranty does not cover:
* Special, incidental or consequential damages, injury to persons or Property, or any other consequential loss.
* Any issue caused by negligence, misuse, abuse or circumstances beyond Waterford Stanley’s control.
* Any issue with wear and tear, modification, alteration, or servicing by anyone other than an authorized service
engineer.
* Installation and operational related problems such as draught related issues external to the stove, inadequate
venting or ventilation, excessive flue offsets, negative air pressure caused by insufficient burning of improper
fuel.
* Damage caused to the unit while in transit.
* Discolouration due to over firing, damage caused by impact, damage to baffles caused by
over firing and fading of surface finish on casting.
* Stress fractures on bricks.
* Rust on cast iron parts unless reported prior to unit being installed.
* Aesthetic damage, rust & missing parts on units purchased off display.
* Electrical components where voltage variations are in excess of 10% of nominal 230V
Note: Adequate clearance must be maintained around the appliance to ensure the ease of part removal in the possible
event of their damage/failure. Waterford Stanley are not responsible for any costs incurred in the removal of items installed
in the vicinity of the appliance that have to be moved to facilitate a part replacement.

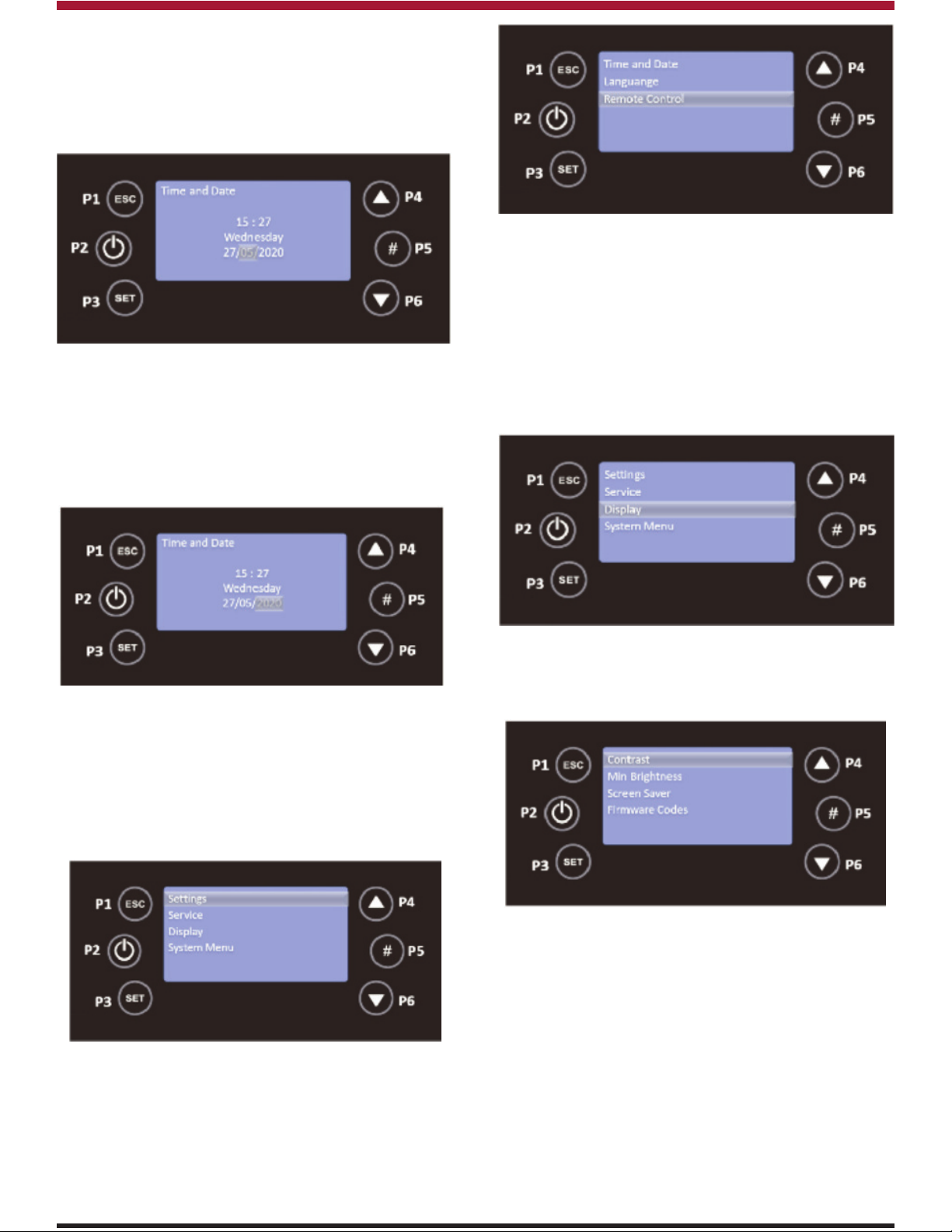

Setting the Language for the first time.
Press and hold SET for 3 seconds to enter the settings.
Press SET again to enter submenu.
Press DOWN arrow once to scroll down to the middle option.
Press SET to select
Use Up and Down arrowsl todesired language.
Press SET to confirm selection.

IMPORTANT OPERATION / MAINTENANCE NOTE
N.B.: The information in this manual is given as guidance, all local, national or EC regulations must also be
complied with.
•Before using this appliance, please read all parts of this instruction manual carefully, as the information it
contains, is essential in order to use the appliance correctly,
Make sure you fully read and understand the instructions contained in this manual before using the Pellet Stove
as a biomass heating unit.
Do not touch the stove especially the control panel with wet or damp hands.
Do not burn fuel with a high moisture content, ie damp pellets.
Do not tamper with the safety devices or adjustment features without prior authorization from Waterford Stanley
During the first firings it is recommended to ventilate the room as an unpleasant (not toxic) odour may be emit-
ted as the paint is completing curement.
Empty the ash container and clean the combustion chamber after burning of every 30kg of pellets.
Check flueways before lighting especially after a shut down period.
Allow adequate air ventilation to ensure plenty of air for combustion at all times.
Never turn off an operating pellet stove unit by disconnecting the electric plug. Disconnecting the plug will pre-
vent the extraction of combustion fumes;
The only fuel that should be used for operation of the pellet stove are pellets certified by EN 14961-2 grade A1
with a diameter of 6 mm and a length that can range from 10 to 30 mm.
Keep all combustible materials a safe distance away from unit, please see section for clearances
to combustibles.
Never use aerosol spray near the appliance when it is in operation.
or safety reasons never leave children or the elderly unaccompanied while stove is in use. Use a
fire guard.
This appliance should be regularly maintained by a competent service engineer.
Please keep the packing materials away from children;
The manufacturer will not be responsible for any modifications made to this appliance by or on behalf of the
user. The manufacturer will not be responsible for any eventual damage or loss as a result of unauthorised
modifications. In the event that parts need to be replaced, only use parts recommended by Waterford
Stanley.

Flue System
1. Minimum lue Height of 2 metres.
2. Tee piece fitted at base of flue.
3. Appliance should be connected using an 80mm connecting flue pipe, increasing to 125mm
within 1.5 metres of the appliance
4. Horizontal run of connecting pipe must not exceed 600mm.
5. All flue pipework passing through walls must be sleeved & adequately insulated in line
with current Building Regulations.
6. An appliance connected to a chimney must be lined with an 125mm flue liner.
7. The chimney/ flue termination must be located in accordance with building regulations part J.
8. The chimney serving this appliance should not serve any other appliance.
9. Access should be provided to the chimney serving the appliance to allow for cleaning.
10. It is a requirement by Building Regulations to have a carbon monoxide alarm
fitted to any room with a solid fuel appliance.
11. A suitable cowl must be fitted at the flue termination to prevent excessive wind effects and
rain entering the flue.
Location
11. Clearance to combustible materials must be adhered to as described in the Clearance
to Combustible section.
12. The stove must be installed on a floor protector that covers the area under the stove
and extends 9” to the front and 6” to the sides.
13. Clearance must be maintained to allow for maintenance and part replacement.
Ventilation & Combustion Air Requirements
14. The room in which the appliance is located should have an air vent of adequate
size to support correct combustion (see Ventilation & Combustion Air Requirement
Section for specific details).
15. The stove must not be installed in the same room as an extractor fan.
16. External air connection maximum length 600mm of straight pipe only.
INSTALLATION CHECKLIST

Technical Specifications
Parameters K100 K300 Units
Height 910 965 mm
Width 558 542 mm
Depth 555 565 mm
Weight 82 101 kg
Diameter of the fume discharge pipe 80 80 mm
Hopper capacity 15 15 kg
Maximum heating capacity 180 180 m³
Maximum heat output 8 8 kW
Minimum heat output 3 3 kW
Minimum fuel consumption 1,1 1,1 kg / h
Maximum fuel consumption 1,9 1,9 kg / h
Rated electrical current 106 106 W
Electric power at start-up (<10 min.) 362 362 W
Rated voltage 230 230 V
Nominal frequency 50 50 Hz
Efficiency at nominal output 91,3 91,3 %
Efficiency at reduced output 96 96 %
Max. flue gas temperature 189 189 °C
Min. flue gas temperature 143,7 143,7 ºC
CO emissions at rated thermal power 0,036 0,036 %
CO emissions at reduced thermal power 0,03 0,03 %
Combustion gas mass flow 7 7 g/s
lue draught 12 12 Pa
Test results obtained from independent test laboratory using fuel of calorific value 4.9 kWh/kg.

K300
K100
Models with curved side panels
W = 560
Models with flat side panels
W = 495

Contents
The package of this unit contains:
ree Standing Pellet Stove K100, or K300
Instruction manual
Power cable;
Infrared remote control;
Cleaning bar handle;
Covers according to selected model.
Unpacking the Unit
To unpack the equipment, you must first
remove the retractable bag that surrounds the
cardboard box. Then remove the box, lifting it
up, and remove the bag that surrounds the
stove and the packaging. To complete the pro-
cedure, unscrew the four brackets that secure
the unit to the wood pallet ( igure 1).
ig. 1
Remove the instruction manual from the
package, it must be passed to the home-
owner following installation.
Before installing the unit, please follow
these steps:
Check immediately after receipt if the deliv-
ered product is complete and in good state.
Any defects should be noted before
installing the appliance.
The unit is equipped with four feet at the
base, adjustable in height, allowing for the
easy regulation when installing the unit on a
non-levelled surface.
Installation Requirements
Installing the Pellet Stove
1 Location, Suitable area to be heated.
loor support / Hearth.
2 lue connection capable of producing
12pa flue draught.
3 Electrical requirements
4 Clearances
a) To combustibles
b) or servicing/ maintenance
5 Adequate air supply for combustion/
ventilation
Location
The floor should be capable of supporting the
weight of the product and hearth.
A solid non combustible hearth of minimum
thickness 12 mm, The hearth should extend
150 to the side and 225mm to the front
The appliance should be installed centrally in
the area to be heated.
ig. 2

Important: The appliance MUST be earthed.
Before installing the appliance, the power supply
system must be checked to ensure it has an effec-
tive earth circuit.
Important: the power supply cable must be of suf-
ficient cross-section for the power requirement of
the appliance.
The supply voltage required for the stove is 220-
240 V at 50 Hz. Voltage variations greater than
10% of the rated value may cause irregular opera-
tion, or damage to the electrical system. The appli-
ance must be positioned so that the domestic
power supply plug remains accessible.
If the power supply cable becomes damaged,
switch off the power and have it repaired by an
authorised Stanley service agent.
lue/ chimney installation Electrical connection
The appliance must be connected using a connect-
ing pipe of diameter 80mm. . A Tee piece must be
installed at the base of the chimney to allow for
cleaning/ inspection. The main section of the flue
should be installed using a diameter 125mm flue
pipe which must begin within 1.5 metres of the appli-
ance flue outlet
Single wall flue is permitted in the area to be heated,
outside of that area the flue must be insulated.
If the flue is to be routed though an existing
chimney it can be done using a flexible stainless
steel pipe with a register plate at the base of the
chimney , the area in the chimney external to the
flue liner must be back filled with insulation.
Where the flue pipe is installed external to
the dwelling, it must use twin wall insulated stainless
steel flue. The flue must have a vertical length of at
least 2 metres. A horizontal length is not recom-
mended other than at the rear of the appliance, the
horizontal run should be no more than 600mm, on
all other sections of flue it is recommended that they
make an angle to the vertical of no more than 45
degrees.
The flue termination point/outlet must be above roof
level and in accordance with building regulations
part J.
IMPORTANT: All sections of the flue pipe must be
accessible for inspection, and allow for internal
cleaning, removal or replacement.
ig. 3

Clearances to combustibles
A clearance to combustibles of 100cm must be
maintained above the stove see ig 5
A clearance to combustible of 50cm must be
maintained to either side of the stove , 30 cm
to the rear and 150 cm to the front of the stove
see ig 10
In the event that the product is installed in a
non combustible recess, clearances for ser-
vicing,must be provided, 200mm to the rear
and 300mm to the sides.
VENTILATION/COMBU TION AIR
The process of combustion requires oxygen, and
therefore air. When in operation, the stove draws air
through the 50mm diameter intake pipe at the rear
of the appliance. The external air can be connected
through a straight pipe of maximum length 60cm.
Otherwise the appliance will draw air from the room
in which case provision must be made for the air
requirement providing an air vent in the room. Poor
combustion may result if the room is insufficiently
ventilated.
A room containing an appliance (other than a room
sealed appliance) should have a permanent ventila-
tion opening of
free area of at least:
6,500 mm² where air
permeability is greater than 5.0 m³/(hr.m2),
8,150 mm² where air
permeability is less than 5.0 m³/(hr.m2).
Where a flue draught stabilizer is used the total free
area should be
increased by 300 mm2
for each kW of rated output.
If the stove is located in a room containing another
air using appliance, it is essential to provide ventila-
tion equivalent to the sum of the air requirement for
all appliances. the stove should not be installed in
the same room as an extractor fan.
FUEL
The appliance is suitable for use with wood pellets
certified to EN 14961-2 grade A1 with a diameter of
6 mm and a length that can range from 10 to 30
mm.
As fuel, pellets are completely environmentally
friendly, as they are made entirely of natural wood,
without glue or other chemical compounds. Pellets
have a high calorific value (4.7 to 5.3 kW/kg), and
low moisture content.
IMPORTANT: Pellets must be stored in a dry place.
Use only good quality pellets, without sawdust.
IMPORTANT NOTICE: The small quantities of
sawdust normally present at the bottom of the bags
should not be emptied into the tank, but should be
held inside the bag while pouring the pellets care-
fully so that the sawdust remains inside.
If sawdust accumulates in the tank, it should be
removed periodically with a vacuum cleaner (with
the door open and disconnecting the power plug
from the electricity supply), to prevent it entering the
loading system and causing serious malfunctions.
ig. 6
ig. 5

Using the Pellet Stove
Before starting up the unit, please check the
following:
Ensure the unit is properly connected to the
power mains using the 230V AC power cable.
Check if the pellet reservoir is supplied with
pellets. Inside the pellet reservoir is a safety
grid to prevent users from reaching the worm
screw.
The combustion chamber of the stove and the
door are built in steel sheet painted with high
temperature paint, releasing fumes during the
first ignition due to the cure of the paint.
Avoid touching the equipment during the first
burn so as not to leave permanent marks on
the paint because it’s going through a plastic
phase during its curing process.
The stove has a probe for measuring the room
temperature. This probe is attached to the grid
on the rear panel or a good reading of the
room temperature, avoid the contact between
the end of the probe and the unit surfaces. You
may also attach the probe to the wall beside
the unit.
Remote Control
The remote control allows you to switch the
stove on and off and change the power
level of the appliance (the stove cannot be in
automatic mode).
It may be necessary to pair the remote control:
1- Press and hold the 2 buttons (combinations:
1-2, 1-3, 1-4, 2-3, 2-4, 3-4);
2- The led starts flashing quickly;
3- After 10s, the led remains on;
4- After the led is steady stop pressing the but-
tons in less than 5s;
Button 1
Button 4
Button 2
Button 3
36
5- If you do not stop pressing the buttons, the
led turns off and the serial number is
not changed (protection against accidental
pressing) and the control is no longer paired
with the stove.
ig. 7
ig. 8
ig. 9
This remote control works with two CR2016 3V
batteries, similar to the one in the
picture below.
Note: it is necessary to activate control using
the remote control on the stove control panel.

When first connected the display indicates the "O " status of the stove,
it can also indicate the chrono activation, system errors, selected combustion power,
selected ventilation power, current room temperature and selected room temperature
set-point.
Control and Display Panel
While in the Home Page by pressing the key:
“P1” is used to exit the menu/submenu;
"P2" is used to switch on the equipment, or, switch off the equipment. The
same button allows the errors reset, by pressing 3 seconds continuously, it also
allows the activation of Chrono in the corresponding submenu;
"P3" is used to access the user menu 1,
"P3" when held for 3 seconds is used to access the user menu 2,
"P4" is used to enter the Combustion Power menu;
"P5" is used to enter the Information menu and also activate a Chrono time slot;
"P6" is used to enter the Room Thermostat menu;
"P3" + "P5" for 3 seconds it is possible to access the secondary information menu
present in the service menu where it is possible to check a set of variables.
Warning
THE STOVE MUST ALWAYS BE DEACTIVATED IN THE SAME WAY IT WAS ACTI-
VATED. THE EQUIPMENT
MUST NEVER BE UNPLUGGED DURING THE ACTIVATION PROCESS.

Settings Menu
By pressing the P3 key for 3 seconds, you will
display the
Settings,
Service,
Display
System Menu
Language
Press P3 for 3 seconds to enter the settings.
Press P3 again to enter submenu.
Press P6 to scroll down to language.
Press P3 to select language.
Use P4 & P6 to slect desired language.
Press P3 to confirm selection.
To exit the Language menu, press the P1 key.
Time and Date
Pressing P3 key for 3 seconds, when in main
screen you can access the Settings menu,
Press P3 again to enter this menu.
Use the P3 key to select Date and Time.
In the Date and Time menu, select Time, with
the P4 and P6 keys, and press the P3
key, the time will appear in editable mode,
flashing, with P4 and P6 select the correct
time and press P3 to validate.
The same must be done for Minutes, with P6
select Minutes and press P3, the minutes
will appear in editable mode, flashing, with P4
and P6 select the correct minutes and
press P3 to validate.
In the same menu, select Day with the P4 and
P6 keys and press P3, the day will
appear in editable mode, flashing, with P4 and
P6 select the correct day and press P3
to validate..

To edit the Month, you must use the P4 and P6
keys to select this information and then
P3, the month will appear in editable mode,
with P4 and P6 select the desired month
and then press P3 again to validate.
The Year follows the same procedure, press
the P4 and P6 keys to move to the Year,
use the P3 key to edit this field, the year will
appear in editable mode. With P4 and P6
select the desired year and press P3 to vali-
date.
The day of the week will change automatically
based in the date selected.
Remote Control
Pressing P3 key for 3 seconds, when in main
screen you can access the Settings menu,
Press P3 again to enter this menu.
Use key P6 to select the submenu Remote
Control and to validate the entry in this
submenu the key P3.
With the P4 and P6 keys you can activate or
deactivate the Remote Control, pressing
P3 to validate the option.
Display Menu
Pressing P3 key for 3 seconds, when in main
screen you can access the Settings menu,
Use the P6 key to scroll down to “Display”
Press P3 again to enter this menu.
In this menu there are the functions Contrast,
Min Brightness, Screen Saver and
irmware Codes.
Using P3 to select and P4 & P6 to scroll
Contrast can be adjusted between 0-30
Brightness can be adjusted between 0-20.

Screen Saver
In the Display menu with P4 and P6 select the
Screen Saver function by pressing on
the P3 key. In this function you can activate or
deactivate the screen lock. To return to
the Display menu, press P1.
irmware Codes
In the Display menu with P4 and P6 select the
irmware codes function by pressing on
the P3 key. This function, for reference only,
allows you to see the communication
address of the control board, type of control
board and firmware version.
To return to the Display menu, press P1.
Pressing this key twice will display the
Settings, Display, Service and System menus.
Service Menu
Pressing P3 key for 3 seconds, when in main
screen you can access the Settings menu,
Use the P6 key to scroll down to “Display”
Press P3 again to enter this menu.
The following functions are available in this
menu.
Counters
Select Counters, using the P3 key, to validate
the entry in this submenu. This function
allows consulting the working hours, the num-
ber of ignitions and the number of failed
ignitions.
Using the P4 and P6 keys, select the submenu
you wish to consult and press P3 to
validate. To return to the Service menu, press
P1.

Error List
In the Service menu with P4 and P6 select the
submenu Error list, pressing the P3 key
to validate.
This submenu shows the last 10 errors that
occurred, on each line the error code and
the date and time when it occurred are dis-
played. To return to the Service menu press
P1.
Secondary Information
In the Service menu, select the Secondary
Information submenu with P4 and P6 and
then press the P3 key.
In this function you can check the product
code, the status of the fan, the auger, the
heating fan and the status of the outputs.
It is possible to query the exhaust temperature,
ambient temperature and the status of
the inputs. Whether the input status is open (0)
or closed (1).
Cleaning Reset
In the Service menu with P4 and P6 select the
Cleaning Reset function by pressing on
the P3 key..
In this function you can switch this function on
or off. To return to the Service menu,
press P1.

Auger Calibration
In the Service menu with P4 and P6 select the
Auger Calibration submenu, pressing the
P3 key to validate.
In this submenu with the keys P4 and P6 you
can adjust the quantity of pellet to be
fed, between -7 (-14%) and 7 (+14%). To
return to the Service menu, press P1.
an Calibration
In the Service menu with P4 and P6 select the
submenu an Calibration by pressing on
the P3 key.
In this submenu with the keys P4 and P6 you
can adjust the fan speed, between -7 (-
21%) and 7 (+21%). To return to the Service
menu, press P1.
Manual Load
Using P4 and P6 select the Manual Load sub-
menu, pressing theP3 key to validate.
This function activates the pellet manual load-
ing.
Pressing the P1 key twice will take you back to
the main menus, Settings, Display,
Service and System Menu.
Note
SYSTEM MENU IS AN EXCLUSIVE ACCESS
MENU OR THE TECHNICAL SERVICE AND
REQUIRES APASSWORD.

Power Menu
Press the P3 key to access the following
menus, Power, Thermostats and Chrono. Use
the P4 and P6 keys to select the required
menu and then press P3 to confirm the
choice, in this case the Power menu.
Combustion
Select Combustion with the P3 key, to validate
the entry in this submenu.( This controls the
feed rate of pellets to the stove)
With the P4 and P6 keys you can modify the
system's combustion power. It can be set
in automatic or manual mode: in automatic, the
system will choose the combustion
power; in tmanual, the user selects the power
from 0 to 5.
Press the P3 key to save your changes and
use P1 to go back.
Heating
With P4 and P6 you must select Heating and
then press P3 to validate access to this
submenu.( This controls the speed of the
heationg circulation fan)
With the P4 and P6 keys, you can modify the
system's heating fan spped This
submenu allows the system's heating power to
be modified. It can be set in automatic
or manual mode: in the second case, the user
selects the power from 0 to 5.
Press the P3 key to save your changes and
use P1 to go back.
Canalization (K500 only)
With P4 and P6 you must select Canalization
and then press P3 to validate access to
this submenu.)

This submenu allows you to modify the power
value of the canalization fan. It is only
displayed if you select a heating system that
includes a second heating fan. With the
P4 and P6 keys it can be set in automatic or
manual mode: in the second case, the
user selects the power from 0 to 5.
This submenu allows you to modify the power
value of the canalization fan. It is only
displayed if you select a heating system that
includes a second heating fan. With the
P4 and P6 keys it can be set in automatic or
manual mode: in the second case, the
user selects the power from 0 to 5.
Thermostats Menu
Press key P3 to access the Thermostats
menu, using key P6 and then press on P3 to
validate the choice of this menu.
In this menu, select the submenu Room, using
the P3 key.
You can set the comfort target temperature
between 10 and 40ºC, with the P4 and P6
keys.
Press the P3 key to save your changes and
use P1 to go back.
Chrono Menu
The unit has a time scheduler that allows the
stove to switch on and off automatically.
It can be daily (you can select the day of the
week you want and set up to 3 different
times for the respective day), weekly (you can
select up to 3 times during a day, the
same program will be applied every day of the
week) and weekend (you can select 3
times during the day for weekdays and week-
ends).
In the main screen, press the P3 key to access
the menus, Power, Thermostats and
Chrono. Use the P4 and P6 keys to select the
Chrono menu and then press P3 to
confirm the choice.

You must then enter the Programme submenu,
using the P6 key to select and P3 to
validate the choice.
Then use the P4 and P6 keys to select Daily,
Weekly or Weekend. You must press P3 to
validate your choice.
or the Daily programme, you must use the P4
and P6 keys to select the day of the
week, in this case the programme for Monday,
and then press P3 to validate your
choice.
You must press P3 and this option will be in
editable mode, flashing. Press P4 and P6 to
select the desired time and then use the P3
key to save. Repeat this process for the
time at which the unit is to shut down, using P4
and P6. inally, activate the interval by
pressing P5, and a check mark will appear to
the right of the interval.
In the image above the system will turn on at
20:30 on Monday and will turn off at
06:30 on Tuesday. When programs are devel-
oped around midnight with the intention of
starting operation the day before and finishing
operation the next day it will be
relevant:
- Set the O time of the day before at 23:59;
- Set the ON time for the next day at 00:00.
or the Weekly programme, the programmes
are the same for every day of the week,
from Monday to Sunday. Use the P4 and P6
buttons to select weekly from the
Programme submenu and press P3 to confirm
the choice.
